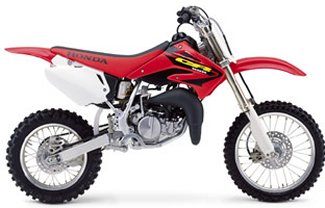

2003 Honda CR85R
Engine |
|
| Engine Type | 84.7cc liquid-cooled single-cylinder two-stroke |
| Spark plug | BR10EG |
| Plug gap | .024 |
| Bore and Stroke | 47.5 x 47.8 mm |
| Compression Ratio | 8.4:1 |
| Fuel Delivery | 28mm piston-valve |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | #420 chain; 15T/50T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37mm inverted Showa fork with fully adjustale compression and rebound damping, 274mm (10.8 in.) travel |
| Rear Suspension | PPro-Link Showa single-shock with spring-preload adjustability and fully adjustable compression rebound damping; 271mm (10.7 in.) travel |
| Front Brakes | Single disc |
| Rear Brakes | Single disc |
DIMENSION |
|
| Wheelbase | 1247mm (49.1 in.) |
| Seat Height | 833mm (32.8 in.) |
| Ground Clearance | 320mm (12.6 in.) |
| Dry Weight | 5.3 kg (144 lb) |
| Fuel Capacity | 5.3 liters |
OTHER |
|
| Colors | Red |
| Model ID | CR85R |

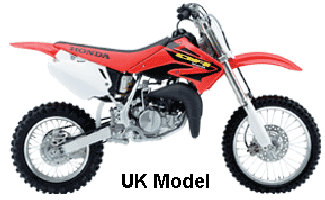

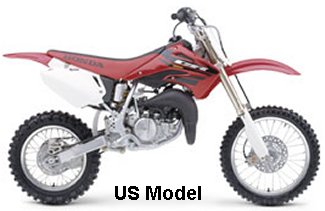

2004 CR85R
Engine |
|
| Engine Type | 84.7cc liquid-cooled single-cylinder two-stroke |
| Spark plug | BR10EG |
| Plug gap | .024 |
| Bore and Stroke | 47.5 x 47.8 mm |
| Compression Ratio | 8.4:1 |
| Fuel Delivery | 28mm piston-valve |
| Ignition | CD with electronic advance |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | #420 chain; 15T/50T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37mm inverted Showa fork with fully adjustale compression and rebound damping, 274mm (10.8 in.) travel |
| Rear Suspension | Pro-Link fully adjustable Showa single-shock; 10.7-inch travel |
| Front Brakes | Single disc |
| Rear Brakes | Single disc |
| Front Tire | 70/100-17 |
| Rear Tire | 90/100-14 |
DIMENSION |
|
| Rake | 26.43 degrees |
| Trail | 75.0mm (2.95 inches) |
| Wheelbase | 49.1 inches |
| Seat Height | 32.8 inches |
| Ground Clearance | 12.6 inches |
| Dry Weight | 144.0 pounds |
| Fuel Capacity | 1.4 gallons |
OTHER |
|
| Colors | Red |
| Model ID | CR85R |

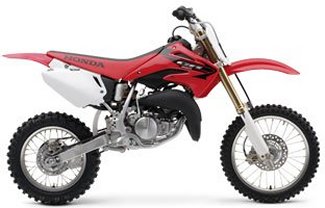

2005 CR85R
Engine |
|
| Engine Type | 84.7cc liquid-cooled single-cylinder two-stroke |
| Spark plug | BR10EG |
| Plug gap | .024 |
| Bore and Stroke | 47.5 x 47.8 mm |
| Compression Ratio | 8.4:1 |
| Fuel Delivery | 28mm piston-valve |
| Ignition | CD with electronic advance |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | #420 chain; 15T/50T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37mm inverted Showa fork with fully adjustale compression and rebound damping, 274mm (10.8 in.) travel |
| Rear Suspension | Pro-Link fully adjustable Showa single-shock; 10.7-inch travel |
| Front Brakes | Single disc |
| Rear Brakes | Single disc |
| Front Tire | 70/100-17 |
| Rear Tire | 90/100-14 |
DIMENSION |
|
| Rake | 26.51 degrees |
| Trail | 76.7mm (3.02 inches) |
| Wheelbase | 49.1 inches |
| Seat Height | 32.8 inches |
| Ground Clearance | 12.2 inches |
| Dry Weight | 144.0 pounds |
| Fuel Capacity | 1.35 gallons |
OTHER |
|
| Colors | Red |
| Model ID | CR85R |

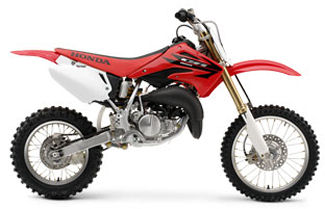

2006 CR85r
Engine |
|
| Engine Type | 84.7cc liquid-cooled single-cylinder two-stroke |
| Spark plug | BR10EG |
| Plug gap | .024 |
| Bore and Stroke | 47.5 x 47.8 mm |
| Compression Ratio | 8.4:1 |
| Fuel Delivery | 28mm piston-valve |
| Ignition | CD with electronic advance |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | #420 chain; 15T/50T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37mm inverted Showa fork with fully adjustale compression and rebound damping, 274mm (10.8 in.) travel |
| Rear Suspension | Pro-Link fully adjustable Showa single-shock; 10.7-inch travel |
| Front Brakes | Single disc |
| Rear Brakes | Single disc |
| Front Tire | 70/100-17 |
| Rear Tire | 90/100-14 |
DIMENSION |
|
| Rake | 26.51 degrees |
| Trail | 76.7mm (3.02 inches) |
| Wheelbase | 49.1 inches |
| Seat Height | 32.4 inches |
| Ground Clearance | 12.2 inches |
| Dry Weight | 144.0 pounds |
| Fuel Capacity | 1.35 gallons |
OTHER |
|
| Colors | Red |
| Model ID | CR85R |

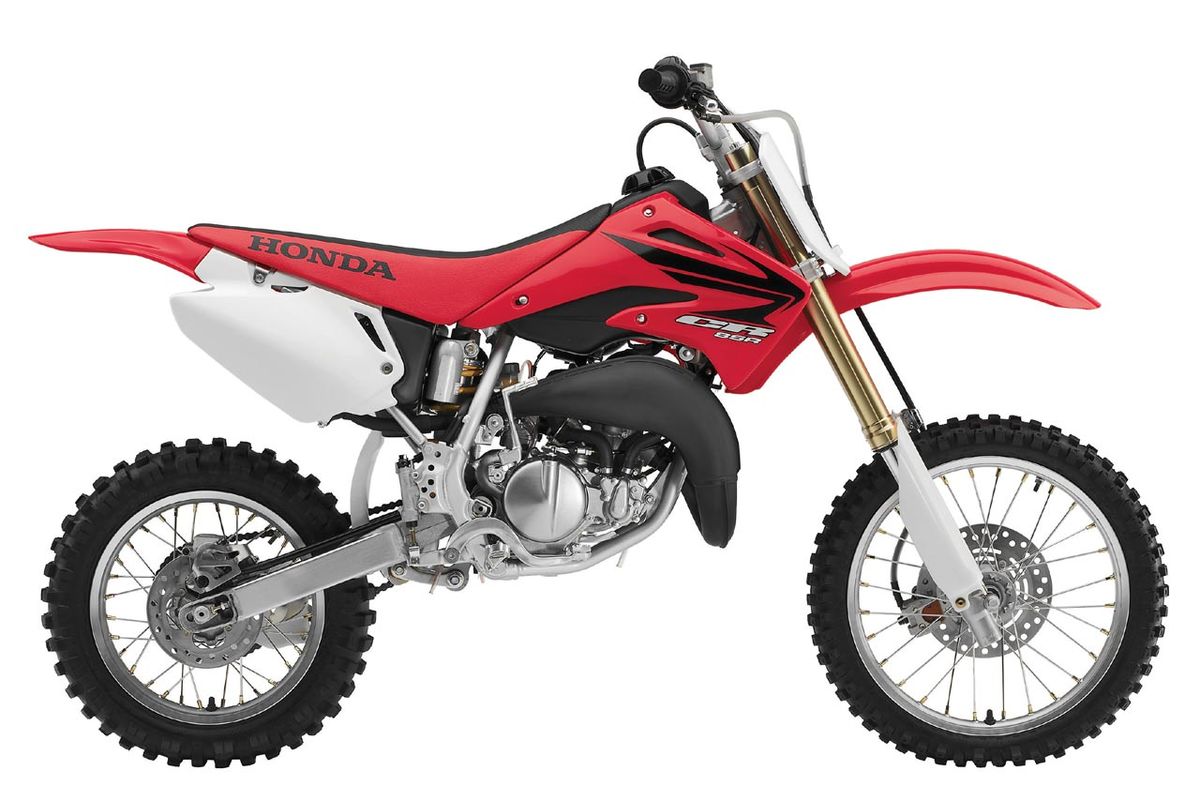

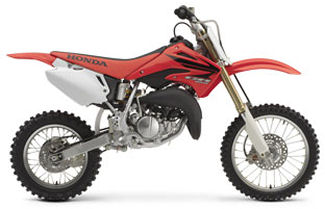

2007 CR85R
OVERVIEW
- Overview: Are you serious about winning? Then start racing on the bike that utterly dominates the competition: the CR85R. Built with all the attention to detail and advanced engineering as its bigger CR/CRF siblings, no other bike at the gate even compares.
Engine |
|
| Engine Type | 84.7cc liquid-cooled single-cylinder two-stroke |
| Spark plug | BR10EG |
| Plug gap | .024 |
| Bore and Stroke | 47.5 x 47.8 mm |
| Compression Ratio | 8.4:1 |
| Fuel Delivery | 28mm piston-valve |
| Ignition | CD with electronic advance |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | #420 chain; 15T/50T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37mm inverted Showa fork with fully adjustale compression and rebound damping, 274mm (10.8 in.) travel |
| Rear Suspension | Pro-Link fully adjustable Showa single-shock; 10.7-inch travel |
| Front Brakes | Single disc |
| Rear Brakes | Single disc |
| Front Tire | 70/100-17 |
| Rear Tire | 90/100-14 |
DIMENSION |
|
| Rake | 26.51 degrees |
| Trail | 76.7mm (3.02 inches) |
| Wheelbase | 49.1 inches |
| Seat Height | 32.4 inches |
| Ground Clearance | 12.2 inches |
| Dry Weight | 144.0 pounds |
| Fuel Capacity | 1.35 gallons |
OTHER |
|
| Colors | Red |
| Model ID | CR85R |

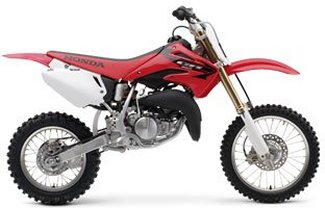

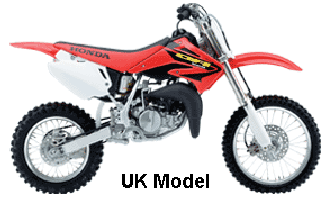

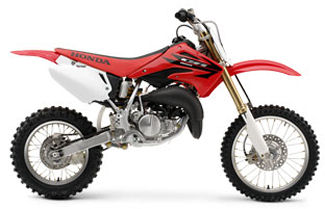

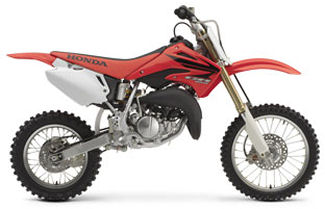

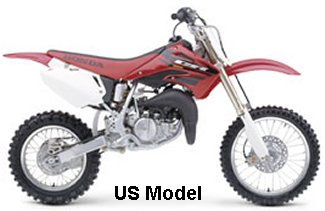

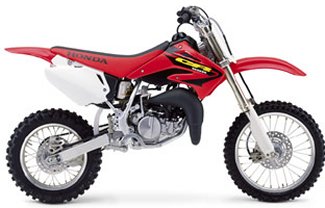

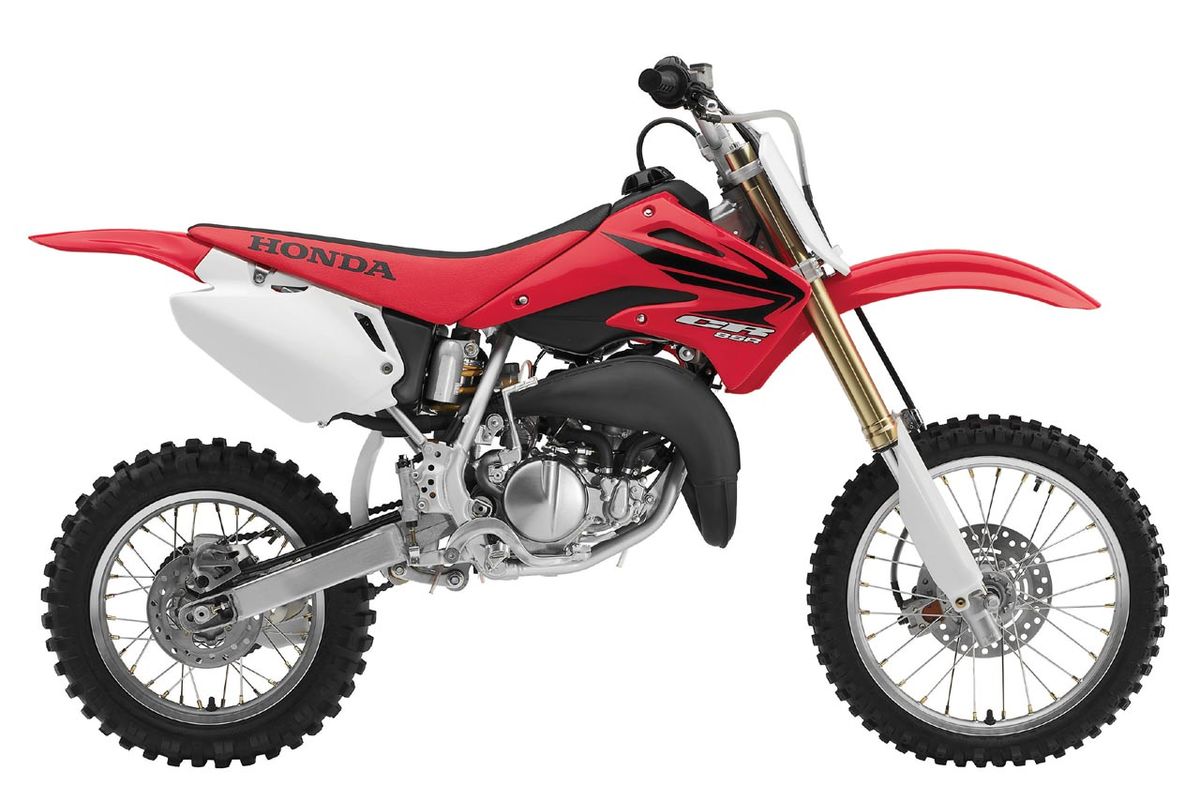

CR85R Image Gallery
