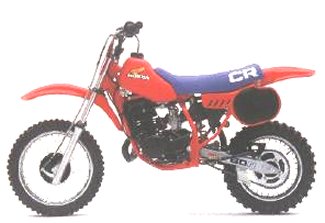

Honda CR60R Motorcycles

1983 Honda CR60R’83

Engine
Engine Type	58cc 2-stroke reed valve single cylinder
Carburetor	22mm (a larger one came the following year)
Spark plug	BR9ES
Plug gap	.028
DRIVETRAIN
Transmission	six speeds
Chain	#420 x 104
Front sprocket	14 T
Rear sprocket	45 T
CHASSIS / SUSPENSION / BRAKES	N/A
DIMENSION	N/A
OTHER

• In previous years, the CR series was also known as the Elsinore
• Color: Flash Red
• The “60R” swingarm logo was black and silver
• Solo seat: blue with white “CR” graphics on each side at the rear
• Serial number began: JH2DE0101DK000012

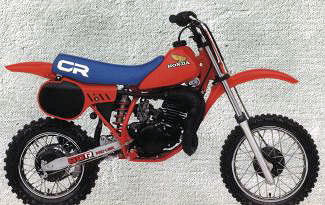

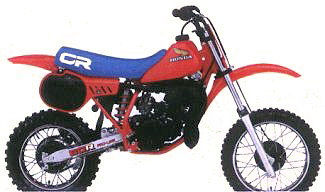

1984 Honda CR60R’84

Engine
Engine Type	58cc 2-stroke reed valve single cylinder
Carburetor	22mm (a larger one came the following year)
Spark plug	BR9ES
Plug gap	.028
Power	13 hp
DRIVETRAIN
Transmission	Six-speed
Chain	#420 x 104
Front sprocket	14 T
Rear sprocket	45 T
CHASSIS / SUSPENSION / BRAKES	N/A
Suspension	Pro-LinkTM rear suspension
DIMENSION	N/A
Wheelbase	1070mm (42.1 in.)
Dry weight	53 kg (116.8 lb)
Seat height	720mm (28.3 in.)
Front wheel travel	205mm (8.1 in.)
Rear wheel travel	210mm (8.3 in.)
OTHER

• Color: Flash Red
• The “60R” swingarm logo was red and white
• Solo Seat: blue with white “CR” graphics on each side at the rear
• The front number plate was enlarged to cover the upper fork tubes
• The serial number began: JH2DE0101EK100015

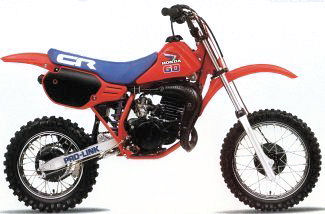

1985 Honda CR60R’85

Engine
Engine Type	58cc 2-stroke reed valve single cylinder
Carburetor	24mm (up from the previous year)
Spark plug	BR9ES
Plug gap	.028
Power	13 hp
DRIVETRAIN
Transmission	Six-speed
Chain	#420 x 104
Front sprocket	14 T
Rear sprocket	45 T
CHASSIS / SUSPENSION / BRAKES	N/A
Suspension	Pro-LinkTM rear suspension
DIMENSION	N/A
Wheelbase	1070mm (42.1 in.)
Dry weight	53 kg (116.8 lb)
Seat height	720mm (28.3 in.)
Front wheel travel	205mm (8.1 in.)
Rear wheel travel	210mm (8.3 in.)
OTHER

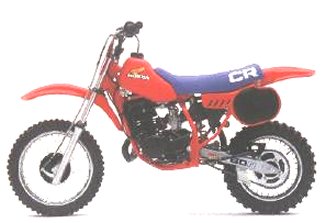

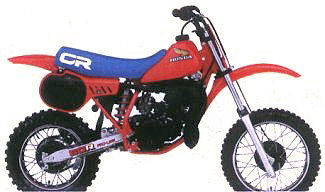

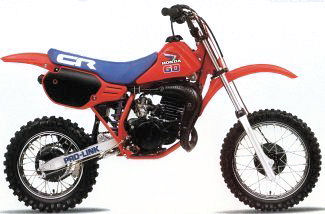

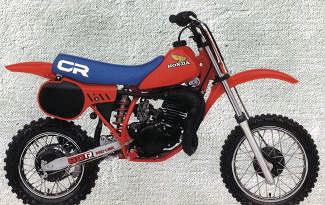

CR60R Image Gallery
