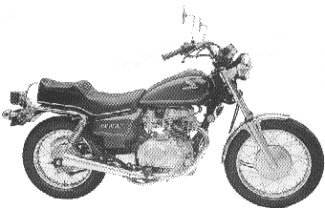

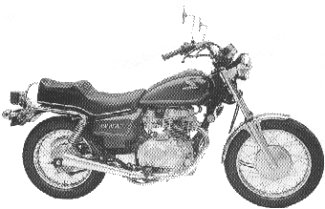

1982 CM450E-82
- Colors:
- Candy Muse Red
- Candy Imperial Blue
- The “CM450E” side cover decal was gold
- The wheel had wire spokes
- The front brakes were mechanical drum
- There was no tachometer — only a speedometer with a 85 mph (135 kph) limit
- The engine color was silver
- The engine was a 447cc SOHC 3-valve parallel twin linked to a 6-speed transmission
- The serial number began JH2PC053*CM000008.

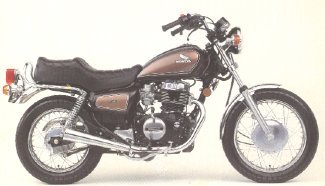

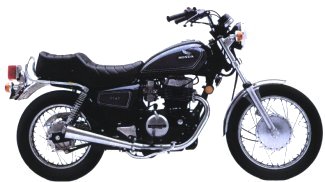

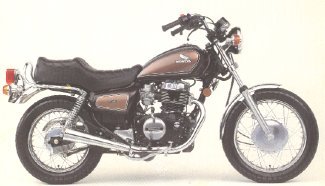

1983 CM450E-83
- Colors:
- Candy Regal Brown
- Black
- The gas tank and side covers were 2-toned
- The “450” side cover decal was silver
- The wheel had wire spokes
- The front brakes were mechanical drum
- There was no tachometer — only a speedometer with a 105 mph (170 kph) limit
- The engine color was black.
| Engine Type | our-stroke, SOHC, 447cc, vertical twin with three-valve PentroofTM combustion chambers |
| Carburetor | Dual 30mm constant velocity |
| Ignition | solid state CD |
| Transmission | 5-speed plus overdrive sixth |
| Suspension | Five-way adjustable VHDTM rear shocks |
| Wheelbase | 1420mm (55.9 in.) |
| Seat height | 765mm (30.1 in.) |
| Fuel capacity | 13 liters (3.4 gal.) |
| Dry weight | 171 kg (377.1 lb) |
The serial number began JH2PC053*DM100001.

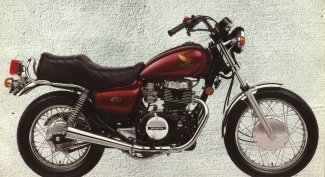

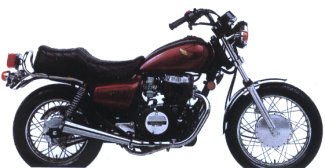

1984 CM450E-84
- Engine: Four-stroke, SOHC, 447cc, vertical parallel twin with three-valve PentroofTM combustion chambers and dual counterbalancers
- Carburetor: Dual 30mm constant velocity
- Ignition: solid state CD
- Transmission: 5-speed plus overdrive sixth
- Suspension: Five-way adjustable VHDTM rear shocks
- Wheelbase: 1420mm (55.9 in.)
- Seat height: 765mm (30.1 in.)
- Fuel capacity: 13 liters (3.4 gal.)
- Dry weight: 171 kg (377.1 lb)
- The serial number began JH2PC053*DM100001.

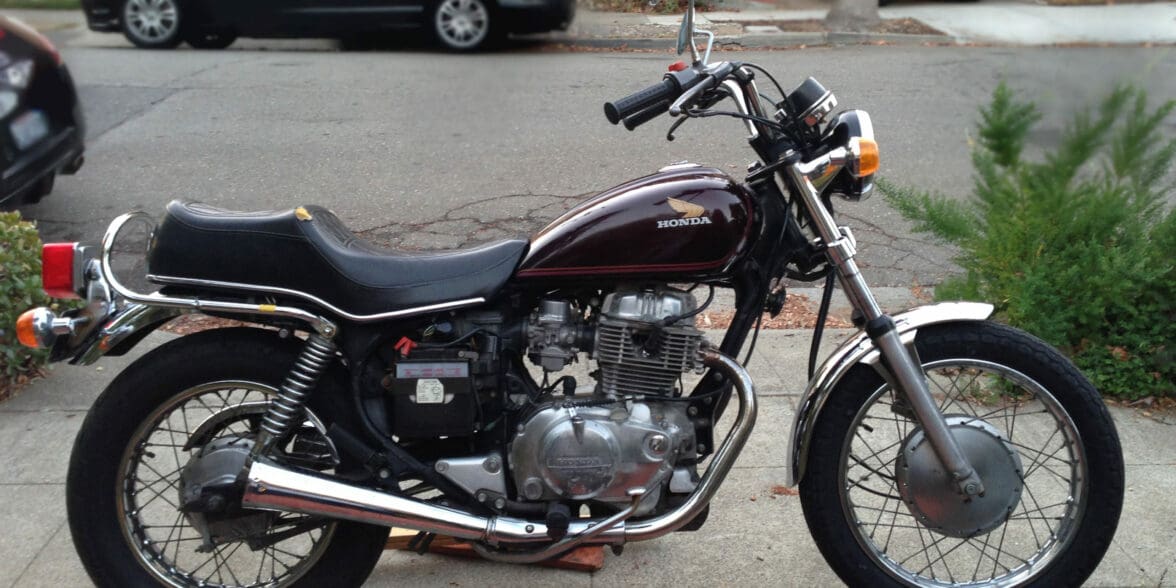

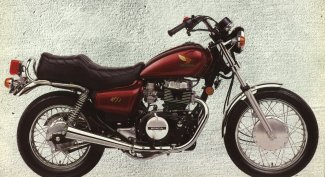

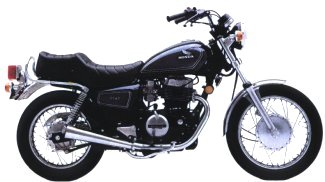

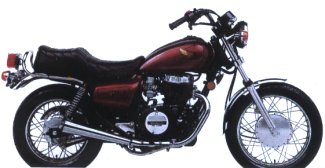

CM450E Image Gallery
