Honda Elite 80 / CH80 Motorcycles

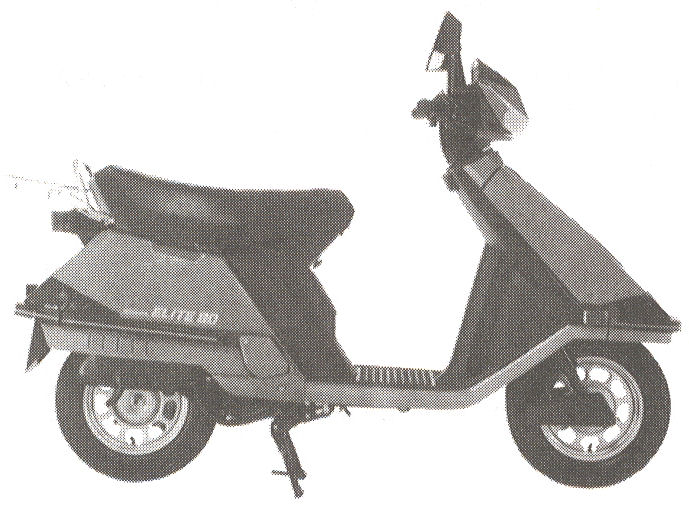

1985 Honda Elite 80 (CH80)

Engine
Engine Type	4-stroke
Displacement	80cc
Cylinder	Single
Cooling	Air-cooled
Spark plug	CR7HS
Plug gap	.028
DRIVETRAIN
Transmission	Honda V-matic belt
Clutch	Automatic
Drive line	Belt
Wheels	Pressed steel
CHASSIS / SUSPENSION / BRAKES
Dual-Shock Bottom Link front
DIMENSION
OTHER
VIN	JH2HF030*FS000001 ~
Engine	HF03E-2000001 ~
Colors	Cortina White Luminous Red
Elite “80” Logo	Solid Gray

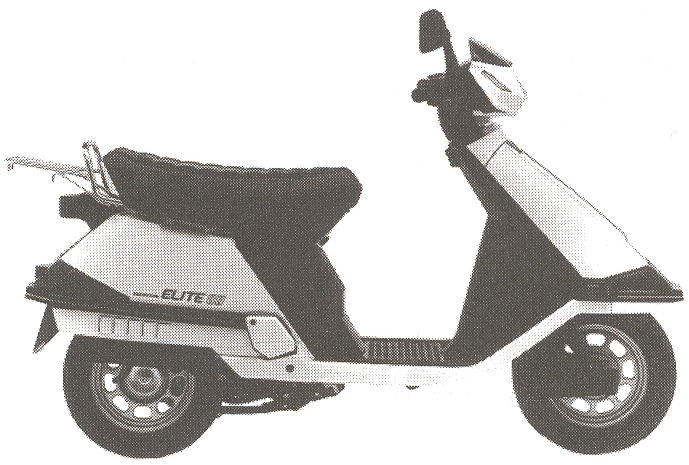

1986 Honda Elite 80 (CH80)

Engine
Engine Type	4-stroke
Displacement	80cc
Cylinder	Single
Cooling	Air-cooled
Spark plug	CR7HS
Plug gap	.028
DRIVETRAIN
Transmission	Honda V-matic belt
Clutch	Automatic
Drive line	Belt
Wheels	Pressed steel
CHASSIS / SUSPENSION / BRAKES
Dual-Shock Bottom Link front
DIMENSION
OTHER
VIN	JH2HF030*GS100001 ~
Engine	HF03E-2100001 ~
Colors	Shasta White Luminous Red
Elite “80” Logo	Outlined in Black

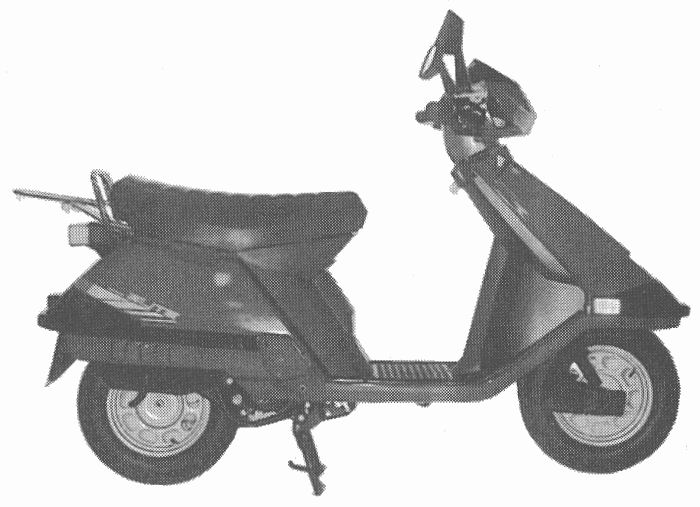

1987 Honda Elite 80 (CH80)

Engine
Engine Type	4-stroke
Displacement	80cc
Cylinder	Single
Cooling	Air-cooled
Spark plug	CR7HS
Plug gap	.028
DRIVETRAIN
Transmission	Honda V-matic belt
Clutch	Automatic
Drive line	Belt
Wheels	Pressed steel
CHASSIS / SUSPENSION / BRAKES
Dual-Shock Bottom Link front
DIMENSION
OTHER
VIN	JH2HF030*GS100001 ~
Engine	HF03E-2100001 ~
Colors	Capri Blue Luminous Red
Elite “80” Logo	“HONDA ELITE” (No “80” logo)

Silver stripes added to rear fender

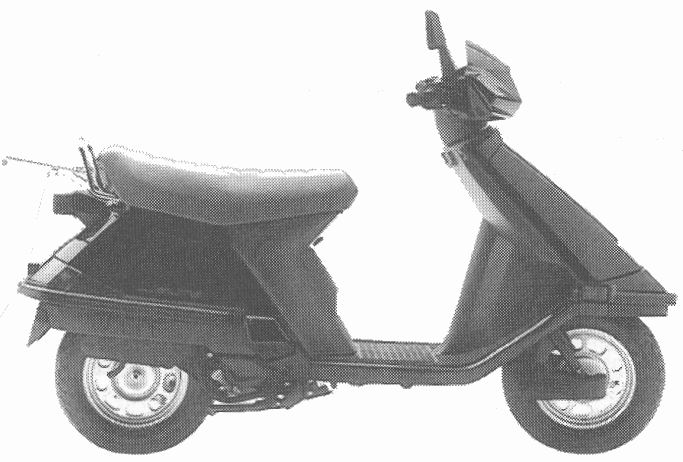

1988 Honda Elite 80 (CH80)

Engine
Engine Type	4-stroke
Displacement	80cc
Cylinder	Single
Cooling	Air-cooled
Spark plug	CR7HS
Plug gap	.028
DRIVETRAIN
Transmission	Honda V-matic belt
Clutch	Automatic
Drive line	Belt
Wheels	Pressed steel
CHASSIS / SUSPENSION / BRAKES
Dual-Shock Bottom Link front
DIMENSION
OTHER
VIN	JH2HF030*JS000001 ~
Engine	HF03E-2300001 ~
Colors	Black Luminous Red
Elite “80” Logo	“HONDA ELITE” (No “80” logo)

Silver stripes removed from rear fender

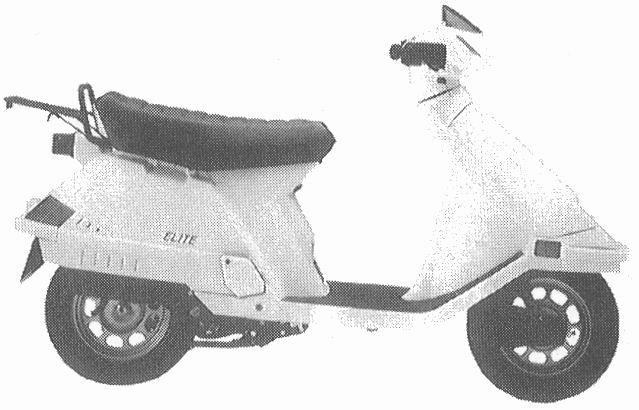

1989 Honda Elite 80 (CH80)

Engine
Engine Type	4-stroke
Displacement	80cc
Cylinder	Single
Cooling	Air-cooled
Spark plug	CR7HS
Plug gap	.028
DRIVETRAIN
Transmission	Honda V-matic belt
Clutch	Automatic
Drive line	Belt
Wheels	Pressed steel
CHASSIS / SUSPENSION / BRAKES
Dual-Shock Bottom Link front
DIMENSION
OTHER
VIN	JH2HF030*JS000001 ~
Engine	HF03E-2300001 ~
Colors	Ross White Nassau Blue Metallic
Elite “80” Logo	“HONDA ELITE” (No “80” logo)

Monochrome paint

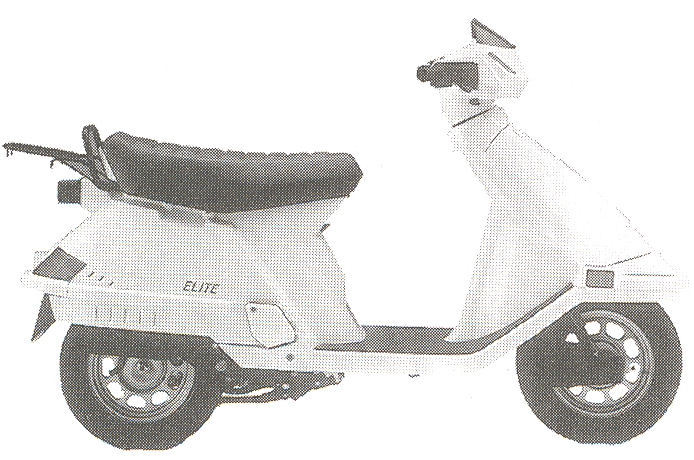

1990 Honda Elite 80 (CH80)

Engine
Engine Type	4-stroke
Displacement	80cc
Cylinder	Single
Cooling	Air-cooled
Spark plug	CR7HS
Plug gap	.028
DRIVETRAIN
Transmission	Honda V-matic belt
Clutch	Automatic
Drive line	Belt
Wheels	Pressed steel
CHASSIS / SUSPENSION / BRAKES
Dual-Shock Bottom Link front
DIMENSION
OTHER
VIN	3H1HF030*LD500001 ~
Engine	HF03E-2500001 ~
Colors	Ross White Nassau Blue Metallic
Elite “80” Logo	“HONDA ELITE” (No “80” logo) Monochrome paint

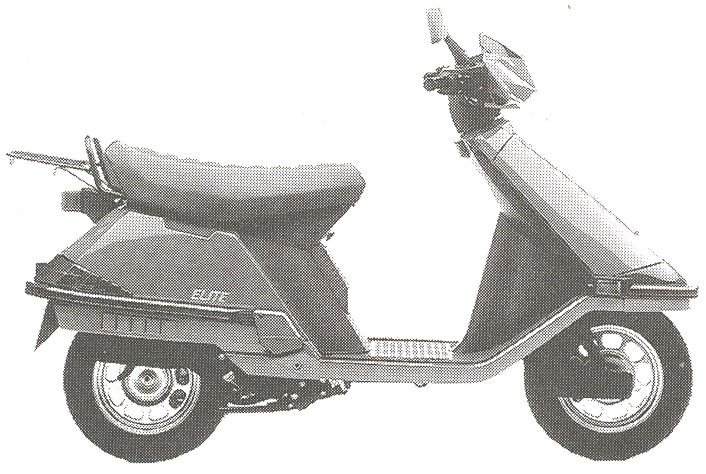

1991 Honda Elite 80 (CH80)

Engine
Engine Type	4-stroke
Displacement	80cc
Cylinder	Single
Cooling	Air-cooled
Spark plug	CR7HS
Plug gap	.028
DRIVETRAIN
Transmission	Honda V-matic belt
Clutch	Automatic
Drive line	Belt
Wheels	Pressed steel
CHASSIS / SUSPENSION / BRAKES
Dual-Shock Bottom Link front
DIMENSION
OTHER
VIN	3H1HF030*MD600001 ~
Engine	HF03E-2600001 ~
Colors	Monza Red
Elite “80” Logo	“HONDA ELITE” (No “80” logo) Monochrome paint

1992 Honda Elite 80 (CH80)

Engine
Engine Type	4-stroke
Displacement	80cc
Cylinder	Single
Cooling	Air-cooled
Spark plug	CR7HS
Plug gap	.028
DRIVETRAIN
Transmission	Honda V-matic belt
Clutch	Automatic
Drive line	Belt
Wheels	Pressed steel
CHASSIS / SUSPENSION / BRAKES
Dual-Shock Bottom Link front
DIMENSION
OTHER
VIN	3H1HF030*ND700001 ~
Engine	HF03E-2700001 ~
Colors	Monza Red
Elite “80” Logo	“HONDA ELITE” (No “80” logo) Monochrome paint

1993 Honda Elite 80 (CH80)

Engine
Engine Type	4-stroke
Displacement	80cc
Cylinder	Single
Cooling	Air-cooled
Spark plug	CR7HS
Plug gap	.028
DRIVETRAIN
Transmission	Honda V-matic belt
Clutch	Automatic
Drive line	Belt
Wheels	Pressed steel
CHASSIS / SUSPENSION / BRAKES
Dual-Shock Bottom Link front
DIMENSION
OTHER
VIN	3H1HF030*PD800001 ~
Engine	HF03E-2700601 ~
Colors	Monza Red
Elite “80” Logo	“HONDA ELITE” (No “80” logo) Monochrome paint

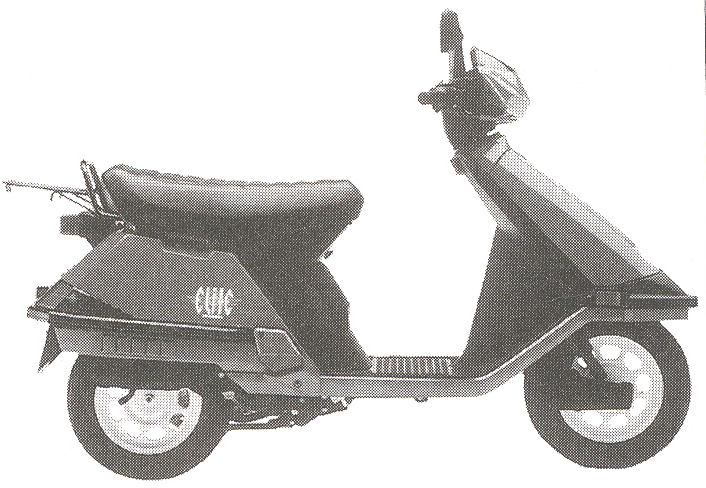

1994 Honda Elite 80 (CH80)

Engine
Engine Type	4-stroke
Displacement	80cc
Cylinder	Single
Cooling	Air-cooled
Spark plug	CR7HS
Plug gap	.028
DRIVETRAIN
Transmission	Honda V-matic belt
Clutch	Automatic
Drive line	Belt
Wheels	Pressed steel
CHASSIS / SUSPENSION / BRAKES
Dual-Shock Bottom Link front
DIMENSION
OTHER
VIN	3H1HF030*RD800001 ~
Engine	HF03E-2800001 ~
Colors	Monza Red Gloss Black
Elite “80” Logo	“HONDA ELITE” (No “80” logo)

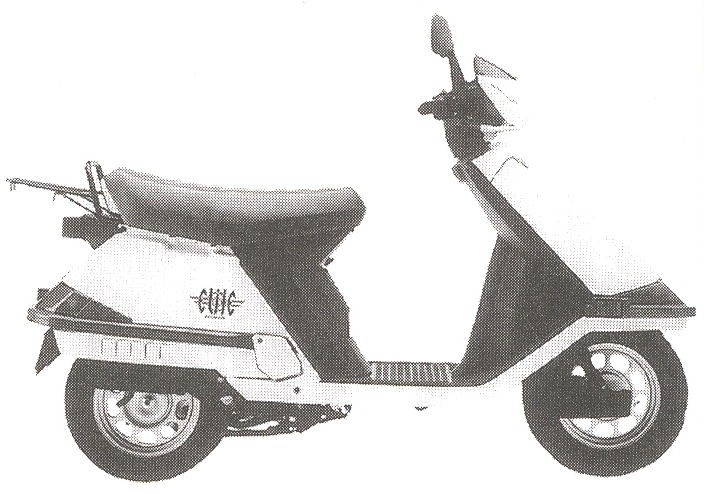

1995 Honda Elite 80 (CH80)

Engine
Engine Type	4-stroke
Displacement	80cc
Cylinder	Single
Cooling	Air-cooled
Spark plug	CR7HS
Plug gap	.028
DRIVETRAIN
Transmission	Honda V-matic belt
Clutch	Automatic
Drive line	Belt
Wheels	Pressed steel
CHASSIS / SUSPENSION / BRAKES
Dual-Shock Bottom Link front
DIMENSION
OTHER
VIN	3H1HF030*SD000001 ~
Engine	HF03E-2807095 ~
Colors	Shasta White Gloss Black
Elite Logo	unchanged

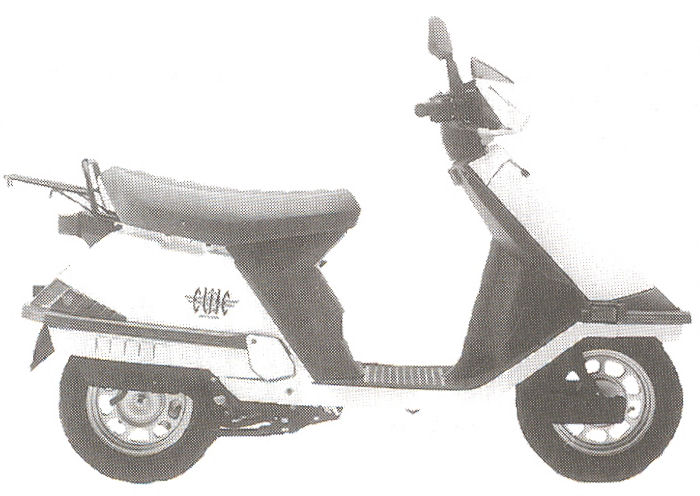

1996 Honda Elite 80 (CH80)

Engine
Engine Type	4-stroke
Displacement	80cc
Cylinder	Single
Cooling	Air-cooled
Spark plug	CR7HS
Plug gap	.028
DRIVETRAIN
Transmission	Honda V-matic belt
Clutch	Automatic
Drive line	Belt
Wheels	Pressed steel
CHASSIS / SUSPENSION / BRAKES
Dual-Shock Bottom Link front
DIMENSION
OTHER
VIN	3H1HF030*SD000001 ~
Engine	HF03E-2807095 ~
Colors	Shasta White Gloss Black
Elite Logo	unchanged

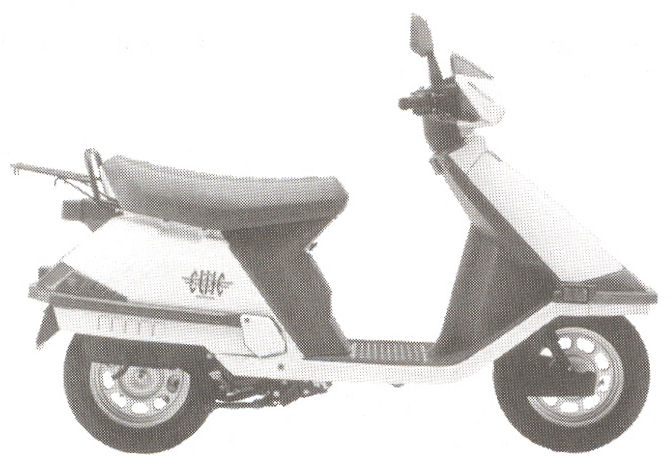

1997 Honda Elite 80 (CH80)

Engine
Engine Type	4-stroke
Displacement	80cc
Cylinder	Single
Cooling	Air-cooled
Spark plug	CR7HS
Plug gap	.028
DRIVETRAIN
Transmission	Honda V-matic belt
Clutch	Automatic
Drive line	Belt
Wheels	Pressed steel
CHASSIS / SUSPENSION / BRAKES
Dual-Shock Bottom Link front
DIMENSION
OTHER
VIN	3H1HF030*VD000001 ~
Engine	HF03E-2812605 ~
Colors	Shasta White Black
Elite Logo	unchanged

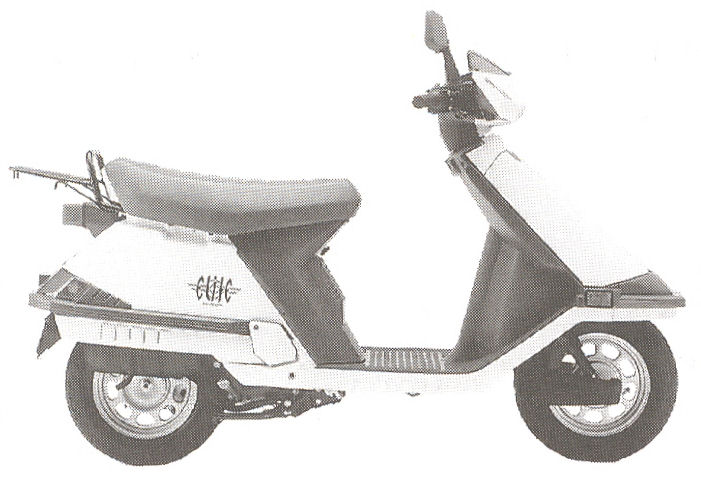

1998 Honda Elite 80 (CH80)

Engine
Engine Type	4-stroke
Displacement	80cc
Cylinder	Single
Cooling	Air-cooled
Spark plug	CR7HS
Plug gap	.028
DRIVETRAIN
Transmission	Honda V-matic belt
Clutch	Automatic
Drive line	Belt
Wheels	Pressed steel
CHASSIS / SUSPENSION / BRAKES
Dual-Shock Bottom Link front
DIMENSION
OTHER
VIN	3H1HF030*wD000001 ~
Engine	HF03E-2814398 ~
Colors	Shasta White Black
Elite Logo	unchanged

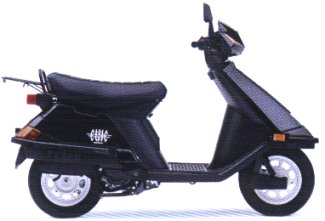

2002 Elite (CH80)

Engine
Engine Type	80cc air-cooled single-cylinder four-stroke
Spark plug	CR7HS
Plug gap	.028
DRIVETRAIN
Transmission	Automatic variable-ratio
CHASSIS / SUSPENSION / BRAKES
N/A
DIMENSION
Seat height	29.7 inches (754 mm)
Wheelbase	46.1 inches (1171 mm)
Dry weight	172 pounds (78 kg)
Fuel capacity	1.3 gallons (5 liters)
OTHER
Colors	black red

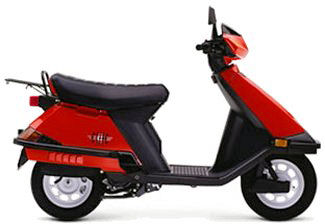

2003 Elite (CH80)

Engine
Engine Type	80cc air-cooled single-cylinder four-stroke
Fuel Delivery	16.0mm CV with automatic choke
Ignition	CDI
Spark plug	CR7HS
Plug gap	.028
DRIVETRAIN
Transmission	Automatic variable-ratio
CHASSIS / SUSPENSION / BRAKES
Front Suspension	Bottom link; 3.0-inch travel
Rear Suspension	Unit swingarm; 3.1-inch travel
Front Brake	Drum
Rear Brake	Drum
Front Tire	3.5 x 10.0
Rear Tire	3.5 x 10.0
DIMENSION
Wheelbase	46.1 inches
Seat Height	29.7 inches
Dry Weight	172.0 pounds
Fuel Capacity	1.3 gallons
OTHER
Model ID	CH80
Warranty	1 year
Colors	Black Red

2004 Elite 80 (CH80)

Engine
Engine Type	80cc air-cooled single-cylinder four-stroke
Fuel Delivery	16.0mm CV with automatic choke
Ignition	CDI
Spark plug	CR7HS
Plug gap	.028
DRIVETRAIN
Transmission	Automatic variable-ratio
CHASSIS / SUSPENSION / BRAKES
Front Suspension	Bottom link; 3.0-inch travel
Rear Suspension	Unit swingarm; 3.1-inch travel
Front Brake	Drum
Rear Brake	Drum
Front Tire	3.5 x 10.0
Rear Tire	3.5 x 10.0
DIMENSION
Wheelbase	46.1 inches
Seat Height	29.7 inches
Dry Weight	172.0 pounds
Fuel Capacity	1.3 gallons
OTHER
Model ID	CH80
Warranty	1 year
Colors	Black Red

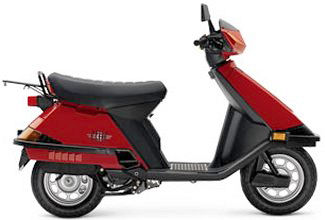

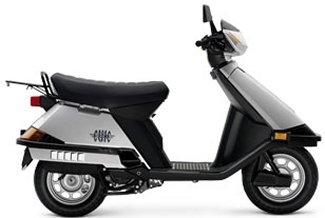

2005 Elite 80 (CH80)

Engine
Engine Type	80cc air-cooled single-cylinder four-stroke
Fuel Delivery	16.0mm CV with automatic choke
Ignition	CDI
Spark plug	CR7HS
Plug gap	.028
DRIVETRAIN
Transmission	Automatic variable-ratio
CHASSIS / SUSPENSION / BRAKES
Front Suspension	Bottom link; 3.0-inch travel
Rear Suspension	Unit swingarm; 3.1-inch travel
Front Brake	Drum
Rear Brake	Drum
Front Tire	3.5 x 10.0
Rear Tire	3.5 x 10.0
DIMENSION
Wheelbase	46.1 inches
Seat Height	29.7 inches
Dry Weight	172.0 pounds
Fuel Capacity	1.3 gallons
OTHER
Model ID	CH80
Warranty	1 year
Colors	Red Silver

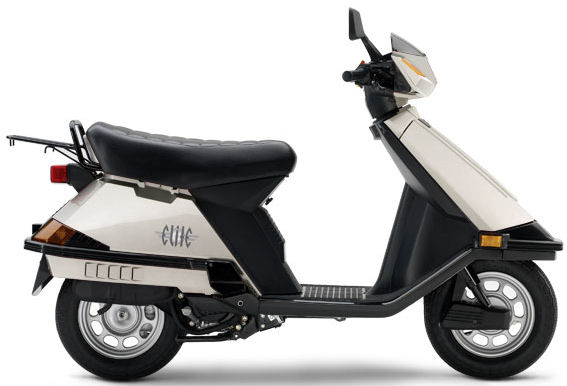

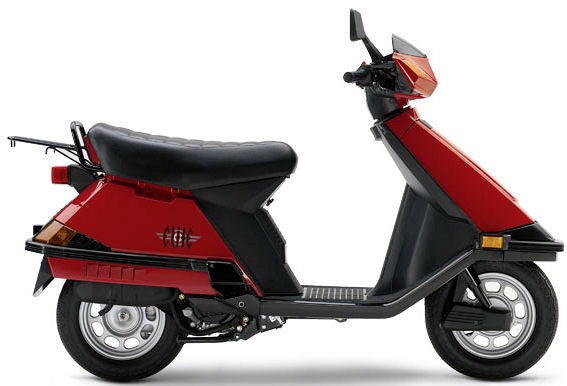

2007 Elite (CH80)

OVERVIEW

Overview: With traffic choking up the streets and higher prices at the gas pump, it’s never made more sense to find a smarter way to get around town. Enter the pure genius of the Elite 80. With its gas-sipping, 80cc four-stroke engine and fully automatic transmission, it’s as hassle-free as it is fuel-efficient — and its user-friendly controls and comfortable seating make you feel right at home right away. Think about it. Bet you feel smarter already.

Engine
Engine Type	80cc air-cooled single-cylinder four-stroke
Fuel Delivery	16.0mm CV with automatic choke
Ignition	CDI
Spark plug	CR7HS
Plug gap	.028
DRIVETRAIN
Transmission	Automatic variable-ratio
CHASSIS / SUSPENSION / BRAKES
Front Suspension	Bottom link; 3.0-inch travel
Rear Suspension	Unit swingarm; 3.1-inch travel
Front Brake	Drum
Rear Brake	Drum
Front Tire	3.5 x 10.0
Rear Tire	3.5 x 10.0
DIMENSION
Wheelbase	46.1 inches
Seat Height	29.7 inches
Dry Weight	172.0 pounds
Fuel Capacity	1.3 gallons
OTHER
Model ID	CH80
Emissions	Meets Current EPA standards. California version differs slightly due to emissions equipment.
Colors	Red Metallic Gray
