Honda Super Sport 1000 CBX Motorcycles

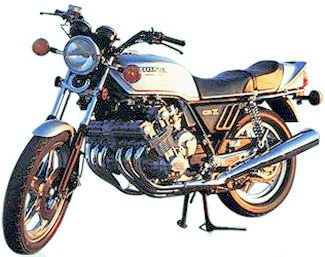

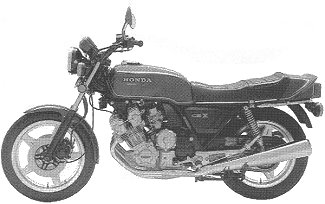

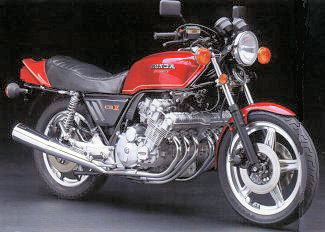

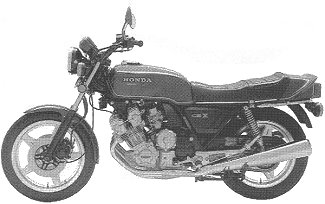

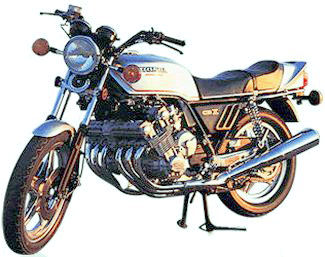

1979 CBX’79 Super Sport

Engine
Engine Type	1047cc DOHC 4-valve inline six
Fuel Delivery	6 carburetors.
DRIVETRAIN
Transmission	5-speed transmission
Final drive	Chain drive
CHASSIS / SUSPENSION / BRAKES	N/A
DIMENSION	N/A
OTHER
Colors	Perseur Silver Candy Glory Red

• The tank and fenders were the basic color (silver or red)
• The side covers were black
• The comstar wheels were silver
• The speedometer had a 150 mph (240 km) limit
• The exhaust system was a 6-into-2.
• The serial number began CB1-2000042

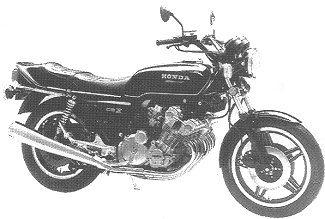

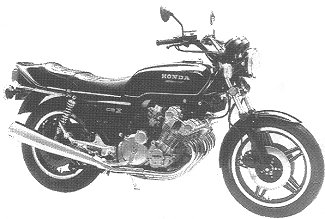

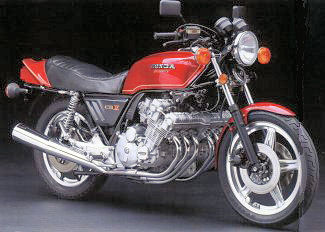

1980 CBX’80 Super Sport

Engine
Engine Type	1047 cc, 4 Stroke – Air Cooled – Inline Six
Bore and Stroke	64.5 mm x 53.4 mm
Valves	4 valves/cylinder
Horsepower	105 hp (78.3 kW) @ 9000 rpm
Maximum Torque	85 Nm (62.7 ft. lbs) @ 8000 rpm
DRIVETRAIN
Transmission	5 speed
Final drive	Chain
CHASSIS / SUSPENSION / BRAKES
Front Tire:	3.50-18
Rear Tire	4.25-18
Front Brakes	dual disc
Rear Brakes	single disc
DIMENSION
Fuel Capacity	20 litres (5.3 Gal)
Dry weight	(without fluids): 247 kg (544.5 pounds)
OTHER
Colors	Candy Glory Red Black

• The comstar wheels were black
• The speedometer had a 85 mph (135 kph) limit
• The front forks were air-adjustable
• The exhaust system was a 6-into-2
• There were 6 carburetors
• The serial number began SC03-2100021

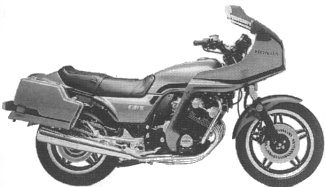

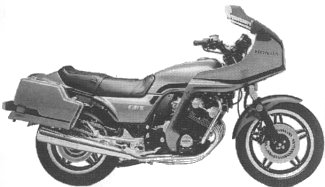

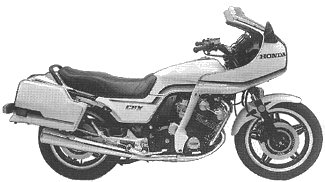

1981 CBX’81 Super Sport

Engine
Engine Type	1047 cc, 4 Stroke – Air Cooled – Inline Six
Bore and Stroke	64.5 mm x 53.4 mm
Valves	4 valves/cylinder
Horsepower	105 hp (78.3 kW) @ 9000 rpm
Maximum Torque	85 Nm (62.7 ft. lbs) @ 8000 rpm
DRIVETRAIN
Transmission	5 speed
Final drive	Chain
CHASSIS / SUSPENSION / BRAKES
Front Tire:	3.50-18
Rear Tire	4.25-18
Front Brakes	dual disc
Rear Brakes	single disc
DIMENSION
Fuel Capacity	20 litres (5.3 Gal)
Dry weight	(without fluids): 247 kg (544.5 pounds)
OTHER
Colors	Magnum Silver Metallic

• The fairing and saddlebags were color matched to the Silver color
• The stripes were black bordered with red pinstripes
• The front brakes were internally ventilated
• The rear saddlebags were detachable
• The rear suspension were pro-link
• The comstar wheels were black
• The speedometer had a 85 mph (135 kph) limit
• The front forks were air-adjustable
• The exhaust system was a 6-into-2
• There were 6 carburetors
• The serial number began JH2SC060*BC300004.

1000 CBX  Image Gallery
