1999 CBR600F4i
Engine
| Engine Type | 599 cc, 4 Stroke – Liquid Cooled – Inline Four |
| Bore and Stroke | 65 mm x 45.2 mm |
| Valves | 4 valves/cylinder |
| Horsepower | 105 hp (78.3 kW) @ 12000 rpm |
| Maximum Torque | 66 Nm (48.7 ft. lbs) @ 10500 rpm |
DRIVETRAIN |
|
| Transmission | type: 6 speed |
| Final Drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Tire | 120/60-17 |
| Rear Tire | 160/70-17 |
| Front Brakes | dual 296 mm discs with 4-piston calipers |
| Rear Brakes | single 220 mm disc with 1-piston calipers |
DIMENSION |
|
| Seat Height | 810 mm (31.9 inches) |
| Wheelbase | 1395 mm (54.9 inches) |
| Fuel Capacity | 17 litres (4.5 Gal) |
| Dry weight | (without fluids): 170 kg (374.8 pounds) |
2001 CBR600F4i
| Engine Type | 599cc Liquid-cooled, inline-four |
| Bore and Stroke | 67mm X 42.5mm |
| Valves | DOHC, 4-valve, shim-under bucket |
| Compression Ratio | 12.0 : 1 |
| Fuel Delivery | PGM-FI with auto choke |
DRIVETRAIN |
|
| Transmission | Close-ratio, 6-speed |
| Final Drive | O ring chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 43mm, cartridge fork, with adjustable preload, compression and rebound damping, 120mm travel |
| Rear Suspension | Pro-link, single shock with adjustable preload, compression and rebound damping, 120mm travel |
| Front Tire | 120/70ZR – 17 |
| Rear Tire | 180/55ZR – 17 |
| Front Brakes | Dual 296mm floating discs with four piston calipers |
| Rear Brakes | Single 220mm disc with single piston caliper |
DIMENSION |
|
| Seat Height | 810mm (31.9″) |
| Wheelbase | 1386mm (54.5″) |
| Fuel Capacity | 18.0 litres (3.8 Imp. gal.) |
| Dry weight | 169 kg (370 lb.) |
2002 CBR600F4i
| Engine Type | 599cc liquid-cooled inline four-cylinder |
| Bore and Stroke | 7mm x 42.5mm |
| Valves | DOHC; four valves per cylinder |
| Compression Ratio | 12.0: 1 |
| Fuel Delivery | PGM-FI with automatic enricher circuit |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 43mm HMAS cartridge fork with spring preload, rebound and compression damping adjustability; 120mm travel |
| Rear Suspension | Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability; 120mm travel |
| Front Tire | 120/70ZR-17 radial |
| Rear Tire | 180/55ZR-17 radia |
| Front Brakes | Dual 296mm floating discs with four-piston calipers |
| Rear Brakes | Single 220mm disc with single piston caliper |
DIMENSION |
|
| Seat Height | 810mm (31.9 in.) |
| Wheelbase | 1385mm (54.5 in.) |
| Fuel Capacity | 18 litres (3.8 Imp. gal.) |
| Dry weight | 168 kg. (370 lb.) |
2003 CBR600F4i
Engine |
|
| Engine Type | 599cc DOHC liquid-cooled inline four-cylinder four-stroke |
| Bore and Stroke | 67.0 x 42.5 mm |
| Valves | DOHC; four valves per cylinder |
| Compression Ratio | 12.0:1 |
| Fuel Delivery | PGM-FI with automatic enricher circuit |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 43mm HMAS cartridge fork with spring preload, rebound and compression damping adjustability; 120mm travel |
| Rear Suspension | Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability; 120mm travel |
| Front Tire | 120/70ZR-17 radial |
| Rear Tire | 180/55ZR-17 radia |
| Front Brakes | Dual 296mm floating discs with four-piston calipers |
| Rear Brakes | Single 220mm disc with single piston caliper |
DIMENSION |
|
| Seat Height | 805mm (31.7 in.) |
| Wheelbase | 1385mm (54.5 in.) |
| Fuel Capacity | 18 liters (4.75 GalUS) |
| Dry weight | 168 kg (370 lb) |
OTHER |
|
| Colors |
|
2005 CBR600F4i
Engine |
|
| Engine Type | 599cc liquid-cooled inline four-cylinder |
| Bore and Stroke | 67.0mm x 42.5mm |
| Valves | DOHC; four valves per cylinder |
| Compression Ratio | 12.0:1 |
| Fuel Delivery | Programmed Fuel Injection (PGM-FI) with automatic enricher circuit |
| Ignition | Computer-controlled digital transistorized with three-dimensional mapping |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | #525 O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 43.0mm HMAS cartridge fork with spring-preload, rebound and compression-damping adjustability; 4.7-inch travel |
| Rear Suspension | Pro-Link HMAS single shock with spring-preload, rebound and compression-damping adjustability; 4.7-inch travel |
| Front Tire | 120/70ZR-17 radial |
| Rear Tire | 180/55ZR-17 radia |
| Front Brakes | Dual 296.0mm discs with four-piston calipers |
| Rear Brakes | Single 220.0mm disc |
DIMENSION |
|
| Rake | 24.0 degrees |
| Trail | 96.0mm (3.8 inches) |
| Turning Radius | 10.8 feet |
| Seat Height | 805mm (31.7 in.) |
| Wheelbase | 54.5 inches |
| Fuel Capacity | 4.8 gallons, including 0.9-gallon reserve |
| Dry weight | 370 pounds |
OTHER |
|
| Colors |
|
| Model ID | CBR600F4i |
| Warranty | 1 year |
2006 CBR600F4i
Engine |
|
| Engine Type | 599cc liquid-cooled inline four-cylinder |
| Bore and Stroke | 67.0mm x 42.5mm |
| Valves | DOHC; four valves per cylinder |
| Compression Ratio | 12.0:1 |
| Fuel Delivery | Programmed Fuel Injection (PGM-FI) with automatic enricher circuit |
| Ignition | Computer-controlled digital transistorized with three-dimensional mapping |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | #525 O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 43.0mm HMAS cartridge fork with spring-preload, rebound and compression-damping adjustability; 4.7-inch travel |
| Rear Suspension | Pro-Link HMAS single shock with spring-preload, rebound and compression-damping adjustability; 4.7-inch travel |
| Front Tire | 120/70ZR-17 radial |
| Rear Tire | 180/55ZR-17 radia |
| Front Brakes | Dual 296.0mm discs with four-piston calipers |
| Rear Brakes | Single 220.0mm disc |
DIMENSION |
|
| Rake | 24.0 degrees |
| Trail | 96.0mm (3.8 inches) |
| Turning Radius | 10.8 feet |
| Seat Height | 805mm (31.7 in.) |
| Wheelbase | 54.5 inches |
| Fuel Capacity | 4.8 gallons, including 0.9-gallon reserve |
| Dry weight | 370 pounds |
OTHER |
|
| Colors |
|
| Model ID | CBR600F4i |
| Emissions | Meets current CARB and EPA standards |
2012 CBR600F4i
Engine |
|
| Engine Type | Type Liquid-cooled 4-stroke 16-valve |
| Bore and Stroke | 67 x 42.5mm |
| Displacement | 599cc |
| Throttle Bore | 36mm ( inches) |
| Compression Ratio | 12:1 |
| Fuel Delivery | PGM-FI electronic fuel injection |
| Ignition | Computer-controlled digital transistorised with electronic advance |
| Max. Power Output | 75kW/12,000min-1 (95/1/EC) |
| Max. Torque | 64Nm/10,500min-1 (95/1/EC) |
| Starter | Electric |
DRIVETRAIN |
|
| Transmission | six-speed |
| Clutch | Wet, multiplate with coil springs |
| Clutch Operation | Mechanical; cable-actuated |
| Final Drive | #525 O-ring sealed chain |
| Rim Size Front | 17M/C x MT3.50 |
| Rim Size Rear | 17M/C x 5.50 |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm tension and preload adjustable inverted HMAS cartridge-type telescopic fork, 120mm stroke |
| Rear Suspension | Monoshock damper with adjustable tension and preload, 128mm stroke |
| Front Tire | 120/70 ZR17M/C |
| Rear Tire | 180/55 ZR17M/C |
| Front Brakes | 296 x 4.5mm dual hydraulic disc with three-piston calipers, floating rotors and sintered metal pads |
| Rear Brakes | 240 x 5mm hydraulic disc with single-piston caliper and sintered metal pads |
DIMENSION |
|
| Caster Angle | 25 |
| Trail | 99mm (3.9 inches) |
| Overall Length | 2150mm (84.6 inches) |
| Overall Width: | 740mm (29.1 inches) |
| Wheelbase | 1437mm (56.6 inches) |
| Overall Height | 1150 (45.3 inches) |
| Seat Height | 800mm (31.5 inches) |
| Ground Clearance | 135mm (5.3 inches) |
| Battery Capacity | 12V/8.6AH |
| Headlights | 12V; 60/55W low and high |
OTHER |

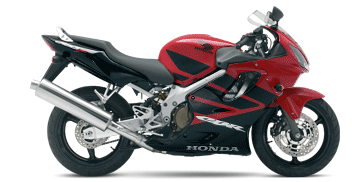

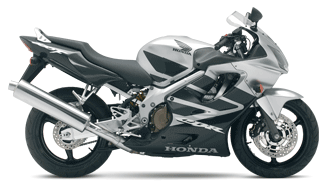

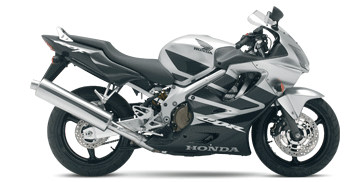

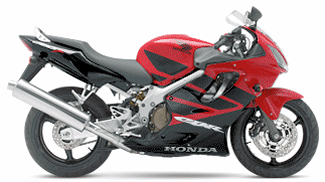

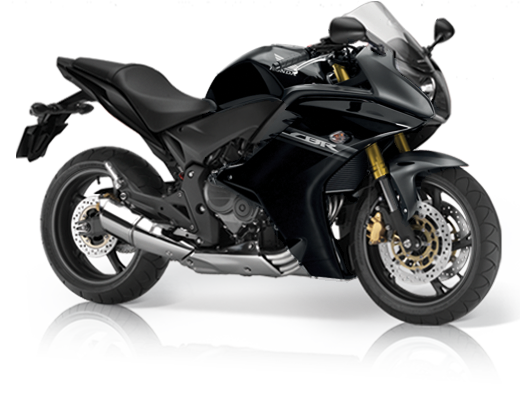

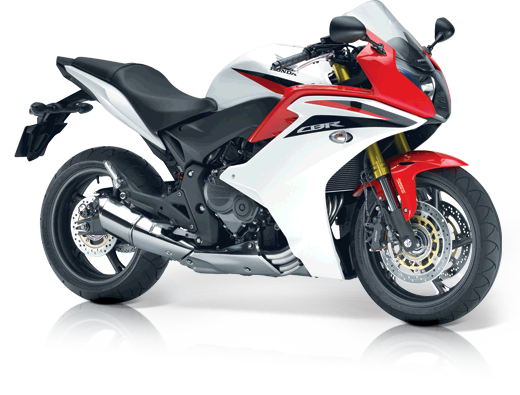

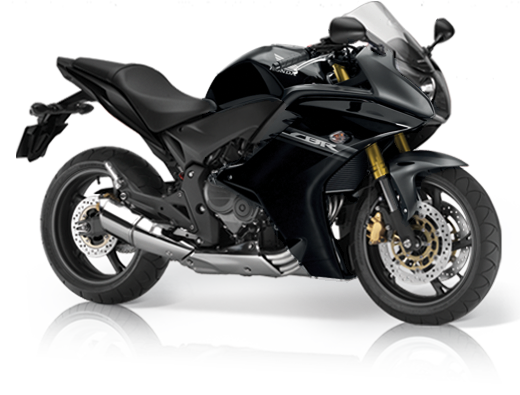

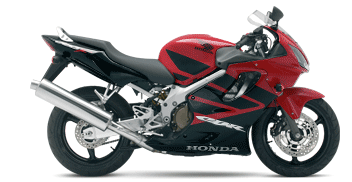

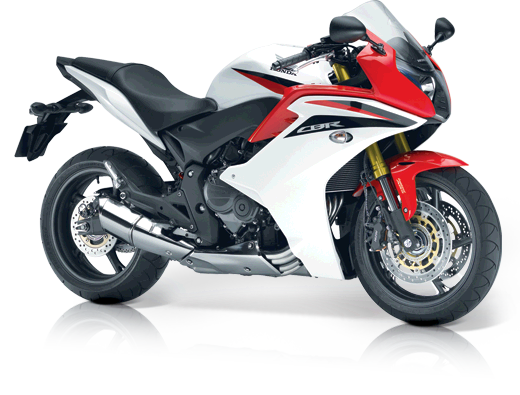

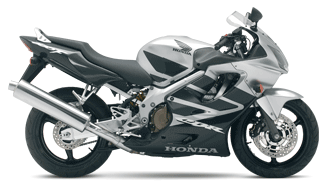

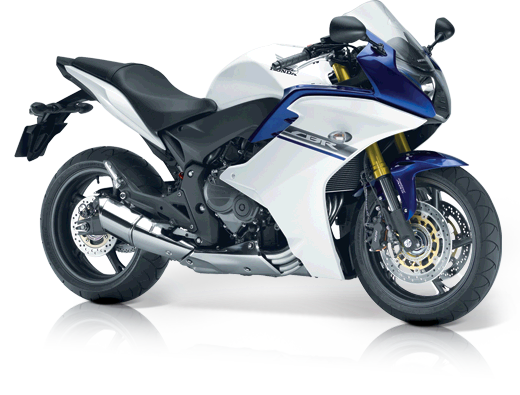

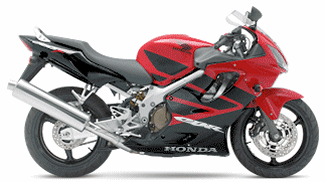

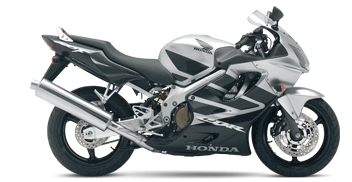

CBR600F4 Image Gallery
