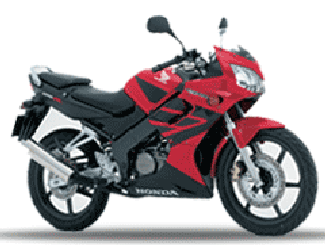

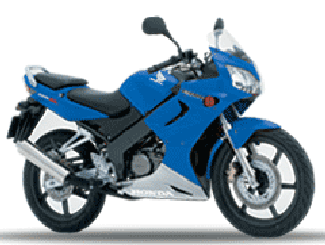

2004 CBR125R
Engine |
|
| Engine Type | Liquid-cooled 4-stroke 2-valve SOHC single |
| Displacement | 124.7cc |
| Bore and Stroke | 58 x 47.2mm |
| Compression Ratio | 11 :1 |
| Fuel Delivery | VK-type carburetor |
| Ignition | Capacitor Discharge (CDI) |
| Max. Power Output | 13 bhp at 10,000 rpm |
| Max. Torque | 10.1Nm at 8000 rpm |
| Starter | Electric |
DRIVETRAIN |
|
| Transmission | 6 speed |
| Final Drive | O-ring sealed chain |
| Front Wheel | U-section 6-spoke cast aluminum |
| Rear Wheel | U-section 6-spoke cast aluminum |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 31mm telescopic fork, 109mm axle travel |
| Rear Suspension | Monoshock damper, 120mm axle travel |
| Front Brakes | 276 x 4mm hydraulic disc with dual-piston caliper and sintered metal pads |
| Rear Brakes | 220 x 4mm hydraulic disc with single-piston caliper and sintered metal pads |
| Front Tire | 80/90 17M/C 44P |
| Rear Tire | 100/80 17M/C 52P |
DIMENSION |
|
| Length x Width x Height | 1920 x 675 x 1070mm |
| Seat Height | 776mm |
| Wheelbase | 1294mm |
| Dry Weight | 125kg |
| Fuel Capacity | 10 litres |
| Ground Clearance | 172mm |
OTHER |

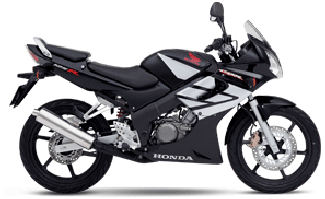

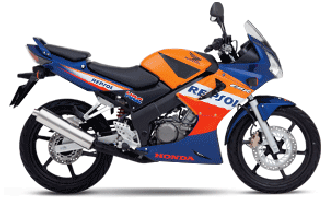

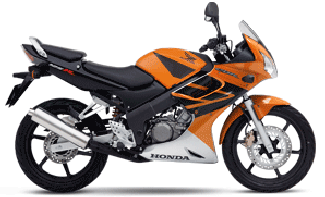

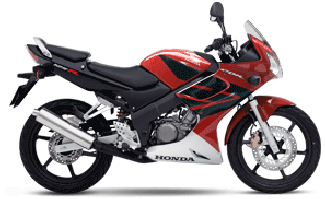

2007 CBR125R
Engine |
|
| Engine Type | Liquid-cooled 4-stroke 2-valve SOHC single |
| Displacement | 124.7cc |
| Bore and Stroke | 58 x 47.2mm |
| Compression Ratio | 11 :1 |
| Carburation | PGM-FI electronic fuel injection |
| Ignition | Fully transistorised with electronic advance |
| Max. Power Output | 10kW/10,000min-1 (95/1/EC) |
| Max. Torque | 10.6Nm/8,250min-1 (95/1/EC) |
| Starter | Electric |
DRIVETRAIN |
|
| Transmission | 6-speed |
| Final Drive | O-ring sealed chain |
| Front Wheel | U-section 6-spoke cast aluminium |
| Rear Wheel | U-section 6-spoke cast aluminum |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 31mm telescopic fork, 109mm axle travel |
| Rear Suspension | Monoshock damper, 120mm axle travel |
| Front Brakes | 276 x 4mm hydraulic disc with dual-piston caliper and sintered metal pads |
| Rear Brakes | 220 x 4mm hydraulic disc with single-piston caliper and sintered metal pads |
| Front Tire | 80/90 17M/C 44P |
| Rear Tire | 100/80 17M/C 52P |
DIMENSION |
|
| Length x Width x Height | 1920 x 675 x 1070mm |
| Seat Height | 776mm |
| Wheelbase | 1294mm |
| Dry Weight | 125kg |
| Fuel Capacity | 10 litres |
| Ground Clearance | 172mm |
OTHER |

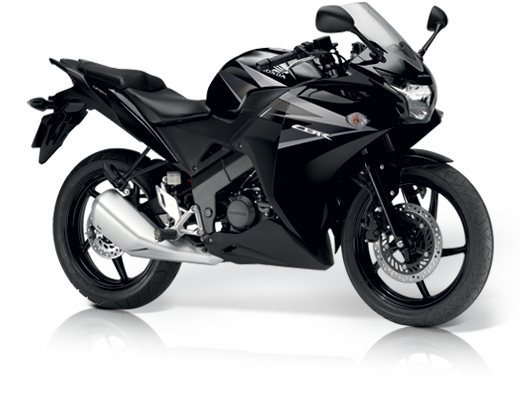

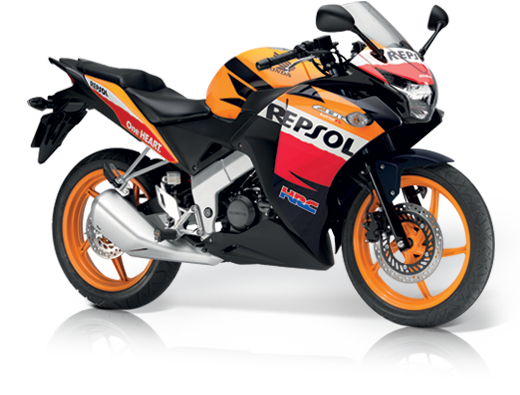

2011 CBR125R
Engine |
|
| Engine Type | Liquid-cooled 4-stroke 2-valve SOHC single |
| Displacement | 124.7cc |
| Bore and Stroke | 58 x 47.2mm |
| Compression Ratio | 11 :1 |
| Valve Train | Chain-driven SOHC; 2 valves per cylinder |
| Fuel Delivery | PGM-FI fuel injection |
DRIVETRAIN |
|
| Transmission | 6-speed |
| Final Drive | O-ring sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 31 mm telescopic fork; 120 mm (4.7 in.) travel |
| Rear Suspension | Single shock; 126 mm (5 in.) travel |
| Front Brakes | 276 x 4mm hydraulic disc with dual-piston caliper and sintered metal pads |
| Brakes | Front 276 mm disc with dual-piston caliper; rear 220 mm disc with single-piston caliper |
| Front Tire | 100/80 – 17 front; 130/70 – 17 rear |
DIMENSION |
|
| Seat Height | 793 mm (31.2 in.) |
| Wheelbase | 1,313 mm (51.7 in.) |
| Dry Weight | 136.9 kg (302 lb) including required fluids and full tank of gas – ready to ride |
| Fuel Capacity | 13 litres |
| Ground Clearance | N/A |
OTHER |
|
| Colour |
|
| Warranty | 1 year, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus |
| MSRP | $3,499 |

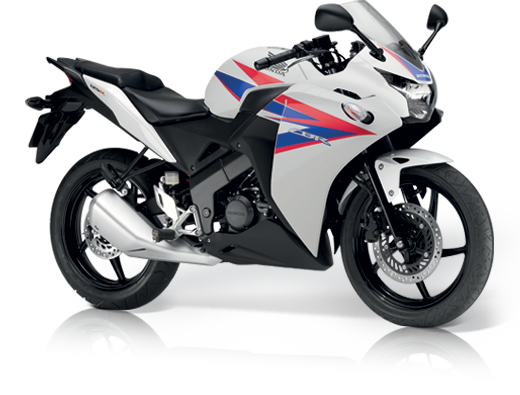

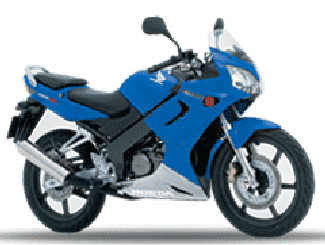

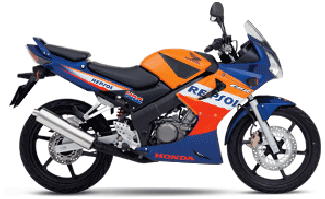

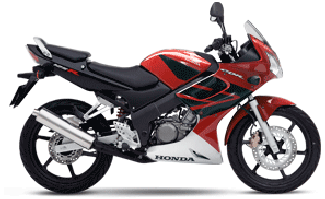

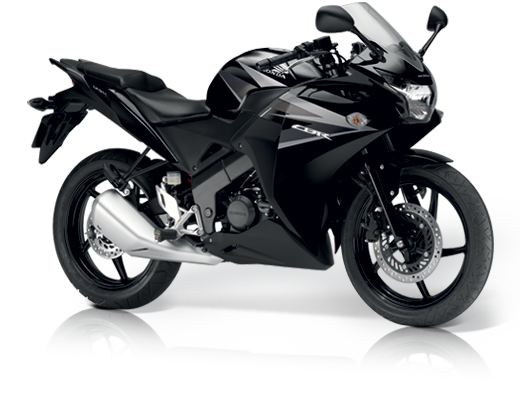

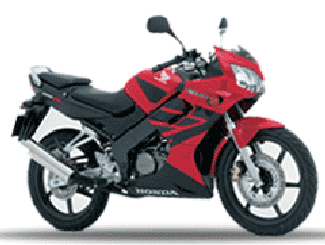

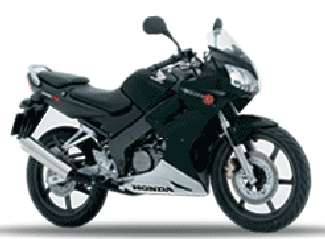

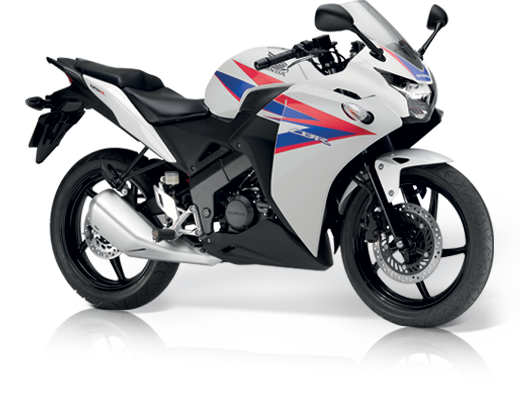

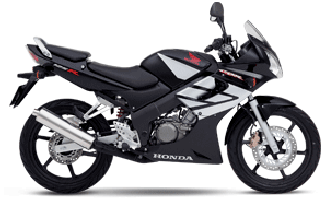

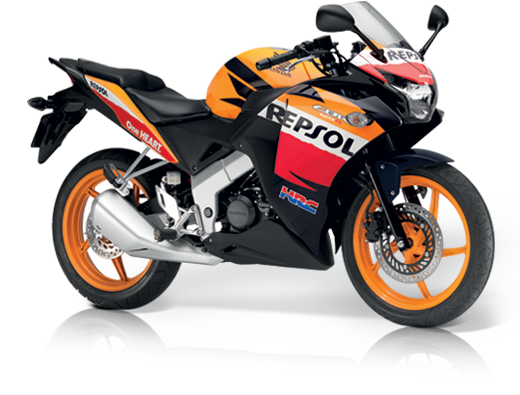

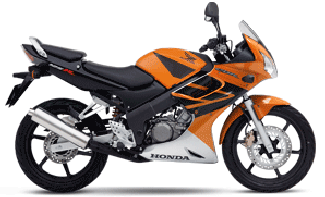

CBR125R Image Gallery
