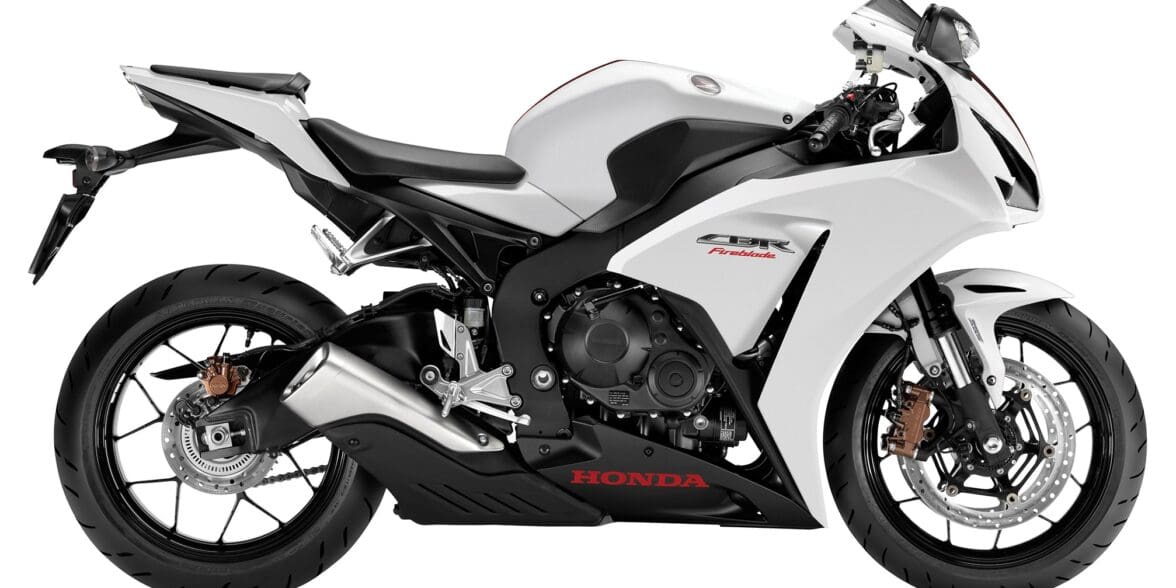

2010 Honda CBR1000RRA
Engine |
|
| Engine Type | Liquid-cooled inline-four |
| Displacement | 999 cc |
| Bore and Stroke | 76 mm x 55.1 mm |
| Compression Ratio | 12.3:1 |
| Valve Train | Chain-driven DOHC, 4 valves per cylinder |
| Fuel Delivery | Dual Stage Fuel Injection |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final drive | #530 O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 43 mm inverted HMAS cartridge fork with full adjustability; 110 mm (4.3 in.) travel |
| Rear Suspension | Unit Pro-Link HMAS single shock with full adjustability; 138 mm (5.4 in.) travel |
| Tires | 120/70ZR – 17 radial front; 190/50ZR-17 radial rear |
| Brakes | Front dual 320 mm discs with radial-mounted four-piston calipers; rear single 220 mm disc with single-piston caliper. Electronically Controlled Combined ABS |
DIMENSION |
|
| Ground Clearance | N/A |
| Seat Height | 820 mm (32.3 in.) |
| Wheelbase | 1,407 mm (55.4 in.) |
| Curb Weight | 210 kg (463 lb) including required fluids and full tank of gas – ready to ride |
| Fuel Capacity | 17.7 litres |
OTHER |
|
| Colors | Pearl Fire Orange/Digital Silver |
| Warranty | 1 year, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus |
| MSRP | $16,399 |
2011 Honda CBR1000RRA
Engine |
|
| Engine Type | Liquid-cooled inline-four |
| Displacement | 999 cc |
| Bore and Stroke | 76 mm x 55.1 mm |
| Compression Ratio | 12.3:1 |
| Valve Train | Chain-driven DOHC, 4 valves per cylinder |
| Fuel Delivery | Dual Stage Fuel Injection |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final drive | #530 O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 43 mm inverted HMAS cartridge fork with full adjustability; 110 mm (4.3 in.) travel |
| Rear Suspension | Unit Pro-Link HMAS single shock with full adjustability; 138 mm (5.4 in.) travel |
| Tires | 120/70ZR – 17 radial front; 190/50ZR-17 radial rear |
| Brakes | Front dual 320 mm discs with radial-mounted four-piston calipers; rear single 220 mm disc with single-piston caliper. Electronically Controlled Combined ABS |
DIMENSION |
|
| Ground Clearance | N/A |
| Seat Height | 820 mm (32.3 in.) |
| Wheelbase | 1,410 mm (55.5 in.) |
| Curb Weight | 210 kg (463 lb) including required fluids and full tank of gas – ready to ride |
| Fuel Capacity | 17.7 litres |
OTHER |
|
| Colors | Graphite Black, optional Repsol |
| Warranty | 1 year, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus |
| MSRP | $17,199 |
2012 Honda CBR1000RRA
Engine |
|
| Engine Type | Liquid-cooled inline-four |
| Displacement | 999 cc |
| Bore and Stroke | 76 mm x 55.1 mm |
| Compression Ratio | 12.3:1 |
| Valve Train | Chain-driven DOHC, 4 valves per cylinder |
| Fuel Delivery | Dual Stage Fuel Injection |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final drive | #530 O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 43 mm inverted HMAS cartridge fork with full adjustability; 110 mm (4.3 in.) travel |
| Rear Suspension | Unit Pro-Link HMAS single shock with full adjustability; 138 mm (5.4 in.) travel |
| Tires | 120/70ZR – 17 radial front; 190/50ZR-17 radial rear |
| Brakes | Front dual 320 mm discs with radial-mounted four-piston calipers; rear single 220 mm disc with single-piston caliper. Electronically Controlled Combined ABS |
DIMENSION |
|
| Ground Clearance | N/A |
| Seat Height | 820 mm (32.3 in.) |
| Wheelbase | 1,410 mm (55.5 in.) |
| Curb Weight | 210 kg (463 lb) including required fluids and full tank of gas – ready to ride |
| Fuel Capacity | 17.7 litres |
OTHER |
|
| Colors |
|
| Warranty | 1 year, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus |
| MSRP | $15,599 |
