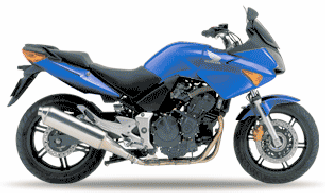

2004 CBF600S
Engine |
|
| Engine Type | Inline 4 Cylinder, liquid-cooled 4-stroke 16-valve DOHC |
| Bore and Stroke | 65 x 45.2mm |
| Displacement | 600cc |
| Compression Ratio | 10.7:1 |
| Fuel Delivery | 34mm slanted flat-slide VP- type carburetors x 4 |
| Max. Power Output | 76 bhp at 10,500 rpm |
| Max. Torque | 58Nm at 8000 rpm |
| Ignition | Computer controlled digital system |
| Starter | Electric |
DRIVETRAIN |
|
| Transmission | 6-speed |
| Final Drive | Sealed O-ring chain |
| Front Wheels | 6-spoke cast aluminum 17M/C x MT3.50 |
| Rear Wheels | 6-spoke cast aluminum 17M/C x MT5.00 |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm telescopic fork, 120mm axle travel |
| Rear Suspension | Monoshock damper with 7- step adjustable preload, 125mm axle travel |
| Front Tire | 120/70 ZR17M/C (58W) |
| Rear Tire | 160/60 ZR17M/C (69W) |
| Front Brakes | 296 x 4.5mm dual hydraulic disc with dual-piston calipers and sintered metal pads |
| Rear Brakes | 240 x 5mm hydraulic disc with single-piston caliper and sintered metal pads |
DIMENSION |
|
| Length x Width x Height | 2170 x 760 x 1240mm |
| Wheelbase | 1480mm |
| Seat Height | 785mm |
| Ground Clearance | 130mm |
| Fuel Capacity | 19 litres (including 3.5-litre warning light reserve) |
| Dry Weight | 197kg |
2007 CBF600S
Engine |
|
| Engine Type | Inline 4 Cylinder, Liquid-cooled 4-stroke 16-valve DOHC |
| Bore and Stroke | 65 x 45.2mm |
| Displacement | 600cc |
| Compression Ratio | 11.6 :1 |
| Carburation | 34mm slanted flat-slide VP-type carburetors x 4 |
| Max. Power Output | 76 bhp at 10,500 rpm |
| Max. Torque | 58Nm at 8,000 rpm |
| Ignition | Computer controlled digital system |
| Starter | Electric |
DRIVETRAIN |
|
| Gearbox | 6-speed |
| Final Drive | O-ring sealed chain |
| Front Wheels | 6-spoke cast aluminium 17M/C x MT3.50 |
| Rear Wheels | 6-spoke cast aluminium 17M/C x MT5.00 |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm telescopic fork, 120mm axle travel |
| Rear Suspension | Monoshock damper with 7- step adjustable preload, 125mm axle travel |
| Front Tire | 120/70 ZR17M/C (58W) |
| Rear Tire | 160/60 ZR17M/C (69W) |
| Front Brakes | ABS.296 x 4.5mm dual hydraulic disc with dual-piston calipers and sintered metal pads |
| Rear Brakes | ABS. 240 x 5mm hydraulic disc with single-piston caliper and sintered metal pads |
DIMENSION |
|
| Length x Width x Height | 2,170 x 760 x 1,240mm |
| Wheelbase | 1480mm |
| Seat Height | 785mm |
| Ground Clearance | 130mm |
| Fuel Capacity | 19 litres (including 3.5-litre warning light reserve) |
| Dry Weight | 197kg |

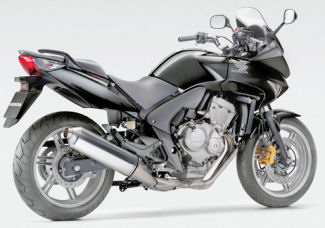

2008 CBF600S
OVERVIEW
- New gravity die-cast aluminium Mono-Backbone frame helps to achieve the 8kg weight reduction
- Stronger seat rail for mounting of panniers and top box
- New smoother, and indicators narrower seat design
- Larger 20-litre fuel tank capacity
- New dogleg clutch and brake levers
- Dual-chamber HMAS damper with seven-step adjustable spring preload
- New 46mm longer swingarm enhances high-speed control
- New centrestand design improves leverage for easier operation
- Shorter transmission gear ratios for quicker torque and acceleration
- Lighter, more compact new fuel-injected 600cc engine tuned for smoother performance and stronger torque and acceleration
- New Combined-ABS version with 3-piston front brake calipers
- New lighter-weight 6-point floating front disc brake rotors
- New adjustable front fork preload
- New instrument panel features new fuel gauge and indicators
- 2-position adjustable windscreen provides excellent protection
| ENGINE Type | Liquid-cooled 4-stroke 16-valve DOHC inline-4 |
| Displacement | 599.3cc |
| Max power | 57kW / 10,500min-1 (95/1/EC) |
| Max torque | 59Nm / 8,250min-1 (95/1/EC) |
DRIVETRAIN |
|
| Clutch | Mechanical; cable-actuated, Wet, multiplate with coil springs |
CHASSIS / SUSPENSION / BRAKES |
|
| Tire front | 120/70 ZR17M/C (58W) |
| Tire rear | 160/60 ZR17M/C (69W) |
DIMENSION |
|
| Fuel capacity | 20 litres (including 4-litre warning light reserve) |
| Dimensions | 2,160 x 765 x 1,240mm |
| Curb weight | 222kg (F: 109kg; R: 113kg) |
2010 Honda CBF600SA
Engine |
|
| Engine Type | Liquid-cooled inline-four |
| Bore and Stroke | 67 mm x 42.5 mm |
| Displacement | 599 cc |
| Compression Ratio | 11.6:1 |
| Valve Train | Chain-driven DOHC, 4 valves per cylinder |
| Fuel Delivery | PGM-FI electronic fuel injection |
DRIVETRAIN |
|
| Transmission | Six-speed |
| Final Drive | O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41 mm fork with adjustable preload; 120 mm (4.7 in) travel |
| Rear Suspension | Single shock with adjustable preload; 125 mm (4.9 in.) travel |
| Front Tire | 120/70ZR – 17 radial front; 160/60ZR – 17 radial rear |
| Rear Tire | Front dual 296 mm discs with three-piston calipers; rear single 240 mm disc with single-piston caliper. Combined Braking System with ABS |
DIMENSION |
|
| Wheelbase | 1,490 mm (58.7 in.) |
| Seat Height | 785 mm (30.9 in.) adjustable +/- 15 mm (0.6 in.) |
| Ground Clearance | N/A |
| Fuel Capacity | 20 litres |
| Curb Weight | 222 kg (489 lb) including required fluids and full tank of gas – ready to ride |
OTHER |
|
| Color | Pearl Nightstar Black |
| Warranty | 1 year, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus |
| MSRP | $9,899 |
2011 Honda CBF600SA
Engine |
|
| Engine Type | Liquid-cooled inline-four |
| Bore and Stroke | 67 mm x 42.5 mm |
| Displacement | 599 cc |
| Compression Ratio | 11.6:1 |
| Valve Train | Chain-driven DOHC, 4 valves per cylinder |
| Fuel Delivery | PGM-FI electronic fuel injection |
DRIVETRAIN |
|
| Transmission | Six-speed |
| Final Drive | O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41 mm fork with adjustable preload; 120 mm (4.7 in) travel |
| Rear Suspension | Single shock with adjustable preload; 125 mm (4.9 in.) travel |
| Front Tire | 120/70ZR – 17 radial front; 160/60ZR – 17 radial rear |
| Rear Tire | Front dual 296 mm discs with three-piston calipers; rear single 240 mm disc with single-piston caliper. Combined Braking System with ABS |
DIMENSION |
|
| Wheelbase | 1,490 mm (58.7 in.) |
| Seat Height | 785 mm (30.9 in.) adjustable +/- 15 mm (0.6 in.) |
| Ground Clearance | N/A |
| Fuel Capacity | 20 litres including 4-litre reserve |
| Curb Weight | 222 kg (489 lb) including required fluids and full tank of gas – ready to ride |
OTHER |
|
| Color | Pearl Nightstar Black |
| Warranty | 1 year, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus |
| MSRP | $9,999 |
2012 Honda CBF600SA
Engine |
|
| Engine Type | Liquid-cooled inline-four |
| Bore and Stroke | 67 mm x 42.5 mm |
| Displacement | 599 cc |
| Compression Ratio | 11.6:1 |
| Valve Train | Chain-driven DOHC, 4 valves per cylinder |
| Fuel Delivery | PGM-FI electronic fuel injection |
DRIVETRAIN |
|
| Transmission | Six-speed |
| Final Drive | O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41 mm fork with adjustable preload; 120 mm (4.7 in) travel |
| Rear Suspension | Single shock with adjustable preload; 125 mm (4.9 in.) travel |
| Front Tire | 120/70ZR – 17 radial front; 160/60ZR – 17 radial rear |
| Rear Tire | Front dual 296 mm discs with three-piston calipers; rear single 240 mm disc with single-piston caliper. Combined Braking System with ABS |
DIMENSION |
|
| Wheelbase | 1,490 mm (58.7 in.) |
| Seat Height | 785 mm (30.9 in.) adjustable +/- 15 mm (0.6 in.) |
| Ground Clearance | N/A |
| Fuel Capacity | 20 litres including 4-litre reserve |
| Curb Weight | 222 kg (489 lb) including required fluids and full tank of gas – ready to ride |
OTHER |
|
| Color | Pearl Cool White |
| Warranty | 1 year, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus |
| MSRP | $10,299 |

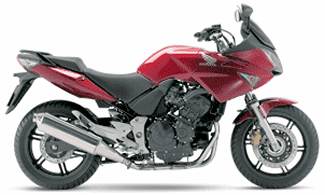

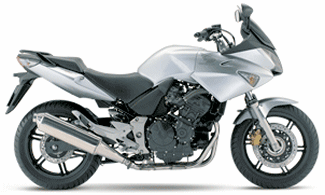

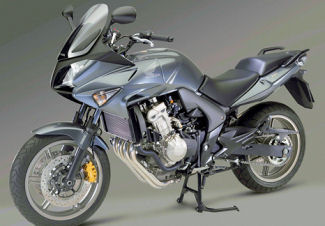

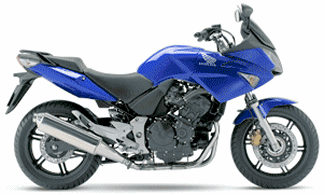

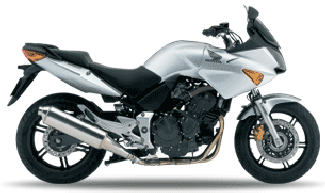

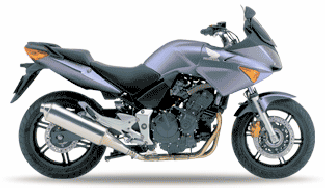

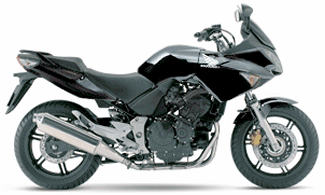

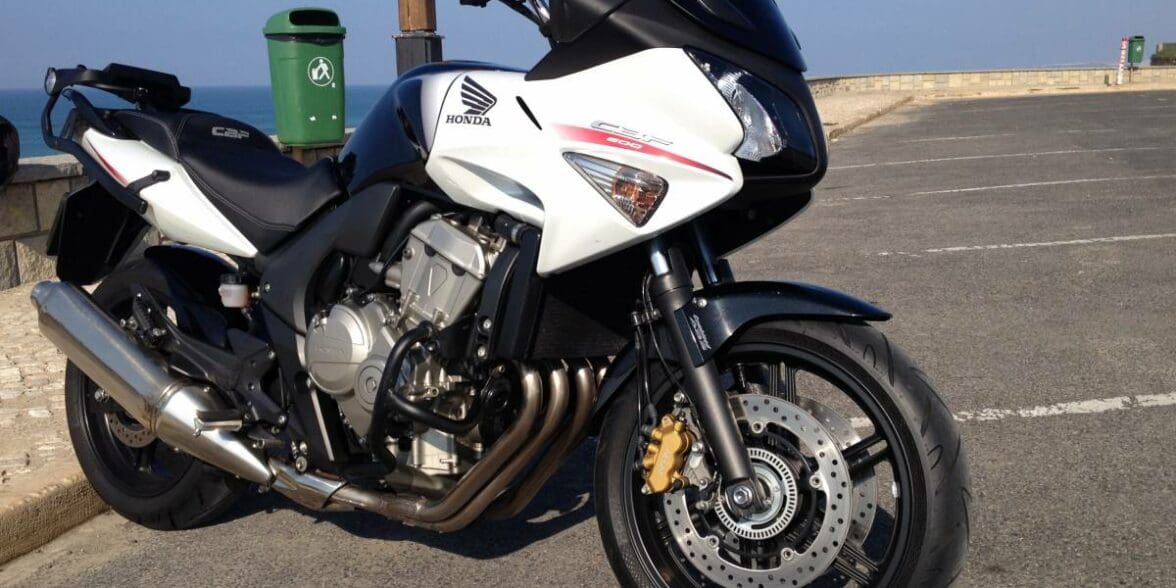

CBF600S Image Gallery
