2004 CBF250
Engine |
|
| Engine Type | Single Cylinder – Air-cooled 4-stroke 4-valve DOHC |
| Displacement | 249 cc |
| Bore and Stroke | 73 x 59.5mm |
| Compression Ratio | 9.3 :1 |
| Fuel Delivery | 32mm VE-L type carburetor |
| Ignition | Digital transistorised with electronic advance |
| Max. Power Output | 20 bhp at 8000 rpm |
| Max. Torque | 22Nm at 6000 rpm |
DRIVETRAIN |
|
| Transmission | 6-speed |
| Final Drive | O-ring-sealed chain |
| Front Wheel | 17M/C x MT2.15 |
| Rear Wheel | 17M/C x MT3.00 |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 7mm telescopic fork, 130mm axle travel |
| Rear Suspension | Monoshock, 100mm axle travel |
| Front Brakes | 276 x 4mm hydraulic disc with dual-piston caliper and sintered metal pads |
| Rear Brakes | 130mm leading/trailing drum |
| Front Tire | 100/80 17M/C 52S |
| Rear Tire | 130/70 17M/C 62S |
DIMENSION |
|
| Seat Height | 780mm |
| Wheelbase | 1370mm |
| Curb Weight | 16 litres (including 2.5-litre reserve) |
| Fuel Capacity | 16 litres (including 2.5-litre reserve) |
| Dry Weight | 138.5kg |
| Length x Width x Height | 2030 x 745 x 1050mm |
OTHER |
2007 CBF250
Engine |
|
| Engine Type | Single Cylinder – Air-cooled 4-stroke 4-valve DOHC |
| Displacement | 249 cc |
| Bore and Stroke | 73 x 59.5mm |
| Compression Ratio | 9.3 :1 |
| Fuel Delivery | 32mm VE-L type carburetor |
| Ignition | Digital transistorised with electronic advance |
| Max. Power Output | 20 bhp at 8000 rpm |
| Max. Torque | 22Nm at 6000 rpm |
DRIVETRAIN |
|
| Transmission | 6-speed |
| Final Drive | O-ring-sealed chain |
| Front Wheel | 17M/C x MT2.15 |
| Rear Wheel | 17M/C x MT3.00 |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 7mm telescopic fork, 130mm axle trave |
| Rear Suspension | Monoshock, 100mm axle travel |
| Front Brakes | 276 x 4mm hydraulic disc with dual-piston caliper and sintered metal pads |
| Rear Brakes | 130mm leading/trailing drum |
| Front Tire | 100/80 17M/C 52S |
| Rear Tire | 130/70 17M/C 62S |
DIMENSION |
|
| Seat Height | 780mm |
| Wheelbase | 1,370mm |
| Ground Clearance | 180mm |
| Fuel Capacity | 16 litres (including 2.5-litre reserve) |
| Dry Weight | 138.5kg |
| Length x Width x Height | 2030 x 745 x 1050mm |
OTHER |

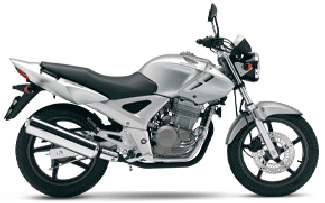

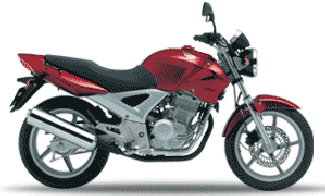

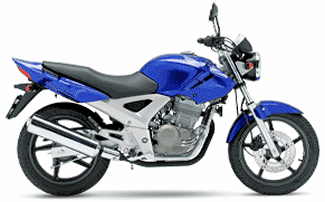

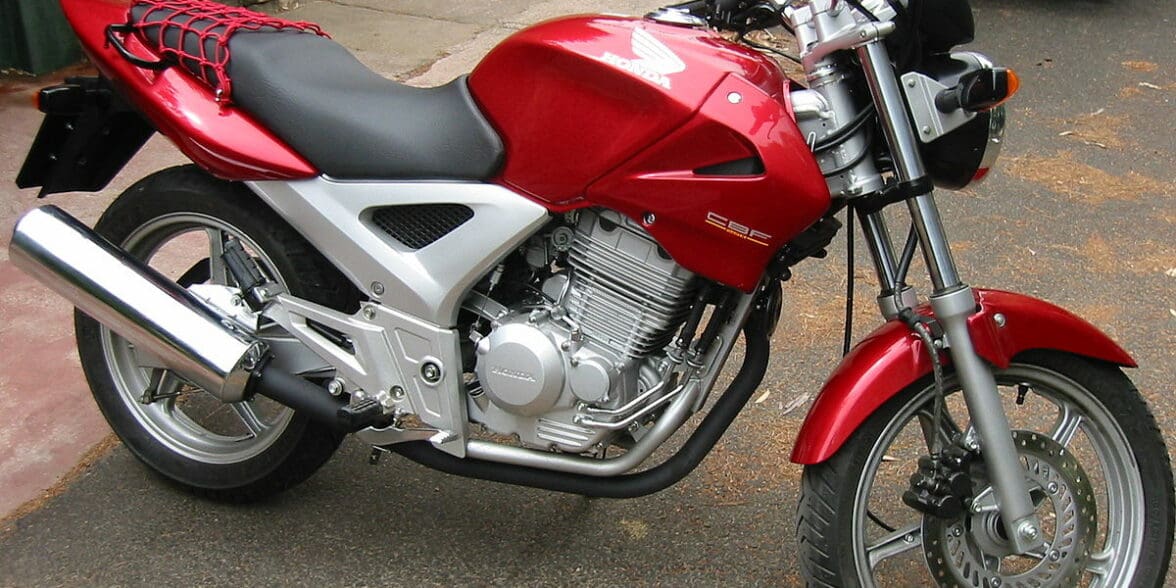

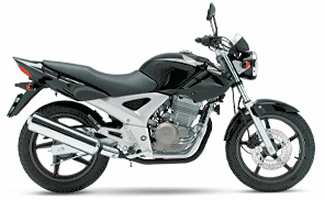

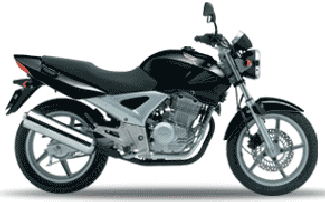

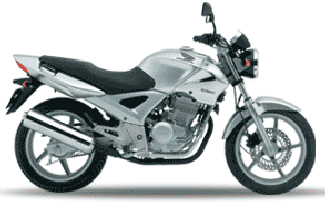

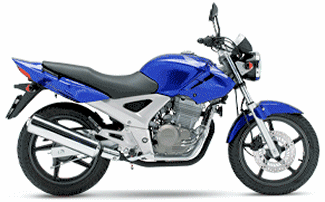

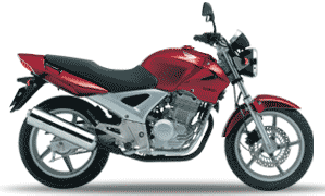

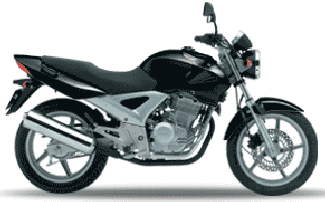

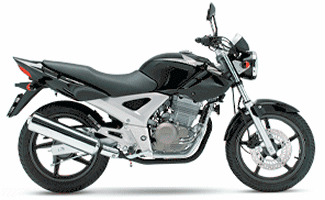

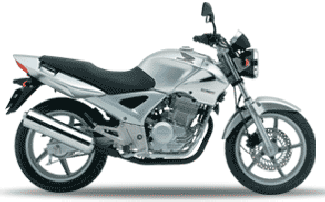

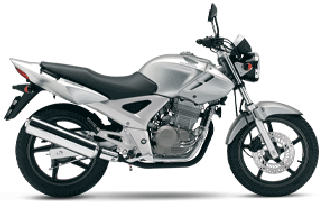

CBF250 Image Gallery
