1998 CB600F Hornet
OVERVIEW
- The CB600F was called “599” in the North America, but “Hornet” in Europe.
Engine |
|
| Engine Type | Liquid cooled, four stroke, transverse four cylinder, DOHC |
| Valving | 4 valves per cylinder |
| Displacement | 600cc (36.6 cid) |
| Bore and Stroke | 65 x 45.2 mm |
| Compression Ratio | 12.0:1 |
| Fuel Delivery | Four 34mm carburetors |
| Ignition | N/A |
| Starter | Electric |
| Max Power | 71.1 kW (97.5 hp) @ 12000 rpm |
| Max Torque | 66.6 Nm (49.2 ft. lbs) @ 10000 rpm |
Drivetrain |
|
| Transmission | 6-speed |
| Final drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm Telescopic forks |
| Rear Suspension | Monoshock preload adjustable. |
| Front Brakes | Two 296mm discs, 2 piston calipers |
| Rear Brakes | Single 220mm disc 1 piston caliper |
| Front Tire | 120/70-17 |
| Rear Tire | 180/55-17 |
DIMENSION |
|
| Seat Height | 790 mm (31.1 inches) |
| Wheelbase | 1420 mm (55.9 inches) |
| Fuel capacity | 16 litres (4.2 Gal) |
| Dry weight | 176 kg (387 lb) |
OTHER |
|
| Fuel Consumption | 5.9 L/100km (40 mpg) |
| Standing Quarter Mile | 11.4 sec /192.2 km/h (119.4 mph) |
| Top Speed | 226.6 km/h (141 mph) |
1999 CB600F Hornet
OVERVIEW
- The CB600F was called “599” in the North America, but “Hornet” in Europe.
Engine |
|
| Engine Type | Liquid cooled, four stroke, transverse four cylinder, DOHC |
| Valving | 4 valves per cylinder |
| Displacement | 600cc (36.6 cid) |
| Bore and Stroke | 65 x 45.2 mm |
| Compression Ratio | 12.0:1 |
| Fuel Delivery | Four 34mm carburetors |
| Ignition | N/A |
| Starter | Electric |
| Max Power | 71.1 kW (97.5 hp) @ 12000 rpm |
| Max Torque | 66.6 Nm (49.2 ft. lbs) @ 10000 rpm |
Drivetrain |
|
| Transmission | 6-speed |
| Final drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm Telescopic forks |
| Rear Suspension | Monoshock preload adjustable. |
| Front Brakes | Two 296mm discs, 2 piston calipers |
| Rear Brakes | Single 220mm disc 1 piston caliper |
| Front Tire | 120/70-17 |
| Rear Tire | 180/55-17 |
DIMENSION |
|
| Fuel capacity | 16 Litres (4.2 Gal) |
| Dry weight | 176 kg (387 lb) |
OTHER |
|
| Fuel Consumption | 5.9 L/100km (40 mpg) |
| Standing Quarter Mile | 11.4 sec /192.2 km/h (119.4 mph) |
| Top Speed | 226.6 km/h (141 mph) |
2000-03 CB600F Hornet
Engine |
|
| Engine Type | Liquid-cooled 4-stroke, |
| Valving | 16-valve DOHC inline-4 |
| Displacement | 599cc |
| Bore and Stroke | 65 x 45.2mm |
| Compression Ratio | 12:1 |
| Fuel Delivery | Four 34mm downdraft flat-slide CV-type |
| Ignition | Computer-controlled digital transistorized with electronic advance |
| Starter | Electric |
| Max Power | 88 bhp @ 11,750rpm |
| Max Torque | 45 lb/ft @ 9,250rpm |
Drivetrain |
|
| Transmission | 6-speed |
| Final drive | ‘O’-ring sealed chain |
| Front Wheel | 17 x MT3.50 hollow-section triple-spoke cast aluminum |
| Rear Wheel | 17 x MT5.50 hollow-section triple-spoke cast aluminum |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm telescopic fork, 120mm axle travel |
| Rear Suspension | Monoshock damper with 7-step adjustable pre-load, 128mm axle travel |
| Front Brakes | 296 x 4.5mm dual hydraulic disc with dual-piston calipers fitted with sintered metal pads and gripping floating steel rotors |
| Rear Brakes | 220 x 5mm hydraulic disc with single-piston caliper and sintered metal pads |
| Front Tire | 120/70 ZR17 |
| Rear Tire | 180/55 ZR17 |
DIMENSION |
|
| Overall length | 2095mm (82.5 inches) |
| Overall width | 740mm (29.1 inches) |
| Overall height | 1065mm (41.9 inches) |
| Wheelbase | 1425mm (56.1 inches) |
| Seat Height | 790mm (31.1 inches) |
| Ground Clearance | 140mm (5.5 inches) |
| Fuel capacity | 16 liters (4.2 Gal) (including three-litre reserve) (0.8 Gal) |
| Dry weight | 176 kg (387 lb) |
OTHER |
2004 CB600F
Engine |
|
| Engine Type | 599cc liquid-cooled inline four-cylinder |
| Valving | DOHC; four valves per cylinder |
| Displacement | 599cc |
| Bore and Stroke | 65.0mm x 45.2mm |
| Compression Ratio | 12.0:1 |
| Fuel Delivery | Four 34.0mm slanted flat-slide CV |
| Ignition | Computer-controlled digital transistorized with electronic advance |
Drivetrain |
|
| Transmission | 6-speed |
| Final drive | #525 O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm telescopic fork; 4.3-inch travel |
| Rear Suspension | Single shock with seven-position spring-preload adjustability; 5.0-inch travel |
| Front Brakes | Dual full-floating 296.0mm discs with twin-piston calipers |
| Rear Brakes | Single 220.0mm disc with single-piston caliper |
| Front Tire | 120/70ZR-17 radial |
| Rear Tire | 180/55ZR-17 radial |
DIMENSION |
|
| Rake | 25.0 degrees |
| Trail | 98.0mm (3.9 inches) |
| Wheelbase | 1420mm (55.9 inches) |
| Fuel capacity | 19 Litres (5.0 Gal) |
| Dry weight | 182 kg (401.0 pounds) |
OTHER |
|
| Emissions | California version meets CARB 2004 emissions standards. |
| Colors |
|
| Warranty | 1 year |
2005 CB600F “599”
Engine |
|
| Engine Type | Liquid cooled, four stroke, transverse four cylinder, DOHC |
| Valving | 4 valves per cylinder |
| Displacement | 599cc |
| Bore and Stroke | 65 x 45.2mm |
| Compression Ratio | 11.6:1 |
| Fuel Delivery | 4x 34mm slanted flat-slide VP-type |
| Ignition | Computer-controlled digital |
| Starter | Electric |
| Max Power | 71 kW 97 hp @ 12000 rpm |
| Max Torque | 63 Nm @ 9500 rpm |
Drivetrain |
|
| Transmission | 6-speed |
| Final drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm Upside down forks, 120mm wheel travel |
| Rear Suspension | Monoshock damper with 7-way adjustable preload, 128mm wheel travel |
| Front Brakes | Two 296mm discs |
| Rear Brakes | Single 220mm disc |
| Front Tire | 120/70ZR17 |
| Rear Tire | 180/55 ZR17 |
DIMENSION |
|
| Fuel capacity | 17 Litres |
| Dry weight | 188 kg |
OTHER |
|
| Standing Quarter Mile | 12.9 sec |
| Top Speed | 214.8 km/h |
2006 CB600F “599”
Engine |
|
| Engine Type | 599cc liquid-cooled inline four-cylinder |
| Bore and Stroke | 65.0mm x 45.2mm |
| Compression Ratio | 12.0:1 |
| Fuel Delivery | 4x 34mm slanted flat-slide VP-type |
| Valve Train | DOHC; four valves per cylinder |
| Fuel Delivery | Four 34.0mm slanted flat-slide CV |
| Ignition | Computer-controlled digital with electronic advance |
Drivetrain |
|
| Transmission | 6-speed |
| Final drive | #525 O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm inverted fork; 4.7-inch travel |
| Rear Suspension | Single shock with seven-position spring-preload adjustability; 5.0-inch travel |
| Front Brakes | Dual full-floating 296.0mm discs with twin-piston calipers |
| Rear Brakes | Single 220.0mm disc with single-piston caliper |
| Front Tire | 120/70ZR-17 radial |
| Rear Tire | 180/55ZR-17 radial |
DIMENSION |
|
| Rake | 25.5 degrees |
| Trail | 96.0mm (3.8 inches) |
| Wheelbase | 1425mm (56.1 inches) |
| Seat Height | 790mm (31.1 inches) |
| Fuel capacity | 17 litre (4.5 Gal) |
| Dry weight | 183.6 kg (404.0 lb) |
OTHER |
|
| Emissions |
|
| Colors | Metallic Black |
| Model ID | CB600F |
2007 CB600F Hornet
Engine |
|
| Engine Type | Liquid-cooled 4-stroke 16-valve DOHC inline-4 |
| Bore and Stroke | 67 x 42.5mm |
| Compression Ratio | 12:1 |
| Carburation | PGM-FI electronic fuel injection |
| Max. Power Output | 75kW/12,000min-1 (95/1/EC) |
| Max. Torque | 63.5Nm/10,500min-1 (95/1/EC) |
| Ignition | Computer-controlled digital transistorised with electronic advance |
| Starter | Electric |
Drivetrain |
|
| Transmission | 6-speed |
| Final drive | #525 O-ring sealed chain |
| Wheels Front | Hollow-section 5-spoke cast aluminium, 17M/C x MT3.5 |
| Wheels Rear | Hollow-section 5-spoke cast aluminium, 17M/C x MT5.5 |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm inverted telescopic fork, 120mm axle travel |
| Rear Suspension | Monoshock damper with 7-step adjustable preload, 128mm axle travel |
| Front Brakes | 296 x 4.5mm dual hydraulic disc with dual-piston calipers, floating rotors and sintered metal pads |
| Rear Brakes | 240 x 5mm hydraulic disc with single-piston caliper and sintered metal pads |
| Front Tire | 120/70-ZR17M/C (58W) |
| Rear Tire | 180/55-ZR17M/C (73W) |
DIMENSION |
|
| Overall length | 2090mm (82.3 inches) |
| Overall width | 740mm (29.1 inches |
| Overall height | 1095mm (43.1 inches) |
| Wheelbase | 1435mm (56.5 inches) |
| Seat Height | 800mm (31.5 inches) |
| Ground Clearance | 135mm (5.3 inches) |
| Fuel Capacity | 19 litres (5 Gal) (including 4-litre (1 Gal) LCD-indicated reserve) |
| Dry Weight | 173 kg (381 lb) |
OTHER |
2012 CB600F Hornet
Engine |
|
| Engine Type | Liquid-cooled 4-stroke 16-valve DOHC inline-4 |
| Bore and Stroke | 67 x 42.5mm |
| Fuel Delivery | PGM-FI electronic fuel injection |
| Compression Ratio | 12:1 |
| Carburation | PGM-FI electronic fuel injection |
| Max. Power Output | 75kW/12,000min-1 (95/1/EC) |
| Max. Torque | 63.5Nm/10,500min-1 (95/1/EC) |
| Ignition | Computer-controlled digital transistorised with electronic advance |
| Starter | Electric |
Drivetrain |
|
| Transmission | 6-speed |
| Final drive | #525 O-ring sealed chain |
| Wheels Front | Hollow-section 5-spoke cast aluminium, 17M/C x MT3.5 |
| Wheels Rear | Hollow-section 5-spoke cast aluminium, 17M/C x MT5.5 |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm inverted telescopic fork, 120mm axle travel |
| Rear Suspension | Monoshock damper with 7-step adjustable preload, 128mm axle travel |
| Front Brakes | 296 x 4.5mm dual hydraulic disc with dual-piston calipers, floating rotors and sintered metal pads |
| Rear Brakes | 240 x 5mm hydraulic disc with single-piston caliper and sintered metal pads |
| Front Tire | 120/70-ZR17M/C (58W) |
| Rear Tire | 180/55-ZR17M/C (73W) |
DIMENSION |
|
| Overall length | 2090mm (82.3 inches) |
| Overall width | 740mm (29.1 inches |
| Overall height | 1095mm (43.1 inches) |
| Wheelbase | 1435mm (56.5 inches) |
| Seat Height | 800mm (31.5 inches) |
| Ground Clearance | 135mm (5.3 inches) |
| Fuel Capacity | 19 Litres (5.0 GalUS) [including 4-Litre (1 Gal) LCD-indicated reserve] |
| Dry Weight |
|
OTHER |

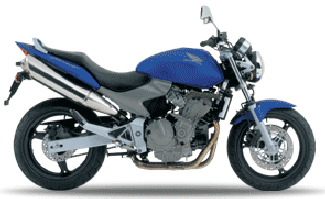

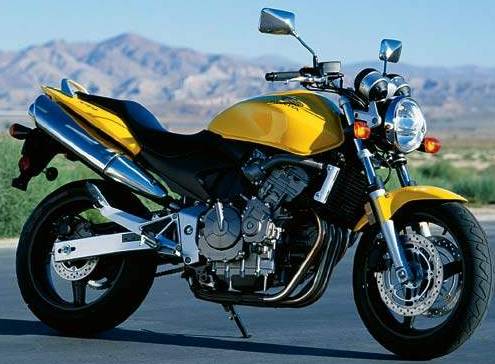

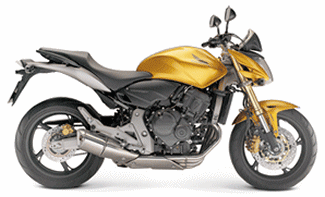

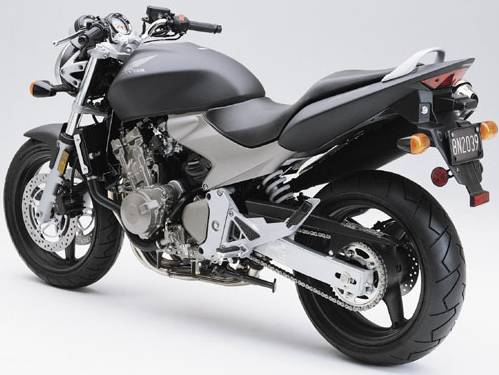

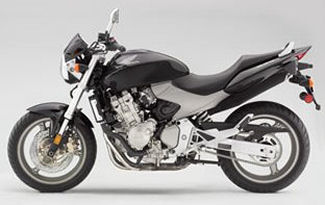

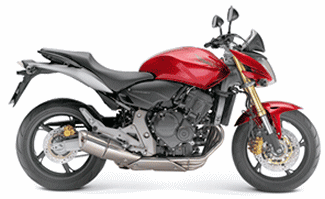

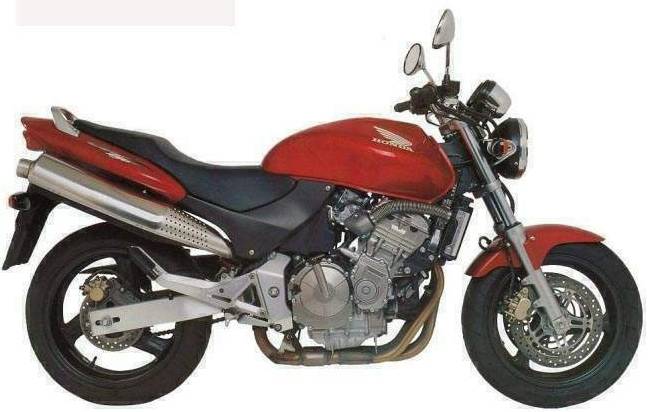

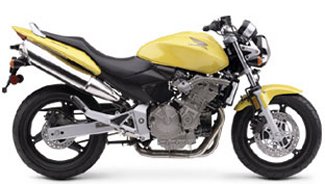

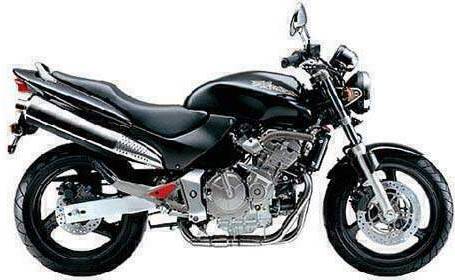

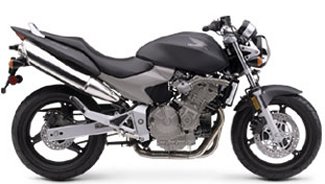

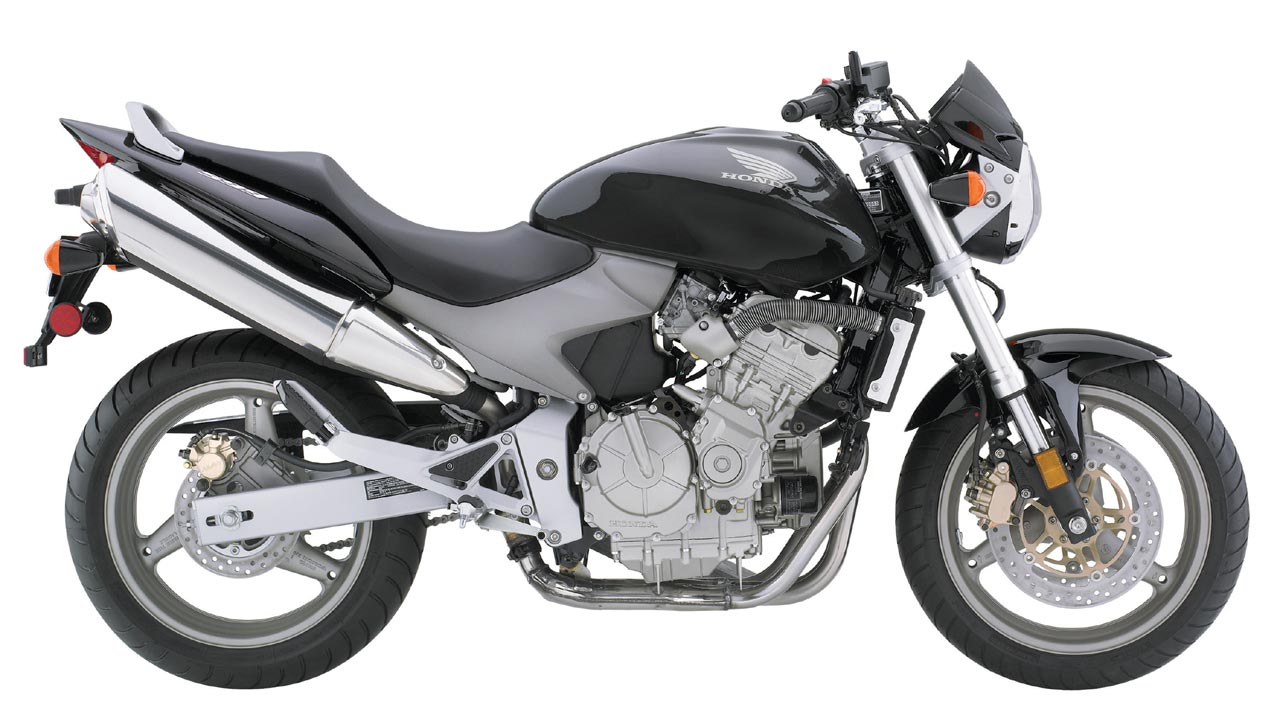

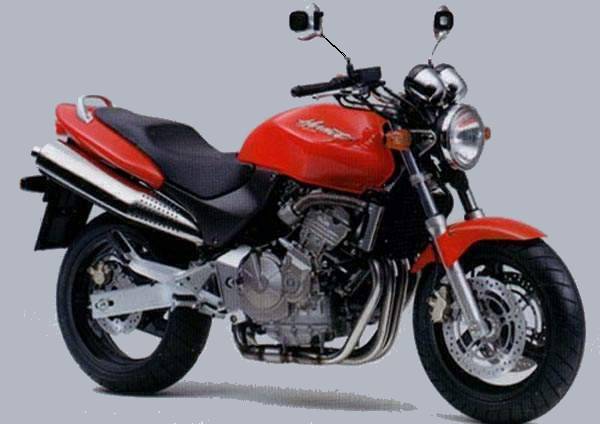

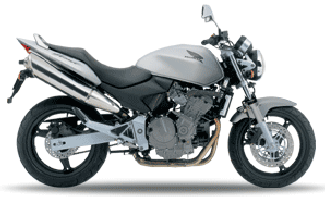

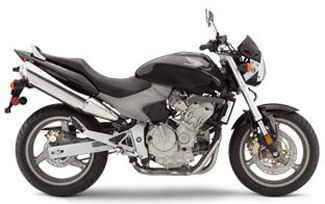

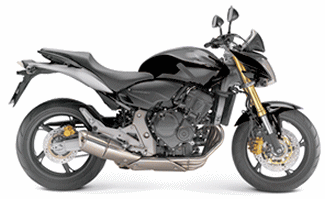

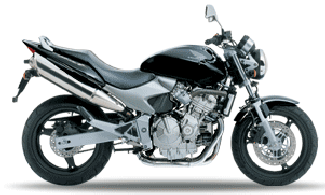

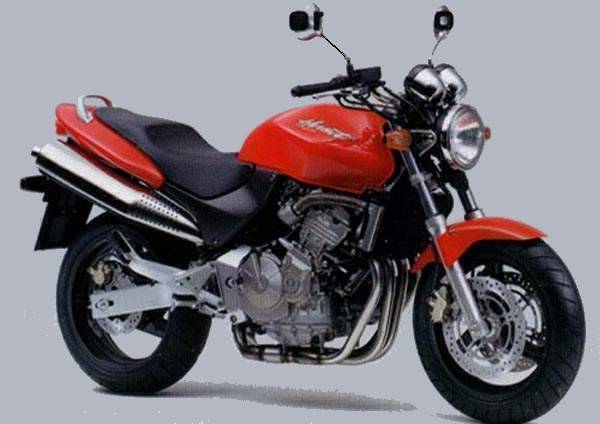

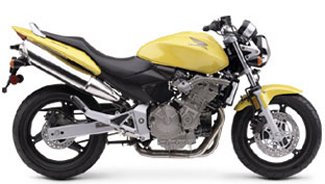

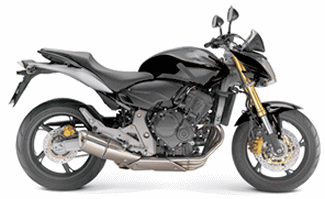

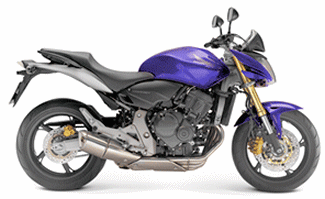

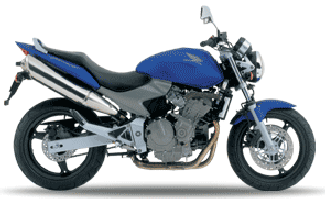

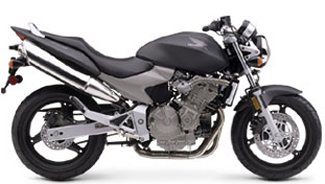

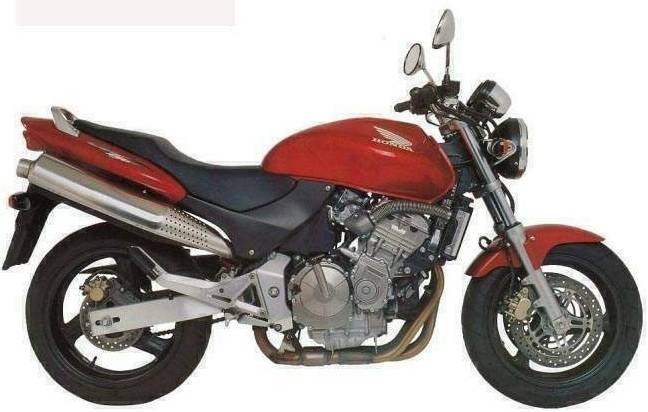

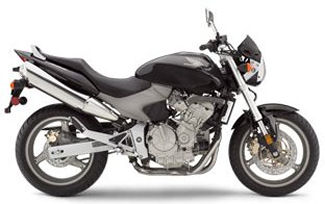

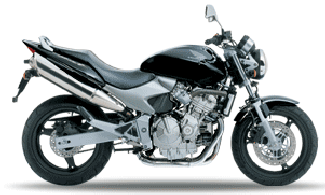

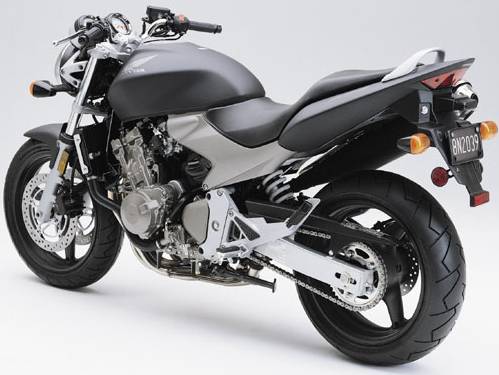

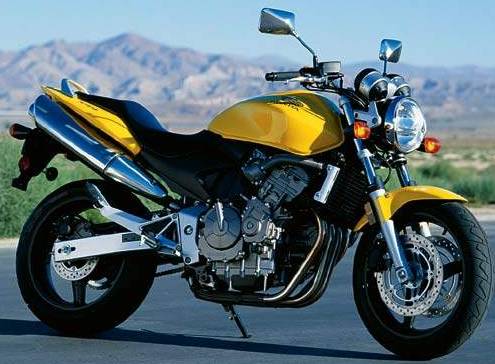

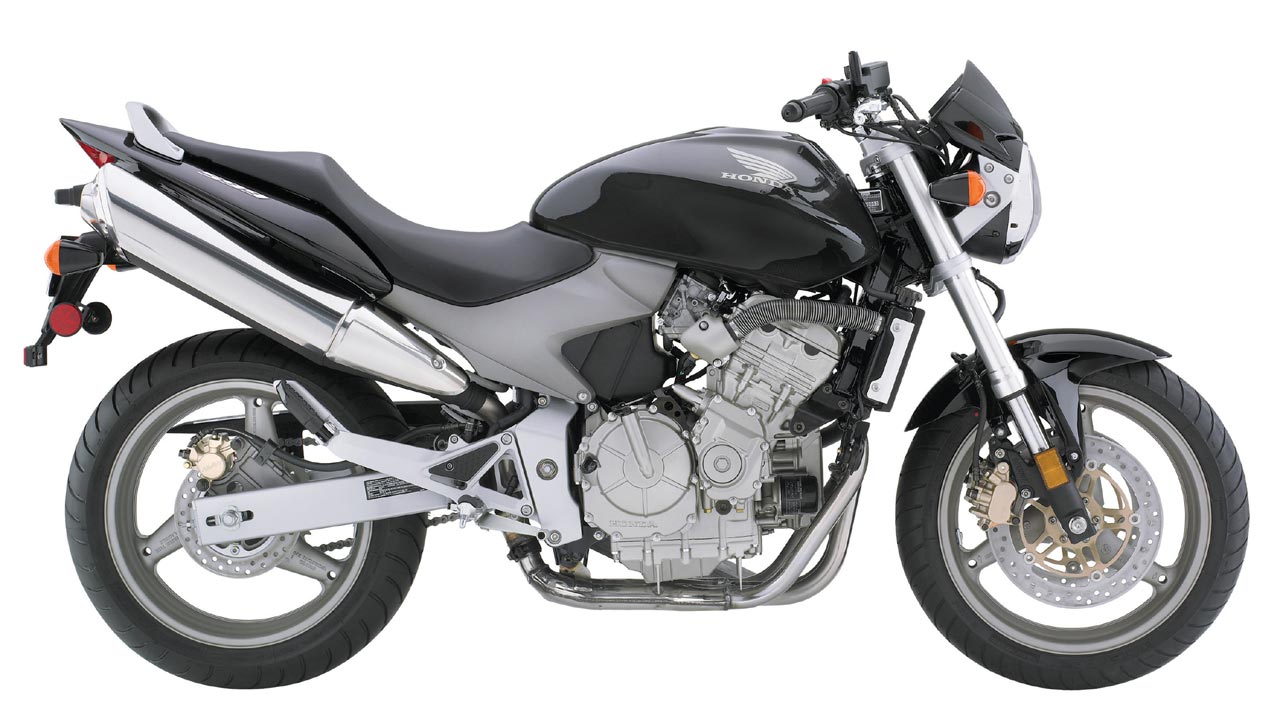

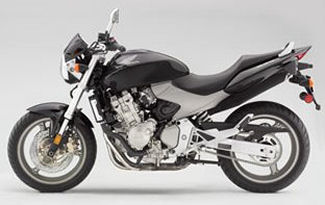

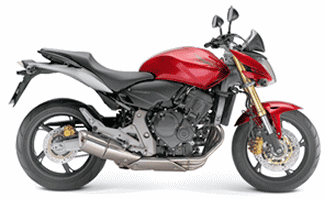

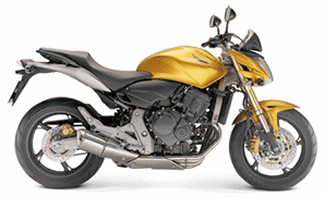

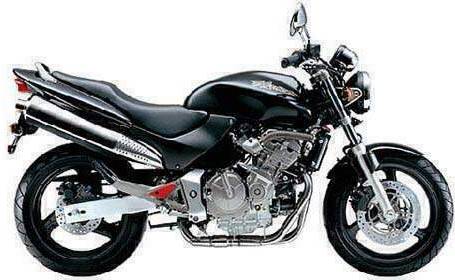

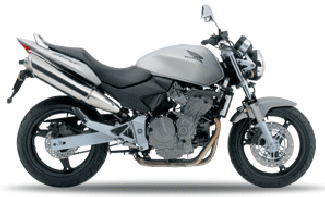

CB600F Image Gallery
