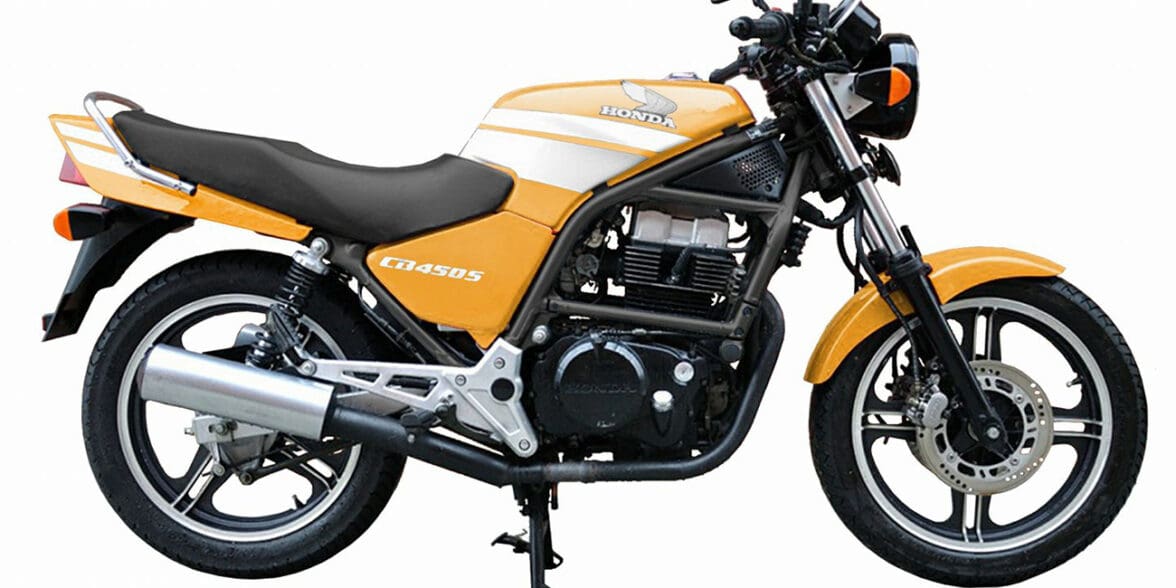

1987 Honda CB450S
Engine |
|
| Engine Type | Air cooled, parallel twin cylinder, four stroke, SOHC, 3 valves per cylinder, 360� crankshaft and twin balance-shafts |
| Displacement | 447cc (27 cid) |
| Bore and Stroke | 75 X 50.6mm |
| Compression Ratio | 9.1:1 |
| Fuel Delivery | Two 30mm Keihin CV |
| Ignition | CDI |
| Starter | Electric |
| Max Power | 45 hp 32.8 KW @ 9000 rpm |
| Max Torque | 33 Nm @ 7500 rpm |
Drivetrain |
|
| Transmission | 6-speed |
| Final drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Telescopic forks 124.5mm wheel travel |
| Rear Suspension | Swing arm 97mm wheel travel |
| Front Brakes | Two 260mm disc 2 piston calipers |
| Rear Brakes | 140mm Drum |
| Front Tire | 100/90-18 |
| Rear Tire | 110/90-18 |
DIMENSION |
|
| Fuel capacity | 17 Litres (4.5 Gal.) |
| Dry weight | 169 kg (372 lb) |
OTHER |
Sold only in Germany
