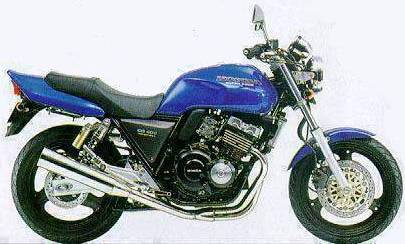

1992-95 Honda CB400SF (Super Four)
Engine |
||
| Engine | Liquid cooled, transverse four cylinders, four stroke, | |
| Displacement | 399cc | |
| Bore x Stroke | 55 x 42 mm | |
| Compression Ratio | 11.3:1 | |
| Fuel Delivery | Four 32mm carburetors | |
| Max Power | 53 hp 38.6 kW @ 10000 rpm | |
| Max Torque | 40.18 Nm @ 7500 rpm | |
Drivetrain |
||
| Transmission | 5-speed | |
| Final Drive | Chain | |
CHASSIS / SUSPENSION / BRAKES |
||
| Front Brakes | Two 296mm discs 4 piston calipers | |
| Rear Brakes | Single 240mm disc 2 piston caliper | |
| Front Tires | 110/80-18 | |
| Rear Tires | 140/70-17 | |
DIMENSION |
||
| Dry-Weight | 168 kg (370 lb) | |
| Fuel Capacity | 11.3 Litres (3 Gal) | |
OTHER |
||
| NA | ||

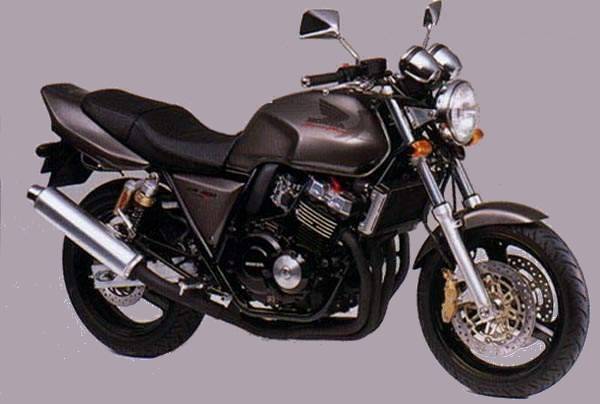

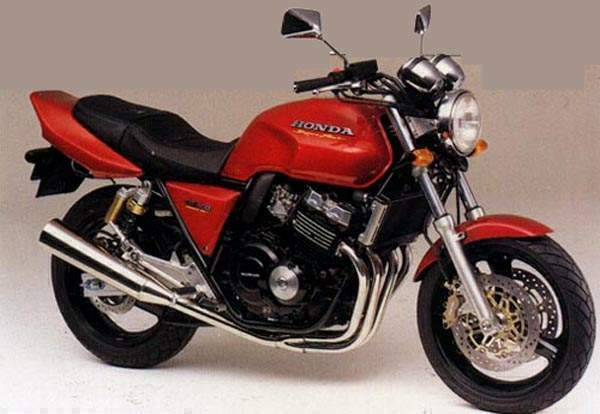

1996-98 Honda CB400SF (Super Four)
Engine |
||
| Engine | Liquid cooled, transverse four cylinders, four stroke, | |
| Displacement | 399cc | |
| Bore x Stroke | 55 x 42 mm | |
| Compression Ratio | 11.3:1 | |
| Valves | 4 valves/cylinder | |
| Fuel Delivery | Four 32mm carburetors | |
| Max Power | 53 hp 38.6 kW @ 10000 rpm | |
| Max Torque | 40.18 Nm @ 7500 rpm | |
Drivetrain |
||
| Transmission | 5-speed | |
| Final Drive | Chain | |
CHASSIS / SUSPENSION / BRAKES |
||
| Front Brakes | Two 296mm discs 4 piston calipers | |
| Rear Brakes | Single 240mm disc 2 piston caliper | |
| Front Tires | 110/80-18 | |
| Rear Tires | 140/70-17 | |
DIMENSION |
||
| Wheelbase | 1460 mm (57.5 inches) | |
| Seat Height | 790 mm (31.1 inches) | |
| Dry-Weight | 168 kg (370 lb) | |
| Fuel Capacity | 11.3 Litres (3 Gal) | |
OTHER |
||
| NA | ||
1999 Honda CB400SF (Super Four) VTEC
Engine |
||
| Engine | Liquid cooled, transverse four cylinders, four stroke, DOHC, | |
| Displacement | 399cc | |
| Bore x Stroke | 55 x 42 mm | |
| Compression Ratio | 11.3:1 | |
| Valves | 4 valves/cylinder | |
| Fuel Delivery | Four 32mm carburetors | |
| Ignition System | Full transistor type battery Ignition System | |
| Max Power | 53 hp (38.6 kW) @ 11000 rpm | |
| Max Torque | 40.18 Nm @ 7500 rpm | |
Drivetrain |
||
| Transmission | 6-speed | |
| Final Drive | Chain | |
CHASSIS / SUSPENSION / BRAKES |
||
| Front Brakes | Two 296mm discs 4 piston calipers | |
| Rear Brakes | Single 240mm disc 2 piston caliper | |
| Front Tires | 120/60-17 | |
| Rear Tires | 160/60-17 | |
DIMENSION |
||
| Overall Length | 2050 mm (80.7 inches) | |
| Overall Width | 725 mm (28.5 inches) | |
| Overall Height | 1070 mm (42.1 inches) | |
| Wheelbase | 1415 mm (55.7 inches) | |
| Seat Height | 760 mm (29.9 inches) | |
| Dry-Weight | 168 kg (370.4 pounds) | |
| Fuel Capacity | 18 litres (4.8 Gal) | |
OTHER |
||
| NA | ||

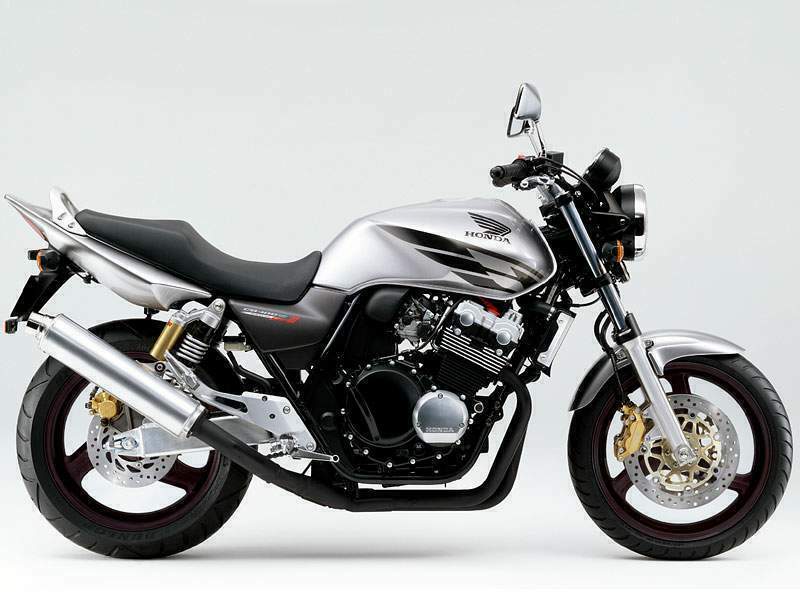

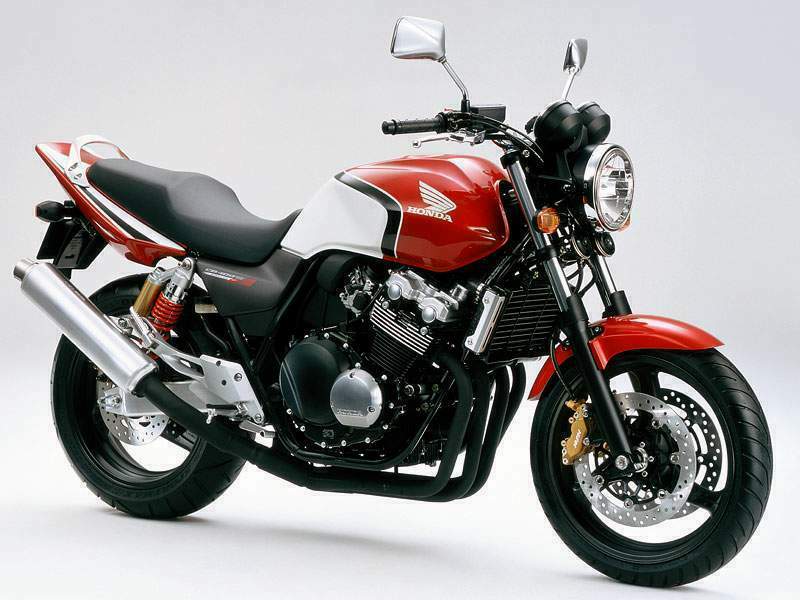

2000-2005 Honda CB400SF (Super Four)
Engine |
||
| Engine | Liquid cooled, transverse four cylinders, four stroke, DOHC, | |
| Displacement | 399cc | |
| Bore x Stroke | 55 x 42 mm | |
| Compression Ratio | 11.3:1 | |
| Fuel Delivery | Four 32mm carburetors | |
| Max Power | 53 hp (38.6 kW) @ 11000 rpm | |
| Max Torque | 40.18 Nm @ 7500 rpm | |
Drivetrain |
||
| Transmission | 5-speed | |
| Final Drive | Chain | |
CHASSIS / SUSPENSION / BRAKES |
||
| Front Brakes | Two 296mm discs 4 piston calipers | |
| Rear Brakes | Single 240mm disc 2 piston caliper | |
| Front Tires | 120/70 ZR17 | |
| Rear Tires | 160/50 ZR17 | |
DIMENSION |
||
| Dry-Weight | 170 kg (374 lb) | |
| Fuel Capacity | 11.3 Litres (3 Gal) | |
OTHER |
||
| NA | ||
