2005-07 Honda CB400 Super Bol D’or
Engine |
||
| Engine | Liquid cooled, transverse four cylinders, four stroke, DOHC, | |
| Displacement | 399cc | |
| Bore x Stroke | 55 x 42 mm | |
| Compression Ratio | 11.3:1 | |
| Fuel Delivery | Four 32mm carburetors | |
| Ignition | CDI | |
| Starter | Electric | |
| Max Power | 38.6 kW (53 hp) @ 11000 rpm | |
| Max Torque | 40.18 Nm @ 7500 rpm | |
Drivetrain |
||
| Transmission | 5-speed | |
| Final Drive | Chain | |
CHASSIS / SUSPENSION / BRAKES |
||
| Frame | High-tension steel cradle frame | |
| Front Brakes | Two 296mm discs 4 piston calipers | |
| Rear Brakes | Single 240mm disc 2 piston caliper | |
| Front Tires | 120/70 ZR17 | |
| Rear Tires | 160/50 ZR17 | |
DIMENSION |
||
| Dry-Weight | 198kg (437 lb) | |
| Fuel Capacity | 18 Litres (4.75 gal) | |
OTHER |
||
2008-10 Honda CB400 Super Bol D’or
Engine |
||
| Engine | Liquid cooled, transverse four cylinders, four stroke, DOHC, | |
| Displacement | 399cc | |
| Bore x Stroke | 55 x 42 mm | |
| Compression Ratio | 11.3:1 | |
| Valving | 4 valves per cylinder | |
| Fuel Delivery | Fuel Injection | |
| Ignition | CDI | |
| Starter | Electric | |
| Max Power | 38.6 kW (53 hp) @ 11000 rpm | |
| Max Torque | 40.18 Nm @ 7500 rpm | |
Drivetrain |
||
| Transmission | 5-speed | |
| Final Drive | Chain | |
CHASSIS / SUSPENSION / BRAKES |
||
| Frame | High-tension steel cradle frame | |
| Front Brakes | Two 296mm discs 4 piston calipers | |
| Rear Brakes | Single 240mm disc 2 piston caliper | |
| Front Tires | 120/60 ZR17 | |
| Rear Tires | 160/60 ZR17 | |
DIMENSION |
||
| Dry-Weight | 175kg (385 lb) | |
| Fuel Capacity | 18 Litres (4.75 gal) | |
OTHER |
||
2011 Honda CB400 Super Bol D’or SE
Engine |
||
| Engine | Liquid cooled, transverse four cylinders, four stroke, DOHC, 4 valve per cylinder | |
| Displacement | 399cc | |
| Bore x Stroke | 55 x 42 mm | |
| Compression Ratio | 11.3:1 | |
| Fuel Delivery | Fuel Injection | |
| Ignition | CDI | |
| Starter | Electric | |
| Max Power | 38.6 kW (53 hp) @ 11000 rpm | |
| Max Torque | 40.18 Nm @ 7500 rpm | |
Drivetrain |
||
| Transmission | 5-speed | |
| Final Drive | Chain | |
CHASSIS / SUSPENSION / BRAKES |
||
| Frame | High-tension steel cradle frame | |
| Front Brakes | Two 296mm discs 4 piston calipers | |
| Rear Brakes | Single 240mm disc 2 piston caliper | |
| Front Tires | 120/60 ZR17 | |
| Rear Tires | 160/60 ZR17 | |
DIMENSION |
||
| Dry-Weight | 198kg (437 lb) | |
| Fuel Capacity | 18 Litres (4.75 gal) | |
OTHER |
||

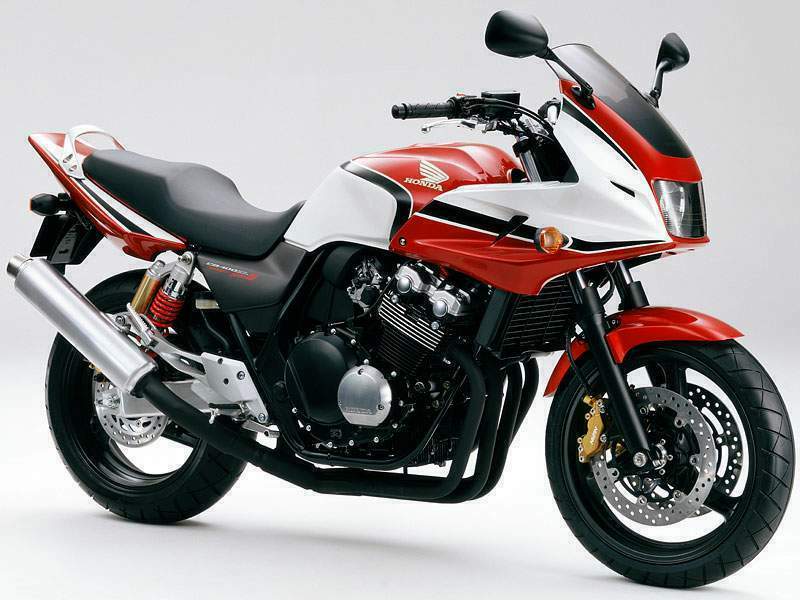

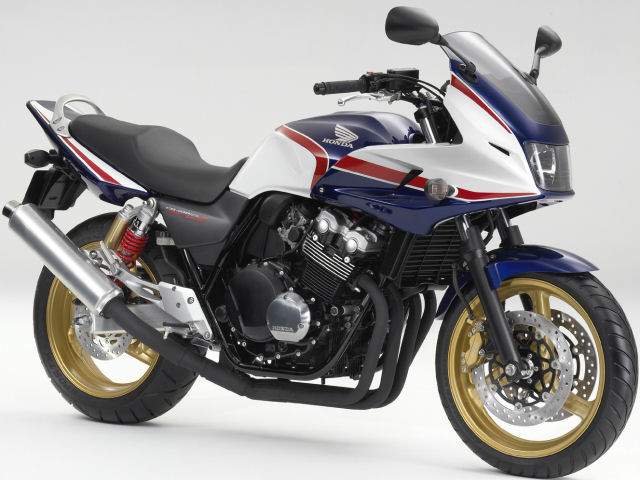

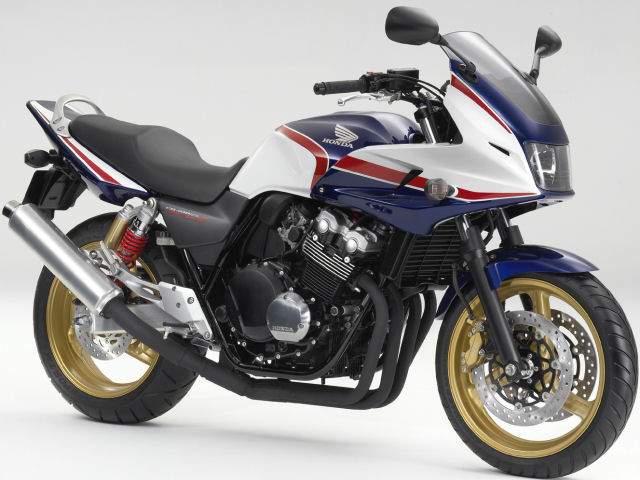

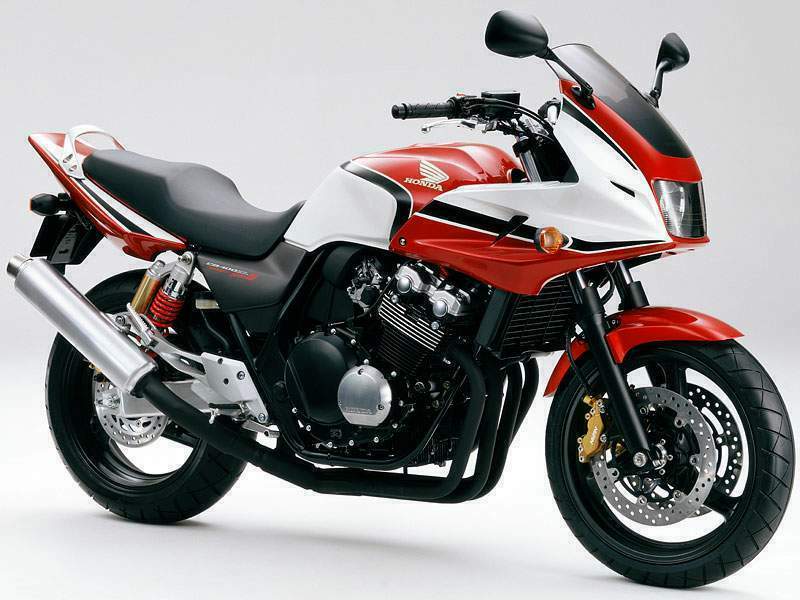

CB400 Super Bol D’or Photo Gallery
