1980 Honda CB250RS
Engine |
|
| Engine Type | Liquid-cooled single-cylinder four-strokeAir cooled, four stroke, single cylinder, SOHC, 4 valve |
| Displacement | 249cc |
| Bore and Stroke | 74 x 57.8 mm |
| Compression Ratio | 9.3:1 |
| Starter | Kickstart |
| Fuel Delivery | 30mm Keihin |
| Max Power | 11.6 hp @ 8500 rpm |
| Max Torque | 12.6 Nm @ 8000 rpm |
DRIVETRAIN |
|
| Transmission | 5-speed |
| Final Drive | O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Telescopic forks, 120mm wheel travel |
| Rear Suspension | Dual shock with adjustable preload, 90mm wheel travel |
| Front Brakes | Single 250mm disc |
| Rear Brakes | 140 drum |
| Front Tire | 3.00-18 |
| Rear Tire | 4.10-19 |
DIMENSION |
|
| Wheelbase | 1,370 mm (53.9 in.) |
| Dry Weight | 136 kg (299 lb) |
| Fuel Capacity | 14 Litres (3.7 Gal) |
OTHER |
|
| Fuel Consumption | 4 L/100km (59 mpg) |
| Standing quarter Mile | 16.3 sec |
| Top Speed | 136 km/h (84 mph) |

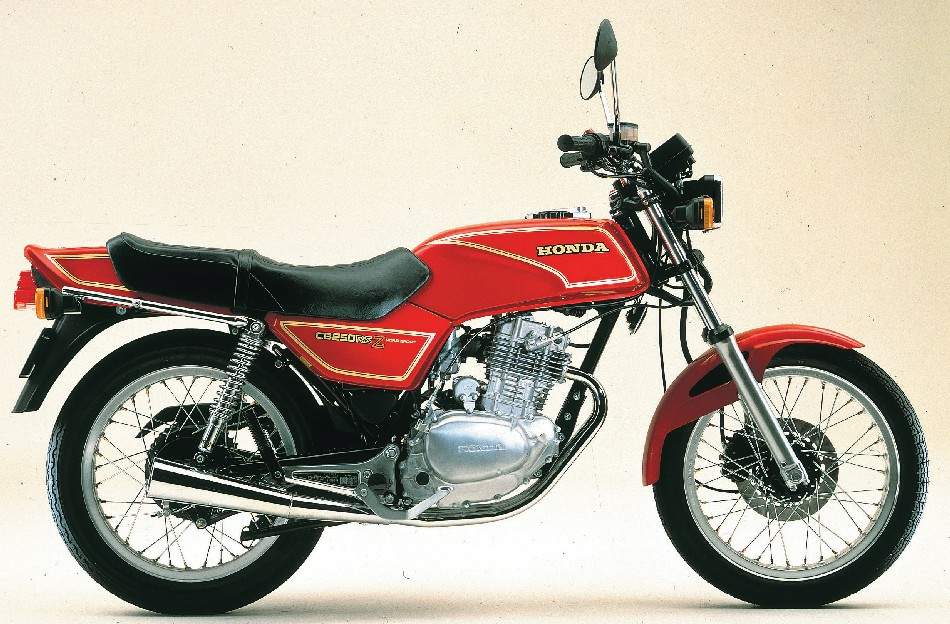

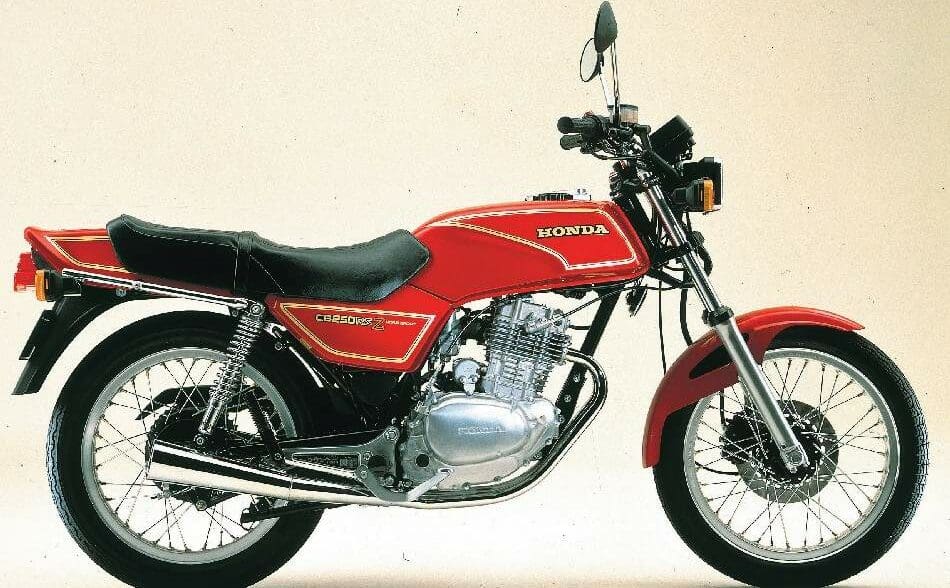

1981 Honda CB250RS
Engine |
|
| Engine Type | Liquid-cooled single-cylinder four-strokeAir cooled, four stroke, single cylinder, SOHC, 4 valve |
| Displacement | 249cc |
| Bore and Stroke | 74 x 57.8 mm |
| Compression Ratio | 9.3:1 |
| Starter | Kickstart |
| Fuel Delivery | 30mm Keihin |
| Max Power | 11.6 hp @ 8500 rpm |
| Max Torque | 12.6 Nm @ 8000 rpm |
DRIVETRAIN |
|
| Transmission | 5-speed |
| Final Drive | chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Telescopic forks, 120mm wheel travel |
| Rear Suspension | Dual shock with adjustable preload, 90mm wheel travel |
| Front Brakes | Single 250mm disc |
| Rear Brakes | 140 drum |
| Front Tire | 3.00-18 |
| Rear Tire | 4.10-19 |
DIMENSION |
|
| Dry Weight | 136 kg (299 lb) |
| Fuel Capacity | 14 Litres (3.7 Gal) |
OTHER |
|
| Fuel Consumption | 4 L/100km (59 mpg) |
| Standing quarter Mile | 16.3 sec |
| Top Speed | 136 km/h (84 mph) |

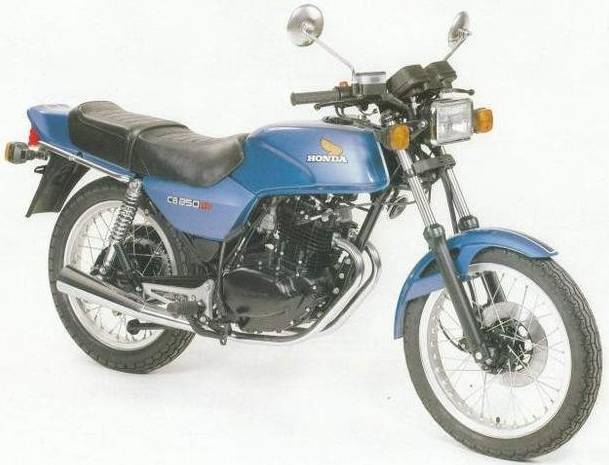

1982 Honda CB250RS
Engine |
|
| Engine Type | Liquid-cooled single-cylinder four-strokeAir cooled, four stroke, single cylinder, SOHC, 4 valve |
| Displacement | 249cc |
| Bore and Stroke | 74 x 57.8 mm |
| Compression Ratio | 9.3:1 |
| Starter | Kickstart |
| Fuel Delivery | 30mm Keihin |
| Max Power | 11.6 hp @ 8500 rpm |
| Max Torque | 12.6 Nm @ 8000 rpm |
DRIVETRAIN |
|
| Transmission | 5-speed |
| Final Drive | chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Telescopic forks, 120mm wheel travel |
| Rear Suspension | Dual shock with adjustable preload, 90mm wheel travel |
| Front Brakes | Single 250mm disc |
| Rear Brakes | 140 drum |
| Front Tire | 3.00-18 |
| Rear Tire | 4.10-19 |
DIMENSION |
|
| Dry Weight | 136 kg (299 lb) |
| Fuel Capacity | 14 Litres (3.7 Gal) |
OTHER |
|
| Fuel Consumption | 4 L/100km (59 mpg) |
| Standing quarter Mile | 16.3 sec |
| Top Speed | 136 km/h (84 mph) |
1983 Honda CB250RS
Engine |
|
| Engine Type | Liquid-cooled single-cylinder four-strokeAir cooled, four stroke, single cylinder, SOHC, 4 valve |
| Displacement | 249cc |
| Bore and Stroke | 74 x 57.8 mm |
| Compression Ratio | 9.3:1 |
| Starter | Kickstart |
| Fuel Delivery | 30mm Keihin |
| Max Power | 11.6 hp @ 8500 rpm |
| Max Torque | 12.6 Nm @ 8000 rpm |
DRIVETRAIN |
|
| Transmission | 5-speed |
| Final Drive | chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Telescopic forks, 120mm wheel travel |
| Rear Suspension | Dual shock with adjustable preload, 90mm wheel travel |
| Front Brakes | Single 250mm disc |
| Rear Brakes | 140 drum |
| Front Tire | 3.00-18 |
| Rear Tire | 4.10-19 |
DIMENSION |
|
| Dry Weight | 136 kg (299 lb) |
| Fuel Capacity | 14 Litres (3.7 Gal) |
OTHER |
|
| Fuel Consumption | 4 L/100km (59 mpg) |
| Standing quarter Mile | 16.3 sec |
| Top Speed | 136 km/h (84 mph) |
