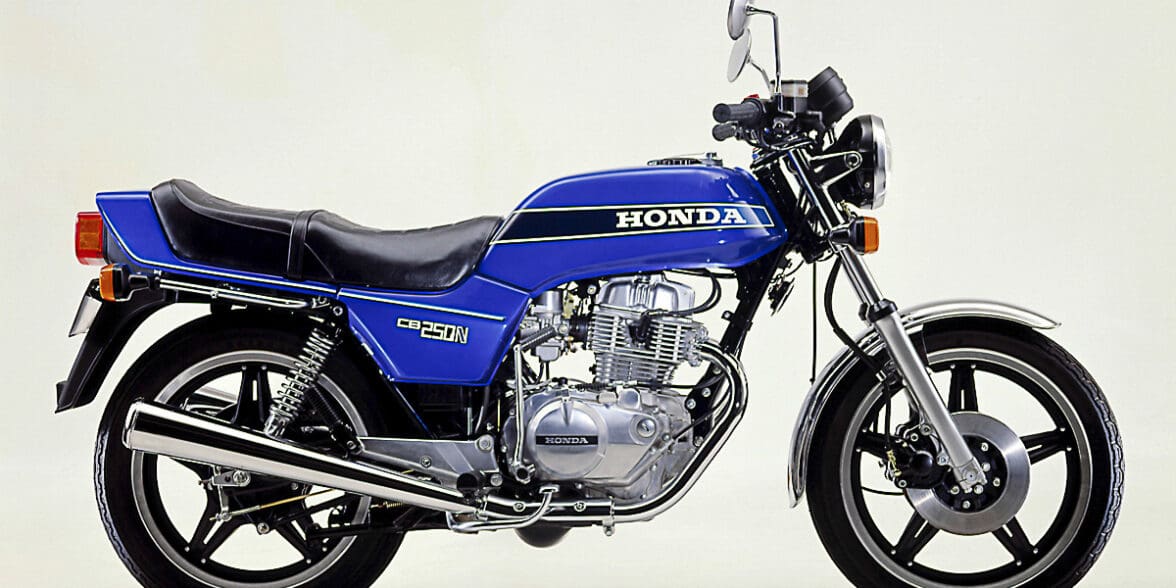

1979-80 CB250N
Engine |
|
| Engine Type | Air cooled, four stroke, parallel twin cylinder, OHC |
| Displacement | 249cc |
| Bore and Stroke | 62 x 41.4 mm |
| Compression Ratio | 9.4:1 |
| Fuel Delivery | 29mm Mikuni carb |
| Ignition | Capacitor discharge (CDI) |
| Max Power | 27 hp @ 10000 rpm |
| Max Torque | 14.7 ft-lb @ 8500 rpm |
DRIVETRAIN |
|
| Transmission | 6-speed |
| Final Drive | chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Telescopic forks, 115mm wheel travel |
| Rear Suspension | Dual shock with adjustable preload, 65mm wheel travel |
| Front Brakes | Single 273mm disc |
| Rear Brakes | 160 drum |
| Front Tire | 3.60-19 |
| Rear Tire | 4.10-19 |
DIMENSION |
|
| Dry Weight | 166 kg (365 lb) |
| Fuel Capacity | 14 Litres (3.7 Gal) |
OTHER |
|
| Fuel consumption | 4.9 L/100km (47.7 mpg) |
| Standing quarter Mile | 17.5 sec / 119 km/h (74 mph) |
| Top Speed | 138 km/h (86 mph) |
1981 CB250N
Engine |
|
| Engine Type | Air cooled, four stroke, parallel twin cylinder, OHC |
| Displacement | 249cc |
| Bore and Stroke | 62 x 41.4 mm |
| Compression Ratio | 9.4:1 |
| Fuel Delivery | 29mm Mikuni carb |
| Ignition | Capacitor discharge (CDI) |
| Max Power | 27 hp @ 10000 rpm |
| Max Torque | 14.7 ft-lb @ 8500 rpm |
DRIVETRAIN |
|
| Transmission | 6-speed |
| Final Drive | chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Telescopic forks, 115mm wheel travel |
| Rear Suspension | Dual shock with adjustable preload, 65mm wheel travel |
| Front Brakes | Single 273mm disc |
| Rear Brakes | 160 drum |
| Front Tire | 3.60-19 |
| Rear Tire | 4.10-19 |
DIMENSION |
|
| Dry Weight | 166 kg (365 lb) |
| Fuel Capacity | 14 Litres (3.7 Gal) |
OTHER |
|
| Fuel consumption | 4.9 L/100km (47.7 mpg) |
| Standing quarter Mile | 17.5 sec / 119 km/h (74 mph) |
| Top Speed | 138 km/h (86 mph) |
