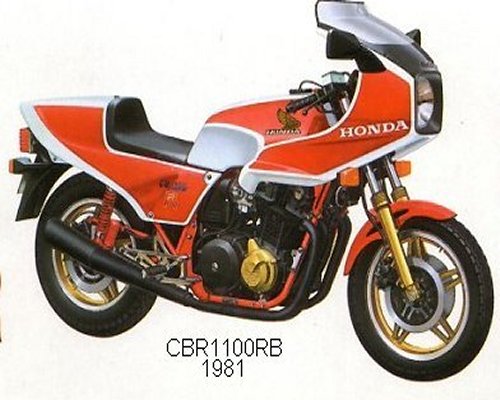

1981 CB1100RB
Engine |
|
| Engine Type | 1062 cc, 4 Stroke – Air Cooled – Inline Four |
| Bore and Stroke | 70 mm x 69 mm |
| Valves | 4 valves/cylinder |
| Claimed Horsepower | 115 hp (85.8 kW) @ 9000 rpm |
| Maximum Torque | 93 Nm (68.6 ft. lbs) @ 7500 rpm |
Drivetrain |
|
| Transmission | 5-speed |
| Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Brakes | dual 296 mm discs with 2-piston calipers |
| Rear Brakes | single 296 mm disc with 2-piston calipers |
| Front Tire | 100/90-18 |
| Rear Tire | 130/80-18 |
DIMENSION |
|
| Seat Height | 795 mm (31.3 inches) |
| Wheelbase | 1490 mm (58.7 inches) |
| Dry weight | (without fluids): 233 kg (513.7 pounds) |
| Fuel Capacity | 26 litres (6.9 Gal) |
OTHER |

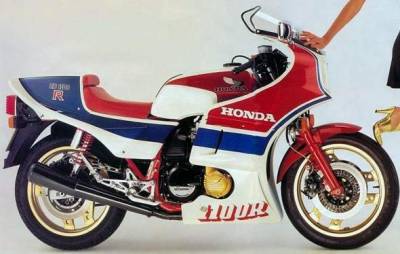

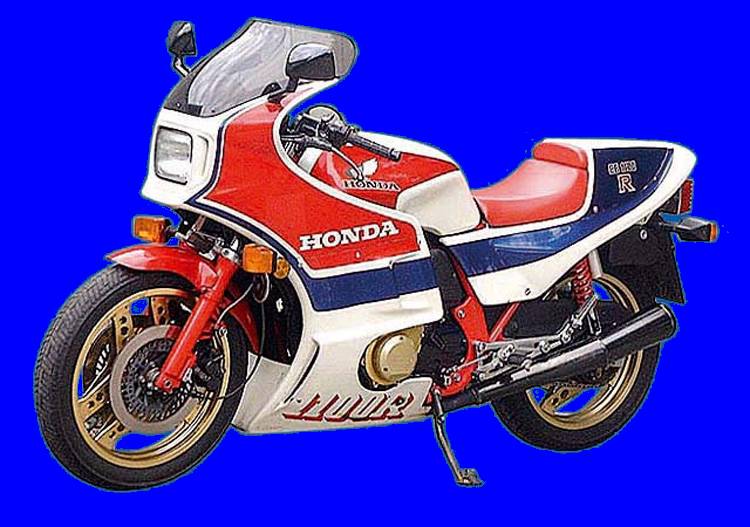

1982 CB1100RC
Engine |
|
| Engine Type | 1062 cc, 4 Stroke – Air Cooled – Inline Four |
| Bore and Stroke | 70 mm x 69 mm |
| Valves | 4 valves/cylinder |
| Claimed Horsepower | 115 hp (85.8 kW) @ 9000 rpm |
| Maximum Torque | 93 Nm (68.6 ft. lbs) @ 7500 rpm |
Drivetrain |
|
| Transmission | 5-speed |
| Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Brakes | dual 296 mm discs with 2-piston calipers |
| Rear Brakes | single 296 mm disc with 2-piston calipers |
| Front Tire | 100/90-18 |
| Rear Tire | 130/80-18 |
DIMENSION |
|
| Seat Height | 795 mm (31.3 inches) |
| Wheelbase | 1490 mm (58.7 inches) |
| Dry weight | (without fluids): 233 kg (513.7 pounds) |
| Fuel Capacity | 26 litres (6.9 Gal) |
OTHER |

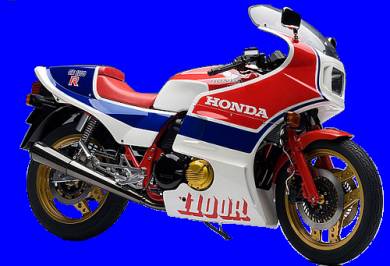

1983 CB1100RD
Engine |
|
| Engine Type | 1062 cc, 4 Stroke – Air Cooled – Inline Four |
| Bore and Stroke | 70 mm x 69 mm |
| Valves | 4 valves/cylinder |
| Claimed Horsepower | 120 hp (89.5 kW) @ 9000 rpm |
| Maximum Torque | 98 Nm (72.3 ft. lbs) @ 7500 rpm |
Drivetrain |
|
| Transmission | 5-speed |
| Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Brakes | dual 296 mm discs with 2-piston calipers |
| Rear Brakes | single 296 mm disc with 2-piston calipers |
| Front Tire | 100/90-18 |
| Rear Tire | 130/80-18 |
DIMENSION |
|
| Seat Height | 795 mm (31.3 inches) |
| Wheelbase | 1490 mm (58.7 inches) |
| Dry weight | (without fluids): 233 kg (513.7 pounds) |
| Fuel Capacity | 26 litres (6.9 Gal) |
OTHER |

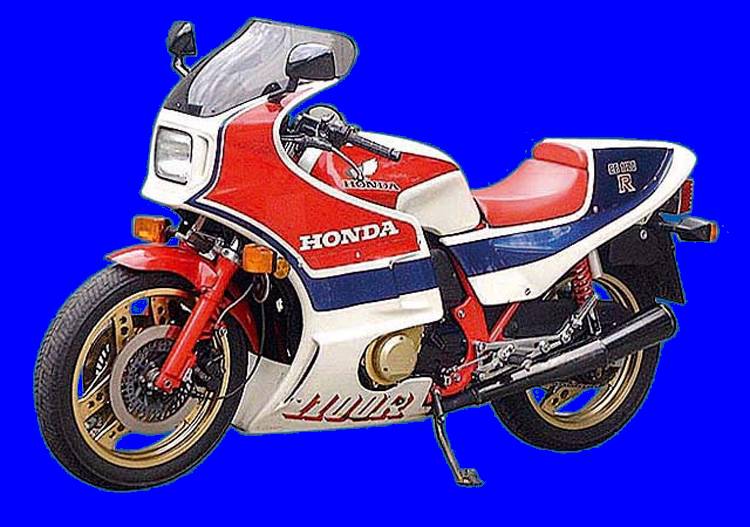

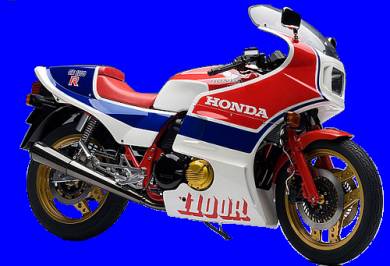

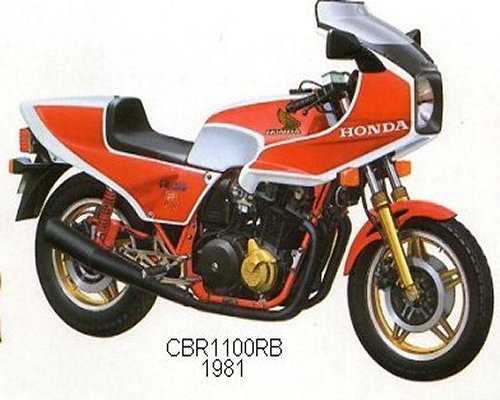

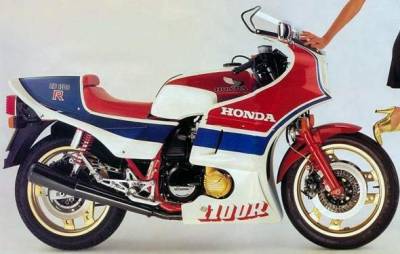

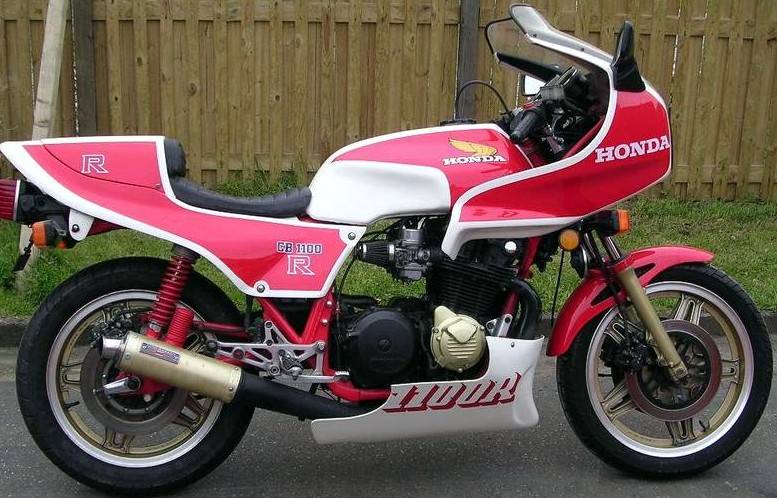

CB1100R Image Gallery
