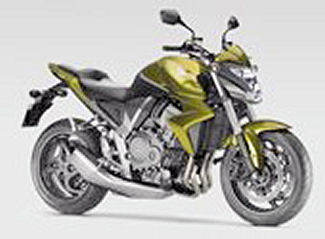

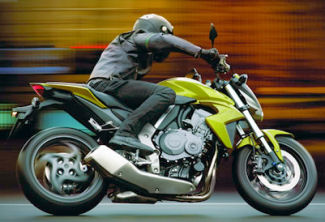

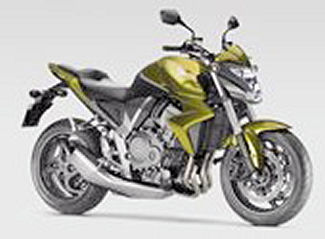

2008 CB1000R
OVERVIEW
- Stunning Performance Naked style, breathtaking acceleration, light, responsive handling and invigorating thrills at every twist of its throttle. The new CB1000R packs full-blooded litre-class Super Sports performance into a compact, spare and muscular-looking form that speaks of good times and fast friends, blasting down the avenue in search of excitement in the bright lights.
- New design crankcase covers feature eye-catching nickel-plated bolt heads
- Short, compact and lightweight seat and tail cowl
- LED taillight integrated under tail cowl
- Attractive new cast aluminium wheels feature swept 4-spoke design
- Monoshock rear suspension with adjustable HMAS damper
- Combined-ABS version features 3-piston front brake calipers
- Fully adjustable 43mm inverted front fork same as new Fireblade
- Triangular multi-reflector headlight with distinctive LED position lamp
- Honda Ignition Security System (HISS) helps prevent ride-away theft
- Small and stylish 3-section LCD meter panel features wide-throw multi-segment LCD tachometer
Engine |
|
| Engine Type |
|
| Displacement | 998cc |
DRIVETRAIN |
|
| Clutch | Wet, multiplate with coil springs |
CHASSIS / SUSPENSION / BRAKES |
|
| Frame | Advanced gravity die-cast aluminium Mono-Backbone frame |
| Front Suspension | 43mm inverted HMAS cartridge-type telescopic fork with stepless preload, compression and rebound adjustment, 120mm cushion stroke |
| Rear Suspension |
|
DIMENSION |
|
| Fuel Capacity | 17 litres (4.5 GalUS) [including 4-litre (1 Gal) LCD-indicated reserve] |
| Overall Length | 2090mm (82.3 inches) |
| Overall Width | 775mm (30.5 inches) |
| Overall Height | 1090mm (42.9 inches) |
OTHER |
2011 CB1000R
Engine |
|
| Engine Type | 998cc liquid-cooled inline four-cylinder |
| Bore And Stroke | 75mm x 56.5mm |
| Fuel Delivery | PGM-FI Fuel injection with automatic enrichment circuit and 36mm throttle bodies |
| Ignition | Computer-controlled digital transistorized with 3-D mapping |
| Compression Ratio | 11.2:1 |
| Valve Train | DOHC; four valves per cylinder |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | #530 0-ring chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 43mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability; 4.7 inches travel |
| Rear Suspension | Single gas-charged HMAS shock with spring preload and rebound damping adjustability; 5.0 inches travel |
| Rear Brake | Single 256mm disc |
| Front Tire | 120/70ZR-17 radial |
| Rear Tire | 180/55ZR-17 radial |
DIMENSION |
|
| Rake | 25.0 degrees (caster angle) |
| Trail | 99mm (3.9 inches) |
| Wheelbase | 56.9 in |
| Seat Height | 32.5 inches |
| Fuel Capacity | 4.5 gallons, including 1.0-gallon reserve |
OTHER |
|
| Model Id | CB1000RB |
| Emissions | Meets current EPA standards. Models sold in California meet current CARB standards and may differ slightly due to emissions equipment. |
| Colors | Pearl Black |

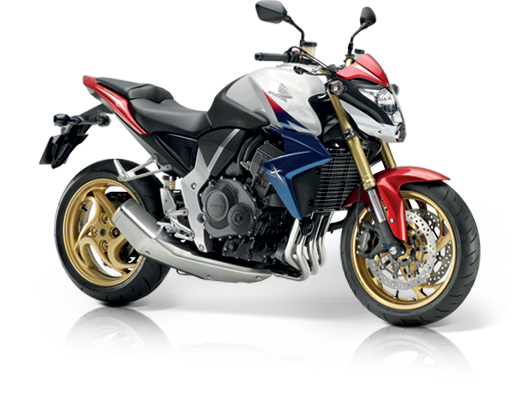

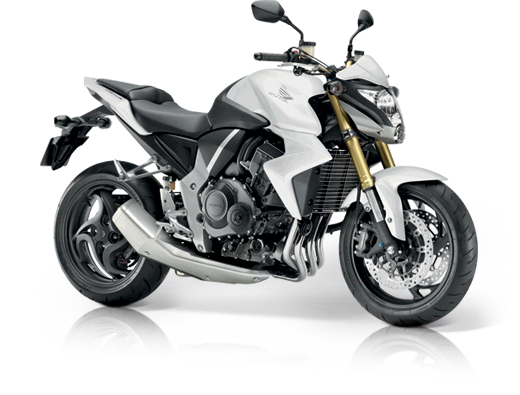

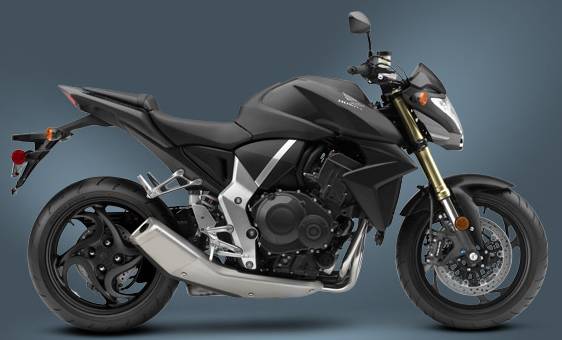

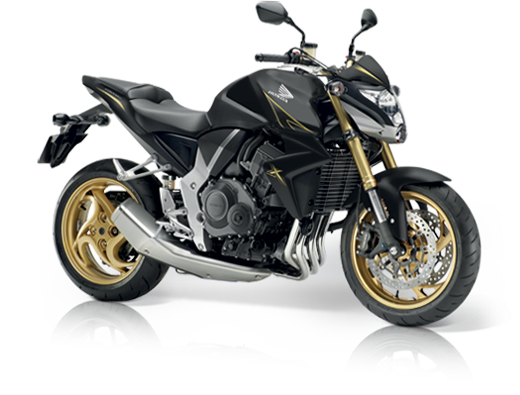

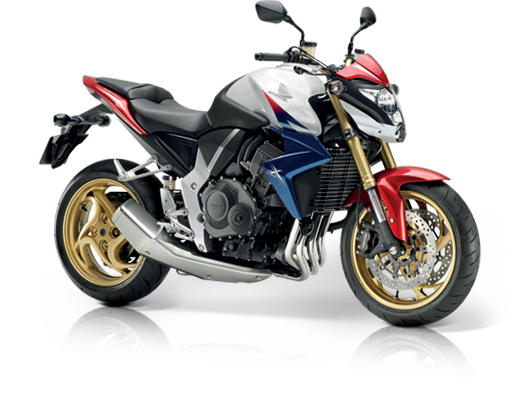

2012 CB1000R
Engine |
|
| Engine Type | Liquid-cooled 4-stroke 16-valve DOHC inline 4 cylinder |
| Engine Displacement | 998cc |
| Bore and Stroke | 75 x 56.5mm |
| Compression Ratio | 11.2:1 |
| Valve Train | DOHC; four valves per cylinder |
| Fuel Delivery | PGM-FI Fuel injection with automatic enrichment circuit and 36mm throttle bodies |
| Ignition | Computer-controlled digital transistorized with 3-D mapping and electronic advance |
| Max. Power Output | 92kW / 10,000min-1 (95/1/EC) |
| Max. Torque | 100Nm / 8,000min-1 (95/1/EC) |
| Starter | electric |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | #530 O-ring sealed chain |
| Front Wheels | Closed-section 4-spoke cast aluminium |
| Rear Wheels | Closed-section 4-spoke cast aluminium |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 43mm inverted HMAS cartridge-type telescopic fork with stepless preload, compression and rebound adjustment, 120mm (5.0 inches) cushion stroke/travel |
| Rear Suspension | Monoshock with gas-charged HMAS damper featuring 10-step preload and stepless rebound damping adjustment, 128mm axle travel |
| Front Brake | 310 x 4.5mm dual hydraulic disc with Combined 3-piston calipers (or 4-piston calipers in North America), floating rotors and sintered metal pads |
| Rear Brakes | 256 x 5mm hydraulic disc with dual-piston caliper and sintered metal pads |
| Front Tire | 120/70 ZR17M/C (58W) |
| Rear Tire | 180/55 ZR17M/C (73W) |
DIMENSION |
|
| Rake | 5.0 degrees (caster angle) |
| Trail | 99mm (3.9 inches) |
| Wheelbase | 1445mm (56.9 inches) |
| Overall Length | 2105mm (82.9 inches) |
| Overall Width | 785mm (30.9 inches) |
| Overall Height | 1095mm (43.1 inches) |
| Seat Height | 825mm (32.5 inches) |
| Ground Clearance | 130mm (5.1 inches) |
| Curb Weight | 222 kg (488 lb)
|
| Fuel Capacity | 17 Litres (4.5 GalUS) [including 4-Litre (1 Gal) LCD-indicated reserve] |
OTHER |
6.4 L/100km (37 mpgUS) |
| Fuel consumption | |
| Model Id | CB1000R |
| Emissions | Meets current EPA standards. Models sold in California meet current CARB standards and may differ slightly due to emissions equipment. |
| Colors |
|

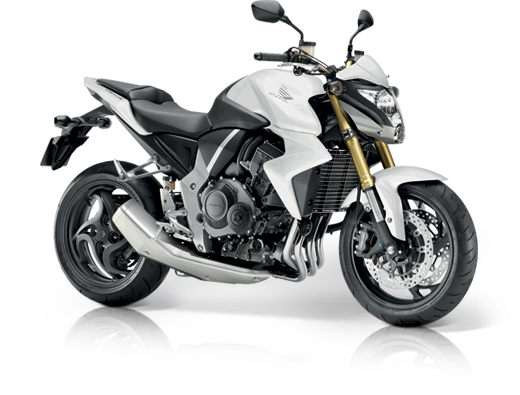

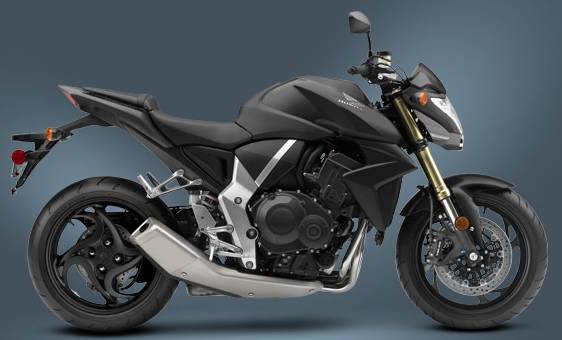

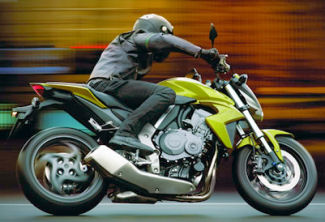

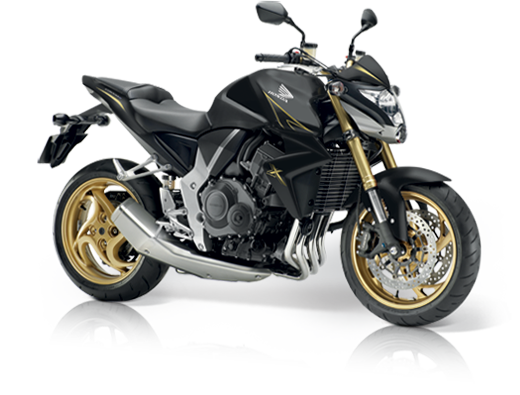

CB1000R Image Gallery
