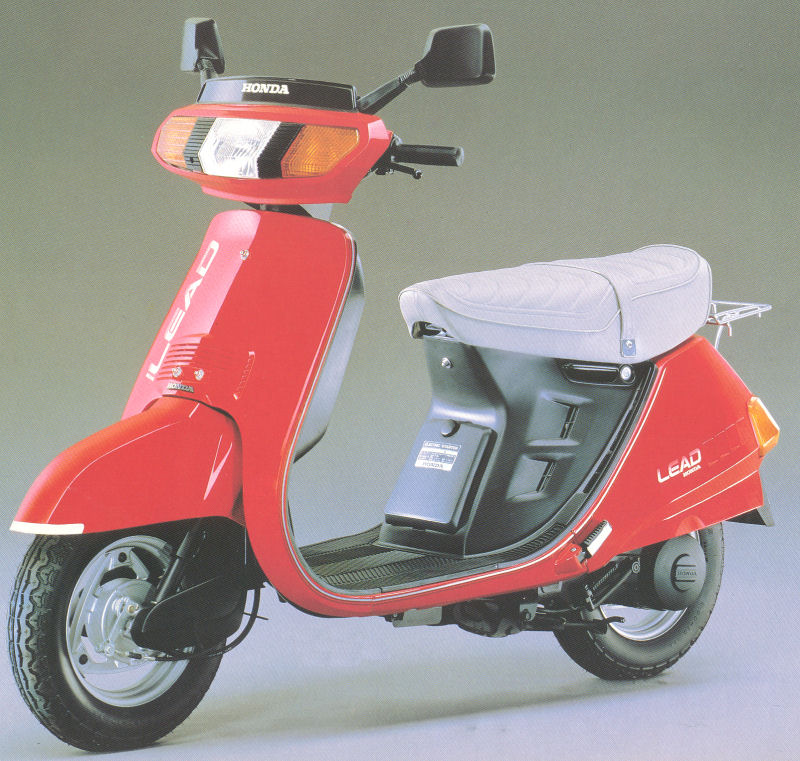

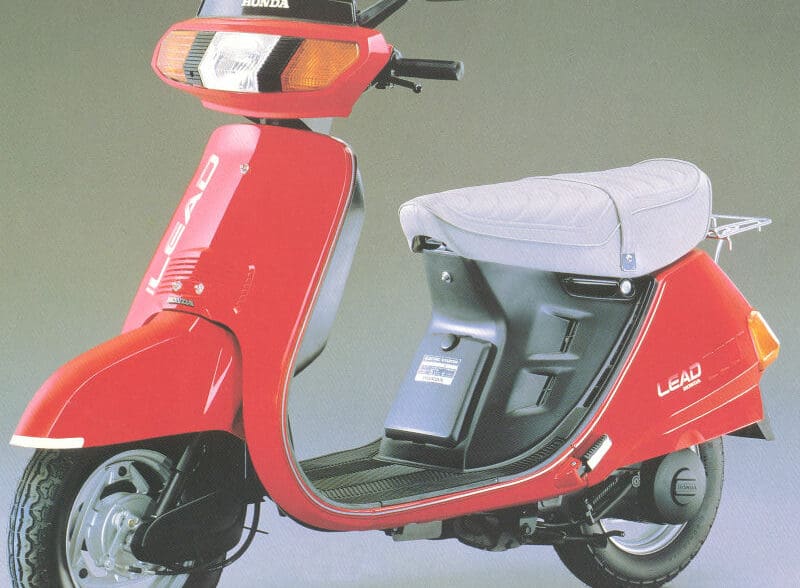

1983 Honda Aero 80 (LEAD) NH80
OVERVIEW
- “Honda’s got a spanking new way to break into city riding without breaking the bank. It’s our peppy super-looking NH80 scooter. It features a gas-miserly engine. Electric starting. Full front and rear suspension, And powerful front and rear brakes. So first-timers are bound to find it really first-class.”
Engine |
|
| Engine Type | Two-stroke |
| Displacement | 79cc |
| Choke | automatic |
| Ignition system | CDI |
| Spark plug | BPR6HS |
| Plug gap | .028 |
| Gasoline | Regular with oil injection |
| Starter system | Electric and kick |
DRIVETRAIN |
|
| Transmission | Honda V-matic belt |
| Clutch | Automatic |
| Drive line | Belt |
| Wheels | Pressed steel |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Bottom link-type |
| Rear Suspension | Single shoick, swing-arm |
| Front Brakes | Drum brakes front and rear with wet-resistant design |
| Front Tire | 3.00-10 |
| Rear Tire | 3.50-10 |
DIMENSION |
|
| Overall length | 1657mm (62.5 in.) |
| Overall width | 665mm (26.2 in.) |
| Fuel capacity | 5.3 liters (1.4 US gal.) (1.2 Imp. gal.) |
OTHER |
|
| Bodywork | lightweight to provide good wind and splash protection |
| Storage compartment | latching |
| Seat | deep-cushion |
| Carrier |
|

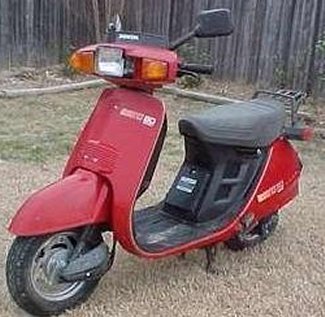

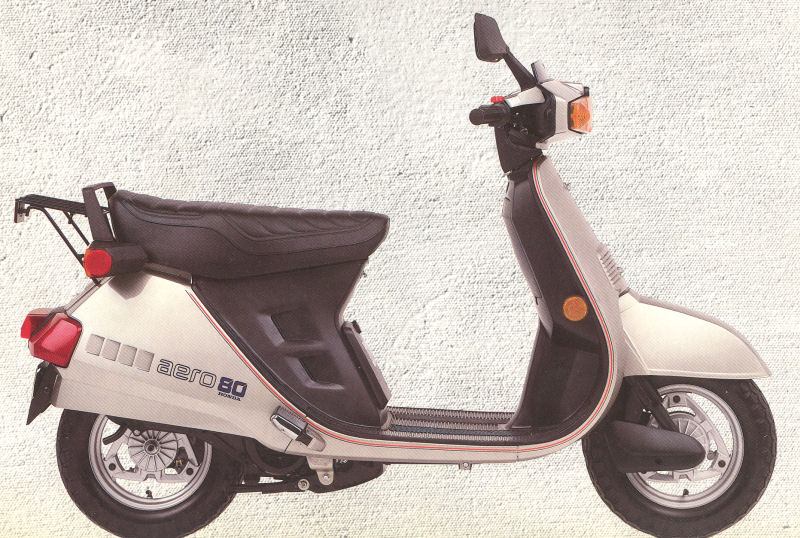

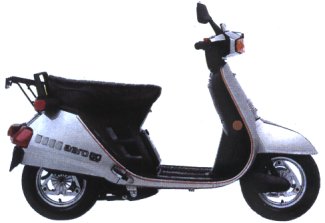

1984 Honda Aero 80
Engine |
|
| Engine Type | Air-cooled two-stroke |
| Displacement | 80cc |
| Bore & Stroke | 48 x 44mm |
| Compression ratio | 6.8:1 |
| Fuel Delivery | 16mm piston-valve type |
| Spark plug | BPR6HS |
| Plug gap | .028 |
| Electric | CDI |
| Starter system | Electric |
DRIVETRAIN |
|
| Transmission | Variable ratio V-maticTM |
| Clutch | Automatic Centrifugal |
| Drive line | Belt |
| Wheels | Pressed steel |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Bottom-Link type |
| Rear Suspension | Single Shock |
| Brakes | Front and Rear Drum |
| Tire Size | 3.50-10 (front and rear) |
DIMENSION |
|
| Overall length | 75 kg (165.3 lb) |
| Overall width | 665mm (26.2 in.) |
| Fuel capacity | 5.3 liters (1.4 US gal.) (1.2 Imp. gal.) |
| Seat height | 730mm (28.7 in.) |
| Fuel capacity | 5.3 liters (1.5 US Gal.) (1.2 Imp. Gal.) |
| Wheelbase | 1170mm (46.1 in.) |
OTHER |
|
| Accessory | Rear carrier |
| Colors |
|

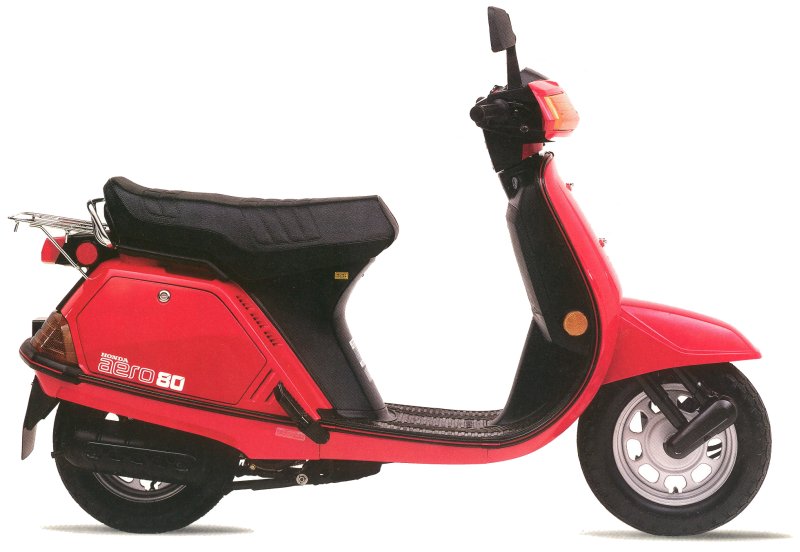

1985 NH80 Aero 80
Engine |
|
| Engine Type | Air-cooled two-stroke |
| Displacement | 79.6cc |
| Bore & Stroke | 48 x 44mm |
| Compression ratio | 6.8:1 |
| Fuel Delivery | 16mm piston-valve type |
| Spark plug | BPR6HS |
| Plug gap | .028 |
| Electric | CDI |
| Starter system | Electric |
DRIVETRAIN |
|
| Transmission | Variable ratio V-maticTM |
| Clutch | Automatic Centrifugal |
| Drive line | Belt |
| Wheels | Pressed steel |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Bottom-Link type |
| Rear Suspension | Single Shock |
| Brakes | Front and Rear Drum |
| Tire Size | 3.50-10 (front and rear) |
DIMENSION |
|
| Overall length | 1719mm (67.7 in.) |
| Dry weight | 74 kg (163 lb.) |
| Overall width | 665mm (26.2 in.) |
| Fuel capacity | 5.3 liters (1.4 US gal.) (1.2 Imp. gal.) |
| Seat height | 730mm (28.7 in.) |
| Fuel capacity | 4.8 liters (1.3 US gal)(1.1 Imp. gal) |
| Wheelbase | 1170mm (46.1 in.) |
OTHER |
|
| Colors | Monza Red or Capri Blue or Parati Blue |
- Not available in California
- V.I.N.: JH2HF0108FK2000001
- Engine: HF01E-2200001
- Production code: GN3

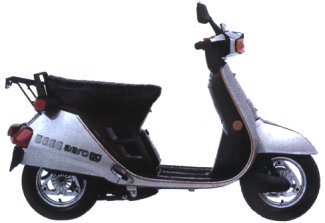

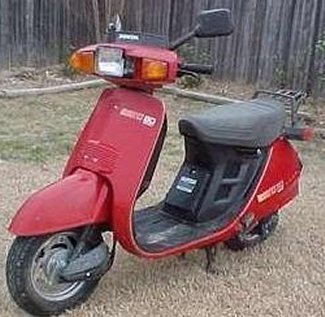

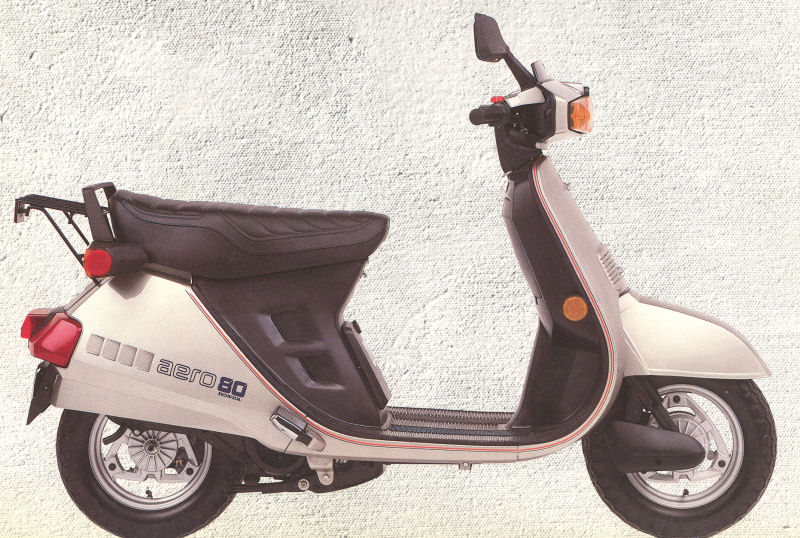

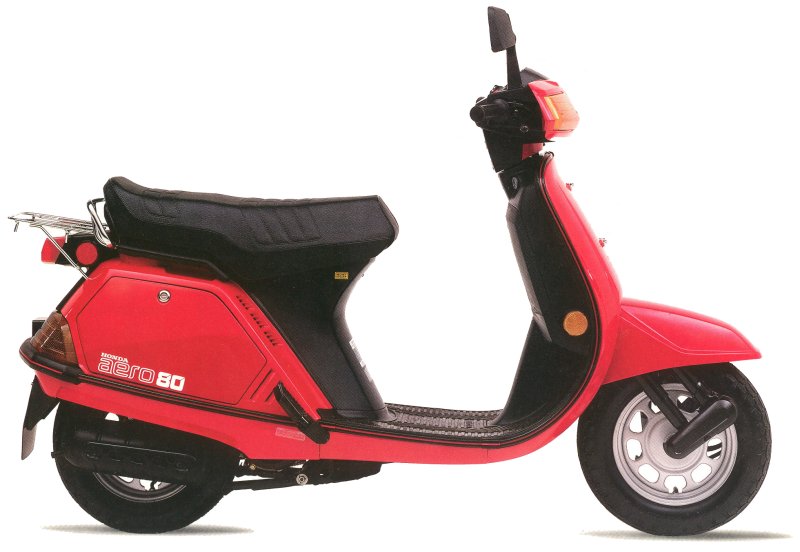

NH80 Image Gallery
