Ducati variable timing improves engines

http://youtu.be/Xf9tT2TIJaI

Ducati has announced it will introduce new engine technology that will boost power and torque, improve fuel economy, reduce emissions and won’t affect servicing intervals.

It’s called Desmodromic Variable Timing (DVT – yeah, like deep vein thrombosis!) and it’s all very technical. Where it differs from variable valve timing, which is common in most cars, is that it works with their desmodromic valve system where the valves are lifted mechanically rather than on springs.

Desmodromic systems are notoriously difficult to set, but they seem to last longer and Ducati says the new system doesn’t affect the 30,000km intervals for valve clearance settings. For the technically minded it means variable timing on both the intake and exhaust camshafts with variable overlap angle. The full Ducati press release is reprinted below for your edification.

For the less technically minded it means services shouldn’t cost any more. Meanwhile, riders will reap the benefits of more power and torque and 8% better fuel economy.

DVT in the Testastretta boosts power from 111kW (150hp) to 119kW (160hp) and torque from 124Nm (91.8lb ft) to 136Nm (100lb ft).

The first engine to get the technology is the 1198cc Testastretta 11° V-twin which powers the Multistrada, so we suspect that will be the first bike to get it. The new Multistrada is expected to be unveiled at the EICMA motorcycle show in Milan next month.

Ducati press release:

Ducati Testastretta DVT (Desmodromic Variable Timing)

Ducati presents the first motorcycle engine with variable timing of both the intake and exhaust camshafts.

Named Ducati Testastretta DVT, Desmodromic Variable Timing, Ducati’s new Desmodromic engine is the first in the world with variable timing on both inlet and exhaust camshafts, leading the way for a whole new generation of such engines. The innovative, new design overcomes an engineering gap in current production motorcycle engines and underlines Ducati’s strength in developing ground-breaking engine and motorcycle technologies.

The variable timing system is able to continuously adjust valve timing, by acting independently on both the intake and exhaust camshafts. The system optimises engine performance throughout the rev range and in any operating condition, to guarantee the highest power, smooth delivery, muscular torque at low rpm and reduced fuel consumption. With full Euro 4 compliance, DVT sets a new standard in the combination of power, delivery and usability of motorcycle engines.

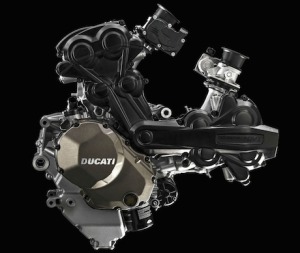

Ducati Testastretta DVT engine characteristicsDucati Testastretta engine

• Brand-new DVT (Desmodromic Variable Timing) system
• Bore x stroke: 106mm stroke 67.9mm
• Capacity: 1198cc
• Power: 119kW at 9500rpm
• Torque: 136Nm at 7,500 rpm
• Desmodromic distribution
• Dual Spark (DS) ignition
• Anti-knock sensor
• Euro 4 compliant
• New generation

By independently adjusting both the timing of the camshaft controlling intake valves and the timing of the camshaft controlling exhaust valves, the Ducati Testastretta DVT engine optimises high rpm performance for maximum power, while at medium and low rpm, it ensures smooth operation, fluid power delivery and high torque. This means that the vehicle’s engine will adapt its characteristics according to rpm values, while always ensuring compliance with exhaust emission standards and keeping fuel consumption low.

When a new engine is designed, one of the most critical parameters to determine its ‘character’ is the amount of intake and exhaust valve overlap. The overlap angle is defined as the interval of crankshaft rotation, expressed in degrees, during which both the intake and exhaust valves are open at the same time.

This overlap occurs between the end of the exhaust stroke and the start of the intake stroke and is normally a single value that does not change. However, the Testastretta DVT is not limited by a fixed valve overlap angle.

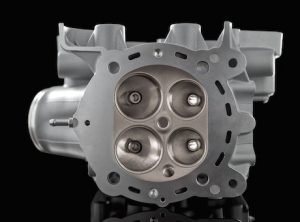

Instead, the Ducati Testastretta DVT’s overlap angles can change, thanks to the introduction of the DVT (Desmodromic Variable Timing) system: a valve timing adjuster fitted to the end of each of the two camshafts per cylinder head. The DVT system consists of an external housing, rigidly connected to the cam belt pulley, and an internal mechanism which is connected to the camshaft and can independently rotate inside the housing. This rotation of the internal mechanism, either in advance or in delay with respect to the housing, is precisely controlled by varying the oil pressure in special chambers of the mechanism. The oil pressure is adjusted by dedicated valves and the timing of each cam is dynamically controlled by a sensor located in the cam covers.

Desmo attraction

The Ducati Testastretta DVT engine uses the unique valvetrain that made the Bologna-based Italian manufacturer a world-famous name. Thanks to this unique system, the intake and exhaust valves are closed mechanically and with the same level of accuracy as they are opened. The term Desmodromic derives from the Greek words “desmos=link” and “dromos=stroke, travel”; in mechanical engineering terms, it refers to mechanisms designed to actuate valves both in the opening direction and in the closing direction.

This system, used in all Ducati models, has also been extremely successful in Ducati Corse World Superbike and Desmosedici MotoGP motorcycles.

In the development of the DVT, the Desmodromic valvetrain represents a major advantage over a traditional spring based timing system; the actuation of the valves at low engine speed requires less force, not having to compress the valve springs, this allowed Ducati to limit the size of each cam phaser with obvious benefits in terms of lightweight construction and compactness for a perfect engine integration.

Ever-present strong torque

With its 106mm bore and 67.9mm stroke for a total capacity of 1198cc, the newborn Ducati Testastretta DVT engine produces a maximum power of 160hp at 9500rpm, and a torque up to 136Nm at 7500rpm with a perfectly linear delivery curve. The torque is already 80Nm at a low-range value of 3500rpm, and it remains consistently over 100Nm between 5750 and 9500rpm.

Despite an increase in power, however, the DVT system has a positive impact on fuel efficiency, with an average 8% reduction in fuel consumption compared to the previous non-variable configuration.

Ducati’s permanent research and development efforts applied to injection systems have repositioned the fuel injectors to target their spray directly onto the rear of the hot intake valve, instead of the colder surface of the intake port wall. The resulting enhanced fuel vapourisation improves combustion efficiency and ensures a smoother delivery.

The Testastretta DVT is equipped with a Dual Spark (DS) system that uses two spark plugs per cylinder head, providing a twin flame-front that ensures complete combustion across a very short period of time.

Each spark plug is managed independently, to optimise efficiency throughout the rev range and in all conditions of use. An anti-knock sensor ensures safe engine operation even while using lower octane fuel or in situations potentially detrimental to combustion efficiency, e.g. at high altitude.

In order to achieve a smoother cycle-to-cycle engine operation, Ducati has used a secondary air system similar to that developed for extremely high-performance engines. This optimizes combustion without increasing emissions, by completing the oxidisation of unburned hydrocarbonsto reduce HC and CO levels.

Suitable for any condition

Thanks to all these characteristics, the Ducati Testastretta DVT sets new standards for Ducati twin cylinder power units and introduces new, revolutionary parameters to achieve the best possible balance among maximum power, smooth delivery, low-rpm torque, low fuel consumption and reduced emissions, thus standing out as the most technologically advanced Desmodromic twin-cylinder engine on the planet.

The Ducati Testastretta DVT system does not affect the valve clearance adjustment schedule, and in fact requires major services only at ownership-friendly 30,000 km intervals. This engine can be used in a wide variety of conditions and locations, while always delivering top performance and exceptional user-friendliness, safety and sheer excitement.’
