BMW R 1200 R

2. Technology and Design

HThe new R 1200 R and R 1200 R Classic – sporty modern or emphasised classical.

Greater value, appeal, and dynamics are the hallmarks of the two new BMW Motorrad roadsters, although with different characters. Whereas the colour concept and equipment of the basic R 1200 R version underscore its claims as a modern, sporty, and dynamic naked bike, the design of the R 1200 R Classic targets exclusively the fans of refined roadsters with the classical touch.

Although the two present differing visual impressions, they are on common ground where their technology is concerned.

New boxer engine delivering perceptibly higher torques for even more dynamic roadster pleasure.

Whereas the R 1200 R is already considered the epitome of classical, dynamic motorcycle pleasure, in particular on country roads, the latest BMW roadster edition provides even greater riding dynamics, especially on this terrain.

Already familiar from the BMW Motorrad models R 1200 GS and R 1200 RT, the new DOHC boxer engine provides a maximum torque of 119 Nm, higher than the 115 Nm of the predecessor model (at an unchanged 6000 rpm), for even greater propulsion. At the same time, there is a significant rise in torque and a distinct homogeneity of the torque curve in the lower and central speed ranges that are especially important on twisty country roads.

In addition, the maximum engine speed now raised by about 500 rpm to a present 8500 rpm presents an even wider range of utilisable speeds. The top power output is now 81 kW (110 hp) at 7750 rpm (previously 80 kW/109 hp at 7500 rpm).

The valves are timed via chain driven double-overhead camshafts (DOHCs) in each cylinder. The valves are actuated with rocker arms that are very light and so suitable for high speeds. The radial arrangement of the four valves allow a highly compact design for the combustion chamber.

The horizontal arrangement of the camshafts in the direction of travelling required two special technical features for the new boxer: each camshaft controls one intake and one exhaust valve. Owing to the radial valve arrangement, the cams were cut to a conical shape. The valve head diameters were enlarged to 39 mm on the intake side and 33 mm on the discharge side compared with the 36 mm and 31 mm respectively of the predecessor model. Valve clearance compensation is based on lightweight hemispherical shims.

The predecessor bore-to-stroke ratio of 101 to 73 mm was retained, for an unchanged displacement of 1170 cc. Also retained were the crankshaft, the connecting rod, and their bearings, whereas the two cast aluminium pistons were redesigned for the new combustion chamber conditions.

The revised air intake system features throttle bodies with 50 mm bores instead of the 47 mm bores of the predecessor model. In addition, the new engine also features redesigned intake air snorkels and an air filter element with higher throughput.

Stable thermal conditions even under extreme conditions are provided by a newly developed oil cooler. The oil-cooler mask was redesigned for better flow properties and a visual impression of greater dynamics.

The wish for a particularly sonorous boxer engine sound that also conforms to the legal requirements finds fulfilment in the new BMW R 1200 R models, which now present an exhaust flap actuated with an electric servomotor as well as opening and closing mechanisms. A visual highlight is presented by the new, compact rear silencer typical of roadsters, now shortened by 60 mm.

Power is transmitted as before by the tried and tested six-speed gearbox that had already been redesigned for the 2008 model with enlarged bearing diameters and modified shaft pitch. Featuring unchanged technology, but a new, high quality surface coating, the maintenance free cardan shaft drive was adopted for the rear wheel.

Superior suspension technology for sporty, dynamic pleasure on country roads.

Like their predecessor, the new BMW R 1200 R models are based on the tried and tested, two part frame structure that integrates the engine as a supporting element. At the same time, the steering head angle and castor are tuned to the handling and stability that a roadster needs for dynamic riding. The rear, weight-optimised section of the tubular space frame contributes to its lightweight appearance.

The wheel suspensions make use of the telelever and paralever designs familiar from other boxer engine models. These afford a key contribution to the roadster’s stable riding response and agile handling. The new R 1200 R models are fitted with completely redesigned fork structures with a greater standpipe diameter (now 41 mm instead of the earlier 35 mm) for even greater stability of the front section.

The turned and subsequently anodised surface of the skidpipes presents a visual impression of particularly high quality roadster technology.

On twisty roads, the R 1200 R proves its great agility and, at the same time, meets all the demands a sporty touring rider has for comfort on his vehicle. And those frequently on the road with differing loads will also learn to appreciate the optional electronic suspension adjustment ESA. This serves to vary the spring base and the suspension’s pressure and rebound stages at the rear wheel, and the suspension’s rebound stage at the front wheel – a system that has established itself as the solution for optimised road handling and comfort.

Whereas the basic version of the new BMW R 1200 R has cast light alloy wheels of a sporty style, the R 1200 R Classic has embarked on other, much more classical roads. In the traditional roadster manner, it features high quality wire spoke wheels in conjunction with light alloy flat collar rims, cast aluminium hubs, and tubed tyres.

BMW Motorrad integral ABS (partially integral) as option.

The maximum safety standard is ensured by the tried and tested brake system. The front brake discs have a diameter of 320 mm and the rear brake discs 265 mm. The maximum decelerations that the rider can manage with little operating effort are made possible with the optional BMW Motorrad integral ABS in the partially integral version that provides the rider with the maximum level of additional safety, in particular during emergency and hazard braking.

New cockpit in consistent roadster design.

The new BMW roadsters feature a completely revised cockpit presenting a high quality look typical of roadsters. The rider can now view at a glance the speedometer and revolution speeds on a clear arrangement of adjacent round instruments in the classical form, which light up in orange during night rides.

In addition, a display presents further details like the current gear and the time. On request, the functions of the instrument panel can be expanded with an onboard computer that provides further information, e.g. range, average consumption, and outside temperature.

The predecessor tubular steel handlebar has now been replaced with a tapered aluminium version. In conjunction with a redesigned fork bridge and hydraulic reservoirs with a smoked glass look, the new R 1200 R models present in these sections too a visual impression of considerably higher quality and greater roadster affinity. Whereas the basic version of the R 1200 R features all black plastic rear-view mirrors underscoring the dynamic design, the R 1200 R Classic presents chromium-plated versions that emphasise their kinship to the classic, historical models.

See also

Amanda Quick·

Motorcycle News

·December 18, 2024·10 min read

Harley-Davidson’s Lawsuit Loss Spikes Tariff Taxes +56%, Yamaha’s V4 Engine Preps for Big Debut

Optimised equipment for even more roadster pleasure.

Both R 1200 R models now feature a centre stand as standard. Greater comfort, in particular for the pillion too, is provided for by the new comfortable seat. As part of its optional equipment and optional accessories BMW Motorrad offers seats with a more sporty design and other heights. (see Section 3 “Equipment program”).

As standard the new BMW roadsters feature indicators with white glass covers. As optional equipment or optional accessory, LED indicators are also available for an even sportier look.

The wish for a particularly sonorous boxer sound that also conforms to the legal requirements is fulfilled in the new BMW R 1200 R models, which now present an exhaust flap actuated with an electric servomotor as well as opening and closing mechanisms.

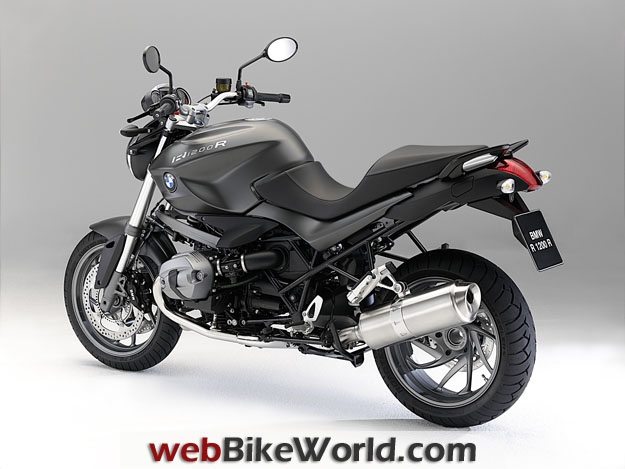

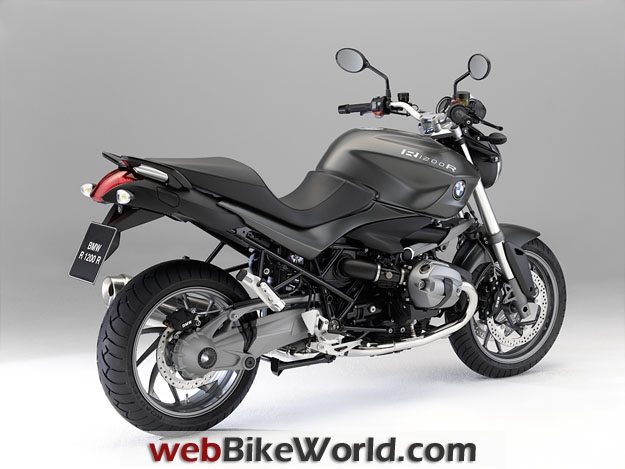

The new, compact rear silencer typical of roadsters, now shortened by 60 mm, is a visual highlight. The sporty, modern claims of the basic version finds expression in the surface quality of brushed stainless steel, whereas the classical, refined R 1200 R Classic goes for high gloss chromium. Common to both models are the exhaust manifolds in chromium-plated stainless steel.

Additional details of the extensive revision undergone by the boxer roadsters can be found in the cover over the classical round headlamp and the new rear with optimised rear grab handles.

3. Equipment

Optional equipment and optional accessories – the perfect way to customize your BMW R 1200 R.

The R 1200 R and the R 1200 R Classic fulfil claims as agile, dynamic roadsters with a high level of everyday and touring practicality through a fascinating mix of dynamics, comfort and a design typical of roadsters, making an almost perfect solution that is standard in the series.

In addition, BMW Motorrad provides the usual extensive range of optional equipment and optional accessories for the further individualisation of these two new BMW roadster models.

Optional equipment is factory fitted; it is integrated in the production process. Optional accessories are installed by the BMW Motorrad dealer, so the motorcycle can be fitted with options afterwards as well.

Optional equipment. (* Also as optional accessory retrofits.)

Optional accessories. (** Also available as optional factory-fitted equipment.)

4. Paint

Colour concepts that emphasise the character.

The basic versions of the R 1200 R and the R 1200 R Classic immediately present a stark contrast between their equipment features like the cast light alloy versus wire spoke wheels or the rear silencer in brushed versus chromium-plated stainless steel.

The different characters are reinforced by their separate colour concepts that on the one hand underscore the sporty, dynamic all round claims of the new R 1200 R and, on the other, hone their classical, refined roadster profile.

This deliberate demarcation between the two new roadster models finds expression on the R 1200 R Classic in its particularly elaborate paintwork. The traditional roadster heritage is borne completely on a metallic sapphire black in conjunction with a central dynamic stripe of plain alpine white extending over the tank and front wheel cover.

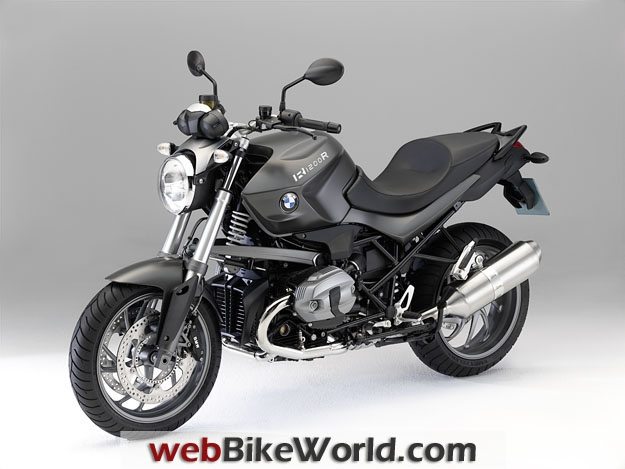

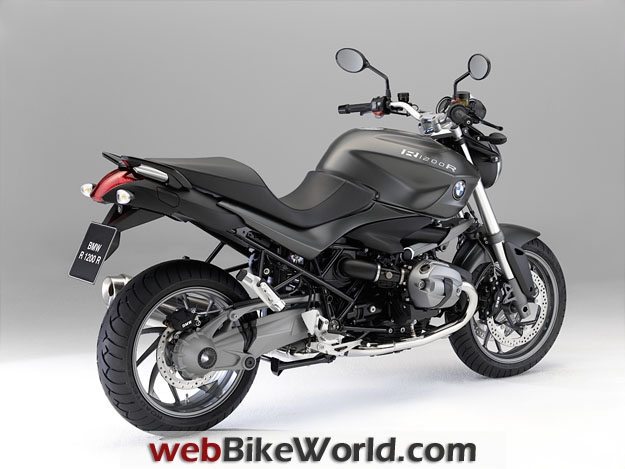

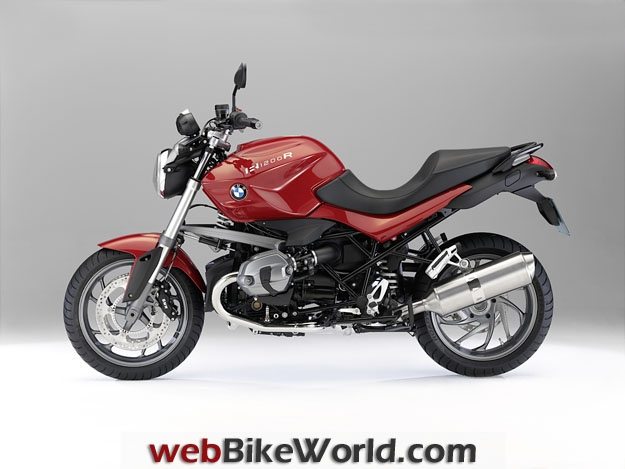

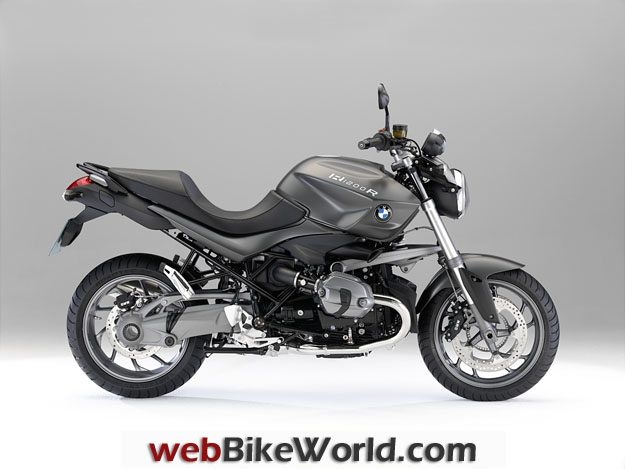

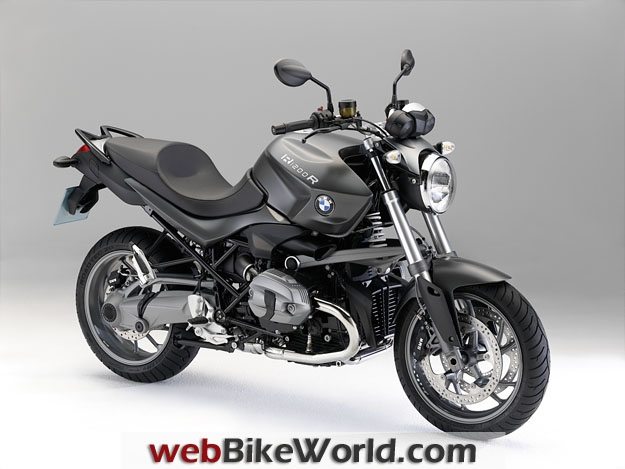

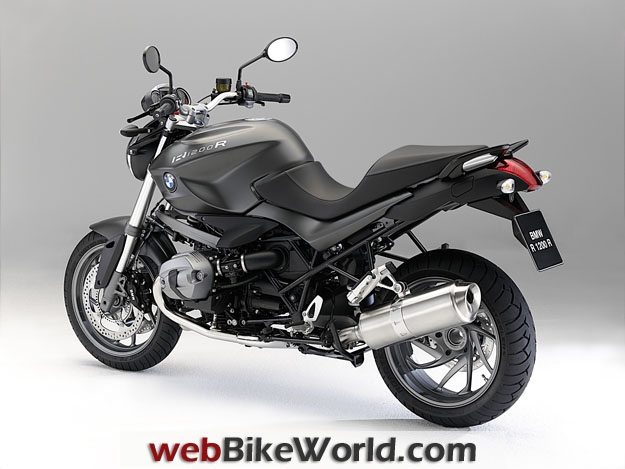

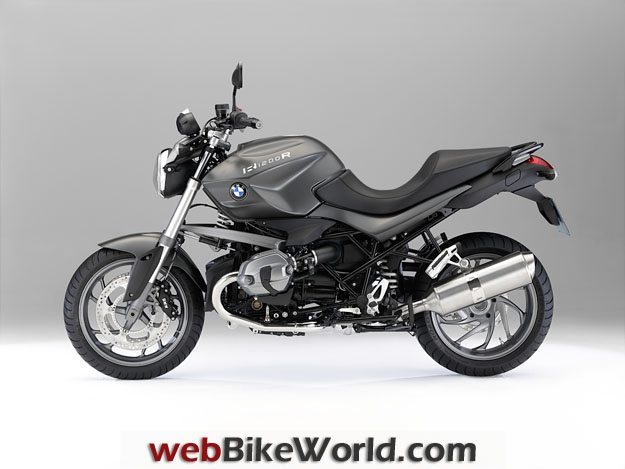

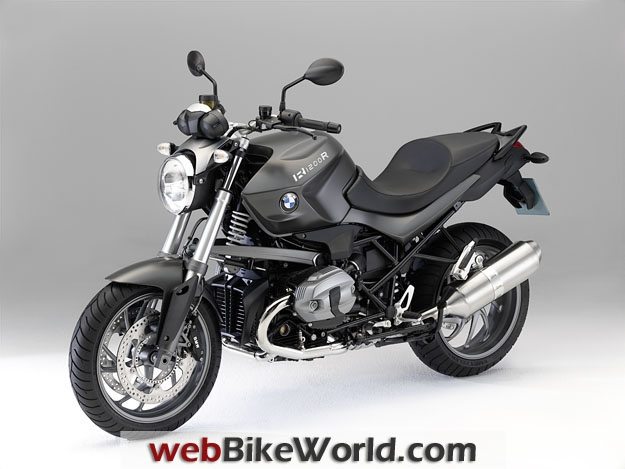

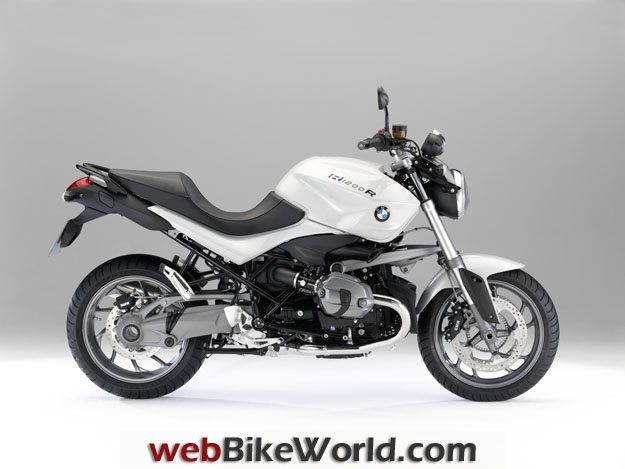

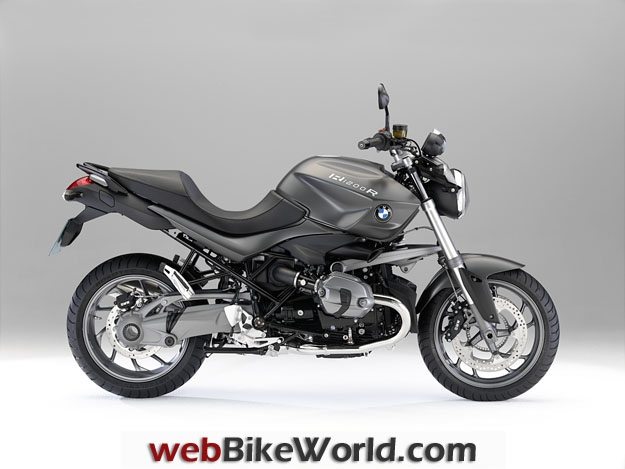

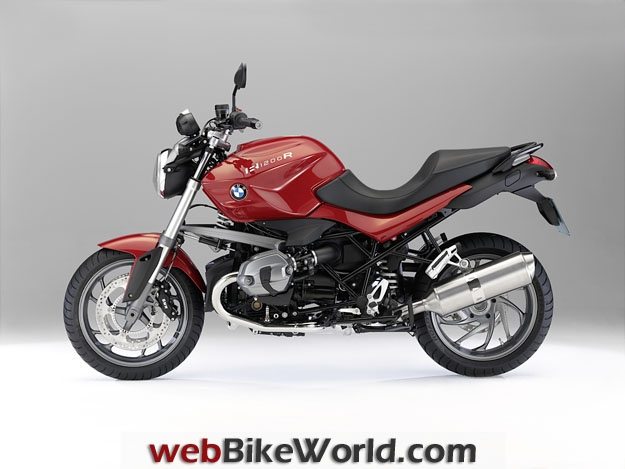

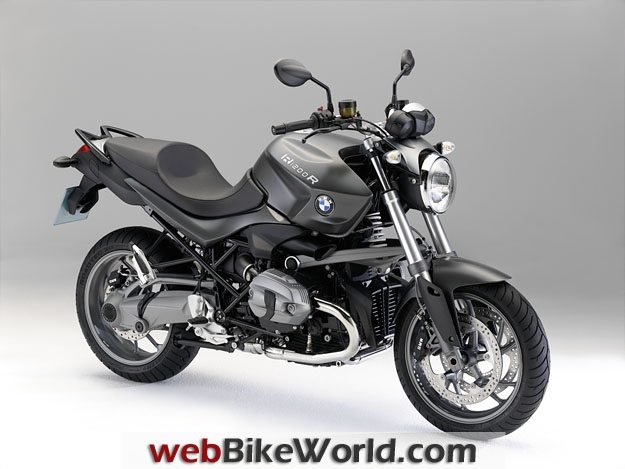

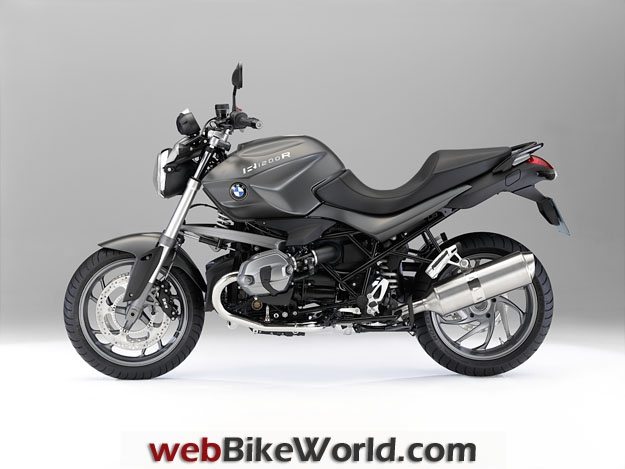

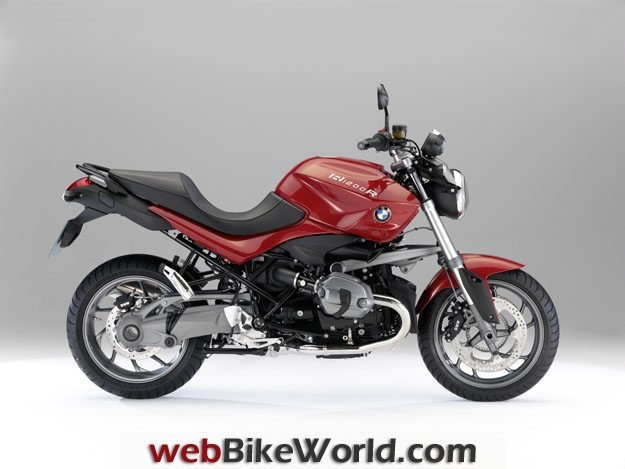

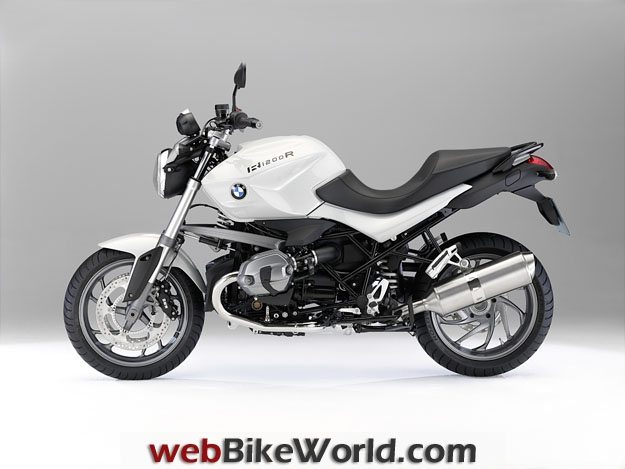

On the other hand, the basic version of the R 1200 R is available in one of three colour schemes: mat metallic smoky grey, metallic light grey, or metallic red apple presenting a dynamic, elegant and at the same time modern roadster interpretation.

In an interplay of Nürburg silver on the wheels and drivetrain, the basic version of the R 1200 R presents its sporty, dynamic side to the best effect. Other sporty touches include the rear silencer in brushed stainless steel and the all black rearview mirrors.

Contrastingly, the R 1200 R Classic presents silver coloured components like Telelever, drivetrain, cylinder head covers, frame, and fork in stark contrast to the body parts. This model underscores the classical, refined look that is boosted even further by the completely chromium-plated exhaust system and the mirrors in a chromium look.
