BMW K1300S

The New BMW K1300S

Background – The BMW K1300S

BMW announced updates to the K 1200 series at the 2008 Intermot show in Germany. They sent us 85 pages (!) of information covering the BMW K 1300 S, BMW K 1300 GT and BMW K 1300 R, with even a little S 1000 RR thrown in for good measure.

This much information means that BMW is counting on this as a major release. But…we can’t help but wonder if this is a case of “too much, too late”?

With the global economic meltdown of 2008, worldwide extreme fuel prices and the difficult loan situation in many countries, a $20k bike with a 1300 cc engine may not be the best strategy. Meanwhile, at least in North America, dealers are completely sold out of smaller, fuel-efficient 125 cc to 500 cc motorcycles for the first time in decades, due to the new riders coming online and high fuel prices motivating buyers to look for MPG rather than HP.

In any case, the production schedule for the new K 1300 series was probably set several years ago, so there isn’t much that BMW can do about it. And 1300 cc should be quite a kick…may as well go down in flames as the world comes to an end!

Here is an edited version of their information on the revised K 1300 S; we’ll follow up with the rest of the new K 1300 series as soon as we can wade through the rest of the 85-page press release covering these new models.

The New BMW K 1300 Series

The significantly updated and upgraded successor to the BMW K 1200 S is proudly celebrating its world debut at the 2008 INTERMOT motorcycle show: the new K 1300 S, the most powerful and fastest BMW the world has ever
seen.

As a milestone in the BMW Sports Encounter World and with engine output of 129 kW (175 hp) combined with overall weight of 254 kg (560 lb) including fuel, this truly supreme motorcycle offers the utmost in dynamic performance and sporting riding features. Launching this new model, Europe’s largest and most successful motorcycle manufacturer is once again increasing its leadership in the topmost class of sporting high-performance machines.

Conceived consistently as a sports machine, the K 1300 S has not only maintained, but in many areas even enhanced the qualities of its predecessor. As a result, this new high-performer combines fascinating and innovative technology of the highest caliber with outstanding all-round qualities and safety.

On the road this means even greater riding precision and agility, even more dynamic power and performance, and, at the same time, the superior safety and ease of control in all situations so typical of a BMW.

Like its predecessor, the K 1300 S does not make any compromises, but rather brings together even more consistently than before all the virtues of the most dynamic motorcycle in the K-Series: sporting and dynamic performance combined with superior comfort, playful and easy handling.

This is also enhanced with absolute riding stability, supreme top performance in conjunction with perfect everyday riding qualities, an even more slender and sporting look with optimized protection from wind and weather, plus sophisticated ergonomics.

Taking up a great tradition of BMW Motorrad, the new K 1300 S stands out through qualities typical of BMW such as a long service life, ease of maintenance, optimum emission management by means of a fully controlled three-way catalytic converter as well as maximum active safety when applying the brakes ensured through the most progressive brake system currently available in the market: BMW Motorrad Integral ABS featured as standard.

As in the past, BMW, through the K 1300 S, offers the only sports motorcycle in this segment with a maintenance-free drive shaft.

Featuring innovative top-end technology, optimum riding qualities, an even more dynamic look and performance enhanced to an unprecedented standard, the K 1300 S impressively renders the BMW Sports Encounter World, clearly maintaining BMW’s strong leadership in the upper sports segment.

The main objective in developing the new K 1300 S was to create an even more supreme motorcycle with enhanced riding qualities ensured by an even more powerful and harmonious torque curve and a higher standard of riding comfort.

Increasing engine capacity to 1,293 cc while maintaining maximum engine speed of 11,000 rpm ultimately led to a significant improvement of performance, power and torque. In its fundamental qualities, the K 1300 S is based on the proven drivetrain configuration and engine arrangement of its predecessor, using the existing advantage of a low centre of gravity made possible by the extreme angle of the cylinder bank tilted 55° to the front and allowing very low arrangement of the engine.

At the same time the new K 1300 S benefits from the very slender engine block allowing a very low angle in bends for a truly sporting and dynamic style of riding.

In its suspension and running gear the new K 1300 S – by far the lightest 1,300-cc model in this segment at 228 kg/503 lb dry weight – applies a successful concept combined with proven modules and components. One example in this context is the extra-low V-shaped radiator interacting with the wheel supports to provide an ideal configuration of the frame above the cylinder head and, as a result, reducing the overall width of the machine.

And with the frame profiles merging smoothly at the rear, the K 1300 S enables the driver to hold his knees tightly together, ensuring optimum contact with the motorcycle under all conditions. The active, dynamic and forward-looking seating position is tailored fully to the rider, but nevertheless allows a relaxed and comfortable style of motorcycling at all times.

So while being unusually dynamic and sporting, the K 1300 S is almost playful and certainly very safe in its behavior, guaranteeing stress-free riding pleasure even in sporting style. Innovations on the running gear and electronics. The upgraded front-wheel Duolever suspension makes a significant contribution to the outstanding riding qualities of the K 1300 S.

The newly developed, lower longitudinal arm now made of a forged aluminum alloy ensures an even more sensitive and transparent response, further enhancing the leadership of BMW Motorrad in the area of suspension technology.

The spring/damper set-up is firmer than before also in the interest of even better feedback. The K 1300 S is available with second-generation Electronic Suspension Adjustment (ESA II) as an option, a further development and improvement of the original ESA suspension introduced for the first time in series production on the K 1200 S.

Applying the most advanced CAN-bus technology, the progressive on-board network allows a wide range of functions and facilitates the diagnostic procedures usually required by intelligently connecting the machine’s electrical and electronic systems.

Technical Highlights:

• Even more dynamic performance, particularly at lower and medium engine speeds, thanks to the increase in engine capacity.

• Engine output 129 kW (175 hp) at 9,250 rpm, maximum torque 140 Newton-meters (103 lb-ft) at 8,250 rpm.

• Increase in torque by more than 10 Newton-meters (7.4 lb-ft) all the way from 2,000–8,000 rpm.

• Fulfillment of the strictest environmental standards through newly harmonized Digital Motor Electronics.

• Optimized cylinder charge cycle for even better performance on less fuel.

• Optimized exhaust system with a new rear muffler and electronically controlled flap management plus a fully controlled three-way catalytic converter.

• Desmodromic operation improving the dosage of gas and engine power.

• Optimized, maintenance-free shaft drive with a new, two-stage drive shaft.

• Even greater riding precision combined with maximum riding stability ensured by optimized Duolever front wheel suspension with new set-up of the lower longitudinal arm.

• Firmer spring/damper set-up for even better feedback.

• Supreme handling provided by optimized suspension geometry, optimum mass distribution and a fully harmonized all-round concept.

• Perfect balance thanks to the low centre of gravity.

• Ergonomically balanced seating position for a relaxed but active style of riding.

• Electronically adjustable second-generation ESA II suspension and ASC Anti-Spin Control as an option.

• New, innovative generation of switches with optimised ergonomics.

• High standard of active safety provided by integral ABS (semi-integral) featured as standard.

• On-board network; CAN-bus technology for superior function with a smaller number of cables and low weight.

• Electronic immobilizer featured as standard.

• Optimised aerodynamics.

• HP Gearshift Assistance for shifting up without the slightest interruption of power as special equipment.

• Wide range of standard features and special equipment tailored to the K 1300 S with the usual high standard offered by BMW.

Second-Generation, 1300 cc Powerplant

The second generation of BMW Motorrad’s four-cylinder power units has been upgraded and updated in the interest of even more power and performance, extra torque, and supreme riding dynamics.

Displacement of the four-cylinder inline power unit in the K 1300 S is up by 136 cc from 1,157 cc to 1,293 cc. Maximum output is 129 kW (175 hp) at 9,250 rpm, maximum torque of 140 Newton-meters or 103 lb-ft comes at 8,250 rpm.

In absolute figures, this is an increase in engine output by 6 kW (8 hp) and an increase in peak torque by 10 Newton-meters (7.4 lb-ft). While the former K 1200 S had to be revved up to 10,250 rpm to develop its maximum output, the power unit of the new K 1300 S develops its maximum power at a relatively low 9,250 rpm.

A further significant advantage is that more than 70 per cent of the engine’s maximum torque is available from just 3,000 rpm, with 10 Newton-meters or 7.4 lb-ft more torque available all the way from 2,000–8,000 rpm versus the K 1200 S.

The objective in developing the new model was obviously to enhance the already high standard of riding dynamics and sporting characteristics through power and performance easy to handle at all times. And weighing 82.8 kilos/182.6 (K 1200 S: 81.3 kilos/179.3, in each case including the clutch, gearbox and oil), the upgraded power unit of the K 1300 S remains one of the lightest engines of its size in the market.

Like the previous model, the K 1300 S benefits above all from its carefully conceived overall configuration as well as the space-saving arrangement of ancillary units and the integrated gearbox. In all, this makes the entire drivetrain very compact, with ideal concentration of all masses in the middle of the machine.

And as on the K 1200 S, the overall width of the power unit, measured on the level of the crankshaft, is 430 millimeters or 16.9″. The perfect interaction of technical solutions and optimum integration of the engine and running gear already featured on the K 1200 S is fully retained on the K 1300 S.

In the process of upgrading the power unit of the K 1300 S, the engineers at BMW Motorrad have given particular emphasis to supreme riding qualities. Hence, the combustion chambers on the four-cylinder, the intake camshaft angle and the valve timing as well as the stroke of the outlet valves have been modified accordingly, with the outlet valve springs being re-set from the ground up.

Running in anti-friction bearings, the connecting rods are extra-light forged components made of heat-treated steel. Measuring 119 millimeters or 4.68″ in length (K 1200 S: 120 mm/4.72″), they keep lateral forces acting on the pistons to a minimum and guarantee superior engine refinement despite the longer stroke.

Together with their anti-friction bearings, the conrods weigh just 404 grams (K 1200 S: 413 grams). In usual BMW style, the upper conrod opening comes with a bearing bush conceived for a service life of more than 100,000 kilometers or 61,000 miles.

Newly developed lightweight box-type pistons measuring 80 millimeters or 3.15″ in diameter, with a short piston apron and two slender piston rings optimized for minimum friction as well as a slender oil scraper ring, serve to increase cylinder stroke and, accordingly, the capacity of the engine.

Balance Shafts for Engine Smoothness

The balance shafts turn twice as fast as the crankshaft. To minimize any noise or sound waves generated in the process, the balance weights are connected to the balance shafts by means of elastomer units.

Split horizontally along the middle of the crankshaft, the cylinder crankcase is made of a high-strength aluminum alloy. Made of a die-casting, the compact upper section forms an extra-stiff composite unit comprising the four cylinders and the upper bearing support for the crankshaft.

Dry Sump Oil Supply

The K 1300 S features dry sump lubrication introduced on the K 1200 S and proven over many years – the same technology as is largely used on racing engines.

Apart from superior operating qualities and reliability even under extreme conditions, dry sump technology quite unique in this segment keeps the crankcase low and flat and therefore ensures a low position of the engine and a low centre of gravity.

By leaving out the usual oil sump, the entire engine may be fitted 60 millimeters or 2.36″ lower down than a conventional power unit.

The oil reservoir comes in a tank fitted in the frame triangle behind the engine. A dual oil pump operating at the rear of the crankcase and driven by a chain from the clutch shaft draws in lubricant from the oil reservoir and feeds the compressed oil first to the oil filter (main flow filter).

Easily and conveniently accessible from outside, the oil filter is positioned on the lower left side of the crankcase. From there the compressed oil flows into the main oil pipe in the crankcase and is spread out through internal holes to the lubricating points.

The oil flowing back, in turn, gathers at the lowest point in the crankcase formed by a bulge in the lower lid. The second pump then delivers the oil flowing back first to the oil cooler and from there to the oil tank, forming a reflow system patented by BMW.

The larger oil cooler is integrated beneath the headlight in the aerodynamically optimized front fairing for superior aerodynamics. In the interest of consistent lightweight technology, finally, the oil cooler pipes are made of aluminum.

The oil level is checked conveniently and easily by means of a transparent plastic pipe at the outside of the oil reservoir. This patented hose-like pipe also serves to drain oil from the tank during maintenance. Capacity of the oil tank is 4.2 liters or 0.92 imp gals. An oil level warning system is available as an option in conjunction with the likewise optional on-board computer.

Optimum Location for Ancillary Units

To keep the engine as slender and compact as possible, the electrical ancillaries and their drive units are fitted behind the crankshaft in the open space above the gearbox. The alternator, in turn, is driven by the primary gear on the clutch, developing maximum output of 580 W and maximum electric power of 50 Amps.

The pre-shaft starter is connected to the engine by a freewheel drive unit operating on the alternator drive gear. Power transmission – reinforced multi-disc oil bath clutch, optimized cassette gearbox and HP Gearshift Assistant.

Gearbox and Shifting – The BMW Gearshift Assistant

The gearbox has been upgraded and modified for the new K 1300 S, with the shift forks, the shape of the dog-shift units and the geometry of the gears themselves being optimized in the process. The gears are now contoured
differently at the rear and the shift forks come with a three-point rest replacing the former two-point base.

To reduce weight, the hollow shift cylinder is made of high-strength aluminum alloy and runs in anti-friction bearings. The shift forks are made of steel and are lubricated by compressed oil.

To reduce the length of the gearbox, the two gearbox shafts are positioned above one another. The gears themselves are in straight-tooth configuration benefiting not only the degree of efficiency but also the overall width of the gearbox.

The K 1300 S features a new shift lever with an ergonomically optimized pivot point. Together with the likewise new anti-friction bearing for the shift lever this ensures an even more precise and faster gearshift than before. At the same time gearshift travel is even shorter and more dynamic.

For the first time in the history of large-scale motorcycle production by BMW and, indeed, for the first time in series production worldwide, the rider of the K 1300 S is able to shift up with the help of the optional HP Gearshift Assistant without operating the clutch and, accordingly, without the slightest interruption of traction and pulling force.

To perform this operation the ignition and fuel supply are interrupted for fractions of a second in the shift process. The HP Gearshift Assistant introduced for the first time on the HP2 Sport comes together with the sports footrests available as special equipment. Shaft drive to the rear wheel – optimized and quite unique in the sports segment.

New Exhaust System With Three-Way Catalyst

On the revised exhaust system of the K 1300 S the four individual manifolds of exactly the same length merge initially into two pipes beneath the gearbox and then into one single pipe leading on into an extra-large, newly developed rear muffler (4-in-2-in-1 principle).

The muffler is significantly shorter than on the former model and now finished in sporting hexagonal design offers a capacity of 9.1 liters (K 1200 S: 9.5 liters) despite its short length and works according to the reflection principle.

Both the outer skin and the all-new interior of the rear muffler now much lighter than before are made of top-quality stainless steel. The metal-based catalytic converter with 200 cells/square inch is integrated exactly at the point where the manifold merges into the rear muffler and comes with a coating of rhodium and palladium combining superior temperature resistance with a long service life.

Full maintenance of the strictest noise and emission limits, despite the increase in engine power and performance, is ensured on the K 1300 S for the first time at BMW by a butterfly in the collector pipe electronically controlled and opening up the full cross-section of the exhaust manifold as a function of increasing engine speed.

At low to medium engine speeds the variable cross-section remains relatively small to build up greater ram pressure in the interest of extra torque and pulling force, while the full cross-section opened up at higher engine speeds serves to develop maximum power and a sporting sound.

Apart from making an important contribution to the even more muscular torque curve and improving the motorcycle’s riding characteristics in the process, the new muffler offers a powerful sound pattern full of character but nevertheless in full conformity with legal standards.

And last but certainly not least, the hexagonal shape of the muffler allows the rider to lean over to a low angle in bends for a sporting style of riding pleasure.

The entire muffler system made of stainless steel weighs a mere 9.4 kilos/20.7 lb (K 1200 S: 10.4 kilos/22.9 lb) and is therefore the lightest and most compact exhaust system with a fully controlled catalytic converter in this segment of the market.

All other manufacturers require an exhaust system with two mufflers. The K 1300 S is also available with a very light and sporting slip-on muffler made of titanium and featuring a carbon cover as special equipment from Akrapović.

Anti-Spin Control

The K 1300 S comes as an option with ASC Anti-Spin Control fitted at the factory and taking the significantly greater power and torque of the new four-cylinder into account.

Particularly on a high-torque motorcycle and on road surfaces varying frequently, ASC is a very sensible addition to ABS, preventing the rear wheel from spinning when accelerating and thus losing lateral stability, which otherwise might make the rear end swerve out of control.

By comparing the speed of the front and rear wheels with the help of the ABS sensors, the electronic control unit determines when the rear wheel is spinning, engine management taking back the ignition angle and intervening in the fuel injection process to reduce engine power accordingly.

The particularly sporting rider also has the option to deactivate ASC while riding and is also able to switch off ABS as long as the motorcycle is at a standstill before setting out.

Suspension

Innovative suspension technology with optimized suspension geometry, springs and dampers. The suspension geometry of the new K 1300 S has been upgraded in the interest of even more neutral behavior in bends and an even higher standard of agility. This is achieved by modifying the wheel carrier in its production process and by the use of a Duolever with a newly designed lower longitudinal arm.

With the K 1200 S entering the market in 2004 as the world’s fi rst production motorcycle to feature ESA Electronic Suspension Adjustment, the new K 1300 S now goes a step further four years later: As before the springs and dampers may be adjusted electronically at the touch of a button – but now the spring rate may also be modified by the rider.

The front wheel suspension again features the Duolever launched in 2004 as another world-fi rst achievement, the lower longitudinal arm formerly made of forged steel being replaced on the K 1300 S by a new longitudinal arm made of forged light alloy.

This reduces unsprung masses by approximately 1 kg in the interest of an even more sensitive and transparent response and steering behavior of the Duolever kinematics.

The rear wheel suspension uses BMW Motorrad’s proven lightweight Paralever, the modified and now even firmer set-up of the rear spring strut taking the sporting and dynamic character of the K 1300 S into account. Together with the rider’s seating position, appropriate interaction of the suspension and the position of the engine ensures not only a low overall centre of gravity with ideal mass concentration on the new K 1300 S, but also perfectly balanced, ideal wheel load distribution of 50:50.

As on the former model, the central load-bearing component is the main frame in bridge configuration. In this case the frame is a welded combination of internal high-pressure molded elements (IHM profiles) for the bent profile units at the side and extrusion-pressed profiles together with die-cast components for the frame head and the lower section of the swing arm bearings.

The front suspension combines supreme stiffness with minimum weight, since the design and configuration of the wheel carrier may be freely chosen also in its contours due to the cast structure and may therefore be adapted precisely to the force curves.

Appropriate wall thickness determined specifically according to local load conditions reduces the weight of the frame without forfeiting any strength or stiffness. And taking the main direction of forces into account, the longitudinal arms are set up mainly to absorb forces in their longitudinal direction, that is inbound and rebound forces, a structure which again makes them particularly stiff.

The lower longitudinal arm previously made of forged steel is replaced by a light-alloy forging on the K 1300 S. Through its light but nevertheless extremely stiff configuration, this new arm guarantees an even more sensible and transparent response, at the same time reducing unsprung masses by approximately 1 kg.

Hence, the overall structure weighs a mere 12.7 kg/28.0 lb, as opposed to 13.7 kg or 30.2 lb on the K 1200 S. The geometry of the spring strut pivot point follows a slight progression, with 115 mm or 4.52″ of spring travel (60 mm/2.36″ inbound, 55 mm/2.16″ rebound). At 32 degrees right and left, steering lock complies with the usual standard in this class.

EVO Brake System

EVO brake system and BMW Motorrad Integral ABS both featured as standard. The K 1300 S features the EVO brake system already well-known from the previous model and proven in the market everywhere, that is the same superior system also featured in BMW Motorrad’s other Boxer and K-Series models.

The brake lines on the EVO brake system are clad in steel for extra protection, brake discs measuring 320 millimeters or 12.6″ up front and 265 millimeters or 10.4″ at the rear ensuring maximum stopping power also from very high speeds and under high loads.

The EVO brake system has proven its additional qualities such as the extremely fast build-up of brake pressure and minimum operating forces even when applying the brakes all-out in many tests. Given all these qualities, the EVO brake system from BMW – EVO stands for evolution – is already acknowledged in the market as one of the safest and most effective brake systems available.

The EVO brake system is featured as standard also on the new K 1300 S together with BMW Integral ABS likewise well-known from BMW’s other models, in this case in the particularly sporting and dynamic semi-integral variant. “Semi-integral” means that when pulling the handbrake lever both brakes (on the front and rear wheel) are activated while the footbrake lever acts only on the rear-wheel brake.

Integral ABS was already adapted to the sporting configuration and style of the K 1200 S and has now been enhanced further in its control features.

Since the sports rider wants to be able to dose the brakes smoothly and consistently with precise feeling, specifically this requirement has been taken into account, ensuring that even when applying the brakes all-out on the K 1300 S there is virtually no risk of the motorcycle toppling over.

This is also due to the low centre of gravity and the particular geometry of the suspension interacting with the kinematic configuration of the Duolever. In other words, the rider is able to make full use of maximum tire grip also in the ABS brake mode, enjoying maximum safety even in an extreme braking maneuver.

Dashboard

The K 1300 S boasts a brand-new generation of switches and manual controls also to be introduced on all upcoming BMW motorcycles.

Using MID (Moulded Interconnect Devices) technology, the new switch units are far smaller and more compact and stand out through an even higher level of functional convenience, clear design and optimum accessibility. The formerly separated functions for the direction indicator lights left and right are now grouped in one and the same function on the left-hand side of the handlebar to avoid any confusion of the direction indicators and the horn.

And as a further change, the hazard warning flashers are now operated by a separate switch within easy and convenient reach on the left-hand handlebar control. The functions for the low and high beam as well as the lights flasher are all combined in one switch easy to reach with your left index finger.

To ensure even easier and more convenient operation, the knob for the handlebar heating has been moved up. And in accordance with practical requirements, the functions for the starter and kill switch are combined in one toggle switch unit, ensuring that even with inadvertent operation of the kill switch the starter with the ignition interrupted cannot be operated by mistake and subsequently empty the battery.

Operation of the ESA II and ASC systems, formerly controlled by two separate switches, is now also combined in one toggle switch. Given this new technical configuration, the rider is able to operate twice as many functions as before with the same number of switches. This is an important factor in handling future equipment not yet known today, let alone fitted on the machine.

To begin with, the switch operating the heated handles on the K 1300 S has been integrated in compact dimensions and within easy reach on the right-hand side of the handlebar. The indicator showing the current position of the handlebar heating switch, in turn, is now integrated in the instrument cluster display.

The extra-light instrument cluster on the K 1300 S based throughout on digital technology comes with a newly designed speedometer and rev counter as well as the typical BMW Info-Flatscreen. This Information Display offers the rider permanent information on the temperature of the coolant, the remaining level of fuel in the tank, the time of day, and the gear currently in mesh.

For very sporting purposes and competitive events, for example on the race track, the new K 1300 S may be equipped with the HP Instrument Cluster already well-known from the HP2 Sport as a special feature.

LED Lights

Matching the sporting, dynamic appearance of the new K 1300 S, this is the first model in BMW’s four-cylinder series to be fitted as standard with a LED rear light in clear glass look.

The use of light-emitting diodes taking the place of conventional bulbs guarantees unimpaired and maintenance-free operation, and extends the service life of the lights several times over.

Options and Accessories

Thanks to its sophisticated ergonomic qualities, the sporting K 1300 S is fully suitable for long distances and grand tours.

A new feature available for the K 1300 S is a luggage rack upgrading the all-round and touring qualities of the machine. Indeed, the new luggage rack supplements the existing baggage features already offered by BMW Motorrad in carrying all kinds of luggage on the motorcycle.

Further customization is ensured by the usual wide range of options and special equipment from BMW Motorrad. Particularly the sports-minded rider will therefore enjoy the new K 1300 S even more with the HP Gearshift Assistant, the HP Info display as well as HP trim components made of carbon.

Optional extras are delivered straight from the factory and are fitted during the production process. Special equipment is fitted by the BMW Motorcycle Dealer also providing a wide range of retrofitting options.

Options:

• Heated grips.

  See also



  Amanda Quick·

  Motorcycle News

  ·November 2, 2021·2 min read

  Harley-Davidson Calls EU Tariff Resolution ‘Big Win’ as Company Stocks Jump

• Luggage rack (new).

• Low rider’s seat (approx 790 mm/31.1″, step arch length 1,750 mm/68.9″).

• Anti-theft warning system.

• ESA II (Electronic Suspension Adjustment II; new).

• HP Gearshift Assistant (new).

• Multi-color paintwork.

• ASC Anti-Slip Control.

• TPC Tire Pressure Control.

• On-board computer including oil level warning.

Special Equipment:

Luggage and storage options:

• Luggage rack with installation kit.

• Watertight tank rucksack (new).

• Watertight tank bag including fastening elements.

• Set of sports cases including case supports.

• Sports soft bag, small, 19 liters/large, 51 liters.

• Watertight luggage roll, 53 liters, including fastening belt with tightening lock.

• Multi-strap fastening rope.

Service and technical features:

• HP Gearshift Assistant (new).

• HP Instrument Cluster (new).

• Main stand.

• On-board toolkit – service kit.

• Paddock stand including adapter.

• 230 V/110 V battery charger including adapter.

• Repair kit for tubeless tires.

• Repair instructions for K-models, DVD.

• Motorcycle cleaner.

Ergonomics and comfort.

• Heated grips with switch unit.

• Low rider’s seat (approx 790 mm/31.1″, step arch length 1,750 mm/68.9″).

• Windshield, tinted.

• HP rider footrests (new).

• HP passenger footrests (new).

• HP forged wheels, front (3.50 x 17″) and rear (6.00 x 17″).

Design and sound:

• HP carbon seat cover.

• HP carbon clutch cover.

• HP carbon heat protector for standard muffler (new).

• Akrapović sports muffler (new).

• HP carbon tank cover (new).

• HP carbon wheel cover, front.

• HP carbon air box cover.

Safety:

• Electronic immobilizer with remote control.

• Splashguard at the rear.

• First-aid kit, large/small.• Motorcycle cover.

Navigation and communication:

• BMW Motorrad (Garmin) ZUMO navigation and communication unit, including support (new).

Video: BMW K1300S (apparently made without a sound track).

Colors

The color concept of the new BMW K 1300 S accentuates the unmistakable character of this new machine. The non-metallic colors form a strong and powerful contrast to the black surfaces at the front, giving the K 1300 S an even more compact and agile look from the side.

The colors available are Light Grey Metallic and Lava Orange Metallic. The unique multi-color finish in Granite Grey Metallic/Light Grey Metallic with Magma Red highlights, in combination with wheels finished in Glossy Black, creates the sophisticated and striking look so typical of BMW and appealing above all to the sporting, performance-minded rider.

The frame and suspension components on all color variants are finished in Asphalt Metallic.

BMW K1300S Horsepower and Torque Graph

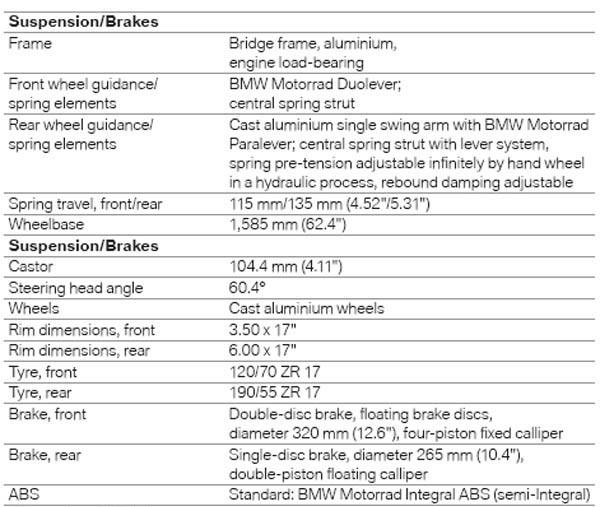

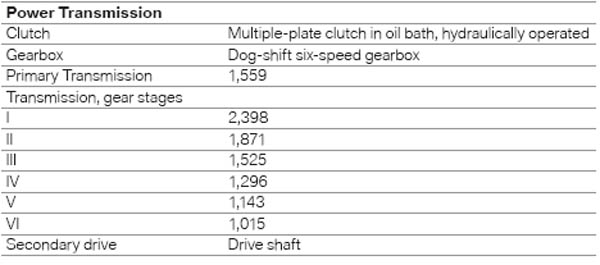

BMW K 1300 S Specifications

Date of Publication:  October 2008
