2023 MV Agusta Dragster RR [Specs, Features, Photos]

The 2023 MV Agusta Dragster RR Is A Raw Blend Of Technology And Design

Model Overview
Specifications
Features
Photos
Videos
Links

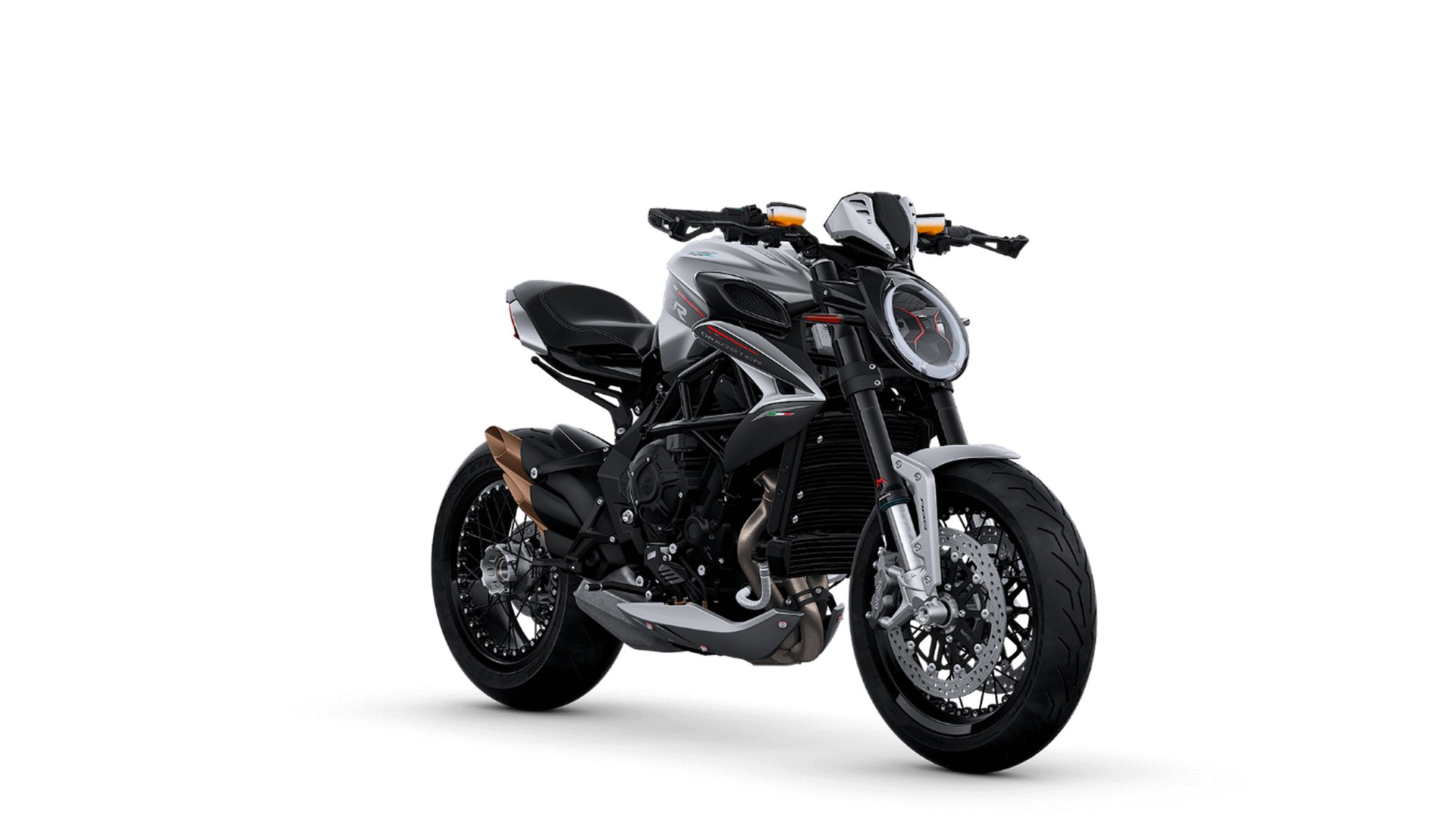

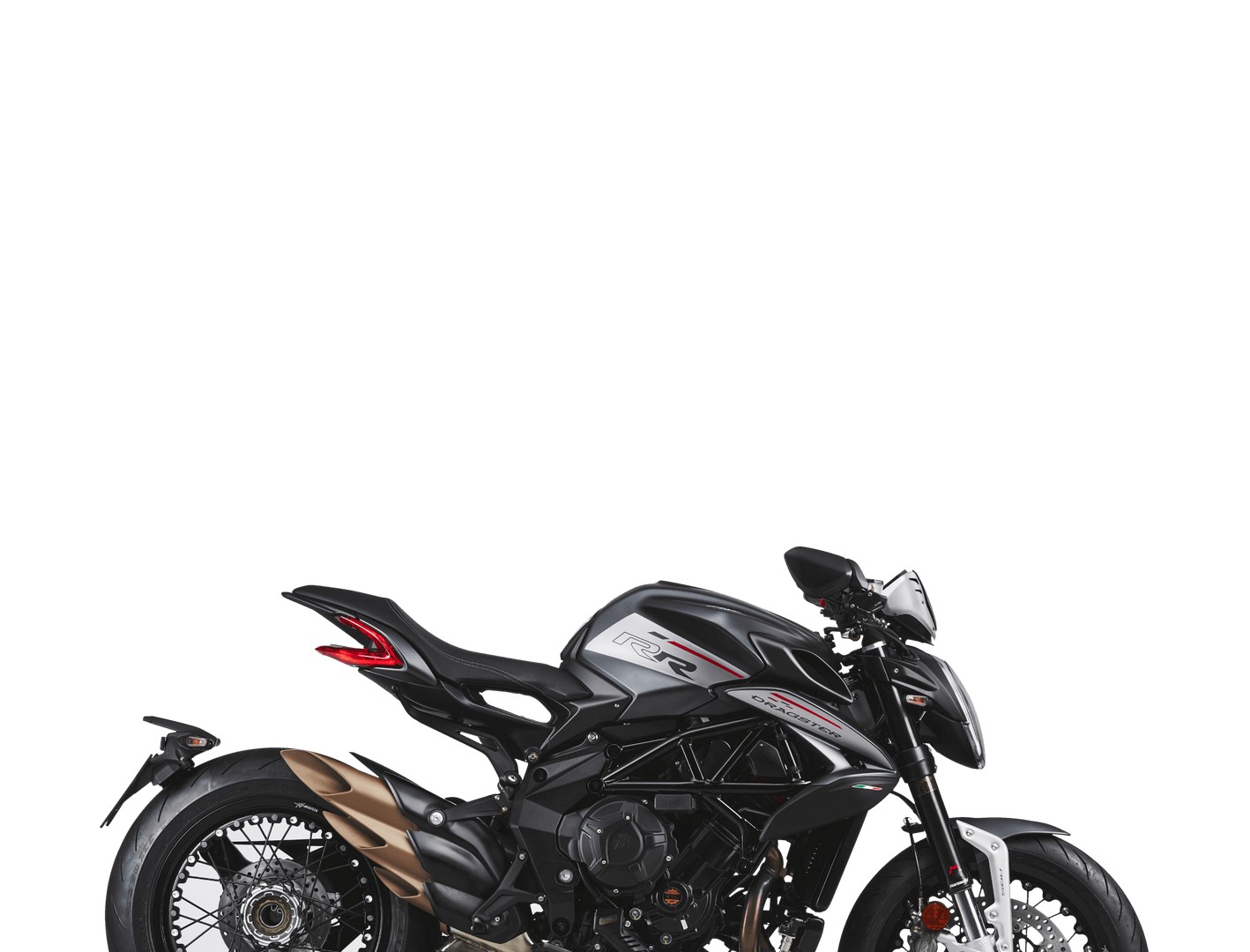

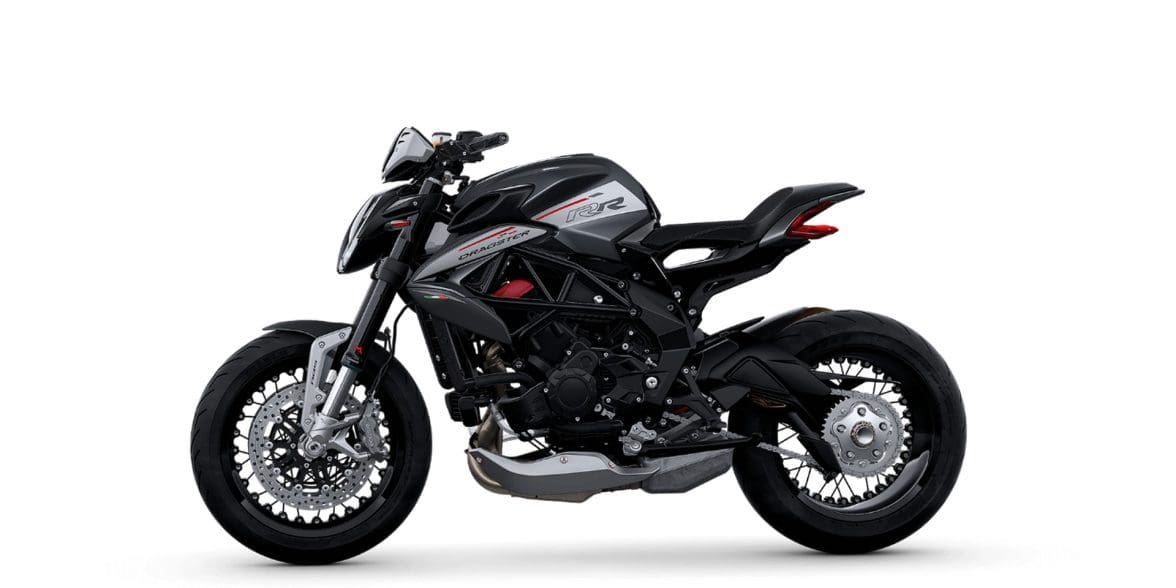

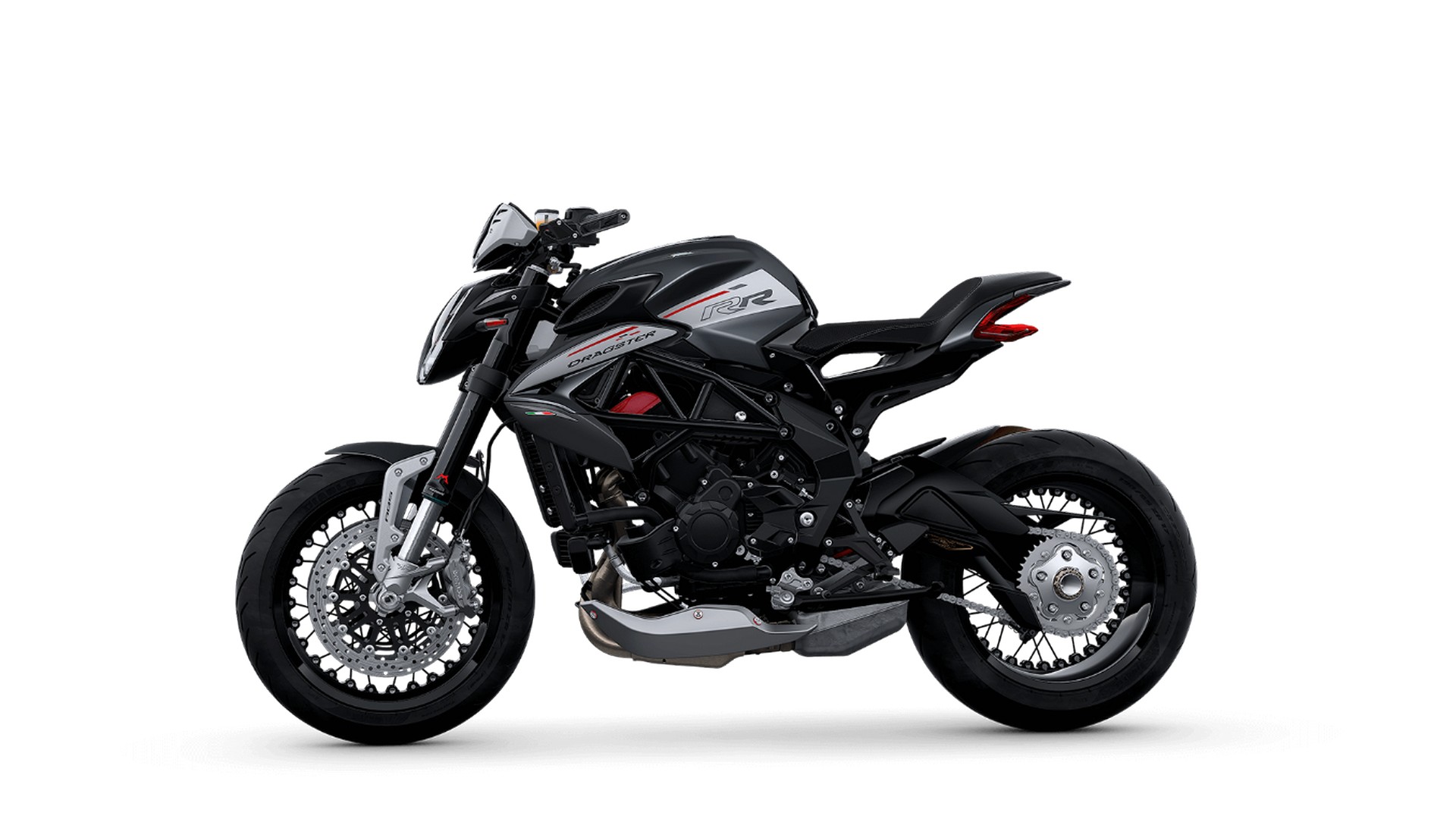

Meet the 2023 MV Agusta Dragster RR, a motorcycle that embodies the spirit of a street fighter, packed into a compact and aggressive package. While at the lower end of the 2023 MV Agusta lineup as far as price, it doesn’t disappoint anywhere. At the heart of the Dragster RR is a three-cylinder, four-stroke engine with a total displacement of 798 cubic inches (48.68 cubic inches). Internal friction has been further reduced due to the DLC coating on the new tappets and the different materials used for the valve guides. It packs 140 horsepower and 64.2 ft-lb of torque into a very compact package. The six-speed, constant mesh transmission allows precise control of the gears for an exceptional experience.

The Dragster RR is not just about power, it’s also about precise control. It compares favorably in the technology department to other MV Agusta motorcycles. The bike’s electronics have seen a huge improvement, with a new IMU inertial platform that enables the traction control to be managed with precise sensitivity based on the lean angle The bike is outfitted with an integrated ignition-injection system MVICS 2.1 and a full ride-by-wire throttle body by Mikuni. The engine control unit comes with ion-sensing technology that controls detonation and misfire. You’ll also find an electronic quick-shifter.

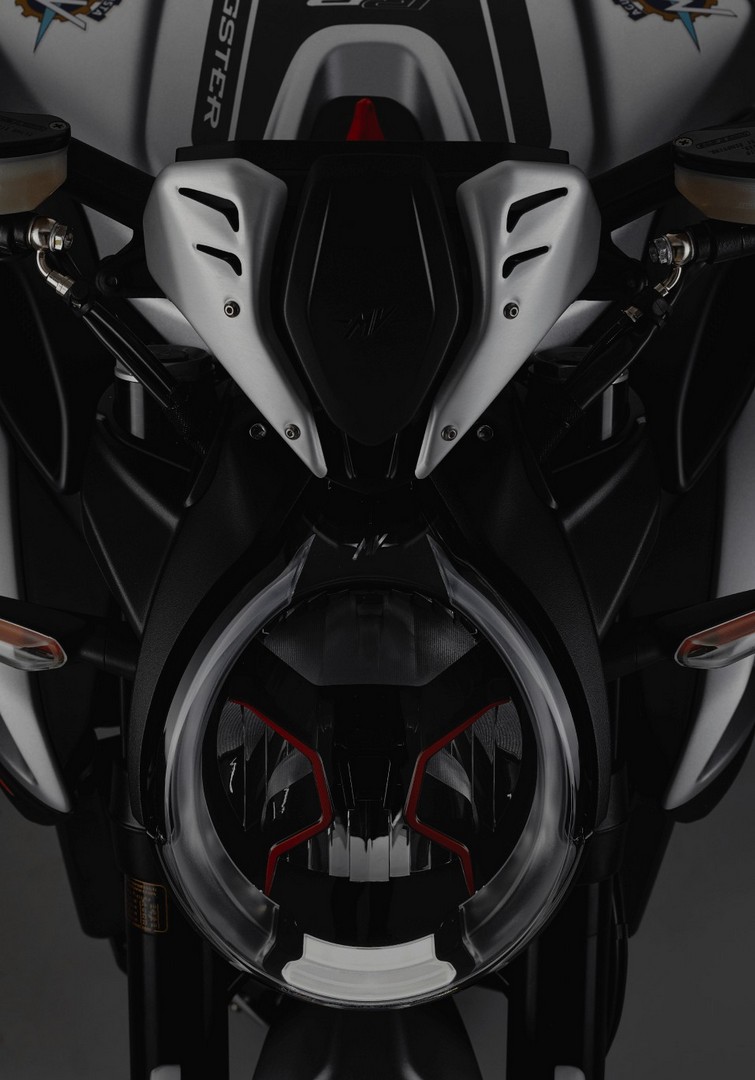

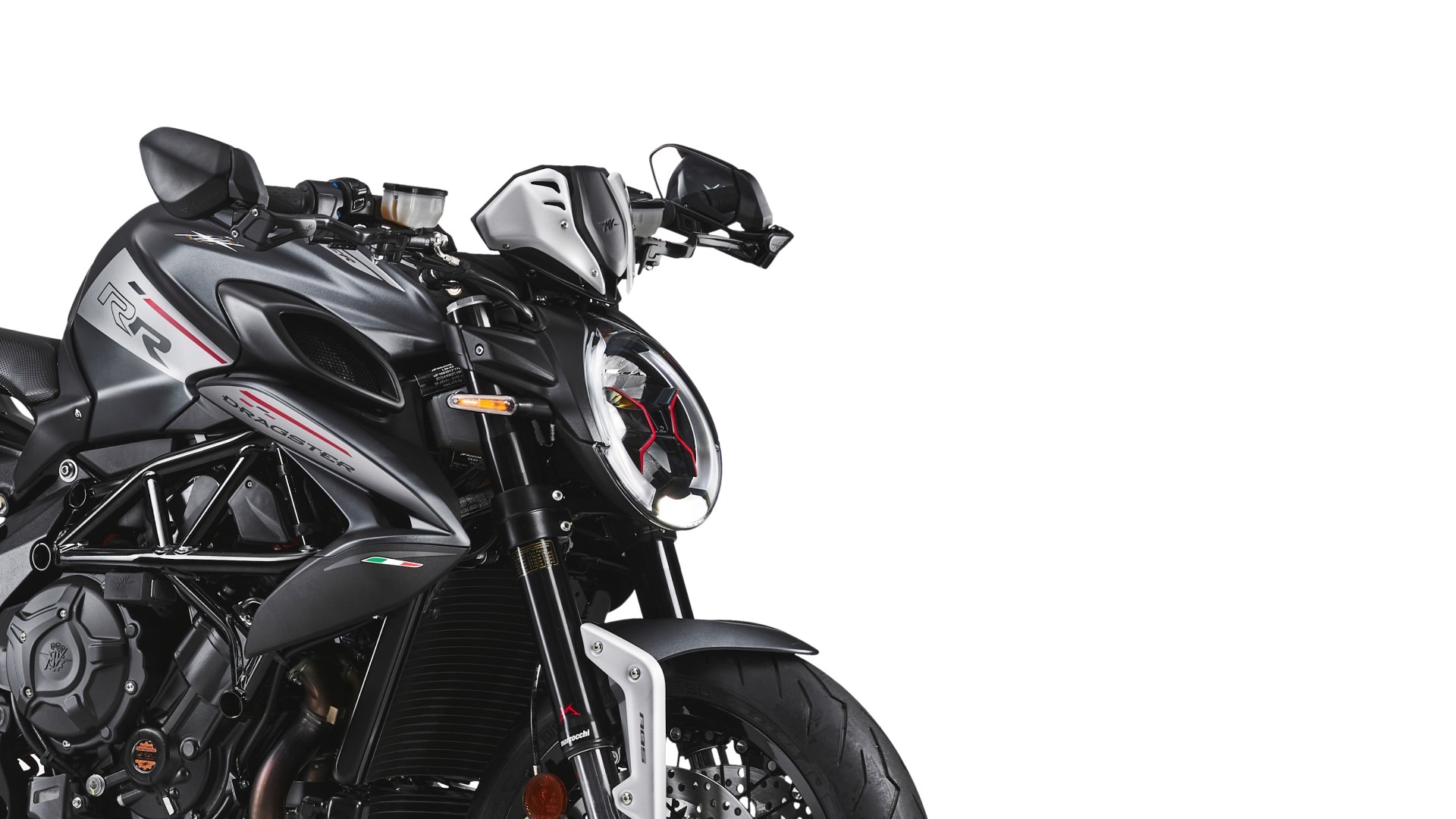

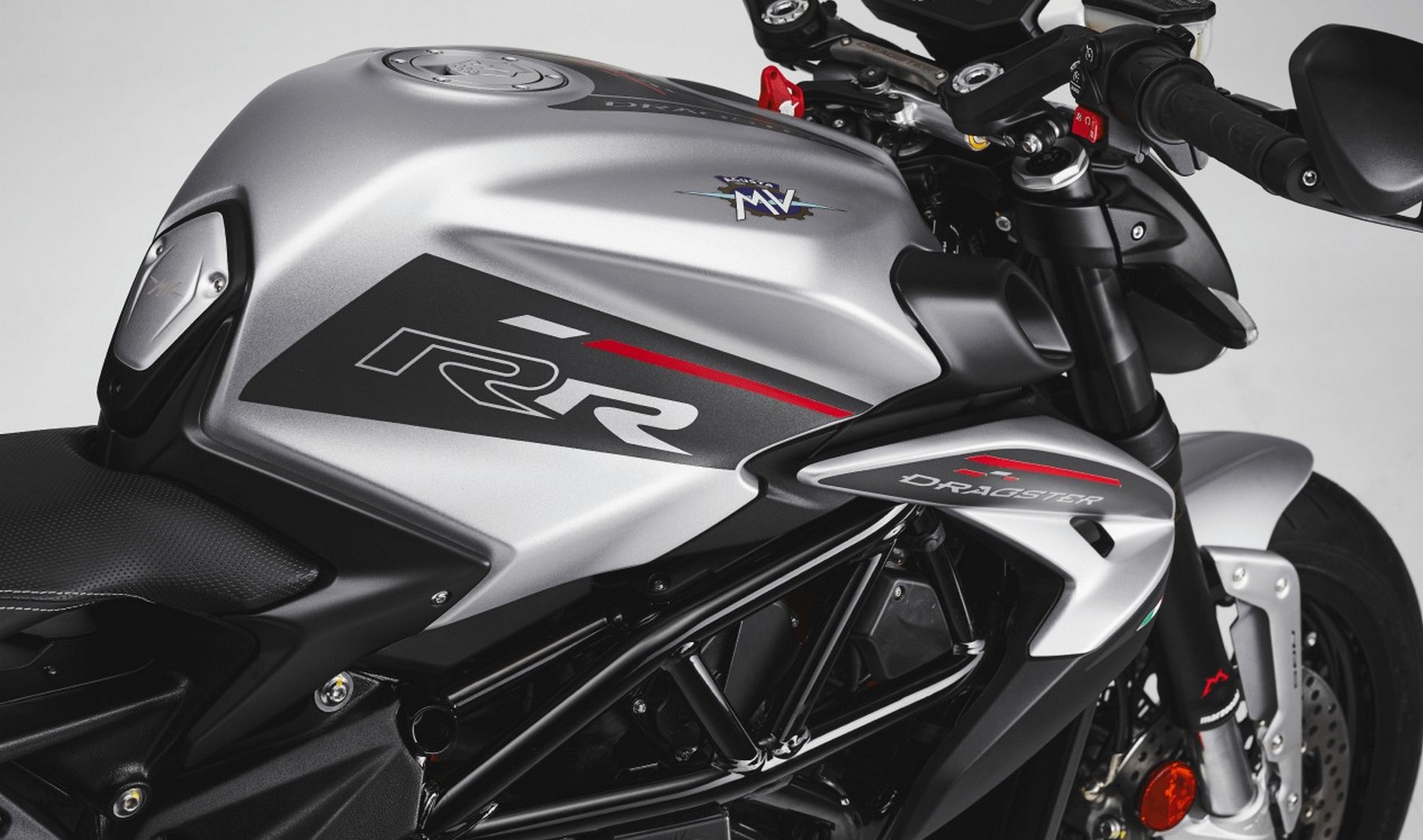

Comparing well with other Italian motorcycle manufacturers, the Dragster RR features a steel tubular trellis frame, Marzocchi upside down forks and a Sachs, single shock in the rear. The front and rear brakes are from Brembo, with the ABS system provided by Continental MK100, featuring Rear Wheel Lift-up Mitigation and a cornering function. Other technology packed in the Dragster includes the MV Ride App, cruise control, and launch control. It’s also equipped with aluminum front fender side supports, a tank damper, and a full-LED headlight that features an effective cornering function.

The 2023 MV Agusta Dragster RR starts at $19,998 USD/$22,448 CAD

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2023 MV Agusta Dragster RR in one place.

Model Overview

General Info

Price: $19,998 USD/$22,448 CAD
Key Features:
- Brembo radial 4 piston calipers with dual 320mm discs
- Carbon fiber bodywork
- Marzocchi upside down forks
- MV Ride App – GPS

Main Specs

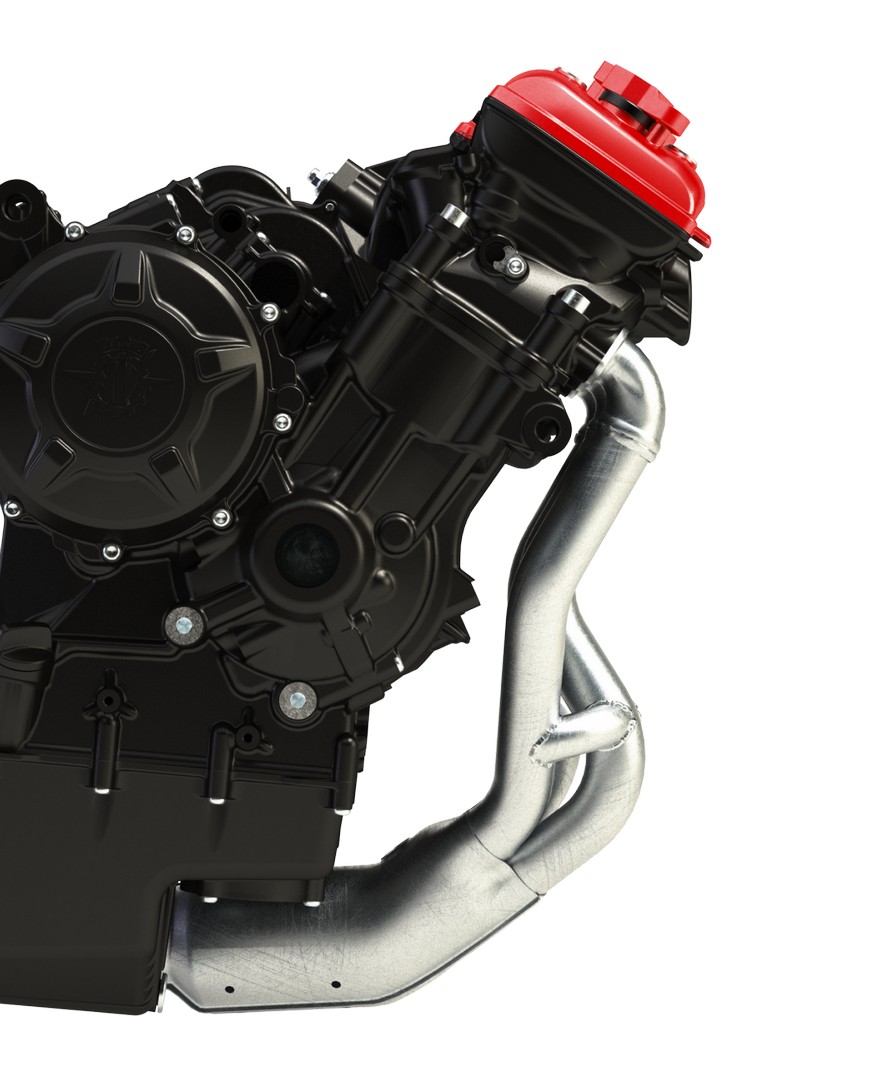

Engine: 798 cc Three cylinder, 4 stroke, 12 valve
Power: 140 horsepower
Torque: 64 ft-lbs
Weight: 385 lbs (175 kgs)
Seat Height: 33.3 inches (845 mm)

Competitors

2023 MV Agusta Dragster RR Specifications

From MV Agusta

ENGINE
Engine	798 cm3 (48.68 cu. in.), Three cylinder, 4 stroke, 12 valve
Power	140 Hp
Bore x Stroke	79 mm x 54.3 mm (3.1 in. x 2.1 in.)
Compression Ratio	12.3:1
Timing system	“D.O.H.C” with mechanical chain tensioner and DLC tappet
Starter	Electric
Color
DRIVETRAIN
Clutch	Multi-disk wet clutch with hydraulic actuation and back torque limiting device
Transmission	Cassette style; six speed, constant mesh
Final Drive Ratio	16/41
CHASSIS
Suspension Front	Marzocchi “UPSIDE DOWN” telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment
Suspension Rear	Progressive, Sachs single shock absorber with rebound and compression damping and spring preload adjustment
Brakes Front	Double floating disc with Ø 320 mm (Ø 12.6 in.) diameter, with steel braking disc and flange

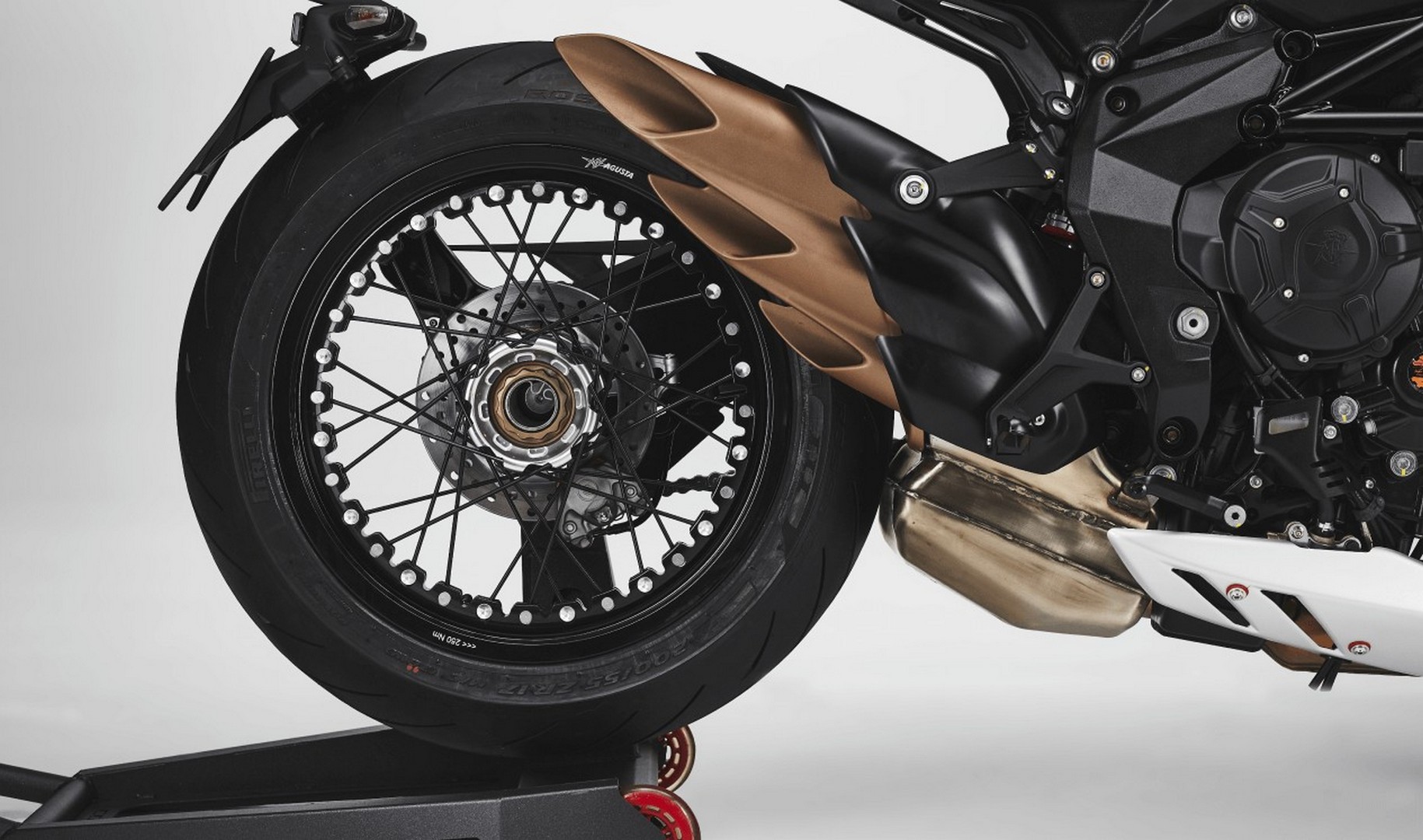

Brakes Rear	Single steel disc with Ø 220 mm (Ø 8.66 in.) dia.
Tires Front	120/70 – ZR 17 M/C (58 W)
Tires Rear	200/55 – ZR 17 M/C (78 W)
Fuel Tank Capacity	16.5 l (4.36 U.S. gal.)
ABS System	Continental MK100 with RLM (Rear Wheel Lift-up Mitigation) and with cornering function
ELECTRICAL
Battery	12 V – 8.6 Ah
Voltage	12 V
Alternator	350 W at 5000 r.p.m.
Headlight
Tail Light
DIMENSIONS
Overall Length	2035 mm (80.12 in.)
Overall Width	935 mm (36.81 in.)
Trail	103.5 mm (4.07 in.)
Wheelbase	1400 mm (55.12 in.)
Ground Clearance	135 mm (5.31 in.)
Seat Height	845 mm (33.27 in.)
Dry Weight	175 kg (385.8 lbs.)
WARRANTY
Warranty
Extension

2023 MV Agusta Dragster RR Features

The MVICS, complete with full Ride-By-Wire, has been further refined, now offering eight levels of traction control and four riding modes: Sport, Race, Rain, Custom. Changing the character of the engine has never been so quick and intuitive, like having four bikes in one. And the MV EAS 3.0 electronic quick shift makes it all even faster and more intuitive.

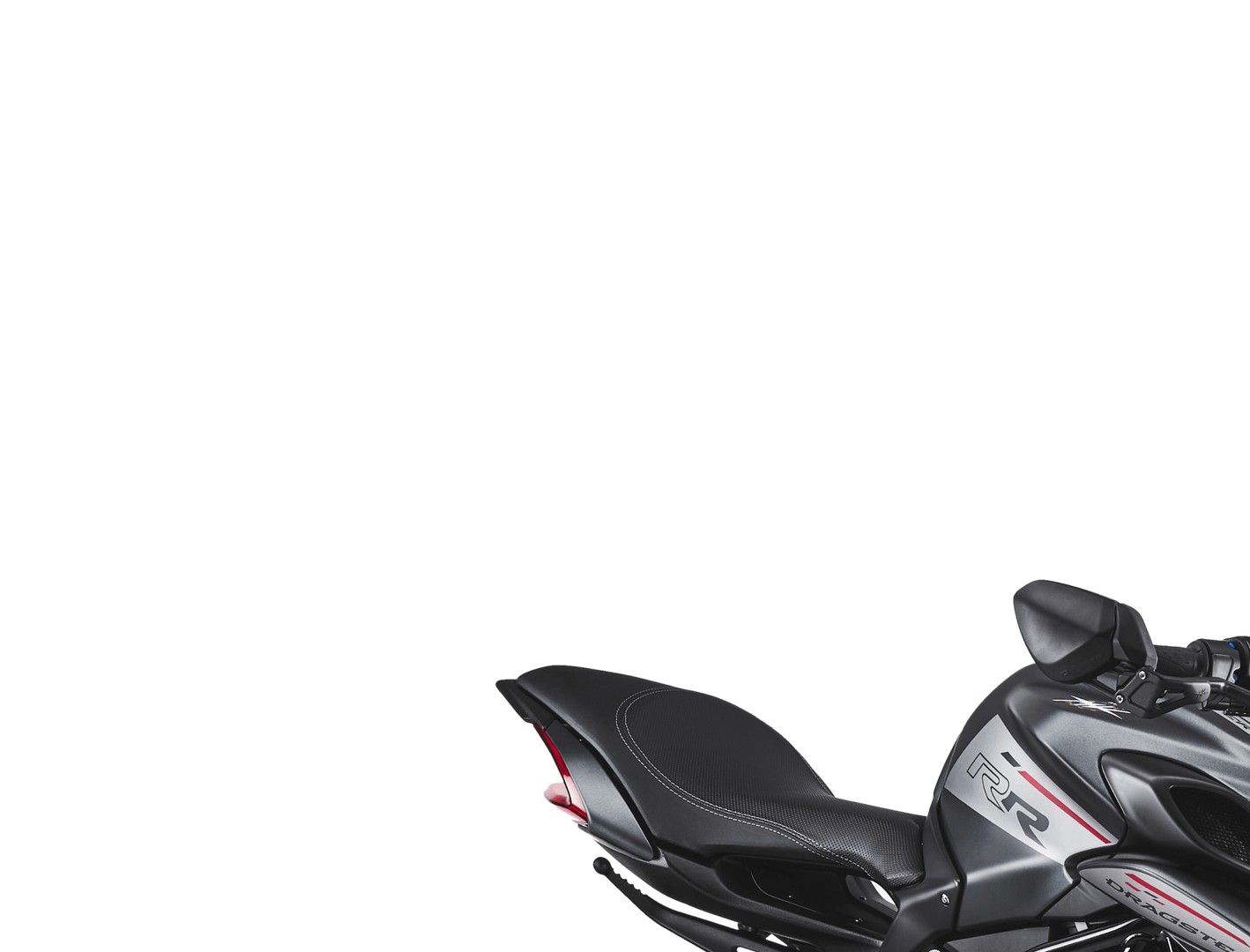

The frame plates, shock lever, suspension settings and even the saddle, with its updated shape and padding, all showcase the attention to detail, for a Dragster R riding experience that is more exciting and easier than ever.

Performance and safety — mission accomplished thanks to the pair of four-piston Brembo radial callipers. Another latest-generation feature is the ABS (anti-lock braking system) developed by Continental, which comes complete with cornering function and RLM (Rear wheel Lift-Up Mitigation).
