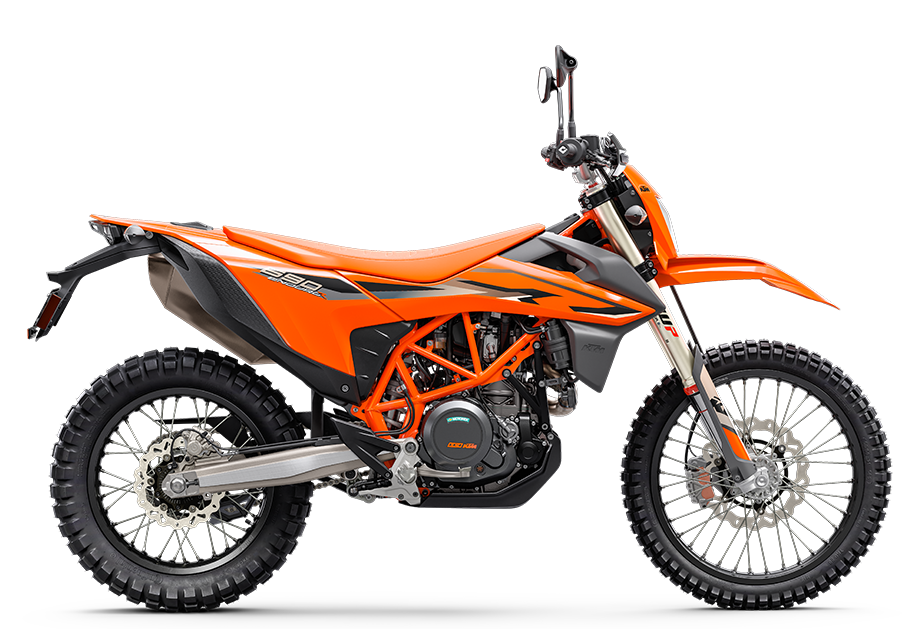

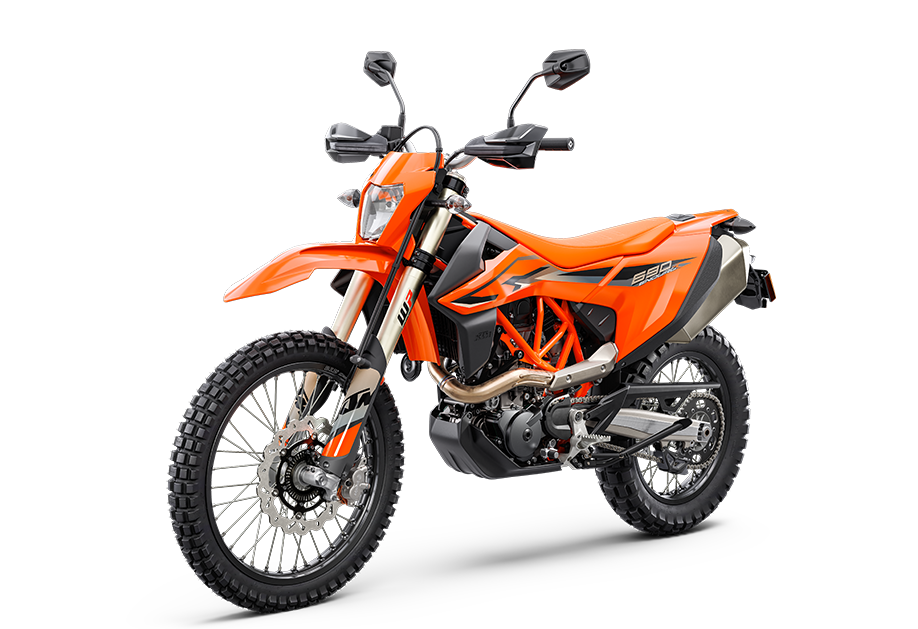

KTM is just as well known for their dirtbikes as they are for their line of road machines, and for good reason, both divisions of the Austrian manufacturer produce excellent motorcycles. So what happens when those worlds collide? The 2023 KTM 690 Enduro R.

The Enduro R has been on the market for a couple of years, and 2023’s iteration doesn’t bring much, if anything, in the way of changes. The dual sport, enduro-inspired bike is still powered by the excellent 693cc single-cylinder thumper, formerly found in the likes of the 690 Duke. Producing a claimed 74 hp and 54 lb-ft of torque and weighing in at just 350 lbs, this bike surely has enough go to get around both on the street and on the trails. To help control that performance, the bike has a slipper clutch equipped with a power assist feature that minimizes the user input needed to operate. A dual-directional quick shifter is standard.

As an enduro, this bike may be pretty bare bones, but that didn’t stop KTM from ensuring their customers got great value for their money. One of the most unique features of this bike is its WP XPLOR 48 mm front forks, which feature a split fork adjustment design. This means that compression is adjusted on the left fork and rebound on the right to make dialling in much quicker and more streamlined. The rear suspension is provided by a fully adjustable WP shock. If this premium suspension isn’t enough to keep the bike off the ground, it comes equipped with a skid guard to protect all of the important bits from damage.

With some grippy Continental TKC 80 tires wrapped around a set of wire-spoked wheels, this bike shouldn’t have much trouble on any terrain. Brembo provides braking power on this Enduro, using a 300mm front disc and a 240mm piece in the back.

The 2023 KTM 690 Enduro R starts at $12,999 USD/$13,999 CAD

On this page: we’ve curated specs, features, news, photos/videos, etc., so you can read up on the new 2023 KTM 690 Enduro R in one place.

Model Overview

General Info

Price: $12,999 USD/$13,999 CAD
Key Features:
- Optional Track Mode
- Peppy parallel twin engine
- TFT dashboard
- WP Adjustable front & rear suspension

Main Specs

Engine: 693 cc single-cylinder
Power: 74 hp (55 kW)
Torque: 54 lb-ft (73 Nm)
Wet Weight: 350 lbs (159 kg)
Seat Height: 35.8 in. (910 mm)

Competitors

2023 KTM 690 Enduro R Specifications

From KTM

ENGINE
Engine	692.7cc, Liquid cooled, 1-cylinder, 4-stroke engine
Power	74 Hp
Bore x Stroke	105 mm X 80 mm
EMS	Keihin EMS with RBW, twin ignition
Power in KW	55 kW
Starter	Electric starter
Lubrication	Forced oil lubrication with 2 oil pumps
DRIVETRAIN
Clutch	PASC (TM) slipper clutch, hydraulically actuated
Transmission	6-speed
Chain	520 X-Ring
CHASSIS
Suspension Front	WP XPLOR-USD, Ø 48 mm
Suspension Rear	WP XPLOR with Pro-Lever linkage
Brakes Front	300 mm
Brakes Rear	240 mm
Tank capacity (approx.)
Color
ELECTRICAL
Ignition
Spark Plugs
Headlight	LED
Tail Light	LED
WARRANTY
Warranty
Extension

2023 KTM 690 Enduro R Features

The engine combines powerful acceleration from the very lowest revs with an outstanding free-revving nature and refined engine running. Another big plus: It’s extremely economical with fuel.

A lightweight, compact cylinder head contains four valves and a single camshaft placed over the intake valves, with a secondary balancer shaft driven by the timing chain. The intake valves are actuated by finger followers and the exhaust valves by a rocker arm.

A resonator chamber balances out pulses in the intake tract and makes the throttle response smoother with reduced vibrations.

The trellis frame is manufactured from lightweight sections of top-quality chrome-molybdenum steel tubing of varying thicknesses. This type of balanced frame design provides high torsional rigidity for best handling and rideability, while a more specifically-tuned longitudinal flexibility can absorb the wheel impact energy, supporting the suspension for reduced rider fatigue.

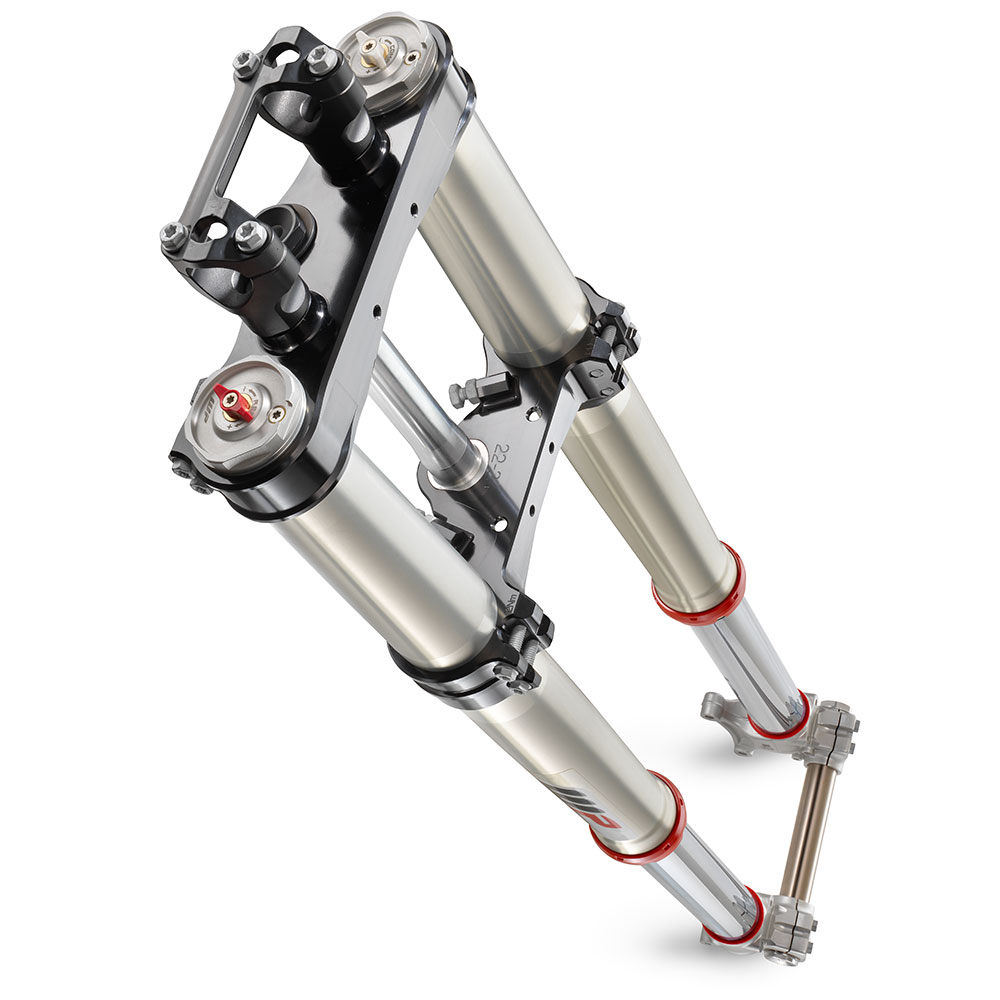

Riding over rough terrain is made easier with the WP XPLOR 48 upside-down fork. The KTM 690 ENDURO R’s split fork design was originally developed by WP and KTM for the EXC models. It is fitted with springs on both sides with separate damping functions – compression on the left and rebound on the right-hand side. They have no negative influence on each other. Therefore, damping can easily be adjusted via the dials on top of both fork tubes, with 30 clicks of adjustment each.

Highly rigid forged triple clamps with an offset of 24 mm (adjustable to 22 mm), provide a solid grip on the forks for precise handling. They allow forwards and backwards adjustment of the handlebars in four different positions for optimum rider ergonomics.

The swingarm design allows for an optimal mounting position of the rear shock ensuring a high progression rate. The single-component casting process eliminates any inconsistencies and weak points that would be inherent in a welded swingarm.

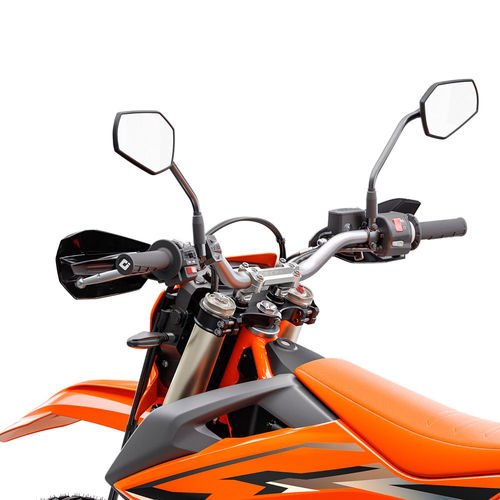

The lightweight tapered 808 mm wide handlebars are rubber mounted to reduce vibrations. Their width and shape are aimed at providing maximum control in all situations.

Sophisticated “No Dirt” foot pegs prevent jamming up of the pegs, even when digging your way through deep ruts or navigating wet terrain. Rubber inserts can be mounted for street use to help reduce any vibration that might be felt through the pegs on smooth roads.
