2023 Honda ADV150 [Specs, Features, Photos]

2023 Honda ADV150
2022 Honda ADV150

The 2023 Honda ADV150: The SUV Of Scooters

Most of the big Japanese manufacturers offer scooters, but the Honda ADV150 is different than most. Sharing many traits another scooter in the 2023 Honda Lineup, the PCX, the ADV150 is the choice to make if you want to run down some rougher roads.

The ADV150 is powered by a 149cc liquid-cooled engine that delivers smooth, responsive power for a fun ride. And with a fully automatic transmission, it’s a breeze to operate even for novice riders. Plus, the scooter’s low center of gravity and nimble handling make it a blast to ride over most all terrain.

From the rugged front fender to the high-mounted windscreen, this scooter looks like it’s ready to take on any terrain. Honda uses a full Showa suspension and fitted standard ABS brakes to really build confidence no matter where you adventure. Plenty of underseat storage, a smartphone pocket, and a 12-volt accessory outlet, you can easily pack all your essentials for a long day of riding.

The 2023 Honda ADV150 starts at $ 4,349 USD / $ N/A CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2023 Honda ADV150 in one place.

2023 Honda ADV150


Model Overview

General Info

  • Price: $ 4,349 USD / $ N/A CAD
  • Key Features:
      • Anti-Lock Brakes (ABS)
      • Ample storage and included power outlet
      • Rugged styling
      • Upgraded Showa suspension
  • Colors: Candy Rose Red

Main Specs

  • Engine: 149cc liquid-cooled 80º single-cylinder four-stroke
  • Power: 14.5 hp
  • Torque: 10.3 lb-ft
  • Curb Weight: 294 lbs (134 kg)
  • Seat Height: 31.3 in (795 mm)

Competitors

2023 Honda ADV150
2021 Honda ADV150 Wheel

2023 Honda ADV150 Specifications

From Honda

ENGINE

Engine 149cc liquid-cooled 80º single-cylinder four-stroke
Power 14.5 HP
Bore x Stroke 57.3mm x 57.9mm
Compression Ratio 10.6:1
Induction PGM-FI; 26mm throttle body
Starter Electric
Valve Train SOHC; two valves per cylinder

DRIVETRAIN

Clutch
Transmission Automatic V-Matic belt drive
Final Drive

CHASSIS

Suspension Front 31mm Showa® telescopic fork; 5.1-inch travel
Suspension Rear Showa® twin shocks; 4.0-inch travel
Brakes Front Single 240mm disc; ABS
Brakes Rear 130mm mechanical drum
Tires Front 110/80-14
Tires Rear 130/70-13
Fuel Tank Capacity 2.1 gallons
Color Candy Rose Red

ELECTRICAL

Ignition Digital transistorized with electronic advance
Spark Plugs
Headlight
Tail Light

DIMENSIONS

Overall Length
Ground Clearance 13.0 inches
Trail 3.4 inches
Wheelbase 52.1 inches
Rake (Caster Angle) 26.5°
Seat Height 31.3 inches
Curb Weight 294 pounds (Includes all standard equipment, required fluids and a full tank of fuel)

WARRANTY

Warranty Transferable, unlimited-mileage limited warranty
Extension Extended coverage available with a HondaCare Protection Plan®
2023 Honda ADV150
2021 Honda ADV150 Storage

2023 Honda ADV150 Features

COMFORT

TWO-POSITION WINDSCREEN
Changing riding conditions? No worries—the ADV150 features an innovative two-position windscreen. Want more breeze? Just lower it. Want improved wind and weather protection? It’s easy to raise, no tools required.

LOW CENTER OF GRAVITY
Because the engine, drivetrain and fuel tank are mounted low in the frame, the ADV150 has a low center of gravity. That helps inspire confidence, especially in parking lots or tight traffic conditions.

RIDER COMFORT
The ADV150’s long, plush seat is designed for comfort. The two-tone look also features two textures. Your passenger even gets an elevated section, so they can see their surroundings better. Plus, the ADV150’s bodywork narrows down where you sit, giving you more room.

CONVENIENCE

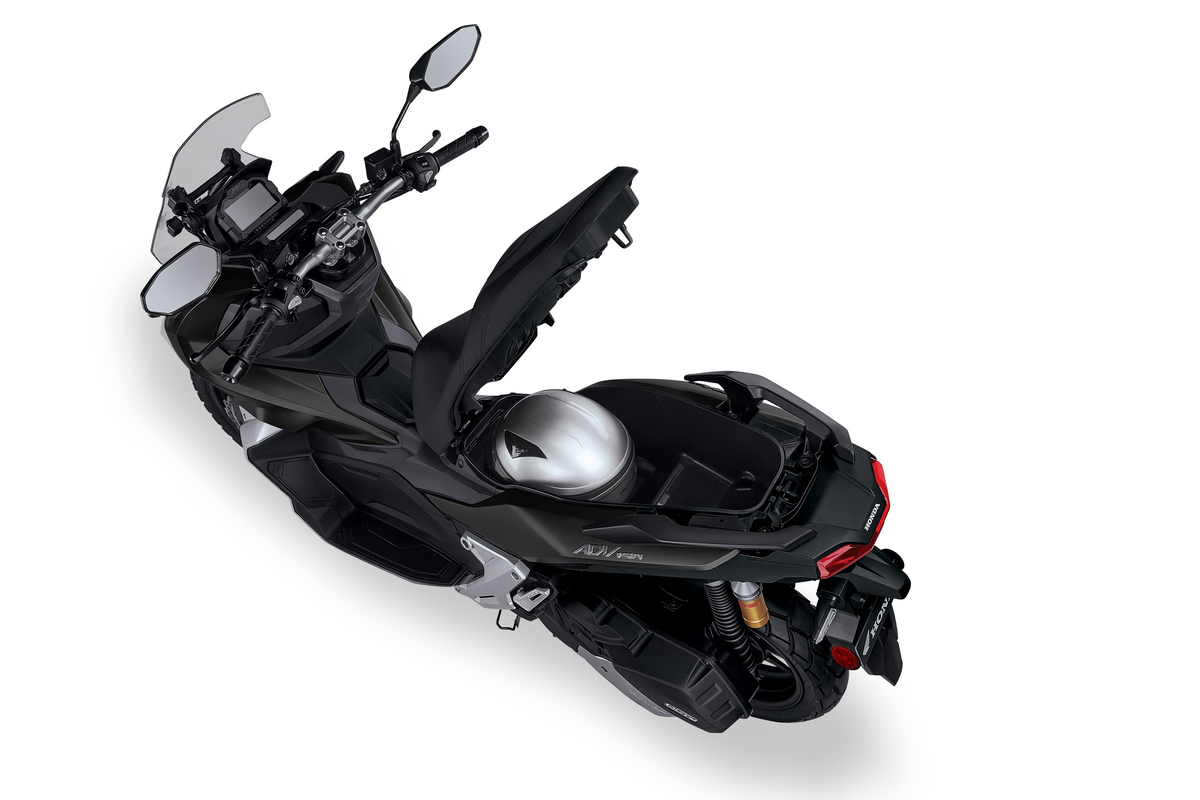

AMPLE STORAGE
Your ADV150 has tons of available storage. First, flip open the seat and there’s a weather-resistant 27-liter main compartment that locks securely. It’s big enough for a full-face helmet and lots more. Then there’s a convenient 2-liter compartment up front with a 12-volt charging port—perfect for your phone or other quick-access needs.

EASY TO PARK
Scooters can find parking way more easily than cars, but the ADV150 makes it even easier. You get the choice of both a sidestand and a centerstand. That makes it easy to park for a fast dash into a store (the sidestand) or when you need to park it upright in a tighter space (the centerstand).

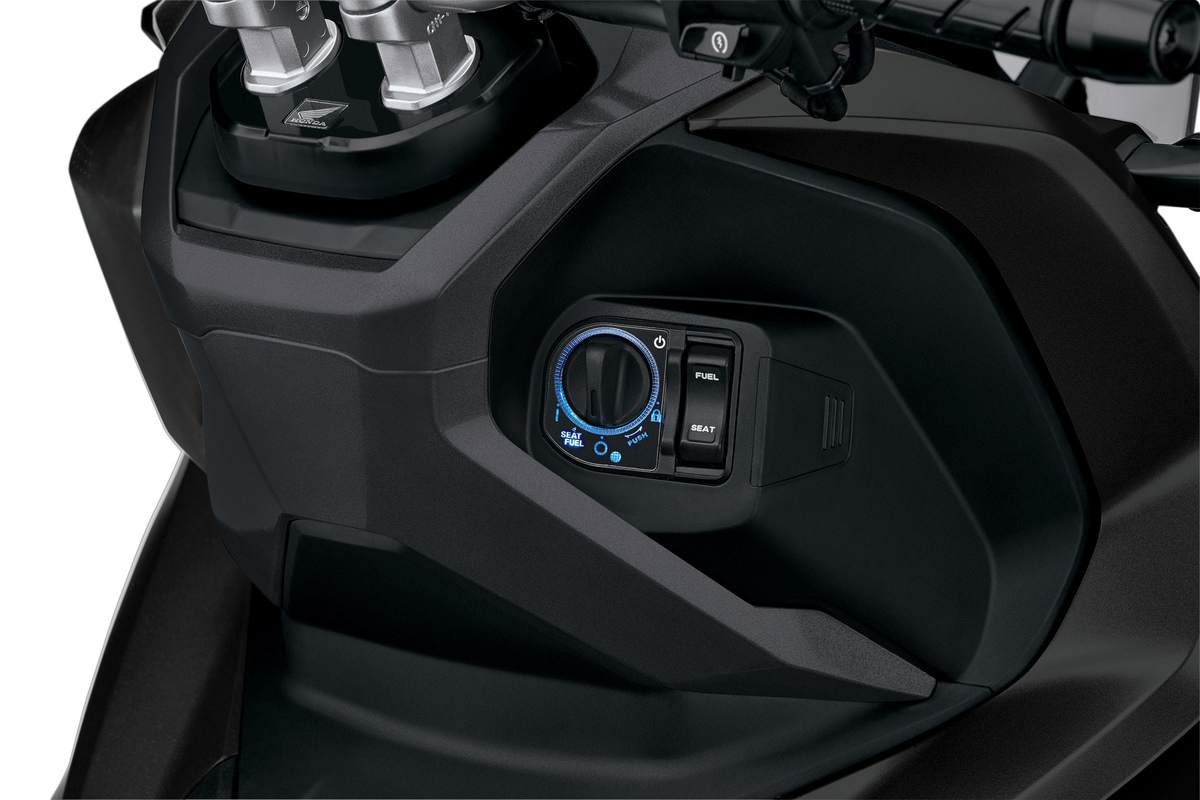

Honda SMART KEY
Forget about fumbling for an old-school key—with Honda SMART Key, starting the ADV150 is as easy as pushing a button or two—no conventional key is needed. Best of all, you can just leave it in your pocket. Plus, the ADV150’s fuel-injected engine fires right up and runs smooth, even in colder weather.

RUGGED, MUSCULAR STYLE

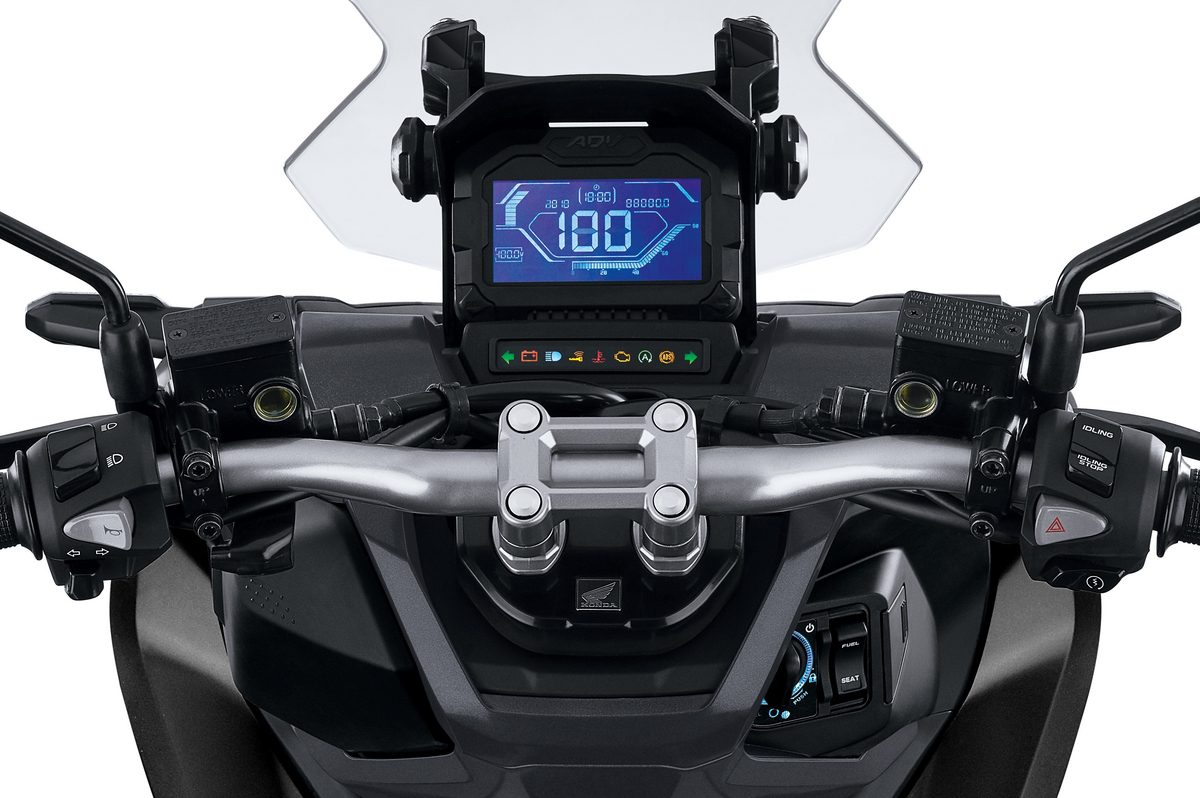

If you thought scooters were all about European vacations, the new ADV150 is going to rock your world. With its tough, muscular looks, it’s built for the way we ride today. Plus, check out the all-LED lighting package, including the turn signals and instrumentation.

FUEL CAPACITY
Like all Honda scooters, the ADV150 is incredibly fuel efficient—plus, its large fuel tank means you can go even longer and ride even further between fill-ups.

PERFORMANCE

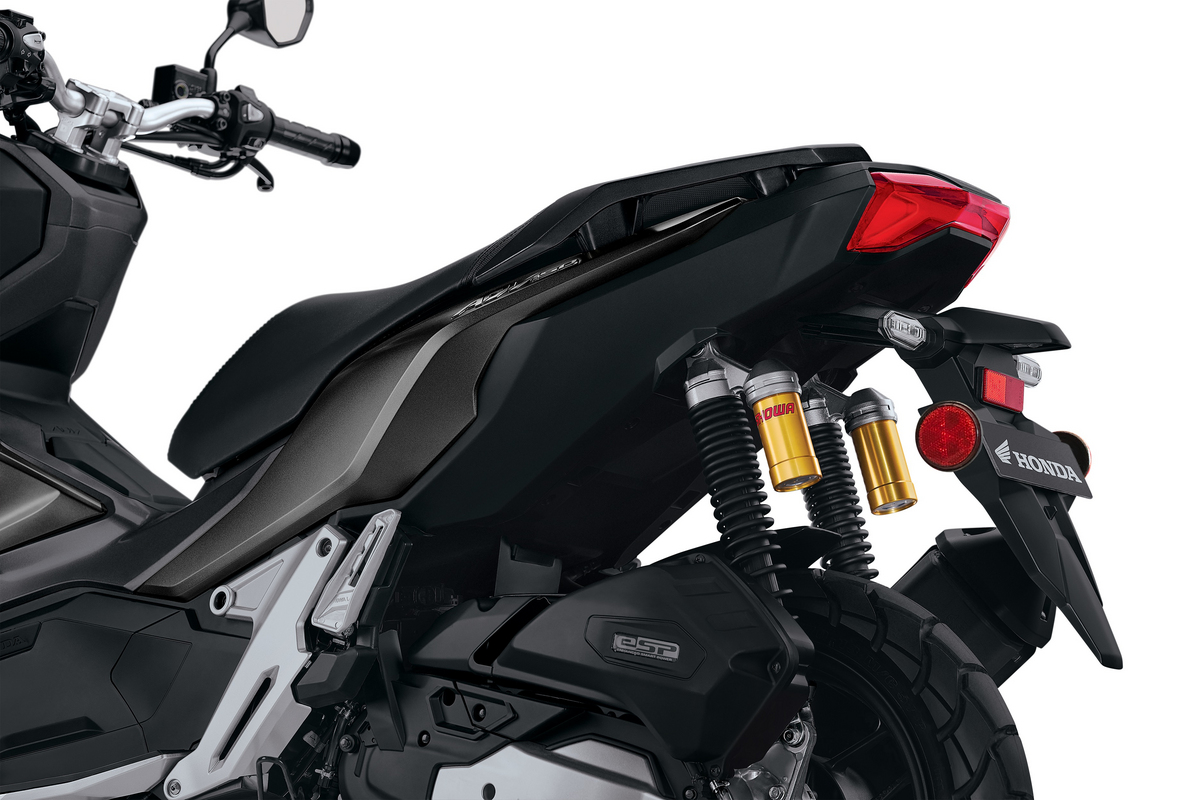

RUGGED SUSPENSION, PREMIUM SHOCKS
The ADV150 features Showa® telescopic front suspension with the most travel in its class. In the rear, a pair of premium Showa shocks feature remote piggyback reservoirs and triple-rate springs.

PGM FUEL INJECTION
The ADV150 features liquid cooling and Programmed Fuel Injection (PGM-FI) for great performance in all traffic conditions and easy starting, even in cold weather. Plus the ADV150 offers impressive fuel efficiency.

TECHNOLOGY

ANTI-LOCK BRAKES (ABS)
Sometimes adventure means not knowing what’s around the next corner. Don’t worry; the ADV150 has your back. Every ADV150 features Honda Anti-Lock Braking System (ABS) giving you the power to make confident stops, even in less-than-ideal conditions.

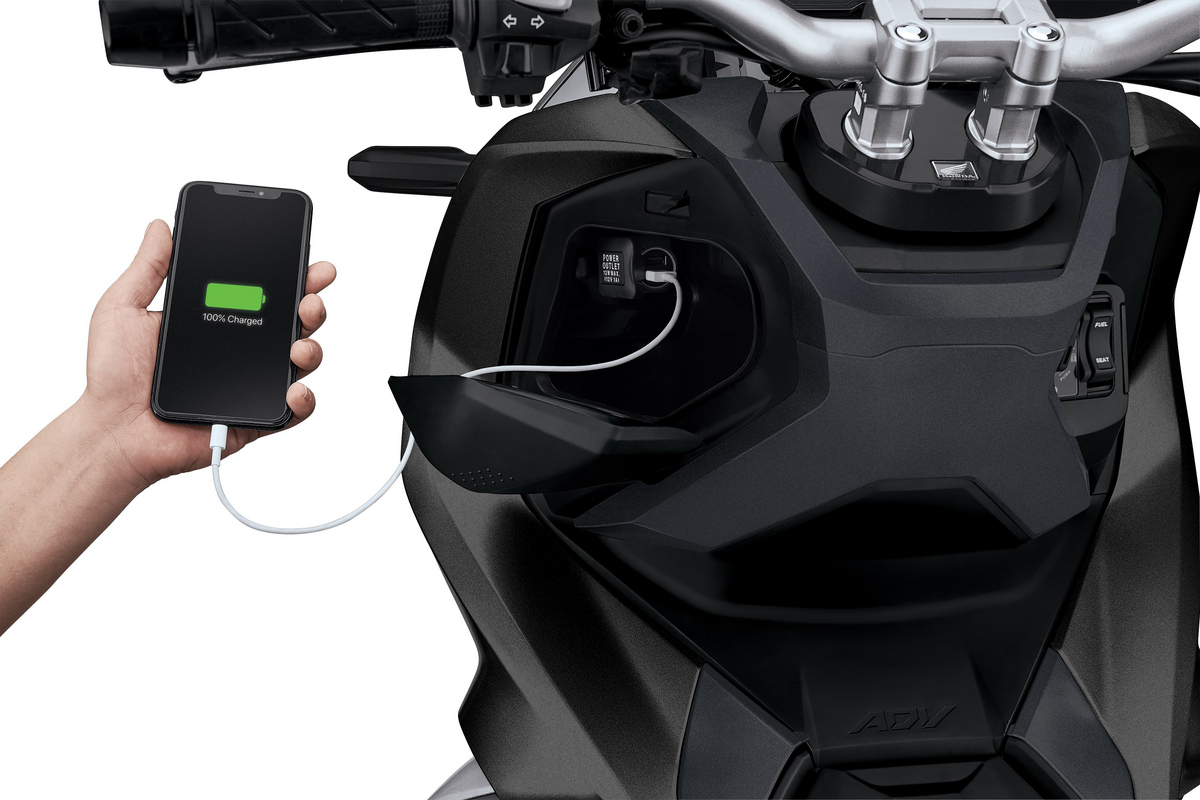

12-VOLT ACCESSORY ADAPTOR
The ADV150’s integrated 12-volt adaptor makes it easy to keep your personal electronics charged up when you’re on the go. It’s located inside the two-liter storage compartment up front on the left side.

FRAME
Great handling and rugged construction starts with a solid chassis design, and that’s where the ADV150 really shines. It uses a duplex-cradle steel-tube design rather than the more common “underbone” style. You may never see it, but you’ll feel the benefits every time you ride.

V-MATIC TRANSMISSION
With the Honda V-Matic automatic transmission, just start the engine, twist the throttle and go. That means no shifting, ever—you concentrate on the road ahead and enjoy the ride! The V-Matic is a continuously variable design, so you’ll always have smooth power delivery.
