The Harley Davidson Pan America 1250 is a now well-established adventure touring motorcycle from the iconic American bike manufacturer. It’s equipped with a powerful liquid-cooled 1250cc Revolution Max engine that delivers 150 horsepower and 94 lb-ft of torque. The Revolution Max engine is now shared among a few bikes in the 2023 Harley Davidson lineup.

The Pan America 1250 is designed to take on any terrain with confidence and ease. It has a rugged frame and suspension system that can handle the toughest off-road conditions. The bike features fully adjustable Showa suspension with 7.5 inches of front travel and 7.2 inches of rear travel, as well as a host of electronic aids such as cornering ABS, traction control, and hill hold control. 5 pre-programmed Ride Modes (Sport, Road, Rain, Off-Road, and Off-Road Plus) or create your own custom mode, work well to enhance the ride in all conditions.

The Pan America 1250 Special is a premium version of the standard Pan America 1250, with additional features and equipment. It comes with semi-active suspension, which automatically adjusts the damping to suit the riding conditions, as well as a center stand, a skid plate, and brush guards for added protection. The Pan America 1250 Special also features advanced electronic aids, including additional riding modes, a tire pressure monitoring system, and a Daymaker Signature adaptive headlight. Harley Davidson also added unique styling elements, such as a two-tone paint scheme and a custom seat.

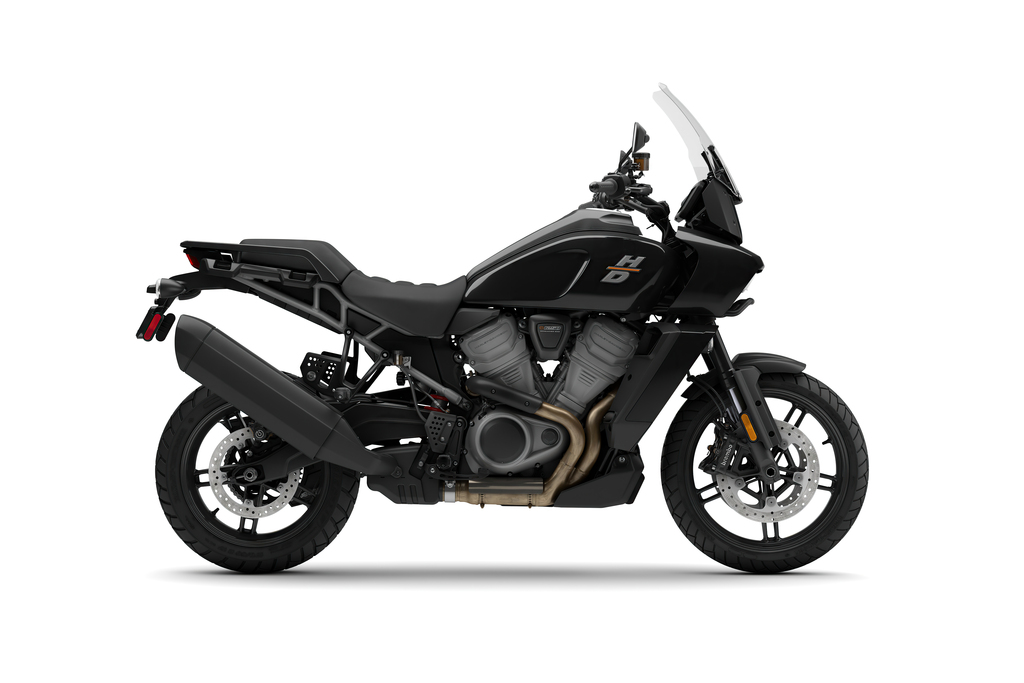

The 2023 Harley Davidson Pan America 1250 comes in Vivid Black

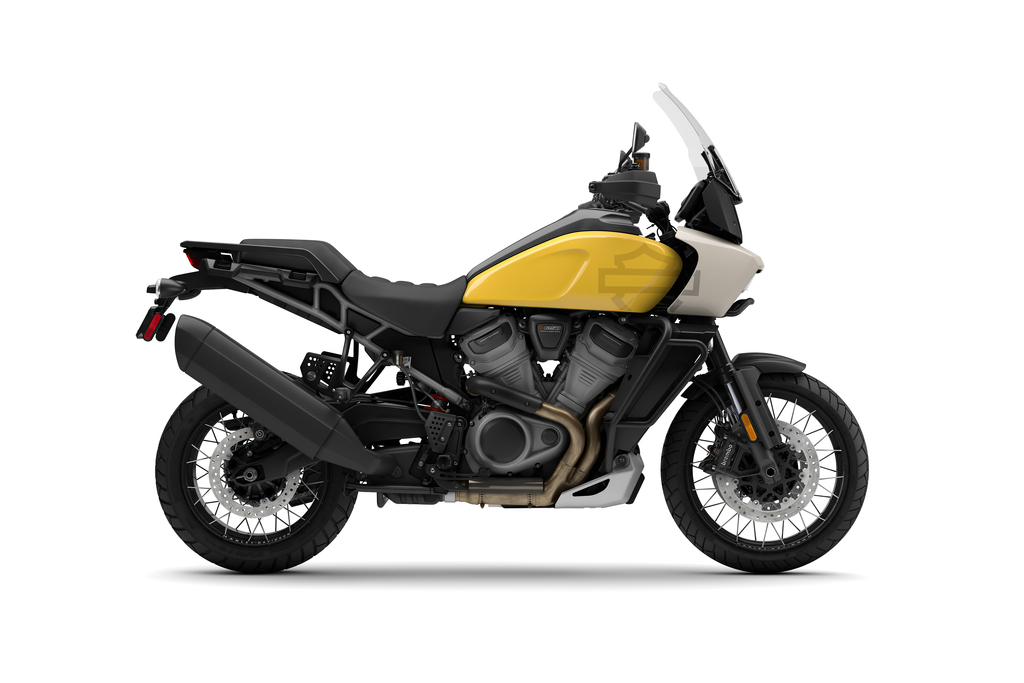

The 2023 Harley Davidson Pan America 1250 Special comes in Vivid Black, Gray Haze, Industrial Yellow/White Sand, with a choice of Cast or Laced wheels

The 2023 Harley Davidson Pan America 1250 starts at $17,699 / $21,999 CAD.

The 2023 Harley Davidson Pan America 1250 Special starts at $20,399 / $25,499 CAD

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2023 Harley Davidson Pan America 1250 in one place.

Model Overview

General Info

Price: Standard $17,699 / $21,999 CAD, Special $20,399 / $25,499 CAD
Key Features:
- Revolution® Max 1250 Engine
- Cornering Rider Safety Enhancements
- Selectable Ride Modes
- Improved TFT touchscreen
- Improved Hill Hold system

Main Specs

Engine: 1252cc V-twin
Power: 150 HP
Torque: 94 lbs-ft
Wet Weight: Std – 534 lb. (242 kg) , Special – 559 lb. (254 kg)
Seat Height: Std – 31.8 in. (807 mm), Special – 31.1 in. (789 mm)

Competitors

2023 Harley Davidson Pan America 1250 Specifications

From Harley-Davidson

ENGINE
Engine	1252cc V-twin, Revolution^® Max 1250
Engine Torque	94 ft-lb
Bore x Stroke	4.13 in. x 2.85 in.
Compression Ratio	13.0:1
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)
Starter
Exhaust	2-into-1-into-1; catalyst in header
DRIVETRAIN
Clutch
Transmission	6-speed
Primary Drive	Gear, 49/89 ratio
CHASSIS
Front Fork	47mm inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps.
Rear Shocks	Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping
Wheels, Front Type	Aluminum cast, satin black
Wheels, Rear Type	Aluminum cast, satin black
Brakes Front	radially mounted, monoblock, 4-piston caliper
Brakes Rear	floating, single piston caliper
Tires Front	120/70R19 60V
Tires Rear	170/60R17 72V
Fuel Tank Capacity	5.6 gal.
Color	Vivid Black w/ Cast Wheels, Gray Haze w/ Cast Wheels, Industrial Yellow/White Sand w/ Cast Wheels, Vivid Black w/ Laced Wheels, Gray Haze w/ Laced Wheels, Industrial Yellow/White Sand w/ Laced Wheels
ELECTRICAL
Ignition
Spark Plugs
Headlight	All LED headlamp
Tail Light	LED
DIMENSIONS
Length	89.4 in.
Trail	4.3 in.
Rake	25
Wheelbase	62.4 in.
Ground Clearance	6.9 in.
Seat Height	32 in.
Weight, As Shipped	534 lb.
WARRANTY
Warranty
Extension

2023 Harley Davidson Pan America 1250 Features

The Revolution® Max 1250 is a structural component of the motorcycle chassis, eliminating a traditional frame — which significantly reduces overall weight and keeps handling taut.

This system reacts to suspension position, vehicle speed, vertical acceleration, roll angle and rate, throttle, brake inputs and the selected Ride Mode to maintain the desired comfort setting.

Refined, capable and intuitive, Pan America 1250 Special is designed to maintain high-speed ride and handling performance even when at the limit of its luggage and weight capacity.
