The 2023 Harley Davidson Fat Bob 114: Traditional Muscle
Contents
The 2023 Fat Bob 114 is one badass American brute of a bike. It doesn’t just ride, it roars. With a 114-cubic inch Milwaukee-Eight V-Twin engine, this bike is not for the faint of heart. It’s got power and torque that’ll make you feel like you’re riding on the back of a charging bull.
There is no point in all the go if you don’t have the whoa, thankfully Harley Davidson has fitted dual disc brakes in the front and a single disc brake in the rear. Although the 114-cubic inch engine is shared with other bikes in the 2023 lineup, the fat tires, sleek, muscular design and aggressive stance ensure this bike stands out.
3 Color choices for the 2023 Harley Davidson Fat Bob 114: Vivid Black, Redline Red, and Gray Haze.
The 2023 Harley Davidson Fat Bob 114 starts at $18,899 USD / $23,999 CAD.
On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2023 Harley Davidson Fat Bob 114 in one place.
Model Overview
General Info
- Price: $18,899 USD / $23,999 CAD
- Key Features:
- Milwaukee-Eight® 114 V-Twin engine
- 150mm Wide Front Tire
- Forward Controls
- 28o Front For Rake
Main Specs
- Engine: 114 ci V-twin
- Power: 100.5 HP (estimated)
- Torque: 118 lbs-ft @ 3000 RPM
- Wet Weight: 676 lbs (306 kg)
- Seat Height: 27.7 inches (710 mm)
2023 Harley Davidson Fat Bob 114 Specifications
ENGINE |
||
| Engine | 114 ci, V-twin ,Milwaukee-Eight® 114 | |
| Engine Power | 100.0 HP (estimated) | |
| Bore x Stroke | 4.016 in x 4.5 in. | |
| Compression Ratio |
10.5:1
|
|
| Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) | |
| Starter | Electric | |
| Exhaust | 2-into-2 shorty dual; catalyst in muffler | |
DRIVETRAIN |
||
| Clutch | ||
| Transmission | 6-speed | |
| Primary Drive |
Gear, 34/46 ratio
|
|
CHASSIS |
||
| Front Fork |
Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
|
|
| Rear Fork |
Hidden, free piston, coil-over monoshock; 56mm stroke; toolless hydraulic preload adjustment
|
|
| Wheels, Front Type |
Denim black, Structure cast aluminum with laser etched graphics
|
|
| Wheels, Rear Type |
Denim black, Structure cast aluminum with laser etched graphics
|
|
| Brakes Front |
4-piston fixed front
|
|
| Brakes Rear | 2-piston floating rear | |
| Tires Front |
150/80-16,71H,BW
|
|
| Tires Rear |
180/70B16,77H,BW
|
|
| Fuel Tank Capacity | 3.5 gal. | |
| Color | Vivid black, Redline Red, Gray Haze | |
ELECTRICAL |
||
| Ignition | ||
| Spark Plugs | ||
| Headlight | All LED | |
| Tail Light | LED | |
DIMENSIONS |
||
| Length |
92.1 in.
|
|
| Trail |
5.2 in.
|
|
| Rake | 28 | |
| Wheelbase |
63.6 in.
|
|
| Ground Clearance |
4.7 in.
|
|
| Seat Height |
27.7 in.
|
|
| Weight, As Shipped |
653 lb.
|
|
WARRANTY |
||
| Warranty | ||
| Extension | ||
2023 Harley Davidson Fat Bob 114 Features
DUAL DISC FRONT BRAKES
RACE-STYLE FORK TECHNOLOGY
2-1-2 EXHAUST

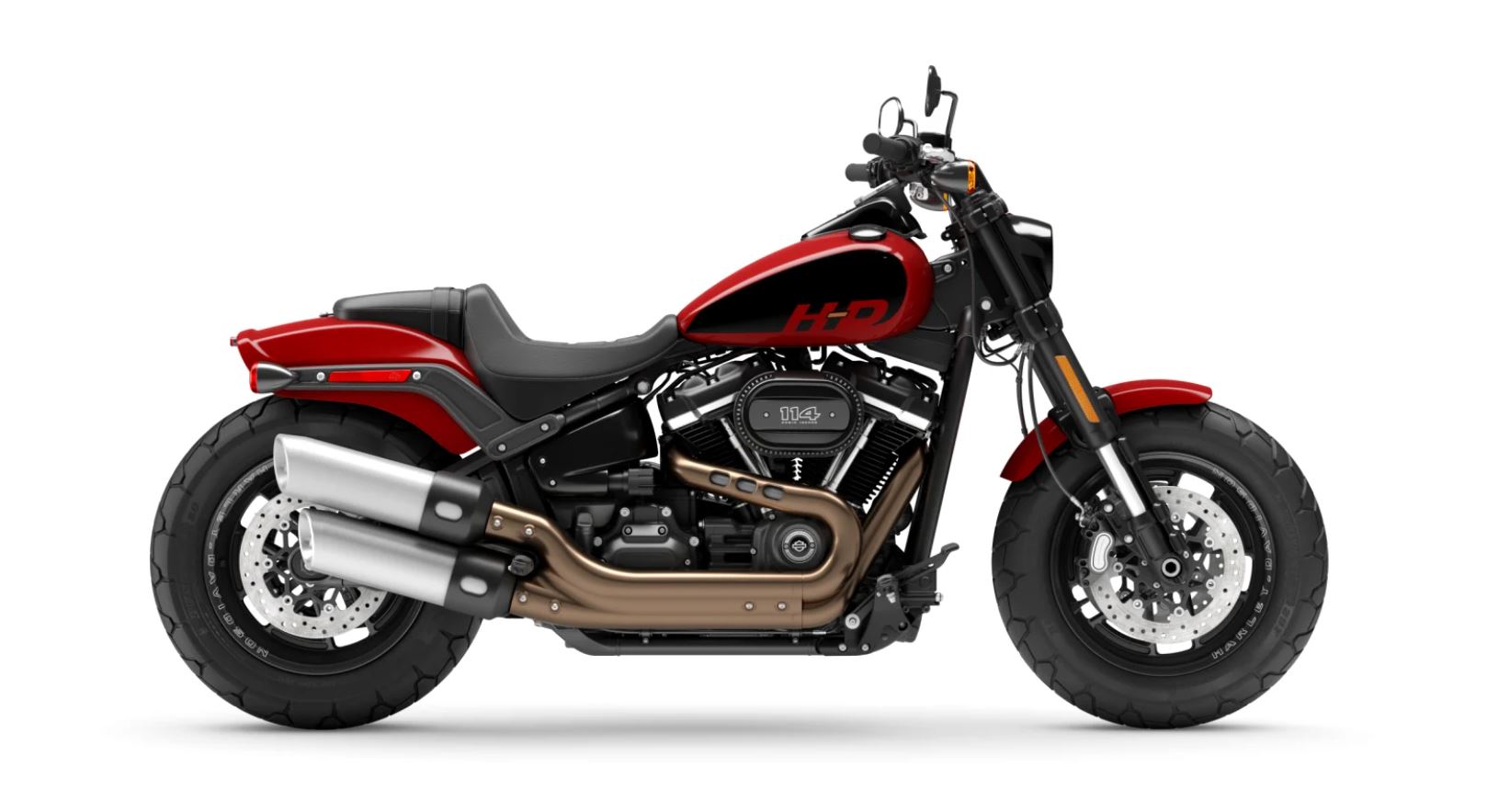

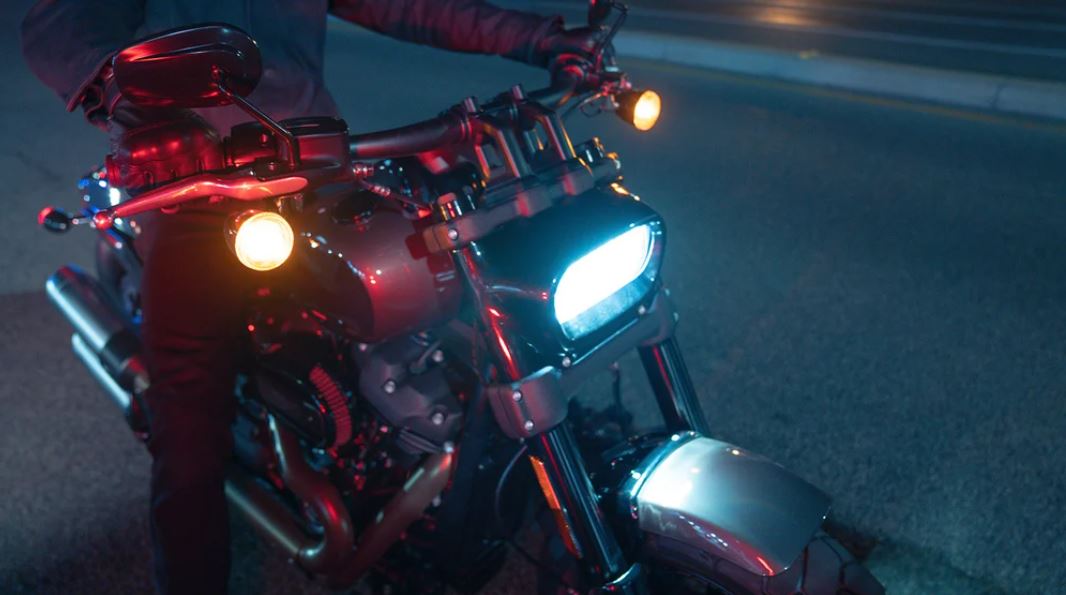

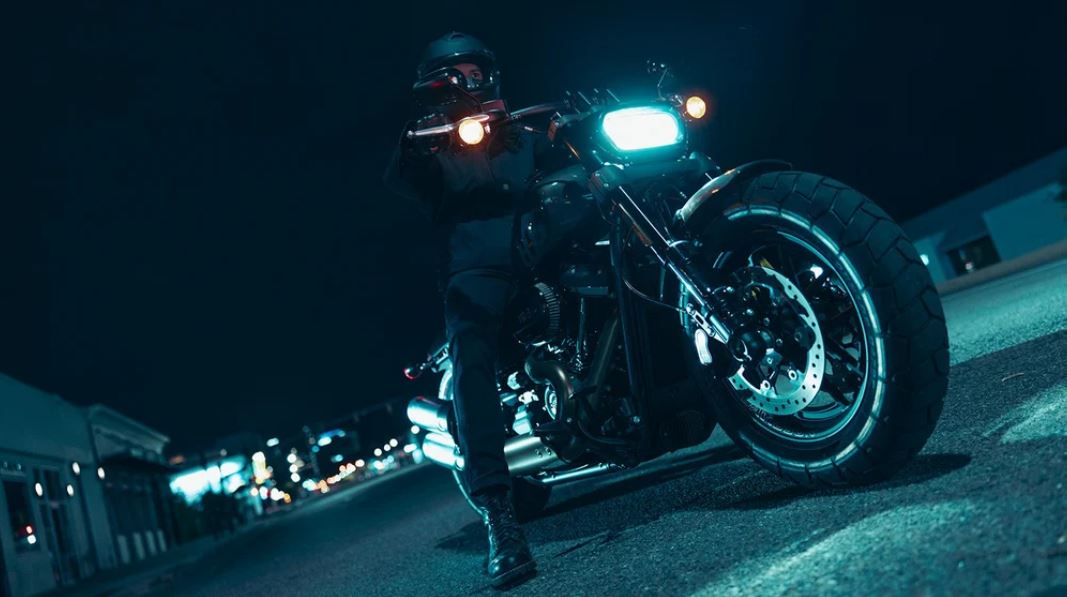

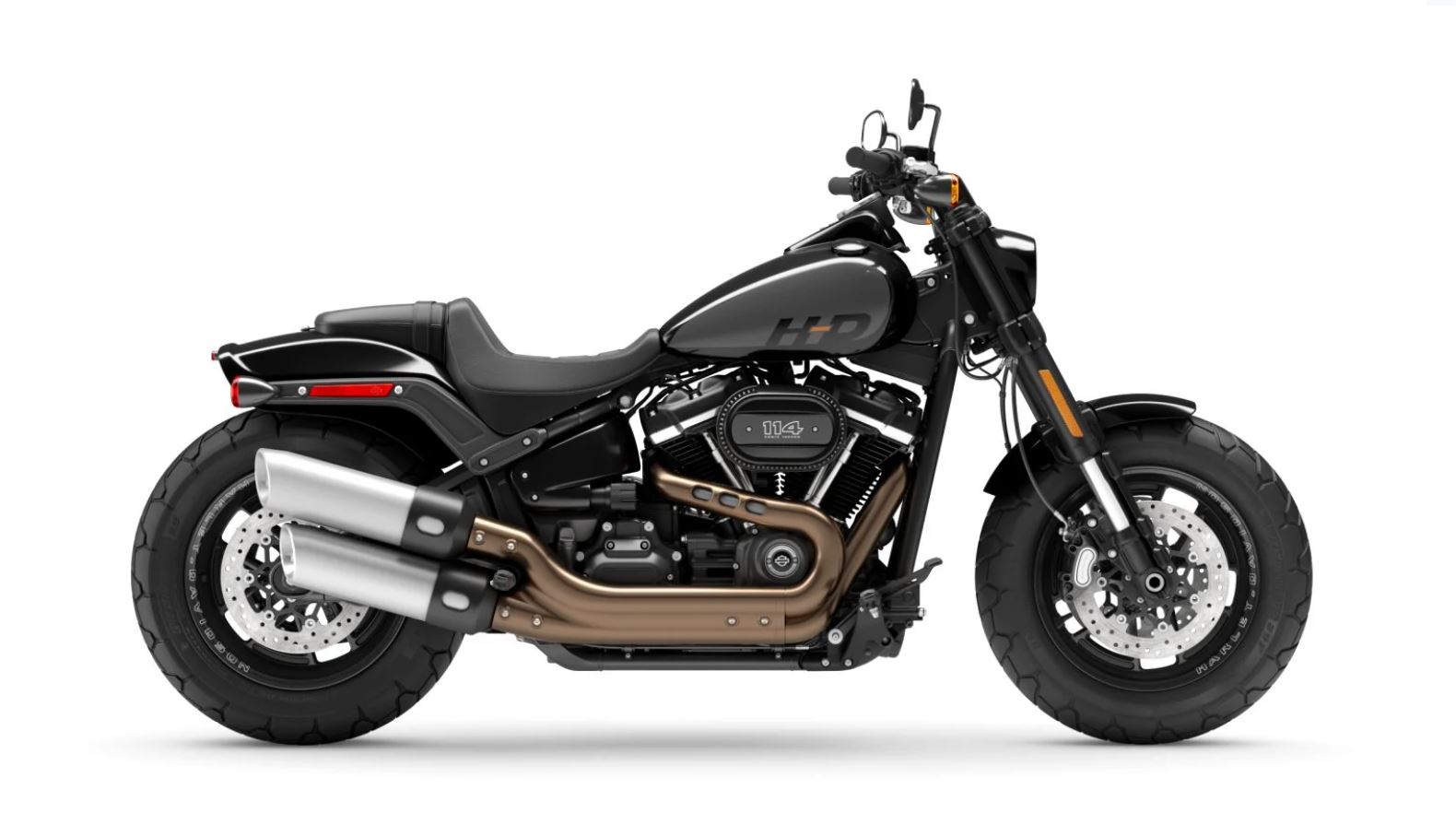

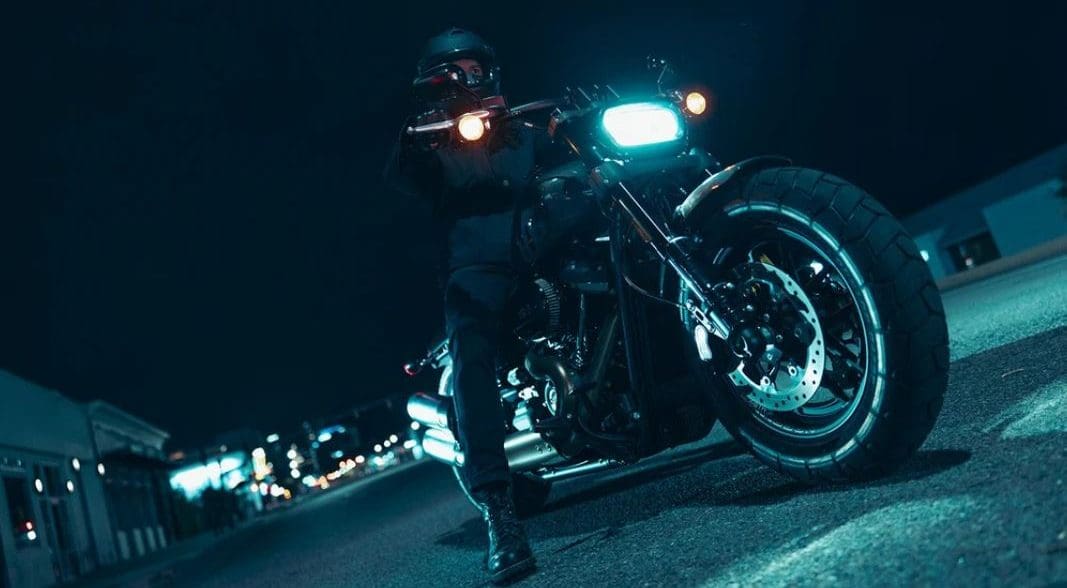

2023 Harley Davidson Fat Bob 114 Photos
2023 Harley Davidson Fat Bob 114 Videos
2023 Harley Davidson Fat Bob Test Ride First Impressions
2023 New Fat Bob 114 First Look
