Triumph recently updated its Tiger 1200 models. Like the smaller Tiger 900 siblings, there will be two model ranges — the Tiger 1200 GT models and the Tiger 1200 Rally models — in the 2022 Triumph motorcycle portfolio. The Tiger 1200 Rally is available in a Rally Pro variant and a more hardcore Rally Explorer version. So what does the British manufacturer’s flagship adventure motorcycle have to offer?

For starters, the bikes are powered by an updated 1,160cc three-cylinder engine that includes a new T-plane firing order, like on the smaller Tiger models. Peak output figures are 147 hp and 95 lb-ft of torque, which is more than what the previous generation of the motorcycle had to offer.

The more substantial changes are to the rest of the motorcycle. The Rally Pro and Rally Explorer models use an all-new chassis that’s lighter than before and a redesigned swingarm. Suspension is handled by electronically-controlled Showa semi-active suspension. The system allows riders to toggle between nine levels of damping adjustment and electronically set spring preload.

Braking is handled by Brembo Stylema calipers at the front and a Brembo single-piston caliper at the rear. The Tiger 1200 uses Magura radial master cylinders for its front brake and clutch. The Rally model features a 21-inch/18-inch (front/rear) tubeless spoked wheel setup shod in Metzeler Karoo Street tires.

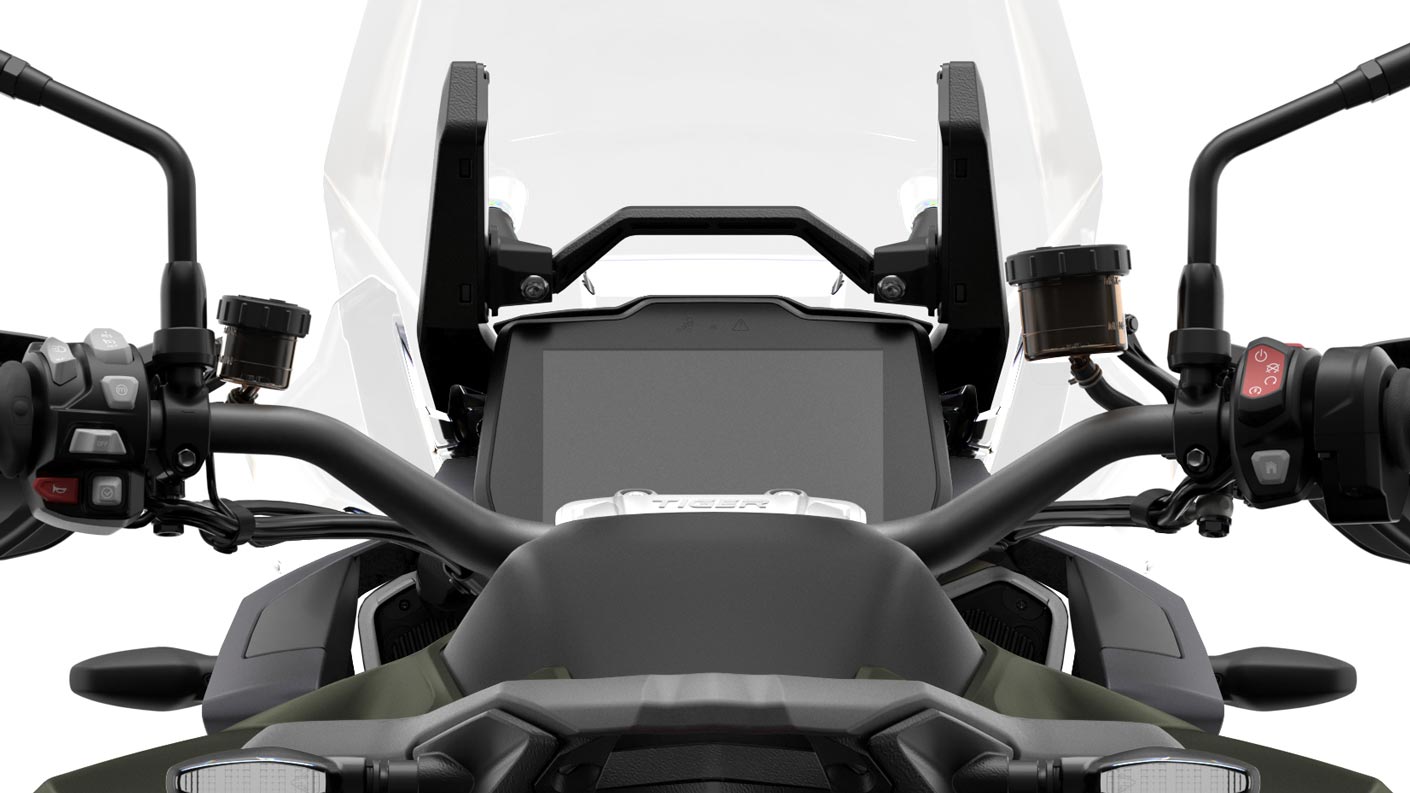

The Rally Pro and Rally Explorer models have industry-leading features, including a bidirectional quick-shifter, cornering ABS, traction control, hill hold, cruise control, heated grips, and six riding modes — Road, Rain, Sport, Rider-configurable, Off-Road, and Off-Road Pro. All of these settings can be adjusted via a new 7-inch full-TFT dash.

In addition to all the aforementioned features, the Tiger 1200 Rally Explorer gets a tire pressure monitoring system and heated rider and pillion seats as standard. It also features a larger fuel tank — 7.92 US gal compared to the Rally Pro’s 5.28 US gal unit. The Explorer model also features a rear-facing Continental radar system that offers a blind spot and lane change warning system.

The 2022 Triumph Tiger 1200 Rally starts at $22,500 USD / $25,800 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2022 Triumph Tiger 1200 Rally Pro and Rally Explorer in one place.

Model Overview

General Info

Price: $22,500 USD / $25,800 CAD
Key Features:
- New 1160cc triple engine, designed to set a new benchmark for engine character
- All-new lightweight chassis and class-leading equipment
- More than 25kg lighter than the previous generation

Main Specs

Engine: 1,160cc inline-triple
Power: 147 hp
Torque: 95 lb-ft
Wet Weight: 548.9 lbs (Rally Pro)
Seat Height: Adjustable 34.44 inches /35.23 inches

Competitors

2022 Triumph Tiger 1200 Rally Specifications

From Triumph

ENGINE
Engine	1160cc, Liquid-cooled, 12 valve, DOHC, inline 3-cylinder
Power	150PS / 148bhp
Bore x Stroke	3.54″ X 2.38″
Compression Ratio	13.2:1
Fuel System	Multipoint sequential electronic fuel injection with electronic throttle control
Starter	Electric
Exhaust	Stainless steel 3 into 1 header system with underslung primary silencer and side mounted secondary silencer
DRIVETRAIN
Clutch	Hydraulic, wet, multi-plate, slip and assist
Transmission	6-Speed
Final Drive	Shaft drive
CHASSIS
Suspension Front	Showa 49mm, semi-active damping USD forks. 7.87″ travel.
Suspension Rear	Showa semi-active damping monoshock, with automatic electronic preload adjustment. 7.87″ wheel travel.
Brakes Front	Brembo M4.30 Stylema monoblock radial calipers, OC-ABS, twin 320mm floating discs. Magura HC1 span adjustable radial master cylinder with separate reservoir.
Brakes Rear	Brembo single piston caliper, OC-ABS, single 282mm disc. Rear master cylinder with remote reservoir.
Tires Front	Metzeler Tourance, 120/70R19 (M/C 60V TL)
Tires Rear	Metzeler Tourance, 150/70R18 (M/C 70V TL)
Fuel Tank Capacity	5.28 Us Gal
Color
ELECTRICAL
Ignition
Spark Plugs
Headlight	LED
Tail Light	LED
DIMENSIONS
Overall Length
Width Handlebars	Handlebars 33.42″, Handguards 38.66″
Height Without Mirror	Low screen 56.53″, high screen 58.93″
Wheelbase	61.41″
Trail	4.72″
Seat Height	Adjustable 33.46/34.52″
Wet Weight	529lbs
WARRANTY
Warranty
Extension

2022 Triumph Tiger 1200 Rally Features

The unique, lightweight, new 1160cc T-Plane triple engine has been optimized for capability, character and performance.

The first task was to significantly reduce weight without sacrificing the Tigers’ planted feel and well-earned reputation for comfort.Full LED lighting produces better performance for maximum rider safety. The new distinctively-styled 7” LED headlight was uniquely designed for the Trident 660, while the compact and integrated rear light was contoured to the shape of the tail unit. Self-cancelling LED indicators add to the Trident 660’s high level of rider convenience (local market restrictions may apply).

Each Tiger 1200 has been designed to feel as good on the last mile of your adventure as it did on the first.

Exploring the unknown is what adventure riders dream about. The adrenaline of discovery, the rush of riding in new landscapes.

The Tiger 1200’s rugged good looks, poise and attitude is so much more than the result of an exercise in aesthetics.
