2022 KTM 690 Enduro R [Specs, Features, Photos]

2022 KTM 690 Enduro R

The 2022 KTM Enduro R Brings Lightweight, High-Performance Versatility for Challenging Terrains

Contents

The 2022 KTM 690 Enduro R it’s in its habitat when the trail gets more extreme. Its lightweight chassis, aggressive styling, and reliable 690 LC4 engine also benefit from state-of-the-art electronics and WP XPLOR suspension also found in other 2022 KTM models like the 790 Adventure R.

Its 693cc 4-valve, single-cylinder, liquid-cooled engine makes 74 horsepower and 54 lb.-ft. It combines powerful acceleration from idle with easy upshifting, refined feel, and low consumption. In addition, its six-speed gearbox with Quickshifter+ is smooth and enables quicker, clutchless shifts when you’re on the go. This allows the rider more control of the bike by keeping the handlebars under control and improves rear-wheel traction.

The trellis frame offers high torsional rigidity for better handling and handling. At the same time, its longitudinal flexibility allows for absorption of the energy of the impacts on the wheels, which helps the suspensions and reduces rider fatigue.

The electronics of this European trail bike is one of its most attractive points, which is not common in this displacement and with such an off-road orientation since both the traction control and the ABS are lean-angle sensitive.

The suspensions comprise WP Xplor fork with 48 mm bars with springs on both sides but with separate regulation functions. The WP Xplor rear shock is also fully adjustable – including high and low-speed compression – and is linked to the swingarm by a linkage system.

The 2022 KTM 690 Enduro R starts at $12,499 USD / $13,499 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2022 KTM 690 Enduro R in one place.



2022 KTM 690 Enduro R

Model Overview

General Info

  • Price: $12,499 USD / $13,499 CAD
  • Key Features:
    • 693cc 4-valve, single-cylinder, 74 hp engine
    • Lean-angle sensitive ABS and traction control
    • WP Xplor rear shock
    • Six-speed gearbox with Quickshifter+

Main Specs

  • Engine: 693 cc single-cylinder
  • Power: 74 hp (55 kW)
  • Torque: 54 lb-ft (73 Nm)
  • Wet Weight:  350 lbs (159 kg)
  • Seat Height: 35.8 in. (910 mm)

Competitors

2022 KTM 690 Enduro R

2022 KTM 690 Enduro R Specifications

From KTM

ENGINE
Engine 692.7cc, 1-cylinder, 4-stroke engine
Power 74 Hp
Bore x Stroke 105 mm X 80 mm
EMS Keihin EMS with RBW, twin ignition
Power in KW 55 kW
Starter Electric starter
Lubrication Forced oil lubrication with 2 oil pumps

DRIVETRAIN
Clutch APTC(TM) slipper clutch, hydraulically actuated
Transmission 6-speed
Chain X-Ring 5/8 x 1/4″

CHASSIS
Suspension Front WP XPLOR-USD, Ø 48 mm
Suspension Rear WP XPLOR with Pro-Lever linkage
Brakes Front 300 mm
Brakes Rear 240 mm
Tank capacity (approx.)
Color

ELECTRICAL
Ignition
Spark Plugs
Headlight LED
Tail Light LED

WARRANTY
Warranty
Extension

2022 KTM 690 Enduro R

2021 KTM 125 XC Features

Engine

The engine combines powerful acceleration from the very lowest revs with an outstanding free-revving nature and refined engine running. Another big plus: It’s extremely economical with fuel.

Cylinder Head

A lightweight, compact cylinder head contains four valves and a single camshaft placed over the intake valves, with a secondary balancer shaft driven by the timing chain. The intake valves are actuated by finger followers and the exhaust valves by a rocker arm.

Resonator Chamber

A resonator chamber balances out pulses in the intake tract and makes the throttle response smoother with reduced vibrations.

Frame

The trellis frame is manufactured from lightweight sections of top-quality chrome-molybdenum steel tubing of varying thicknesses. This type of balanced frame design provides high torsional rigidity for best handling and rideability, while a more specifically-tuned longitudinal flexibility can absorb the wheel impact energy, supporting the suspension for reduced rider fatigue.

Front Fork

Riding over rough terrain is made easier with the WP XPLOR 48 upside-down fork. The KTM 690 ENDURO R’s split fork design was originally developed by WP and KTM for the EXC models. It is fitted with springs on both sides with separate damping functions – compression on the left and rebound on the right-hand side. They have no negative influence on each other. Therefore, damping can easily be adjusted via the dials on top of both fork tubes, with 30 clicks of adjustment each.

Triple clamp

Highly rigid forged triple clamps with an offset of 24 mm (adjustable to 22 mm), provide a solid grip on the forks for precise handling. They allow forwards and backwards adjustment of the handlebars in four different positions for optimum rider ergonomics.

Swingarm

The swingarm design allows for an optimal mounting position of the rear shock ensuring a high progression rate. The single-component casting process eliminates any inconsistencies and weak points that would be inherent in a welded swingarm.

Handlebar

The lightweight tapered 808 mm wide handlebars are rubber mounted to reduce vibrations. Their width and shape are aimed at providing maximum control in all situations.

Footpegs

Sophisticated “No Dirt” foot pegs prevent jamming up of the pegs, even when digging your way through deep ruts or navigating wet terrain. Rubber inserts can be mounted for street use to help reduce any vibration that might be felt through the pegs on smooth roads.

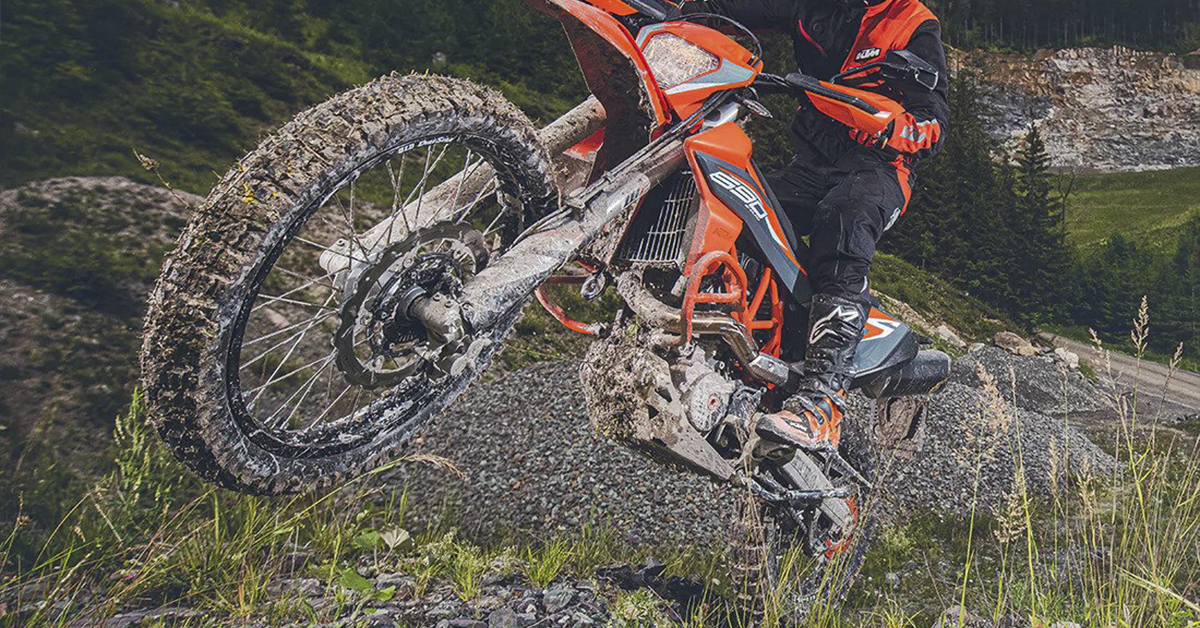

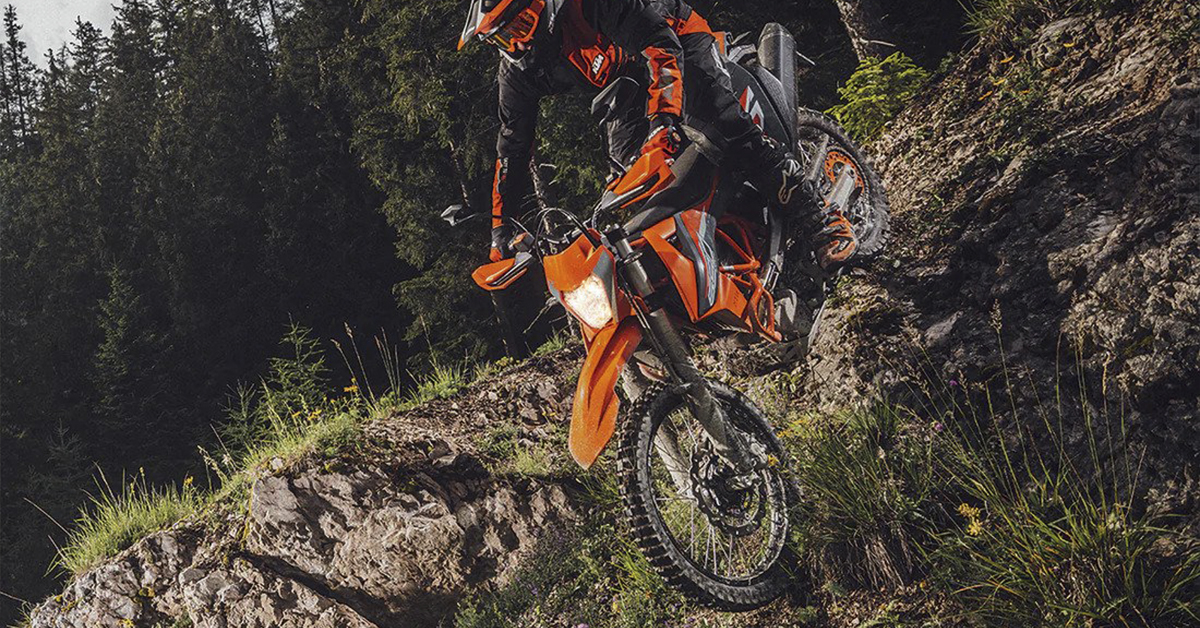

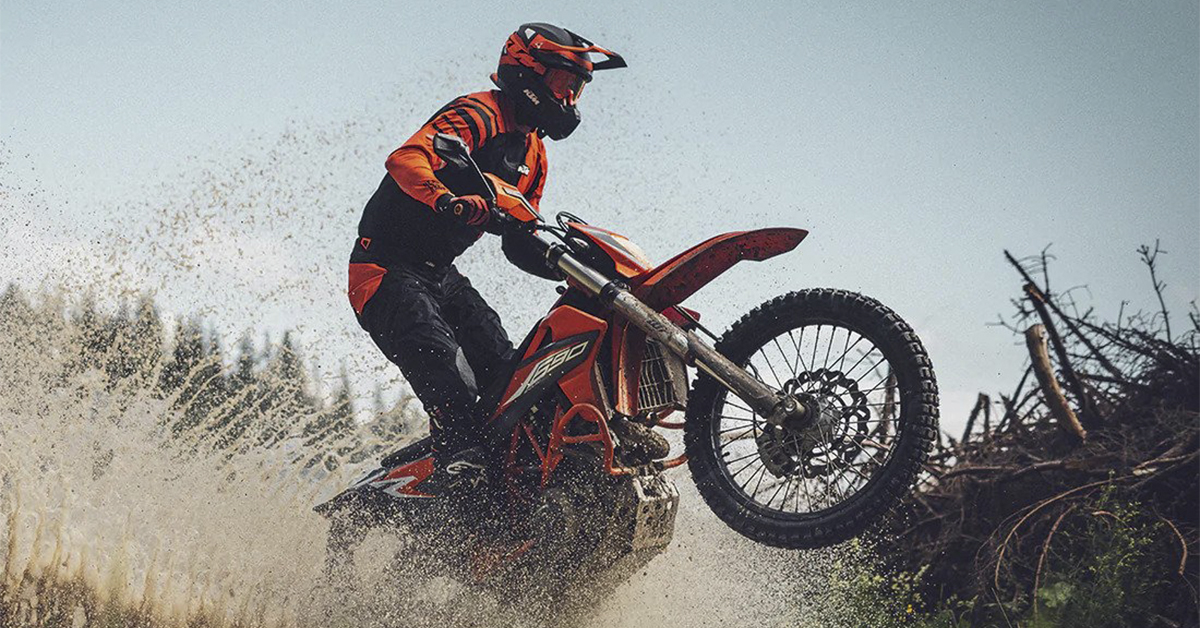

2022 KTM 690 Enduro R Photos
