2022 Indian FTR R Carbon [Specs, Features, Photos]

2022 Indian FTR R Carbon

Indian’s Premium Sports Machine: The 2022 Indian FTR R Carbon

Badged as a 2022 model, but available in 2021, the all-new Indian FTR R Carbon is a new model for the 2022 Indian line-up that serves as a replacement for the outgoing FTR1200R and FTR Carbon models. It’s a fusion of the best features of the two models, with plenty of impressive upgrades and top-quality components. As far as American-made motorcycles go, this is one of the most impressive on the market.

Like all Indian motorcycles, the new FTR R Carbon is built around a powerful V-twin engine. This one is a 1,203 cc V-twin unit that’s a slight upgrade over the previous models, with a new tune, that produces 120 horsepower and 87 lb-ft of torque but in a more street-friendly package. The engine alone is a thing of beauty.

Other notable features include fully-adjustable Öhlins suspension, Brembo brakes, 17-inch rims, a blacked-out Akrapovič exhaust, selectable ride modes, lean-angle stability control, ABS, wheelie control, and rear cylinder deactivation technology. A fancy 4.3-inch customizable Ride Command system keeps everything under control too. And then there’s the carbon fiber bodywork, which keeps weight down, and looks great!

The Indian FTR R Carbon is available exclusively in Indian’s Carbon Fiber finish.

The 2022 Indian FTR R Carbon starts from $16,999 USD / $19,999 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2022 Indian FTR R Carbon in one place.

2022 Indian FTR R Carbon


Motorcycle Overview

General Info

  • Price: $16,999 USD / $19,999 CAD
  • Key Features:
    • Carbon fiber bodywork
    • Blacked-out Akrapovic exhaust
    • Adjustable Öhlins suspension

Main Specs

  • Engine: 1,203 cc twin-cylinder four-stroke engine
  • Power: 120 HP
  • Torque: 87 lb-ft
  • Dry Weight: 479 lbs (217 kg)
  • Seat Height: 30.7 in (780 mm)

2022 Indian FTR R Carbon


2022 Indian FTR R Carbon Specifications

From Indian

ENGINE

Engine 1,203 cc twin-cylinder four-stroke engine
Engine Power 120 HP
Bore x Stroke 4.016 in x 2.898 in (102 mm x 73.6 mm)
Compression Ratio 12.5:1
Fuel System Closed Loop Fuel Injection / 60 mm Bore
Starter Electric
Exhaust Akropovic® 2-1-2

DRIVETRAIN

Clutch Assist & Slip, Multi-Plate
Transmission 6 Speed
Final Drive 2.647 : 1

CHASSIS

Suspension Front Ohlins Fully Adjustable Inverted Telescopic Cartidge Fork
Suspension Rear Ohlins Fully Adjustable Piggyback IFP
Brakes Front Brembo Dual 320mm t5 Rotor / 4 Piston Caliper
Brakes Rear Brembo Single 260mm t5 Rotor / 2 Piston Caliper
Tires Front Metzeler Sportec M9 RR 120/70ZR17 58W
Tires Rear Metzeler Sportec M9 RR 180/55ZR17 73W
Fuel Tank Capacity 3.4 gal (12.9 L)
Color / Graphics Carbon Fiber

ELECTRICAL

Ignition
Spark Plugs

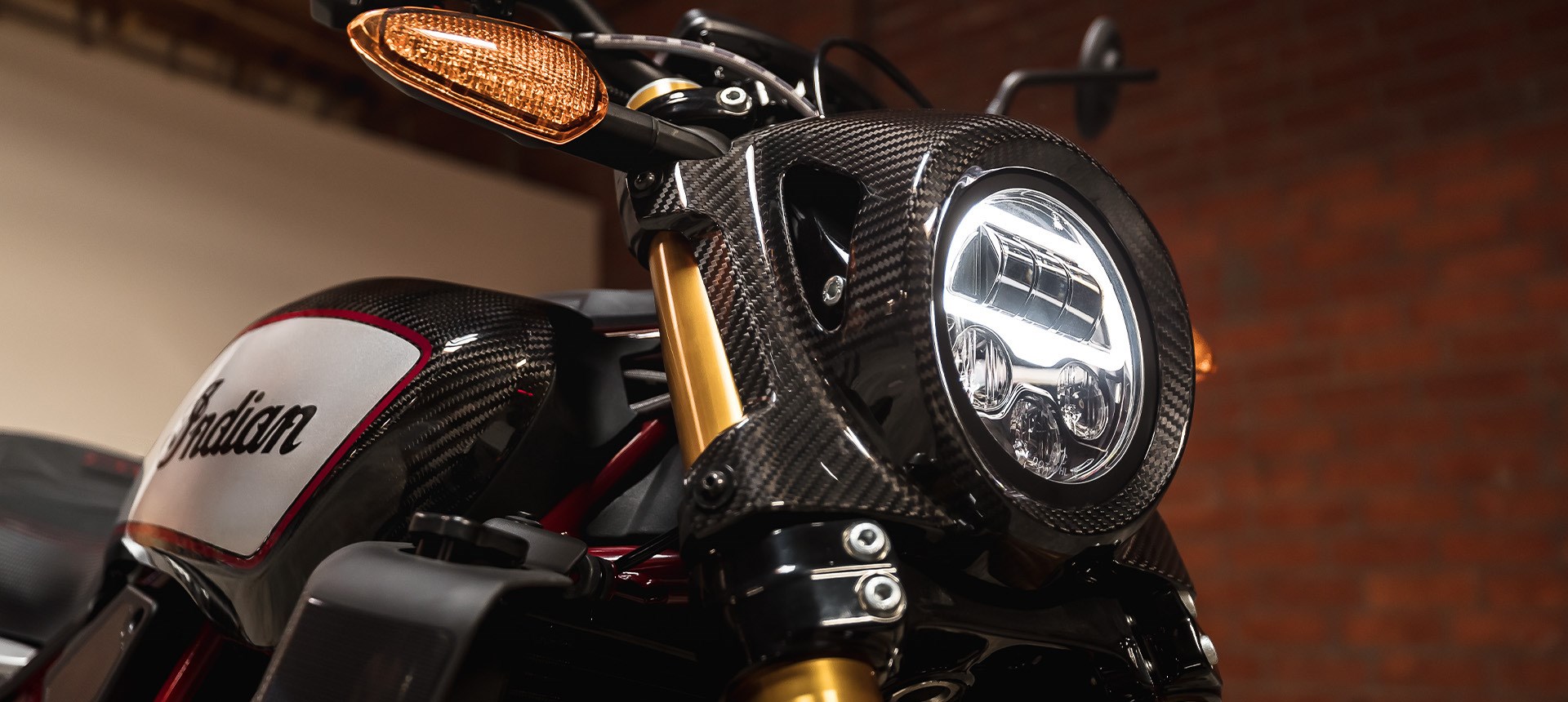

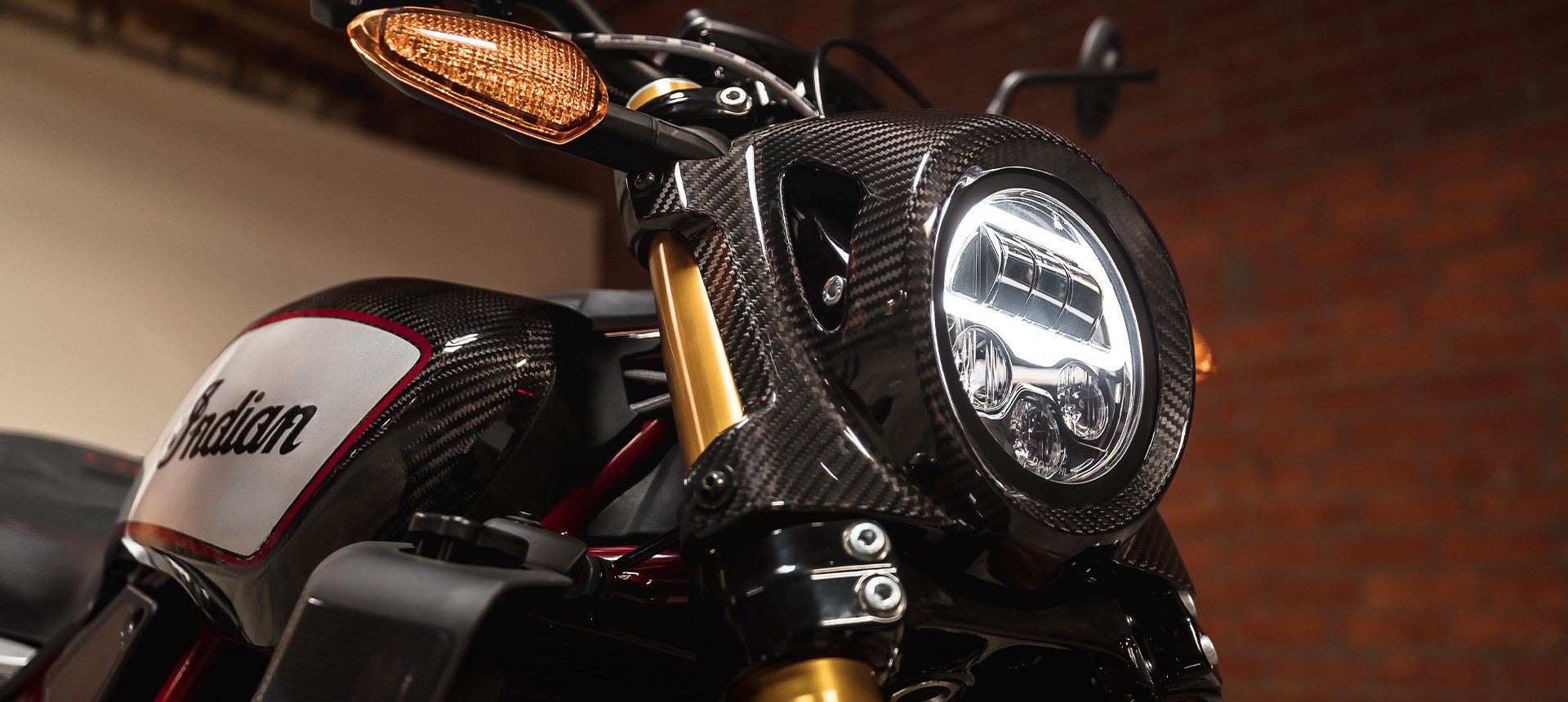

Headlight LED Headlamp
Tail Light LED Taillight

DIMENSIONS

Overall Length 87.5 in (2223 mm)
Overall Width 32.7 in (830 mm)
Overall Height 51 in (129.5 cm)
Wheelbase 60 in (1,524 mm)
Ground Clearance 6.5 in (17 cm)
Seat Height 30.7 in (780 mm)
Weight (Empty Tank / Full of Fuel) 479 lbs (217 kg) / 513 lbs (232 kg)

WARRANTY

Warranty 2 Years, Unlimited Miles
Extension

2022 Indian FTR R Carbon


2022 Indian FTR R Carbon Features

TOP NOTCH STYLING

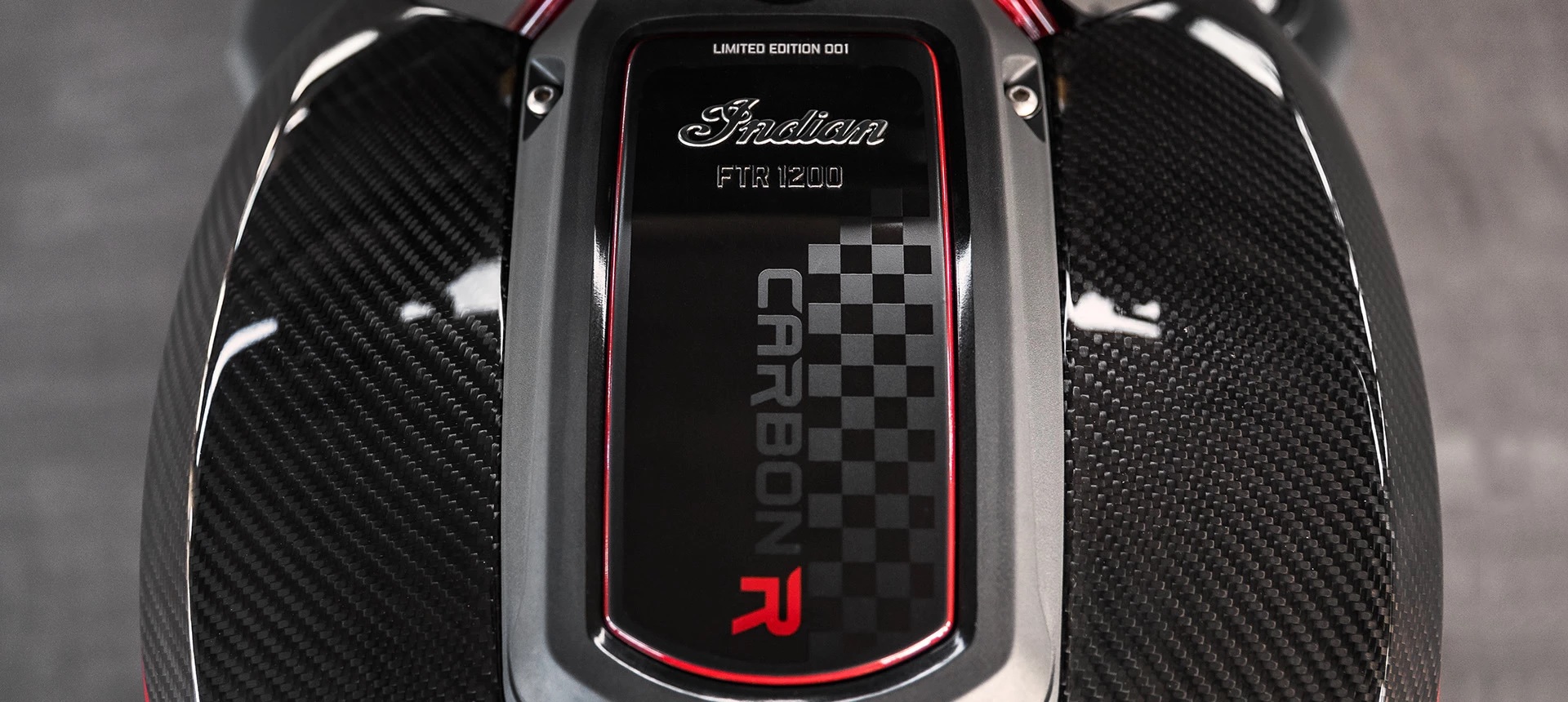

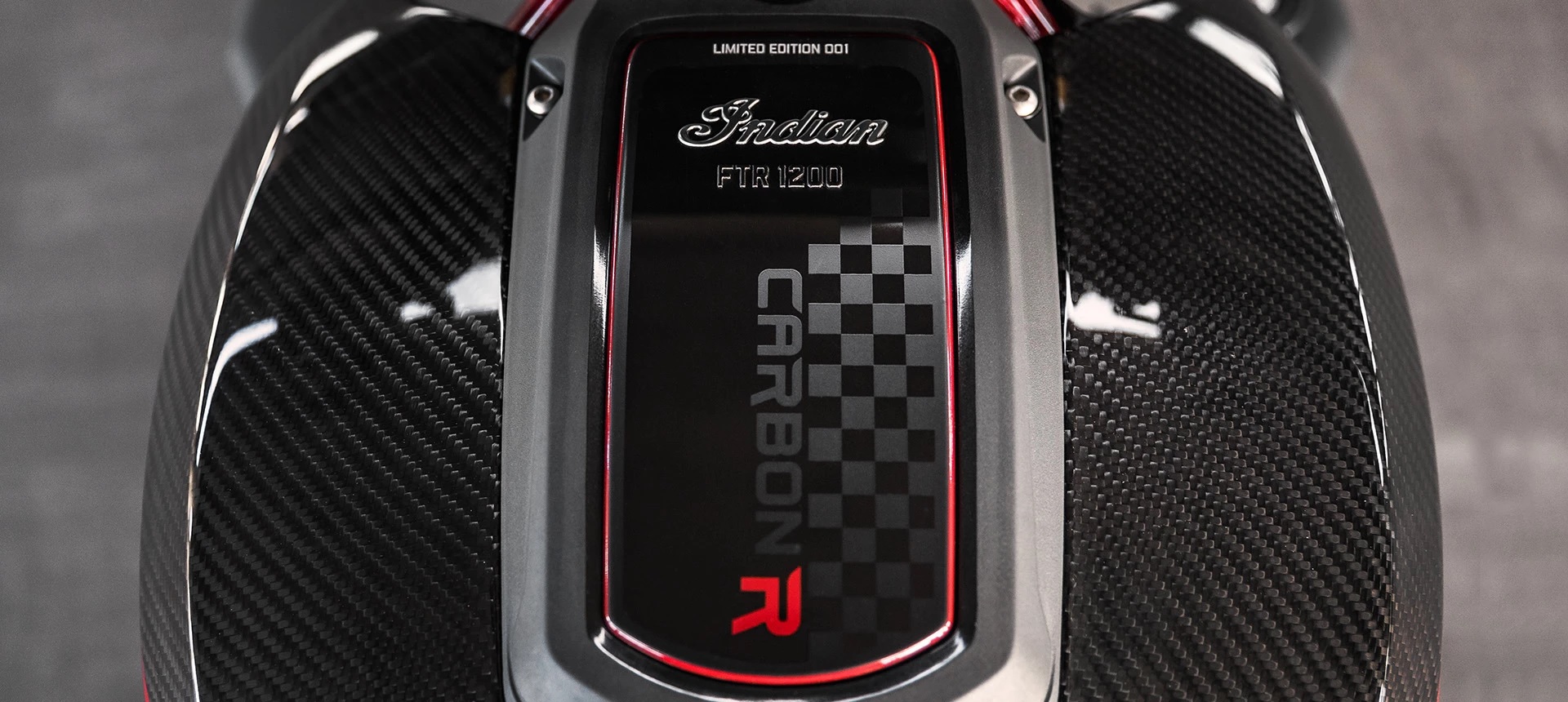

Carbon fiber bodywork and numbered carbon badging constantly remind you just how exclusive your ride really is.

ADJUSTABLE ÖHLINS® SUSPENSION

Fully adjustable industry-leading Öhlins® forks and piggyback shocks let you customize the ride to perfectly fit your style.

PREMIUM SEAT

Top-of-the-line seat with paint matched subframe contributes to the striking fit and finish of the FTR R Carbon. You’ll get unmatched comfort–and emotion–every time you sit on it.

NIMBLE HANDLING

17 in wheels with Metzeler® Sportec® tires and street tuned suspension provide planted cornering, agility, and agile handling.

BLACKED-OUT AKRAPOVIC EXHAUST

Turn heads with a blacked-out Akrapovič® exhaust and fender to fender carbon fiber.

POISED FOR THRILLS

Class-leading 87 ft-lbs of torque and 120hp with smooth power delivery to push your heart to the back of your chest and your concerns to the back of your mind.

RIDE MODES

Sport, Standard, and Rain modes with unique throttle maps and traction control intervention levels give you optimal performance for control in any condition.

RIDE COMMAND 4.3 IN TOUCHSCREEN

A 4.3 in customizable RIDE COMMAND LCD glove-touch screen with Bluetooth® lets you easily pair your mobile device and control your bike with the touch of your finger.

TAKE CONTROL

Ride confidently with lean-angle stability control, ABS with cornering pre-control, and wheelie control with rear lift mitigation. Rear Cylinder Deactivation and improved heat management ensure your thoughts are on the road, and not on staying cool.
