Just when you thought things couldn’t get any more compact out of the Honda factory (Grom, Super Cub, etc.), the Japanese motorcycle manufacturer has gone far out of their comfort zone to offer an even smaller model to add to their 2022 lineup in the form of the 2022 Navi.

With the Grom still costing a significant chunk of change (at $3400 USD), Honda has taken the opportunity to release this brand new Japanese model for 2022 with its primary focus being its astoundingly low sub-$2000 price point.

The Navi is built around a very compact 109cc air-cooled single-cylinder engine capable of producing a granular 7.83 horsepower and 6.6 lb-ft of torque.

Although it doesn’t see the same features such as LED lighting and ABS much like Honda’s other sub-200cc motorcycle models, with a price of $1807 it’s hard to complain.

The 2022 Honda Navi starts at $1807 USD / $2299 CAD

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2022 Honda Navi in one place.

Model Overview

General Info

Price: $1807 USD / $2299 CAD
Key Features:
- 109cc air-cooled single-cylinder engine
- Extremely low price point
- Lightweight and maneuverable

Main Specs

Engine: 108cc air-cooled, single-cylinder, four-stroke
Power: 7.83 horsepower
Wet Weight: 236 lbs (07 kg)
Seat Height: 764.54 mm (30.1 in.) at lowest point

Competitors

2022 Honda Navi Specifications

From Honda

ENGINE
Engine	109cc air-cooled single-cylinder four-stroke
Power	7.83 horsepower
Bore x Stroke	55.0mm x 55.6mm
Compression Ratio	9.5:1
Induction	Carburetor
Starter
Valve Train	OHC; two valves
DRIVETRAIN
Clutch
Transmission	Automatic CVT
Final Drive
CHASSIS
Suspension Front	26.8mm inverted telescopic fork; 3.5 inches of travel
Suspension Rear	Single shock; 2.76 inches of travel
Brakes Front	Drum
Brakes Rear	Drum
Tires Front	90/90-12
Tires Rear	90/100-10
Fuel Tank Capacity	0.9 gallons
Color	Red, Grasshopper Green, Nut Brown, Ranger Green
ELECTRICAL
Ignition	Full transistorized
Spark Plugs
Headlight
Tail Light
DIMENSIONS
Overall Length
Ground Clearance
Trail	3.2 inches
Wheelbase	50.6 inches
Rake (Caster Angle)	27.5°
Seat Height	30.1 inches
Curb Weight	236 pounds (Includes all standard equipment, required fluids and full tank of fuel—ready to ride)
WARRANTY
Warranty	Unlimited-mileage, limited warranty
Extension	Extended coverage available with a HondaCare Protection Plan®

2022 Honda Navi Features

109cc FOUR-STROKE ENGINE

One of the best aspects of the new Navi is its dependable Honda engine. It’s air-cooled for simplicity, offers spectacular fuel efficiency, and makes plenty of power. A single-cylinder, overhead-cam design, it’s low-maintenance and super reliable.
HET—Honda ECO TECH

Honda’s Navi engine offers the convenience and power of a gasoline engine, but with our HET (Honda Eco Tech) design, it’s also environmentally conscious.

AUTOMATIC TRANSMISSION

Here’s a big feature that sets this little bike apart from anything else in our miniMOTO lineup: The Navi features a CVT transmission. That not only means no clutch and no shifting, but no neutral or park either—just start it up, twist the throttle, and go-go-go!
INTEGRATED STORAGE AREA

Taking your stuff with you just got a whole lot easier. That’s because the Navi has a generous, lockable, integrated storage area. It’s big enough to hold a laptop, your lunch, and plenty more—what you use it for is up to you!
COMPACT SIZE

The Navi is small, which is one of the reasons it’s so much fun. That also makes it easy to park. It’s about the same size as another of our favorite miniMOTO bikes—the Grom.
FUEL CAPACITY

Fear the gas station no more! With a one-gallon gas tank, the Navi is super-inexpensive to fill up. And since it’s so fuel efficient, you won’t have to fill up very often.

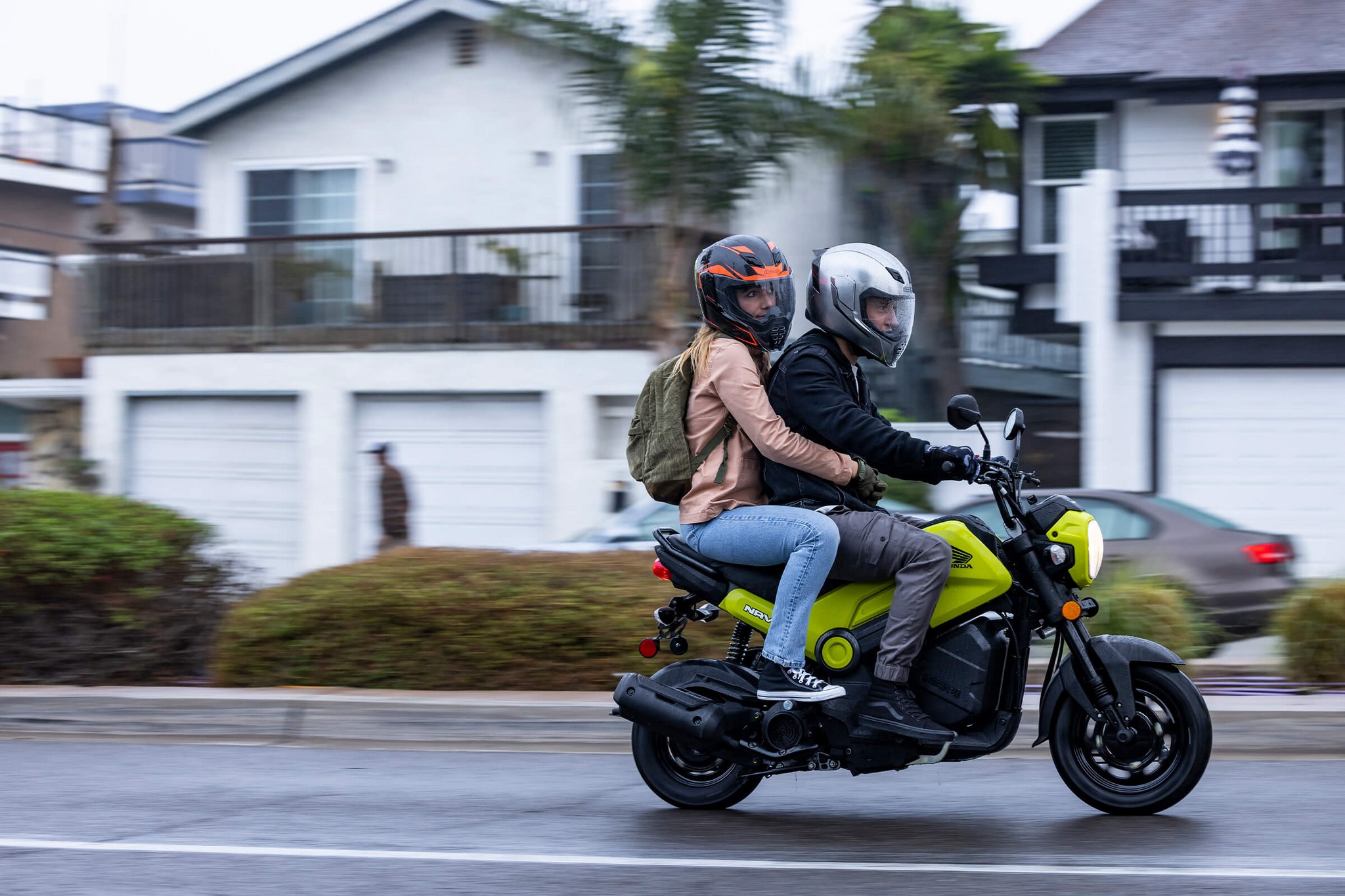

TWO-UP CAPABILITY

Want to share the fun with a friend? No problem—the Navi comes equipped with a pair of passenger pegs as standard equipment.
AVAILABLE ACCESSORIES

Here are a couple of ways you can make your new Navi even more fun: Why not add an optional windscreen or a rear cargo rack? And check out our available graphics kit too—it’s a great way to personalize your Navi’s look.

FRESH NEW LOOK

There’s no mistaking a Honda Navi, because we’ve given it a fresh look unlike anything out there. It’s about a world away from most scooters, and it’s just begging for you to give it your own personal touches too. Hip and urban, it’s going to stand out wherever you ride it.
FOUR GREAT COLORS

The Navi comes in four awesome colors, so take your pick: Red, Grasshopper Green, Nut Brown and Ranger Green.

10/12-INCH WHEELS

Part of the reason the Navi is so maneuverable are its wheels. They’re much smaller in diameter than a full-sized motorcycle’s (10-inch rear and 12-inch front). That contributes both to the Navi’s small overall size and its light, fun handling.
TELEFORK SUSPENSION

Just like a full-sized motorcycle, the new Navi features a telescopic-fork front suspension for great control and road feel.
SINGLE REAR SHOCK

Thanks to the Navi’s single hydraulic rear shock, you get a plush ride, even over choppy pavement.
STRONG STEEL FRAME

The Navi’s sturdy underbone steel frame is designed to take what gnarly city streets can throw at it, and still provide the basis for this bike’s excellent handling.
FRONT AND REAR BRAKES

The Navi’s brakes are set up like a full-sized motorcycle’s with a front-brake lever on the handlebar and a foot pedal for the rear brake. Plus, Honda’s combined braking system helps you make quick, secure stops.

LOW SEAT HEIGHT

With a low 30-inch seat height, getting on and off the Navi is a snap. Even better, it’s easy to flat-foot it in parking lots or at stop lights. The long, flat seat makes it easy to find just the right position and to move around on too, especially for taller riders.
