2022 Harley Davidson Ultra Limited [Specs, Features, Photos]

The 2022 Harley Davidson Ultra Limited: Fully Loaded

Model Overview
Specifications
Features
Photos
Videos
Links

If you are a fan of the iconic Harley Davidson Batwing fairing then the Ultra Limited is the bike you want for long-distance touring.

The 2022 Harley Davidson lineup shares the powerful Milwaukee-Eight® 114 engine across a few bikes, and it is the perfect choice for the Ultra Limited. Building plenty of torque (119 lbs-ft), the American V-twin exhaust note provides such a sweet sound, but you can always crank up the 4 speaker Boom!™ Box GTS Infotainment System and rock out down the road.

The sleek yet spacious Tour-Pak™ luggage carrier with included luggage rack can easily house both rider and passenger helmets along with extra travel essentials. Comfort features like heated grips and cruise control are standard, the Reflex™ Defensive Rider System is an option, but let’s face it, you know you are adding those very useful electronic rider aids, they are well worth it. The toughest choice you will face ordering your new Ultra Limited is solid color or two-tone, and more chrome or more blacked-out?

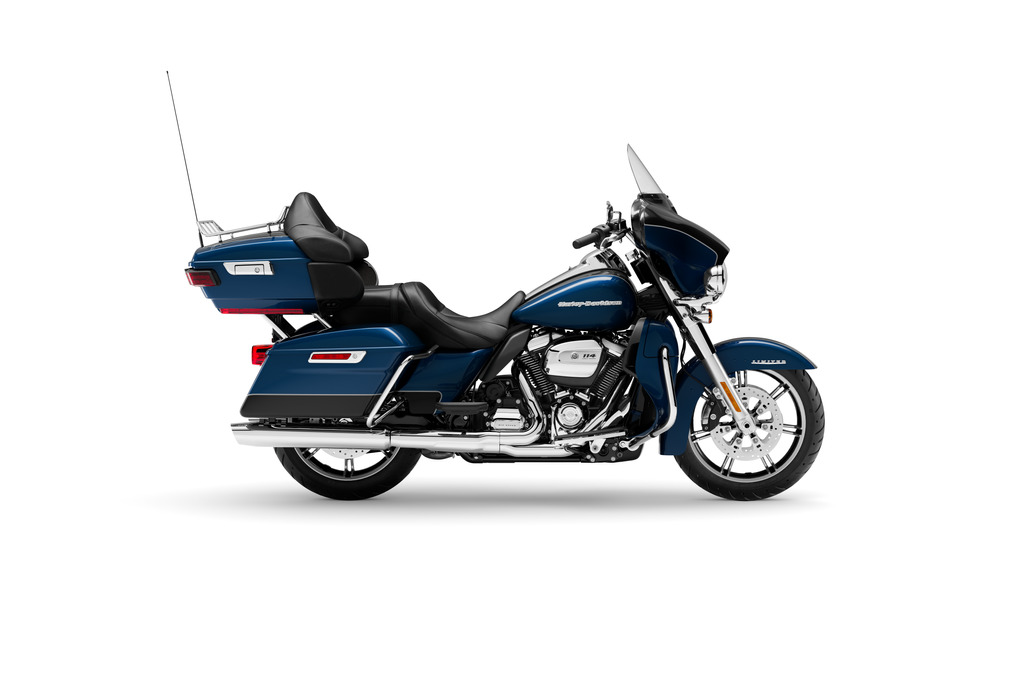

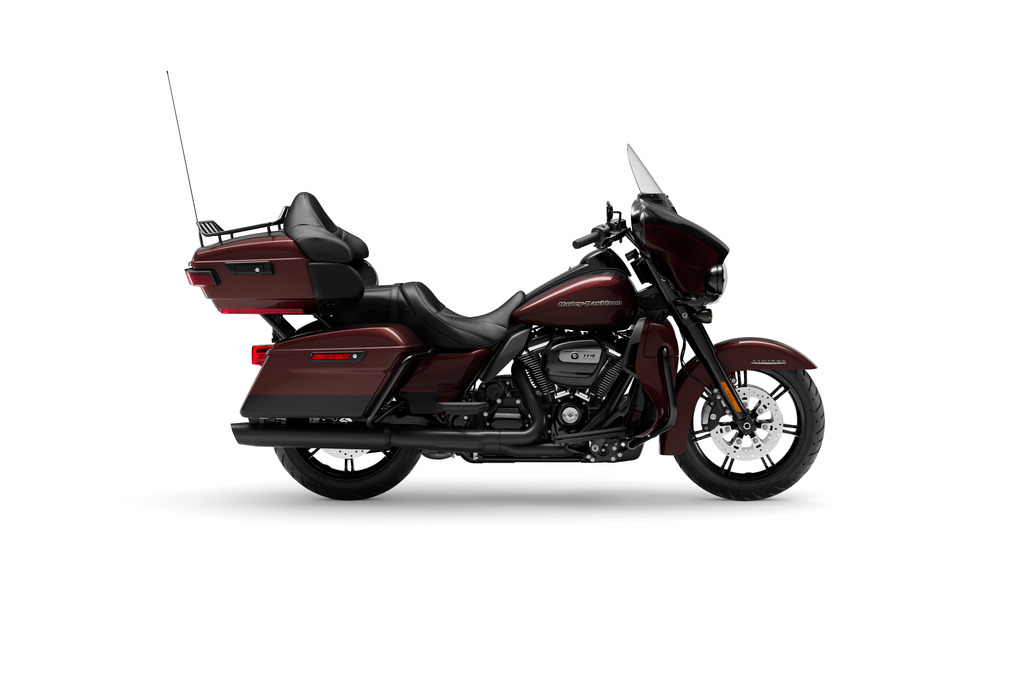

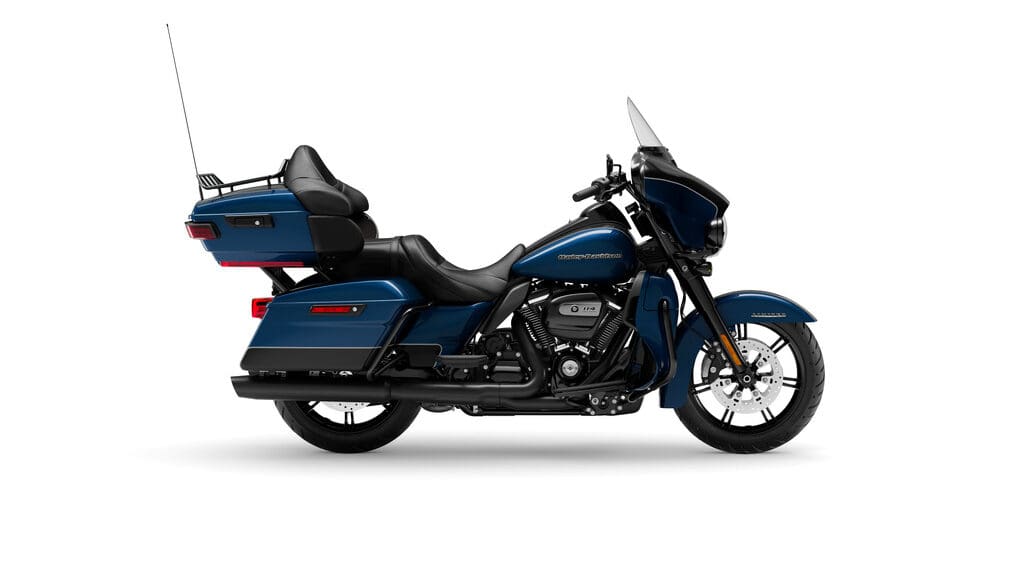

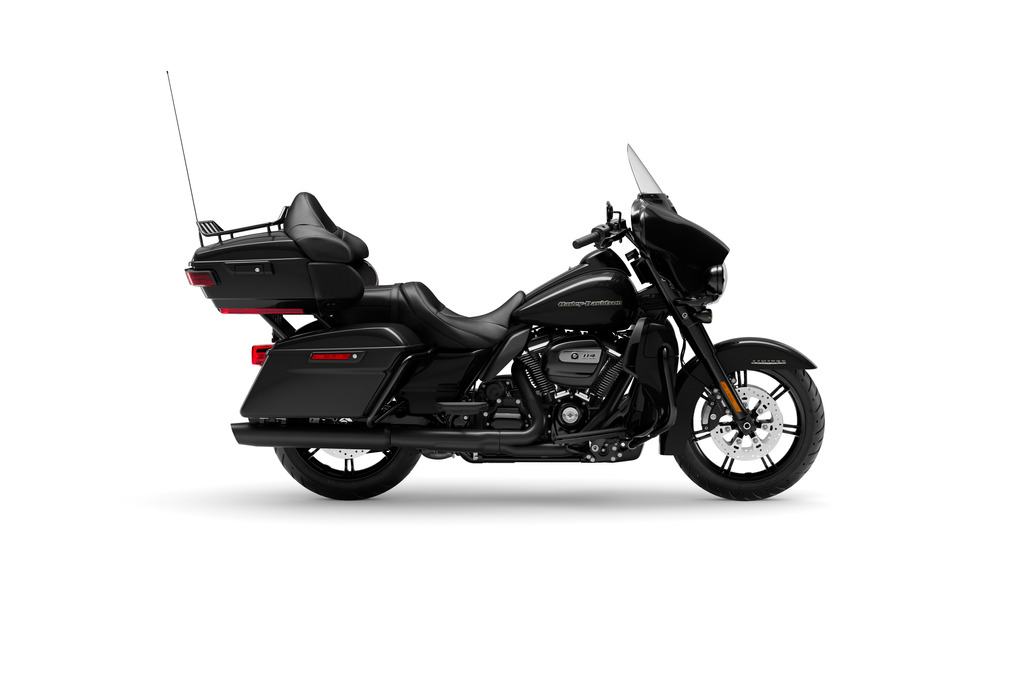

There is an amazing list of 8 color choices for the 2022 Harley Davidson Ultra Limited

Vivid Black – Chrome Finish
Gauntlet Gray Metallic – Chrome Finish
Midnight Crimson / Vivid Black – Chrome Finish
Reef Blue / Vivid Black – Chrome Finish
Vivid Black – Black Finish
Gauntlet Gray Metallic – Black Finish
Midnight Crimson / Vivid Black – Black Finish
Reef Blue / Vivid Black – Black Finish

Check out the brand links below for the entire list of colors available.

The 2022 Harley Davidson Ultra Limited starts at $29,169 USD / $34,999 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2022 Harley Davidson Ultra Limited in one place.

Model Overview

General Info

Price: $29,169 USD / $34,999 CAD
Key Features:
- Milwaukee-Eight® 114 V-Twin engine
- Vented Batwing Fairing
- Two-Tone Paint Options
- Optional RDRS Electronics Package

Main Specs

Engine: 114 ci V-twin
Power: 100.5 HP (estimated)
Torque: 119 lbs-ft @ 3000 RPM
Wet Weight: 917 lb. (416 kg)
Seat Height: 27.5 in. (699 mm)

Competitors

2022 Harley Davidson Ultra Limited Specifications

From Harley-Davidson

ENGINE
Engine	Twin-Cooled^™ Milwaukee-Eight^® 114
Engine Torque	122 ft-lb
Bore x Stroke	4.016 in. x 4.5 in.
Compression Ratio	10.5:1
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)
Starter
Exhaust	2-1-2 dual exhaust with tapered mufflers
DRIVETRAIN
Clutch
Transmission	6-speed
Primary Drive	Gear, 34/46 ratio
CHASSIS
Front Fork	49mm Dual Bending Valve
Rear Shocks	Premium standard height hand-adjustable rear suspension
Wheels, Front Type	Slicer II cast aluminum with clear coat
Wheels, Rear Type	Slicer II cast aluminum with clear coat
Brakes Front	32 mm, Dual floating rotors
Brakes Rear	4-piston fixed
Tires Front	BW 130/70B18 63H
Tires Rear	BW 180/55B18 80H
Fuel Tank Capacity	6 gal.
Color	Vivid Black (Chrome Finish), Gauntlet Gray Metallic (Chrome Finish)
ELECTRICAL
Ignition
Spark Plugs
Headlight	All LED headlamp
Tail Light	LED
DIMENSIONS
Length	102.3 in.
Trail	6.7 in.
Rake	26
Wheelbase	64 in.
Ground Clearance	5.3 in.
Seat Height	27.5 in.
Weight, As Shipped	880 lb.
WARRANTY
Warranty
Extension

2022 Harley Davidson Ultra Limited Features

The most displacement in standard H-D® Touring models. You get 114 cubic inches of passing and horizon-chasing power.

Designed to help prevent the wheels from locking under braking to assist the rider in maintaining control when braking in a straight-line. ABS operates independently on front and rear brakes to keep the wheels rolling and help prevent uncontrolled wheel lock in urgent situations.

An evolved interface experience that offers a contemporary look, feel and function, with exceptional durability and features designed specifically for motorcycling. Every element is optimized to enhance the rider’s interaction with the bike and connectivity with the world.

Set your own speed on the 6-Speed Cruise Drive® Transmission. It provides smooth, quiet shifting and adapts to whatever terrain you’re riding on.

Equipped with six settings, so you can easily adjust on the fly for the heat you need.

A sleek yet spacious Tour-Pak® luggage carrier with luggage rack that can easily house both rider and passenger helmets along with extra travel essentials.
