2022 Harley Davidson Road Glide Limited [Specs, Features, Photos]

The 2022 Harley Davidson Road Glide Limited: The Touring Icon

Model Overview
Specifications
Features
Photos
Videos
Links

With a bike this good, no significant changes were need from Harley Davidson. The Road Glide Limited has everything one could want to make a great 2-up touring ride.

Shared across the 2022 Harley Davidson lineup, the powerful Milwaukee-Eight® 114 engine has 119 lbs-ft of torque to move the Limited with ease, even laden down with gear and humans. The Sharknose fairing looks just right and shows the American Bagger roots at the heart of this bike.

The Tour-Pak™ luggage provides ample space that can easily house both rider and passenger helmets along with extra travel essentials. The Road Glide Limited is loaded with features like heated grips, cruise control, and awesome floorboards. The Reflex™ Defensive Rider System is an option, but let’s face it, you know you are adding those very useful electronic rider aids, they are well worth it.

Get your gear, crank up the Boom!™ Box GTS Infotainment System, and point yourself down the highway..

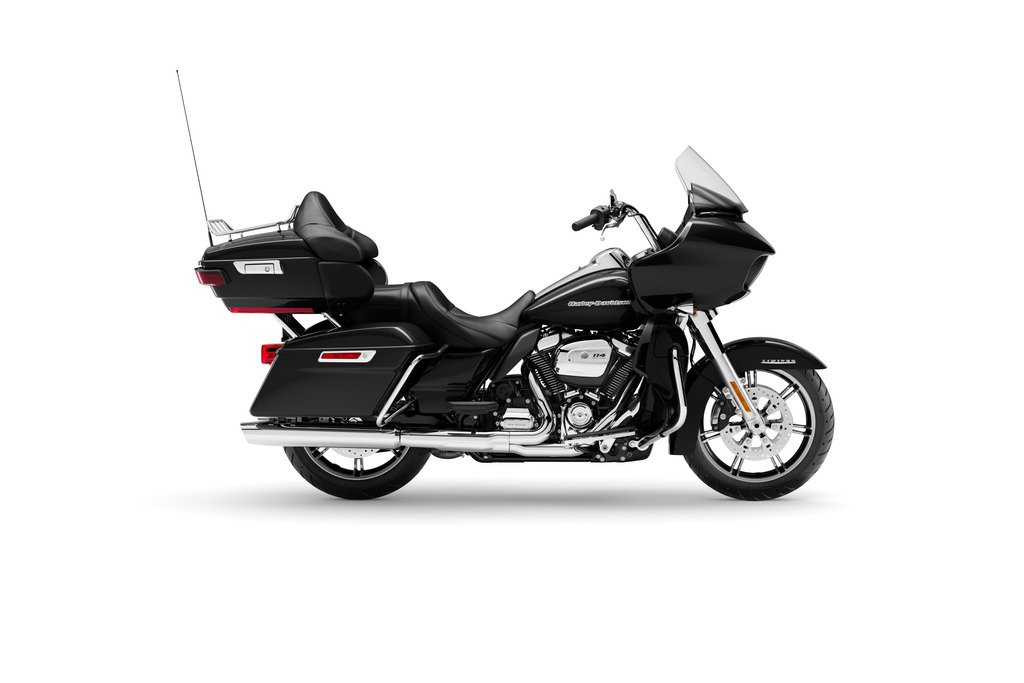

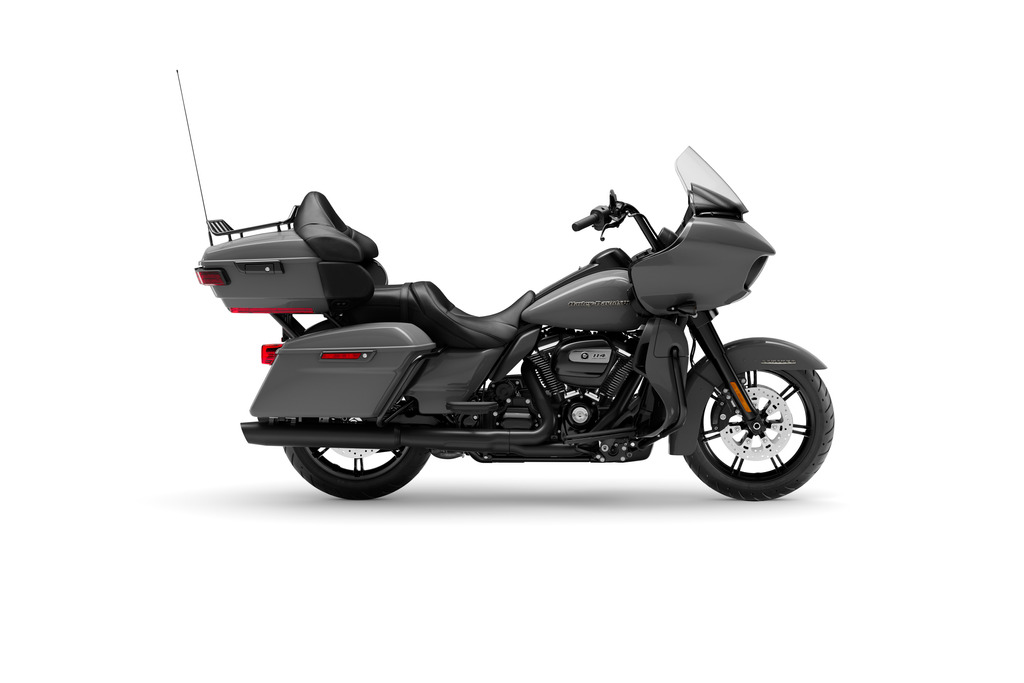

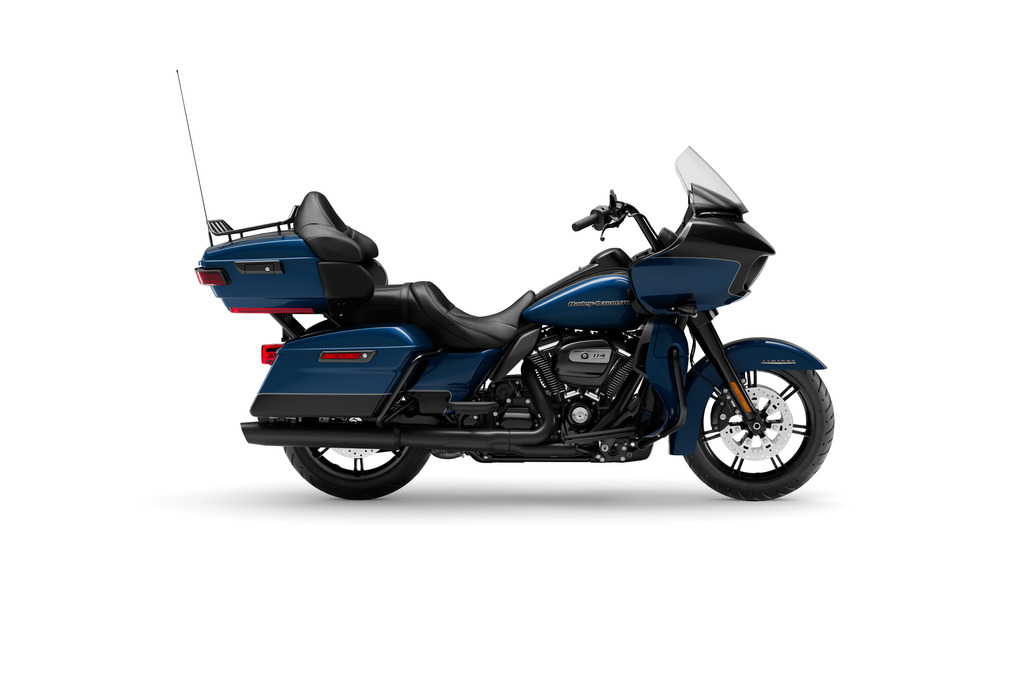

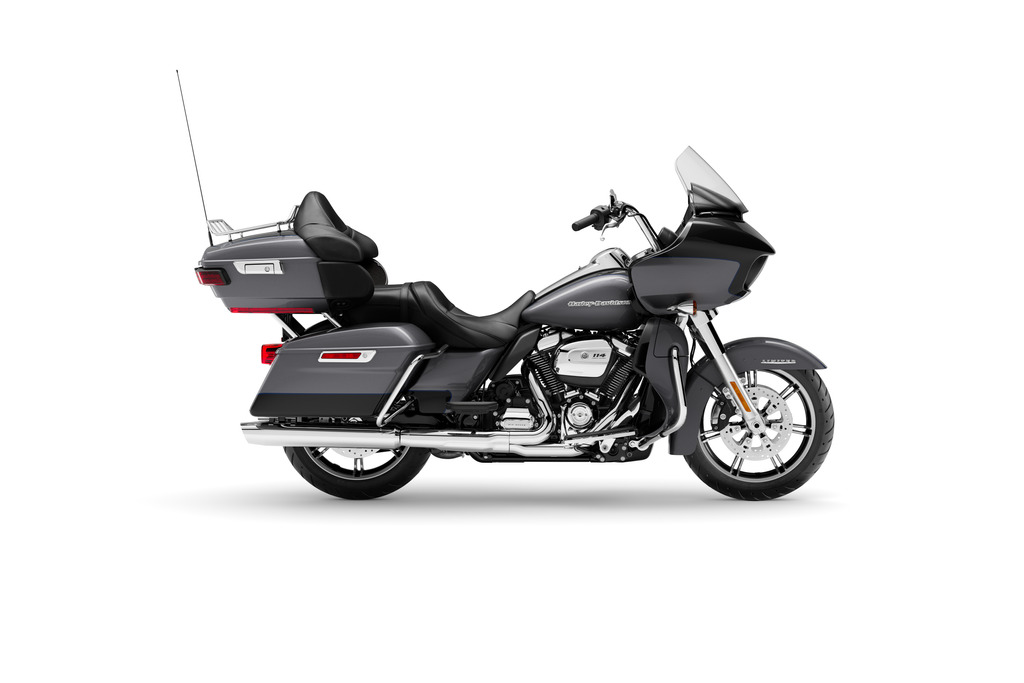

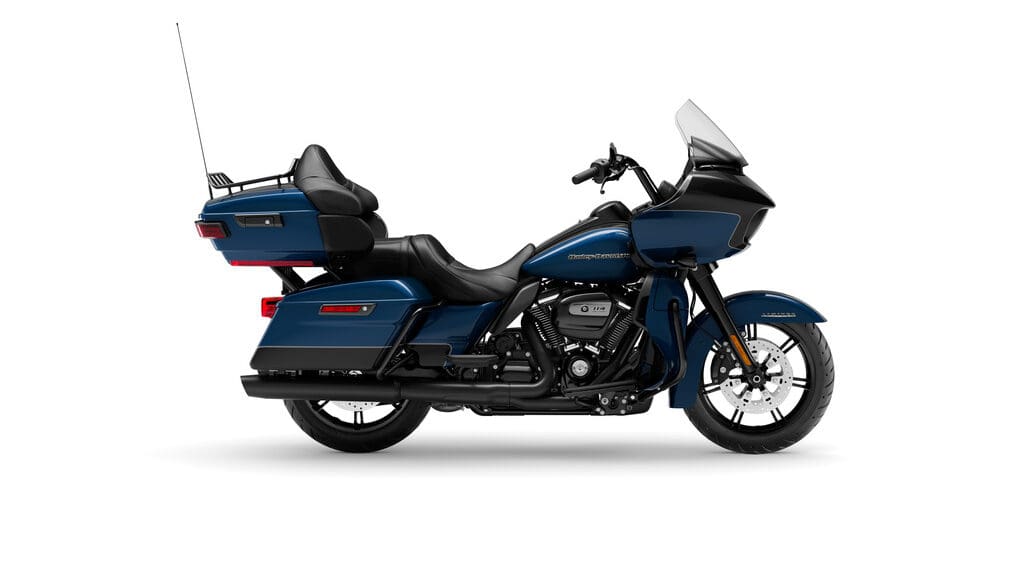

6 Color choices for the 2022 Harley Davidson Road Glide Limited:

Reef Blue / Black Denim – Black Finish
Gunship Gray – Black Finish
Vivid Black – Black Finish
Gauntlet Gray Metallic / Vivid Black – Chrome Finish
Mineral Green Metallic – Chrome Finish
Vivid Black – Chrome Finish

The 2022 Harley Davidson Road Glide Limited starts at $28,729 USD / $34,999 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2022 Harley Davidson Road Glide Limited in one place.

Model Overview

General Info

Price: $28,729 USD / $34,999 CAD
Key Features:
- Milwaukee-Eight® 114 V-Twin engine
- Dual Daymaker LED Headlights
- Two-Tone Paint Options
- Optional RDRS Electronics Package

Main Specs

Engine: 114 ci V-twin
Power: 100.5 HP (estimated)
Torque: 119 lbs-ft @ 3000 RPM
Wet Weight: 932 lb. (423 kg)
Seat Height: 27.2 in. (690 mm)

Competitor

2022 Harley Davidson Road Glide Limited Specifications

From Harley-Davidson

ENGINE
Engine	Twin-Cooled^™ Milwaukee-Eight^® 114
Engine Torque	122 ft-lb
Bore x Stroke	4.016 in. x 4.5 in.
Compression Ratio	10.5:1
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)
Starter
Exhaust	2:1:2 dual exhaust with 4 in. tapered mufflers
DRIVETRAIN
Clutch
Transmission	6-speed
Primary Drive	Gear, 34/46 ratio
CHASSIS
Front Fork	49mm Dual Bending Valve
Rear Shocks	Premium standard height hand-adjustable rear suspension
Wheels, Front Type	Slicer II cast aluminum with clear coat
Wheels, Rear Type	Slicer II cast aluminum with clear coat
Brakes Front	32 mm, Dual floating rotors
Brakes Rear	4-piston fixed
Tires Front	BW 130/70B18 63H
Tires Rear	BW 180/55B18 80H
Fuel Tank Capacity	6 gal.
Color	Vivid Black (Chrome Finish), Mineral Green Metallic (Chrome Finish),Gauntlet Gray Metallic/Vivid Black (Chrome Finish),Vivid Black (Black Finish),Reef Blue/Vivid Black (Black Finish)
ELECTRICAL
Ignition
Spark Plugs
Headlight	All LED headlamp
Tail Light	LED
DIMENSIONS
Length	102.2 in.
Trail	6.7 in.
Rake	26
Wheelbase	64 in.
Ground Clearance	5.1 in.
Seat Height	27.2 in.
Weight, As Shipped	897 lb.
WARRANTY
Warranty
Extension

2022 Harley Davidson Road Glide Limited Features

The most displacement in standard H-D® Touring models. You get 114 cubic inches of passing and horizon-chasing power.

Designed to help prevent the wheels from locking under braking to assist the rider in maintaining control when braking in a straight-line. ABS operates independently on front and rear brakes to keep the wheels rolling and help prevent uncontrolled wheel lock in urgent situations.

An evolved interface experience that offers a contemporary look, feel and function, with exceptional durability and features designed specifically for motorcycling. Every element is optimized to enhance the rider’s interaction with the bike and connectivity with the world.

A distinctive aerodynamic shark-nose fairing with triple split stream vents that deliver smooth air flow and reduce head buffeting.

Equipped with six settings, so you can easily adjust on the fly for the heat you need.

See also

Amanda Quick·

Motorcycle News

·November 2, 2021·2 min read

Harley-Davidson Calls EU Tariff Resolution ‘Big Win’ as Company Stocks Jump

High-performing front and rear suspension with easily adjustable rear shocks put you in control of a plush ride.

A sleek yet spacious Tour-Pak® luggage carrier with luggage rack that can easily house both rider and passenger helmets along with extra travel essentials.
