2022 Harley Davidson CVO Road Glide Limited [Specs, Features, Photos]

The 2022 Harley Davidson CVO Road Glide Limited: Best In Class

Model Overview
Specifications
Features
Photos
Videos
Links

CVO is recognized as the absolute best by Harley Davidson, and the best is what touring riders in this segment demand. The CVO Road Glide Limited is built around the Milwaukee-Eight® 117 V-Twin engine, which is currently the most-powerful engine offered in the 2022 Harley Davidson lineup. Making a strong 126 ft. lbs. of torque, the 117 moves the CVO Road Glide Limited with ease when fully loaded.

Many American manufacturers have luxury touring machines in their lineups, but nothing else comes close to the level of fit and finish of the CVO series, this is a bespoke touring machine.

Full-on custom treatments from fender to fender. You get custom seat covers and stitching with a backrest, Tomahawk front 19-inch, and rear 18-inch wheels, Daymaker® Adaptive LED headlamps with lean angle activation, Reflex™ Defensive Rider System electronic safety aids, and the incredible Stage II Harley-Davidson® Audio system powered by Rockford Fosgate.

3 Color choices for the 2022 Harley Davidson CVO Road Glide Limited:

Wicked Orange Pearl
Hightail Yeloow Pearl

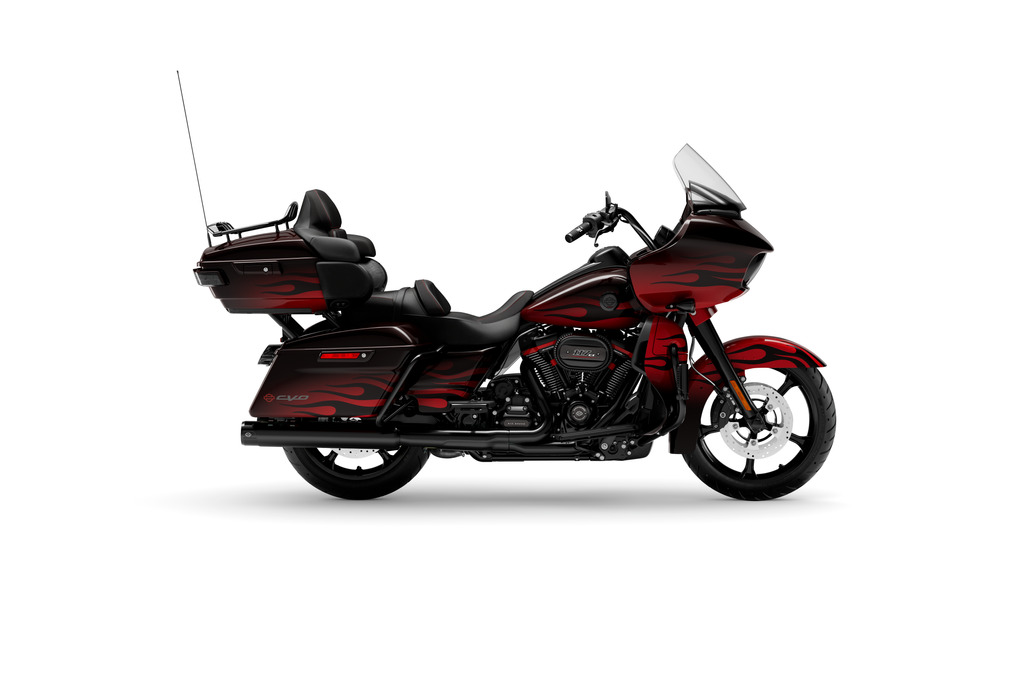

Dante’s Red Fade

The 2022 Harley Davidson CVO Road Glide Limited starts at $44,899 USD / $53,799 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2022 Harley Davidson CVO Road Glide Limited in one place.

Model Overview

General Info

Price: $44,899 USD / $53,799 CAD
Key Features:
- Milwaukee-Eight® 117 V-Twin engine
- Harley-Davidson® Audio powered by Rockford Fosgate® Stage II
- Daymaker LED Headlight
- Tomahawk™ Front 19-inch and Rear 18-inch wheels Gloss Black and Contrast Satin

Main Specs

Engine: 117 ci V-twin
Power: 105 HP (estimated)
Torque: 126 lbs-ft @ 3750 RPM
Wet Weight: 963 lb. (437 kg)
Seat Height: 28.2 in. (716 mm)

Competitors

2022 Harley Davidson CVO Road Glide Limited Specifications

From Harley-Davidson

ENGINE
Engine	Milwaukee-Eight^® 117
Engine Torque	126 ft-lb
Bore x Stroke	4.075 in. x 4.5 in.
Compression Ratio	10.2:1
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)
Starter
Exhaust	Dual, with crossover
DRIVETRAIN
Clutch
Transmission	6-speed
Primary Drive	Gear, 34/46 ratio
CHASSIS
Front Fork	49mm Dual Bending Valve
Rear Shocks	Premium standard height hand-adjustable rear suspension
Wheels, Front Type	Gloss Black and Contrast Chrome Tomahawk
Wheels, Rear Type	Gloss Black and Contrast Chrome Tomahawk
Brakes Front	32mm, Dual floating rotors
Brakes Rear	4-piston fixed
Tires Front	BW 130/60B19 61H
Tires Rear	BW 180/55B18 80H
Fuel Tank Capacity	6 gal.
Color	Wicked Orange Pearl, Hightail Yellow Pearl, Dante’s Red Fade
ELECTRICAL
Ignition
Spark Plugs
Headlight	All LED headlamp
Tail Light	LED
DIMENSIONS
Length	101.2 in.
Trail	6.7 in.
Rake	26
Wheelbase	64 in.
Ground Clearance	5.1 in.
Seat Height	28.2 in.
Weight, As Shipped	927 lb.
WARRANTY
Warranty
Extension

2022 Harley Davidson CVO Road Glide Limited Features

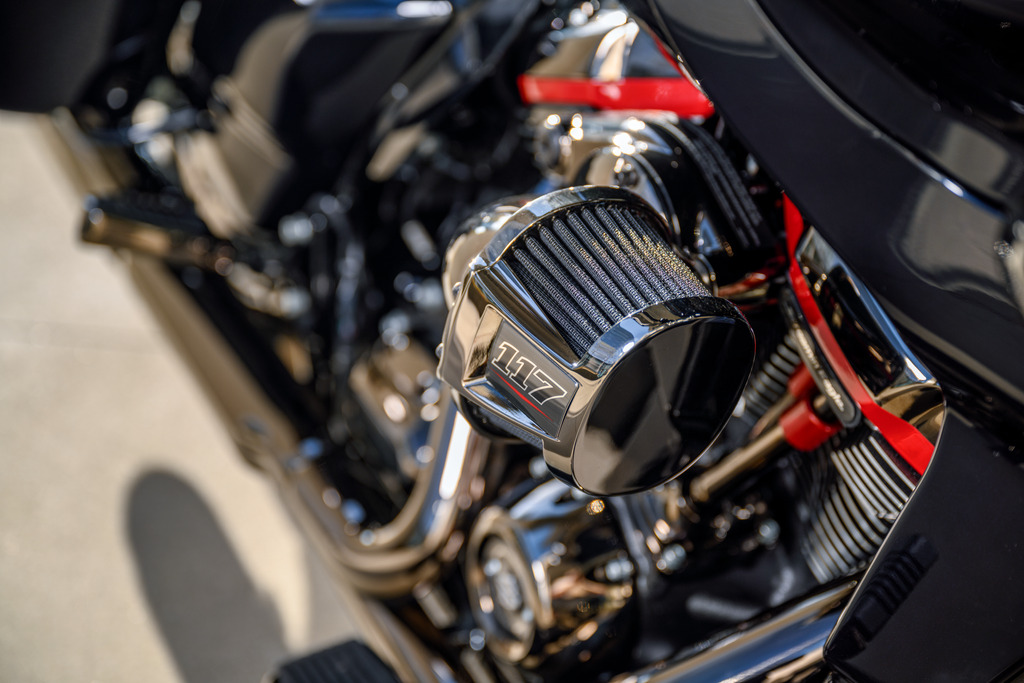

Milwaukee-Eight 117 V-Twin
The new pinnacle of torque and displacement with a factory-installed powertrain. Precision oil/air cooling. 126 ft. lbs. of torque at 3750 RPM. Tuned heavy breather intake and high flow exhaust maximize engine performance, a boost you can feel with every twist of the throttle.

Premium paints and finishes
Heated Kahuna Collection hand grips match Kahuna shifter pegs, brake pedal cover, muffler end caps, heated grips and rider and passenger boards
Fugitive custom wheels

All the features you need for a ride that feels comfortable and rides secure.
H-D Touring Chassis
Daymaker Adaptive LED headlamp and bright LED lighting for enhanced visibility
Corner Safety Enhancements

Step up to the ultimate motorcycle audio experience. Harley-Davidson Audio powered by Rockford Fosgate Stage II speakers deliver ultra-clear highs, super clean mids, and ground thumping bass. These amplified three-way speakers feature a durable injection molded woofer and a separate bridge-mounted Midrange and Tweeter speakers.

Nothing standard about this state-of-the-art system with color touch screen, two fairing-mount speakers and hidden radio antenna. Every element is optimized to enhance the rider’s interaction with the bike and connectivity with the world.
