CVO is recognized as the absolute best by Harley Davidson. When talking about American-made customs, the CVO line takes things to the next level. The 2022 Road Glide CVO continues the tradition as a showstopping custom bagger.

The Milwaukee-Eight® 117 V-Twin engine is currently the most-powerful engine offered in the 2022 Harley Davidson lineup, putting down 126 ft. lbs. of torque, thanks to a high-performance camshaft and intake. Full-on custom treatment from fender to fender. You get custom seat covers and stitching, a heavy breather air cleaner, heated Kahuna™ collection hand grips and Kahuna™ controls, a fang front spoiler—the list goes on.

The CVO Road Glide has exclusive features such as Stage II Harley-Davidson® Audio powered by Rockford Fosgate, Dual Daymaker® LED Headlamps, RDRS Safety Enhancements, and Wireless headsets are but a few. Exclusive paint finishes and 21-inch front and 18-inch rear wheels finished in gloss black and contrast smoked satin, this set adds the ultimate one-of-a-kind style.

3 Color choices for the 2022 Harley Davidson CVO Road Glide:

Wicked Orange Pearl

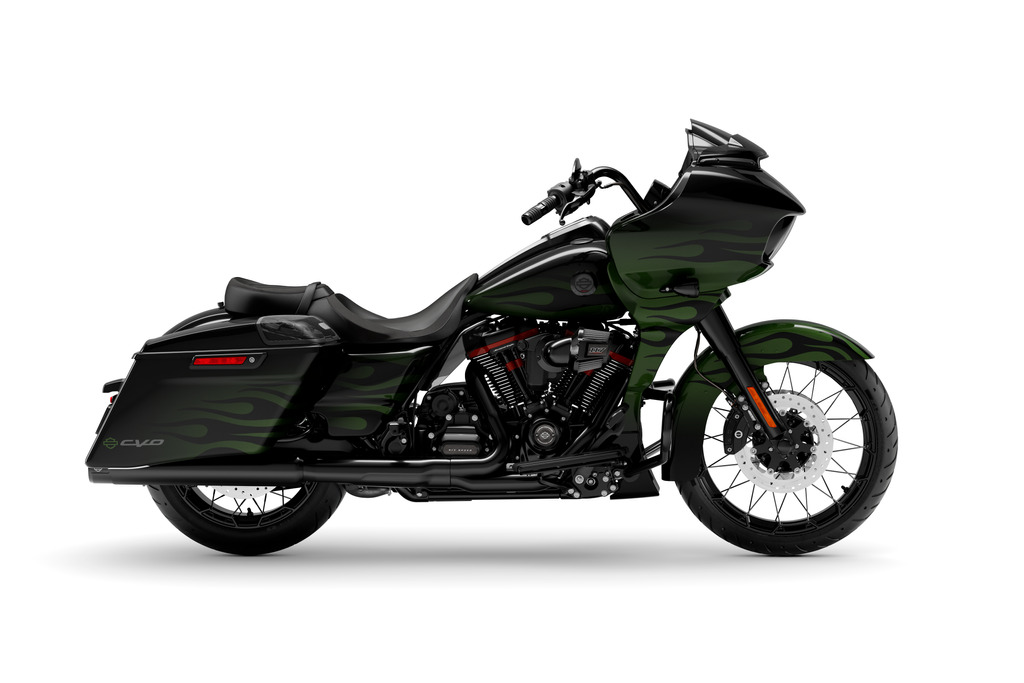

Envious Green FadeBlue Steel

The 2022 Harley Davidson CVO Road Glide starts at $41,899 USD / $51,899 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2022 Harley Davidson CVO Road Glide in one place.

Model Overview

General Info

Price: $41,899 USD / $51,899 CAD
Key Features:
- Milwaukee-Eight® 117 V-Twin engine
- Harley-Davidson® Audio powered by Rockford Fosgate® Stage II
- Daymaker LED Headlamp
- Fang Front Spoiler

Main Specs

Engine: 117 ci V-twin
Power: 105 HP (estimated)
Torque: 126 lbs-ft @ 3750 RPM
Wet Weight: 866 lb. (393 kg)
Seat Height: 26.1 in. (663 mm)

Competitors

2022 Harley Davidson CVO Road Glide Specifications

From Harley-Davidson

ENGINE
Engine	Milwaukee-Eight^® 117
Engine Torque	126 ft-lb
Bore x Stroke	4.075 in. x 4.5 in.
Compression Ratio	10.2:1
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)
Starter
Exhaust	Dual, with crossover
DRIVETRAIN
Clutch
Transmission	6-speed
Primary Drive	Gear, 34/46 ratio
CHASSIS
Front Fork	49mm Dual Bending Valve
Rear Shocks	Premium Low Hand-Adjustable Rear Suspension
Wheels, Front Type	Gloss Black and contrast Chrome Fugitive
Wheels, Rear Type	Gloss Black and contrast Chrome Fugitive
Brakes Front	32mm, Dual floating rotors
Brakes Rear	4-piston fixed
Tires Front	BW 130/60B21 M/C63H
Tires Rear	BW 180/55B18 M/C80H
Fuel Tank Capacity	6 gal.
Color	Wicked Orange Pearl, Envious Green Fade, Blue Steel
ELECTRICAL
Ignition
Spark Plugs
Headlight	All LED headlamp
Tail Light	LED
DIMENSIONS
Length	96.9 in.
Trail	6.8 in.
Rake	26
Wheelbase	64 in.
Ground Clearance	4.9 in.
Seat Height	25.9 in.
Weight, As Shipped	860 lb.
WARRANTY
Warranty
Extension

2022 Harley Davidson CVO Road Glide Features

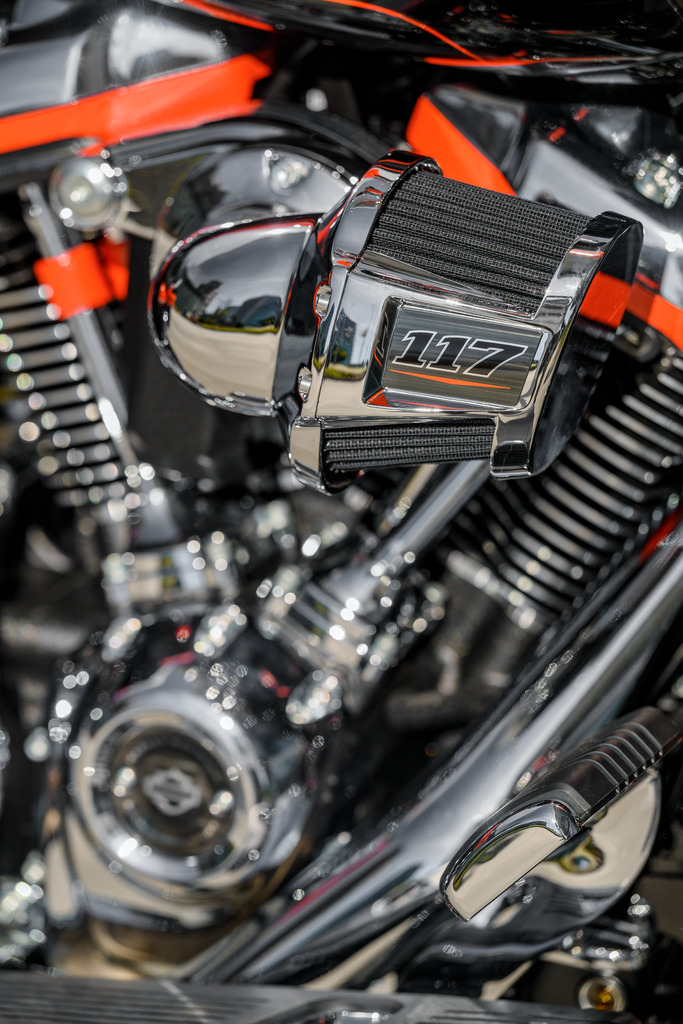

Milwaukee-Eight 117 V-Twin
The new pinnacle of torque and displacement with a factory-installed powertrain. Precision oil/air cooling. 126 ft. lbs. of torque at 3750 RPM. Tuned heavy breather intake and high flow exhaust maximize engine performance, a boost you can feel with every twist of the throttle.

Premium paints and finishes
Heated Kahuna Collection hand grips match Kahuna shifter pegs, brake pedal cover, muffler end caps, heated grips and rider and passenger boards
Fugitive custom wheels

All the features you need for a ride that feels comfortable and rides secure.
H-D Touring Chassis
Daymaker Adaptive LED headlamp and bright LED lighting for enhanced visibility
Corner Safety Enhancements

Step up to the ultimate motorcycle audio experience. Harley-Davidson Audio powered by Rockford Fosgate Stage II speakers deliver ultra-clear highs, super clean mids, and ground thumping bass. These amplified three-way speakers feature a durable injection molded woofer and a separate bridge-mounted Midrange and Tweeter speakers.

Nothing standard about this state-of-the-art system with color touch screen, two fairing-mount speakers and hidden radio antenna. Every element is optimized to enhance the rider’s interaction with the bike and connectivity with the world.
