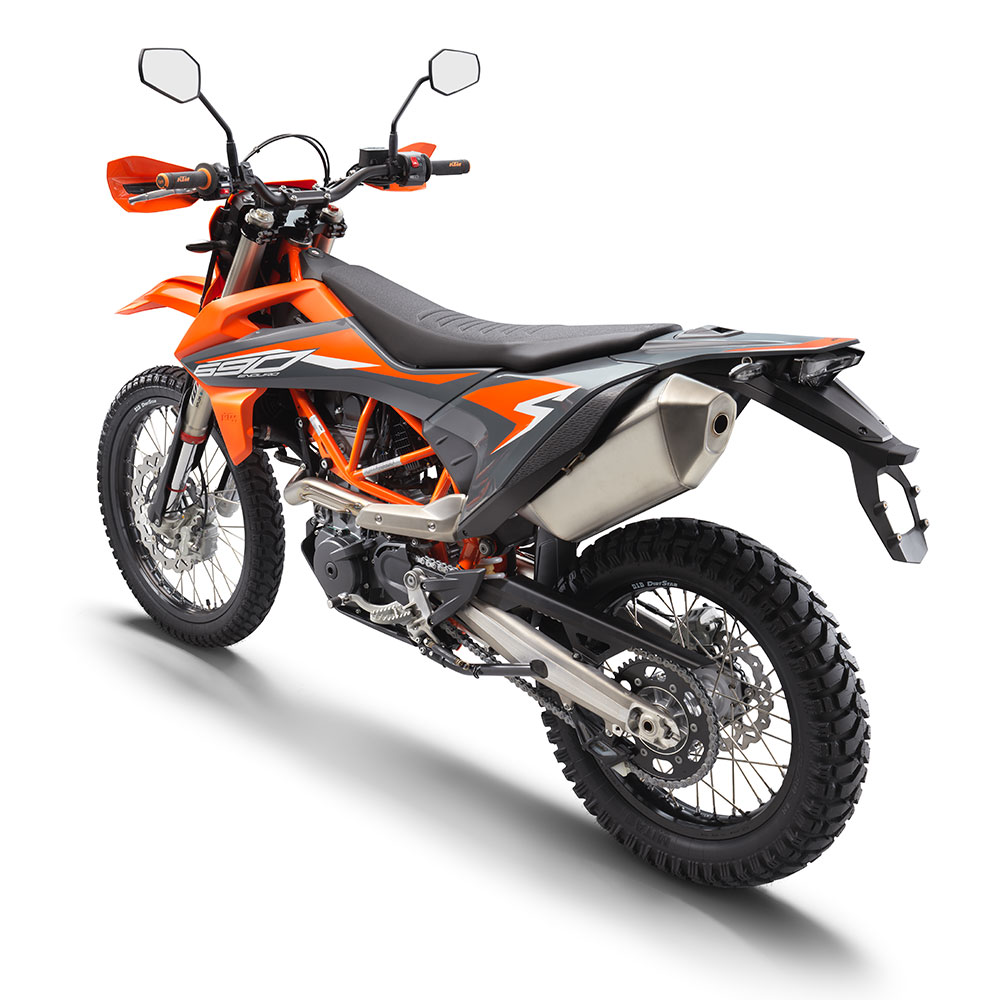

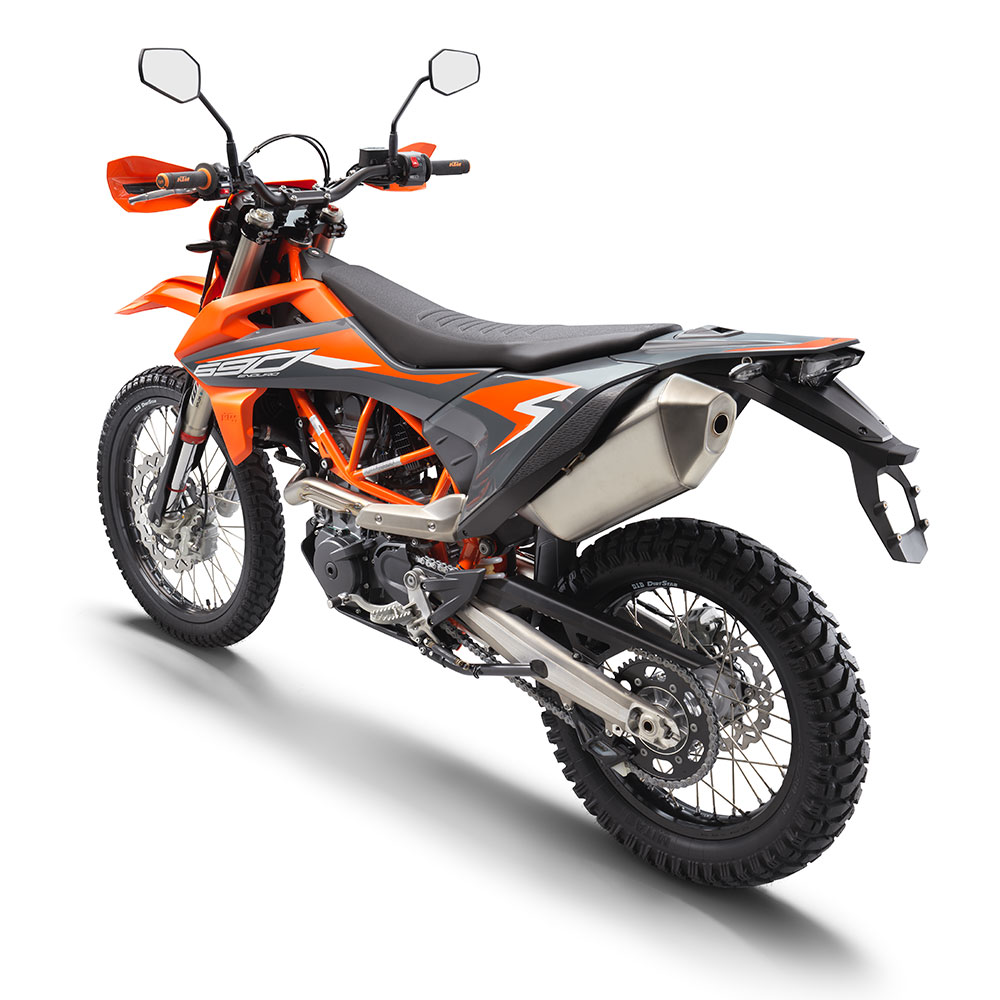

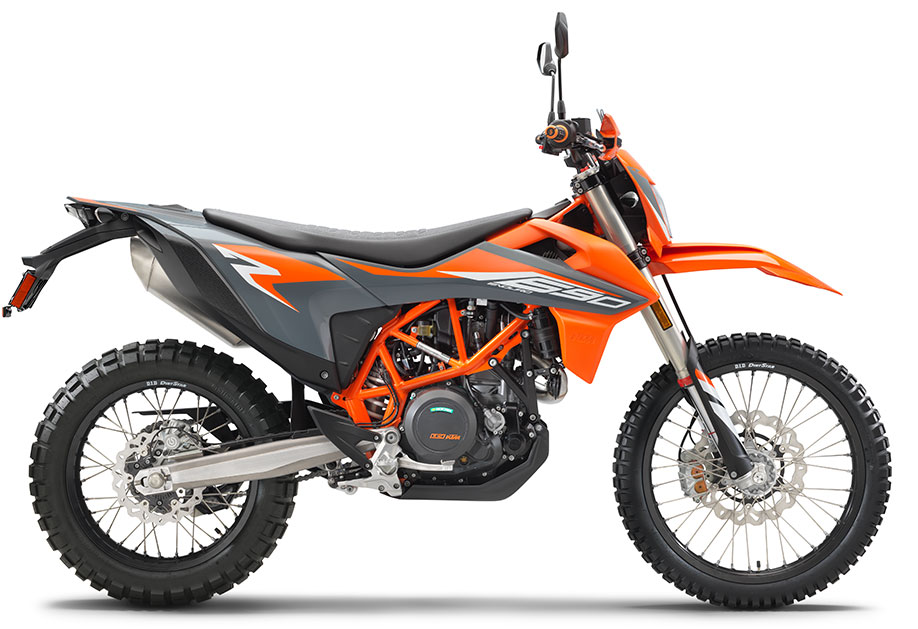

The 2021 KTM 690 Enduro R is a very interesting motorcycle, existing in a weird middle space between a full-out dual-sport and a stripped down adventure bike. On the one hand, it has a single cylinder, 4 valve engine that is at home in any dual-sport. On the other hand, that engine has a displacement of 693cc, and produces 74 HP and 54 lb-ft of torque.

This could be seen as the Austrian company flexing its muscles in engine knowledge, as it also has built-in balancer shafts on both the crankshaft and the cylinder head to reduce overall vibration. It also has developed a lightweight piston head and conrod, to reduce reciprocating mass and improve response. On top of that, KTM has developed a superb engine management and injection system, combined with dual spark plugs, to ensure the most efficient and complete combustion possible in the cylinder.

In effect, using the knowledge gained through their racing and rally programs, KTM has made a dual adventure-sport, if such a class exists. It’s a bike that will happily carve corners and go long distances on the tarmac, and with the flick of a thumb button, switch over into a fun, rowdy off-road adventure bike with dirt bike underpinnings that will let you scramble through trails, over hills, and kick up the dust while doing so.

The 2021 KTM 690 Enduro R starts at $11,999 USD / $13,099 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2021 KTM 690 Enduro R in one place.

Model Overview

General Info

Price: $11,999 USD / $13,099 CAD
Key Features:
- Integrated lean-sensitive traction control (street mode)
- Quickshifter
- Dual-zone ABS with cornering control (street mode), front-wheel-only ABS (off-road mode)

Main Specs

Engine Type: 693cc 4-valve single
Horsepower: 74 HP
Torque: 54 lb-ft
Wet Weight: Approx 350 lbs (Approx 159 kg)
Seat Height: 35.8 inch (910mm)

Competitors

2021 KTM 690 Enduro R Specifications

From KTM

ENGINE
Engine	693cc 4-valve, 1-cylinder, 4-stroke engine
Power	74 Horsepower
Bore x Stroke	105 mm x 80 mm
EMS	Keihin EMS with RBW, twin ignition
Power in KW	55 kW
Starter	Electric starter
Lubrication	Forced oil lubrication with 2 oil pumps
DRIVETRAIN
Clutch	APTC(TM) slipper clutch, hydraulically actuated
Transmission	6-Speed
Chain	X-Ring 5/8 x 1/4″
CHASSIS

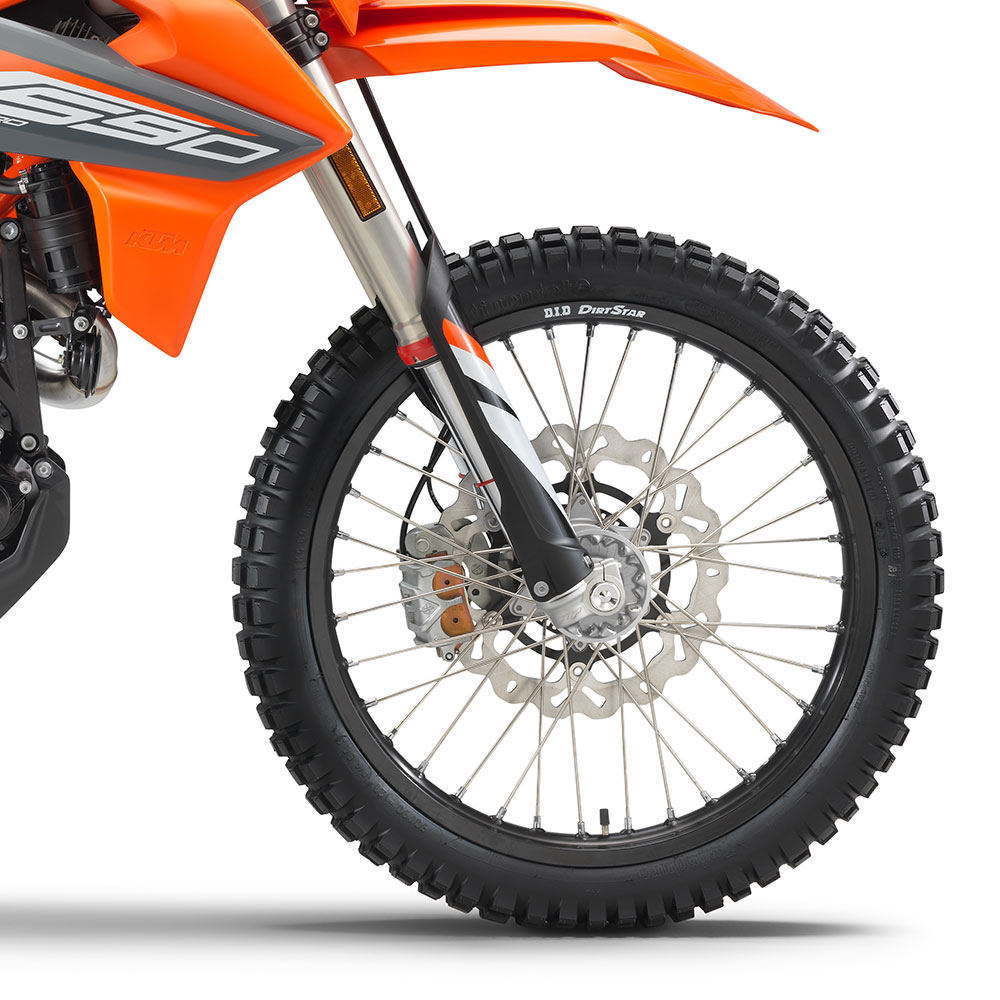

Suspension Front	WP XPLOR-USD, Ø 48 mm

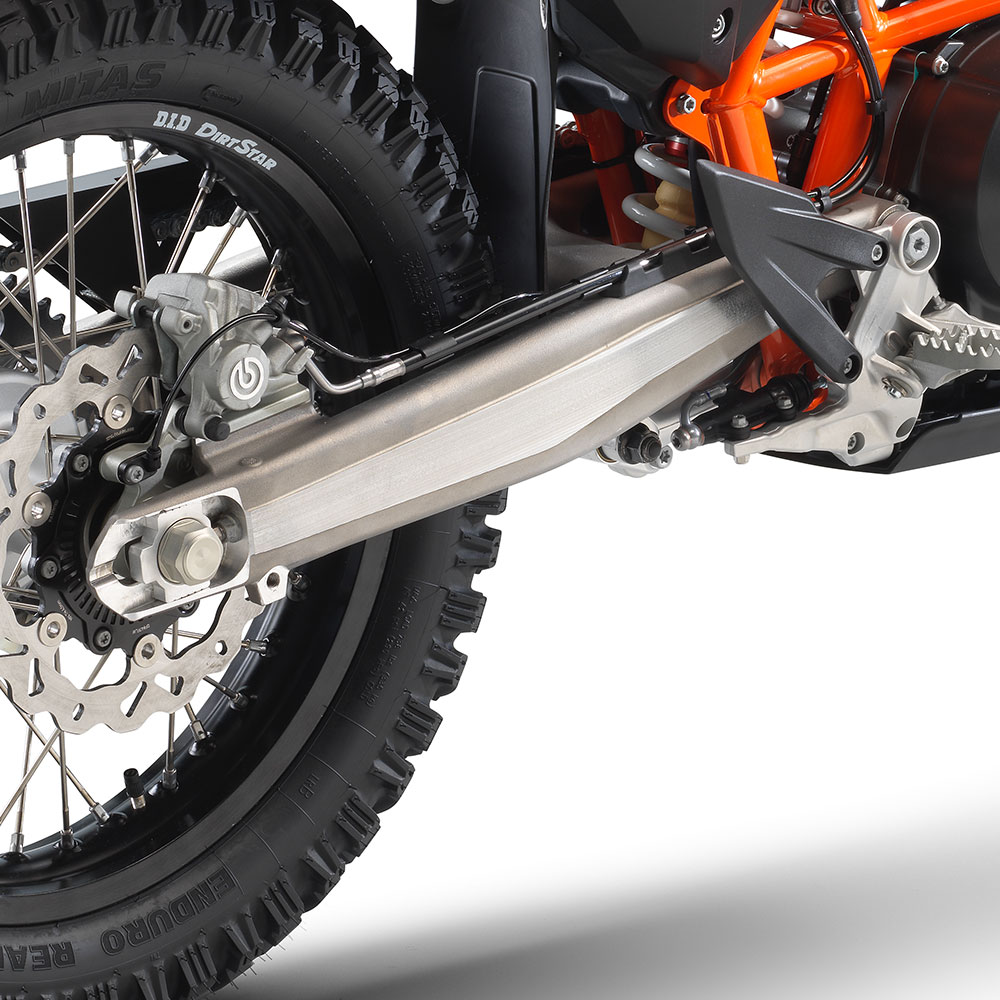

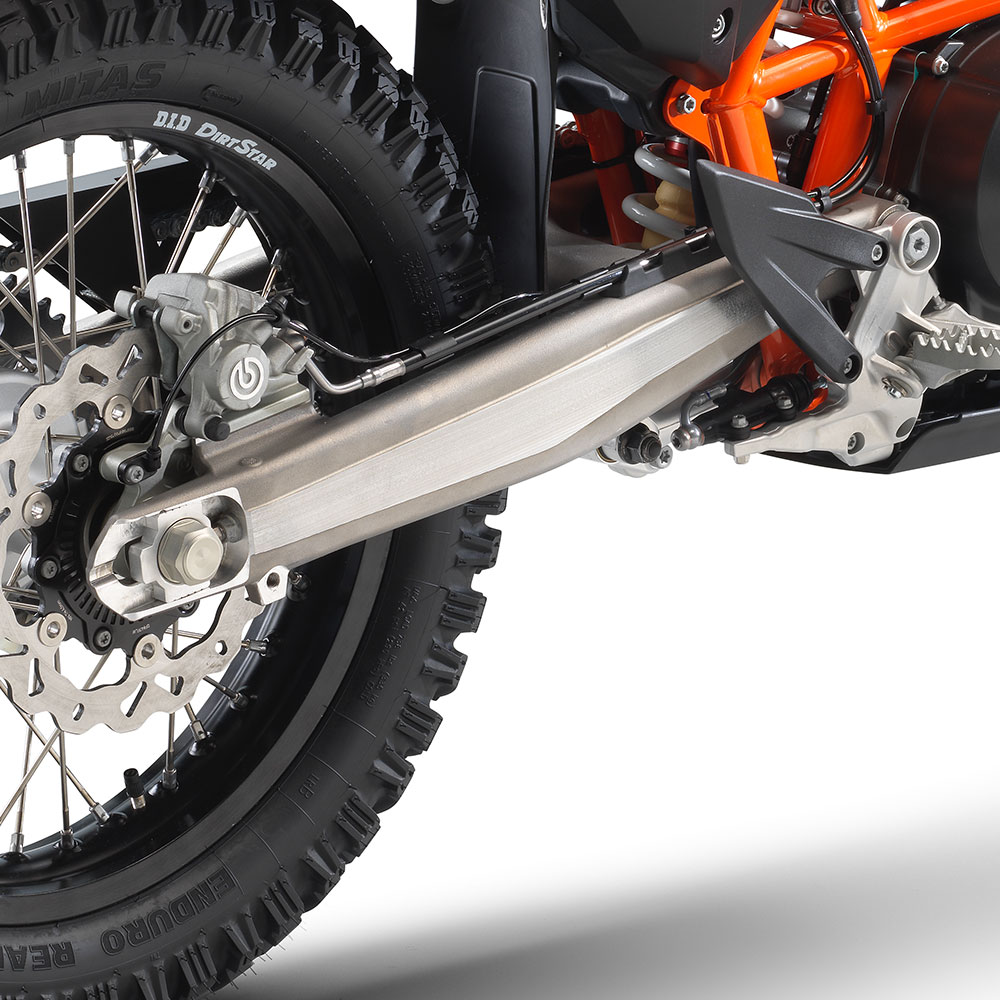

Suspension Rear	WP XPLOR with Pro-Lever linkage

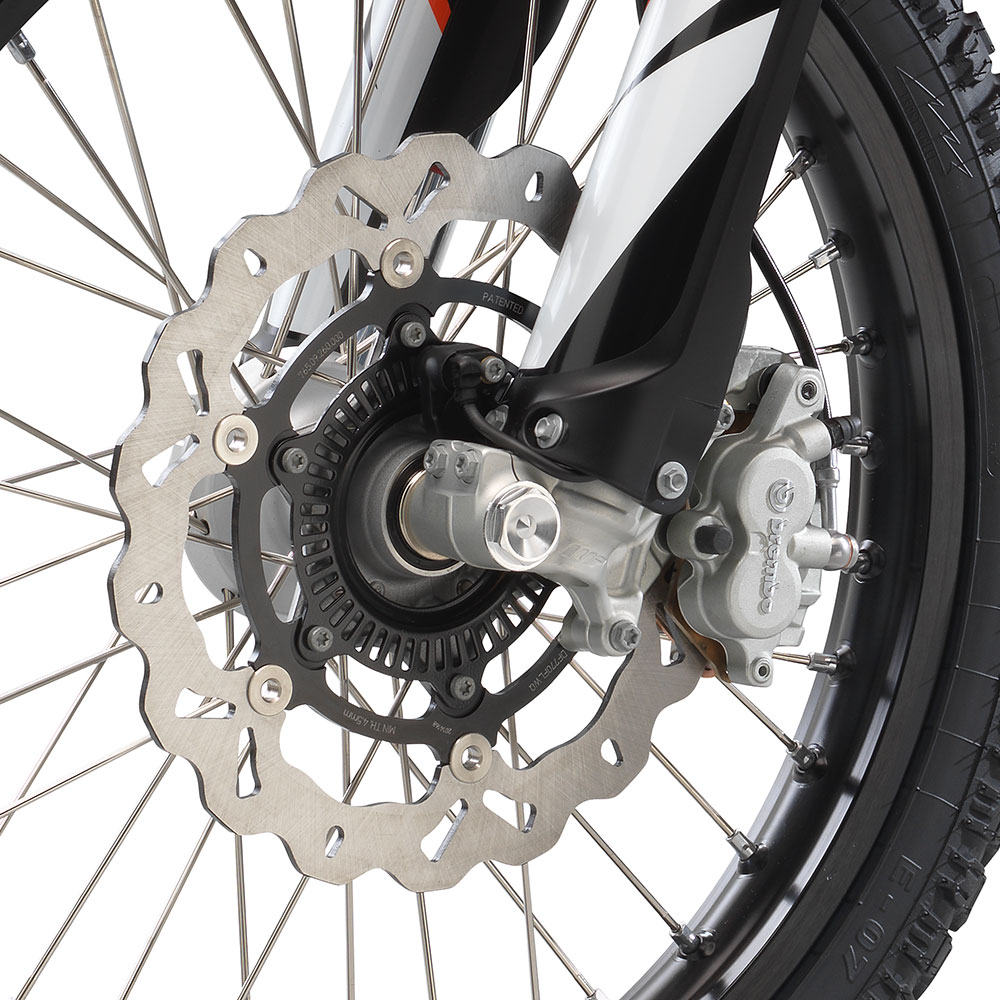

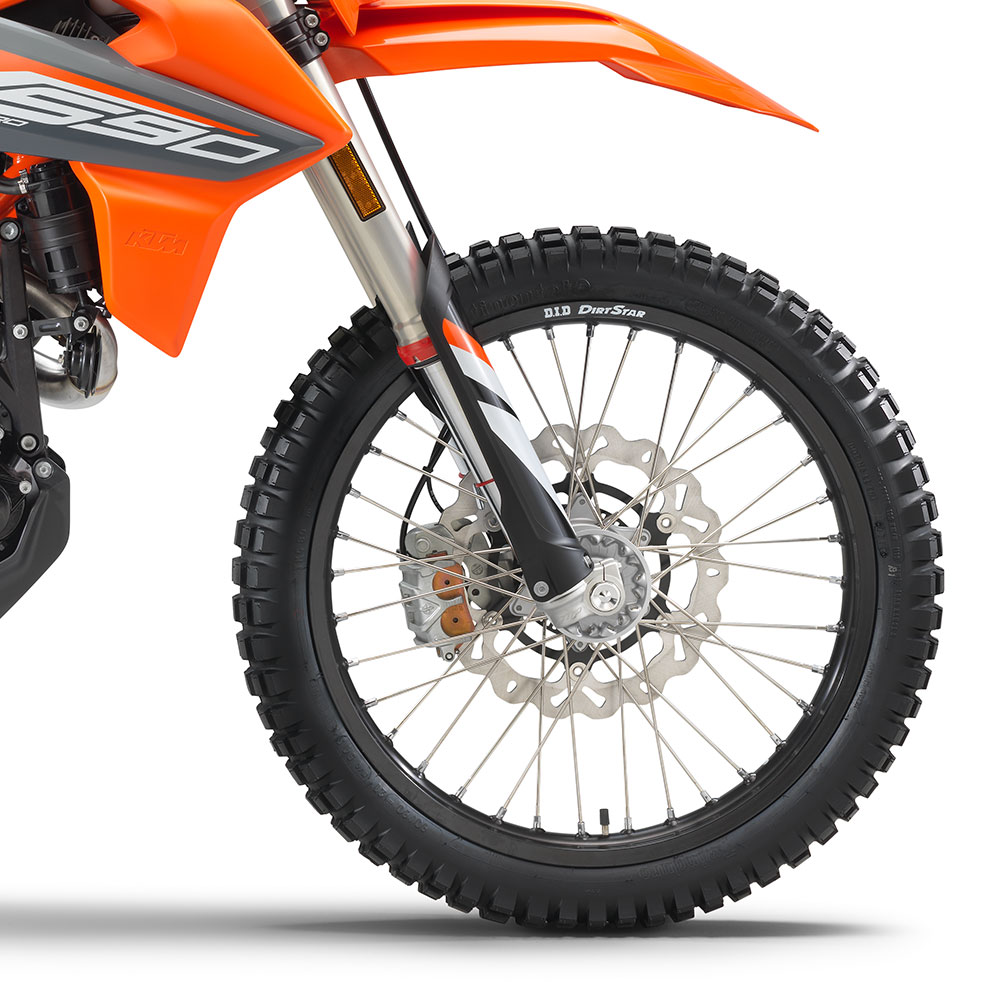

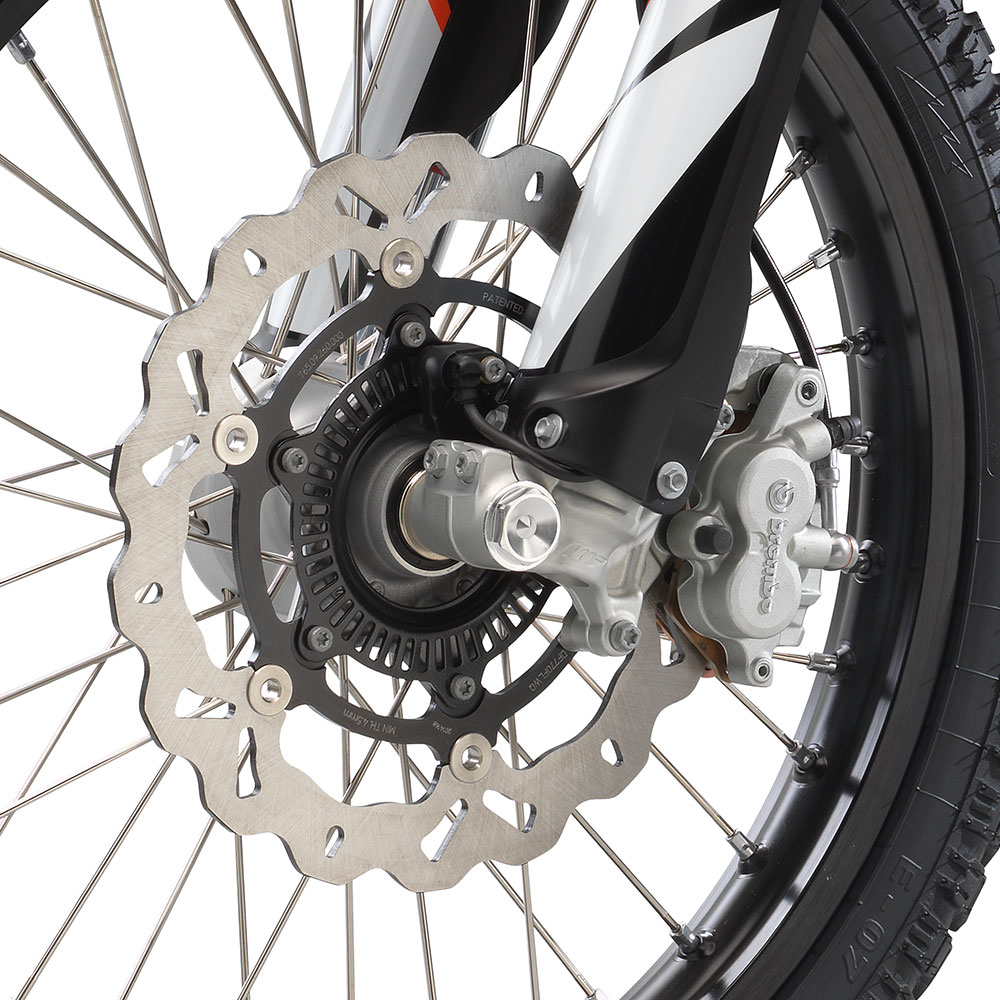

Brakes Front	300 mm
Brakes Rear	240 mm
Tires Front
Tires Rear
ABS	Bosch 9.1 MP (incl. Cornering-ABS and offroad mode, disengageable)
Color	Black, Orange
ELECTRICAL
Ignition
Spark Plugs
Headlight	LED
Tail Light	LED
DIMENSIONS
Overall Length
Overall Width
Overall Height
Wheelbase
Ground Clearance
Seat Height
Wet Weight	Approx 350 lbs (Approx 159 kg)
WARRANTY
Warranty
Extension

2021 KTM 690 Enduro R Features

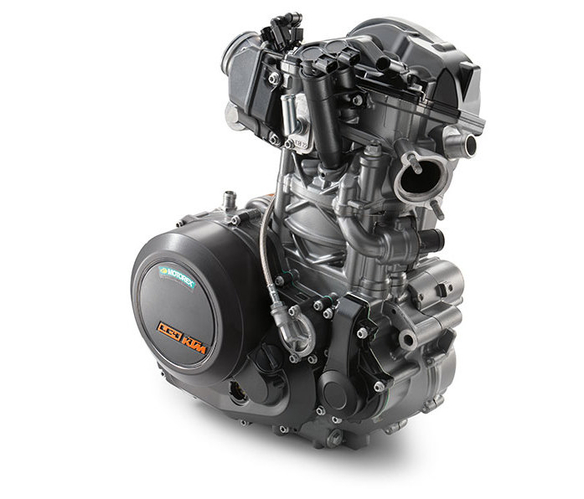

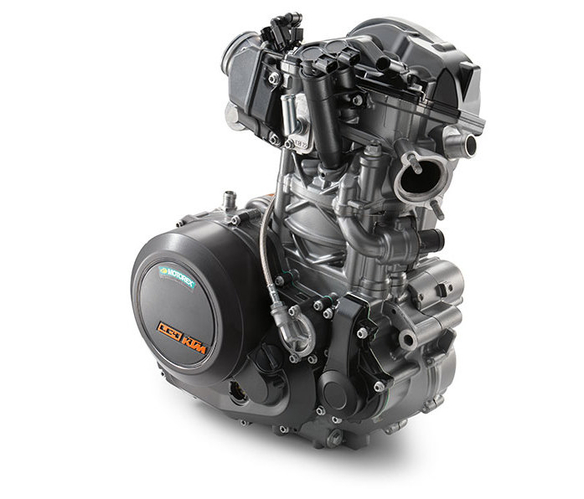

The engine combines powerful acceleration from the very lowest revs with an outstanding free-revving nature and refined engine running. Another big plus: It’s extremely economical with fuel.

A lightweight, compact cylinder head contains four valves and a single camshaft placed over the intake valves, with a secondary balancer shaft driven by the timing chain. The intake valves are actuated by finger followers and the exhaust valves by a rocker arm.

A resonator chamber balances out pulses in the intake tract and makes the throttle response smoother with reduced vibrations.

Twin balancer shafts, one in front of the crankshaft and the other in the cylinder head, reduce vibration for a smoother ride.

The lightweight and durable forged piston is designed to reduce reciprocating mass which improves engine response.

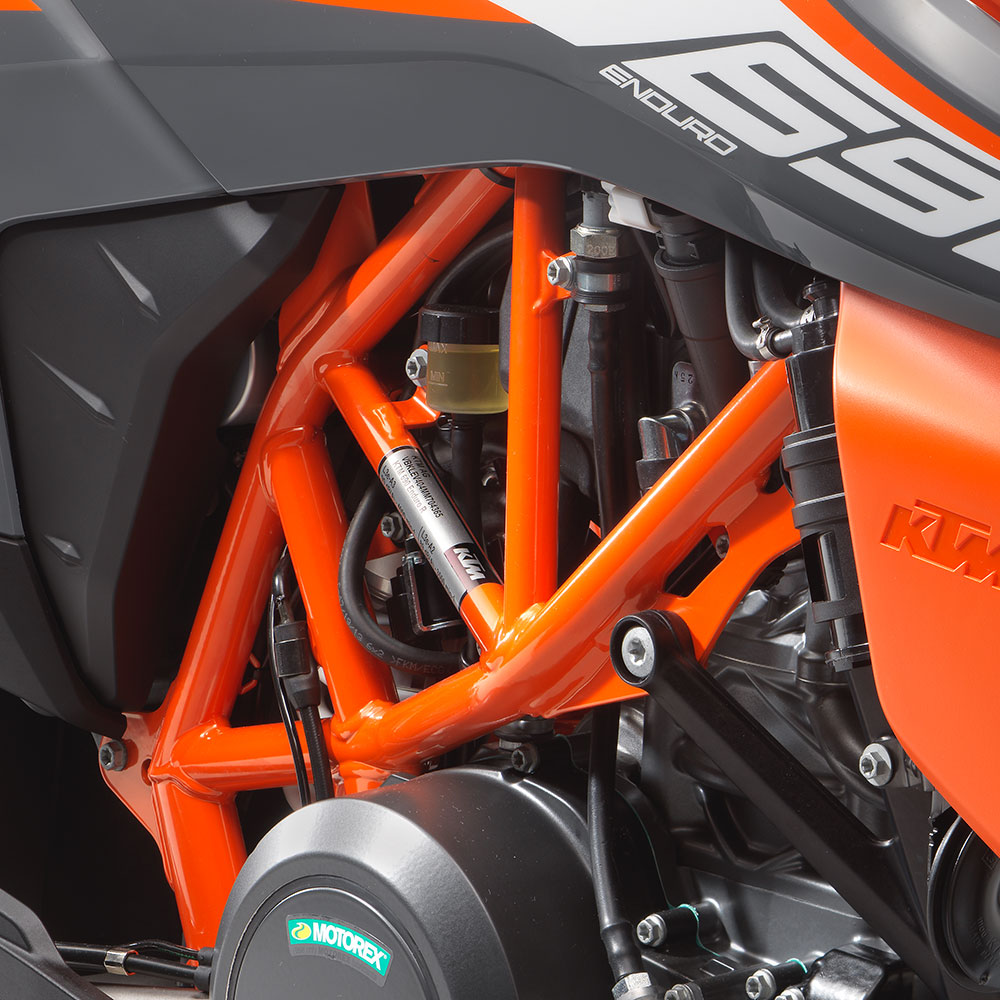

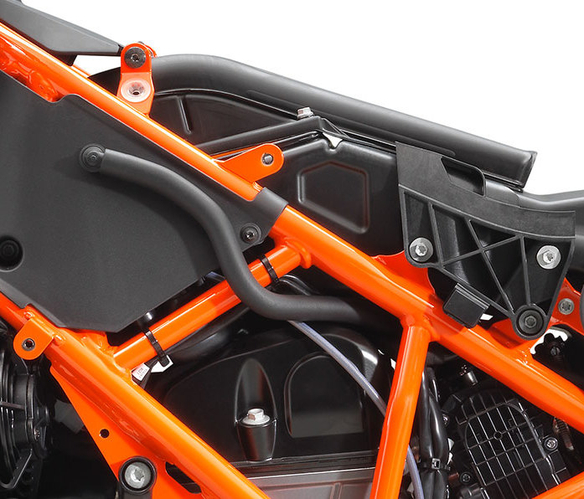

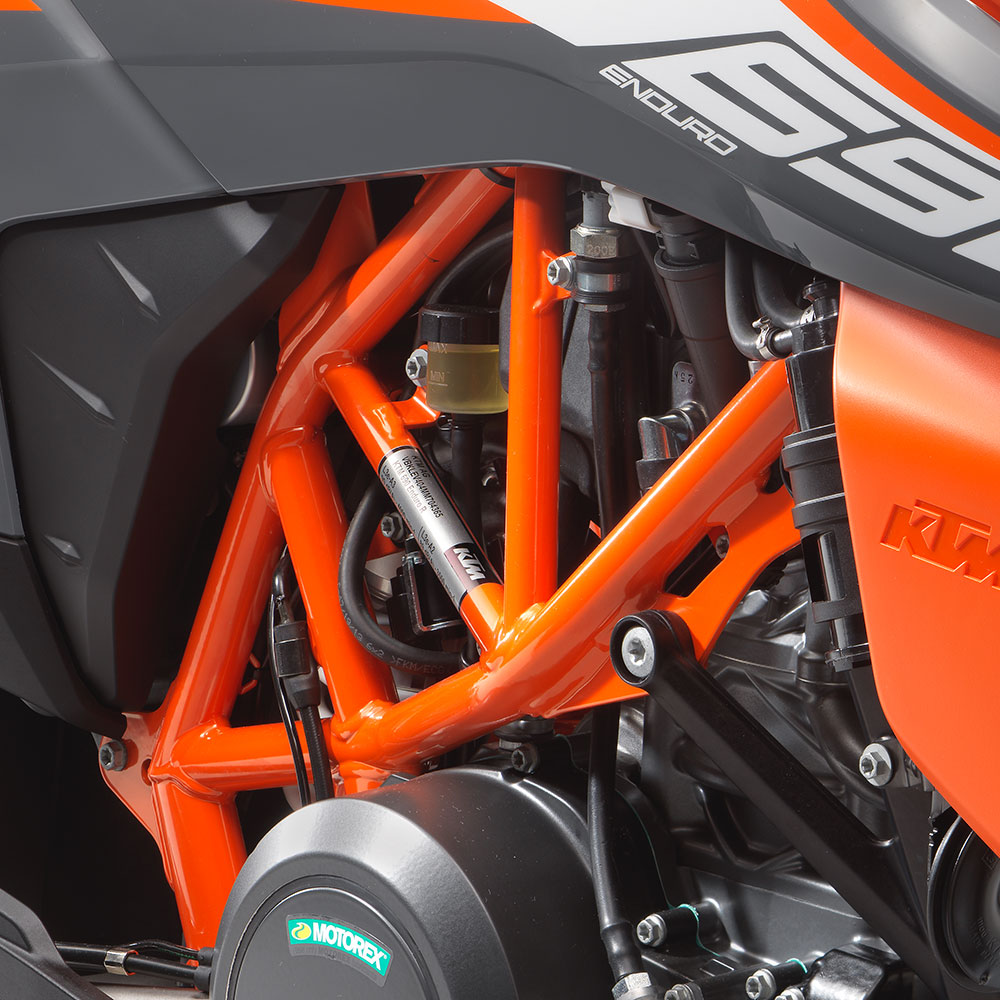

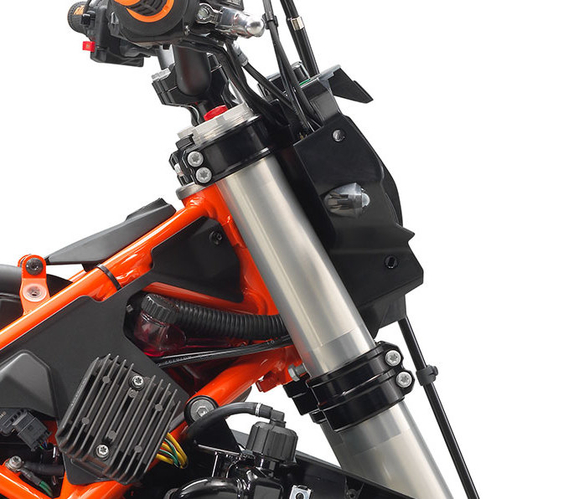

The trellis frame is manufactured from lightweight sections of top-quality chrome-molybdenum steel tubing of varying thicknesses. This type of balanced frame design provides high torsional rigidity for best handling and rideability, while a more specifically-tuned longitudinal flexibility can absorb the wheel impact energy, supporting the suspension for reduced rider fatigue.

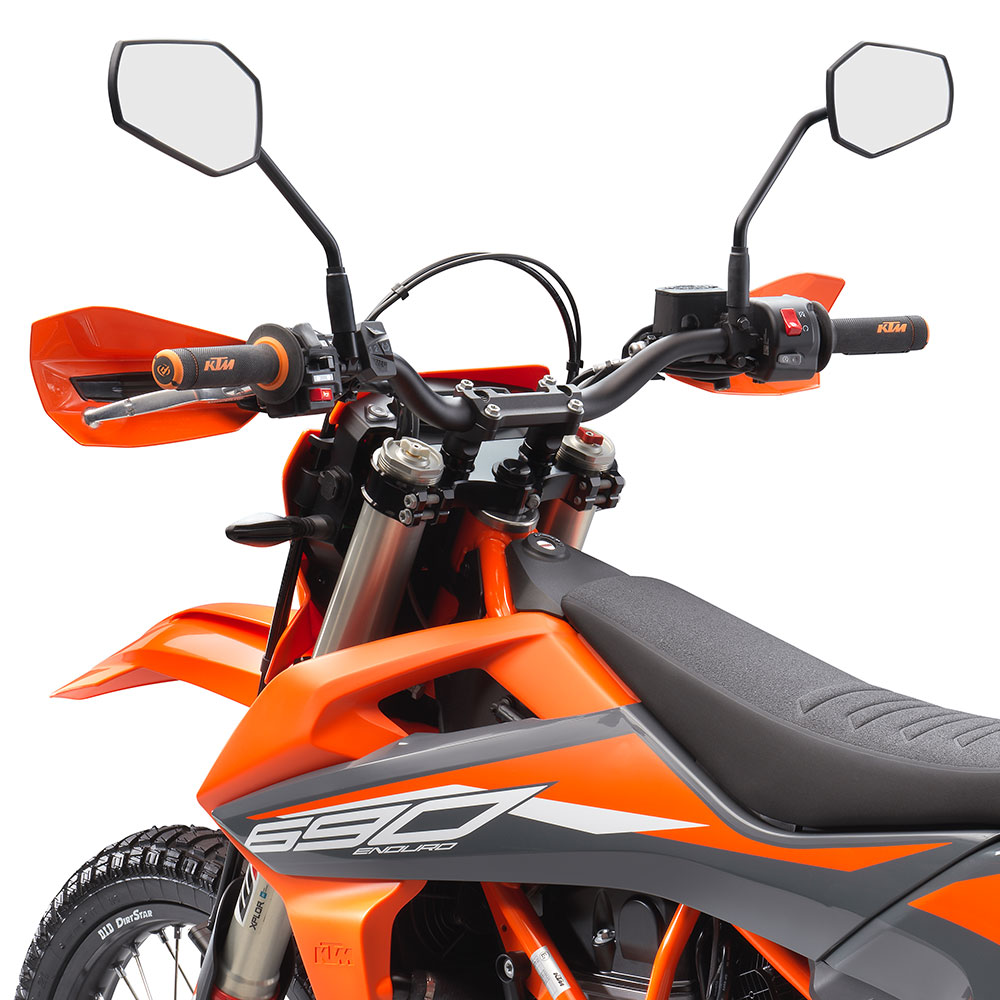

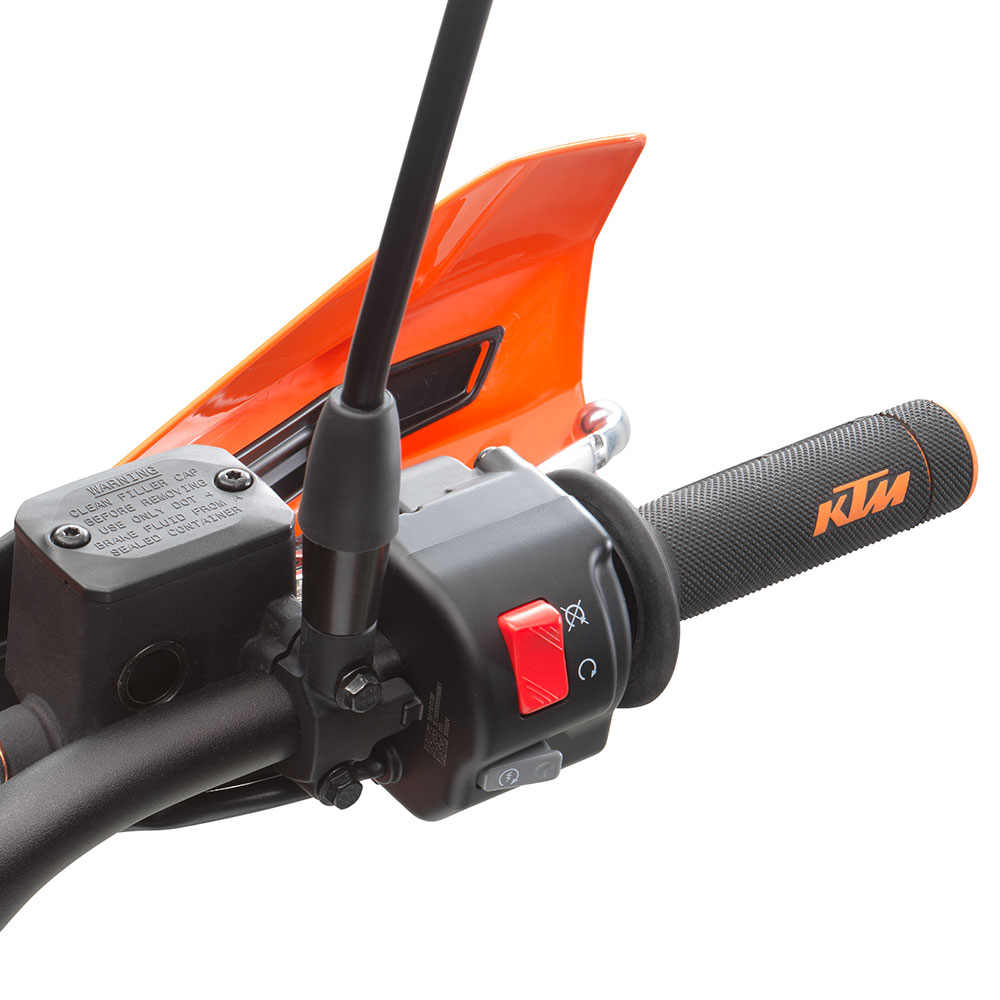

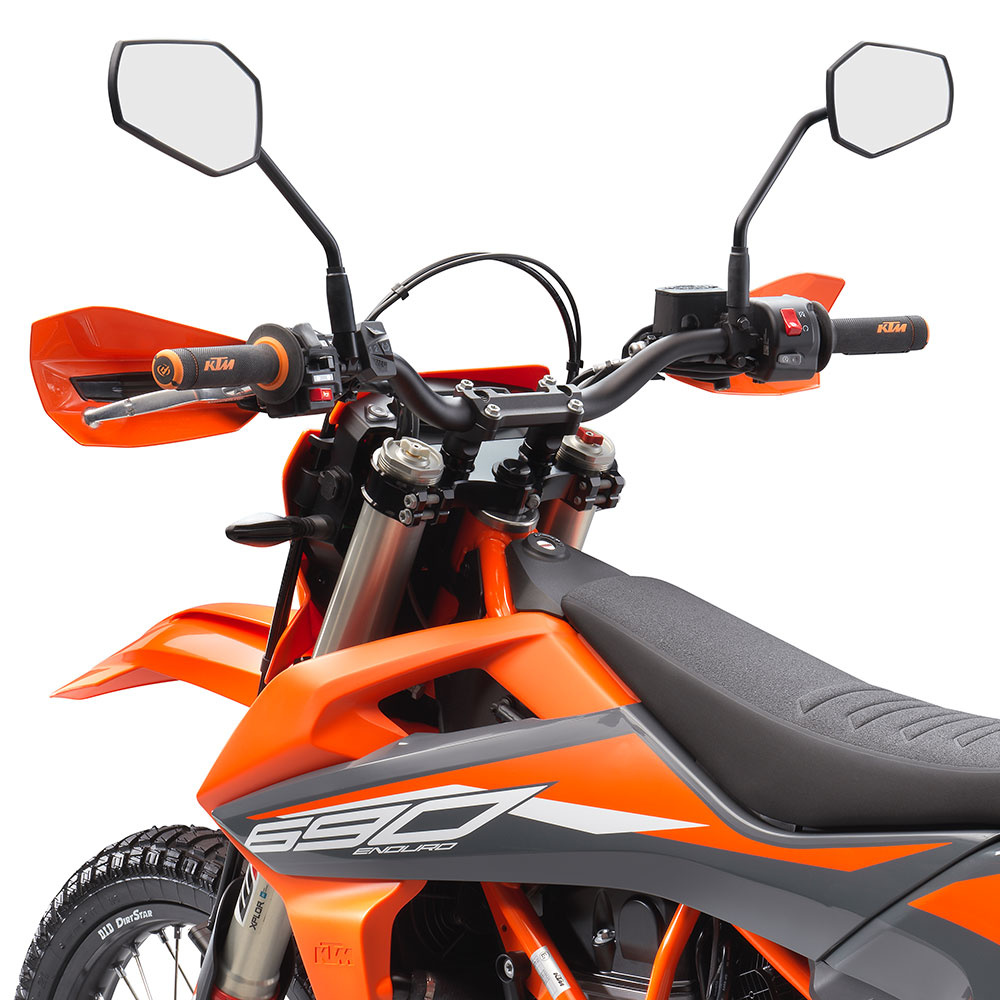

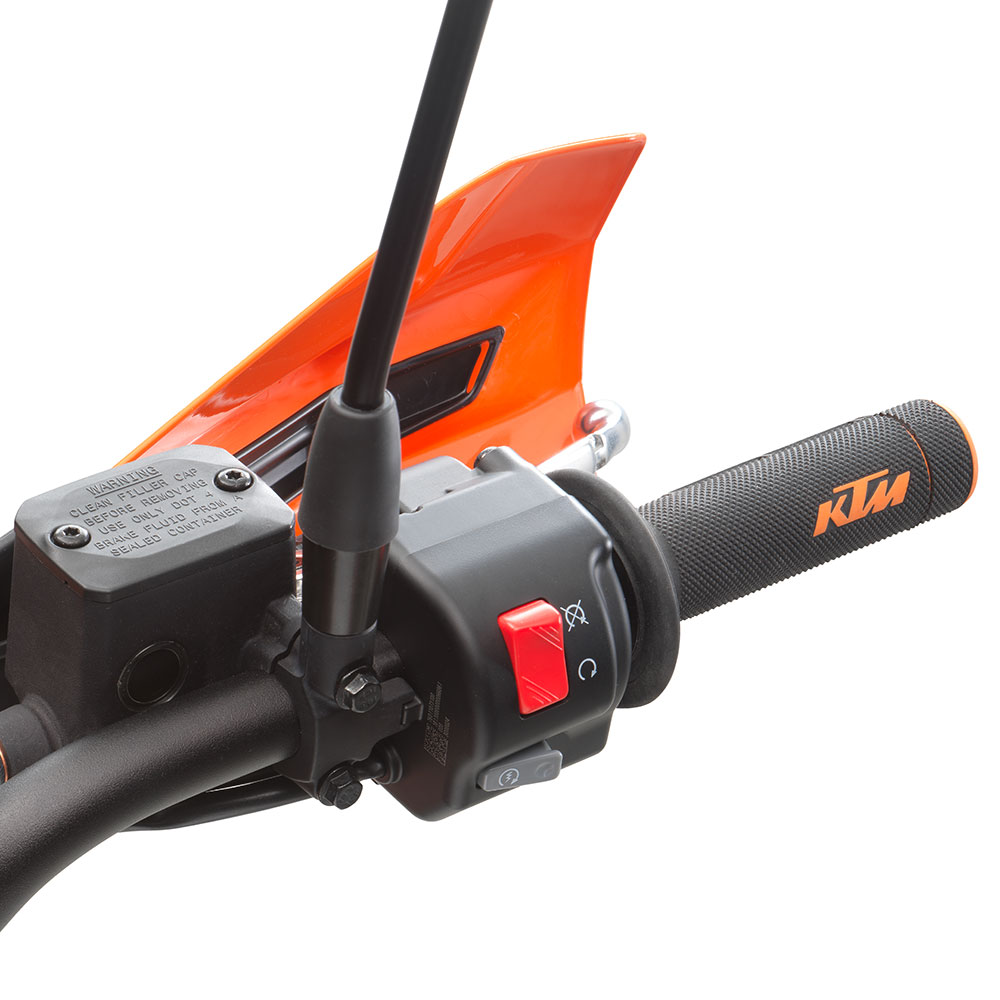

The lightweight tapered 808 mm wide handlebars are rubber mounted to reduce vibrations. Their width and shape are aimed at providing maximum control in all situations.

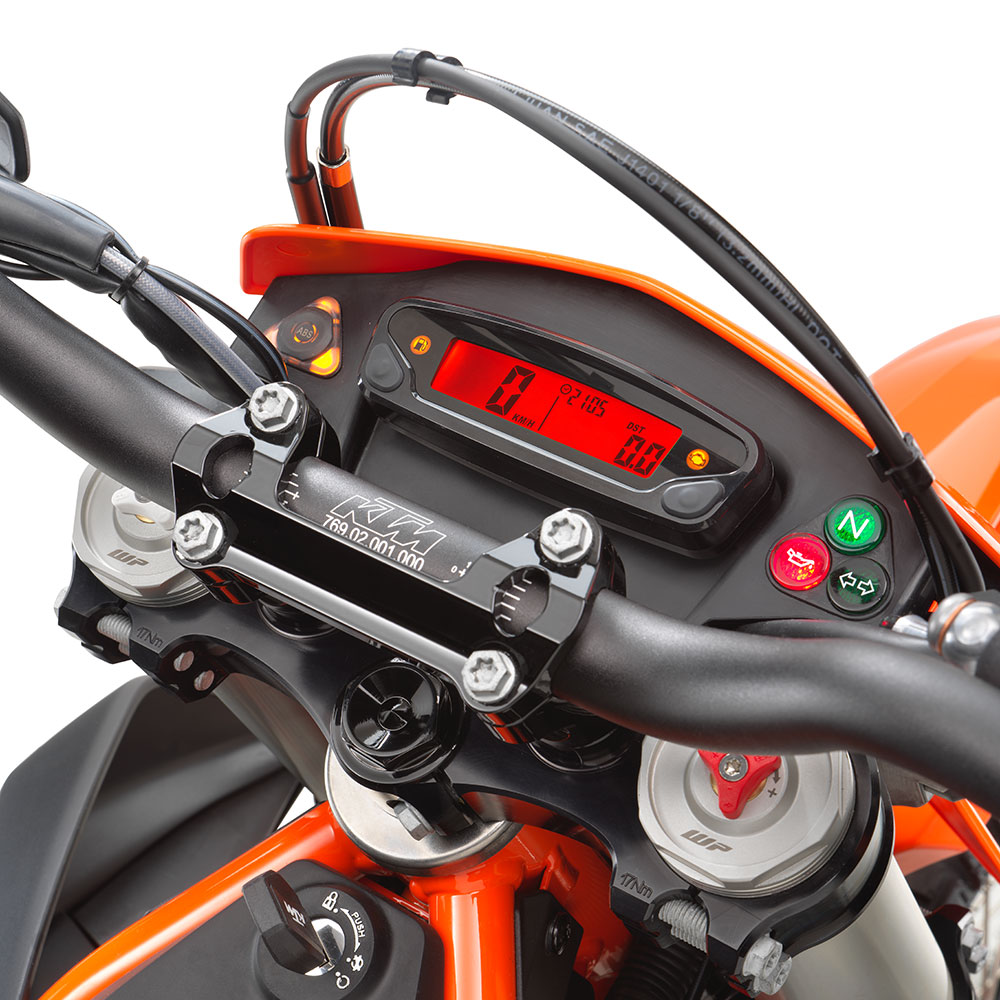

The dashboard provides the rider with essential information in an easy-to-read layout.

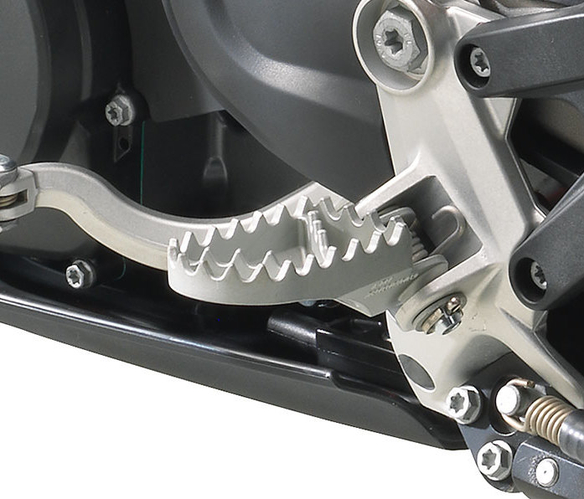

Sophisticated “No Dirt” foot pegs prevent jamming up of the pegs, even when digging your way through deep ruts or navigating wet terrain. Rubber inserts can be mounted for street use to help reduce any vibration that might be felt through the pegs on smooth roads.
