2021 Kawasaki KLX 230 ABS [Specs, Features, Photos]

The 2021 Kawasaki KLX 230 ABS: A Subtle, Competent Dual-Sport

Model Overview
Specifications
Features
Photos
Videos
Links

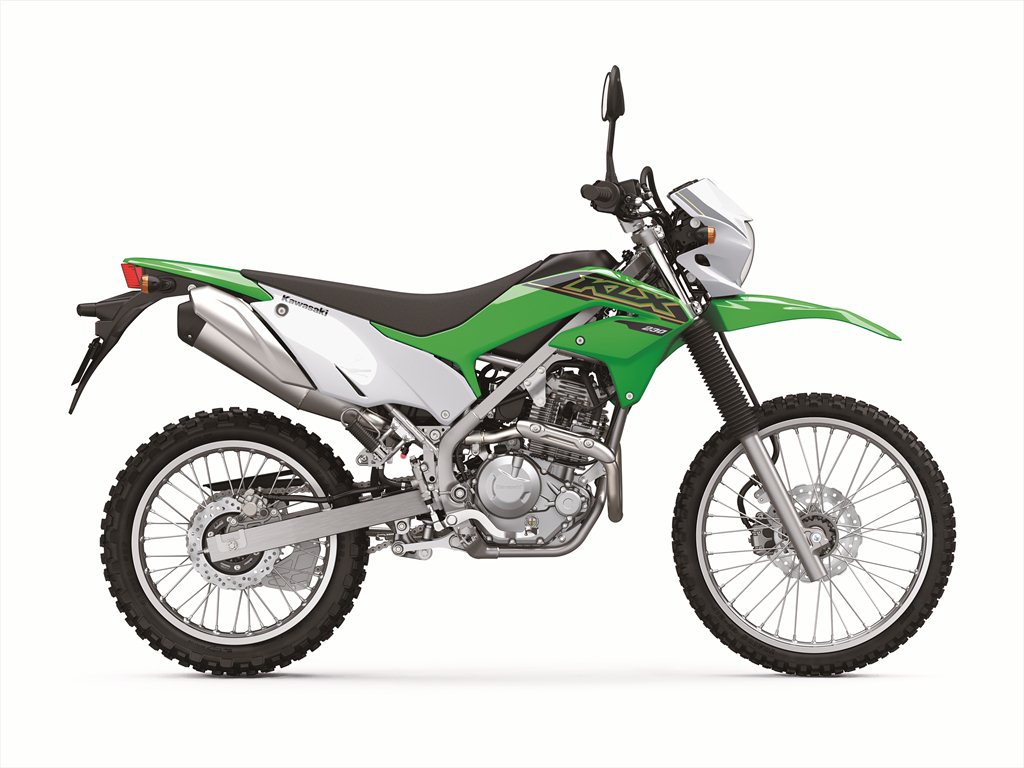

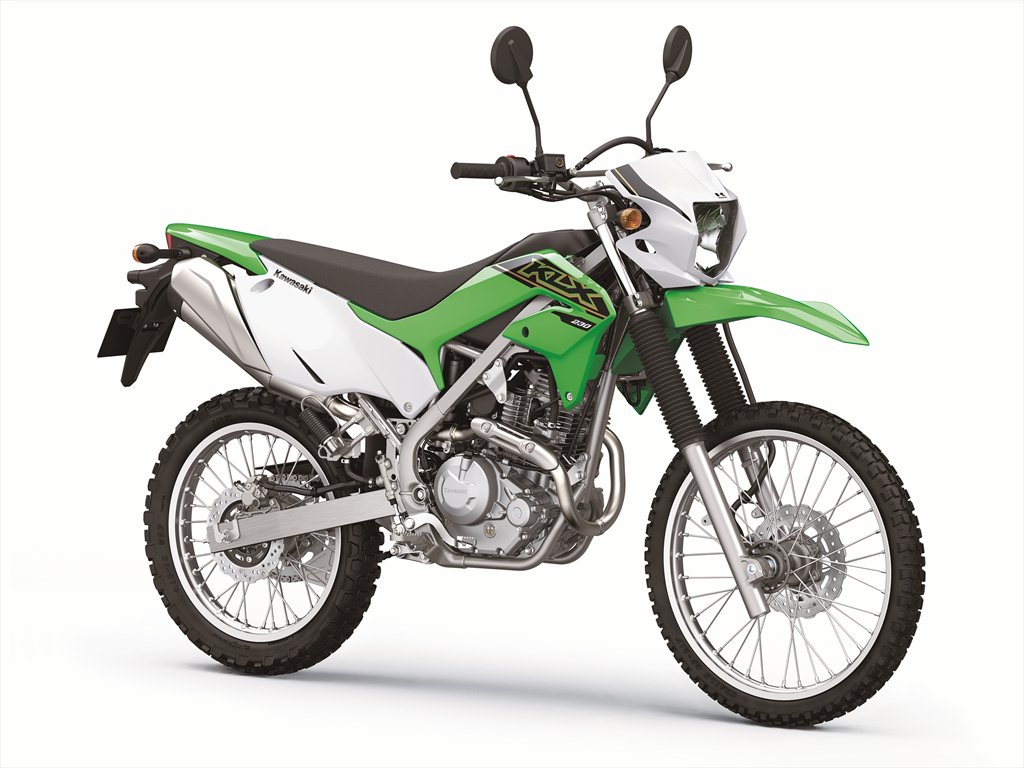

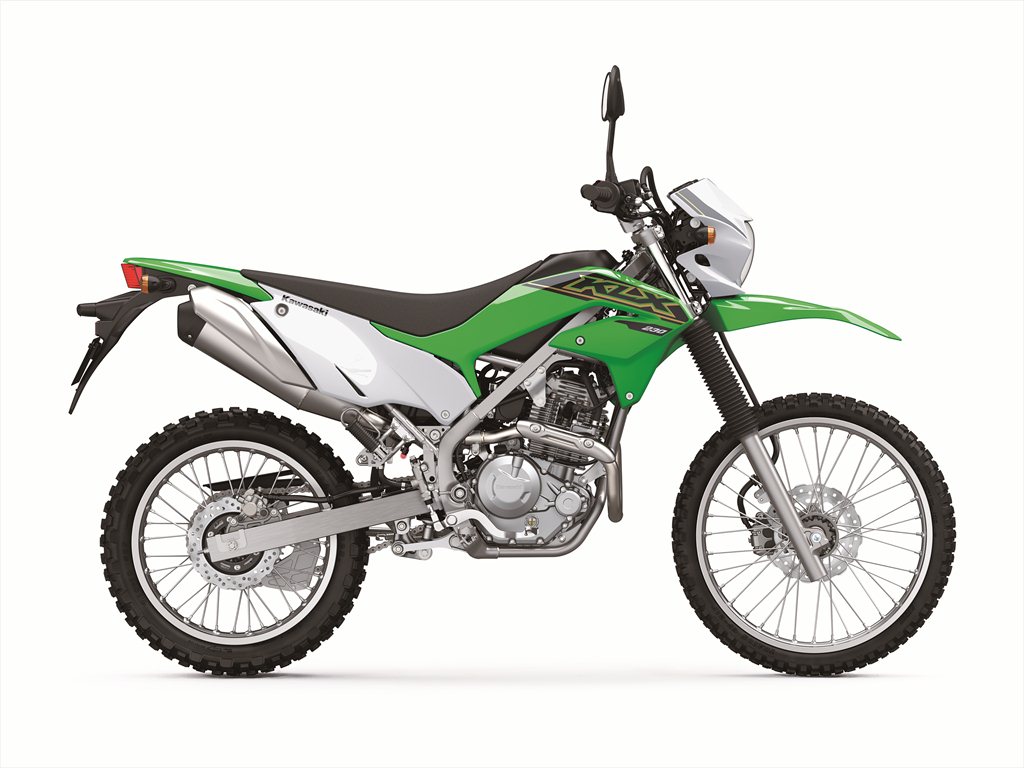

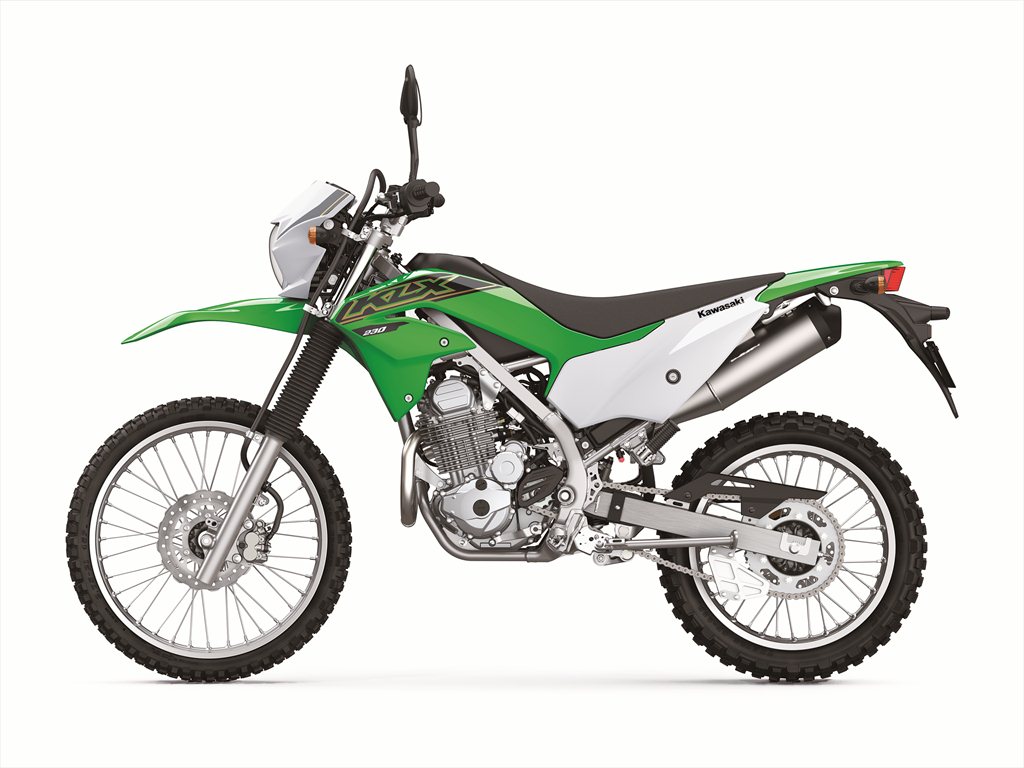

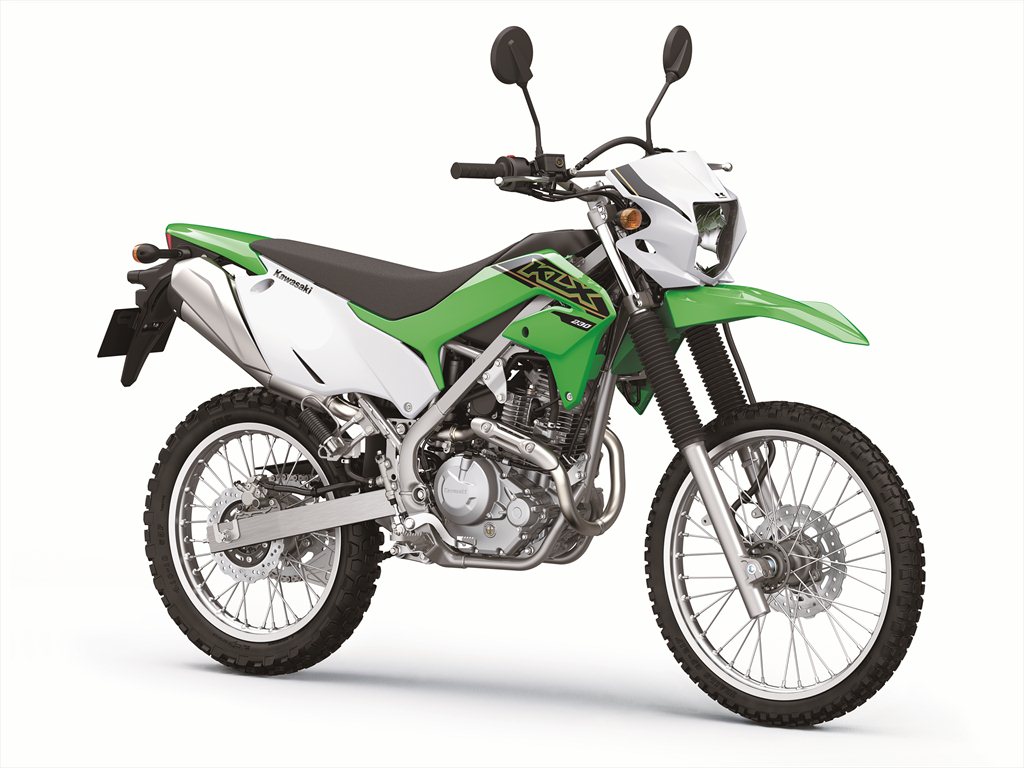

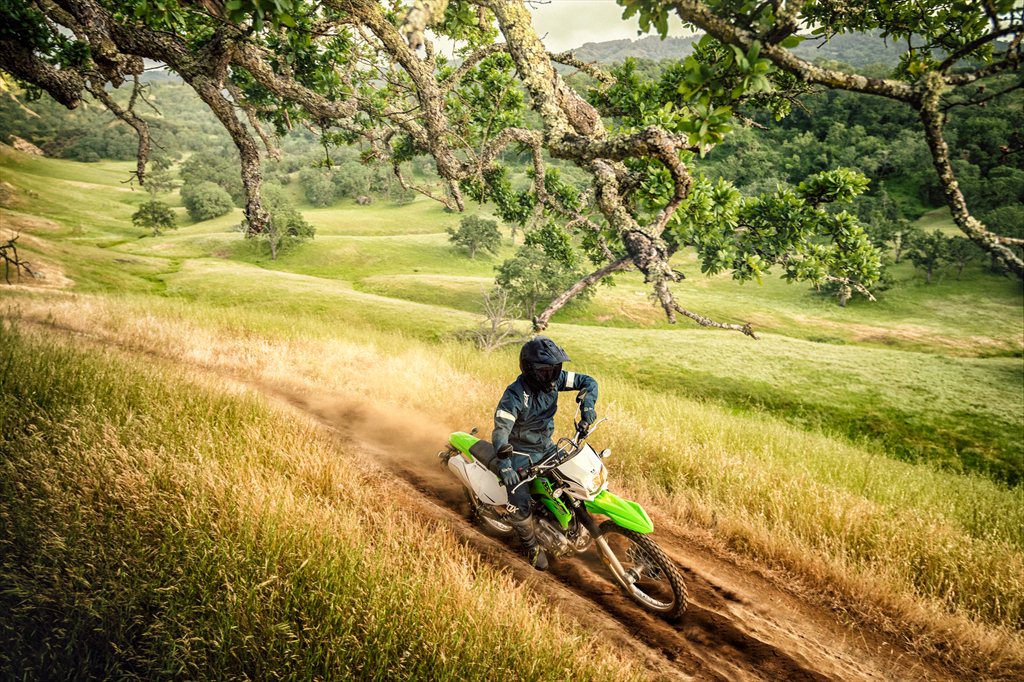

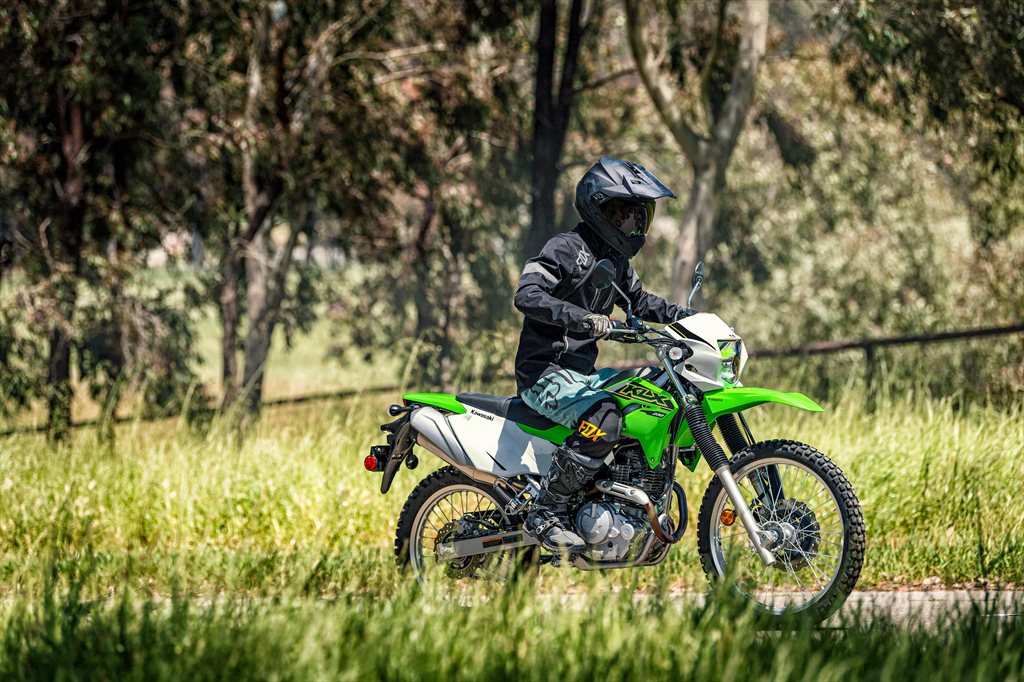

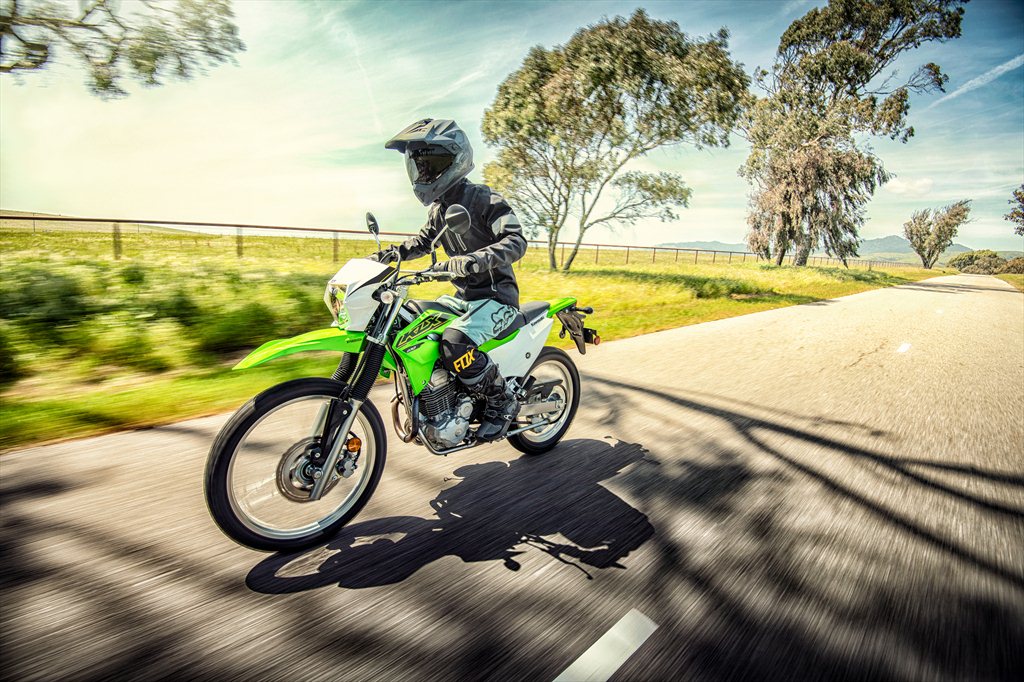

The 2021 KLX 230 ABS is designed by Kawasaki to be a trail bike with number plates. Unlike it’s bigger brother the KLX 300, the 230 is much more at home on the trail than the road. However, that’s not to say it doesn’t have road manners. Powered by a 233cc fuel-injected, air-cooled four stroke single, it packs 20 HP and 11 lb-ft of torque.

The Japanese company doesn’t skimp out on features either. For the first time on the KLX 230 platform, dual-zone ABS comes as standard, compared to separate ABS zones on the 2020 bike. What this means is that the ABS sensor determines the braking load across both wheels at the same time, instead of just on one wheel. An electric starter, indicators, headlight, and fully digital backlit dash complete the dual-sport package.

The 2021 Kawasaki KLX 230 ABS starts at $4,899 USD / $5,499 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2021 Kawasaki KX 230 ABS in one place.

Model Overview

General Info

Price: $4,899 USD / $5,499 CAD
Key Features:
- Six speed manual transmission
- Dual-zone ABS standard
- Electric starter

Main Specs

Engine Type: 233cc, air-cooled, 4-stroke, SOHC 2-valve single
Horsepower: Approx 20 HP
Torque: 11 lb-ft
Wet Weight: 293 lbs (133 kg)
Seat Height: 34.8 inches (885 mm)

Competitors

Yamaha XT250
Suzuki DR200S
KTM 390 Adventure

2021 Kawasaki KX 230 ABS Specifications

From Kawasaki

ENGINE
Engine	233cc, air-cooled, 4-stroke, SOHC 2-valve single
Power	Approx 20 HP
Bore x Stroke	67.0 x 66.0mm
Compression Ratio	9.4:1
Fuel System	DFI® with 32mm Keihin throttle body
Starter	Electric
Lubrication
DRIVETRAIN
Clutch	Wet multi-disc manual clutch
Transmission	6-speed, return shift
Final Drive	Chain
CHASSIS
Suspension Front	37mm telescopic fork/9.8 in
Suspension Rear	Uni-Trak® linkage system and single shock with adjustable spring preload/8.8 in
Brakes Front	Single 265mm petal disc with a dual-piston caliper with Dual Purpose ABS
Brakes Rear	Single 220mm petal disc with single-piston caliper with Dual Purpose ABS
Tires Front	2.75 x 21
Tires Rear	4.10 x 18
Fuel Tank Capacity	2.0 gal.
Color	Lime Green
ELECTRICAL
Ignition	TCBI Electronic Advance
Spark Plugs
Headlight	LED
Tail Light	LED
DIMENSIONS
Overall Length	82.9 in.
Overall Width	32.9 in.
Overall Height	45.9 in.
Wheelbase	54.3 in.
Ground Clearance	10.4 in.
Seat Height	34.8 in.
Curb Weight	293.3 lb. / 295.5 lb. CA model
WARRANTY
Warranty	6 Months
Kawasaki Protection Plus	12, 24, or 36 months

2021 Kawasaki KX 230 ABS Features

Kawasaki ABS systems use front and rear wheel sensors to constantly monitor wheel speed. Should information from either of the sensors indicate that wheel lock has occurred, the ABS ECU directs the pump in the ABS unit to modulate brake fluid pressure (releasing and reapplying pressure so that traction can be regained) until normal operation resumes. ABS offers rider reassurance that contributes to greater riding enjoyment.
