The wait is over! The first American-made Adventure bike is here, the Harley Davidson Pan America 1250. HD is trying to come into a market segment that has some serious heavyweights. Both the 1250 and 1250 Special have the specs that should make them definite contenders.

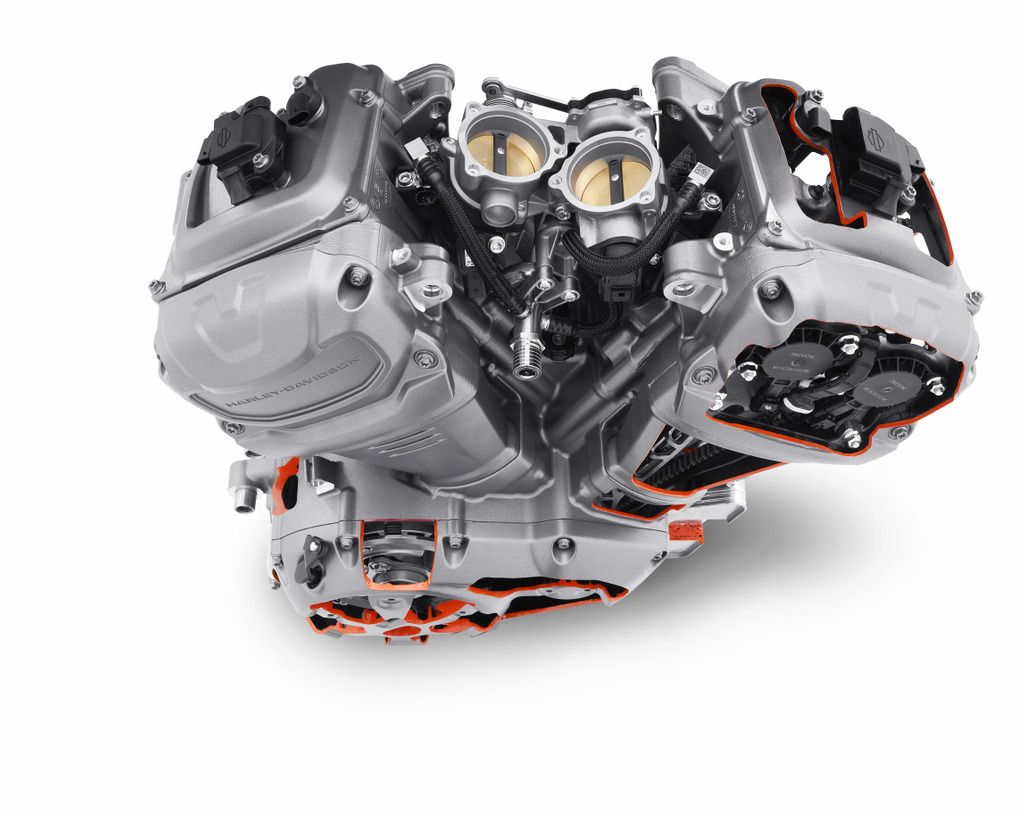

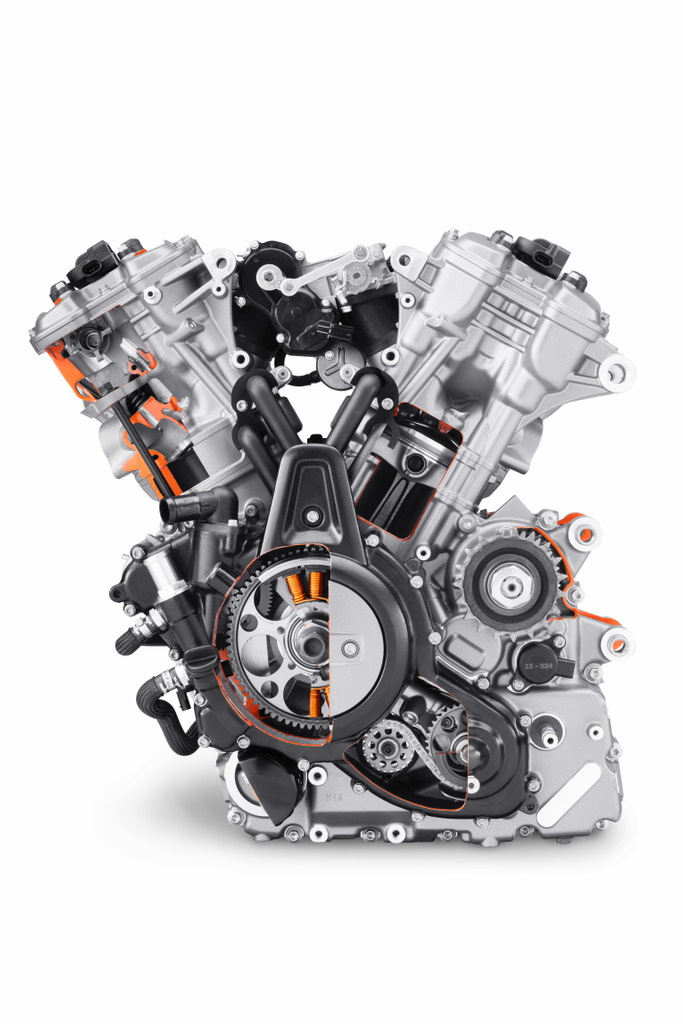

This is the first use of the new Revolution® Max 1250 Engine in the 2021 Harley Davidson lineup, a liquid-cooled V-Twin designed to offer flexible, engaging performance with a broad powerband that builds to a rush of high-RPM power. Making 150 HP and 94 ft. lbs of torque, this engine spins up to 9500 RPM. The 60o V-Twin has an optimized design for lightweight and is a structural component of the motorcycle chassis, a front frame element, mid-frame element, and the tail section bolt directly to the powertrain.

The Pan America 1250 and Pan America 1250 Special models are equipped with a collection of technologies designed to match motorcycle performance to available traction during acceleration, deceleration, and braking. The systems are designed to aid the rider in controlling the motorcycle while accelerating and braking in a straight line or while in a turn.

Cornering Enhanced Electronically Linked Braking (C-ELB)
Cornering Enhanced Antilock Braking System (C-ABS)
Cornering Enhanced Traction Control System (C-TCS)
Cornering Enhanced Drag-Torque Slip Control System (C-DSCS)
Hill Hold Control (HHC)
Tire Pressure Monitoring System (TPMS)

5 Pre-programed ride modes (4 are pre-programmed and one can be customized) for the Pan America 1250 models include Road, Sport, Rain, Off-Road, and Off-Road Plus. The Pan America™ 1250 Special model has two additional modes that can be customized by the owner, each ride mode consists of a specific combination of power delivery, engine braking, Cornering Enhanced Antilock Braking System (C-ABS), and Cornering Enhanced Traction Control System (C-TCS) settings.

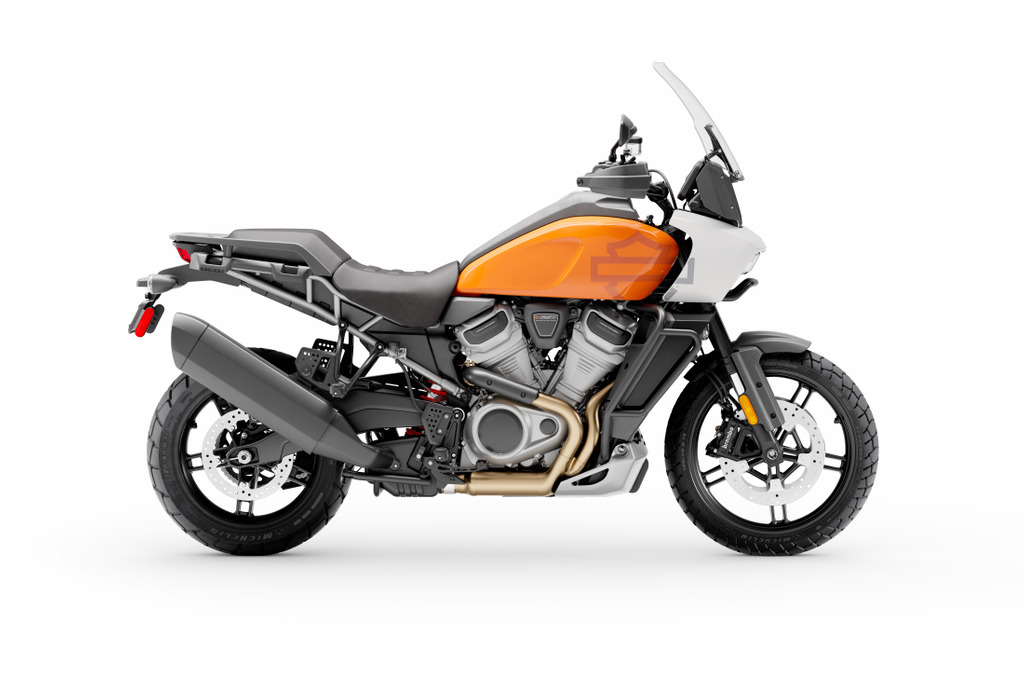

Designed to compete with the top-of-the-line ADV bikes in the segment, the 1250 Special is loaded with premium features.

Semi-active Front And Rear Suspension With Vehicle Load Control
Tire Pressure Monitoring System (TPMS)
Center Stand
Multi-position Rear Brake Pedal
Brush Guard
Aluminum Skid Plate
Daymaker Signature Adaptive Headlamp
Hand Wind Deflectors And Heated Hand Grips
Steering Damper
Factory-installed Option Adaptive Ride Height
Factory-installed Option Tubeless Laced Wheels

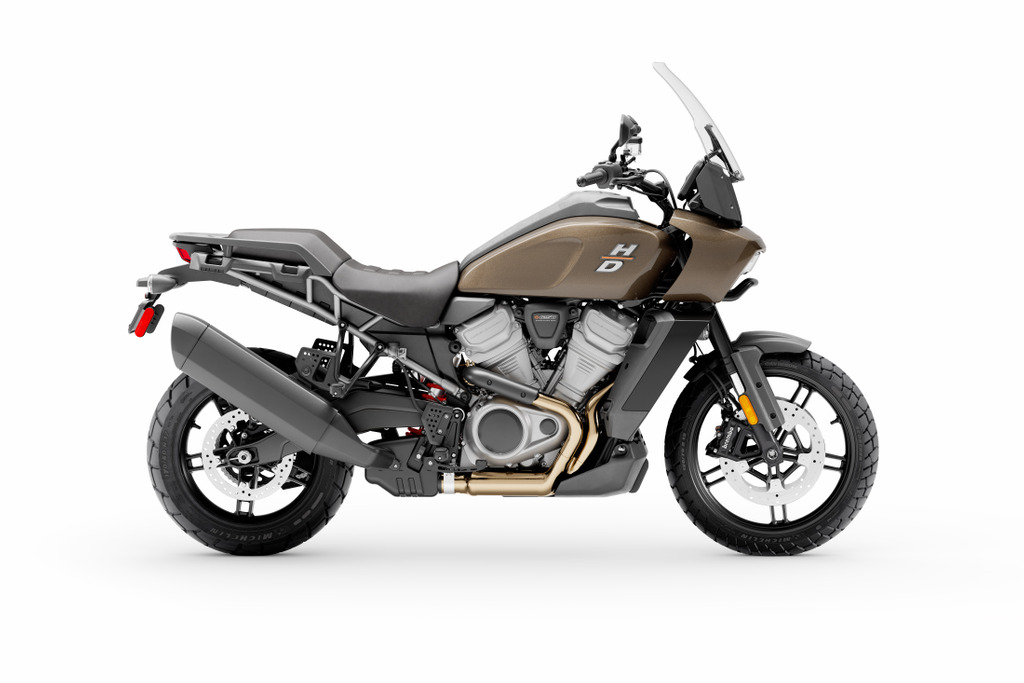

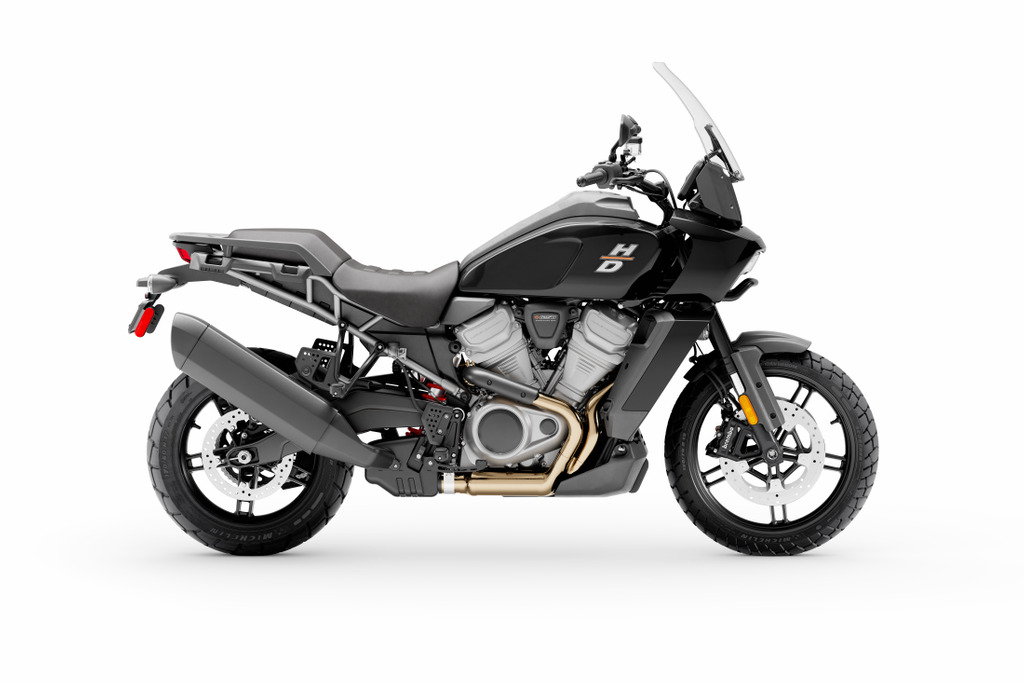

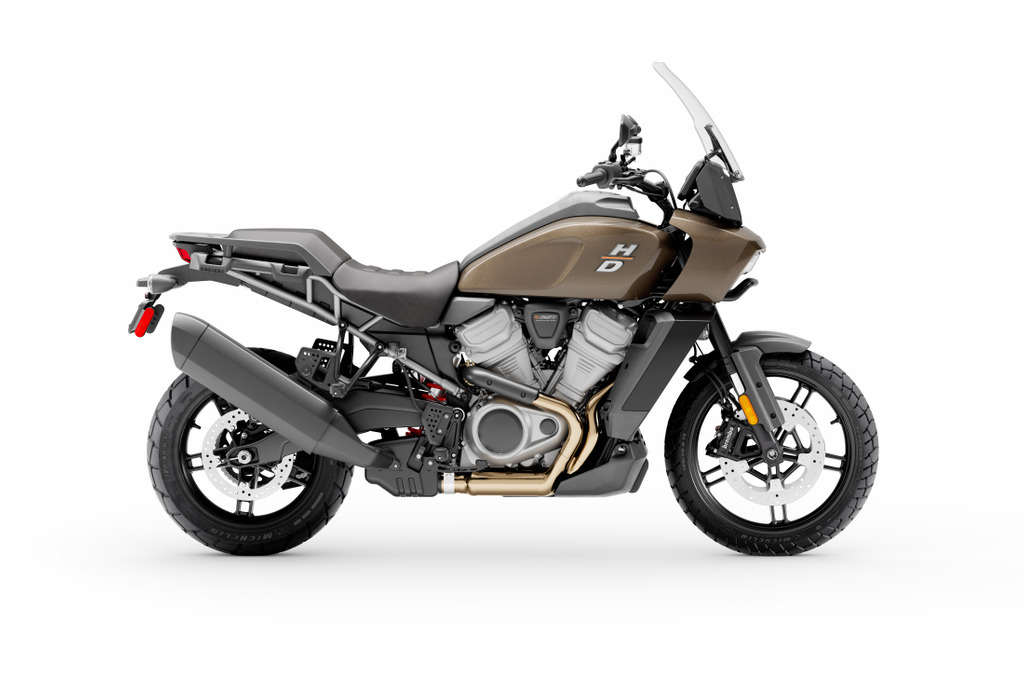

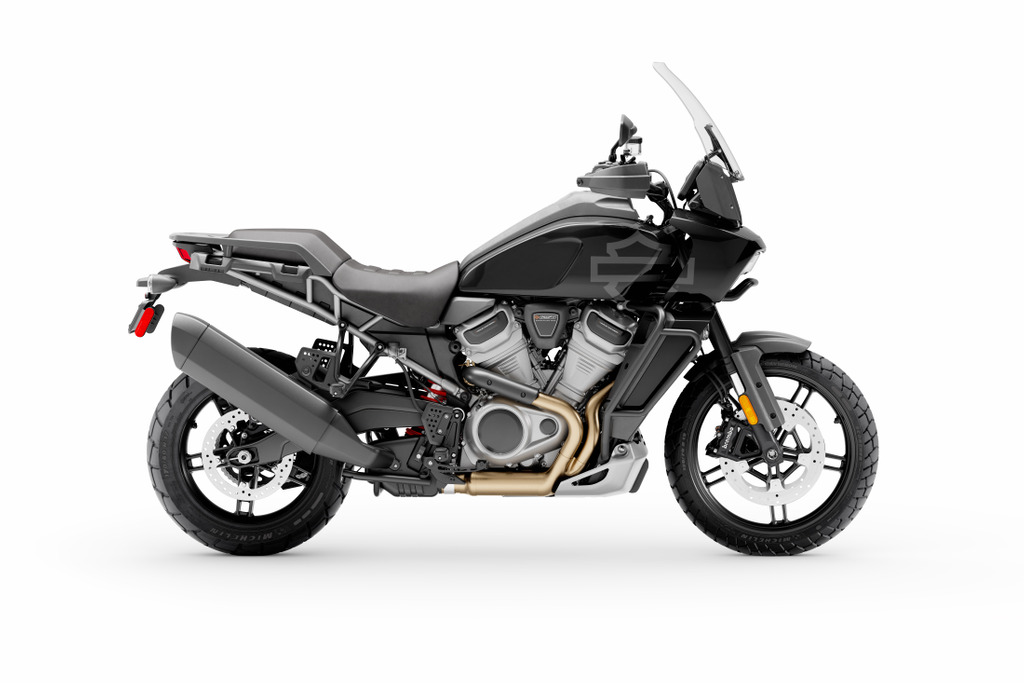

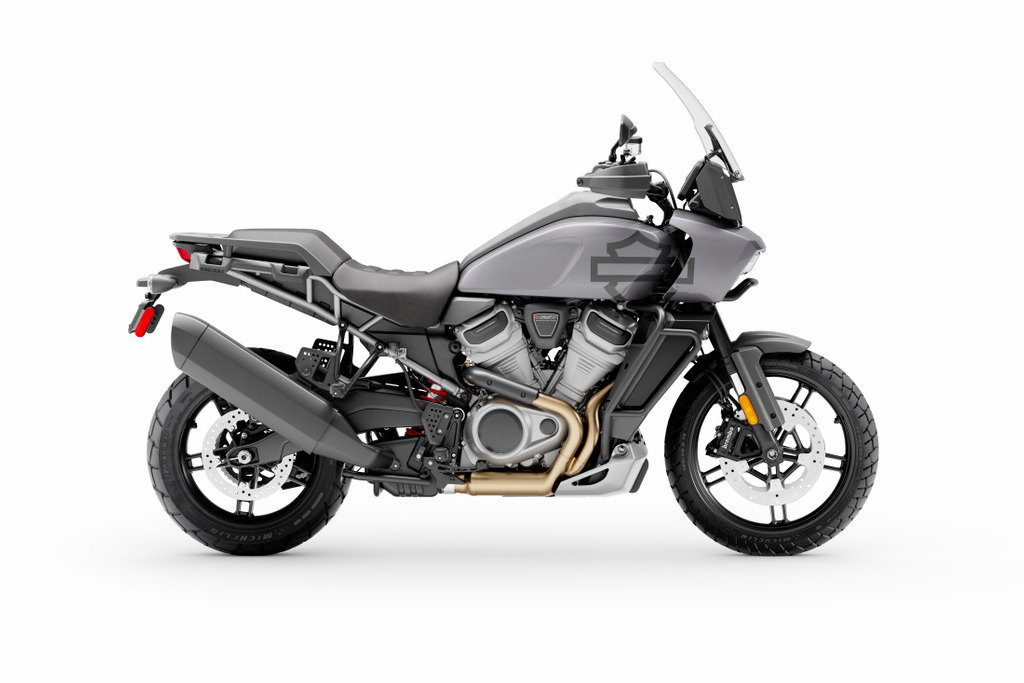

2 Color choices for the 2021 Harley Davidson Pan America 1250: Vivid Black and River Rock Gray

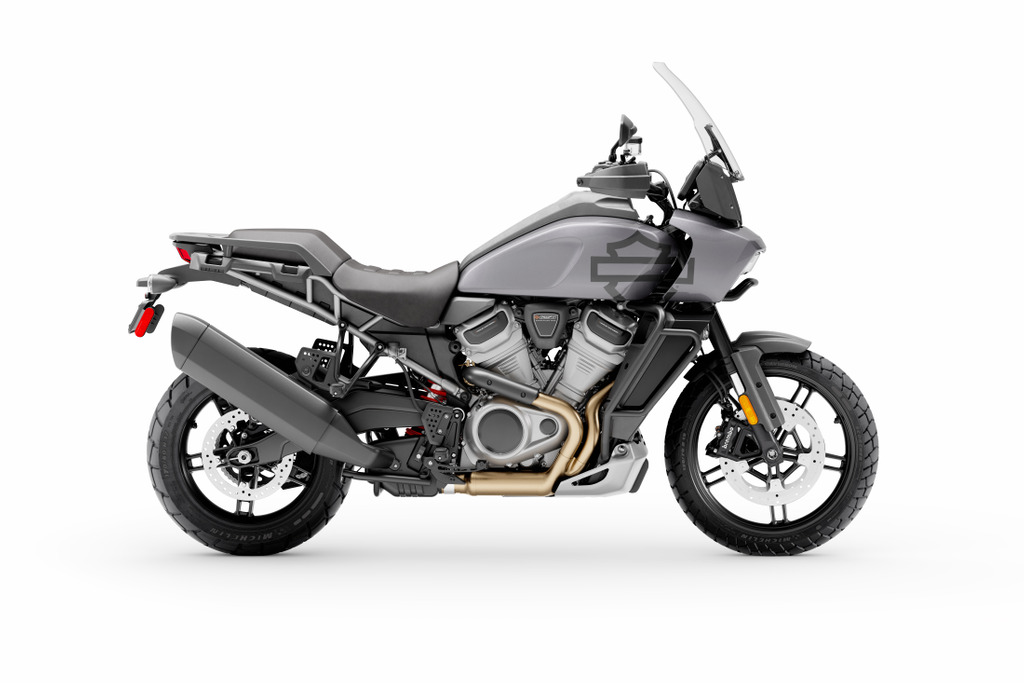

2 Color choices for the 2021 Harley Davidson Pan America 1250 Special: Vivid Black, Gauntlet Gray Metallic, and Baja Orange / Stonewashed White Pearl

The 2021 Harley Davidson Pan America 1250 starts at $17,319 / $20,999 CAD.

The 2021 Harley Davidson Pan America 1250 Special starts at $19,999 / $24,199 CAD

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2021 Harley Davidson Pan America 1250 in one place.

Model Overview

General Info

Price: Standard $17,319 / $20,999 CAD, Special $19,999 / $24,199 CAD
Key Features:
- All New Revolution® Max 1250 Engine
- Cornering Rider Safety Enhancements
- Selectable Ride Modes

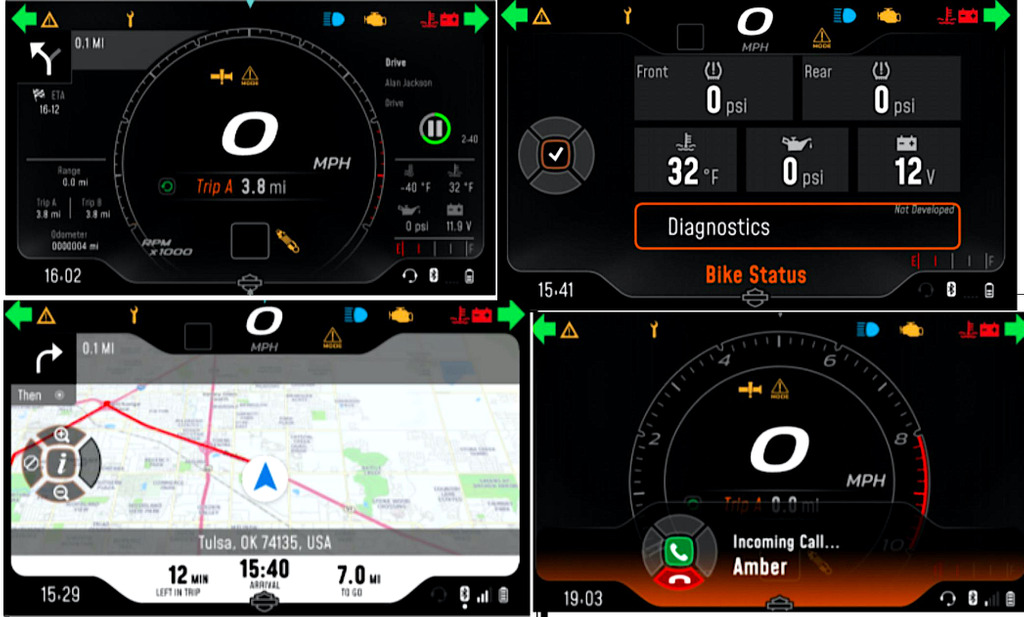

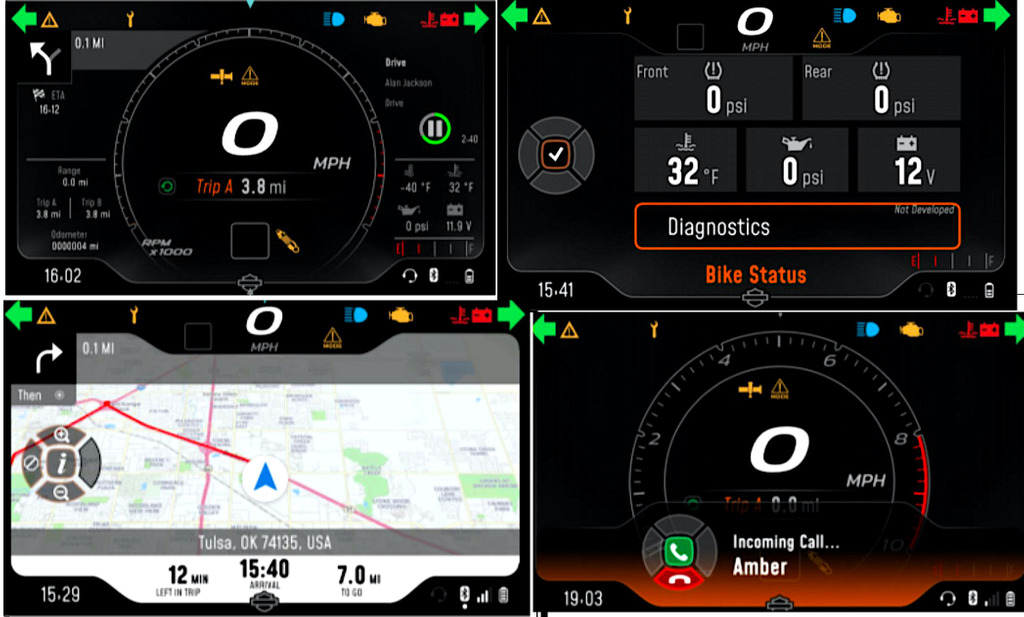

- 6.8-inch TFT touchscreen

Main Specs

Engine: 1252cc V-twin
Power: 150 HP
Torque: 94 lbs-ft
Wet Weight: Std – 534 lb. (242 kg) , Special – 559 lb. (254 kg)
Seat Height: Std – 31.8 in. (807 mm), Special – 31.1 in. (789 mm)

Competitors

Harley-Davidson’s Lawsuit Loss Spikes Tariff Taxes +56%, Yamaha’s V4 Engine Preps for Big Debut

2021 Harley Davidson Pan America 1250 Specifications

From Harley-Davidson

ENGINE
Engine	1252cc V-twin, Revolution® Max 1250 Engine
Engine Torque	94 lbs-ft
Bore x Stroke	4.13 in. in x 2.84 in
Compression Ratio	13.0:1
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)
Starter	Electric
Exhaust	2-into-1-into-1; catalyst in header
DRIVETRAIN
Clutch
Transmission	6-speed
Primary Drive	Gear, 49/89 ratio
CHASSIS
Wheels, Front Type	Aluminum cast, satin black
Wheels, Rear Type	Aluminum cast, satin black
Brakes Front	Radially mounted, monoblock, 4-piston caliper
Brakes Rear	Floating, single piston caliper
Tires Front	120/70R19 60V
Tires Rear	170/60R17 72V
Fuel Tank Capacity	6 gal.
Color	Vivid Black, Gauntlet Gray Metallic, and Baja Orange / Stonewashed White Pearl
ELECTRICAL
Ignition
Spark Plugs
Headlight	High beam
Tail Light	LED
DIMENSIONS
Overall Length	89.2 in
Trail	4.3 in.
Rake	25
Wheelbase	62.2 in.
Ground Clearance	8.3 in.
Seat Height	31.1 in.
Weight, As Shipped	527 lb.
WARRANTY
Warranty
Extension

2021 Harley Davidson Pan America 1250 Features

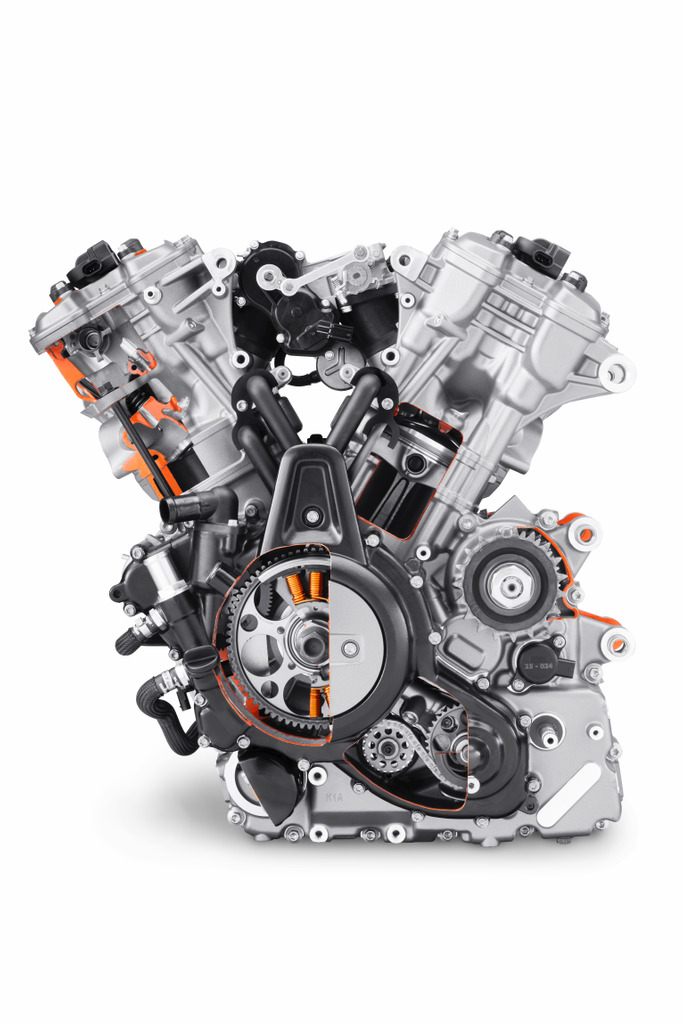

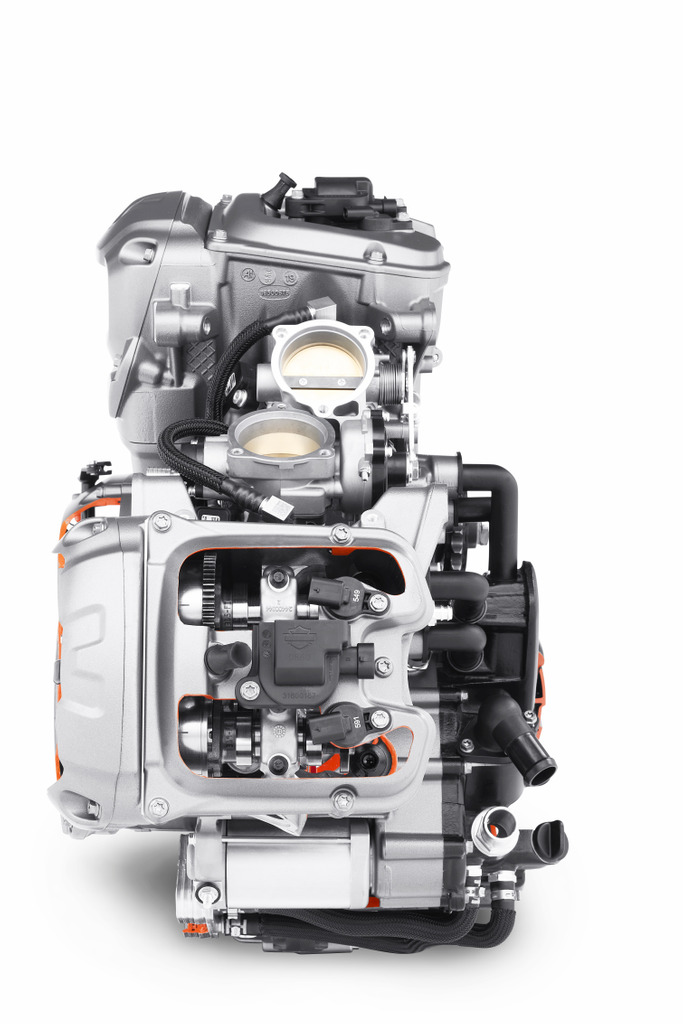

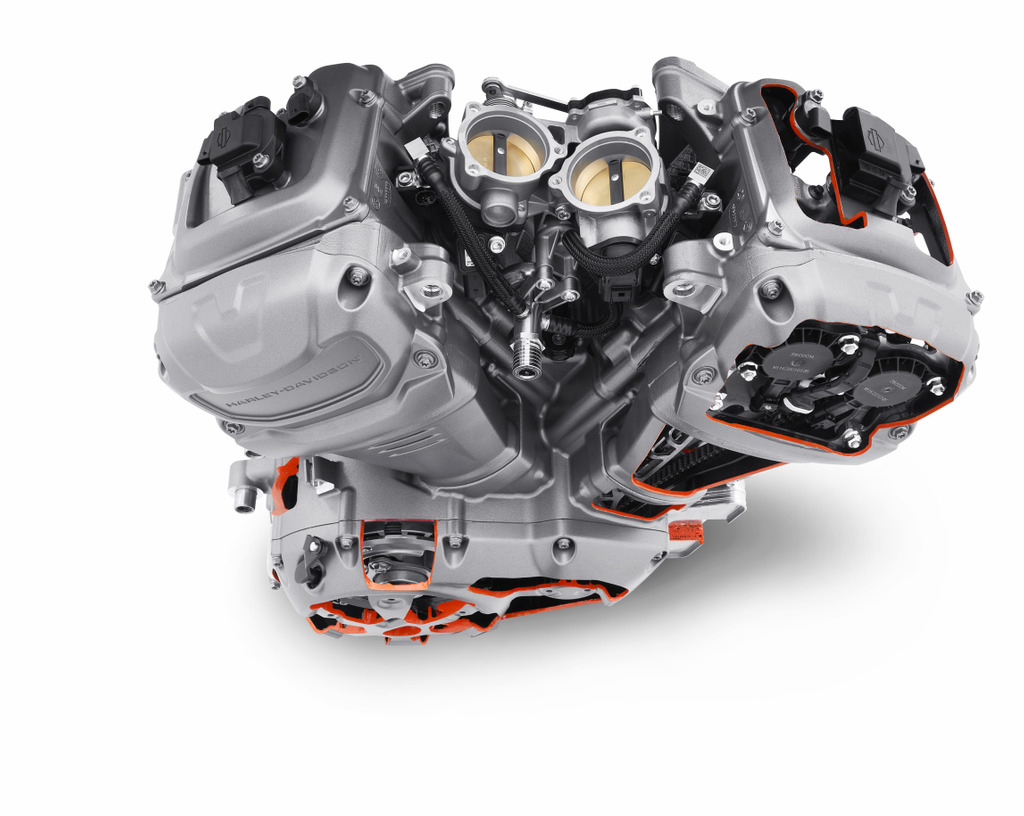

The next chapter in a century of legendary V-Twins is here. Revolution® Max is a liquid-cooled powertrain with 150 horsepower, full of ample torque, and a surging powerband tuned to maximize rider control.

The Revolution®Max 1250 is a structural component of the motorcycle chassis, eliminating a traditional frame — which significantly reduces overall weight and keeps handling taut. This is performance you can feel, with the center of gravity low and the chassis super rigid.

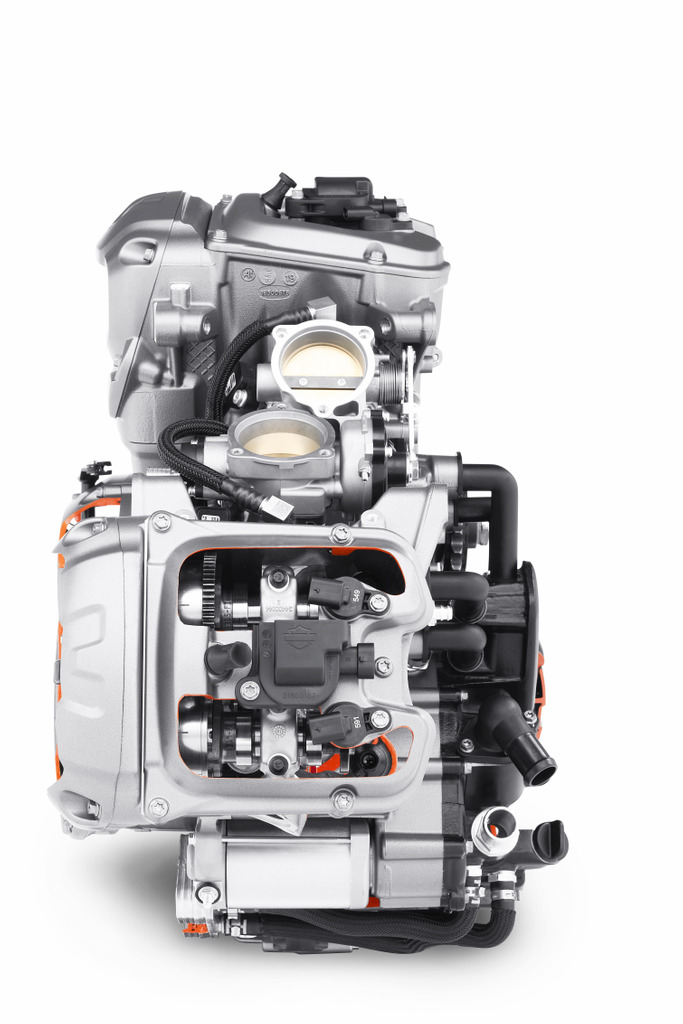

Double Overhead Camshafts (DOHC) facilitate higher peak horsepower, and independent Variable Valve Timing (VVT) broadens the overall powerband and improves torque management. All this to say you’ll have as much low-end acceleration off the line and high-RPM horsepower you can twist.

Adaptive Ride Height makes its debut on the Pan America 1250 Special. This factory-installed option unlocks confidence you can feel by lowering seat height when stopped, and maintaining a constant, optimum suspension sag at speed by adjusting preload while continuously sensing weight inputs.

190mm (7.48 inches) travel on Showa® BFF™ (Balance Free Forks) fronts and a BFRC™ (Balanced Free Rear Cushion-lite) coil-over rear shock with electronic preload control and semi-active damping. The rear suspension incorporates a linkage system connecting the shock, swingarm, and frame which provides a progressive feel through the stroke.

H-D design and engineering teams have crafted a vision guided by utility, rooted in the spirit of iconic American off-road vehicles. In a landscape of bikes that are achieving uniformity, Pan America is a rugged take where function feeds form in a package that is uniquely Harley-Davidson.
