The 2021 Harley Davidson Fat Bob 114: The Street Eater

Model Overview
Specifications
Features
Photos
Videos
Links

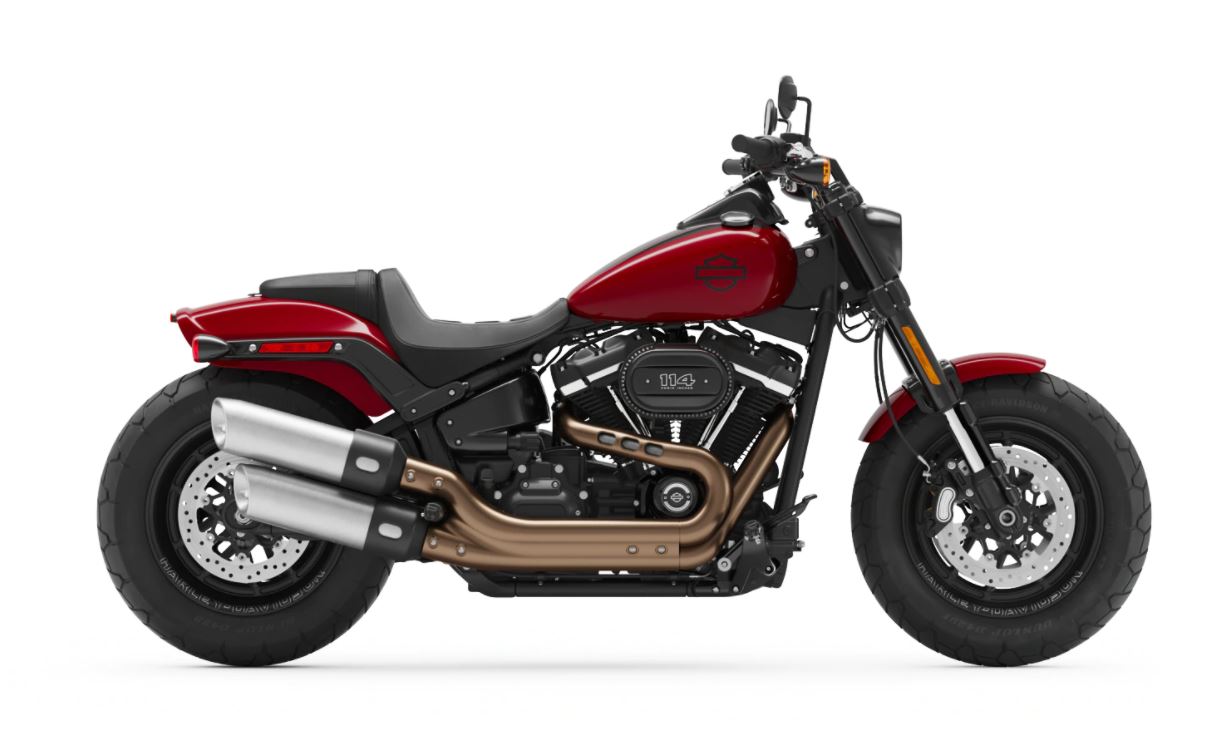

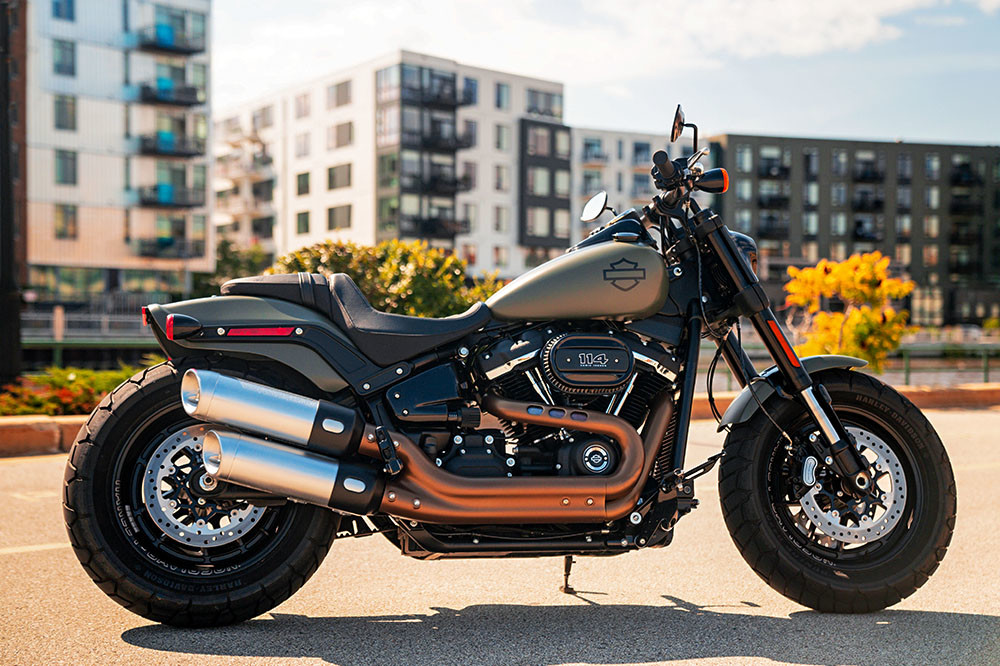

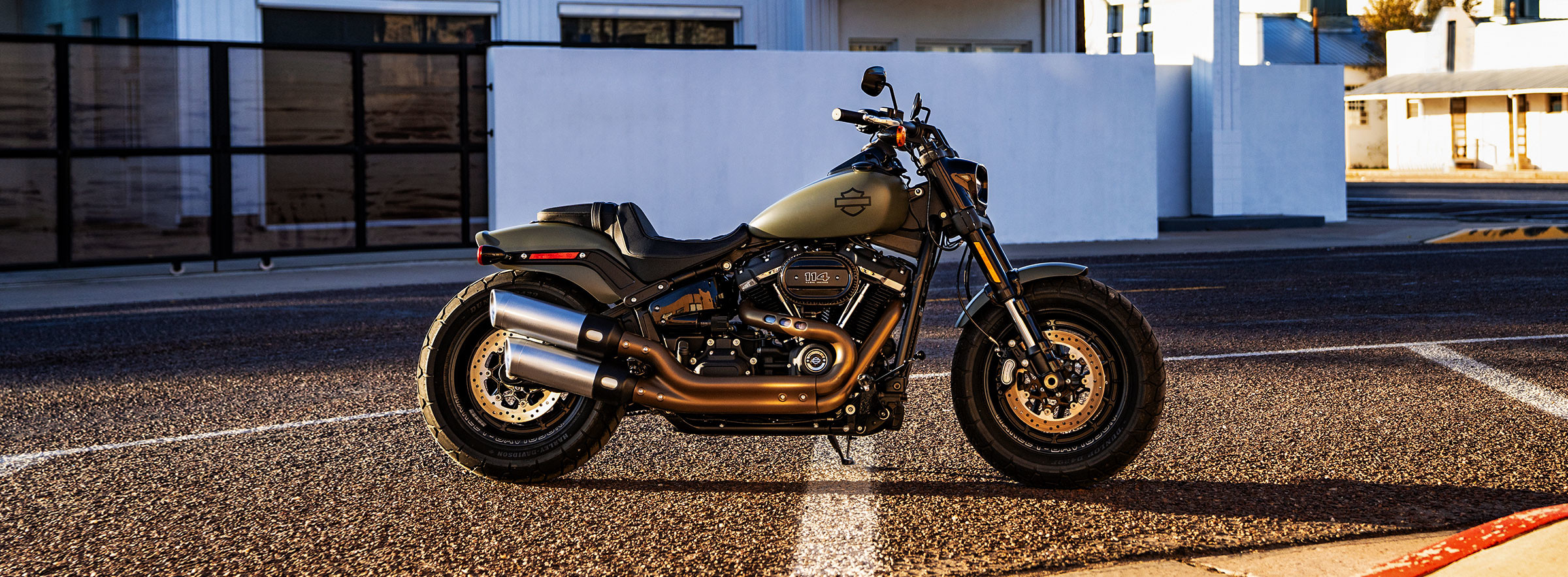

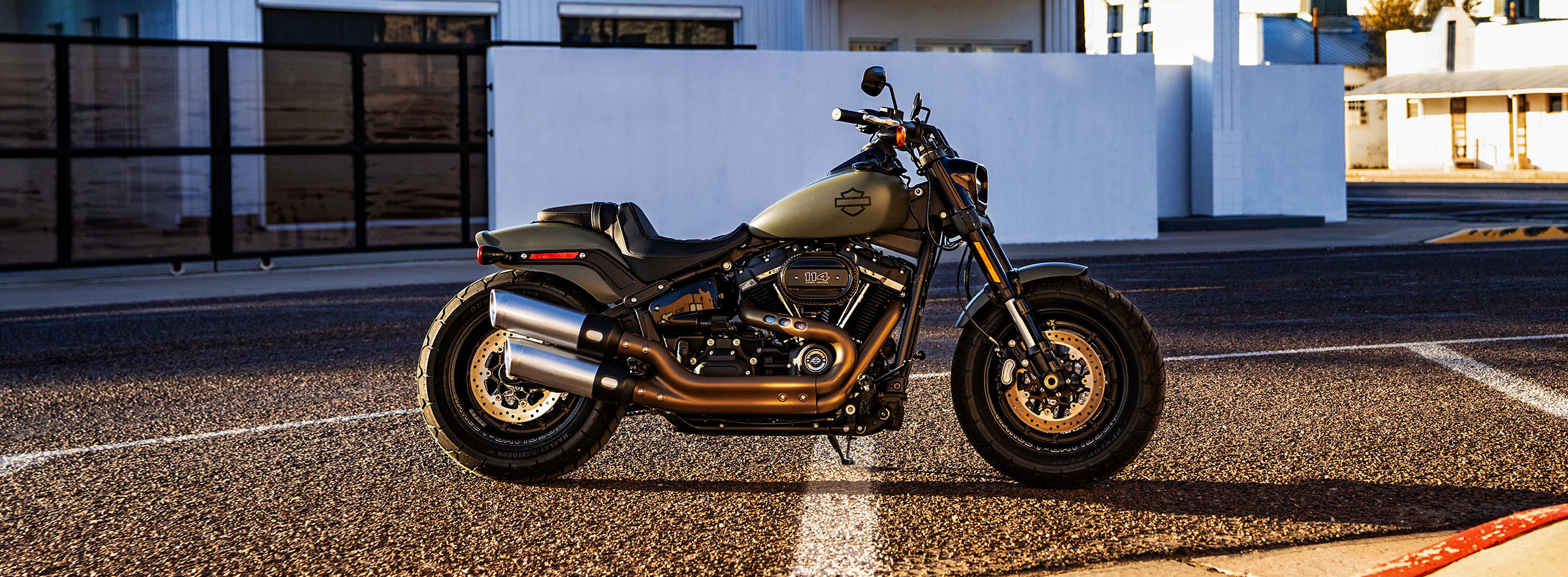

Every time I look at the Fat Bob 114 I hear in my head “that’s not a bike, THAT’s a bike!” Of course, you must hear it in Crocodile Dundee’s voice but this brawler is 100% all-American. Part of the Softail Cruiser series in the 2021 Harley Davidson lineup, the Fat Bob 114 required no changes from last year’s version aside from updated colors.

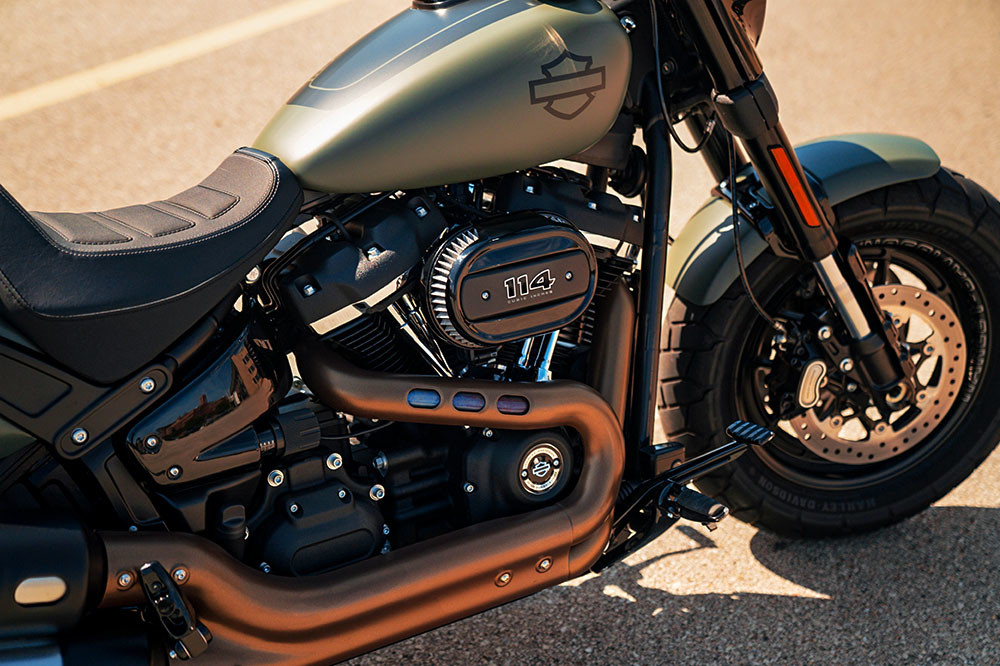

The Milwaukee-Eight® 114 engine pounds out 118 lbs-ft of torque and a satisfying rumble from the upswept exhaust with its contrasting bronze finish. Fitting the inverted front fork around the massive 150mm wide front tire made space for the distinctive LED headlight. To stop this burly Harley Davidson massive dual disc brakes do their best to hide the Mantis cast-aluminum wheels.

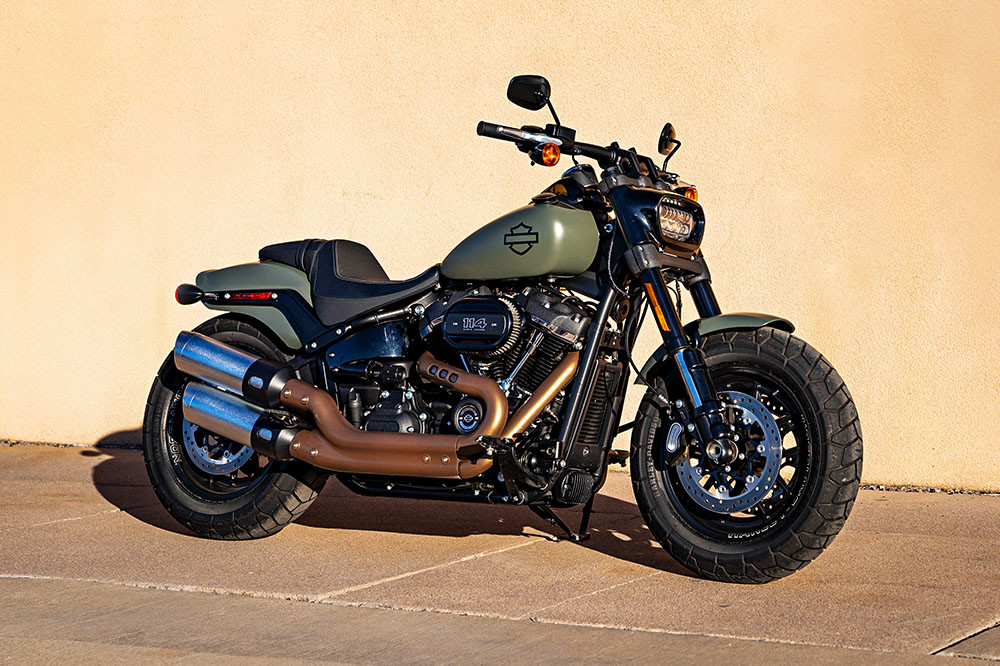

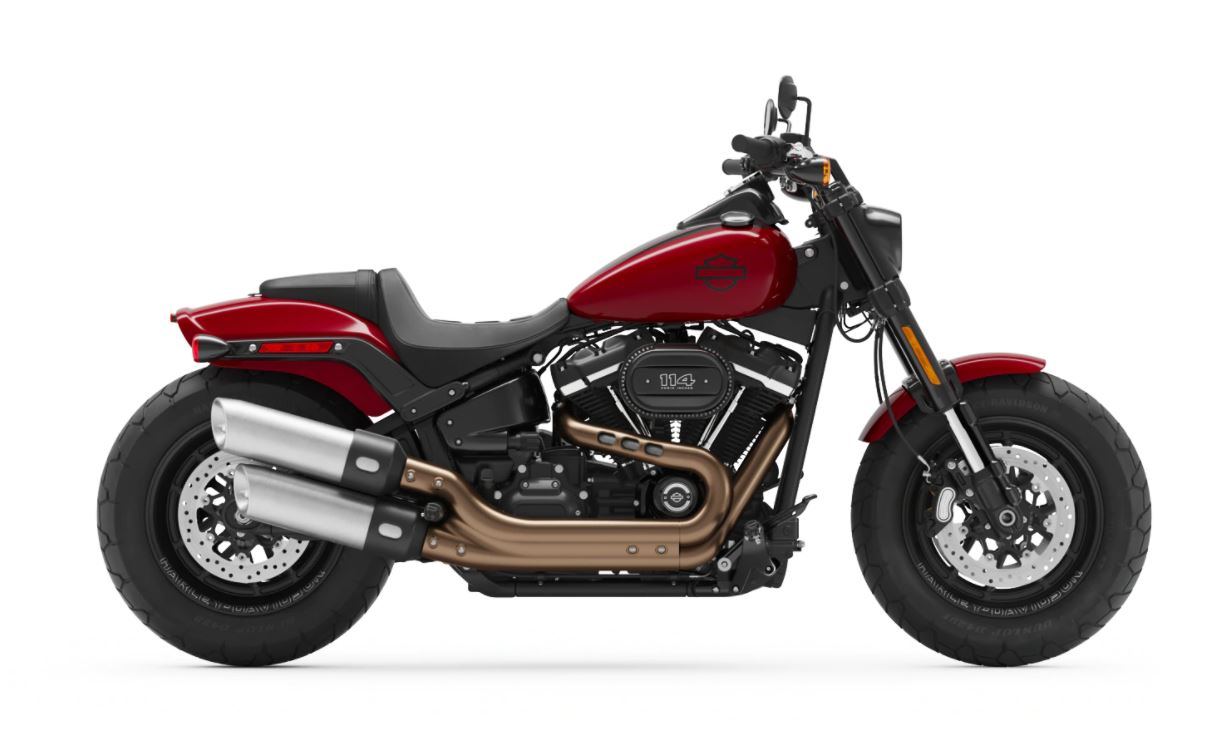

3 Color choices for the 2021 Harley Davidson Fat Bob 114: Vivid Black, Billiard Red, and Deadwood Green Denim.

The 2021 Harley Davidson Fat Bob 114 starts at $18,799 USD / $23,599 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2021 Harley Davidson Fat Bob 114 in one place.

Model Overview

General Info

Price: $18,799 USD / $23,599 CAD
Key Features:
- Milwaukee-Eight® 114 V-Twin engine
- 150mm Wide Front Tire
- Forward Controls
- 28o Front For Rake

Main Specs

Engine: 114 ci V-twin
Power: 100.5 HP (estimated)
Torque: 118 lbs-ft @ 3000 RPM
Wet Weight: 676 lbs (306 kg)
Seat Height: 27.7 inches (710 mm)

Competitors

2021 Harley Davidson Fat Bob 114 Specifications

From Harley-Davidson

ENGINE
Engine	114 ci V-twin, Milwaukee-Eight^® 114
Engine Torque	118 lbs-ft @ 3000 RPM
Bore x Stroke	4.016 in x 4.5 in
Compression Ratio	10.5:1
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)
Starter	Electric
Exhaust	2-into-2 offset shotgun; catalyst in muffler
DRIVETRAIN
Clutch
Transmission	6-speed
Primary Drive	Chain, 34/46 ratio
CHASSIS
Wheels, Front Type	Denim black, Structure cast aluminum with laser etched graphics
Wheels, Rear Type	Denim black, Structure cast aluminum with laser etched graphics
Brakes Front	4-piston fixed front
Brakes Rear	2-piston floating rear
Tires Front	150/80-16,71H,BW
Tires Rear	180/70B16,77H,BW
Fuel Tank Capacity	3.6 gal.
Color	Vivid Black, Billiard Red, and Deadwood Green Denim
ELECTRICAL
Ignition
Spark Plugs
Headlight	High beam
Tail Light	LED
DIMENSIONS
Overall Length	92.1 in.
Trail	5.2 in.
Rake	28
Wheelbase	63.6 in
Ground Clearance	4.7 in..
Seat Height	27.7 in.
Weight, As Shipped	653 lb.
WARRANTY
Warranty
Extension

2021 Harley Davidson Fat Bob 114 Features

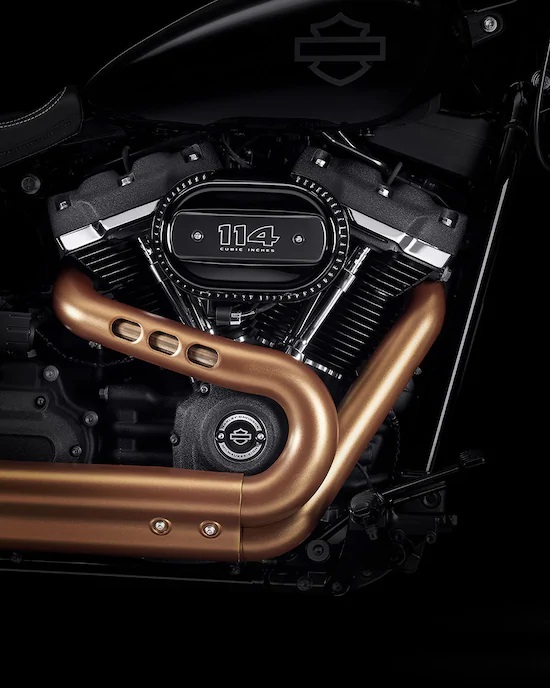

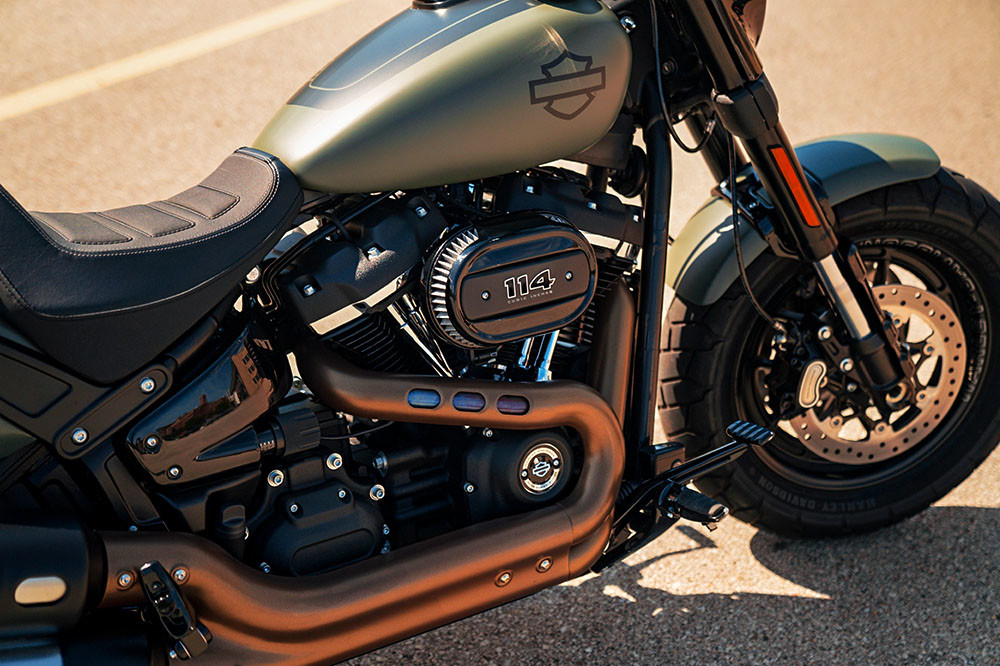

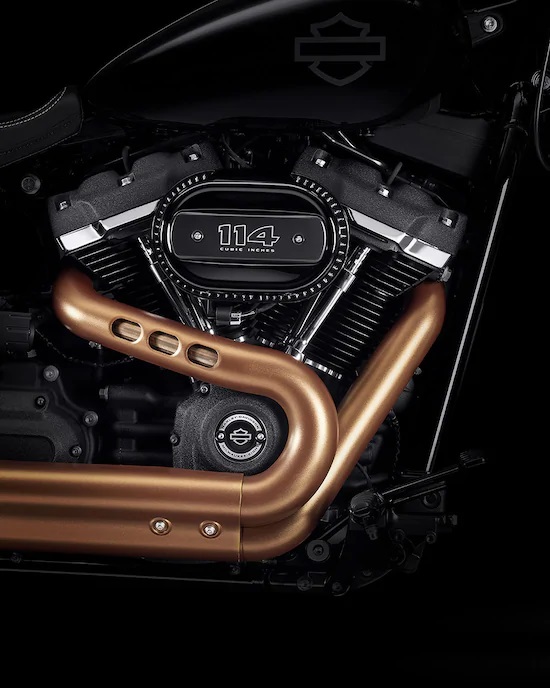

A powerful, smooth-running engine with crisp throttle response and a pure, soul-satisfying rumble.

The Milwaukee-Eight® engine is not short on power. And these high-performance dual disc brakes help you keep that power in check when you need to.

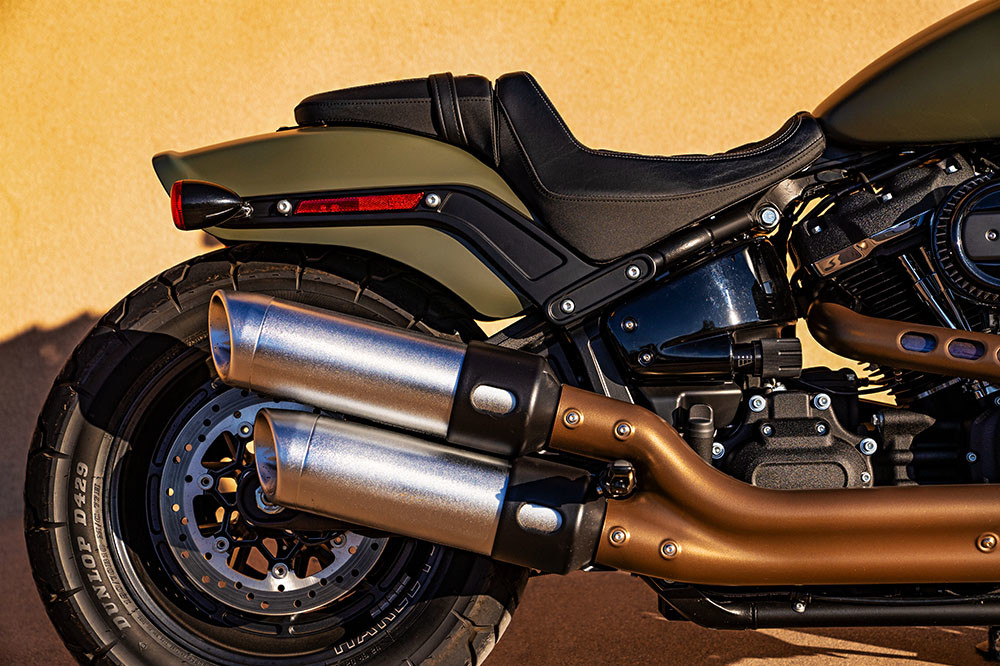

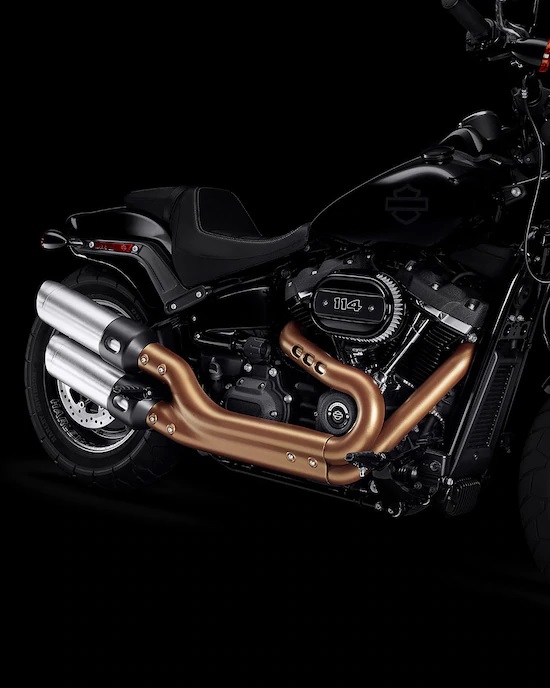

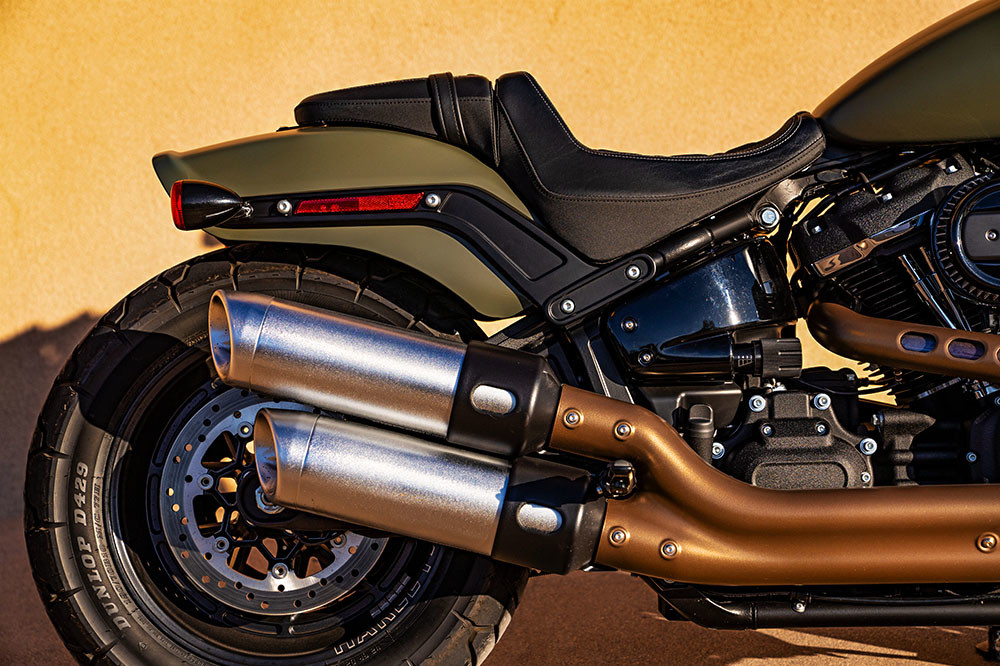

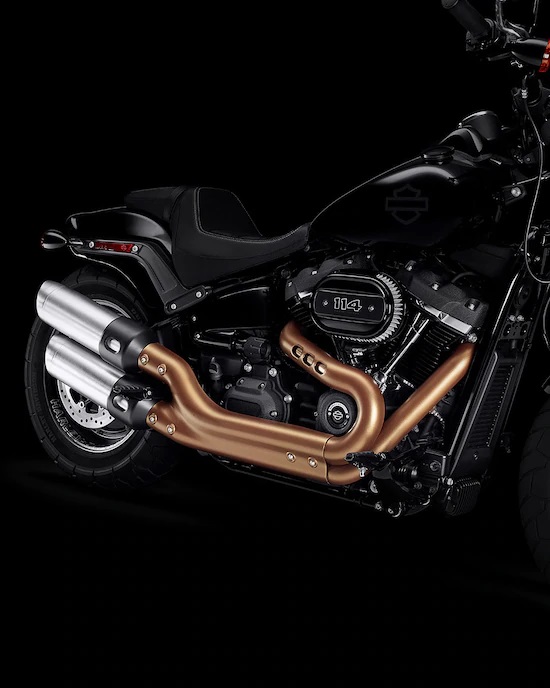

Big performance-inspired, upswept exhaust with a custom contrast finish.

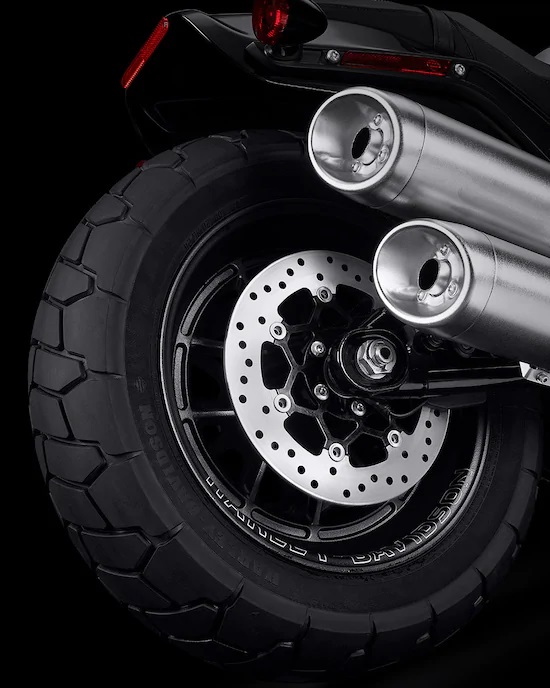

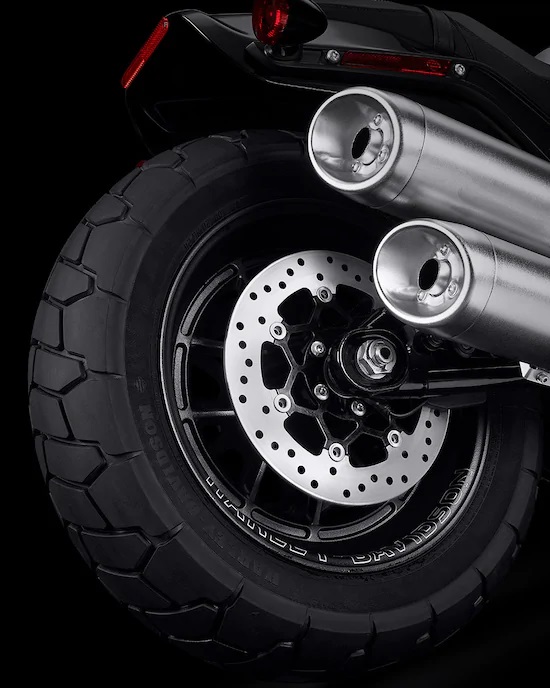

Bold aluminum wheels with fat, aggressive tires that give you asphalt-eating traction.

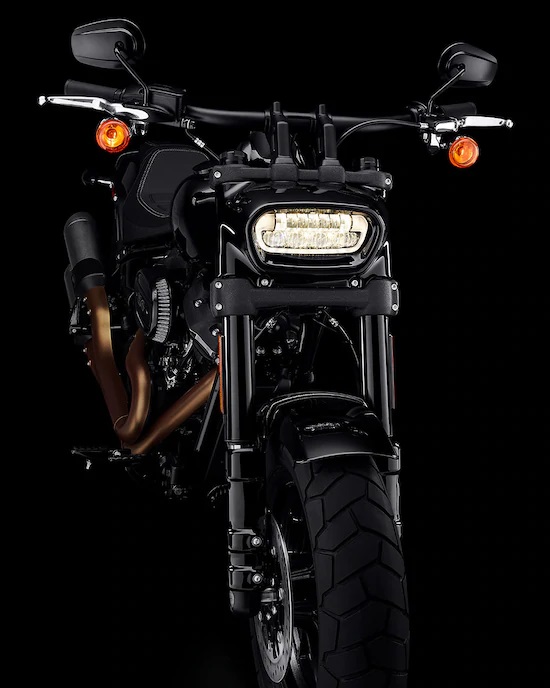

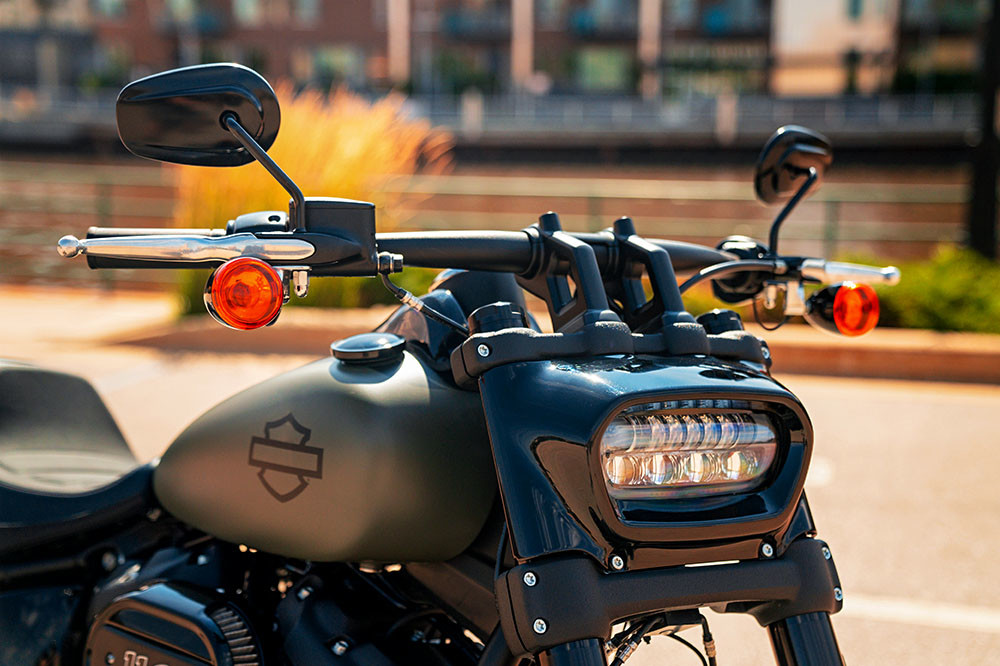

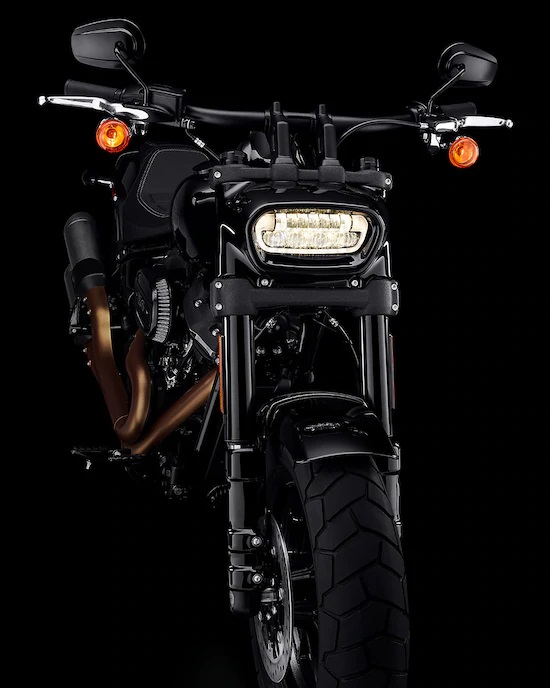

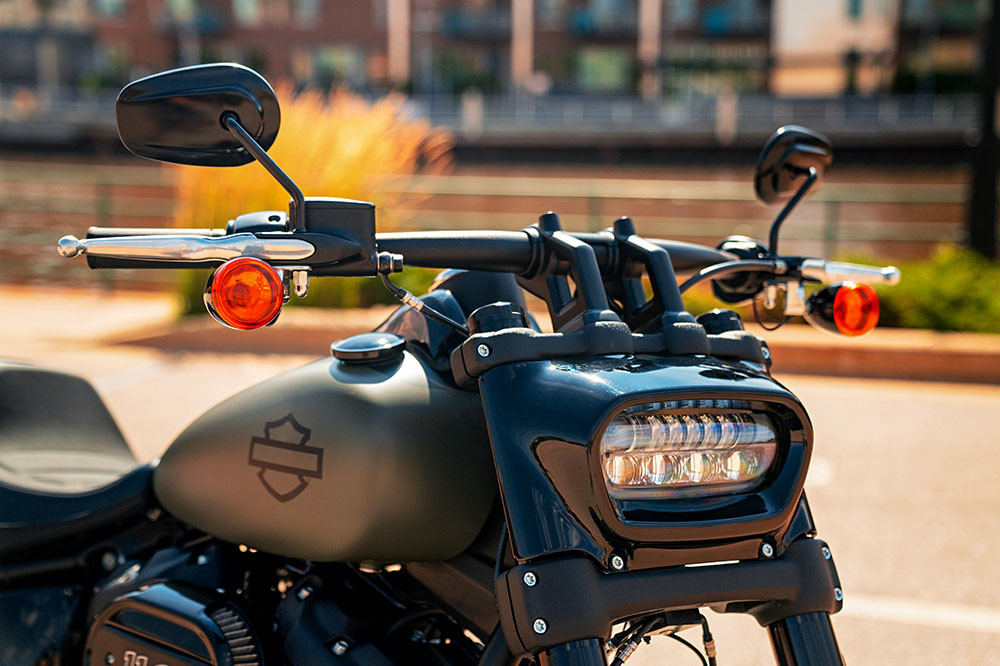

A bold headlight design that gives you great visibility at night and during the day makes sure all eyes are focused on you.

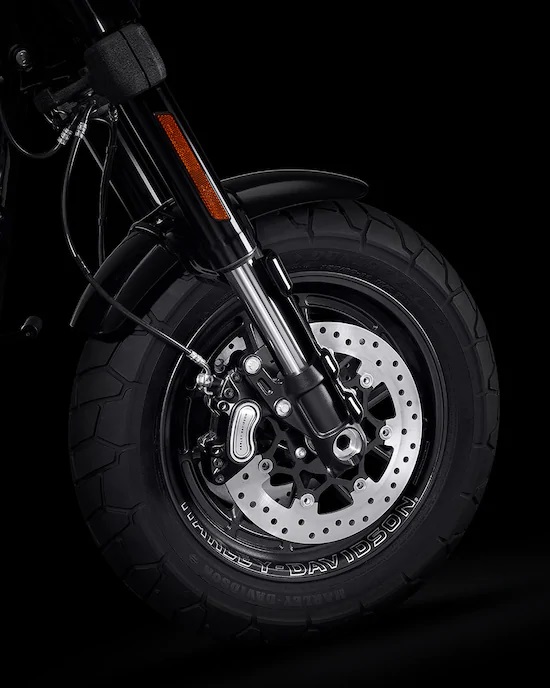

Inverted race-style front fork design, with single-cartridge technology that improves response to steering input and braking and handling performance.
