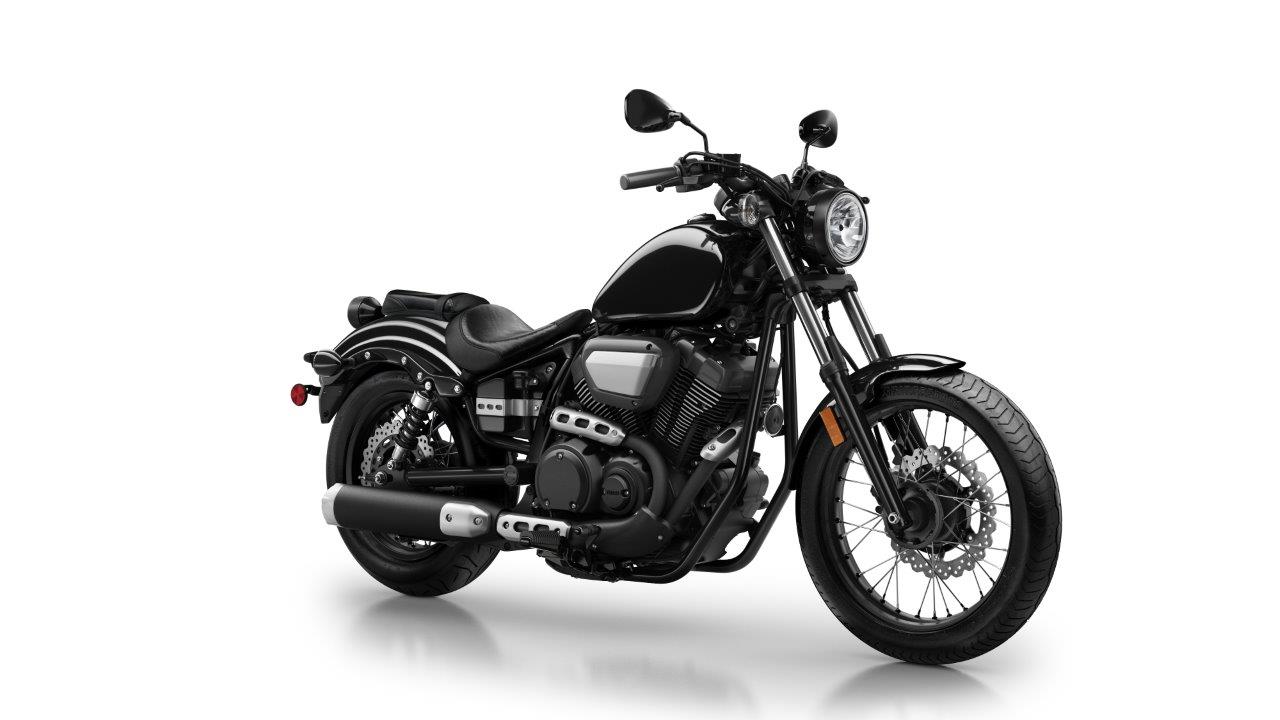

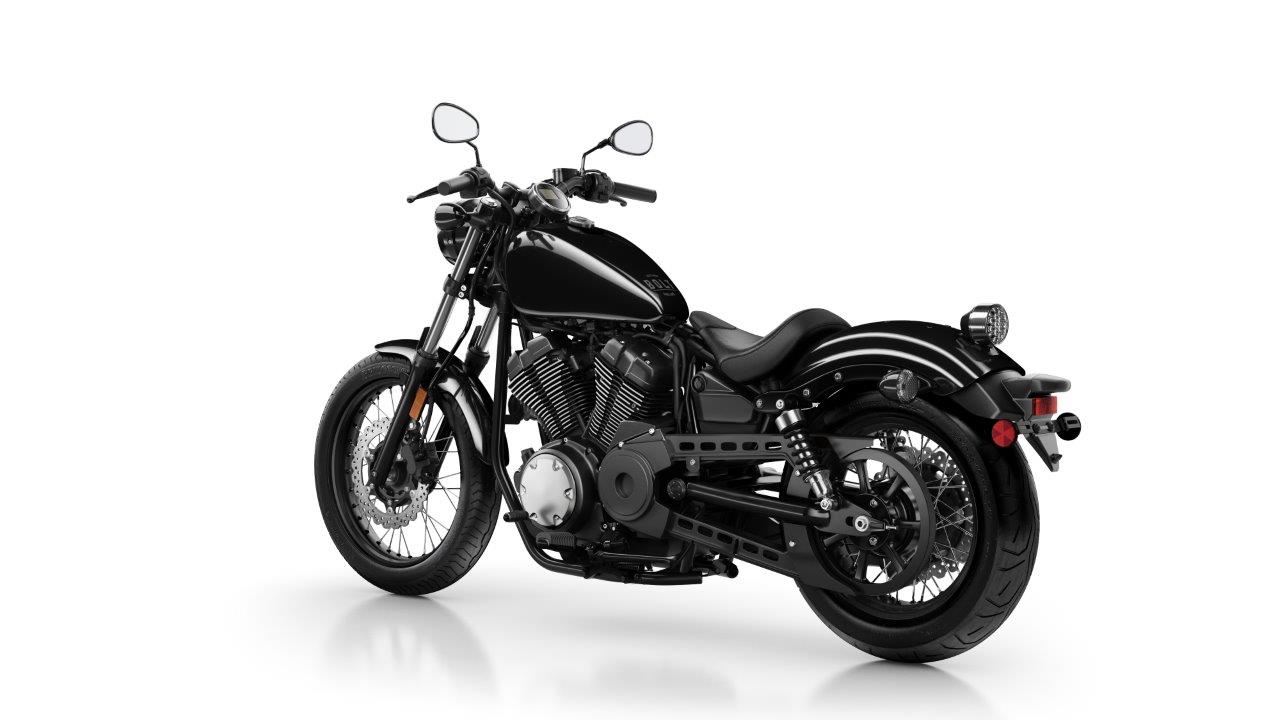

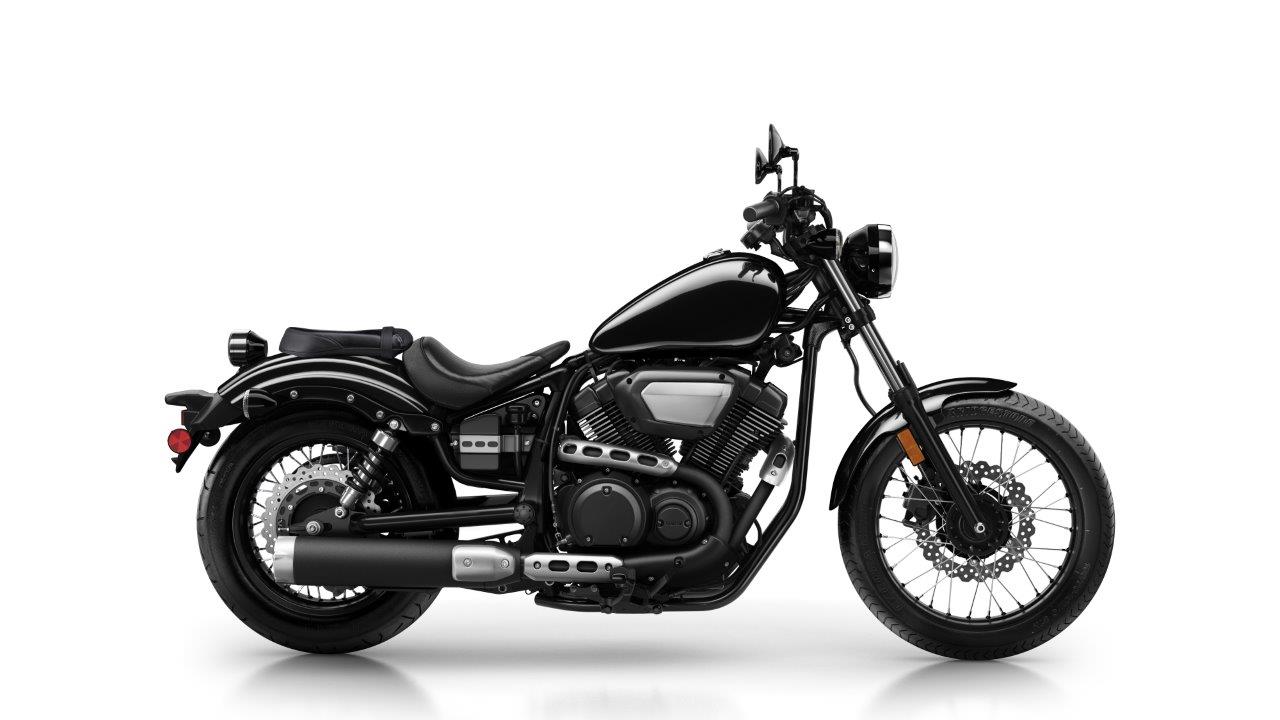

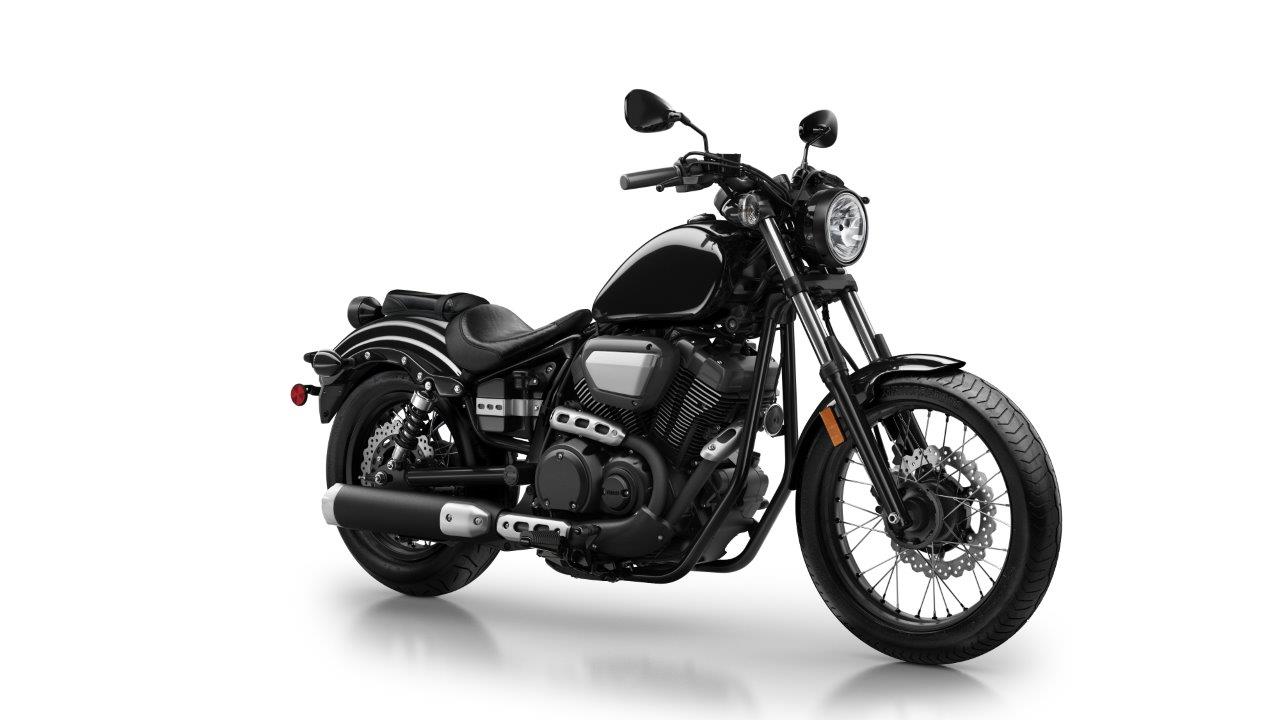

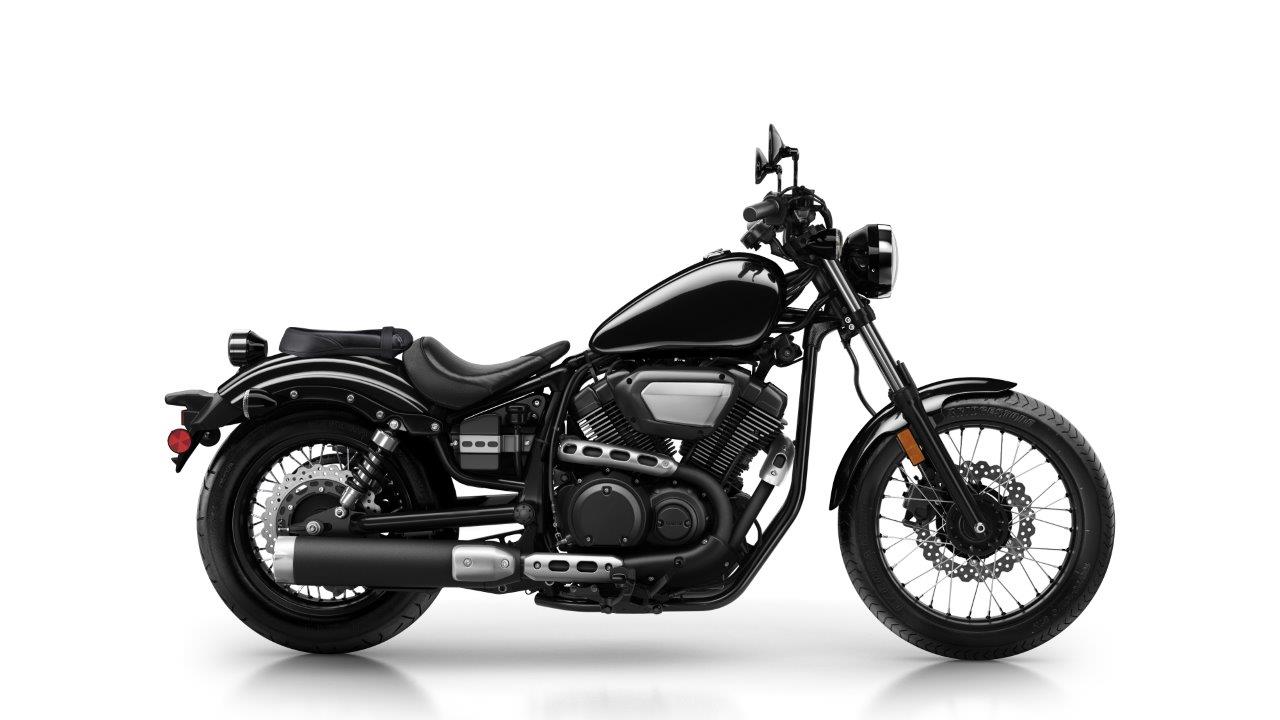

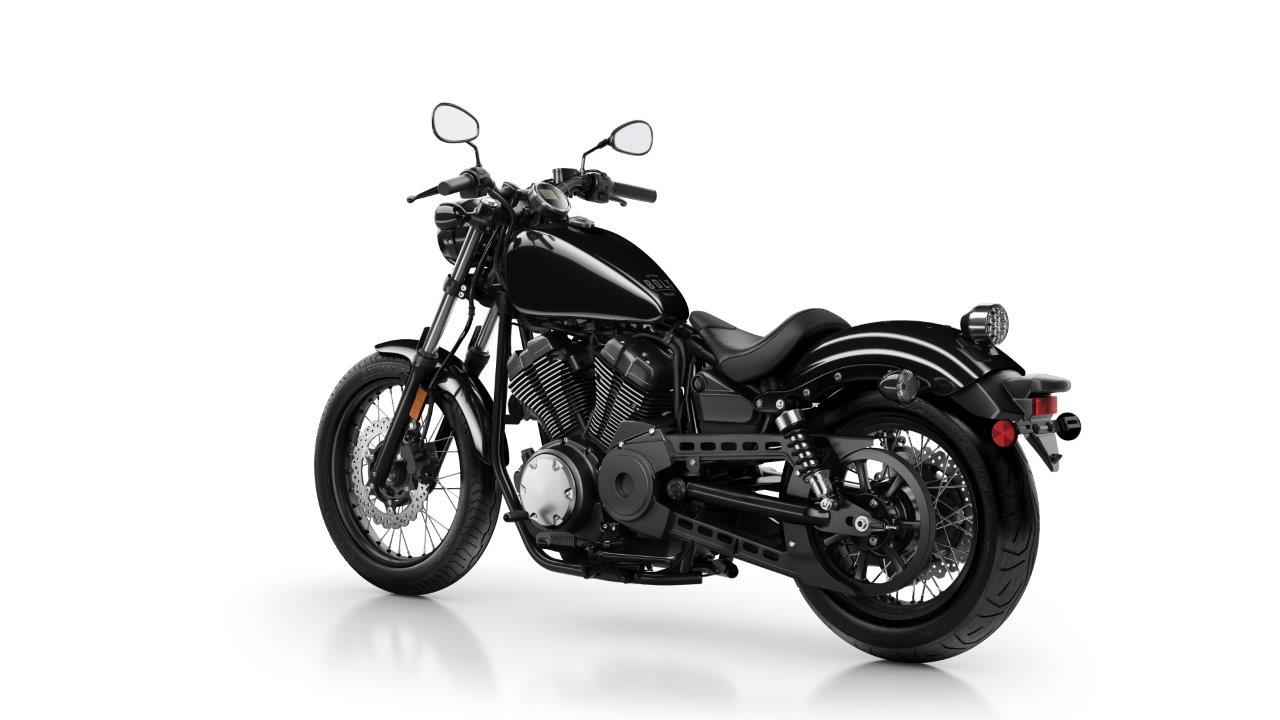

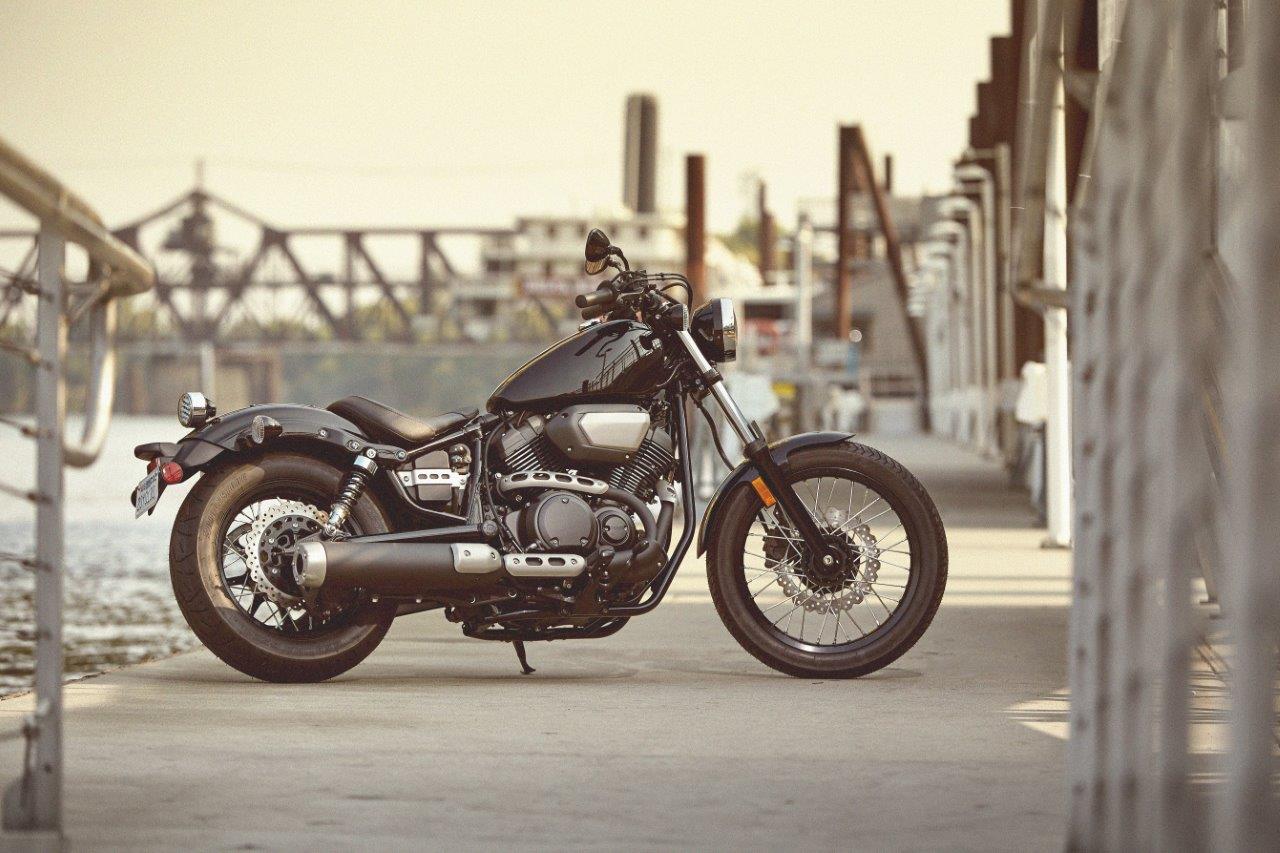

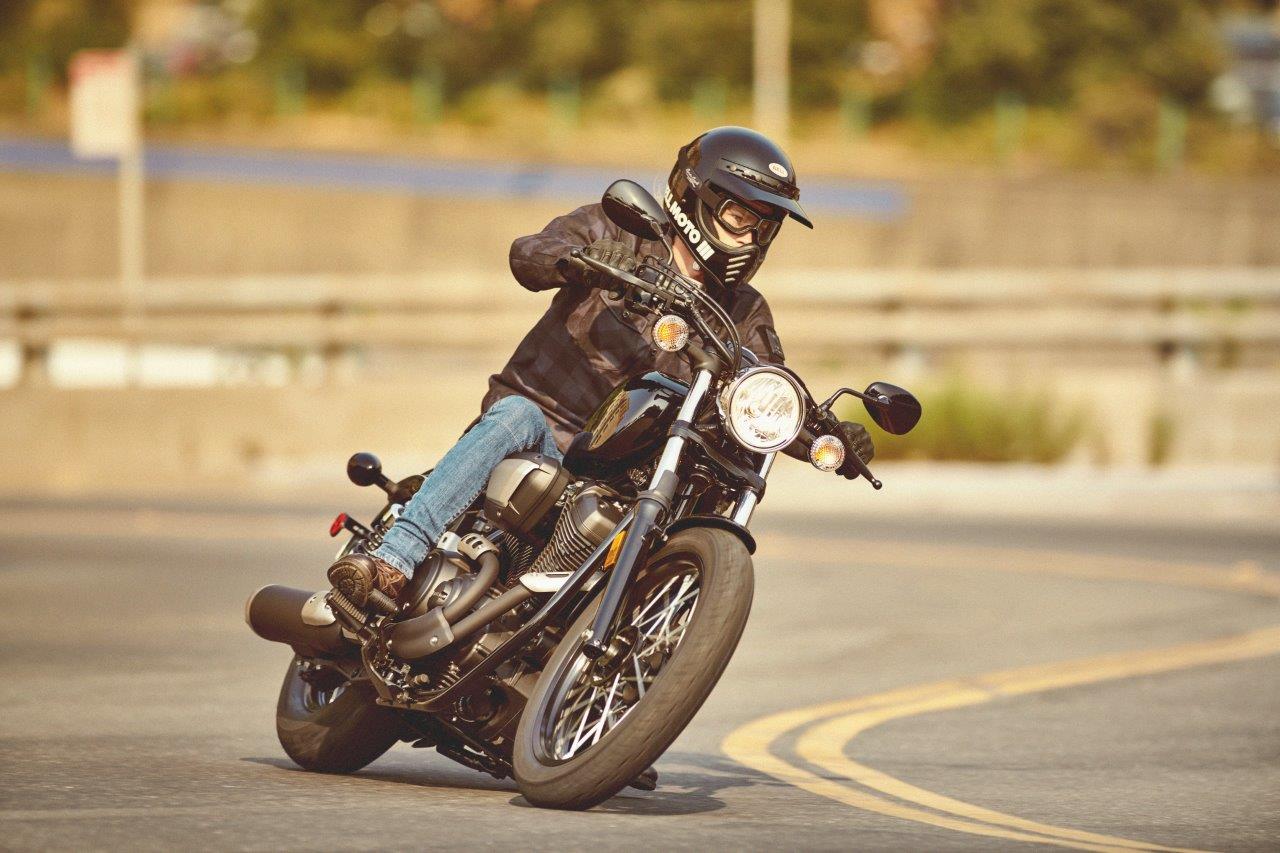

The 2020 Yamaha Bolt fills an interesting niche in the motorcycle market, that of the lightweight sports heritage bobber with modern amenities. The centerpiece of the Bolt is the 942cc 60 degree V-twin, and while Yamaha remains tight-lipped about actual horsepower, it’s been estimated that this engine pushes out near-as-makes-no-difference 65 crank HP with a rumored 55 lbs-ft of torque, all of it coming in at under 3,000 RPM.

The Bolt also features a belt drive instead of a chain or shaft, something that is usually reserved for the custom market. It definitely adds to the retro-modern feel of the motorcycle. One of the modern touches of that is that instead of having forwards mounted pegs, Yamaha has decided to move the footpegs back along the frame, allowing for the rider to experience less torso fatigue vs a regular cruiser/bobber peg placement.

The 2020 Yamaha Bolt starts at $7,999 US/$9,099 CA.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Yamaha Bolt in one place.

Model Overview

General Info

Price: $7,999 US / $9,099 CA
Key Features:
- Powerful Braking
- Fuel Injection
- Modern Lighting

Key Specs

Engine type: 942 cc air-cooled SOHC V-twin; 4 valves
Power: 65 hp
Wet weight: 542 lb
Seat height: 27.2 in

Key Competitors

2020 Yamaha Bolt Specifications

From Yamaha

ENGINE
Engine	942 cc air-cooled SOHC V-twin; 4 valves
Power	65 hp
Bore x Stroke	85.0mm x 83.0mm
Compression Ratio	9.0:1
Fuel System	Fuel Injection
Starter	Electric
Lubrication
DRIVETRAIN
Clutch	Multiplate wet clutch
Transmission	5-speed
Final Drive	Belt
CHASSIS
Suspension Front	Telescopic fork, 4.7-in travel
Suspension Rear	Dual shocks, 2.8-in travel
Brakes Front	Wave-type disc, 298mm
Brakes Rear	Wave-type disc, 298mm
Tires Front	100/90-19
Tires Rear	150/80-16
Fuel Tank Capacity	13 L (3.4 US gal.)
Color	Raven
ELECTRICAL
Ignition	TCI: Transistor Controlled Ignition
Spark Plugs
Headlight	LED
Tail Light	LED
DIMENSIONS
Overall Length
Overall Width
Overall Height
Wheelbase	61.8 in (1570 mm)
Ground Clearance	5.1 in (130 mm)
Seat Height	27.2 in (690 mm)
Curb Weight	542 lbs (245 kg)
WARRANTY
Warranty	1 Year (Limited Factory Warranty)
Extension

2020 Yamaha Bolt Features

Urban Performance Styling
The Bolt® is stripped down with minimal chrome, epitomizing the “Urban Performance Bobber” look. The compact chassis proudly showcases the 58 cubic inch (942cc), air-cooled, 60° V-twin sitting at the heart of the bike.
High-Tech Engine
The Bolt uses modern technology to create a riding experience superior to other similarly sized machines. Fuel injection and ignition timing maps have been chosen specifically for this bike to deliver class-leading performance with strong low and midrange torque sure to bring a smile to every rider’s face.
Compact, Stable Chassis
The slim body and low seat design combine to give the motorcycle light maneuverability and a stable handling feeling. The upright riding posture helps the rider feel the wind, hear the sounds and experience the pulse of the machine.
Ready to Customize
For riders who value personalization, the options for the Bolt are limited only by the owner’s imagination. As we say with the Star® cruiser line, “We build it. You make it your own.”® And as the perfect canvas for customization, Bolt is the ultimate example of that philosophy.
Unique Bolt Persona
Components such as the 3.4-gallon fuel tank, belt drive, front and rear wheels, digital meter and steel fenders combine to create a distinct look in the Star cruiser line-up.

Harley-Davidson’s Lawsuit Loss Spikes Tariff Taxes +56%, Yamaha’s V4 Engine Preps for Big Debut

Modern Air-Cooled V-Twin

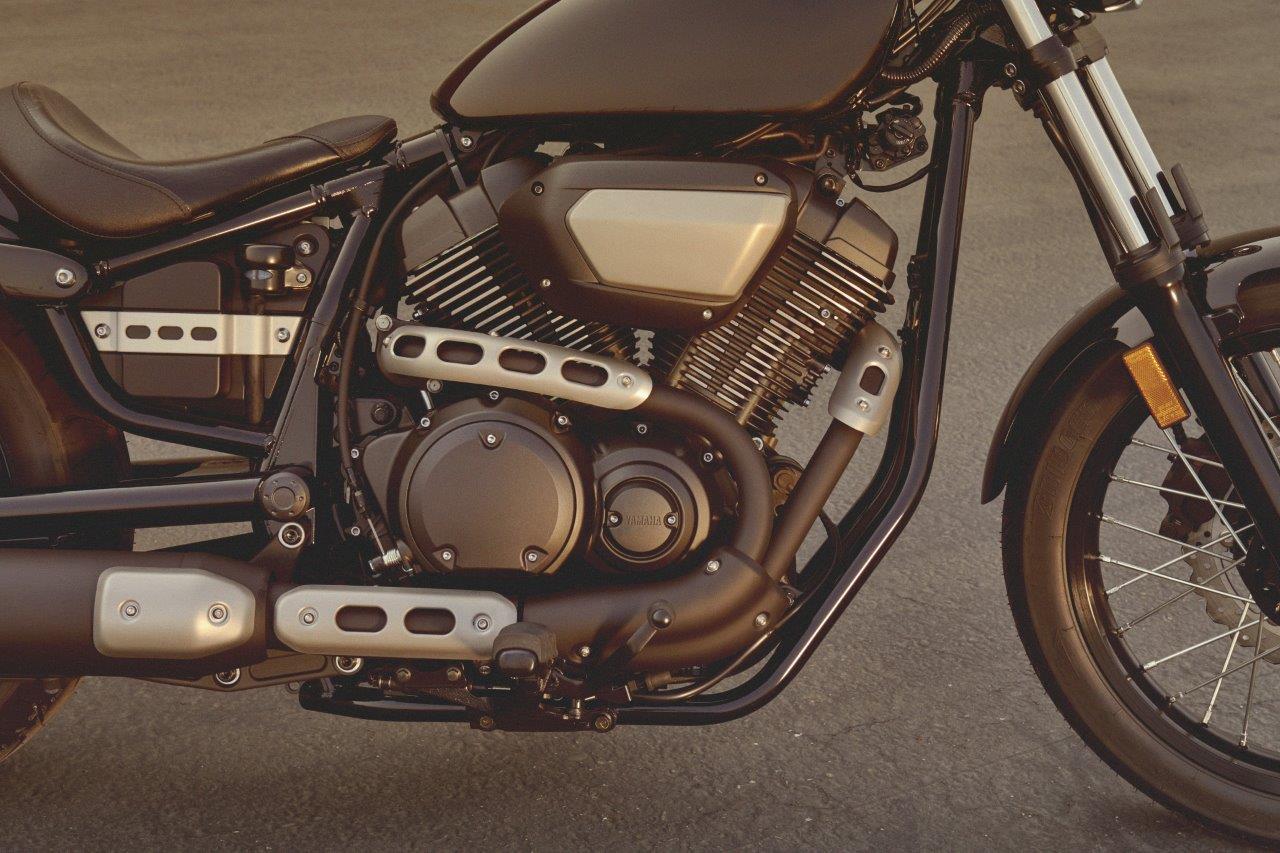

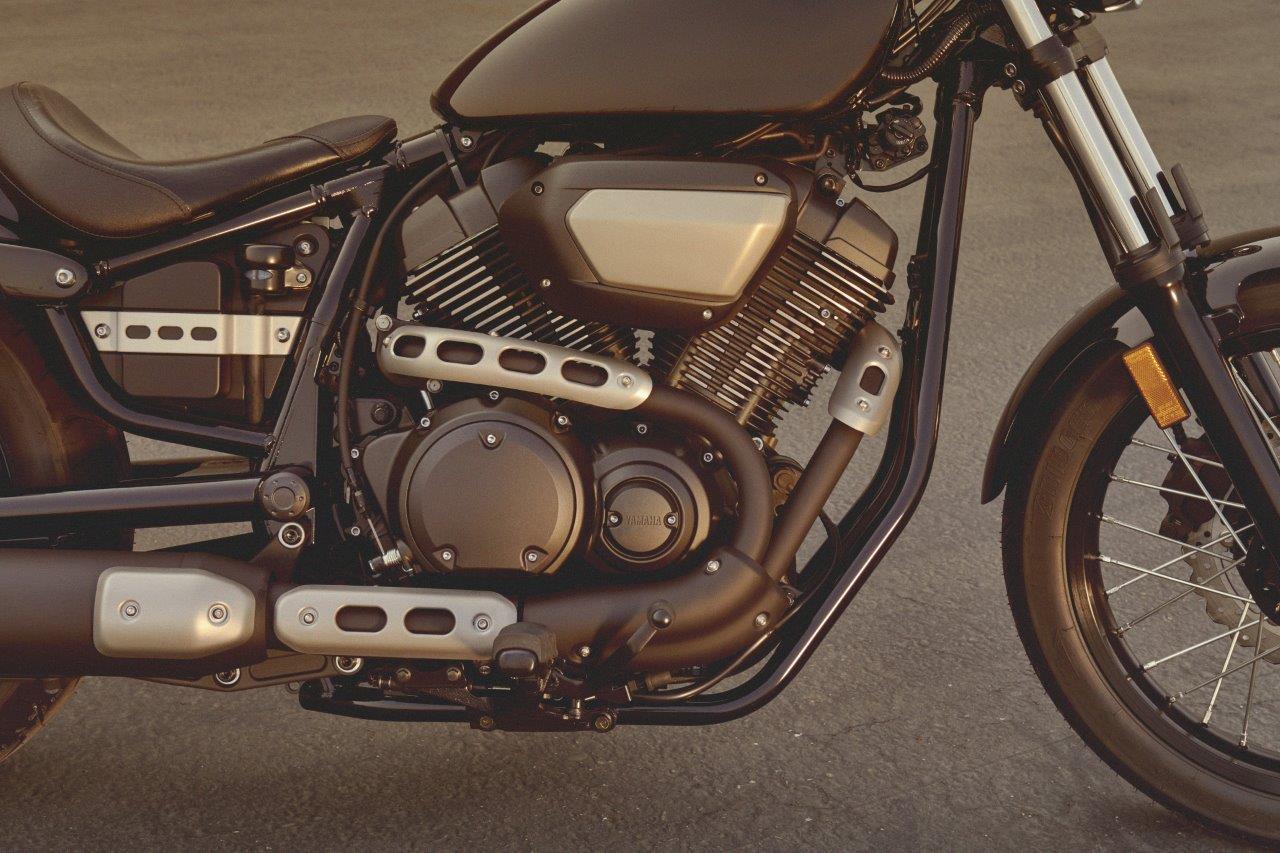

The 58 cubic inch (942cc) engine is an air-cooled SOHC 60° V-twin with four valves per cylinder, a pent-roof shaped combustion chamber, and 9.0:1 compression ratio. The engine is designed to provide excellent power and superior low-end torque.
Low Friction Internals
To keep friction loss to a minimum, increase durability and help the engine achieve the ideal performance characteristics, special roller-type rocker arms with needle bearings are used.
Advanced Cylinder Design
The pent-roof combustion chamber shape was precisely engineered to direct the fuel/air charge to the center of the piston for more efficient combustion and maximum power. Ceramic-composite plated cylinders provide excellent heat dissipation and reduced oil consumption.
Lightweight Performance Pistons
High-quality forged aluminum pistons have a lightweight, high-strength, compact design that contributes to reduced vibration and increased durability.
Fuel Injection
Sophisticated twin-bore fuel injection is used on the Bolt to deliver ultimate urban riding fun with strong acceleration. 3D maps for ignition timing and fuel injection have been developed to deliver outstanding acceleration in the mid- and low-speed ranges.
Compact Air Cleaner
The stainless steel air cleaner cover provides a “raw metal” look that accentuates the Bolt’s distinctive styling. In addition, the air cleaner design provides great intake efficiency and enhanced torque characteristics.
Unique Bolt Exhaust System
A 2-into-1 exhaust pipe layout on the right side of the engine contributes to the lively performance and styling of the machine. The minimalist-style exhaust system delivers a throaty and pleasing exhaust note.

Handling-Focused Frame
A double-cradle frame enhances city riding enjoyment thanks to an engine mounted to the frame with a rigid mount system that provides precise handling.
Low Seat Height
The low-set seat is a mere 27.2 inches off the pavement, so most riders can easily put both feet firmly on the ground at a stop, as well as enjoy the great riding position the seat provides.
Agile Wheelbase
Bolt’s short, 61.8-inch wheelbase contributes to the bike’s great handling, providing precise, tight turns in city riding and solid handling on the open road.
Advanced Suspension
The beefy front 41mm fork tubes offer excellent suspension performance and the twin rear shocks have been tuned to provide great comfort and handling while contributing to the machine’s low profile.

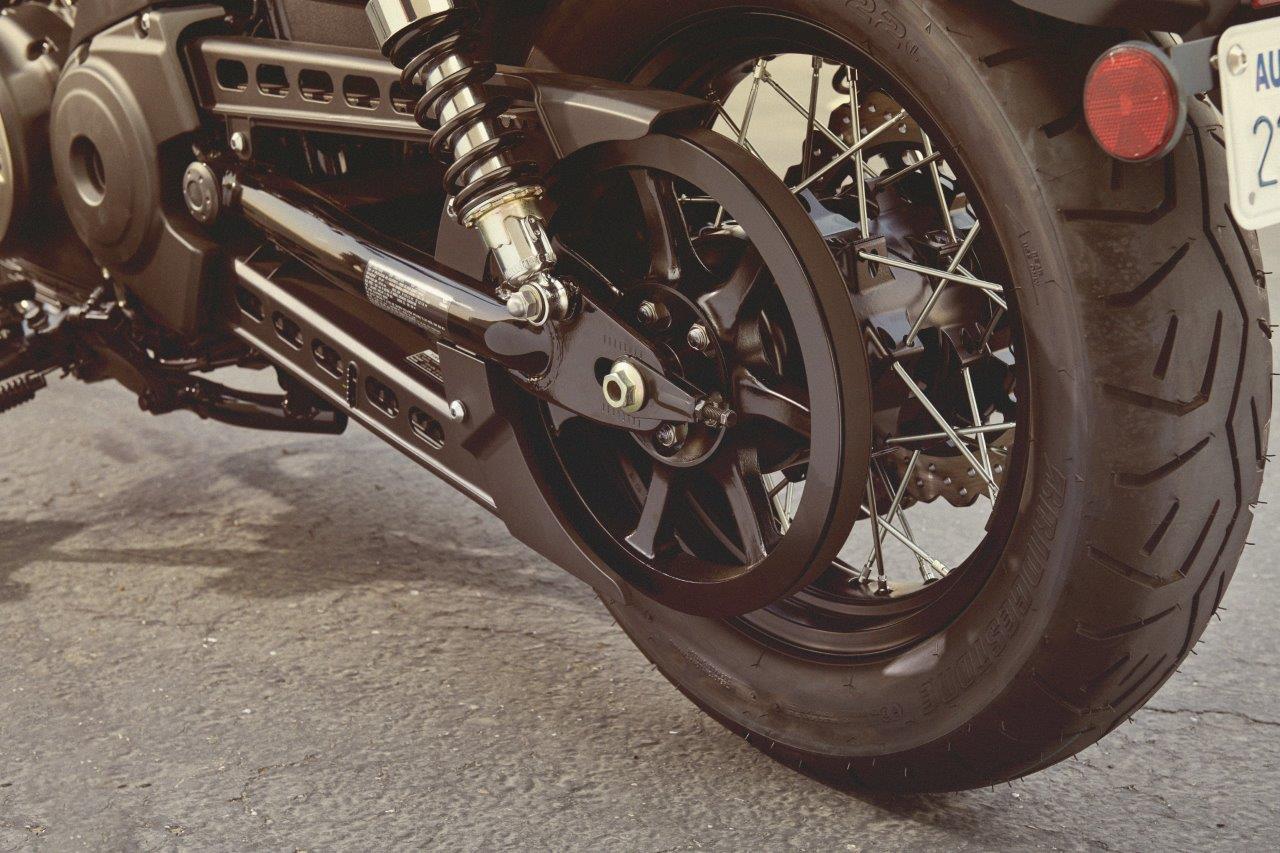

Low Maintenance Belt Drive
At just 21mm wide, the drive belt contributes to the slim and clean look of the rear end. The belt has a carbon-fiber core which adds strength and durability for longevity.
Custom Wheels and Tires
Newly designed spoke wheels with black anodized aluminum rims combine lightweight strength with timeless style. Bridgestone® 100/90-19 front and 150/80-16 rear tires help provide excellent road grip.
Powerful Braking
The 298mm front disc brake and 298mm rear disc brake both use wave rotors, the style usually found on sport bikes. The front brake uses a floating mount for great heat-distortion resistance, contributing to excellent braking performance.
Slim, Stylish Fuel Tank
The 3.4-gallon fuel tank is a traditional teardrop style, with a slim shape that includes flattened top and side surfaces to enhance Bolt styling. The tank features a flangeless design for even cleaner lines.

Modern Lighting
LED rear taillight looks cool and adds to the modern bobber appeal.

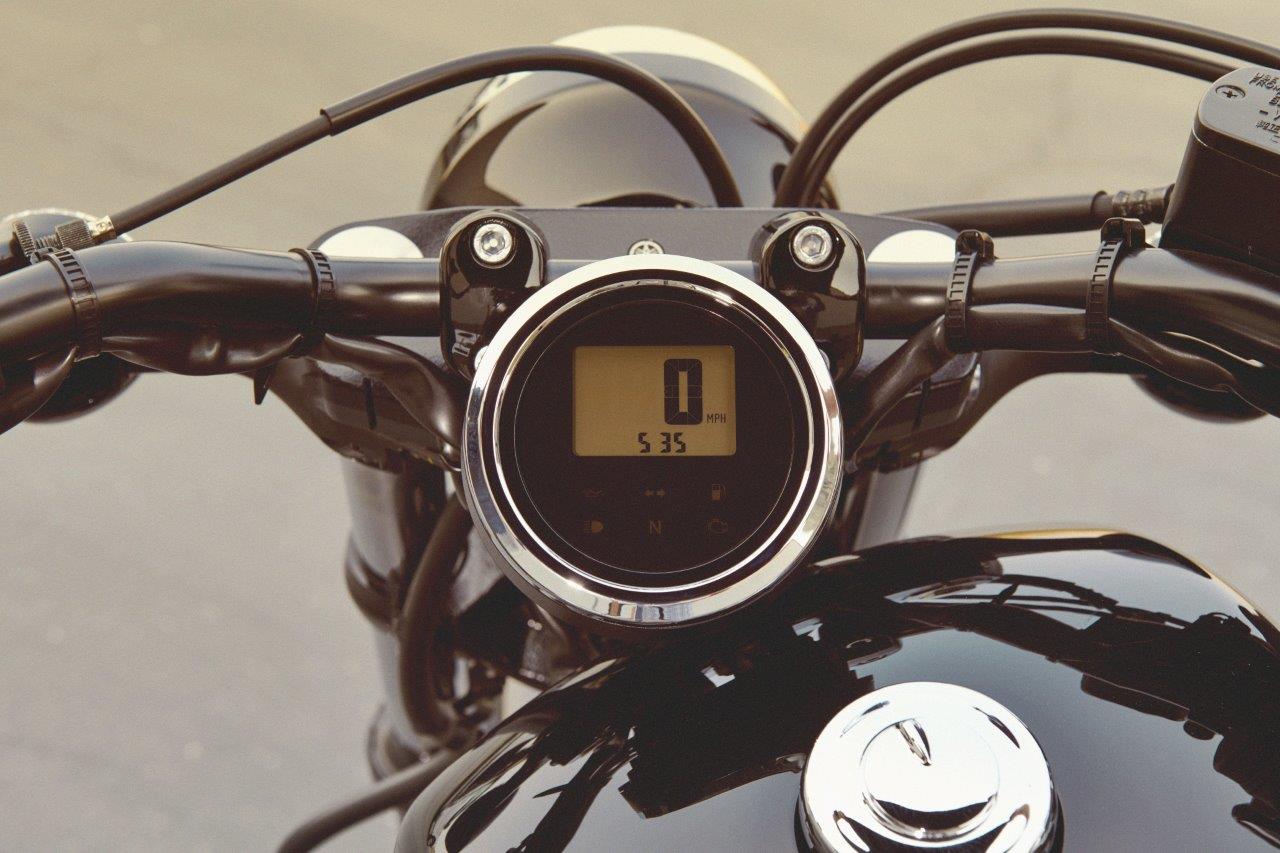

Slick Instruments

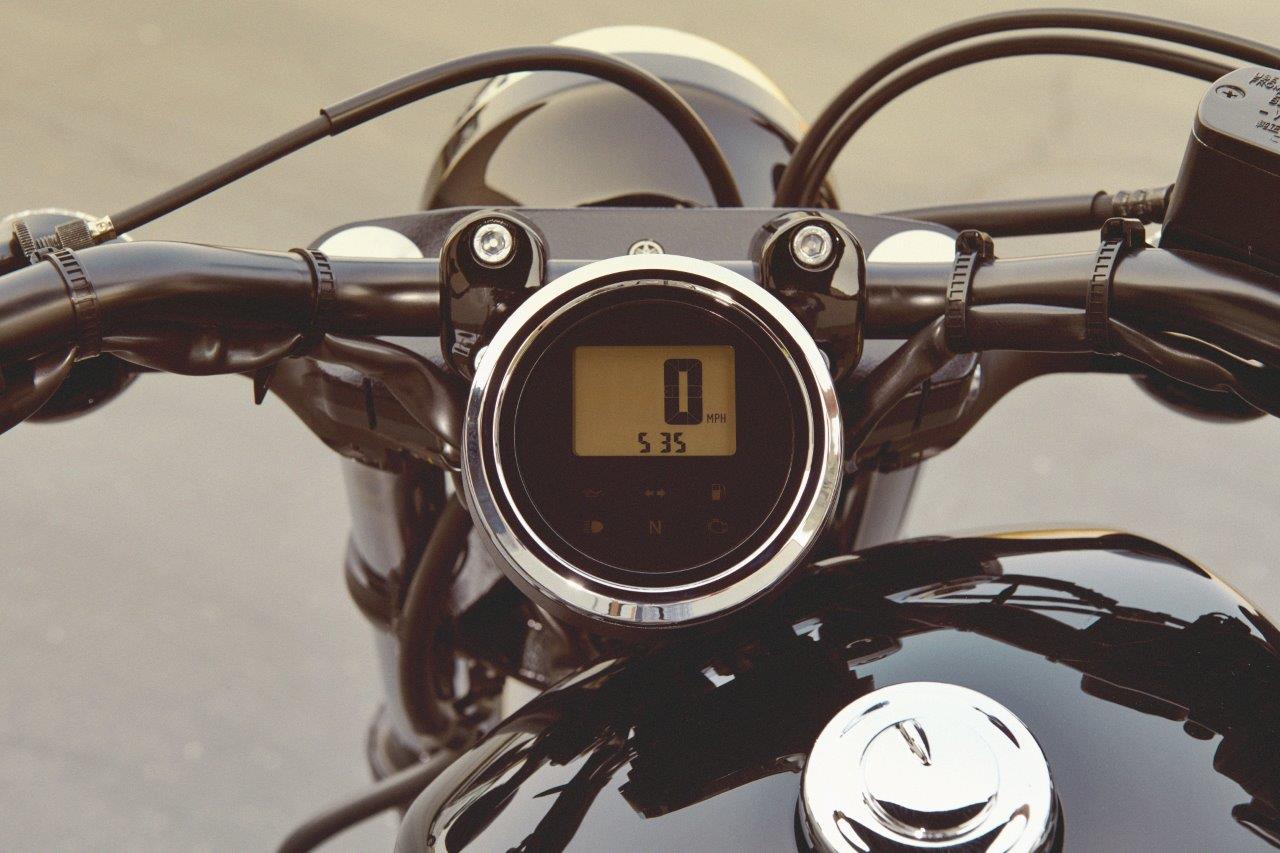

Compact digital LCD meter assembly provides clean styling with excellent visibility.
Real Steel Fenders
Steel front and rear fenders are ideal for personalization, including paint and customization.
Bobber-Style Seat
Solo rider saddle adds to the minimalist bobber look while providing good support for longer rides.
