2020 Triumph Speed Triple S & RS
Contents
The 2020 Triumph Speed Triple S and RS are Triumph’s entries into the streetfighter bike arena. Both models use the same new 1050cc liquid cooled DOHC inline triple, pushing 148 HP and 86 lbs-ft of torque through a rider assist 6 speed transmission, which can be used without the clutch both up and down the box.

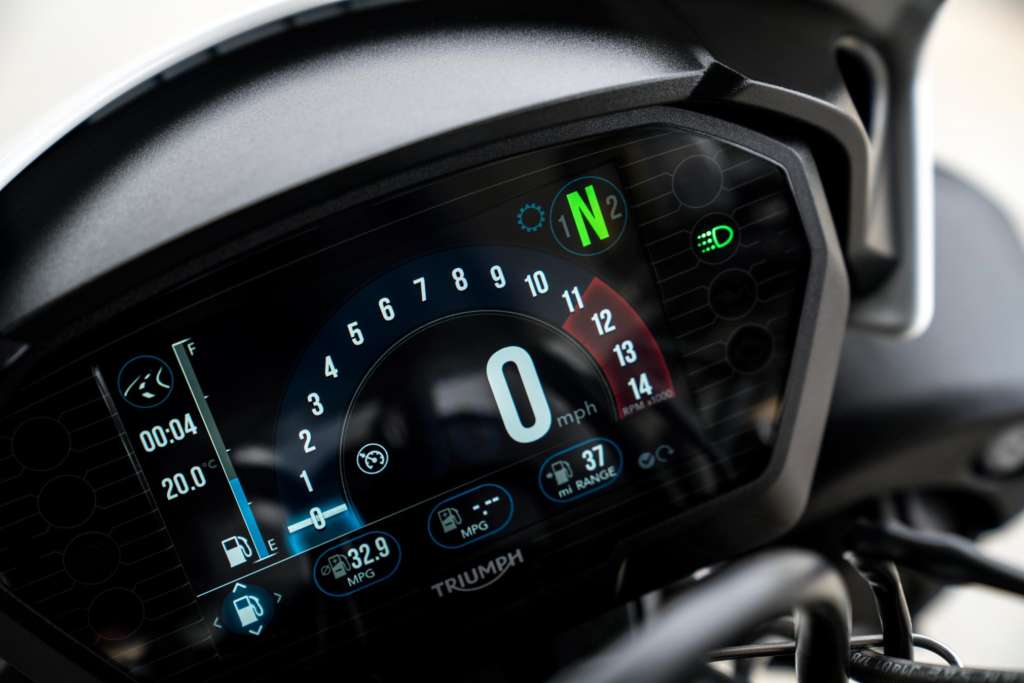

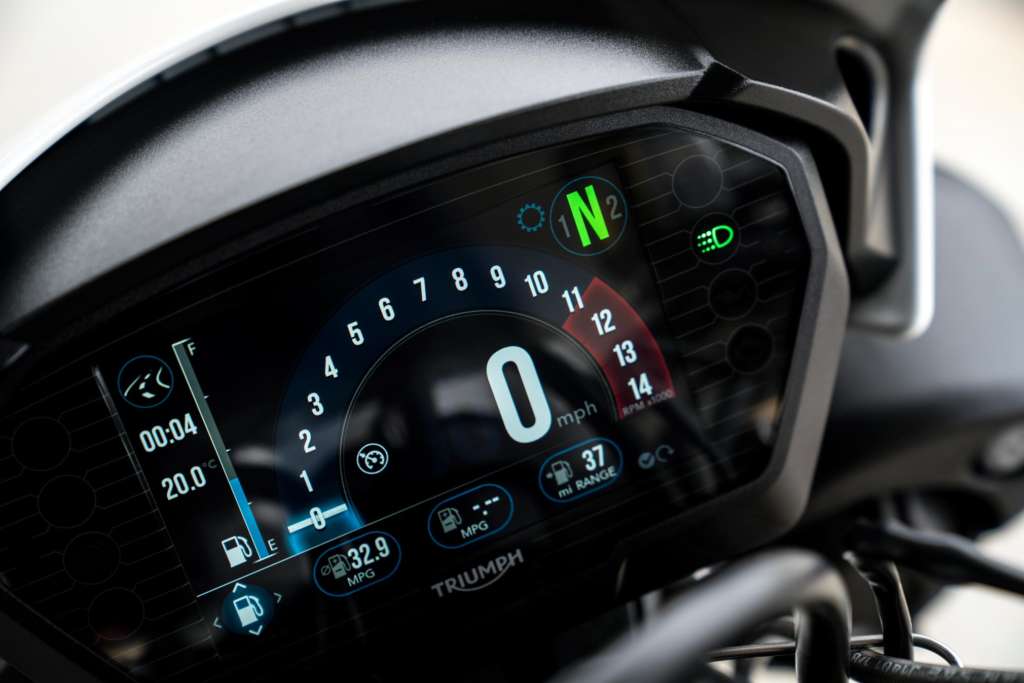

New for 2020 is a fully digital dash, centered around a 5 inch TFT full color display. As well, a new set of cast aluminum 5 spoke wheels add a bit more stance and aggression to the streetfighter looks.
The differences between the models are mostly in the electronics and suspension. The Speed Triple S has four selectable rider modes and Showa shocks front and rear, while the Speed Triple RS has 5 modes including a new track mode, and Ohlins shocks front and rear. The RS also features an exhaust by Arrow that is 9 lbs lighter than the standard exhaust on the S.
The 2020 Triumph Speed Triple S starts at $14,350 US/$16,000 CDN. The 2020 Triumph Speed Triple RS starts at $16,500 US/$18,300 CDN.
On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Triumph Speed Triple S and RS in one place.
Model Overview
General Info
- Price: $ 14,350 US/$16,000
- Key Features:
- LED Lighting
- ABS
- Fuel-injected
Key Specs
- Engine type: 1050 cc, Liquid-cooled, 12 valve, DOHC, inline 3-cylinder
- Power: 148 HP
- Wet weight: 423 lbs (192 Kg)
- Seat height: 32.48 in
2020 Triumph Speed Triple S and RS Specifications
ENGINE |
||
| Engine | 1050 cc, Liquid-cooled, 12 valve, DOHC, inline 3-cylinder | |
| Power | 148 HP | |
| Bore x Stroke | 79 mm x 71 mm | |
| Compression Ratio | 12.92:1 | |
| Fuel System | Multipoint sequential electronic fuel injection with SAI | |
| Starter | Electric | |
| Lubrication | ||
DRIVETRAIN |
||
| Clutch | Wet, multi-plate slip-assist clutch | |
| Transmission | 6 Speed | |
| Final Drive | X ring chain | |
CHASSIS |
||
| Suspension Front | Showa 43 mm upside down forks with adjustable preload, rebound and compression damping, 4.72 in (120 mm) travel | |
| Suspension Rear | Showa monoshock with adjustable preload, rebound and compression damping, 5.12 in (130 mm) rear wheel travel | |
| Brakes Front | Twin 12.6 in (320 mm) floating discs, Brembo 4-piston Monobloc radial calipers Switchable ABS | |
| Brakes Rear | Single 10.04 in (255 mm) disc, 2-piston sliding caliper Switchable ABS | |
| Tires Front | 120/70 ZR17 | |
| Tires Rear |
190/55 ZR17
|
|
| Fuel Tank Capacity | 4.1 US gallons (15.5 L) | |
| Color | ||
ELECTRICAL |
||
| Ignition | ||
| Spark Plugs | ||
| Headlight | LED | |
| Tail Light | LED | |
DIMENSIONS |
||
| Overall Length | ||
| Width Handlebars | 30.51 in (775 mm) | |
| Height Without Mirror | 42.13 in (1,070 mm) | |
| Wheelbase | 56.89 in (1,445 mm) | |
| Trail | 3.59 in (91.3 mm) | |
| Seat Height | 32.48 in (825 mm) | |
| Dry Weight | 423 lbs (192 Kg) | |
WARRANTY |
||
| Warranty | ||
| Extension | ||
2020 Triumph Speed Triple S and RS Features
Engine
10PS more peak power, now 150PS at 10,500rpm
More peak torque, now 117Nm at 7,150rpm
New freer flowing exhaust with new race-style twin upswept silencers
New improved gearbox
Graded slip assist clutch
Arrow titanium sports silencers with carbon fibre heat shield and end cap
Capability
New illuminated switch cubes with 5-way joystick
New cruise control
Switchable ABS and traction control
Four riding modes: Road, Rain, Sport, Rider
USB charging point
Five riding modes Road, Rain, Sport, Ride, (Track, RS only)
Daytime running lights incorporated into the headlights
New optimised cornering ABS and traction control
New inertial measurement unit by Continental
New keyless ignition incorporating immobiliser and electronic steering lock
Key release pillion seat cowl
Styling
Billet machined wheel finishers
Aluminium bar end mirrors
Two piece seat with embossed Triumph logo
New lightweight stylish carbon fibre front mudguard and radiator cowls
Colour coded belly pan
Matt aluminium rear sub-frame
Enhanced comfort rider seat with 3D net inserts
Chassis
Pirelli Diablo Supercorsa tyres
Distinctive twin spar aluminium frame
Lighter than the previous generation, despite the addition of new technology
Twin front brake discs with Brembo radial Monobloc calipers
Brembo MCS span and ratio-adjustable brake lever with matching clutch lever
Fully adjustable Ohlins NIX30 upside down forks and TTX36 twin tube monoshock RSU

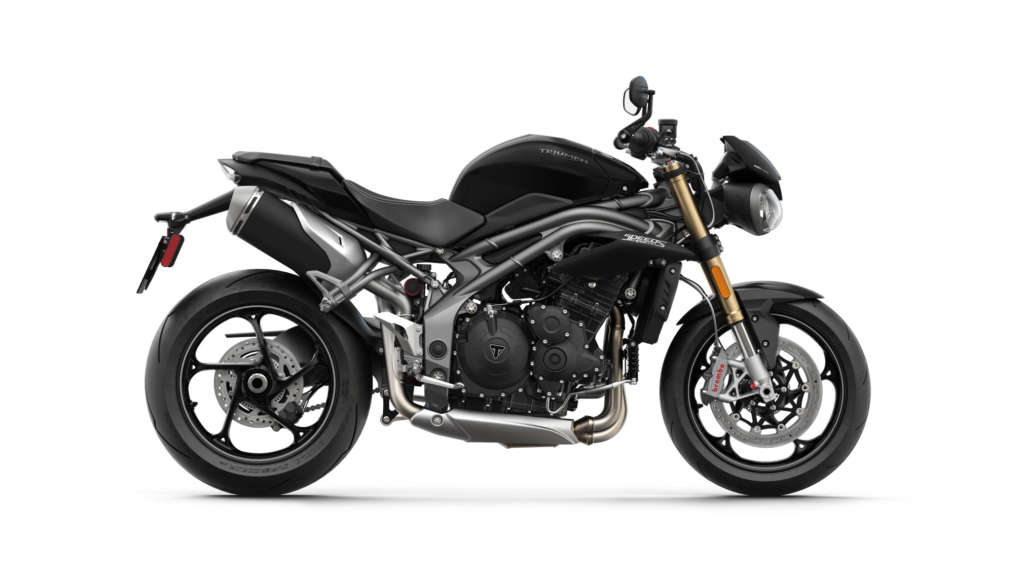

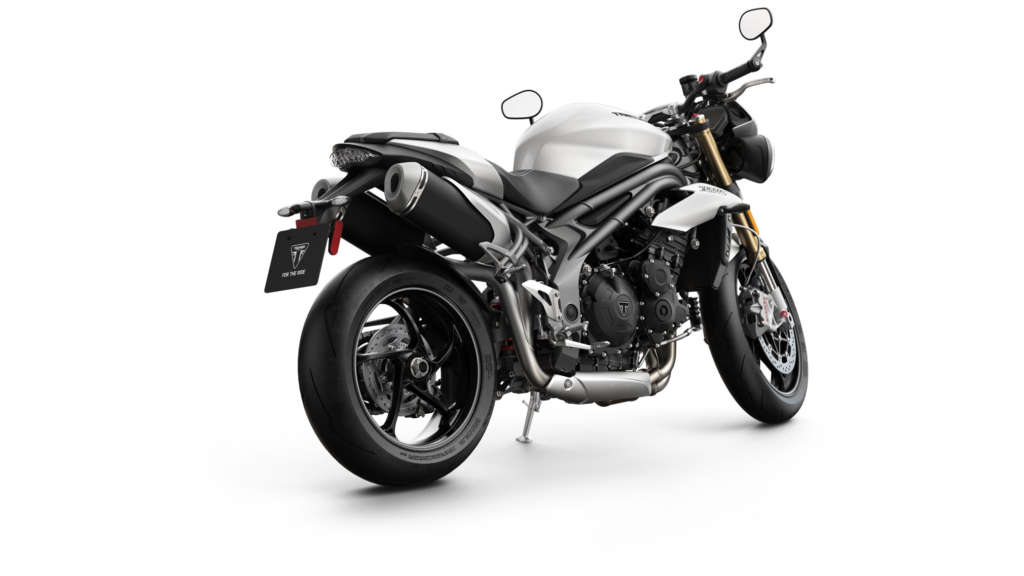

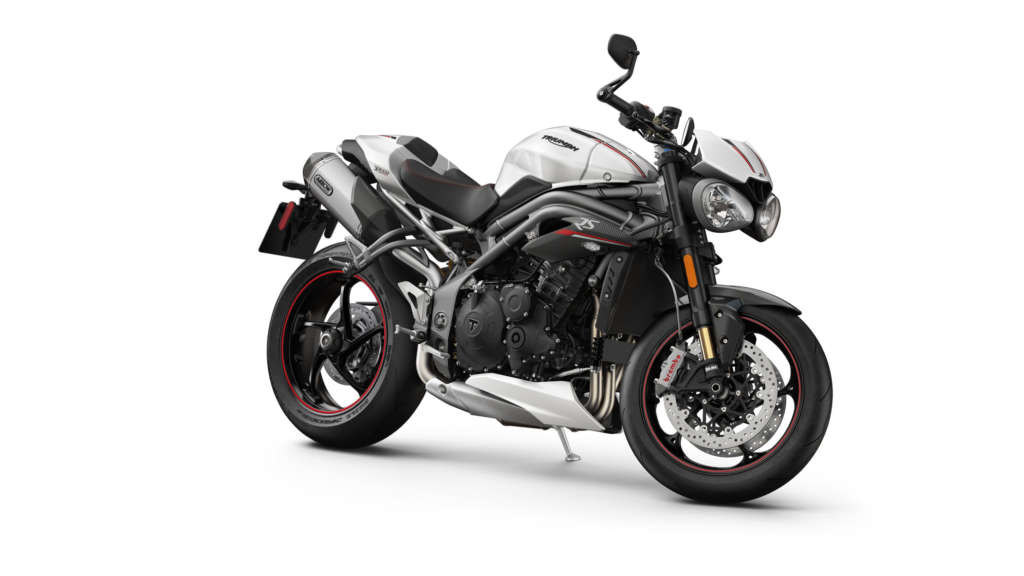

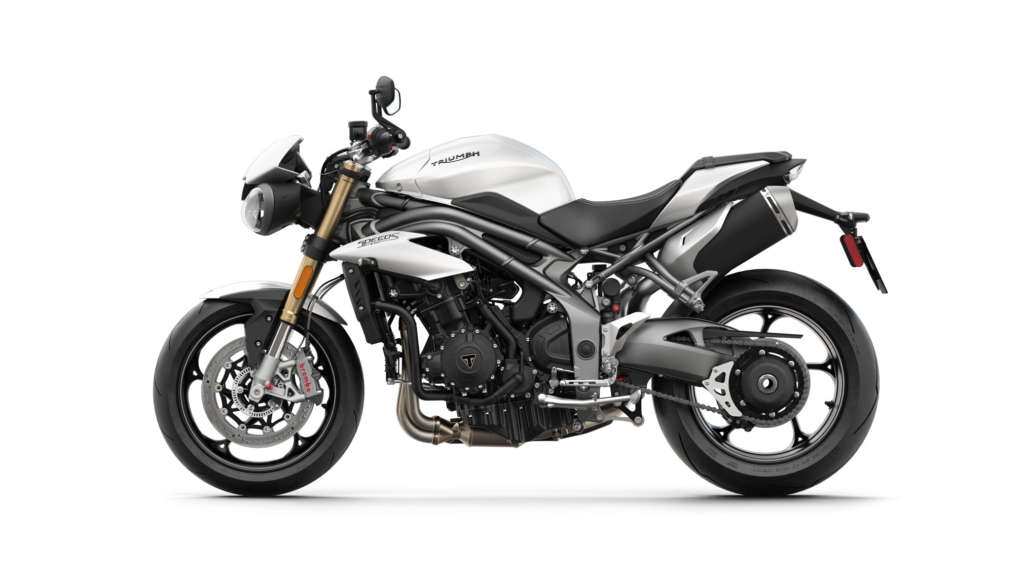

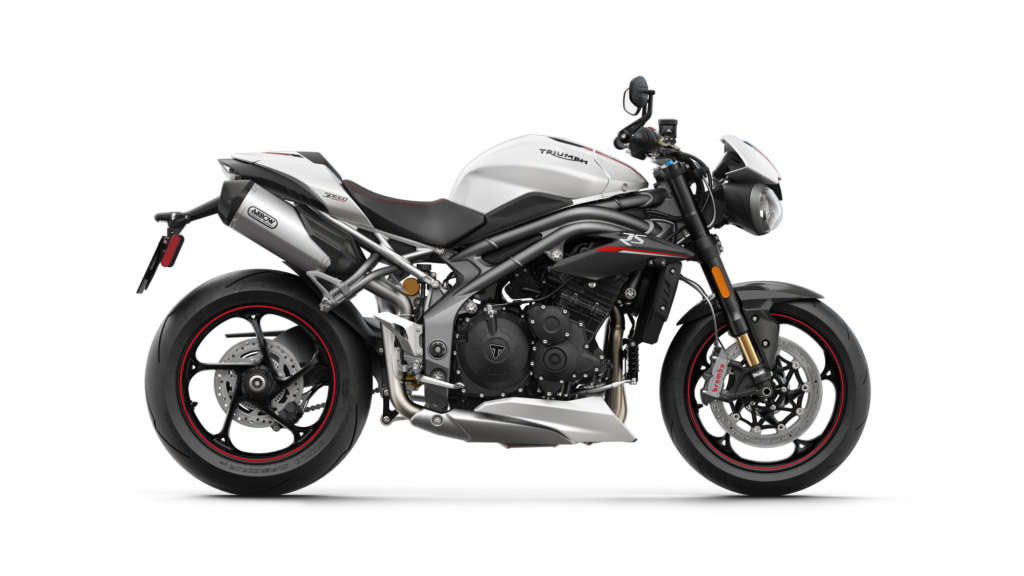

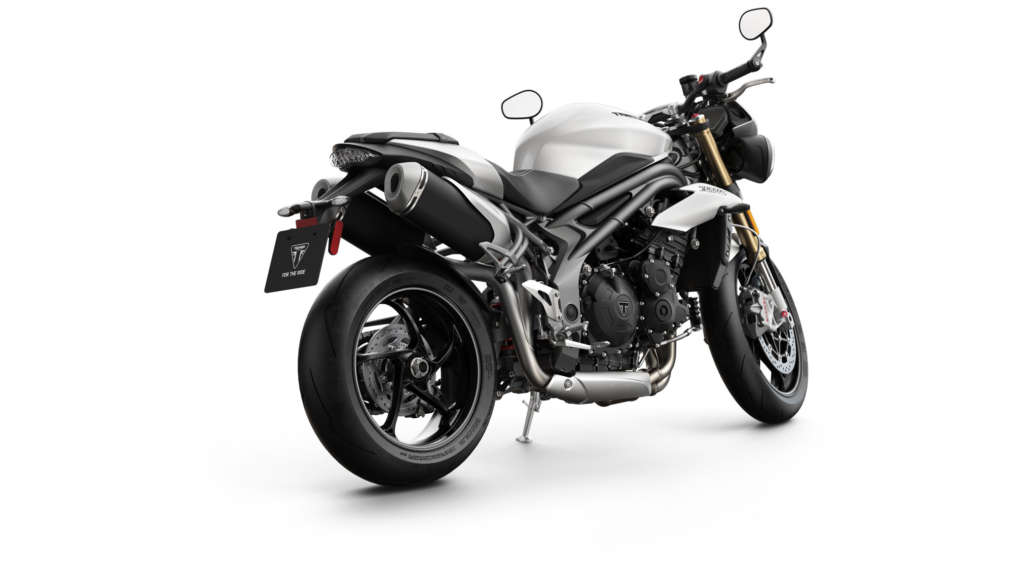

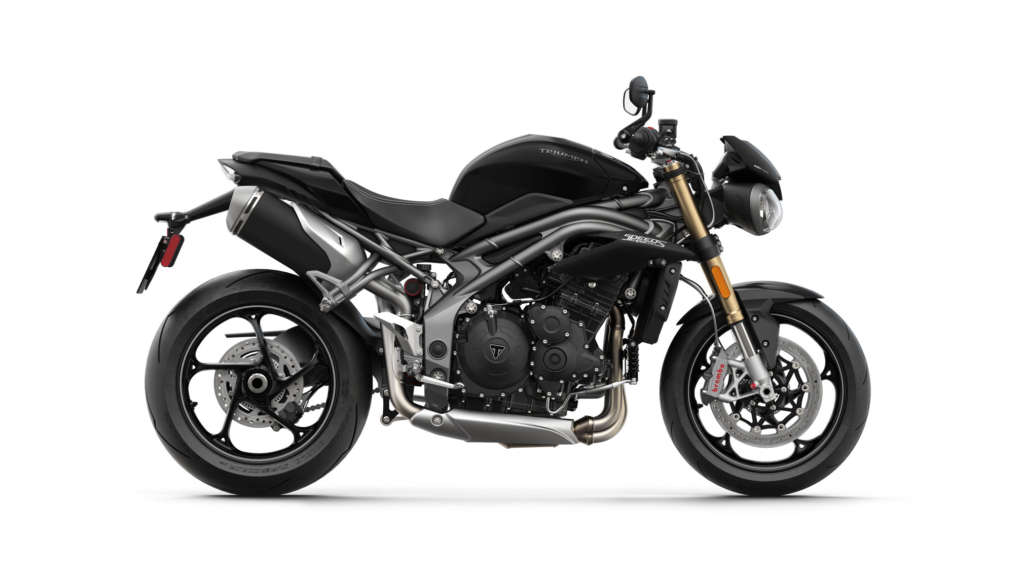

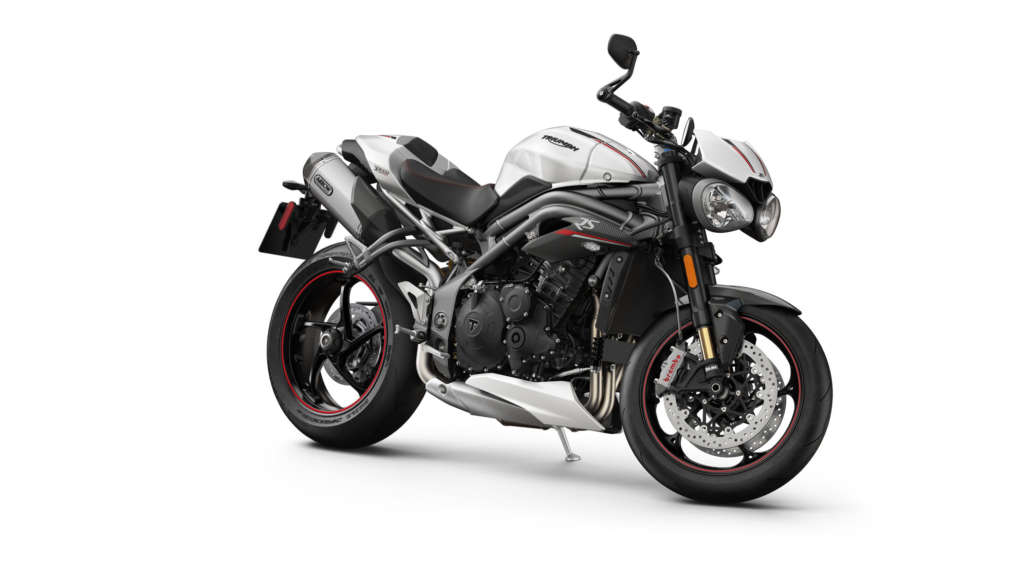

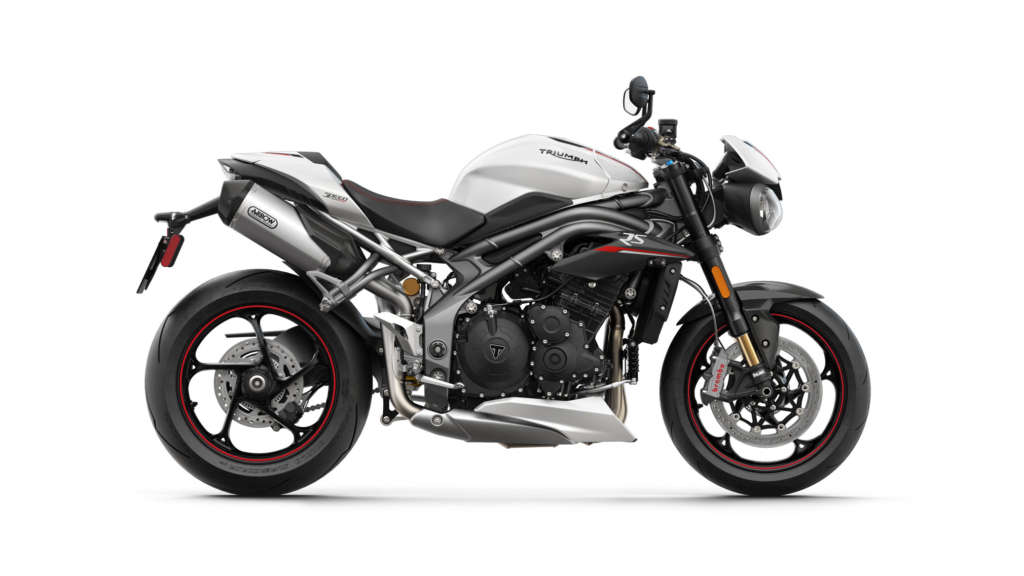

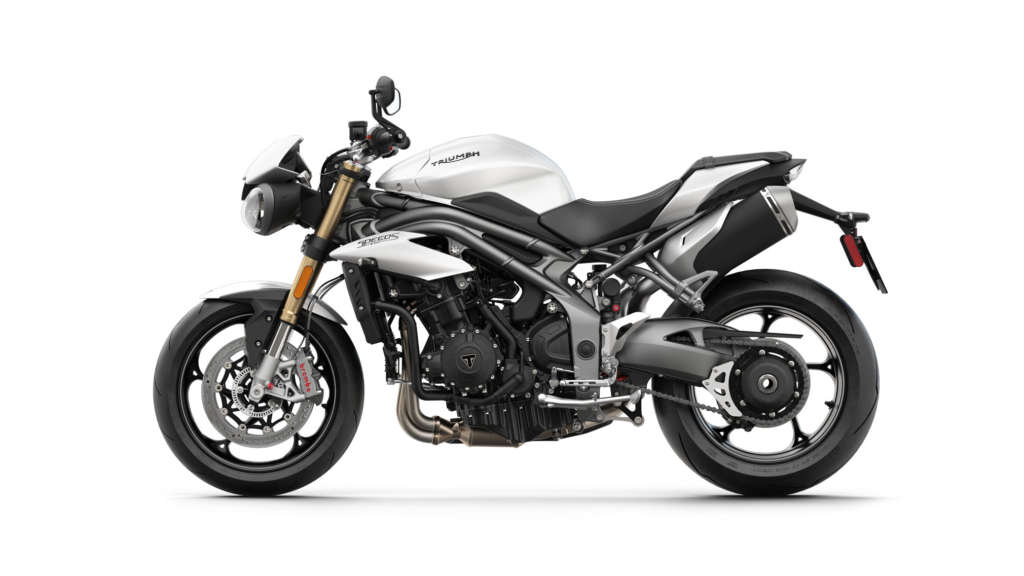

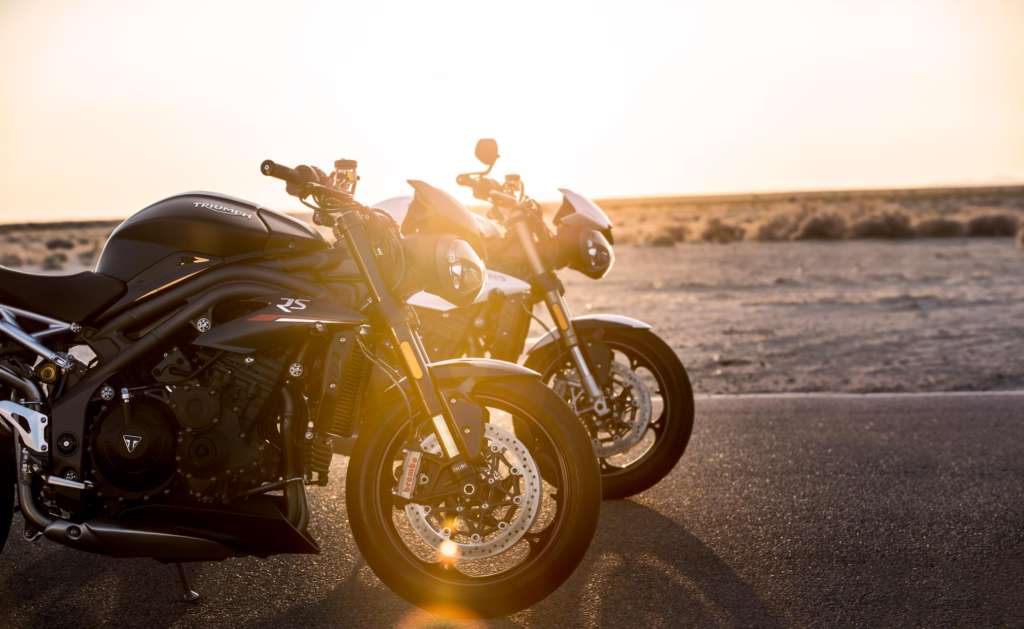

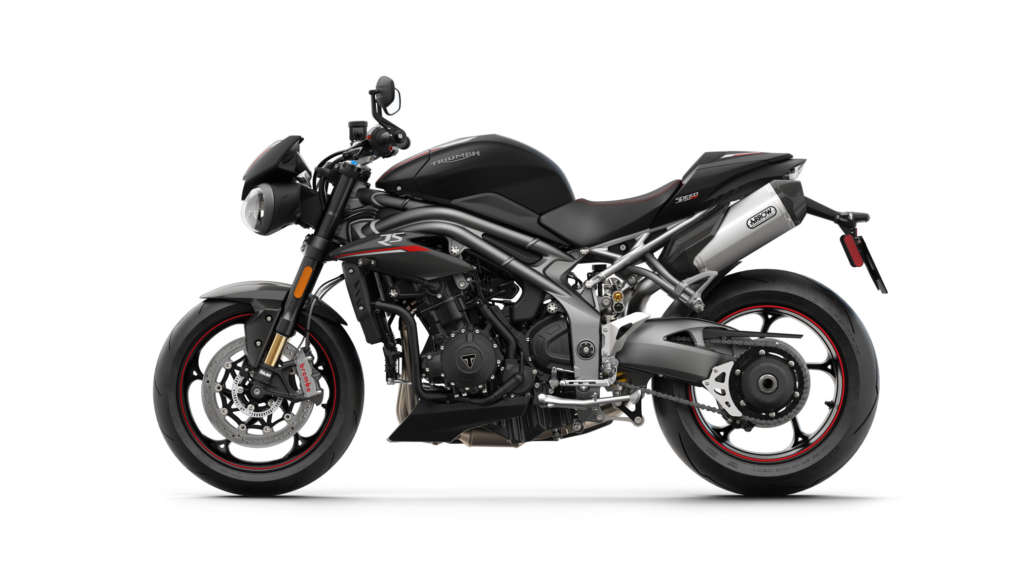

2020 Triumph Speed Triple S and RS Photos
