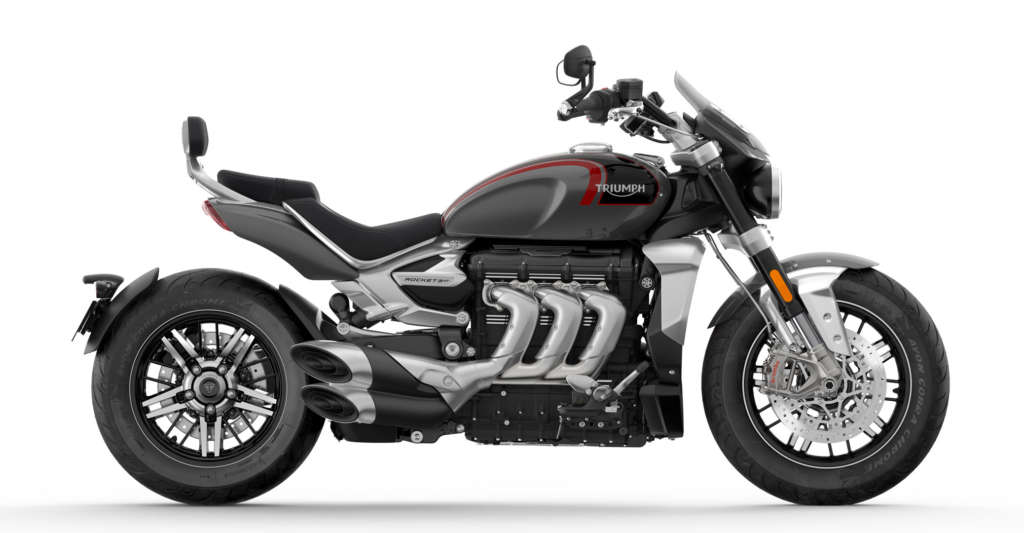

The 2020 Rocket 3 GT and Rocket 3 R both share the same engine, a 2,458cc inline triple that produces 165 HP and 163 lbs-ft of torque. Both motorcycles also both use the same 6-speed transmission that is hydraulically assisted due to the massive torque and power the engine outputs.

The major differences between the R and the GT are in riding position and general bike setup.

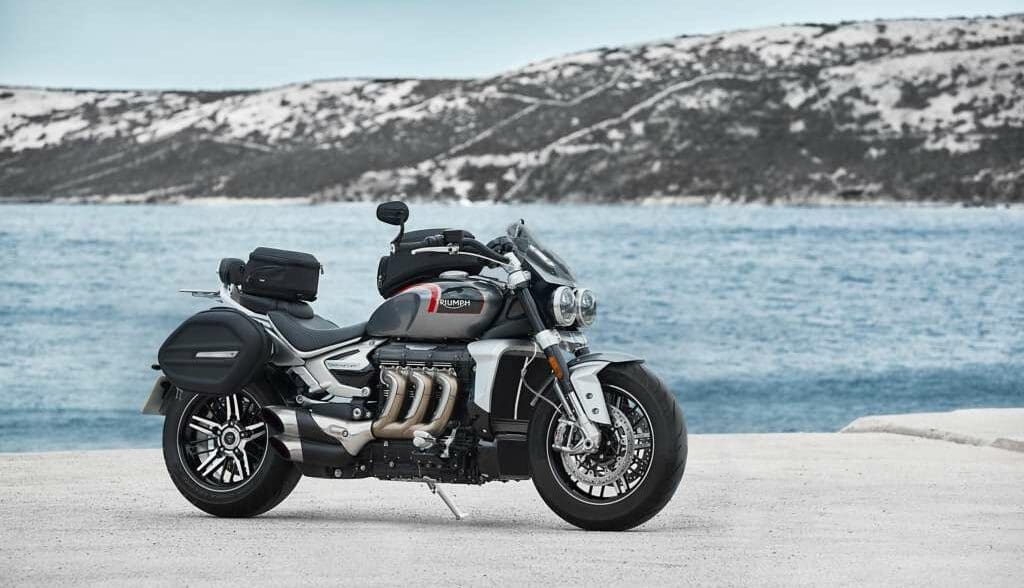

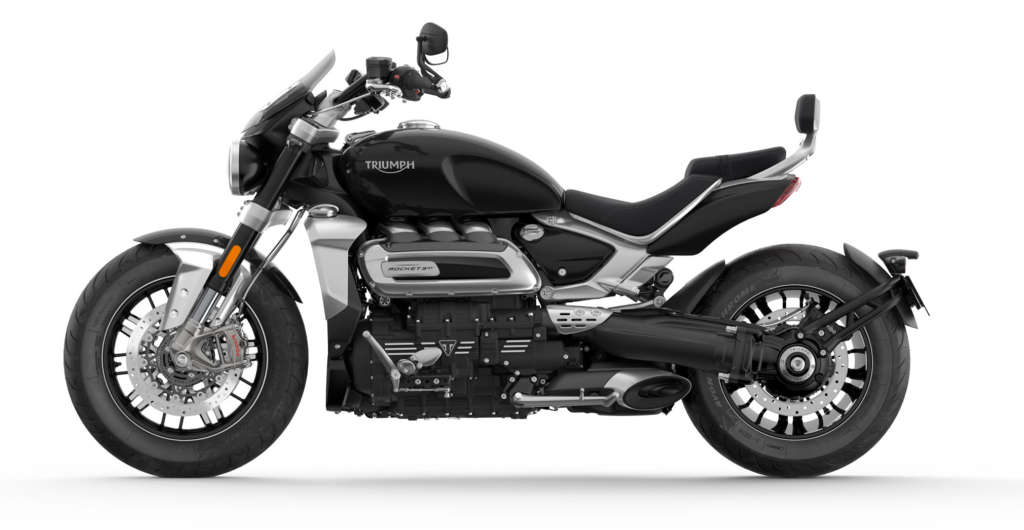

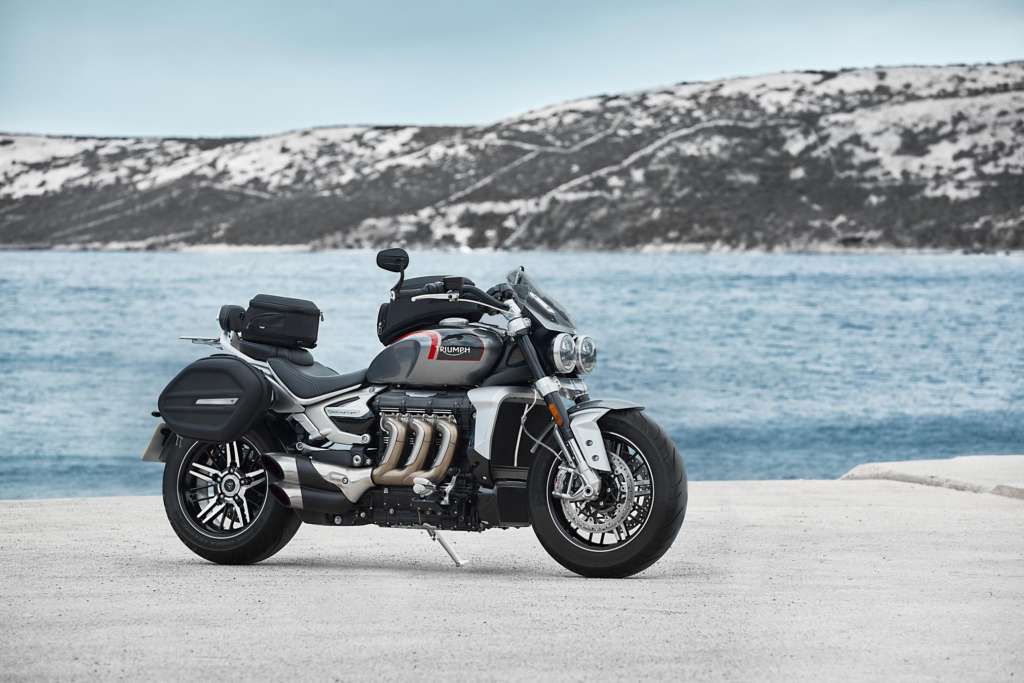

The GT is the much more touring friendly motorcycle, with handlebars that are wide and pulled back, forwards mounted pegs and foot controls, and a touring windshield to deflect air up and over the shoulders of the rider. It is also set to have a slightly more invasive ABS and stability control, as the GT is the bike for those wanting worry free long distance rides.

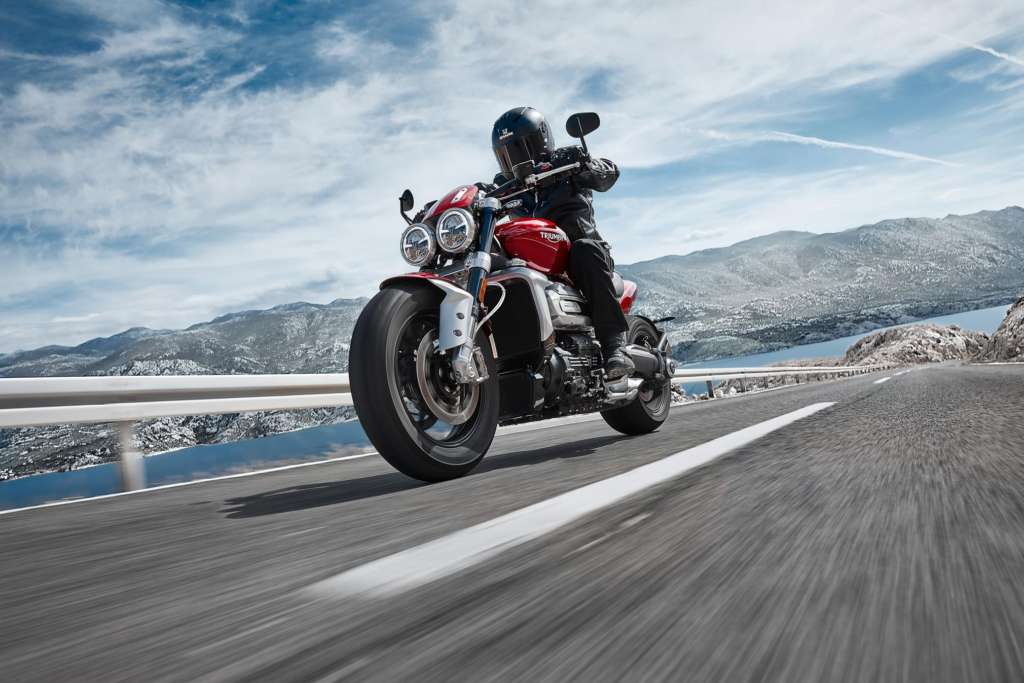

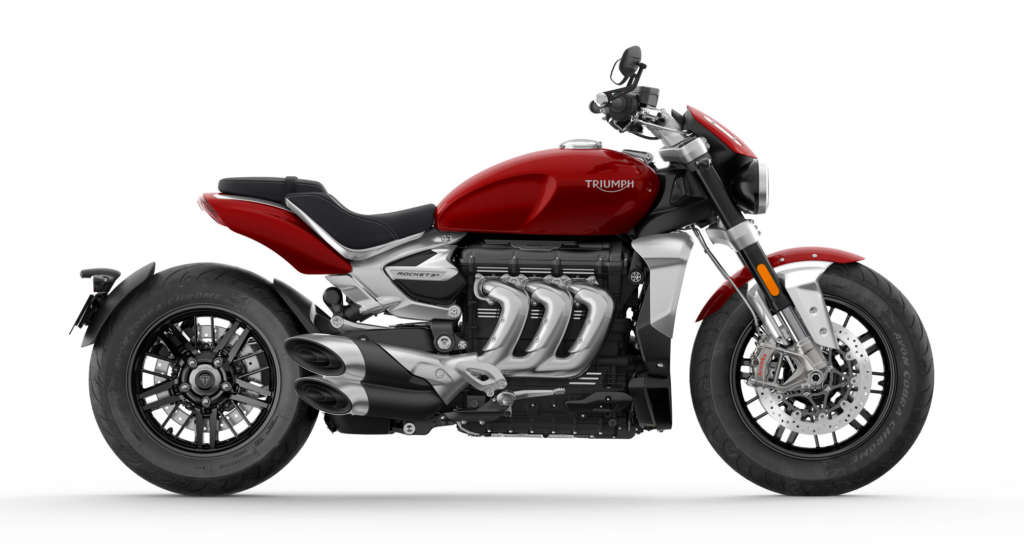

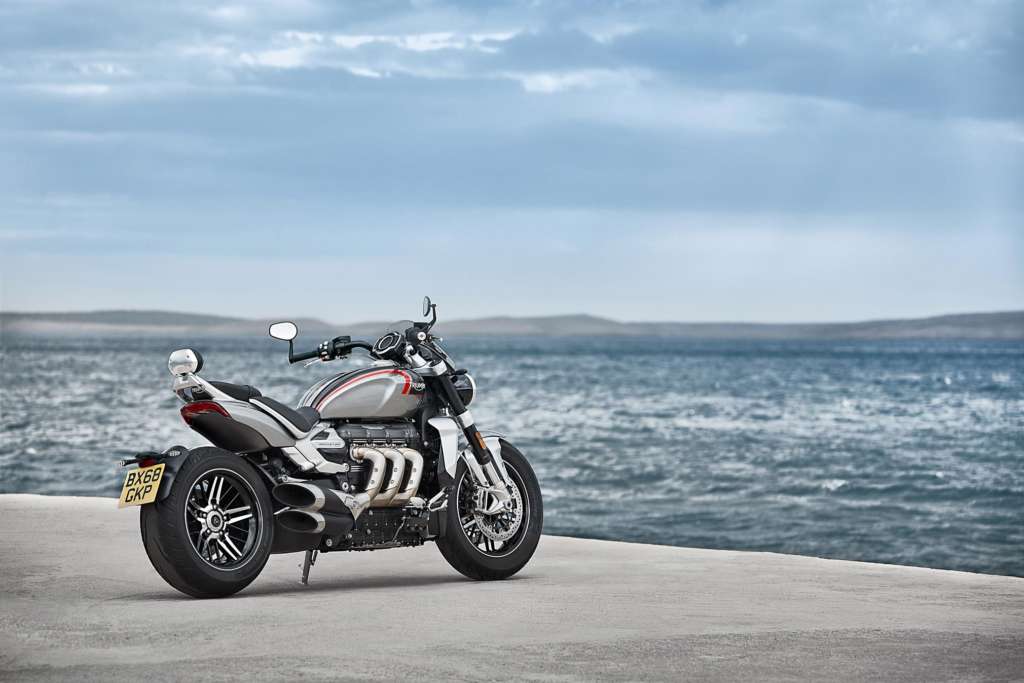

The R, on the other hand, is the power cruiser. It has wide handlebars but they are not pulled back nearly as much, mid mount pegs and foot controls, and only a small front cowling to break through the air. It is much more aggressive, with the ABS only kicking in if it detects imminent loss of control, and the stability control allows much more lean before starting to interfere.

The 2020 Triumph Rocket 3 GT starts at $22,600 US/$26,700 CDN. The 2020 Triumph Rocket 3 R starts at $21,900 US/$25,900 CDN.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Triumph Rocket 3 R / Rocket 3 GT in one place.

Model Overview

General Info

Price: $ 22,600 US/$26,700 CDN
Key Features:
- Cruise control
- ABS
- Fuel injected

Key Specs

Engine type: 2,458cc Inline 3-cylinder, water-cooled, DOHC
Power: 165 HP
Wet weight: 291 kg
Seat height: 30.4in

Key Competitors

Souo’s Insane Flat-Eight Muscle Cruiser and a New Rocket Duo

2020 Triumph Rocket 3 R / Rocket 3 GT Specifications

From Triumph

ENGINE
Engine	2,458cc Inline 3-cylinder, water-cooled, DOHC
Power	165 HP
Bore x Stroke	110.2mm x 85.9mm
Compression Ratio	10.8:1
Fuel System	Ride-by-Wire, fuel injected
Starter	Electric
Lubrication
DRIVETRAIN
Clutch	Wet, multi-plate hydraulically operated, torque-assist
Transmission	6 Speed
Final Drive	Shaft, bevel box
CHASSIS
Suspension Front	Showa 47mm upside-down 1 1 cartridge front forks, compression and rebound adjuster, 4.7in (120mm) travel
Suspension Rear	Fully adjustable Showa piggyback reservoir RSU with remote hydraulic preload adjuster, 4.2in (107mm) rear wheel travel.
Brakes Front	Dual 320mm discs, Brembo M4.30 Stylema® 4-piston radial monobloc calipers, Cornering ABS
Brakes Rear	Single 300mm disc, Brembo M4.32 4-piston monobloc caliper, Cornering ABS
Tires Front	150/80 R17 V
Tires Rear	240/50 R16 V
Fuel Tank Capacity	4.8 US gal
Color
ELECTRICAL
Ignition
Spark Plugs
Headlight	LED
Tail Light	LED
DIMENSIONS
Overall Length
Overall Width	35in (889mm)
Height Without Mirror	41.9in (1065 mm)
Wheelbase	66in (1677 mm)
Trail	5.3in (134.9mm)
Seat Height	30.4in (773mm)
Wet Weight	641.5lb (291kg)
WARRANTY
Warranty
Extension

2020 Triumph Rocket 3 R / Rocket 3 GT Features

The high specification aluminum frame construction, with forward-facing air intake and premium cast and forged components is more than 15% lighter than the previous production Rocket.

Contributing to the Rocket 3 R and GT’s superior riding comfort and exceptional handling characteristics are fully adjustable Showa monoshock RSU with piggyback reservoir, and 47 mm USD Showa cartridge front forks which are adjustable for both compression and rebound

Lightweight, compact, beautifully sculpted Brembo Stylema calipers are designed to deliver a more immediate braking response. The increased airflow around the brake pads help the calipers cool quicker for a more consistent performance.

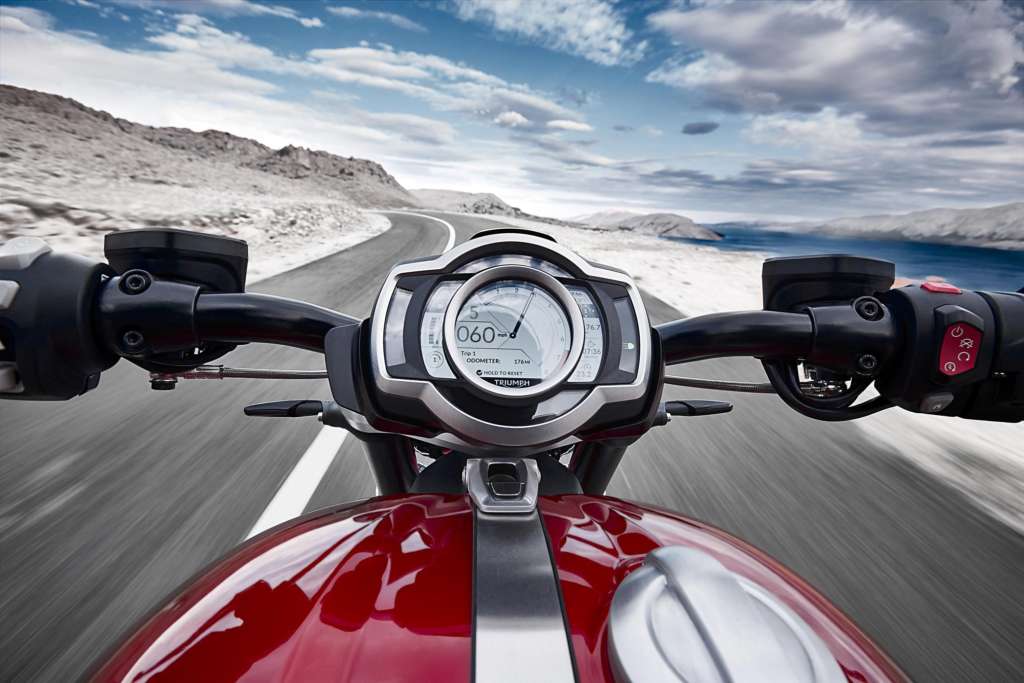

The Rocket 3 lineup is packed with ride-enhancing technology including sophisticated personalizable full-color TFT instruments, optimized cornering ABS & traction control, four riding modes, all-LED lighting, hill-hold control, cruise control, keyless ignition and optional Triumph Shift Assist.

For excellent visibility, both Rocket 3 models feature a distinctive full-LED twin headlight (including Daytime Running Lights where market legislation permits), a beautiful LED tail light, LED indicators and LED license plate light for maximum durability and power efficiency.

Developed especially for this bike, imposing Avon Cobra Chrome tires – the rear tire is 9.45-inches (240 mm) wide – add to the Rocket 3’s muscular presence with stunning detailing, with a new tread pattern for exceptional grip and incredible longevity.

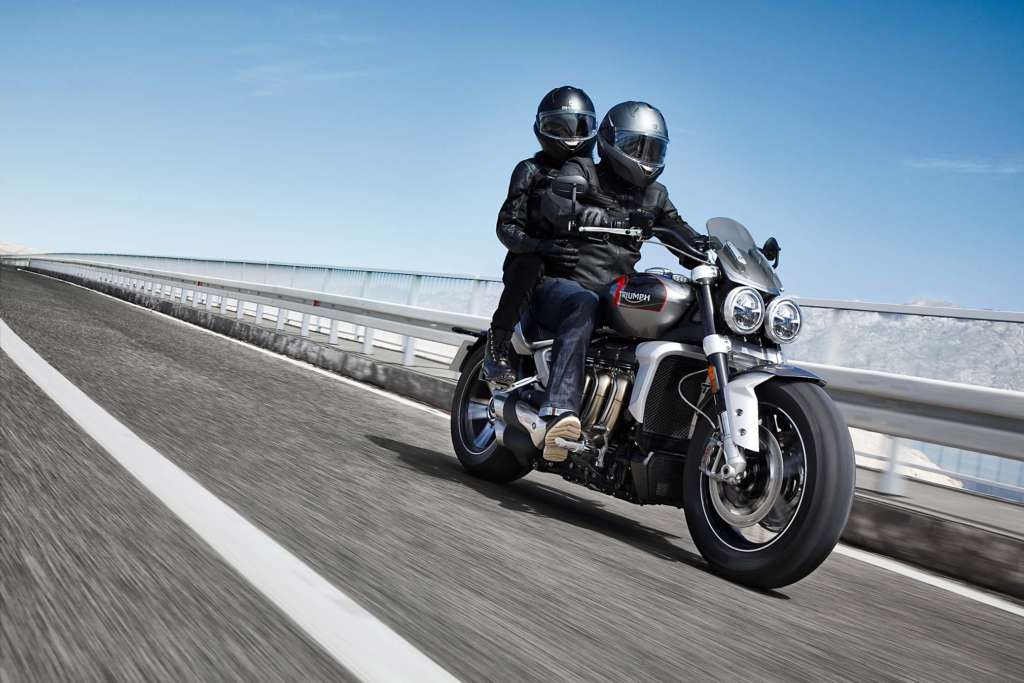

Both of the Rocket 3’s sculpted rider and pillion saddle setups maintain the clean and flowing line across the bike, and deliver maximum comfort and an accessible low seat height. Each model features a dedicated setup, with the Rocket 3 GT benefiting from the addition of a brushed aluminum pillion backrest.

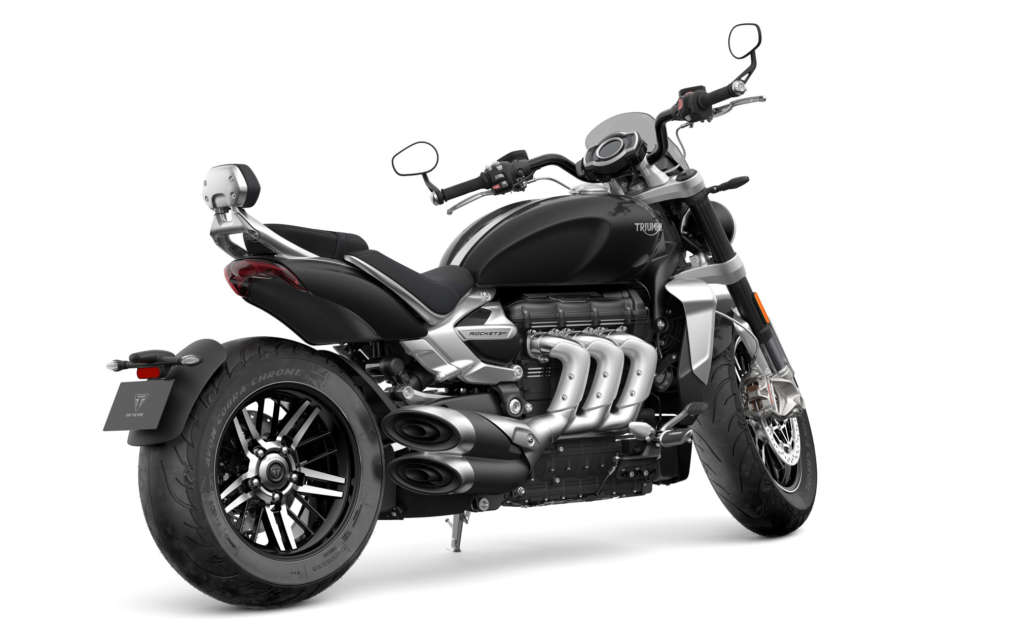

The beautifully engineered cast aluminum single-sided swingarm, with offset monoshock suspension and aluminum rear license plate hanger, add to the clean, uncluttered styling of the compact minimal rear end.

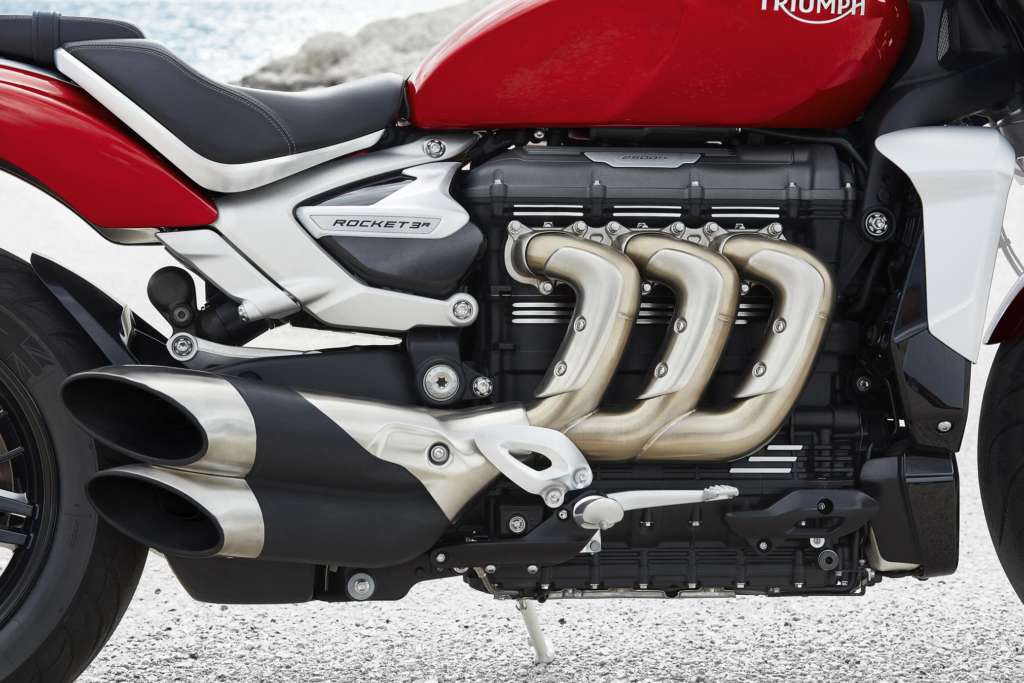

The new Rocket 3’s distinctive three-header exhaust run is innovatively engineered for the perfect exhaust routing, flowing from the header into the combined cat box, then on to the beautiful triple-exit silencer for the perfect deep, growling triple soundtrack.

Enjoy class-leading connectivity while you’re riding the new Rocket 3 with the world’s first integrated GoPro control system; ‘turn-by-turn’ navigation with easy to follow Google icons and Bluetooth® phone & music operation. These features are enabled by an accessory-fit My Triumph connectivity module.
