2020 Suzuki DR200S
Contents
The 2020 Suzuki DR200S is the company’s smallest dual sport. This bike is the lightest and most agile of Suzuki’s on-road, off-road machines, but it still packs a good engine and plenty of capabilities both on and off-road.
The bike gets an air-cooled single-cylinder engine with a carburetor and a displacement of 199cc. The engine makes 20 hp and 13 lb-ft of torque, and it is mated to a five-speed manual transmission. The DR200S is a bike most at home off-road but it’s commendable on city streets, too.
The DR200S is just as much of a tried-and-true machine as the other DR dual sport bikes in the Suzuki lineup. The DR200S is a fantastic commuting machine that is a tough little off-roader. The bike has a starting price of $4,649.
The motorcycle is available in one color, and that color is Solid Iron Grey.
On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Suzuki DR200S in one place.
Model Overview
General Info
- Price: $4,649
- Key Features:
- Compact and Powerful
- Electric starting
- Low-maintenance
Key Specs
- Engine type: 199cc, 4-stroke, air-cooled, single cylinder, SOHC
- Power: 20 hp
- Curb weight: 126 kg (278 lb.)
- Seat height: 33.3 in
Key Competitors
2020 Suzuki DR200S Specifications
Engine |
||
| Engine | 199cc, 4-stroke, air-cooled, single cylinder, SOHC | |
| Bore x Stroke | 66.0 mm x 58.2 mm (2.60 in. x 2.29 in.) | |
| Compression Ratio | 9.4:1 | |
| Fuel System | Mikuni BST31SS, single carburetor | |
| Starter | Electric | |
| Lubrication | Wet sump | |
Drivetrain |
||
| Transmission | Wet multi-plate | |
| Transmission | 5-speed constant mesh | |
| Final Drive | Chain, DID 520V, 112 links | |
Chassis |
||
| Suspension Front | Telescopic, coil spring, oil damped | |
| Suspension Rear | Link type, coil spring, oil damped | |
| Brakes Front | Disc brake | |
| Brakes Rear | Drum brake | |
| Tires Front | 70/100-21 M/C 44P, tube type | |
| Tires Rear | 100/90-18 M/C 56P, tube type | |
| Fuel Tank Capacity | 13.0 L (3.4 US gal.) / 12.0 L (3.2 US gal.) CA model | |
| Color | Solid Iron Gray | |
Electrical |
||
| Ignition | Electronic ignition (CDI) | |
| Spark Plug | NGK DR8EA or DENSO X24ESR-U | |
| Headlight | 12V 60/55W (H4) | |
| Tail Light | 12V 21/5W | |
Dimensions |
||
| Overall Length | 2155 mm (84.8 in.) | |
| Overall Width | 805 mm (31.7 in.) | |
| Overall Height | 1140 mm (44.9 in.) | |
| Wheelbase | 1405 mm (55.3 in.) | |
| Ground Clearance | 255 mm (10.0 in.) | |
| Seat Height | 845 mm (33.3 in.) | |
| Curb Weight | 126 kg (278 lb.) | |
Warranty |
||
| Warranty | 12-month unlimited mileage limited warranty | |
| Extension | Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP). | |
2020 Suzuki DR200S Features
Engine Features
Ultra-reliable, 199cc, air-cooled, single cylinder, SOHC engine provides just the right amount of torque and horsepower to power your ride.
Suzuki Composite Electrochemical Material (SCEM)-coated aluminum cylinder is used for durability, weight reduction, and superior heat transfer.
Push-button electric start fires up the bike consistently and is powered by a compact and reliable maintenance-free battery.
Digitally-controlled CDI ignition system is engineered to match ignition timing throughout the engine rpm range.
Five-speed transmission has gear ratios suitable for a wide variety of riding conditions.
Cable-operated, quick-action, rack-and-pinion clutch design ensures light and positive operation.
Engine power routes to the rear wheel via a low-maintenance, long-life sealed chain.
Chassis Features
Influenced by the high-performance style of the RM-Z series, the ergonomic design makes the DR200S a better fit to a wider range of riders for the dirt and the pavement.
Compact frame is made of sturdy high tensile strength steel pipe.
Both the telescopic front fork and single shock absorber rear suspension, with adjustable spring preload, deliver 8.1 inches of wheel travel at both the front and the rear.
Front disc and rear drum brakes deliver reliable stopping power.
The durable front and rear tires with special tread patterns are designed for smooth riding both on and off the pavement.
Backward-folding rearview mirrors, gearshift, and brake levers help reduce damage from obstacle impact.
Electrical Features
Electric start system provides convenient operation and features a lightweight starter motor and a compact, maintenance-free battery.
A 60/55-watt H4 halogen headlight helps you ride on into the night.
The tail light and turn signals match the sleek style of the seat and bodywork.
The road-legal lighting is complemented with rubber-mounted turn signals and horn.
Additional Features
12-month limited warranty. Longer coverage periods with other benefits are available through Suzuki Extended Protection (SEP).
Genuine Suzuki Accessories for DR200S owners are available, including a selection of Suzuki logo apparel.

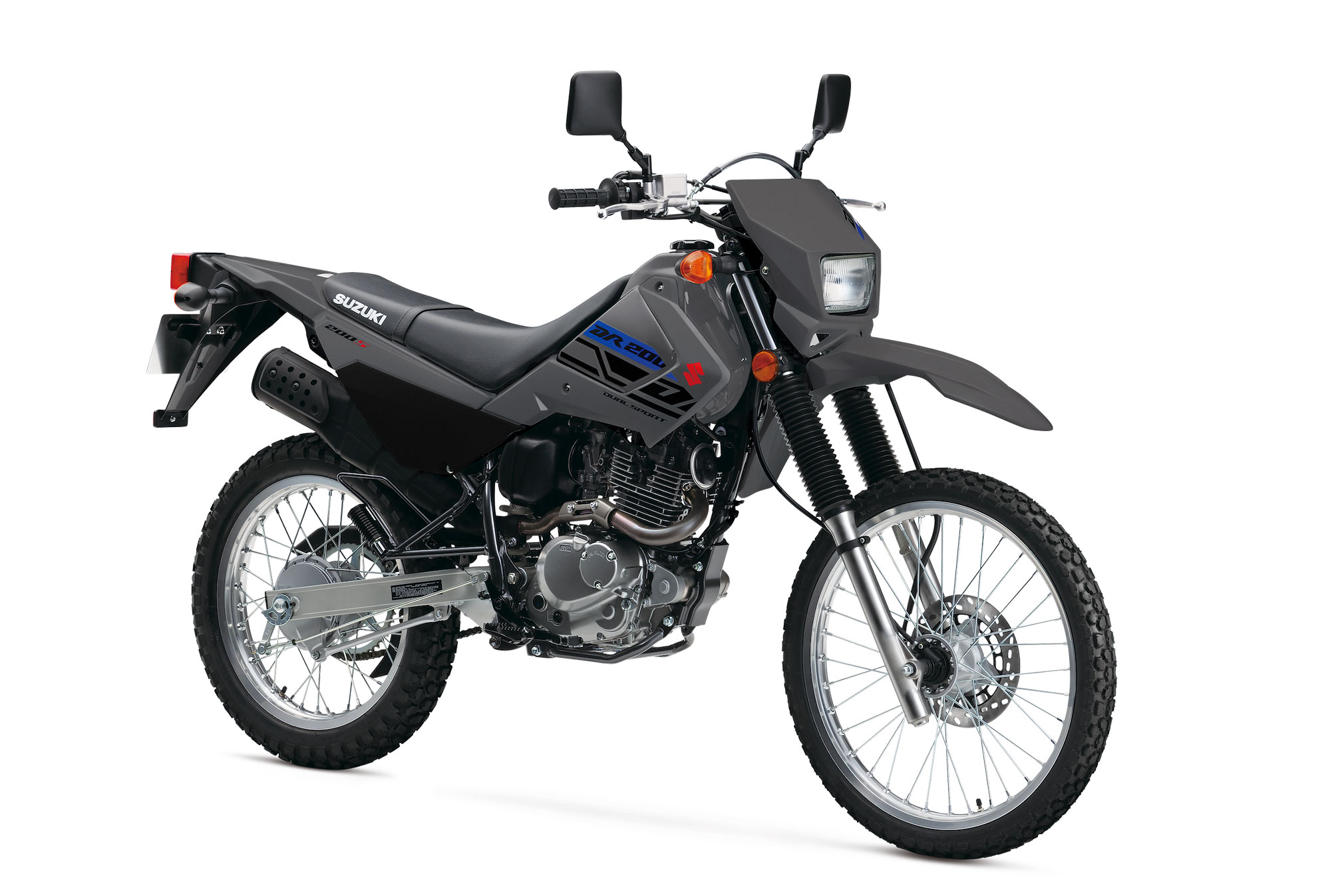

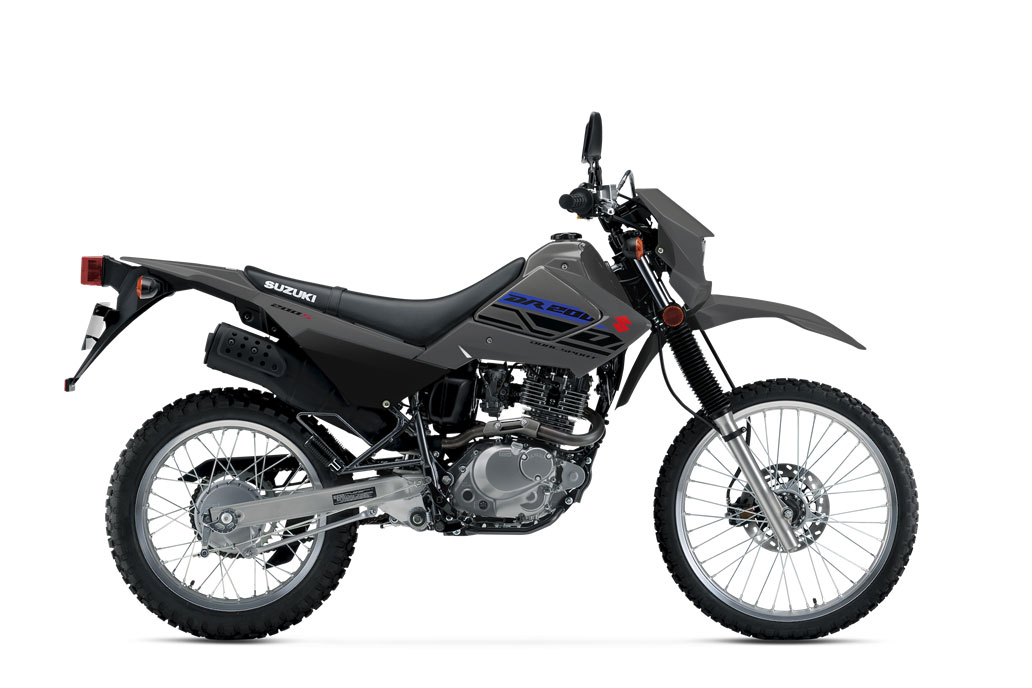

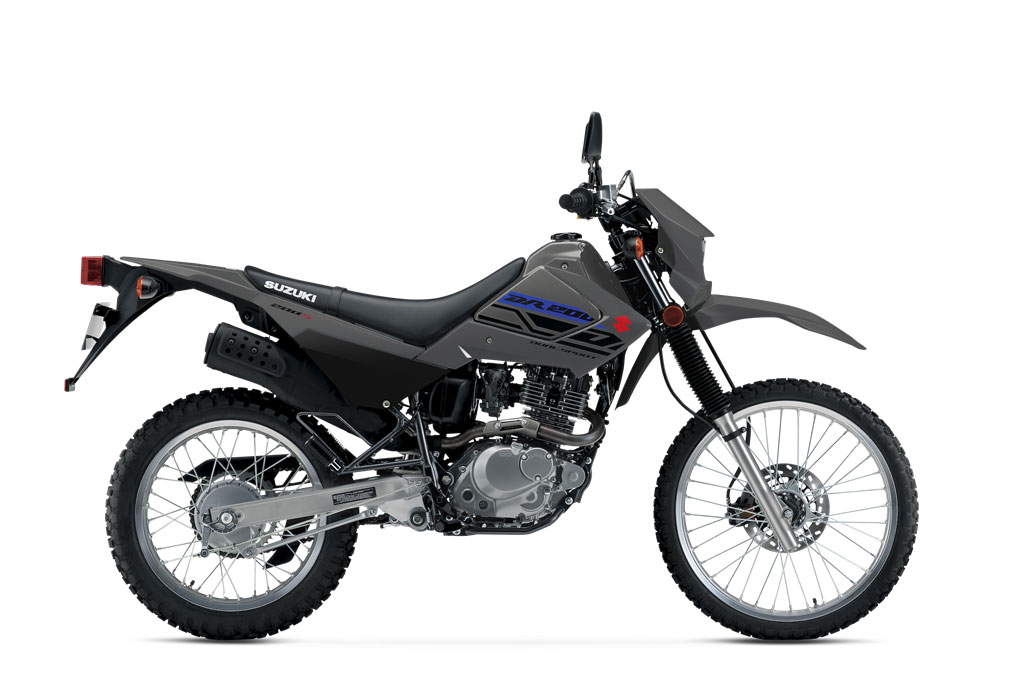

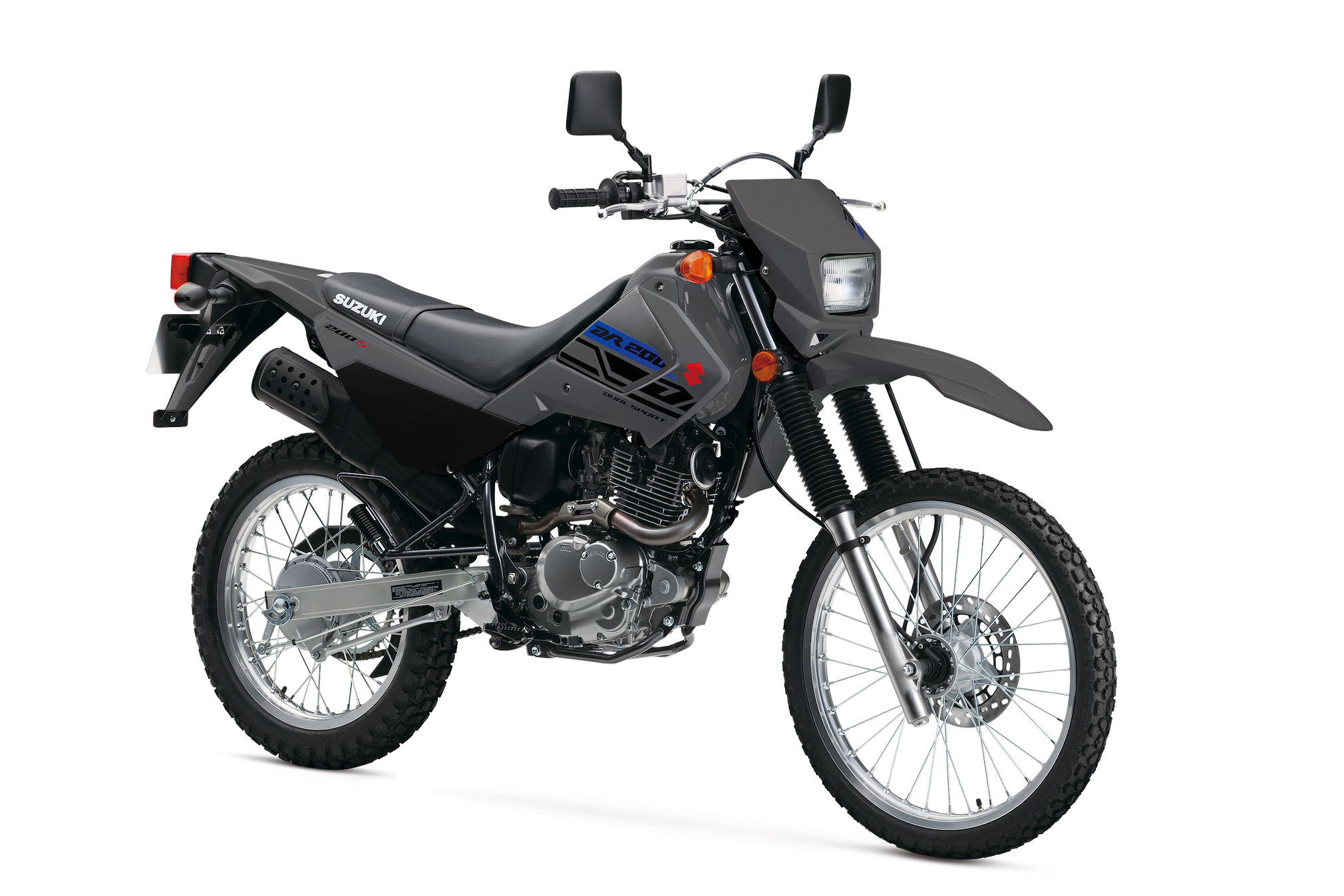

2020 Suzuki DR200S Photos
