A Mid-Size Dirt Bike For Huge Off-Road Thrills: The 2020 Honda CRF125F & CRF125F Big Wheel
Contents
Honda’s mid-sized trail bike returns for 2020. The CRF125F platform is an ideal choice for both beginners and experienced riders alike, capable of tackling demanding off-road trails but with smooth and confidence-inspiring power delivery that shouldn’t intimidate the unfamiliar.
The CRF125F is powered by a SOHC 124.9cc air-cooled single-cylinder four-stroke engine that delivers a modest 8.9 horsepower and 7.52 lb-ft of peak torque. It’s far from the most powerful motorcycle out there, but it’s accessible and fun. Honda’s fuel-injection system makes the power manageable and reliable, which helps build confidence.
Similarly, the CRF125F features a number of other plush characteristics, such as light and nimble handling, comfortable long-travel suspension, an easy-to-use four-speed gearbox, and a very useful electric starter.
Smart, reliable, and fun: that’s the CRF125F’s mantra.
The CRF125F is available in two distinct flavors: the standard, and the Big Wheel version. The “Big Wheel” designation is for taller riders, with the model featuring larger wheels, a higher saddle, and longer travel suspension. For 2020, the standard Honda CRF125F and CRF125F Big Wheel models are both available in Red.
On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Honda CRF125F in one place.
Model Overview
General Info
- Price: $ 3,099
- Key Features:
- Low seat height
- Front disc brake
- Electric starter
Key Specs
- Engine type: 124.9cc air-cooled, single-cylinder, four-stroke
- Power: 8.9 horsepower
- Wet weight: 194 lbs
- Seat height: 29.1 Inch
Key Competitors
- Kawasaki KLX140L
- Yamaha YZ125X
2020 Honda CRF125F Specifications
ENGINE |
||
| Engine | 124.9cc air-cooled, single-cylinder, four-stroke | |
| Power | 8.9 horsepower | |
| Bore x Stroke | 52.4mm x 57.9mm | |
| Compression Ratio | 9.0:1 | |
| Fuel System | Fuel-injection, 22mm throttle bore | |
| Starter | Electric | |
| Lubrication | ||
DRIVETRAIN |
||
| Clutch | Wet multiplate | |
| Transmission | 4-speed | |
| Final Drive | Chain | |
CHASSIS |
||
| Suspension Front | 31mm telescopic fork; 5.2 inches of travel | |
| Suspension Rear | Pro-Link® single-shock; 5.5 inches of travel | |
| Brakes Front | 220mm hydraulic disc | |
| Brakes Rear | Drum | |
| Tires Front | 70/100-17 | |
| Tires Rear | 90/100-14 | |
| Fuel Tank Capacity | 3.78 L (1 US gal.) | |
| Color | Red | |
ELECTRICAL |
||
| Ignition | Full Transistorized | |
| Spark Plugs | ||
| Headlight | LED | |
| Tail Light | LED | |
DIMENSIONS |
||
| Overall Length | ||
| Overall Width | ||
| Overall Height | ||
| Wheelbase | 1219 mm (48 in.) | |
| Ground Clearance | 210 mm (8.3 in.) | |
| Seat Height | 739 mm (29.1 in.) | |
| Curb Weight | 88 kg (194 lb.) | |
WARRANTY |
||
| Warranty | 12-month Transferable, unlimited-mileage limited warranty | |
| Extension | Extended coverage available with a HondaCare Protection Plan® | |
2020 Honda CRF125F Features
RELIABLE ENGINE
The CRF125F’s dependable four-stroke, single-cylinder engine offers good performance with a wide powerband—perfect for a wide range of riders, including beginners. Fuel injection makes it even better and more efficient.
PROVEN MANUAL CLUTCH
Honda’s heavy-duty clutch is durable and helps promote smooth shifting.
PRO-LINK® REAR SUSPENSION
Progressive linkage connects a single heavy-duty shock to the swingarm, delivering an excellent combination of spring and damping rates over a wide range of riding conditions. This year the CRF125F gets an extra inch of suspension travel, too.
MORE FRONT SUSPENSION TRAVEL
In addition to the rear-suspension travel increase, we also gave the CRF125F more travel up front for a balanced, plush ride.
STEEL FRAME AND SWINGARM
Less experienced riders are hard on equipment, especially when they’re just starting out. That’s why we gave the CRF125F a strong, twin-spar-type steel frame and swingarm that are built to handle the bumps and dings of off-road riding.
BIG-WHEEL VERSION AVAILABLE
Want something a little larger? Check out our CRF125F Big Wheel—the same great bike but a better fit for taller riders.
FRONT DISC BRAKE
The front disc brake provides superior stopping power, and the front disc rotor is drilled for lightness and better wet-weather performance.
CLEAN-RUNNING ENGINE
Another benefit of fitting the CRF125F with fuel injection? Now it even meets California’s stringent CARB emissions standards for off-road motorcycles—good news for everyone.
FOUR-SPEED TRANSMISSION
The four-speed gearbox is just like a full-sized motorcycle’s, and gives your younger rider all the control they need.
FUEL INJECTION
Fuel injection means the CRF125F starts right up, even in cold weather. Compared to a carbureted bike, it also helps reduce emissions and enhance performance and fuel efficiency. And say goodbye to clogged pilot jets when you put this bike away for storage.
HALF-WAFFLE GRIPS
Just like the pros use, the CRF125F gets half-waffle pattern grips. Might as well start them off right!
LOW SEAT HEIGHT
It’s important to have a bike that’s sized right for your rider. The CRF125F’s low 29.1-inch seat height helps build confidence right from the start.
TOUGH BODYWORK
Riders can be hard on equipment, and taking a spill is a natural part of learning. But the CRF125F can handle it: with tough plastic fenders, tank and other body parts inspired by our bigger CRF motocross bikes, the CRF125F is engineered to shrug off the minor dings of the real world.
ELECTRIC STARTER
The push-button starter makes getting going easier in all kinds of conditions, and its efficient design adds minimal weight.
KEYED IGNITION SWITCH
For added security, the keyed ignition switch lets you control who goes riding and when—important if you have younger riders in the house.
SEALED BATTERY
A maintenance-free sealed battery helps ensure that your CRF125F is ready to ride when you are.

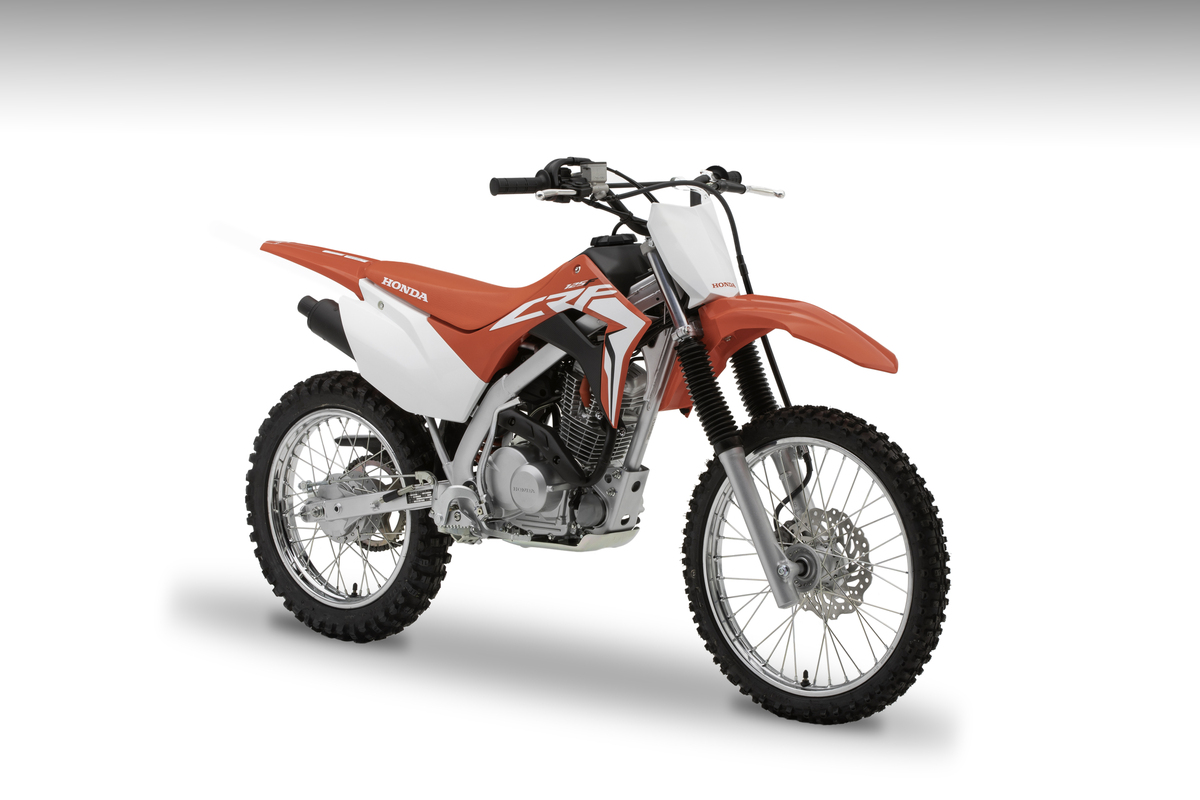

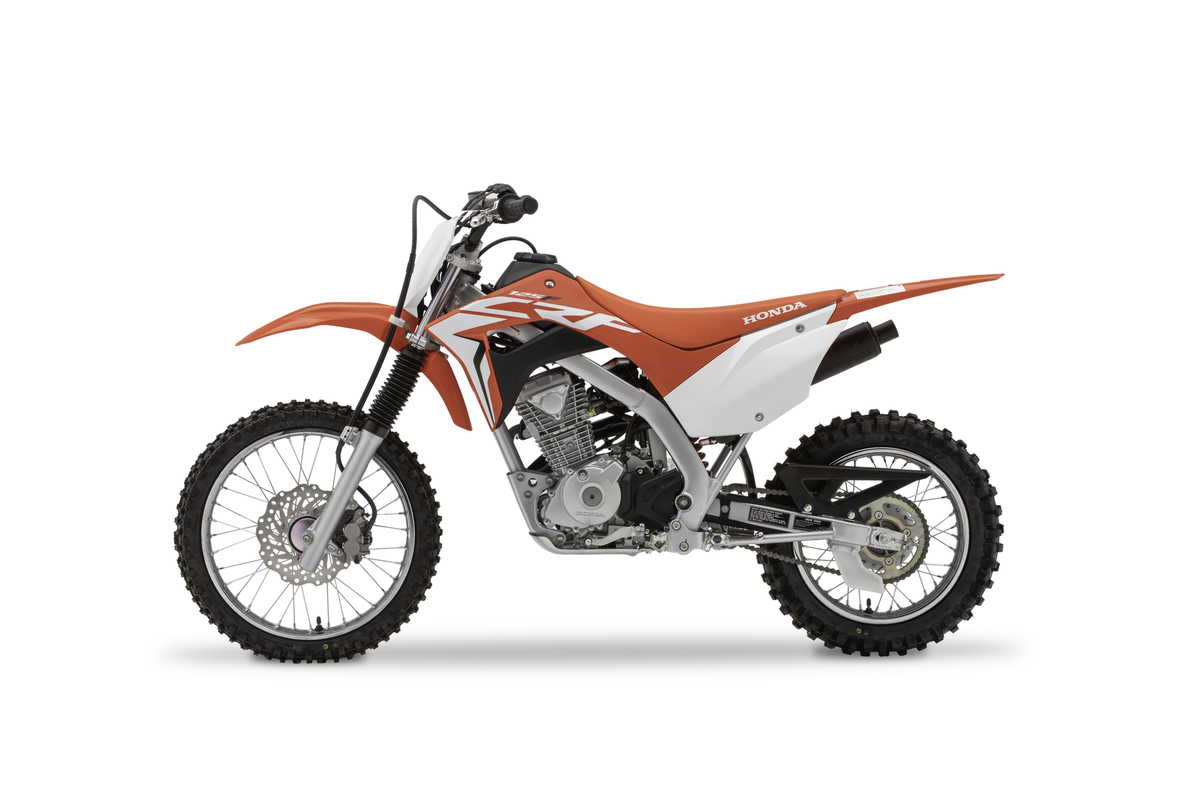

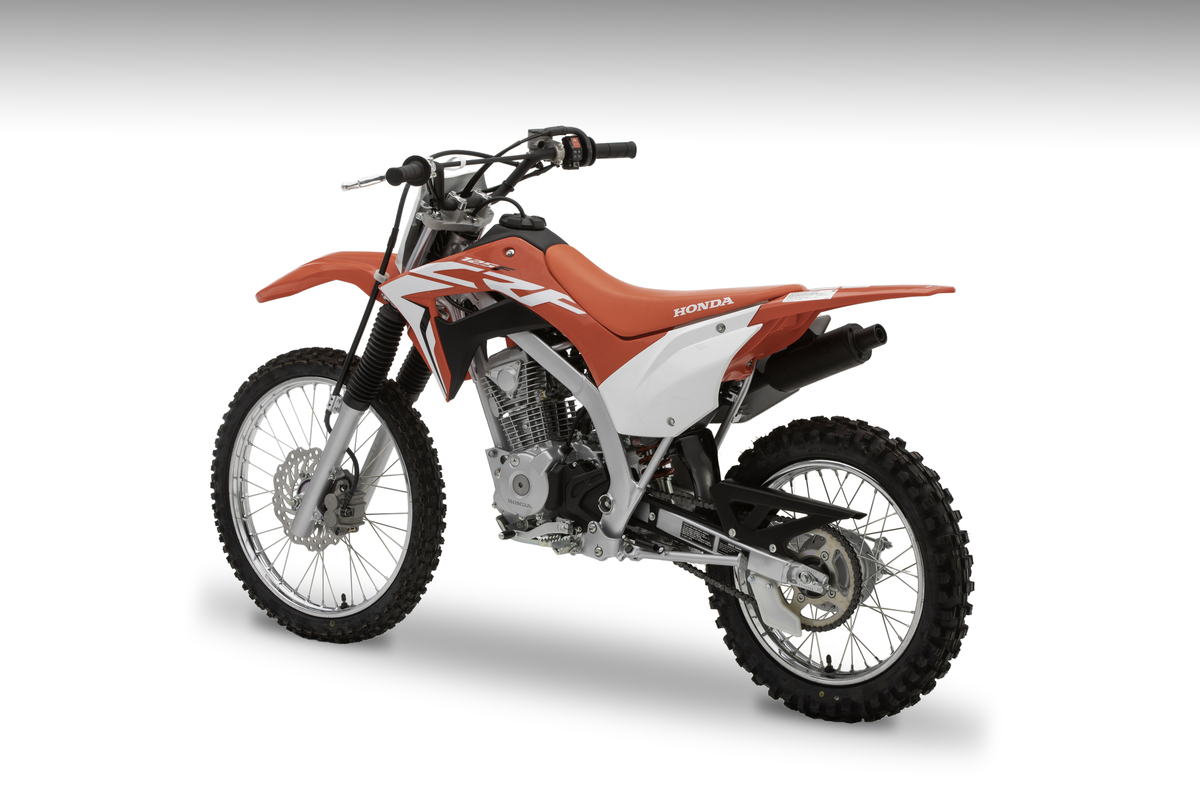

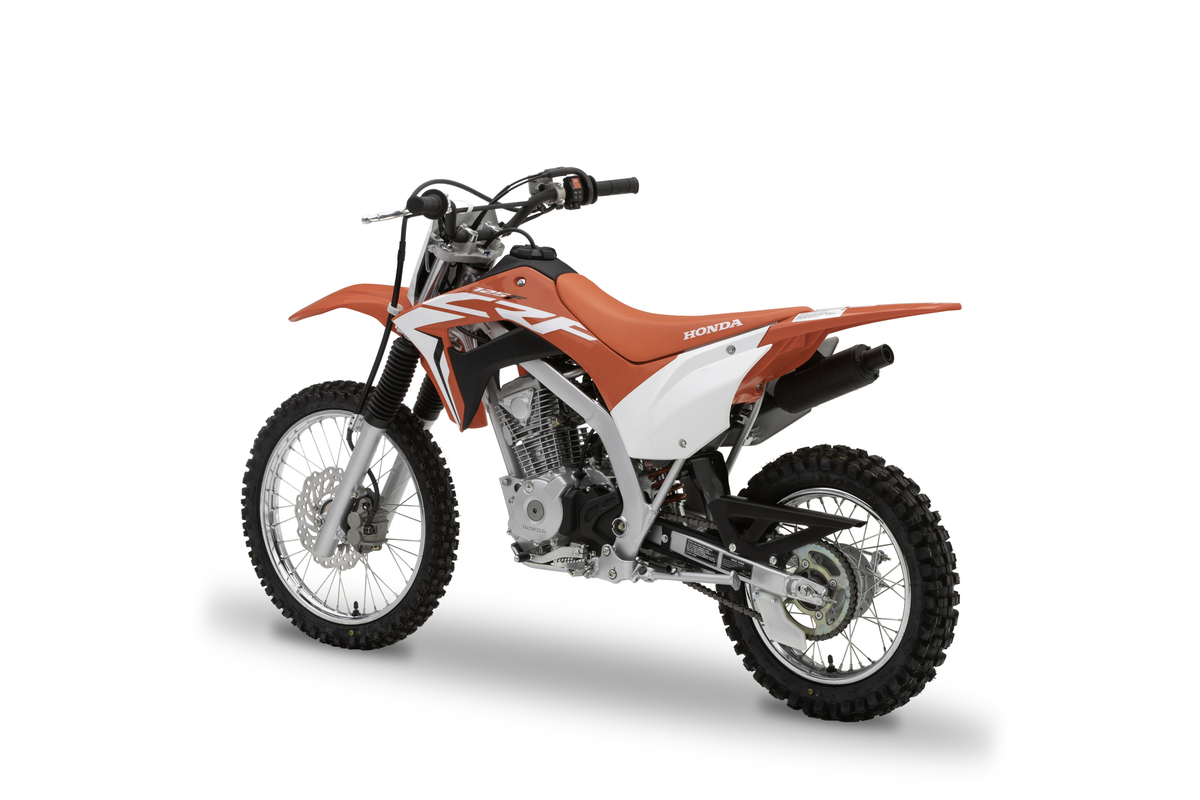

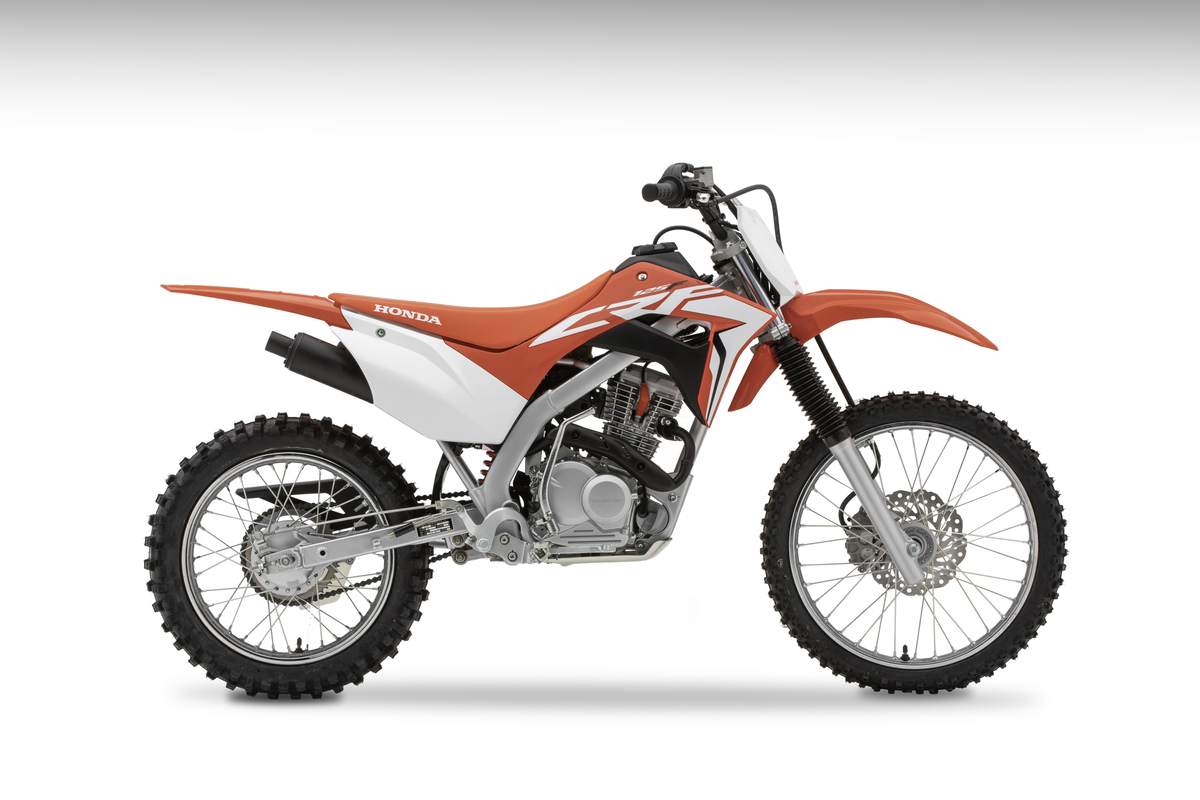

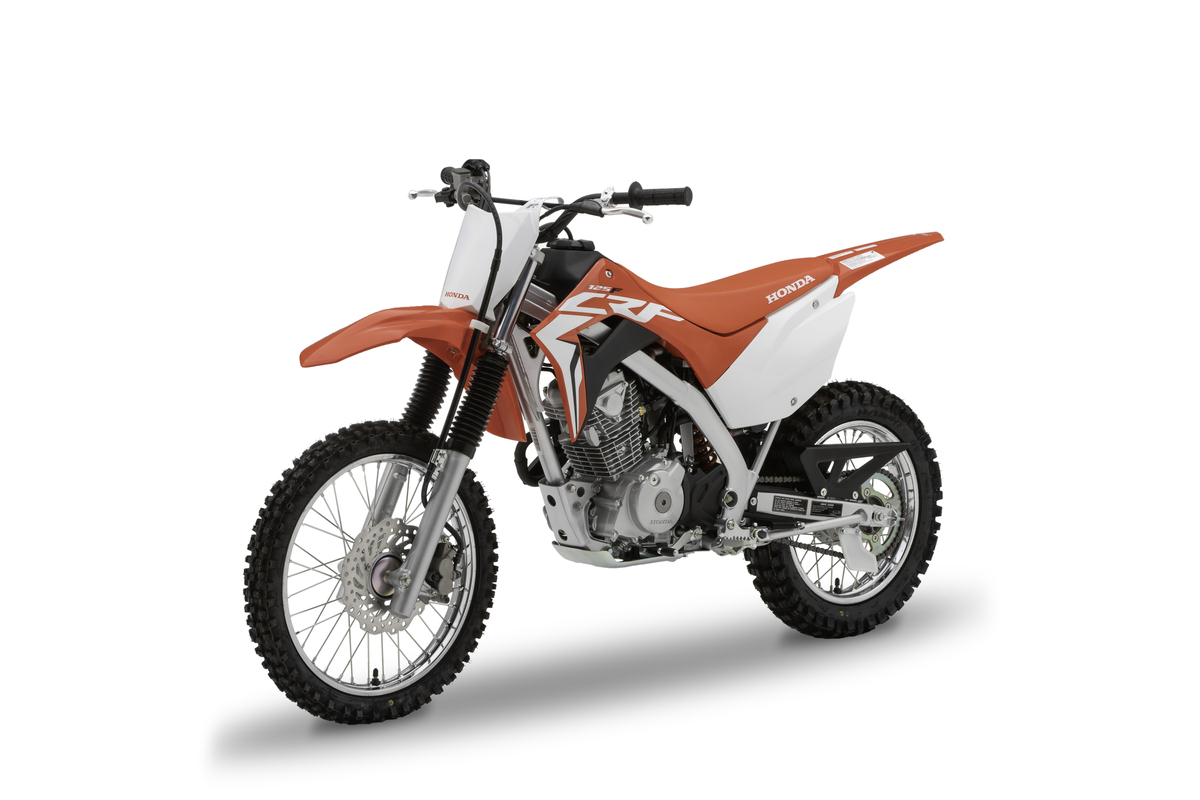

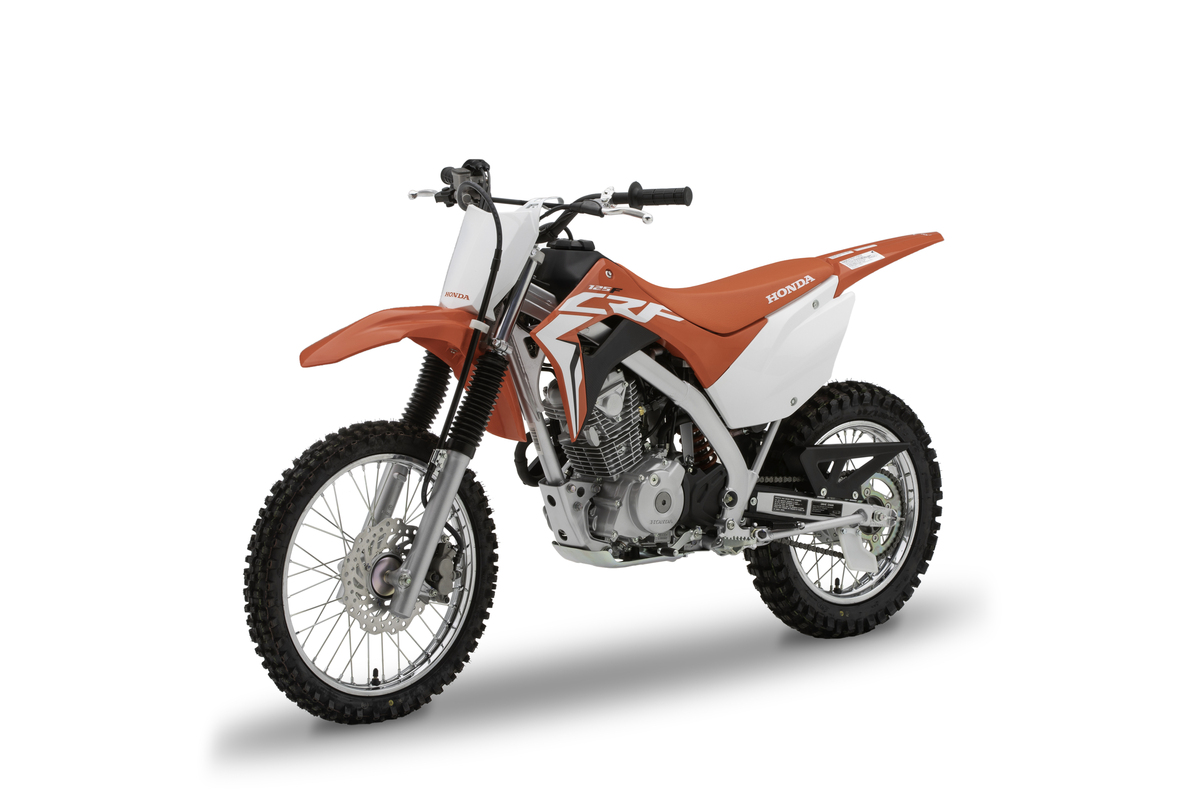

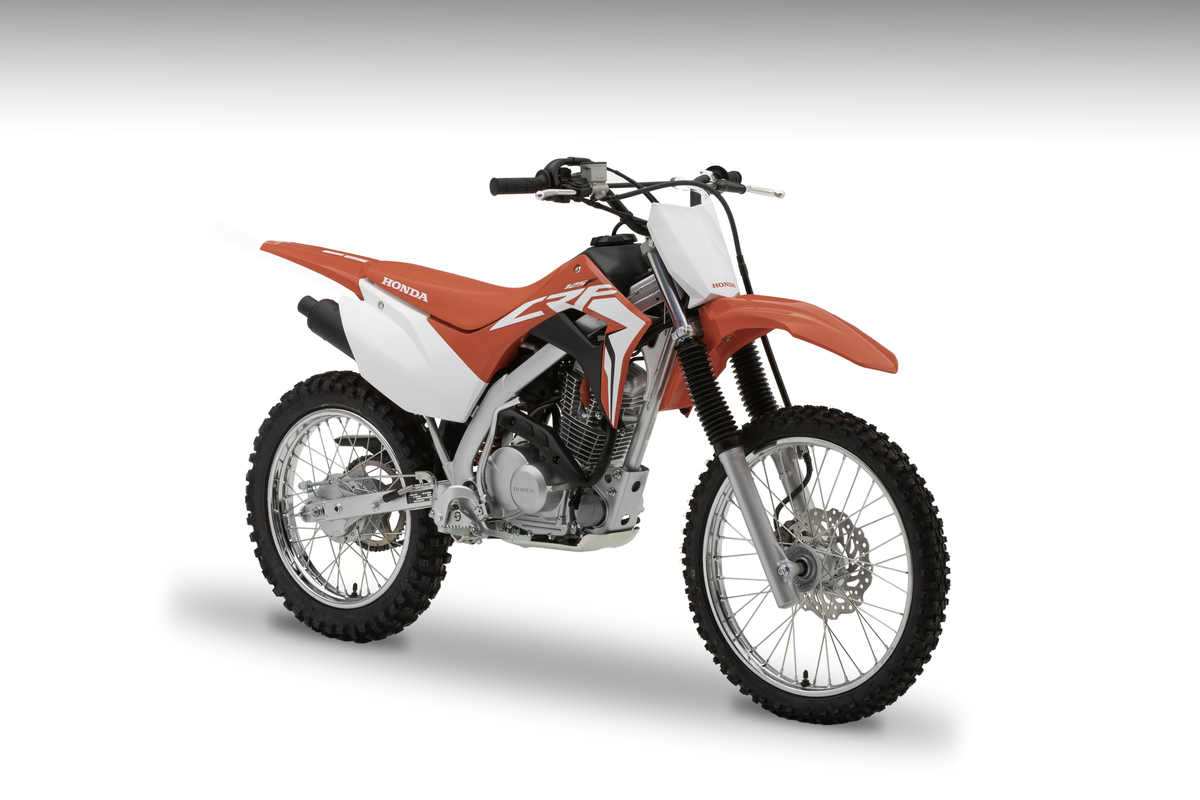

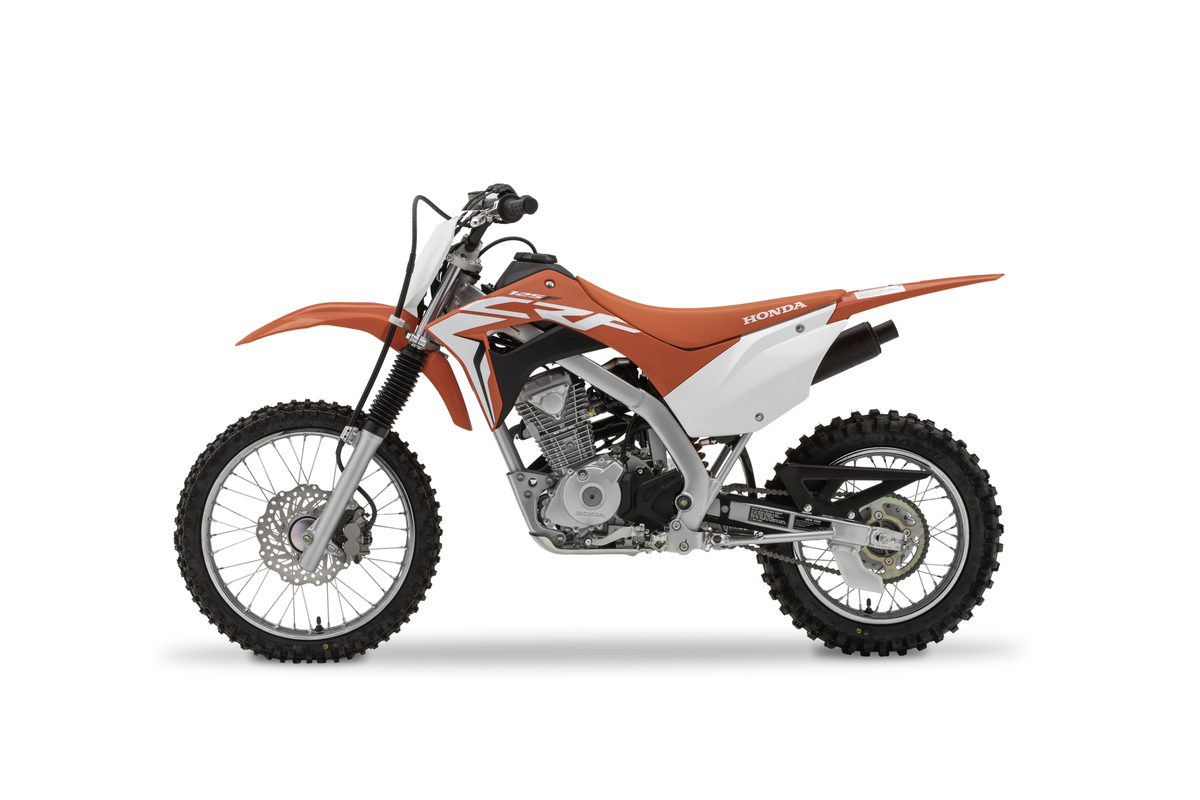

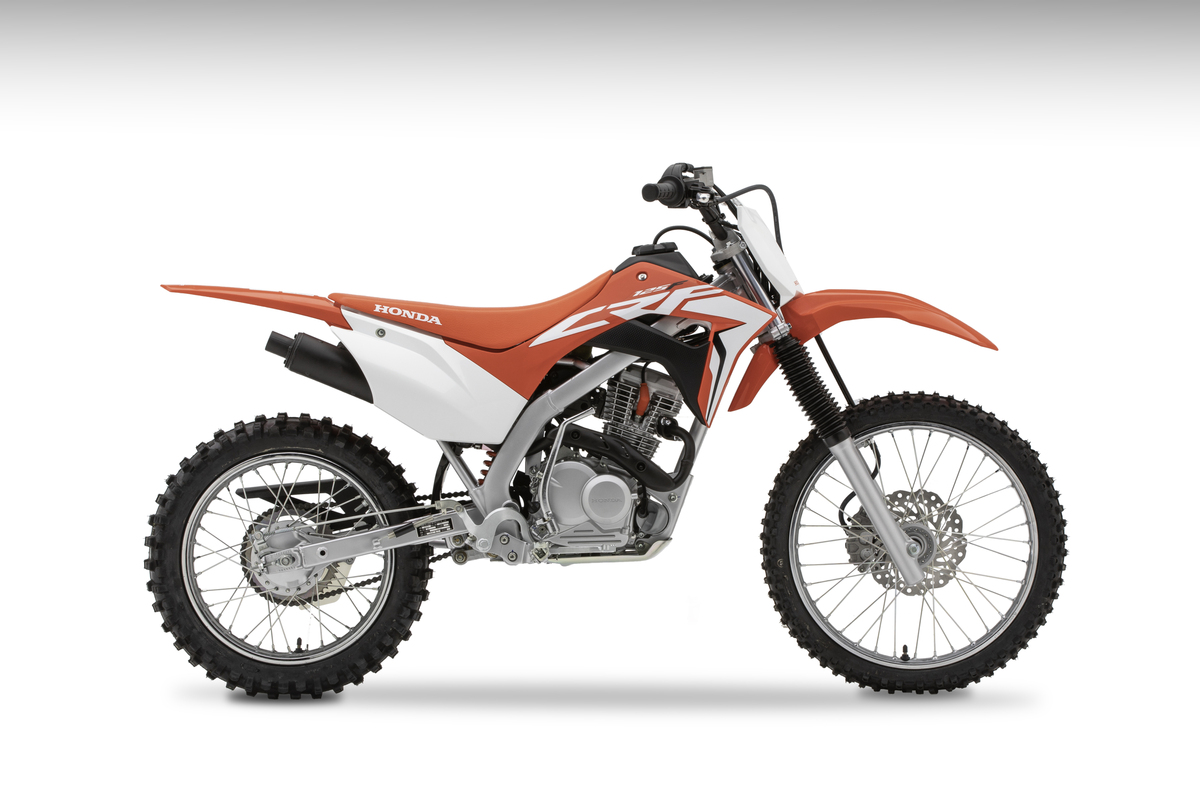

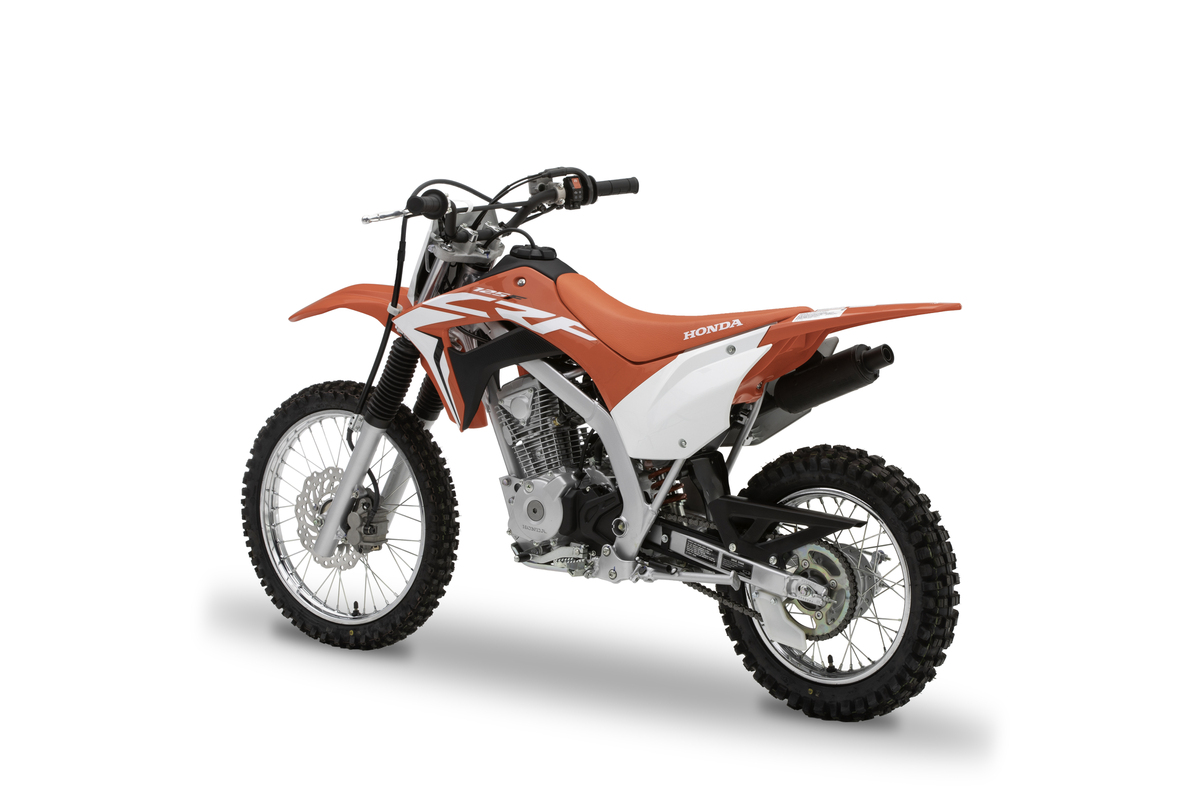

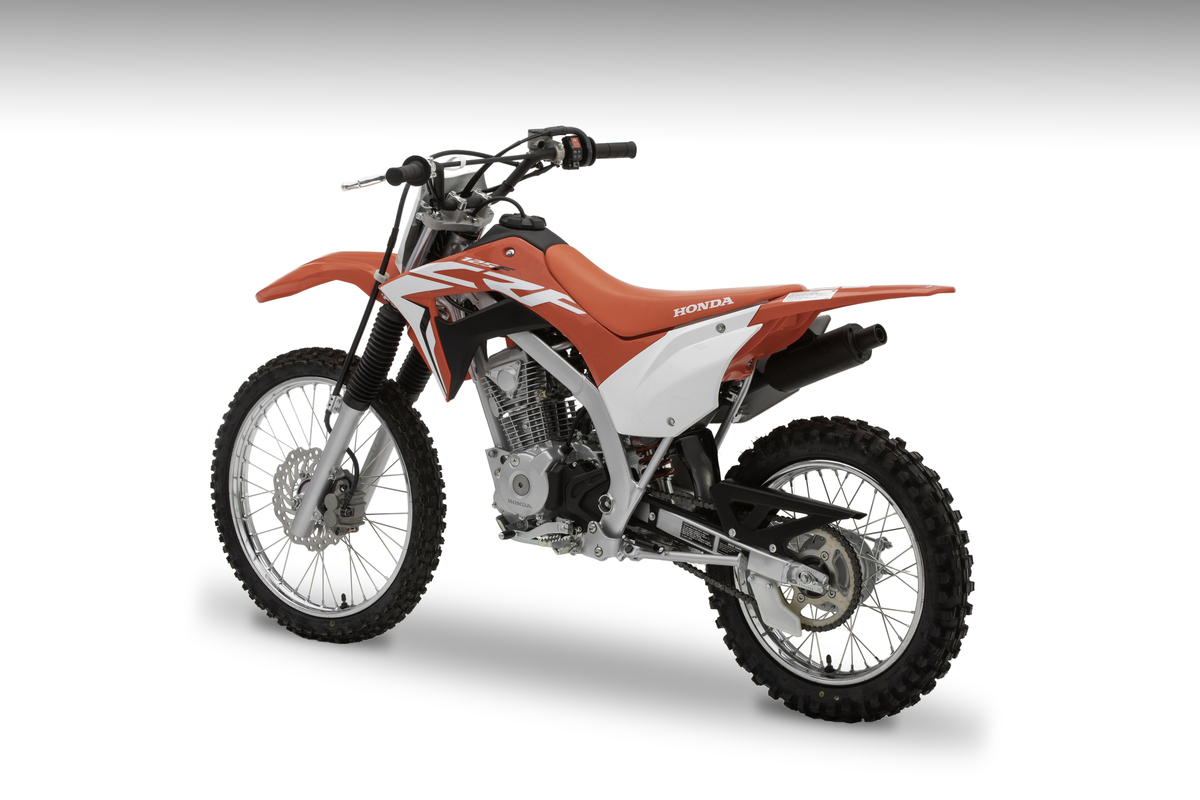

2020 Honda CRF125F Photos
