Ducati’s Entry Level Monster: The Monster 797
Contents
The 2020 Ducati Monster 797 is the perfect entry-level Ducati for those looking for a fun but practical ride experience, and a machine that’s just as at home on the track as it is putting in the hours commuting to and from work every day.
Designed to be the ultimate beginner Ducati machine, the Monster 797 features learner-friendly features that don’t compromise on performance or the overall Ducati experience. It boasts all of the traditional Ducati Monster hallmarks: wide handlebars, a distinctive trellis frame, a beautifully sculpted tank, and a double-sided swingarm. It’s unmistakeably Ducati.
The entry-level Ducati Monster is powered by an 803cc Desmodue twin-cylinder engine. This compact engine is capable of producing 73 horsepower and 49 lb-ft of peak torque, delivering reliable power when and where you need it, along a fluid torque curve. The engine is mated to a 6-speed gearbox with an APTC wet multiplate clutch that has light actuation, making for confidence inspiring shifting—particularly in challenging urban environments.

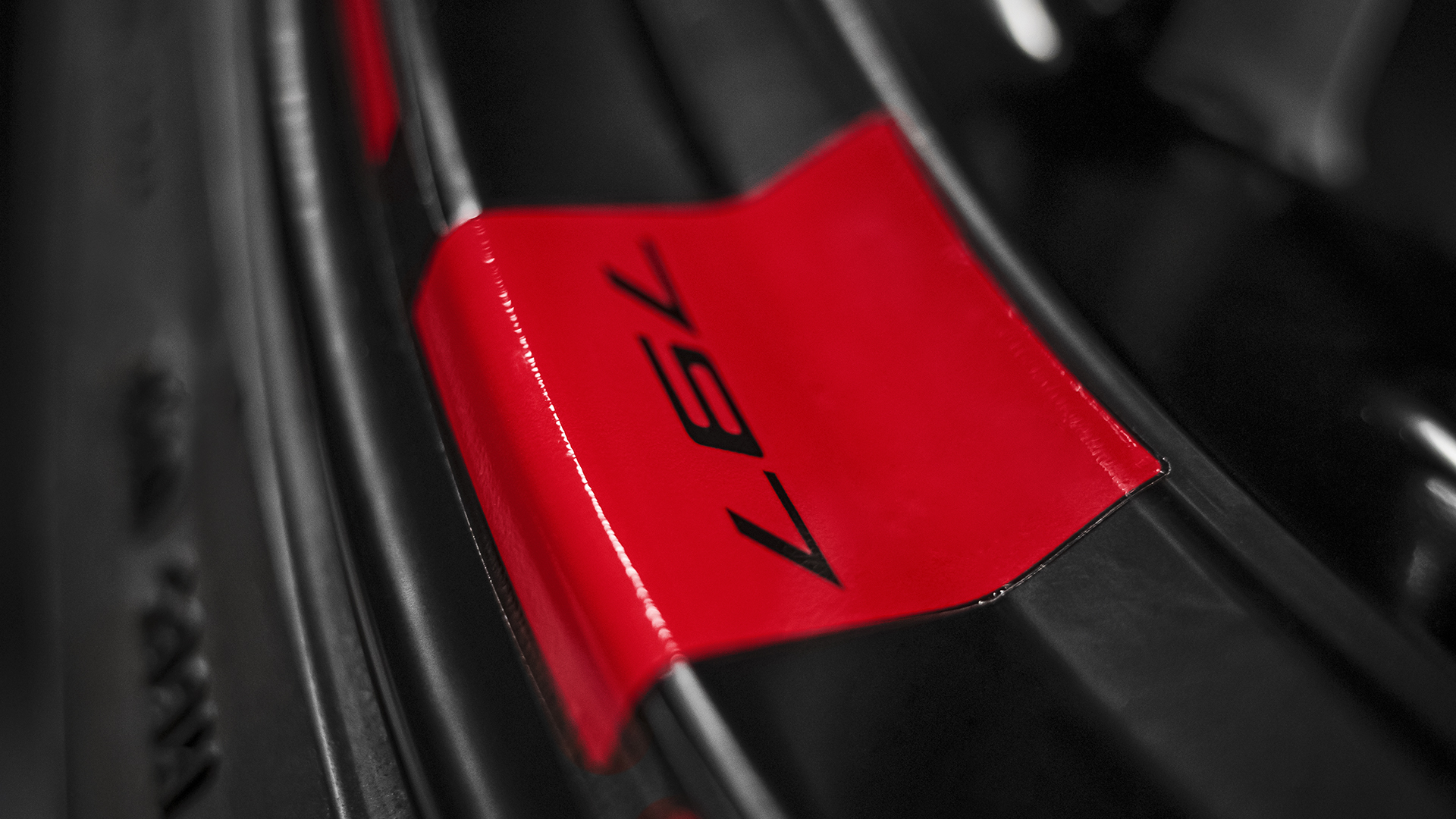

For 2020, the Monster 797 has a wide selection of top shelf equipment, including an advanced LCD dashboard, LED lighting, 10 spoke alloy wheels, Pirelli Diablo Rosso II tires, Kiyaba suspension, Brembo brakes, and Bosch 9.1 MP ABS.

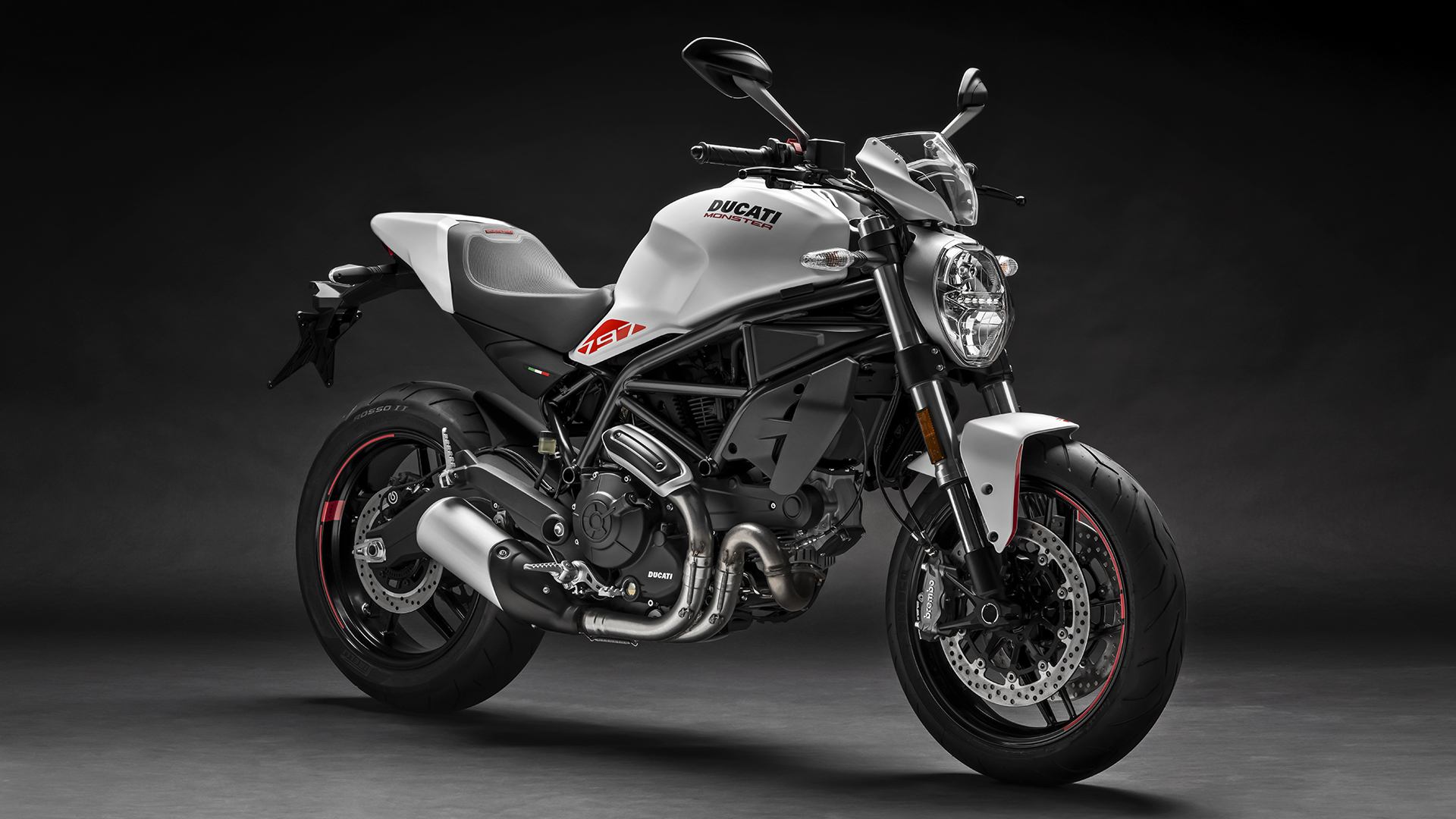

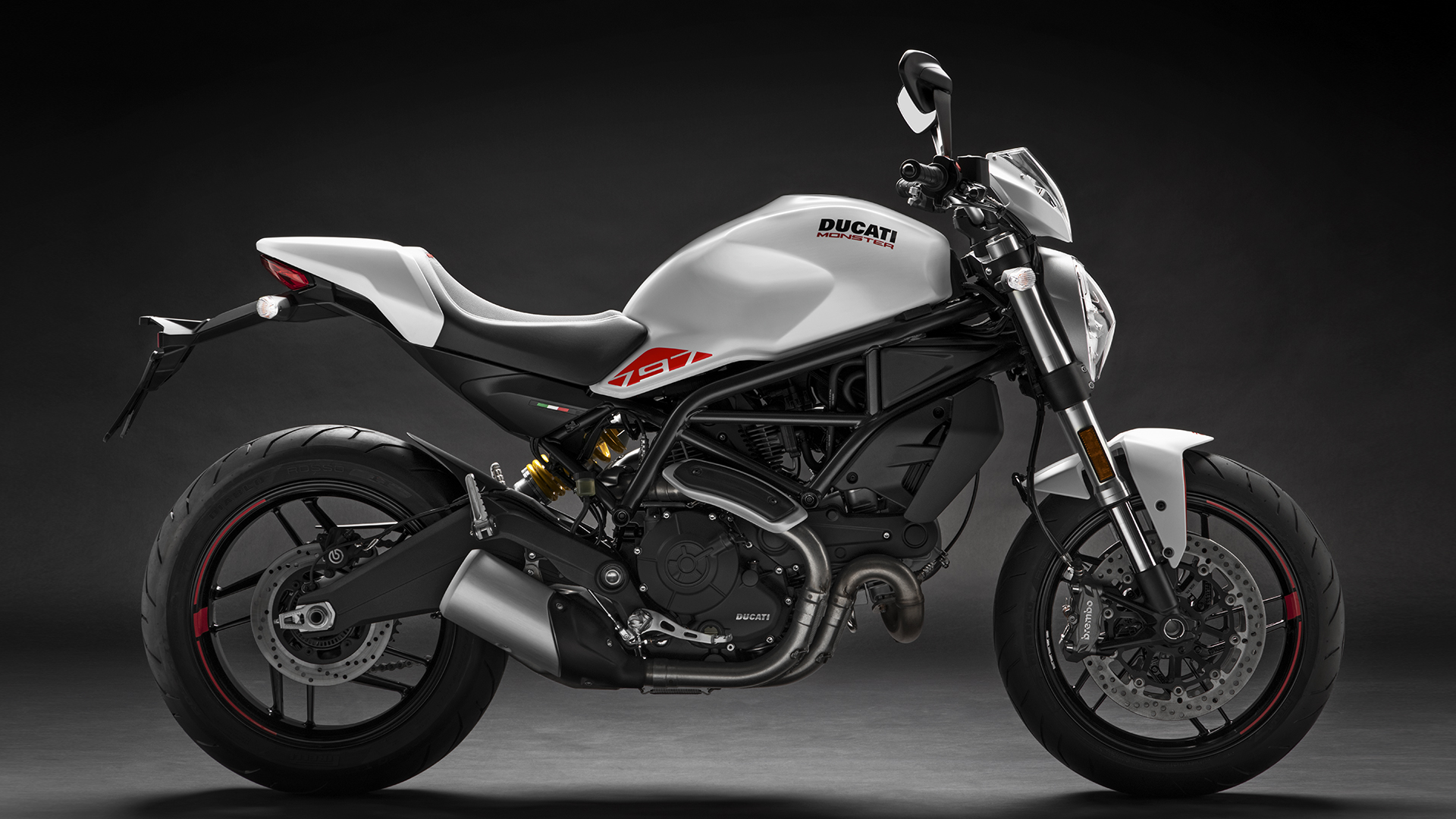

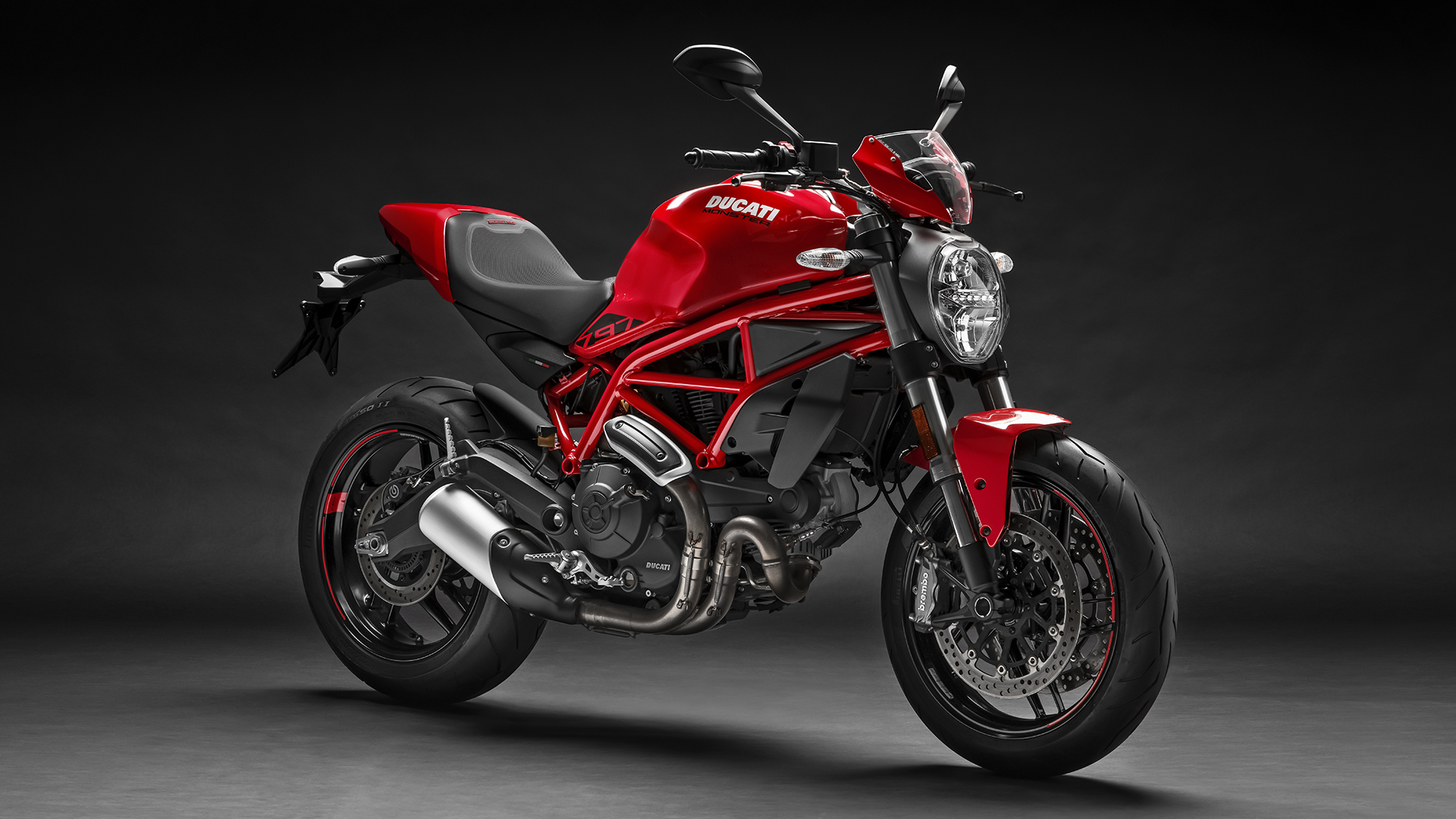

The 2020 Ducati Monster 797 is available in Ducati Red or Star White Silk color schemes, with prices starting from $9,265.
On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Ducati Monster 797 in one place.
Model Overview
General Info
- Price: $ 9,265
- Key Features:
- LED Lighting
- ABS
- Fuel Injection
Key Specs
- Engine type: 803 cc, L-twin cylinder
- Power: 73 HP
- Dry weight: 175kg (386 lb)
- Seat height: 805 mm (31.69 in)
Key Competitors
2020 Ducati Monster 797 Specifications
ENGINE |
||
| Engine | 803 cc, L-Twin cylinder, 2 Desmodromically actuated valves per cylinder, air cooled | |
| Power | 73 HP | |
| Bore x Stroke | 88 mm x 66 mm | |
| Compression Ratio | 11,0:1 | |
| Fuel System | Electronic fuel injection system, 50 mm throttle bodies | |
| Starter | Electric | |
| Exhaust | 2-1 system with catalytic converter and 2 lambda probes, single stainless steel muffler with aluminum cover | |
DRIVETRAIN |
||
| Clutch | APTC wet multiplate clutch with mechanical control | |
| Transmission | 6 Speed | |
| Final Drive | Chain; Front sprocket Z15; Rear sprocket Z46 | |
CHASSIS |
||
| Suspension Front | 43 mm Kayaba USD fork | |
| Suspension Rear | Sachs monoshock, pre-load and rebound adjustable | |
| Brakes Front | 2 x 320 mm semi-floating discs, radially mounted Brembo Monobloc M4.32 callipers, 4-piston, axial pump with Bosch ABS as standard equipment | |
| Brakes Rear | 245 mm disc, 1-piston calliper with Bosch ABS as standard equipment | |
| Tires Front | Pirelli Diablo Rosso II 120/70 ZR17 | |
| Tires Rear |
Pirelli Diablo Rosso II 180/55 ZR17
|
|
| Fuel Tank Capacity | 16.5 l (4.36 US gal) | |
| Color | Ducati Red or Star White Silk color | |
ELECTRICAL |
||
| Ignition | ||
| Spark Plugs | ||
| Headlight | LED | |
| Tail Light | LED | |
DIMENSIONS |
||
| Overall Length | ||
| Overall Width | ||
| Height | ||
| Wheelbase | 1,435 mm (56.50 in) |
|
| Trail | ||
| Seat Height | 805 mm (31.69 in) | |
| Dry Weight | 175 kg (386 lb) | |
WARRANTY |
||
| Warranty | 24 months unlimited mileage | |
| Extension | ||
2020 Ducati Monster 797 Features
Design
Sporty and compact
The new Monster 797 design perfectly integrates wide handlebar, tank, trellis frame, engine and double-sided swinging arm – an agile and dynamic line that communicates sportiness and generates confidence from first glance. Thanks to the new graphics the Monster 797 acquires a new, original style.
Engine
An enjoyable, gutsy engine
The Desmodue twin, with 73 hp and 49 ft-lbs torque for US market, ensures riding enjoyment in maximum safety. The constant, fluid torque curve immediately instills confidence without creating any difficulty. Carefree fun is guaranteed! The new Monster 797 is also available for those with a restricted license, as a version with 35 kW of regulated power.
Ergonomics
Versatile on any terrain
The new Monster 797 chassis is designed to ensure maximum ease of riding. Compact dimensions, a low and narrow seat, a wide handlebar and reduced weight make it agile in city traffic and sporty on out-of-town roads.
Technology
Turn up the fun
The new Monster 797 boasts a modern and complete range of equipment. The large LCD hi-viz screen of the dashboard provides all the information needed for riding, while LED technology enhances the positioning light of the front headlight, rear light and licence plate light.

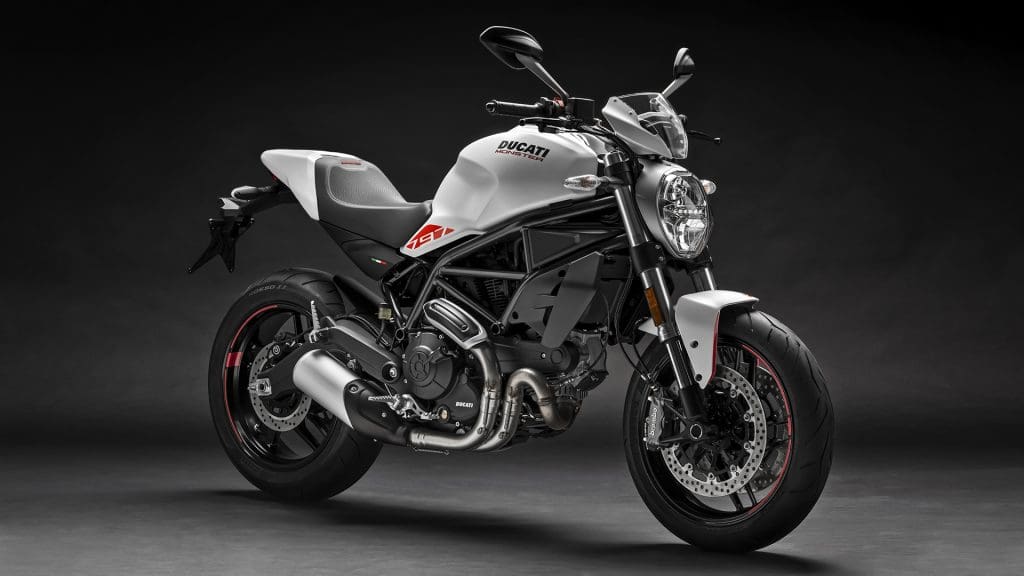

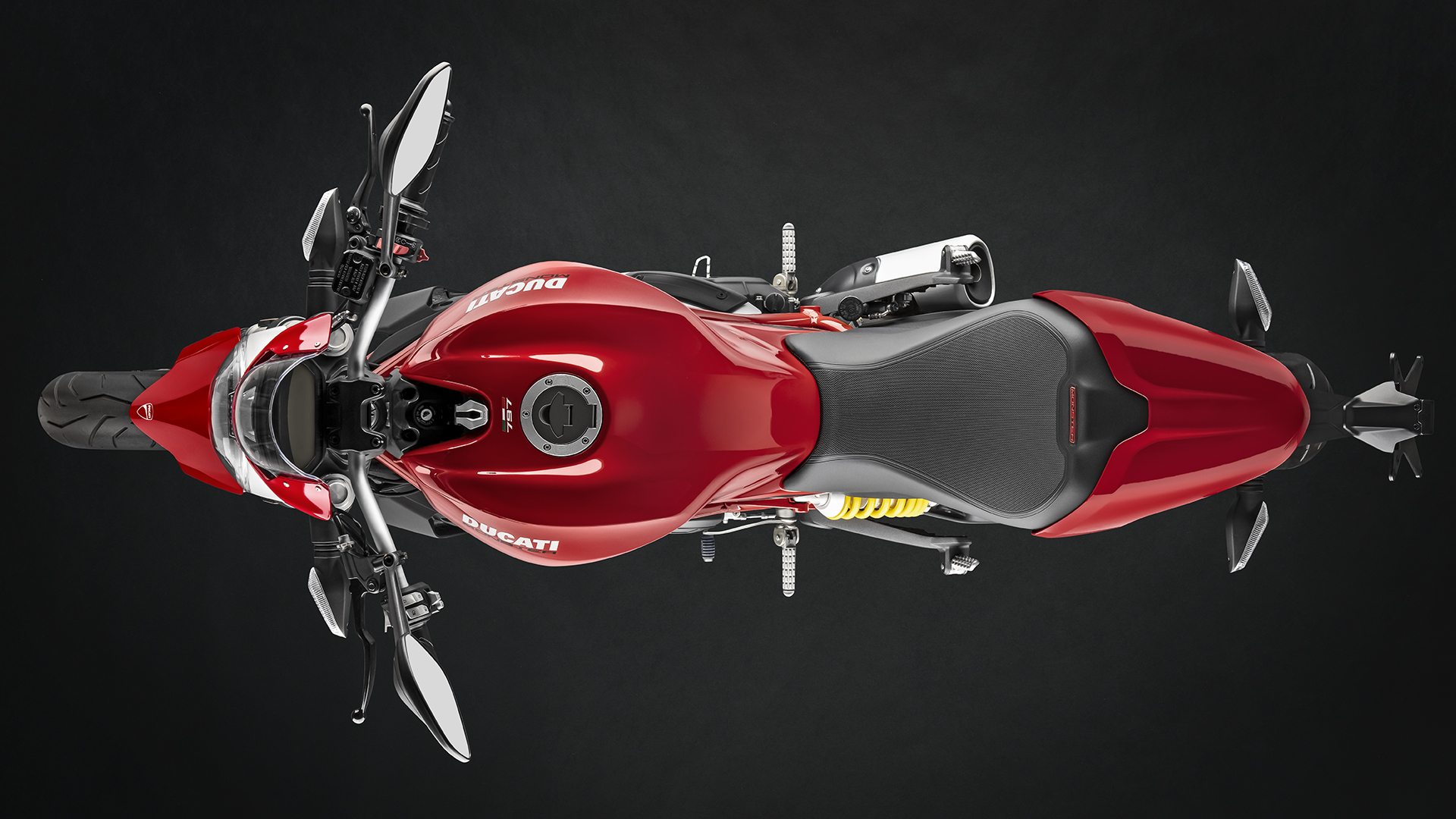

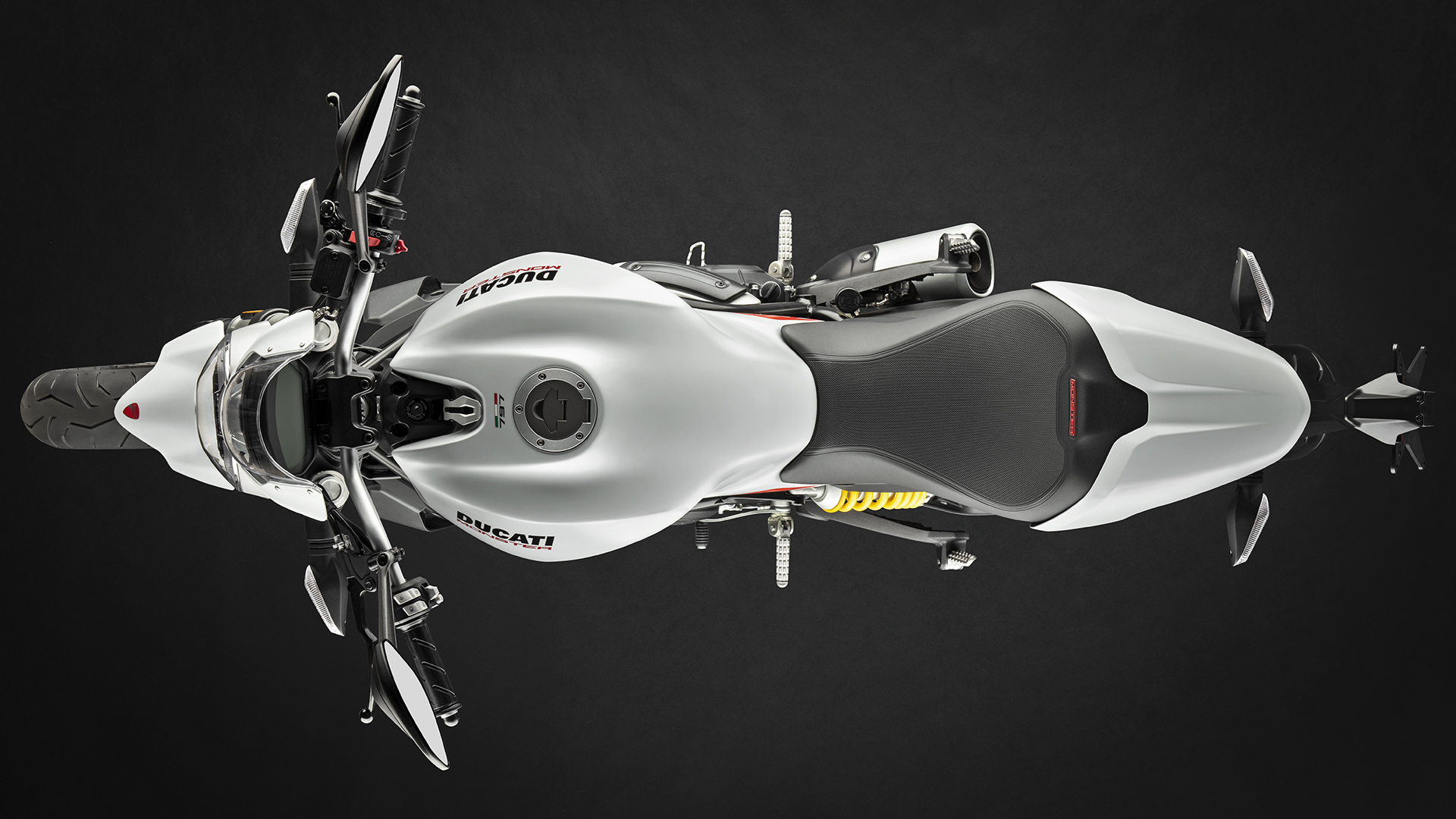

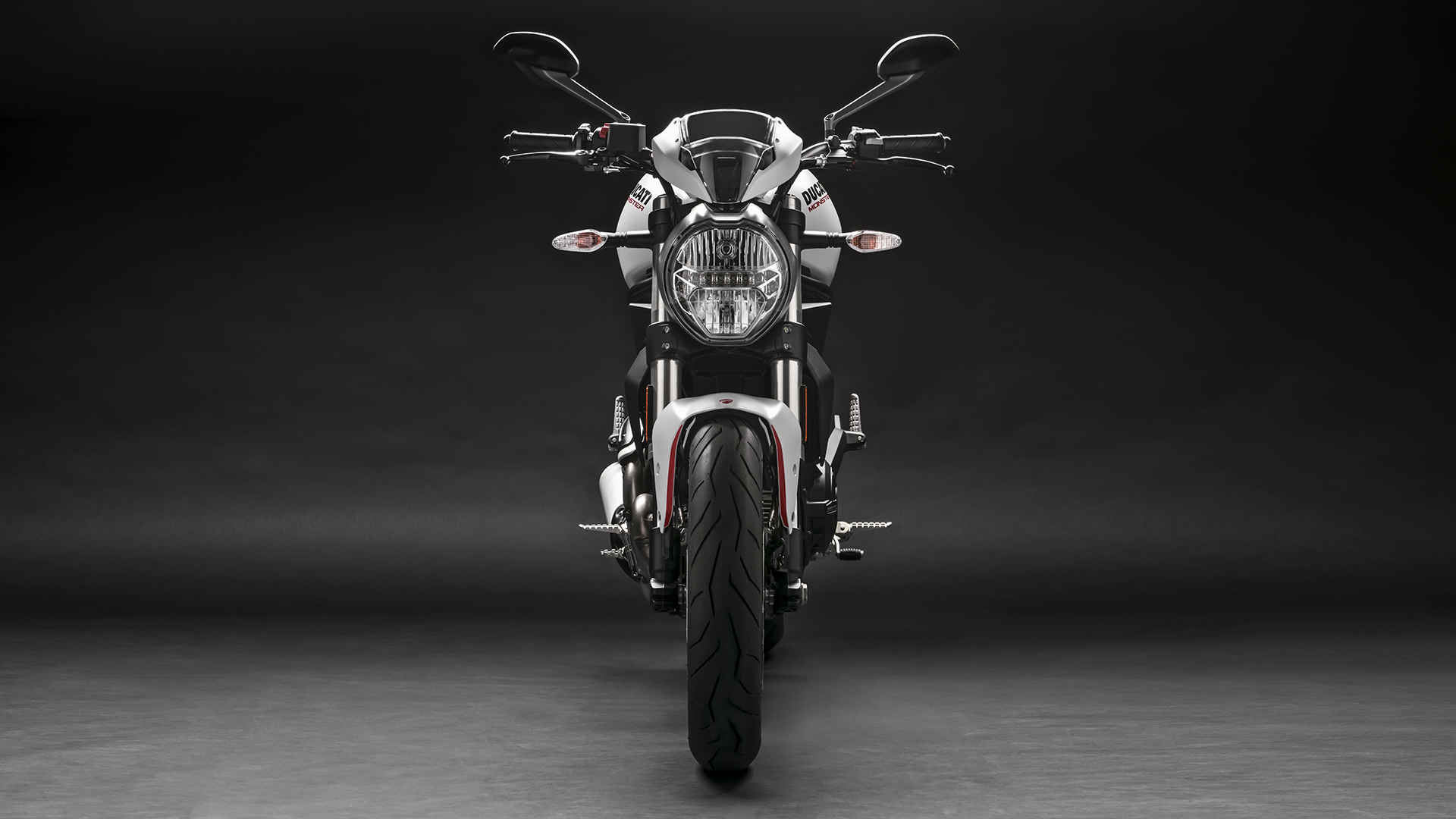

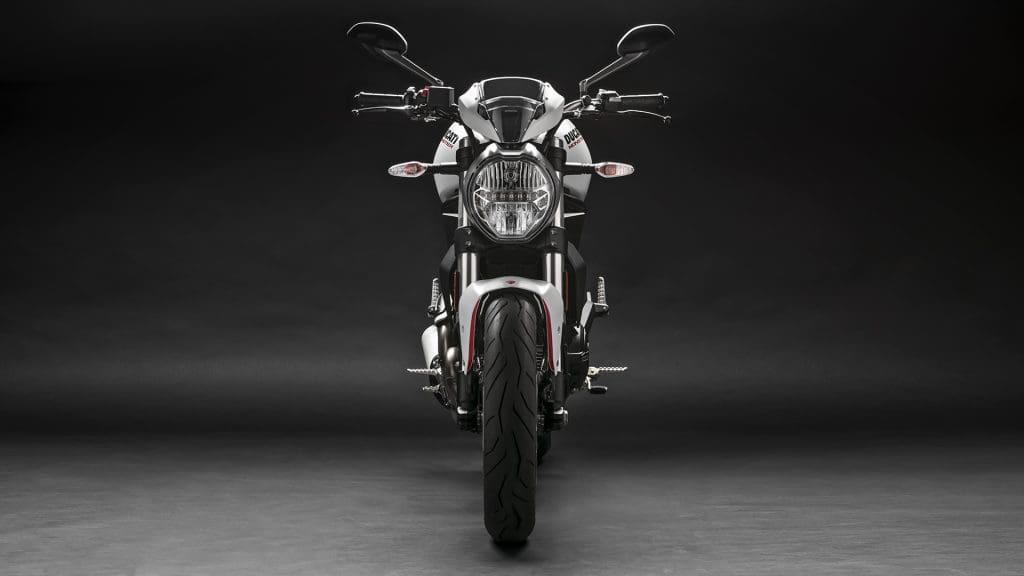

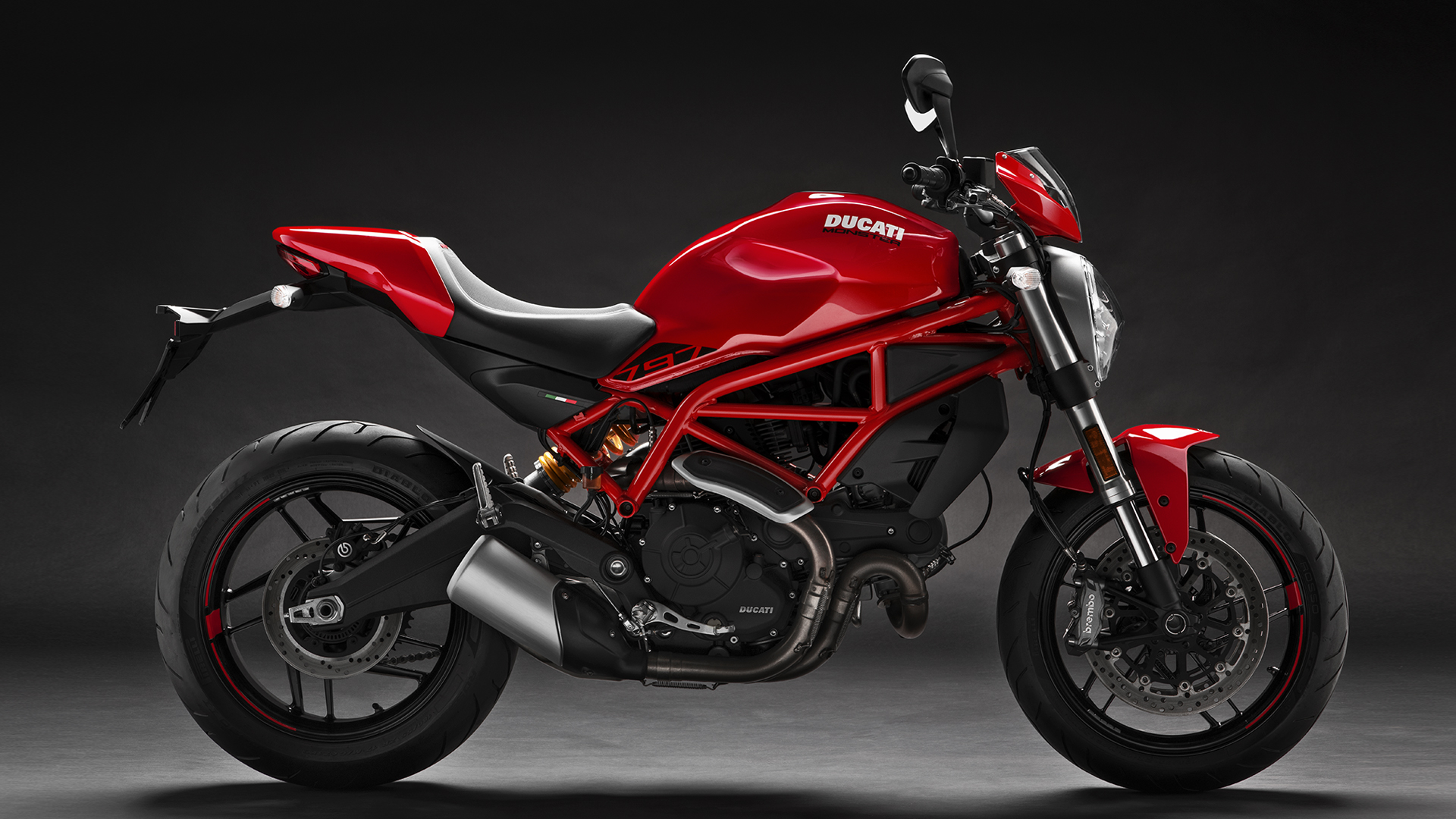

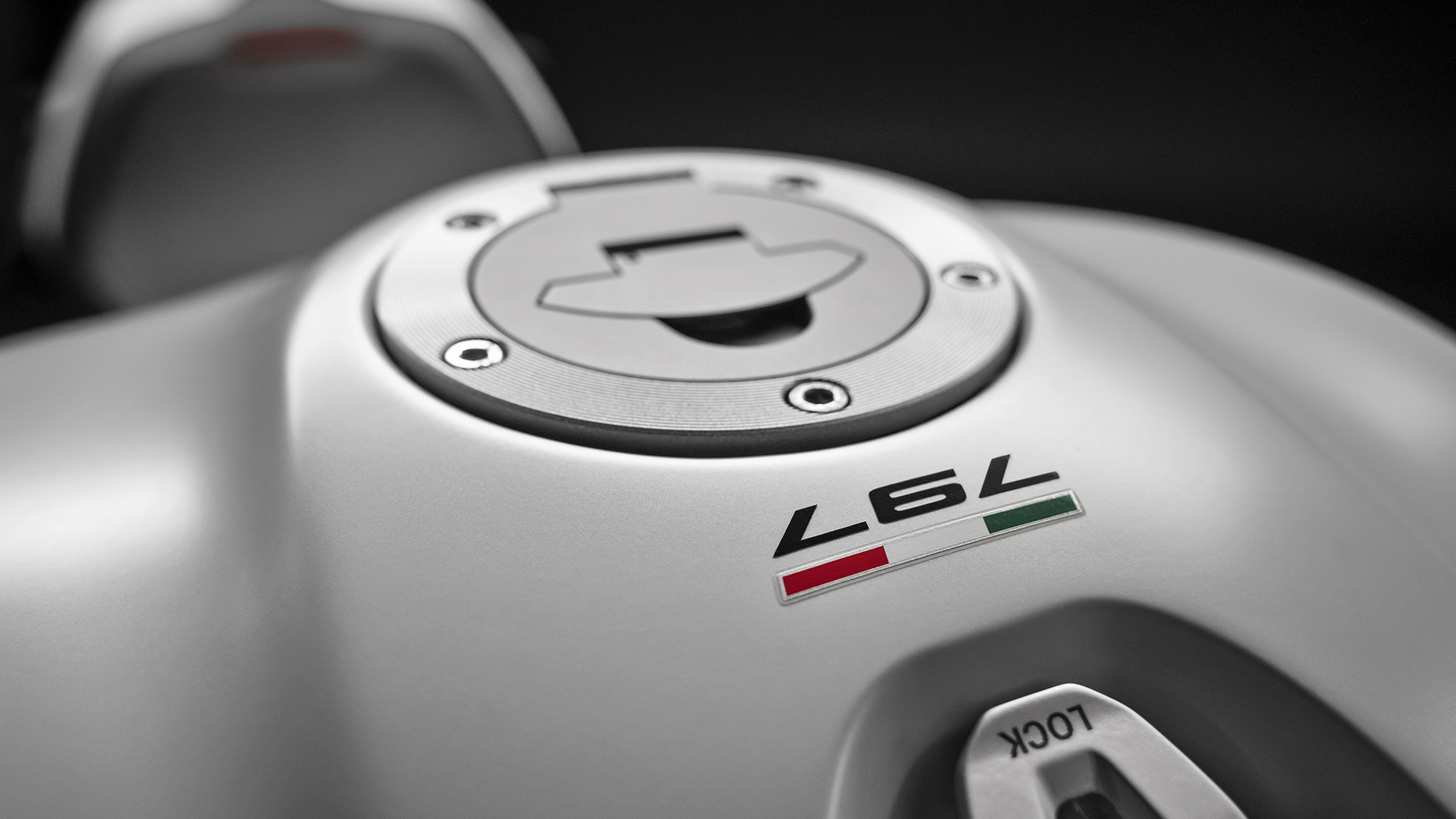

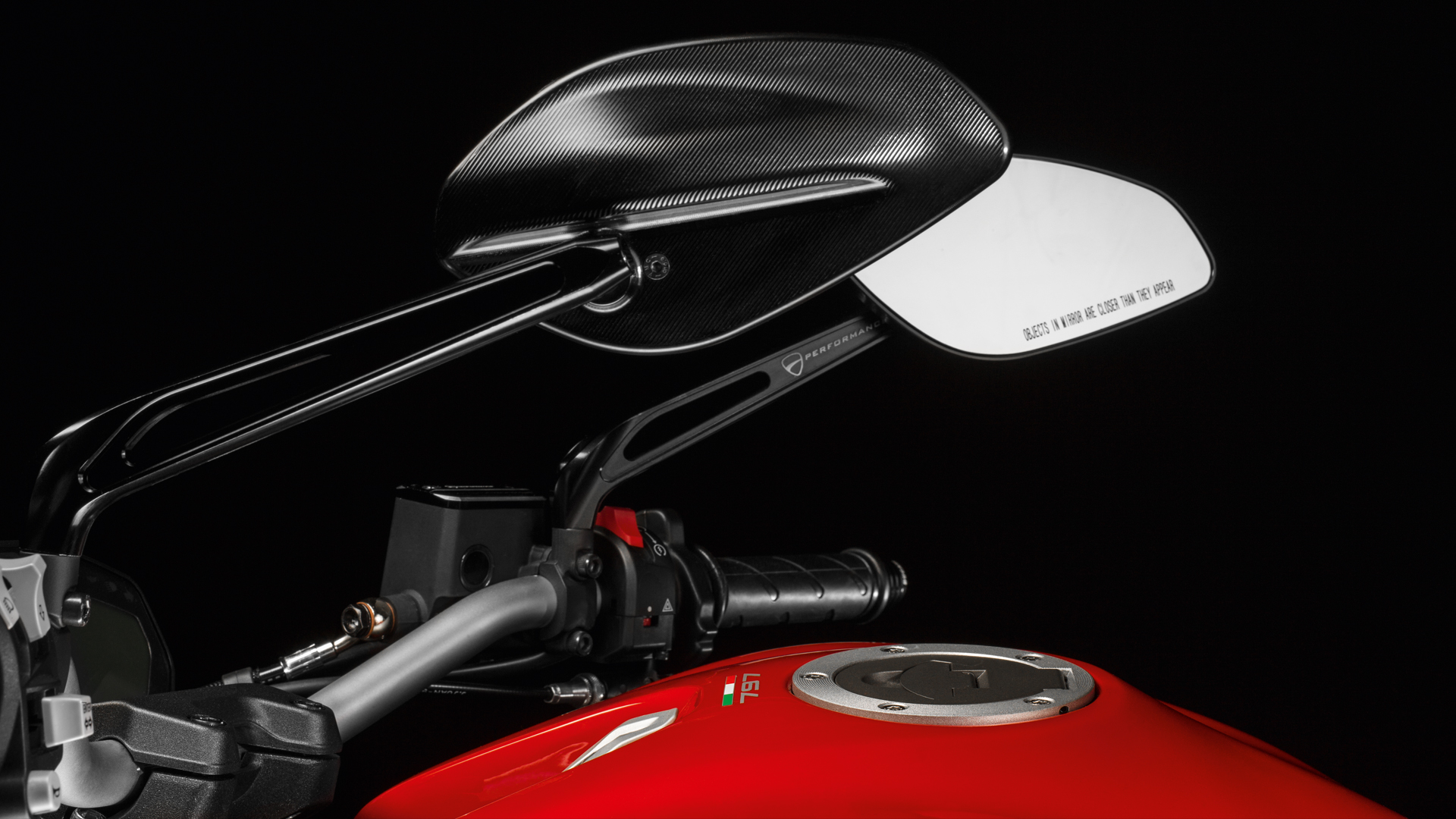

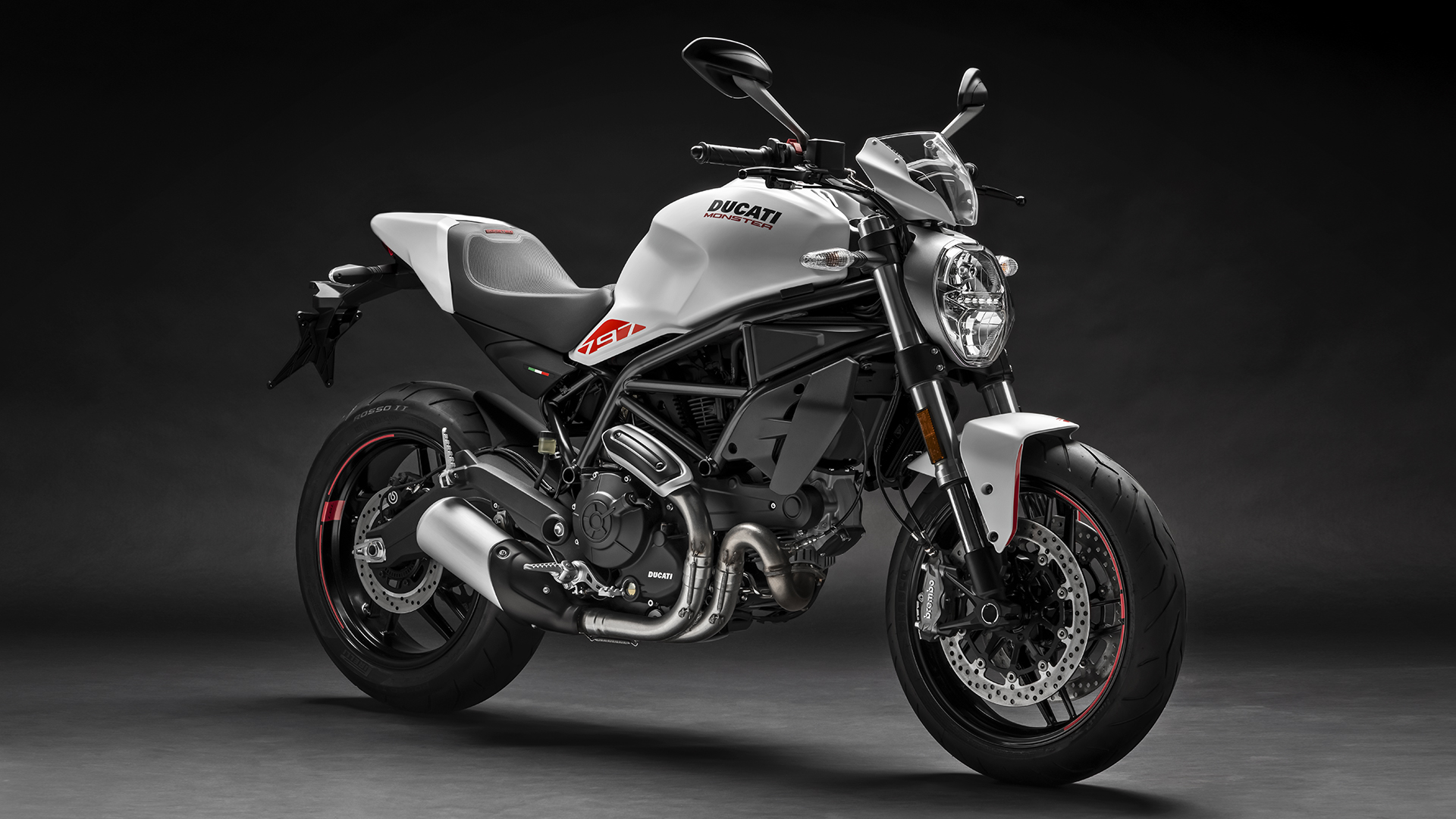

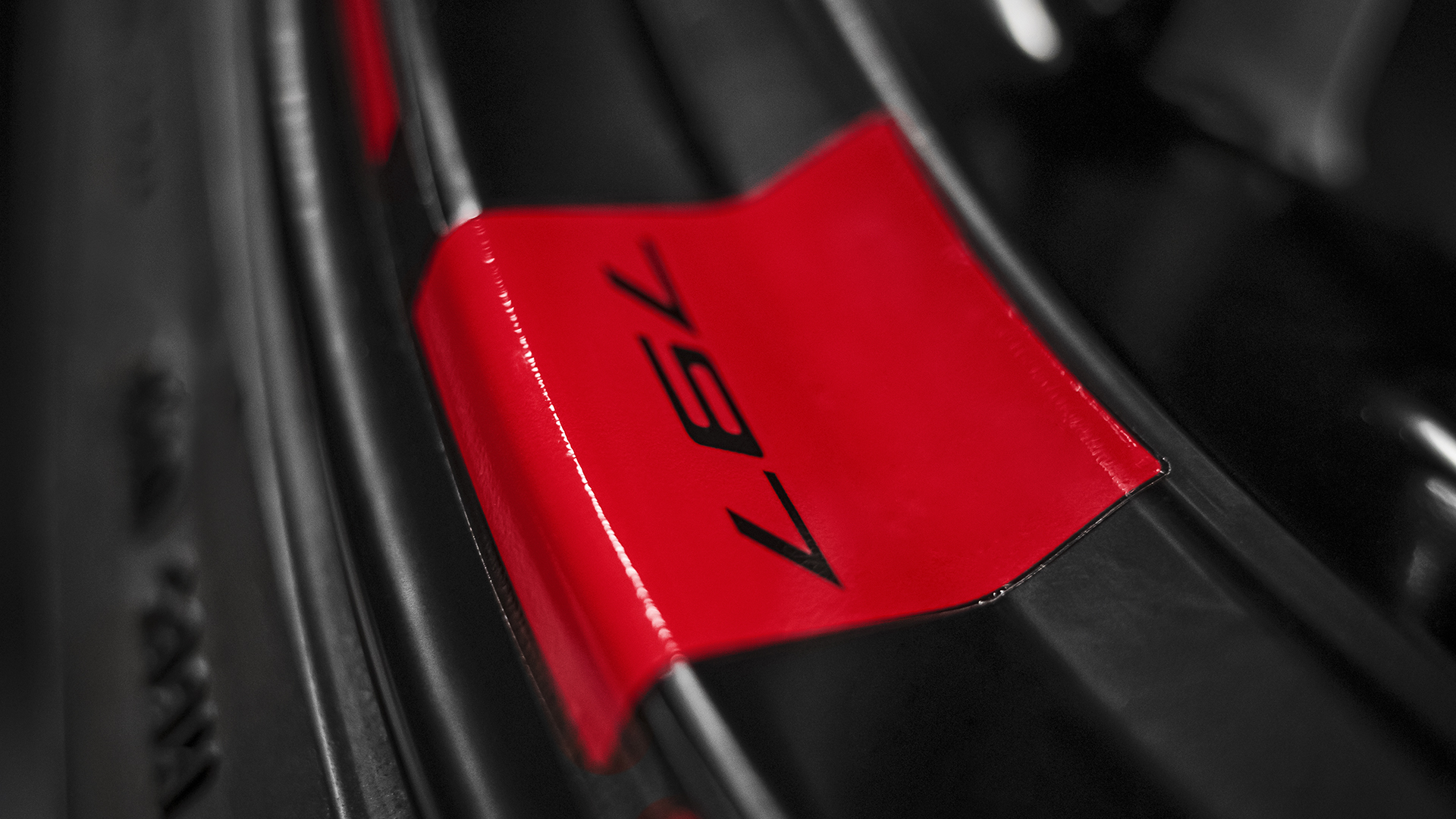

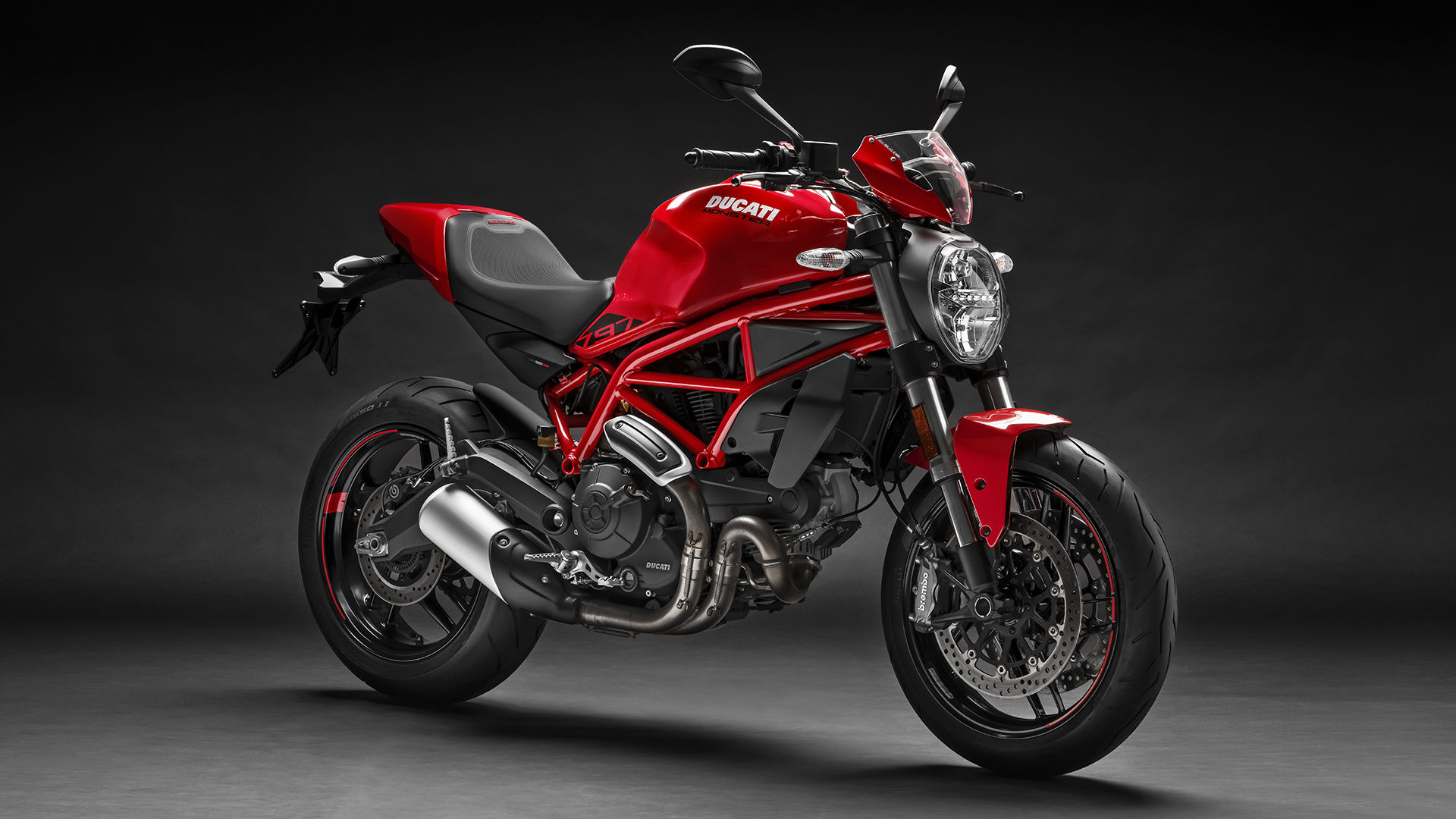

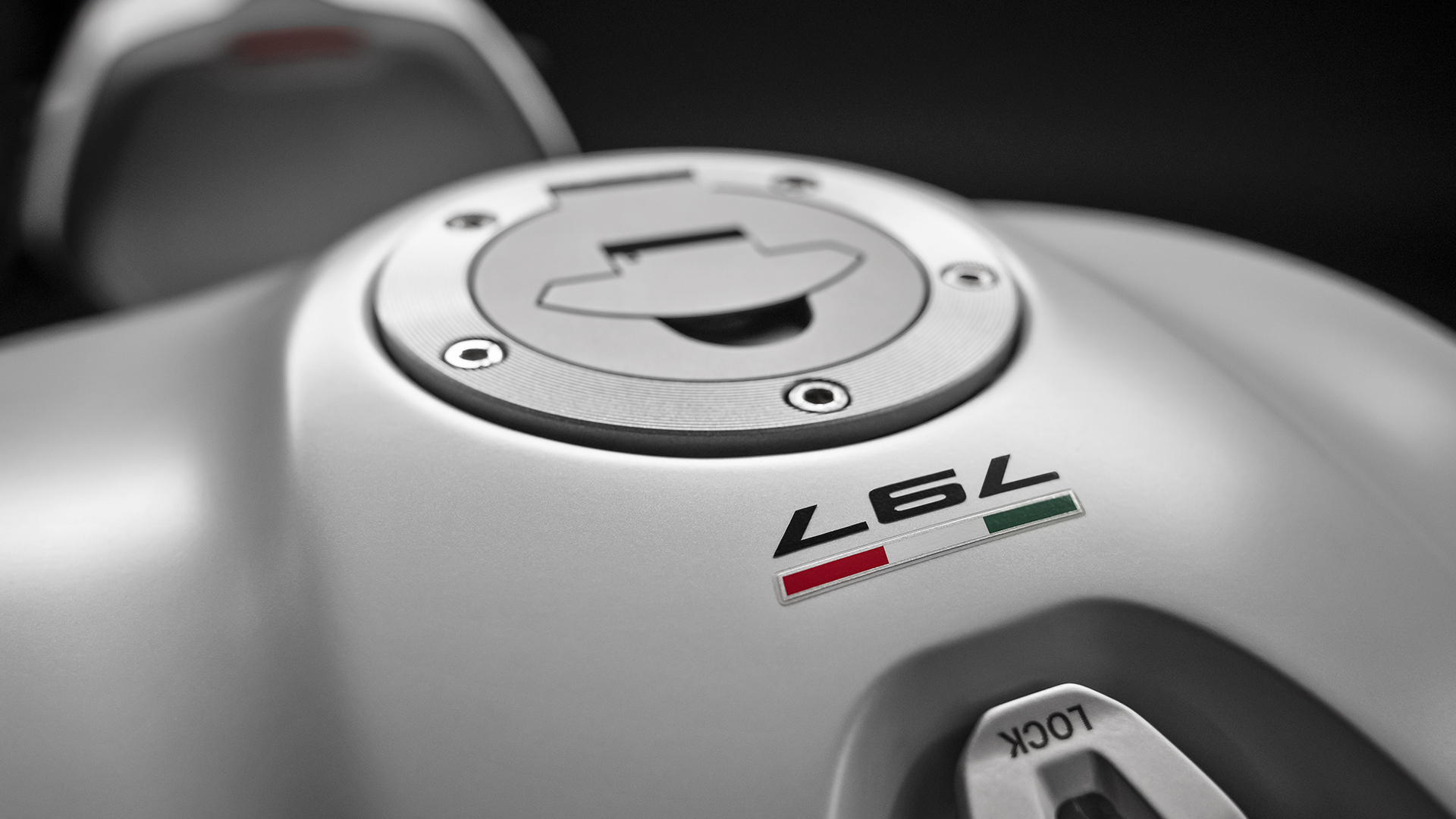

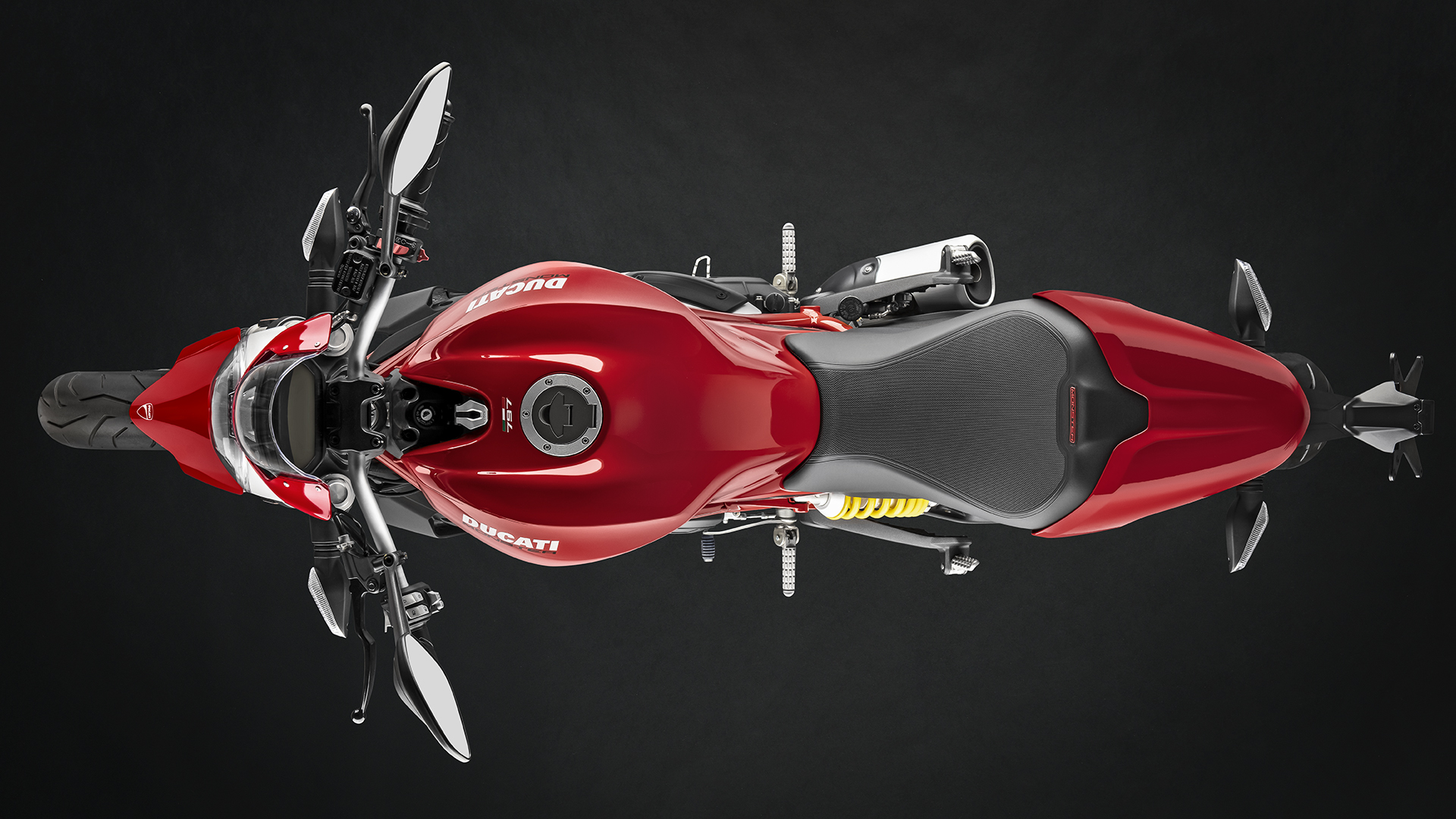

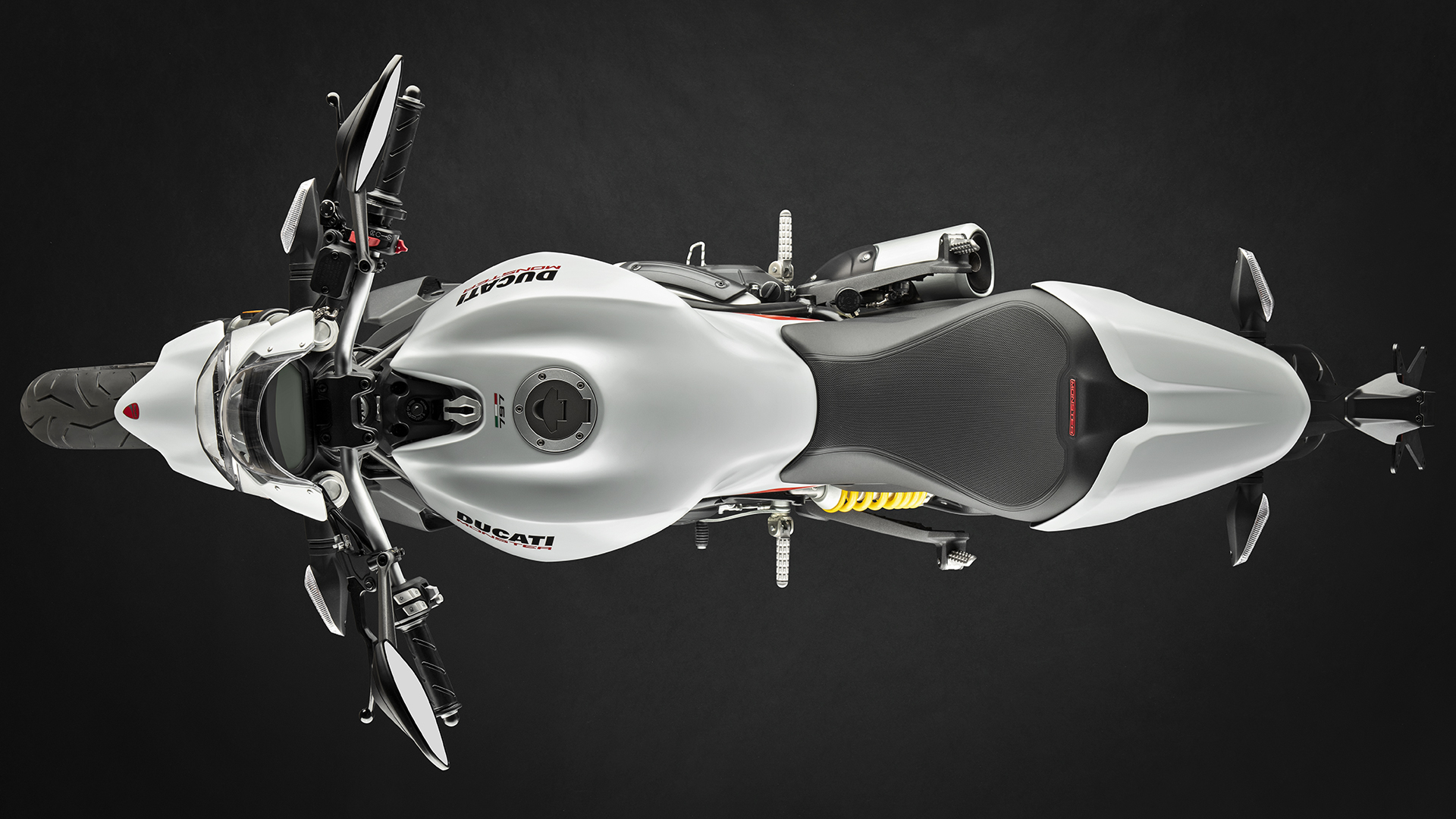

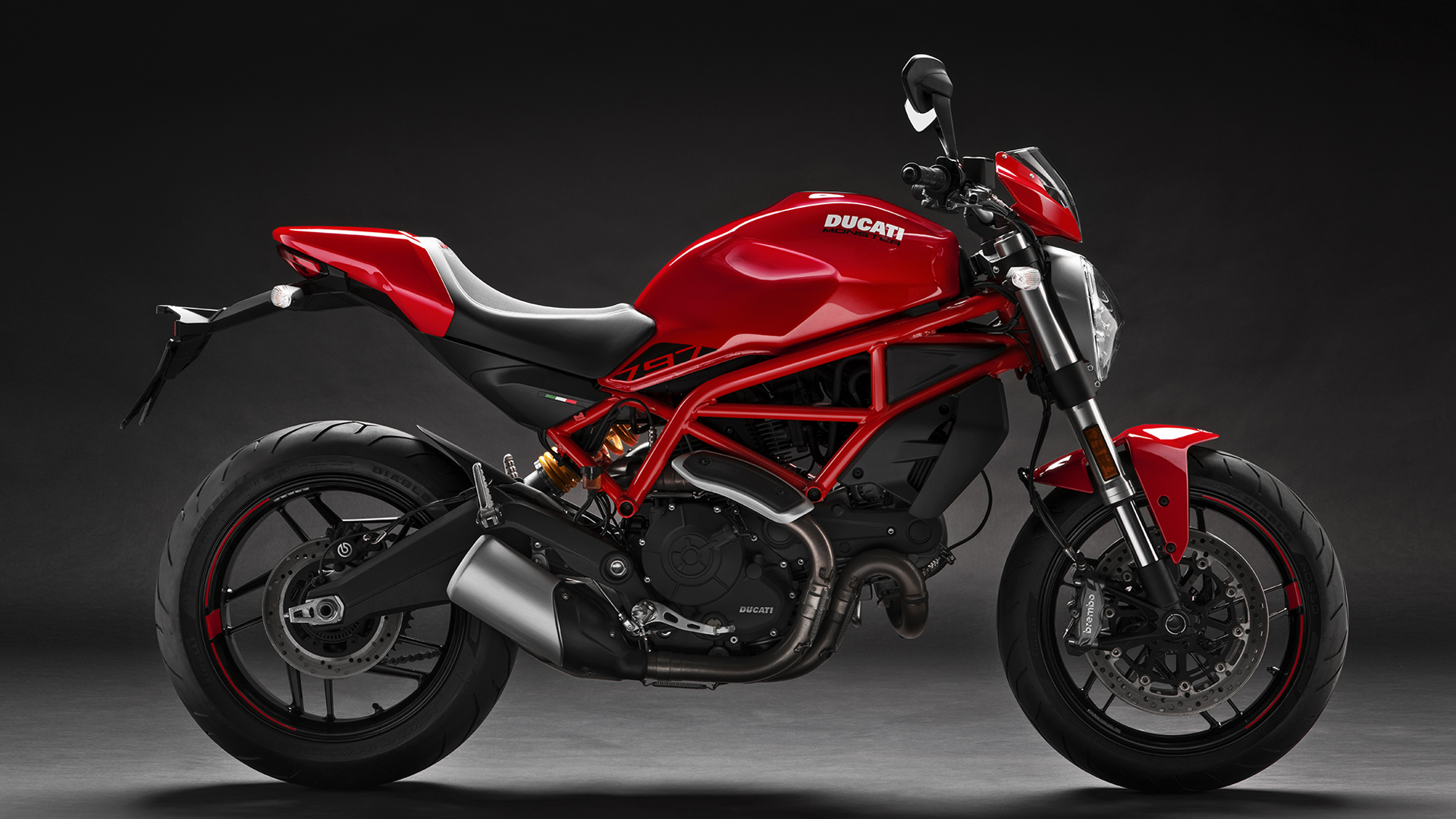

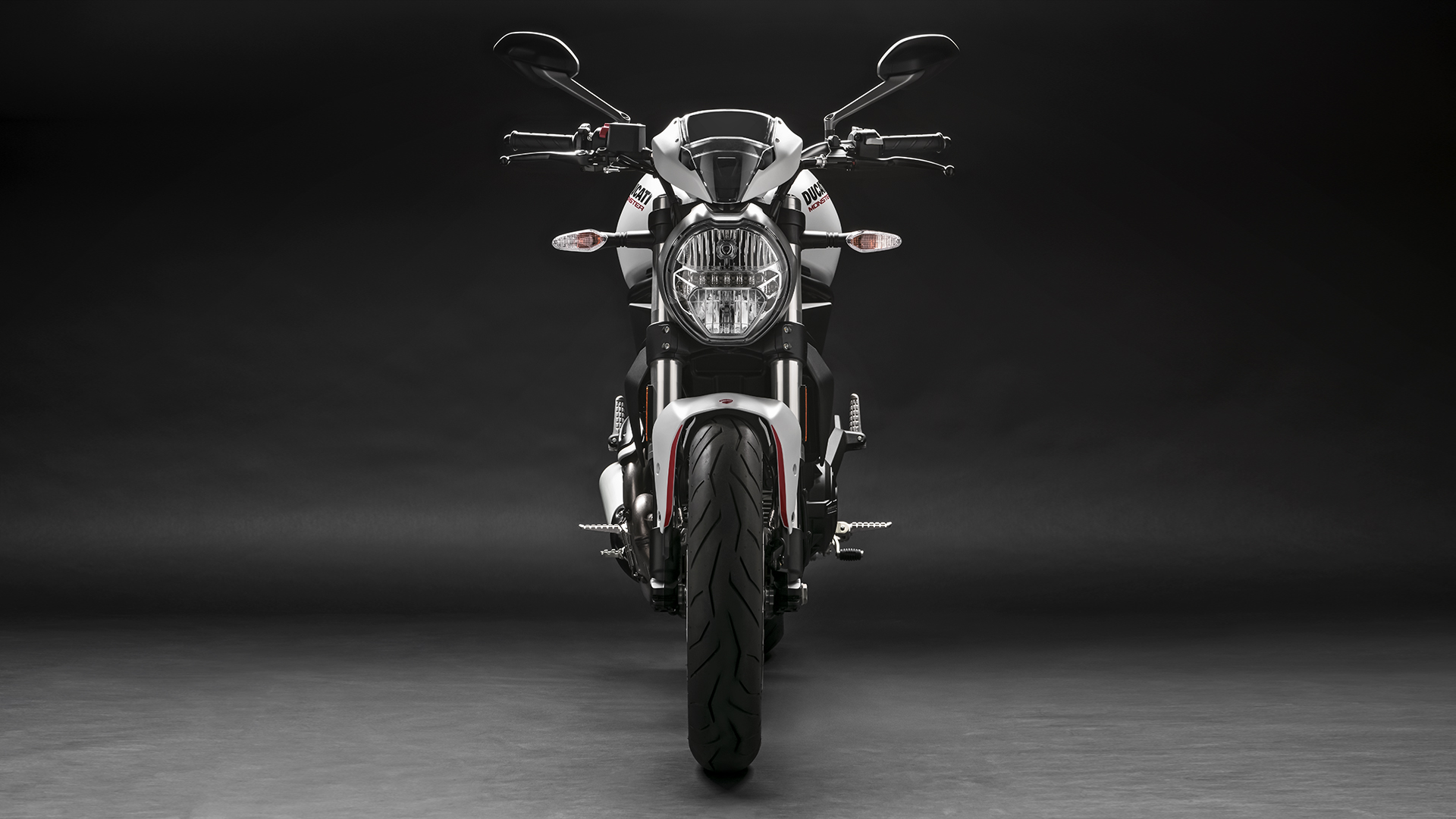

2020 Ducati Monster 797 Photos
